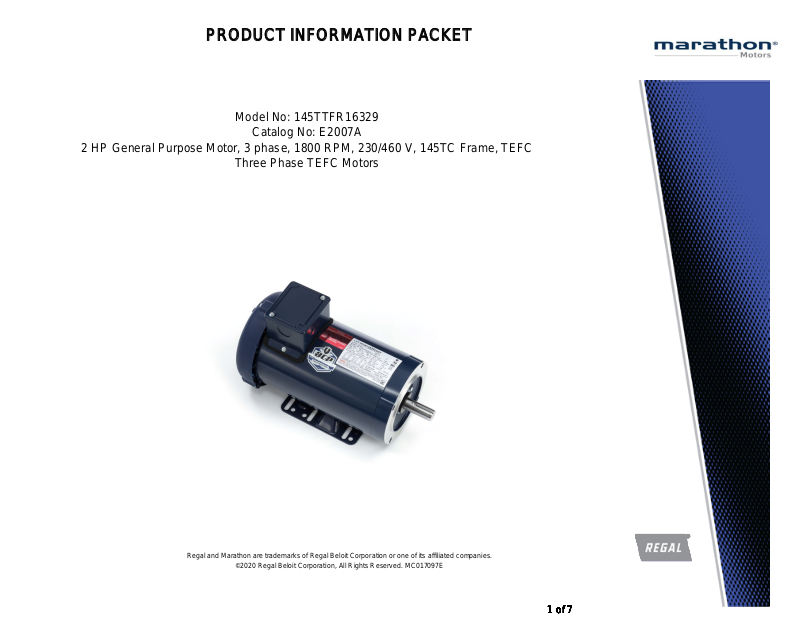

PRODUCT INFORMATION PACKET
Model No: 145TTFR16329
Catalog No: E2007A
2 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 145TC Frame, TEFC
Three Phase TEFC Motors
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2020 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 7
Page 2
Product Information Packet: Model No: 145TTFR16329, Catalog No:E2007A 2 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 145TC
Frame, TEFC
Nameplate Specifications
Output HP 2 Hp Output KW 1.5 kW
Frequency 60 Hz Voltage 230/460 V
Current 6.0/3.0 A Speed 1760 rpm
Service Factor 1.15 Phase 3
Efficiency 86.5 % Power Factor 71
Duty Continuous Insulation Class F
Design Code A KVA Code N
Frame 145TC Enclosure Totally Enclosed Fan Cooled
Thermal Protection No Ambient Temperature 40 °C
Drive End Bearing Size 6205 Opp Drive End Bearing Size 6203
UL Recognized CSA Y
CE Y IP Code 43
Technical Specifications
Electrical Type Squirrel Cage Inverter Rated Starting Method Line Or Inverter
Poles 4 Rotation Reversible
Resistance Main 6.58 Ohms Mounting Rigid Base
Motor Orientation Horizontal Drive End Bearing Ball
Opp Drive End Bearing Ball Frame Material Rolled Steel
Shaft Type T Overall Length 14.87 in
Frame Length 9.56 in Shaft Diameter 0.875 in
Shaft Extension 2.12 in Assembly/Box Mounting F3

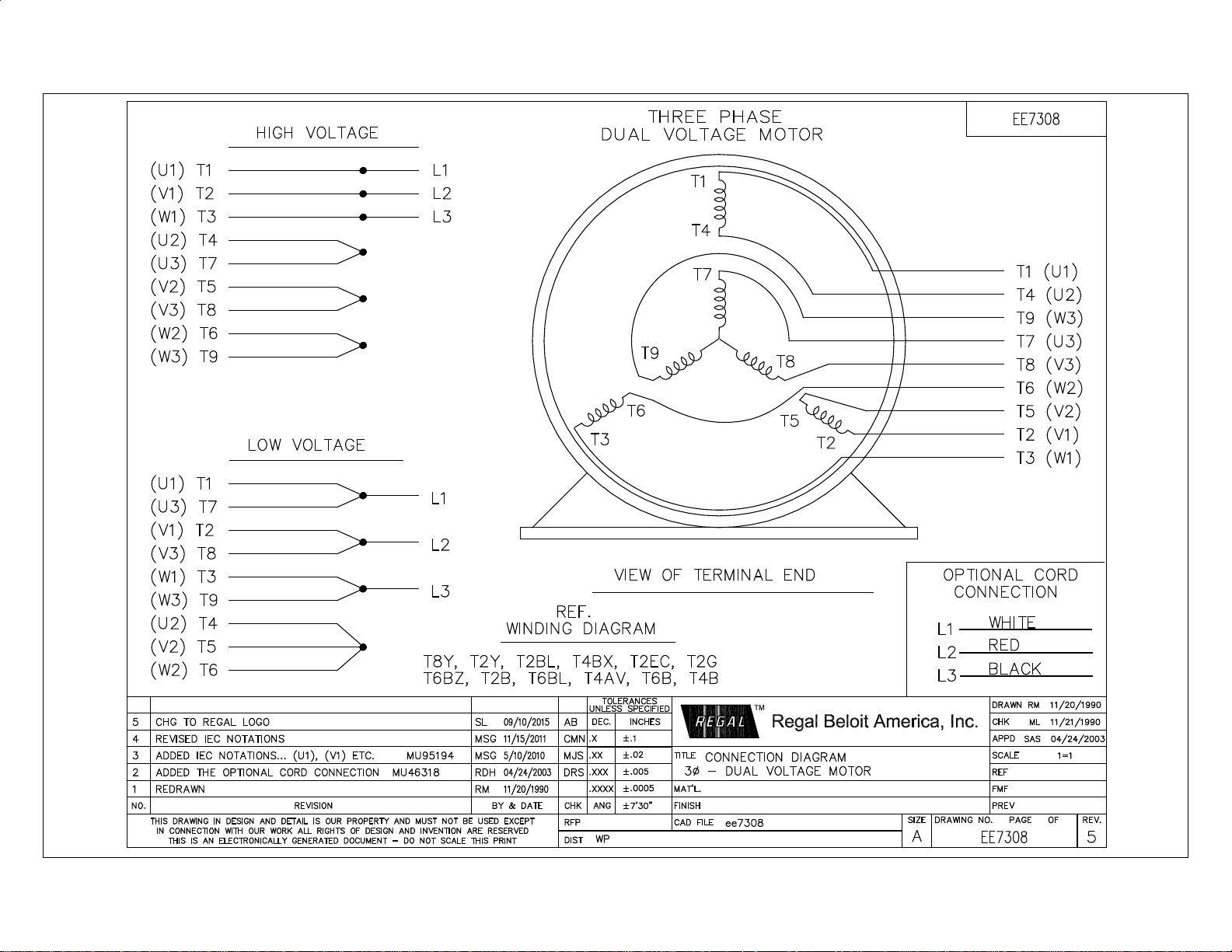

Outline Drawing 104566A-956 Connection Drawing A-EE7308
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:18/06/2020
2 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 7
Page 3
8/24/2007 4:30:21 PM -
3 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 7
Page 4
STACK:
-dictionary-
-dictionary-
/Pscript_WinNT_Compat
-dictionary-
ERROR: syntaxerror
OFFENDING COMMAND: --nostringval--
4 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 7
Page 5
Uncontrolled Copy
5 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 7
Page 6
CERTIFICATION DATA SHEET
Model#: 145TTFR16329 AA WINDING#: ZT4255 FR 3
CONN. DIAGRAM: A-EE7308 ASSEMBLY: F3
OUTLINE: 104566A-956
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
2&2 1.49&1.49 1800 1760&1445 145TC TEFC N A
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60/50 230/460#190/
380
6/3&6.8/3.4 LINE OR
INVERTER
CONTINUOUSF3 1.15/1.15 40 3300
FULL LOAD EFF:
86.5&85.5
3/4 LOAD EFF: 86.5 1/2 LOAD EFF: 85.5 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 71&78 3/4 LOAD PF: 62 1/2 LOAD PF: 49 84 SQ CAGE INV RATED 3.8 / 1.9
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
6 LB-FT 61 / 30.5 24.5 LB-FT 408 33.2 LB-FT 553 45
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
62 dBA 72 dBA 0.14 LB-FT^2 12 LB-FT^2 15 SEC. 2 65 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
C-FACE BRAKE RIGID HORIZONTAL FALSE NONE FALSE NONE BLUE
(POWDER)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM T NONE NONE 1144
STRESSPROOF
(C-223)
ROLLED STEEL
6205 6203
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: CONSTANT 10:1
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: PROVISIONS FOR KIT NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/23/2017 07:41:42 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
6 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 7
Page 7
Date:
Customer:
Attention:
Submitted by:
v
Speed (RPM)
Data Sheet
Current (Amps)
P
E
-500 0 500 1000 1500 2000
10.0
0.0
5.0
15.0
TORQU
20.0
25.0
30.0
35.0
30.0
40.0
50.0
0% 20% 40% 60% 80% 100% 120% 140%
F
60.0
70.0
EFF
80.0
100.0
90.0
Torque (ft-lb)
Efficiency (%) P.F. (%) Current (Amps)
30.5 29.5 19.5 3.0 1.90 2.0
24.5 23.7 33.2 6.0 0.00 1800
0 115 1200 1760 1800
LOAD
P.F. (%)
1800 1790 1780 1770 1760 1,755 1750 0
0.00 1.50 3.0 4.5 6.0 6.9 7.5 24.5
7.0 30.0 49.0 62.0 71.0 75.0 77.0 71.0
LR Pull-Up BD Rated Idle
FAREEDA DUDEKULA
1.90 2.00 2.30 2.60 3.0 3.3 3.5 30.5
1/4/2019 145TTFR16329
Motor Speed Data
77.0 85.5 86.5 86.5 87.5 87.5
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
Torque (ft-lb)
RPM
Efficiency (%)
Uncontrolled Copy
Torque Amps
Speed -Torque Curve
Motor Load Data
RPM
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
A
M
P
S
HP
Sync. RPM
Frame
Additional Specifications:
0
0
3.9620 3.0100 5.7510 5.9360 160.3460
R1 R2 X1 X2 Xm
Outline Dwg 104566A-956
Conn. Diag A-EE7308
Ref Wdg
Sound Pressure @ 1M
VFD Rating
Rotor/Shaft wk²
Elevation
Service Factor
Temp Rise @ FL
Duty
Ambient
Frequency
Design
LR Code letter
Enclosure
Voltage
Construction
EQUIV CKT (OHMS / PHASE)
ZT4255 FR
0.0
5.0
10.0
15.0
20.0
25.0
30.0
35.0
CONSTANT 10:1
62 dBA
CONT
1,000
0.14
feet
Lb-Ft²
1.15
45
40
°
C
N
°
C
230/460#190/380
TEFC
TFR
60
A
Hz
V
Information Block
145
Submittal
Data @
460
AMP
S
