PRODUCT INFORMATION PACKET
Model No: 213TTDWD16333
Catalog No: E168A
7 1/2,1800,213JMV,DP,3/60/230/460
JM
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 6
Page 2
Product Information Packet: Model No: 213TTDWD16333, Catalog No:E168A 7 1/2,1800,213JMV,DP,3/60/230/460
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 230/460 V
Current
Service Factor
Efficiency 91 % Duty Continous
Insulation Class
KVA Code H Frame 213JMV
Enclosure Drip Proof Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6206 UL Recognized
CSA
IP Code
7.50 Hp
20.0/10.0 A
1.15
F
40 °C
Y
12
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
5.6 kW
1765 rpm
3
B
6309
Y
Technical Specifications
Electrical Type
Poles 4 Rotation Reversible
Squirrel Cage Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type JM
Overall Length
Shaft Diameter 0.875 in Shaft Extension 4.25 in
Assembly/Box Mounting
Outline Drawing
Round
20.44 in
F1/F2 Capable
SS86596-1115
Motor Orientation
Frame Length

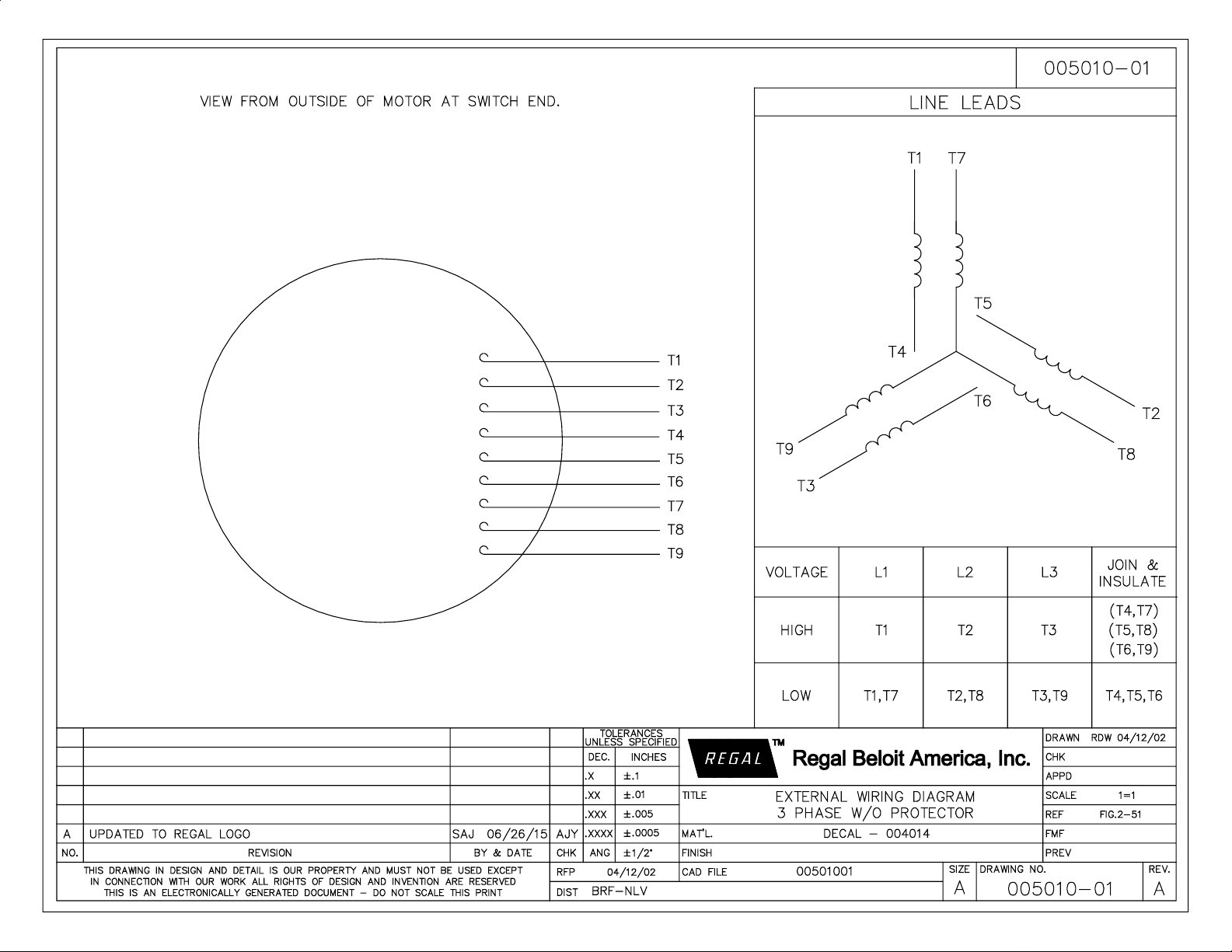

Connection Diagram
Shaft Down
11.15 in
005010.01
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 06/29/2018
2 of 6
Page 3
Uncontrolled Copy
3 of 6
Page 4
Uncontrolled Copy
4 of 6
Page 5
CERTIFICATION DATA SHEET
Model#: 213TTDWD16333 AA WINDING#: K2134278 NONE 2
CONN. DIAGRAM: 005010.01 ASSEMBLY: F1/F2 CAPABLE
OUTLINE: SS86596-1115
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
7 1/2&5 5.60&3.70 1800 1765&1470 213JMV DP H B
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60/50 230/460#190/
380
20/10&16.4/8.2ACROSS THE
LINE
CONTINUOUSF4 1.15/1.15 40 3300
FULL LOAD EFF:
91&91
3/4 LOAD EFF: 91 1/2 LOAD EFF: 89.9 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF:
77.1&75
3/4 LOAD PF: 71.3 1/2 LOAD PF: 58.1 89.5 SQ CAGE IND RUN 10.6 / 5.3
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
22.3 LB-FT 122 / 61 45.3 LB-FT 203 66.1 LB-FT 296 35
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
66 dBA 76 dBA 0.85 LB-FT^2 50 LB-FT^2 20 SEC. 2 125 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
C-FACE STANDARD ROUND SHAFT DOWN FALSE NONE TRUE NONE BLUE
(ENAMEL)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM JM NONE NONE AISI 1045 (C-240) ROLLED STEEL
6309 6206
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/22/2017 05:06:08 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 6
Page 6
Date:
Customer:
Attention:
Submitted by:
Data @
460
v
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
5.3 5.5 6.7 8.1 10.0 10.8 12.1 61.0
Torque (ft-lb)
0.00 5.5 11.0 16.6 22.3 25.5 28.0 45.3
RPM
1800 1792 1784 1775 1765 1,755 1748 0
Efficiency (%)
85.4 89.9 91.0 91.0 90.8 89.9
P.F. (%)
5.2 37.4 58.1 71.3 77.1 81.4 80.6 44.8
LR Pull-Up BD Rated Idle
Speed (RPM)
0 700 1575 1765 1800
Information Block
Current (Amps)
61.0 55.0 37.0 10.0 5.3 7.5
Torque (ft-lb)
45.3 40.0 66.1 22.3 0.00 1800
213
DP
TDW
V
60
Hz
B
H
1.15
35
°
C
CONT
40
°
C
1,000
feet
0.85
Lb-Ft²
K2134278 NONE
66 dBA
Additional Specifications:
R1 R2 X1 X2 Xm
0.7600 0.5590 2.6080 3.6970 57.4560
NONE
0
365THFS8036
EQUIV CKT (OHMS / PHASE)
Ref Wdg
Sound Pressure @ 1M
VFD Rating
Outline Dwg SS86596-1115
Conn. Diag 005010.01
Rotor/Shaft wk²
Voltage
Frequency
Design
LR Code letter
Service Factor
Temp Rise @ FL
Duty
Ambient
Elevation
Construction
Motor Speed Data
HP
Sync. RPM
Frame
Enclosure
Motor Load Data
Submittal
FAREEDA DUDEKULA
Data Sheet
19-06-2017 213TTDWD16333
0.0
2.0
4.0
6.0
8.0
10.0
12.0
14.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
100.0
0% 20% 40% 60% 80% 100% 120% 140%
Efficiency (%) P.F. (%) Cu rrent (Amps)
LOAD
A
M
P
S
E
F
F
P
F
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
0 200 400 600 800 1000 1200 1400 1600 1800 2000
Speed -Torque Curve
Torque Amps
RPM
T
O
R
Q
U
E
A
M
P
S
Uncontrolled Copy
6 of 6
