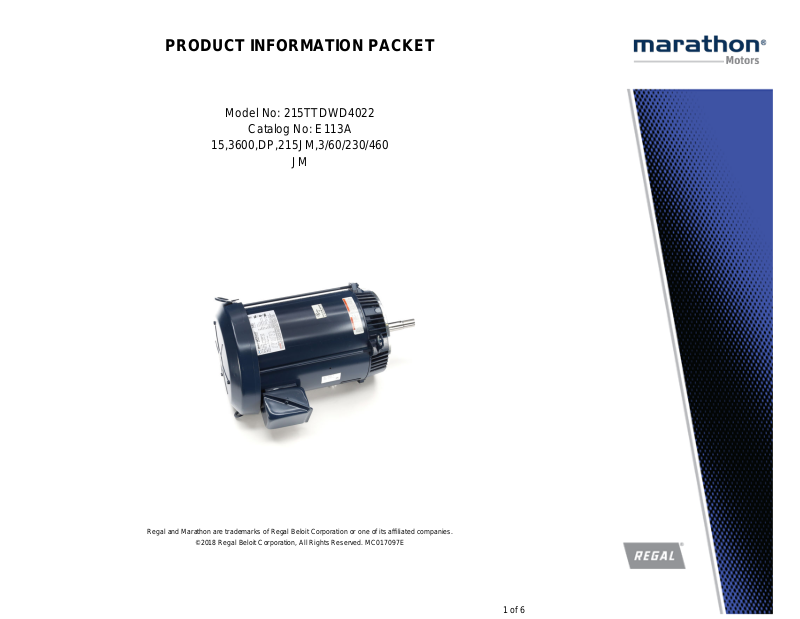

PRODUCT INFORMATION PACKET
Model No: 215TTDWD4022
Catalog No: E113A
15,3600,DP,215JM,3/60/230/460
JM
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 6
Page 2
Product Information Packet: Model No: 215TTDWD4022, Catalog No:E113A 15,3600,DP,215JM,3/60/230/460
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 230/460 V
Current
Service Factor
Efficiency 91 % Duty Continuous
Insulation Class
KVA Code G Frame 215JM
Enclosure Drip Proof Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6206 UL Recognized
CSA
IP Code
15 Hp
36.5/18.2 A
1.15
F
40 °C
Y
12
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
11.2 kW
3525 rpm
3
B
6309
Y
Technical Specifications
Electrical Type
Poles 2 Rotation Reversible
Squirrel Cage Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing BALL Opp Drive End Bearing BALL
Frame Material Rolled Steel Shaft Type JM
Overall Length
Shaft Diameter 0.875 in Shaft Extension 4.25 in
Assembly/Box Mounting

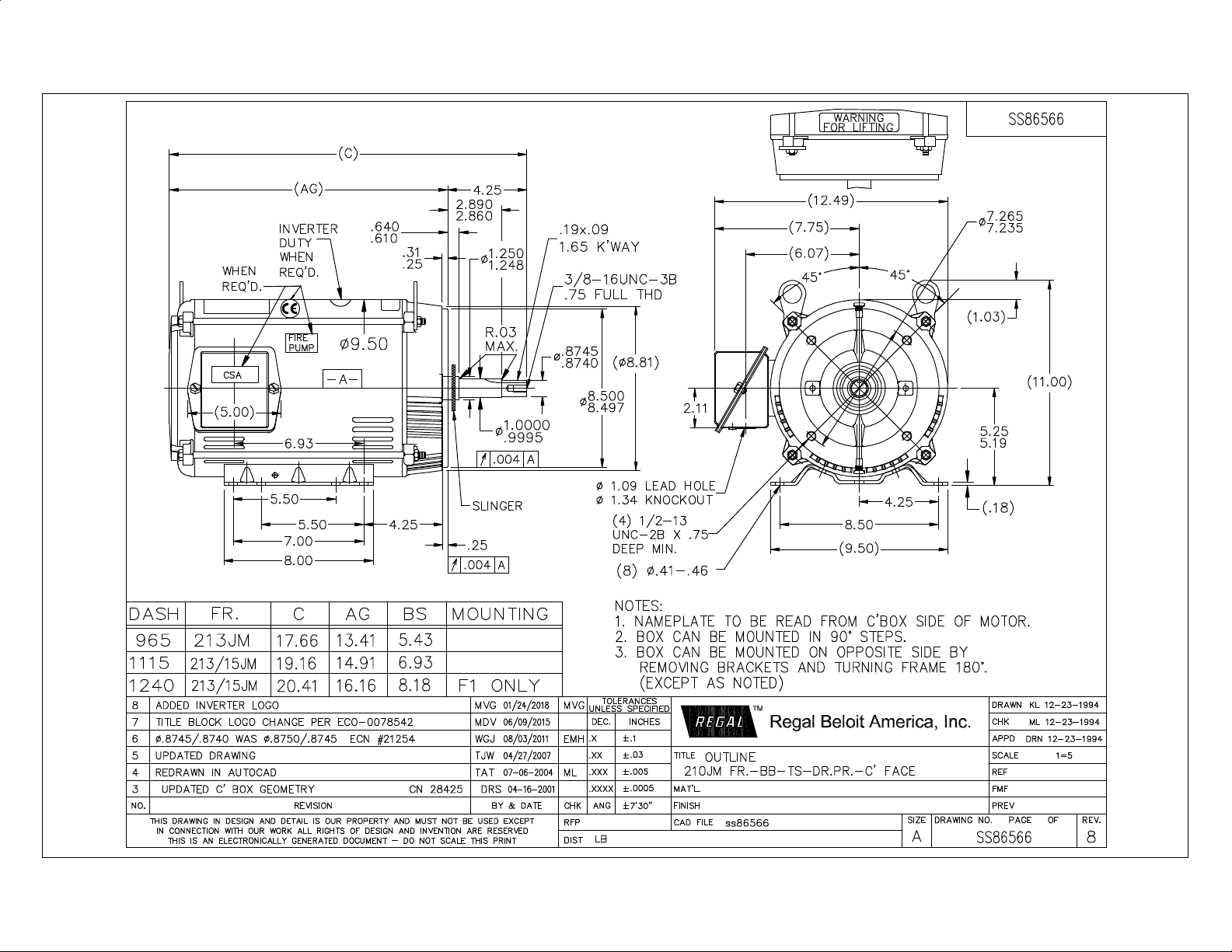

Outline Drawing
Rigid base
19.16 in
F1 ONLY
SS86566-1115
Motor Orientation
Frame Length

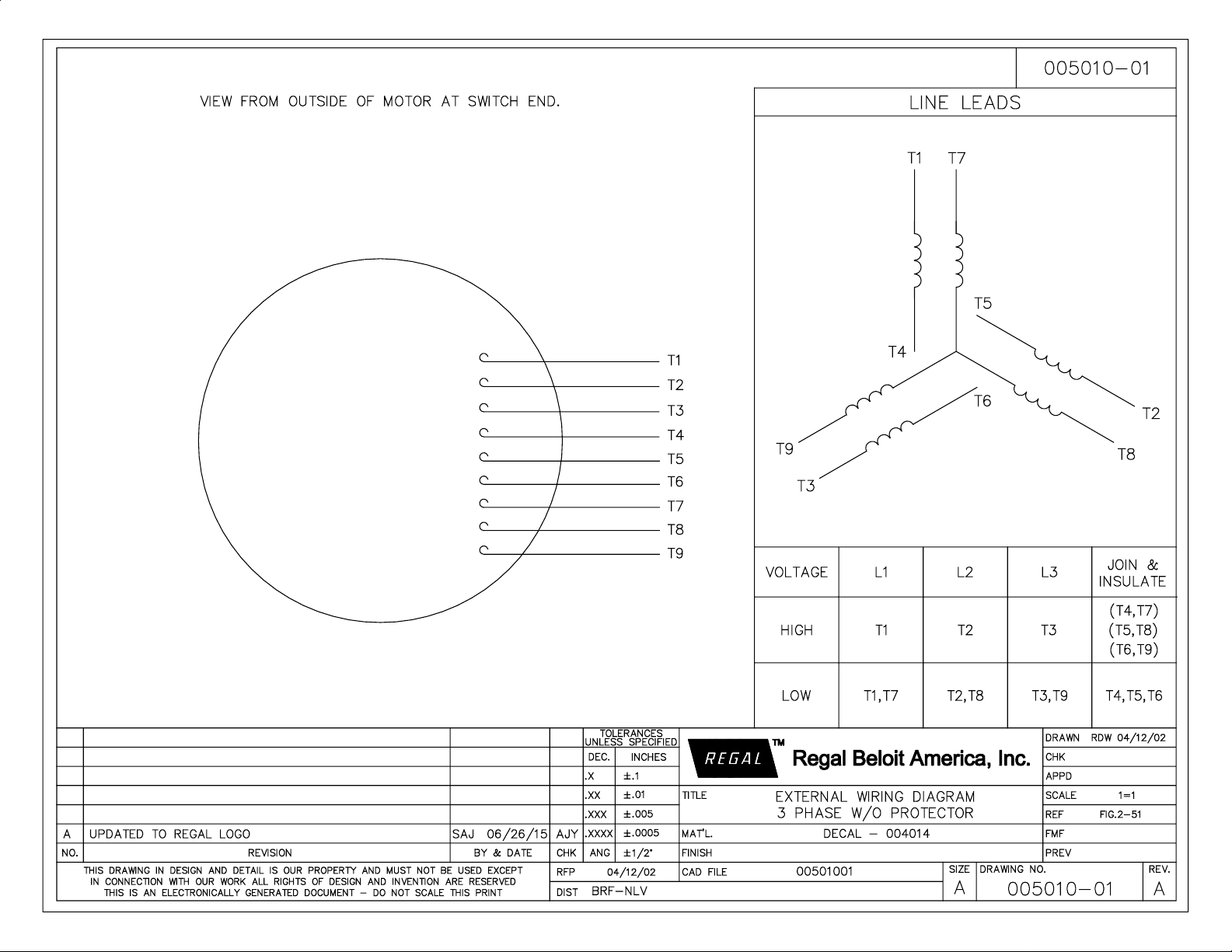

Connection Diagram
HORIZONTAL
11.15 in
005010.01
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/30/2018
2 of 6
Page 3
Uncontrolled Copy
3 of 6
Page 4
Uncontrolled Copy
4 of 6
Page 5
²
²
MOUNT
SEVERE
DRIP
ODE BRACKET
MOTOR
WINDING: K2152225
HAZARDOUS
CONN. DIAGRAM: 005010.01
FORM: 3531 REV_4 2/27/06
O
N
E
S
PREPARED BY: FAREEDA DUDEKULA
DATE: FT-LB:
9/17/2018
T
* NONE PPR
*
0.321 1.320.558
THERMOSTATS PROTECTORS
R1 (ohms/ph) R2 (ohms/ph) X1 (ohms/ph)
NONE NOT
BALL BALL
6309 6206
DE ODE
POLYREX EM
GREASE
DE BRACKET TYPE
BEARINGS
C-FACE
STANDARD
TYPE
22.4 LB-FT 41.8 LB-FT 187% 62.9 LB-FT 281% 40
75 dBA 84 dBA 0.50
@ 3 FT. MAX. LOAD WK²ROTOR WK²POWER
F.L. PF
85.0 79.6 69.5 89.5
116
PH HZ INSL S.F. AMB ELEV.
3 60 F 1.15 40 3300
F.L. EFF
91.0 92.1 91.8 GTD EFF
230/460 ACROSS THE LINE
15 11.2 TDW B
VOLTS
3600 3525 215JM DP
SPEED:
HP KW TYPE DESIGN
SYNC RPM FL RPM
ORDER #: REFERENCE MODEL #: 215TTDW D4022
CUSTOMER: CUSTOMER P.O. #:
RIGID NO NO NONE
WDG RTD's BRG RTD's
NONE NONE NONE FALSE
X2 (ohms/ph) FLOAT
0.864
THERMISTORS CONTROL
UL:
V-INS, CONST UL REC
VOLTAGE: HZ:
NONE
NA
NONE
NONE
ENCODER:
BRAKE:
NONE NONE
NONE
INV. HP SPEED RANGE:
INVERTER TORQUE:
NONE
NONE
NONE
Xm (ohms/ph)
34.208
VIBRATION (in/sec)
0.150 ODE
HEATERS
SPACE
NA
SHAFT TYPE
JM
HORIZONTAL
SPECIAL DE
NONE NONE
SPECIAL ODE
NONE
EN8D STEEL BAR (C-242)
SHAFT MATERIAL
FRAME MATERIAL
ROLLED STEEL
RED (ENAMEL)
`
TYPE
LB-FT
*** SUPPLEMENTAL INFORMATION ***
ORIENTATION
25
DUTY
LOCATION
COVER SCREENS
PAINT
LB-FT
15 SEC. 115 LB.
2
460 V
3/4 LD EFF
36.5/18.2
AMPS
NONE 3
TYPICAL MOTOR PERFORMANCE DATA
CERTIFICATION DATA SHEET
L.R. TORQUEF.L. TORQUE LR AMPS @
START TYPE
1/2 LD EFF
1/2 LD PF3/4 LD PF
CONT
B.D. TORQUE
STARTS/HOURSAFE STALL TIME
SQ CAGE IND RUN
F.L. RISE (
°
C)
MOTOR WGT
DUTY
ELECT. TYPE
FRAME ENCLOSURE
CUSTOMER PART #: OUTLINE: SS86566-1115
MOUNTING: F1 ONLY
CAT #:
P.O. BOX 8003
WAUSAU, WI 54401-8003
PH. 715-675-3311
E113A
KVA CODE
G
DATA VOLTS: 460
Uncontrolled Copy
5 of 6
Page 6
Date:
Customer:
Attention:
Submitted by:
v
Speed (RPM)
Current (Amps)
P
E
10.0
20.0
0.0
0 500 1000 1500 2000 2500 3000 3500 4000
30.0
TORQU
40.0
50.0
60.0
70.0
30.0
40.0
50.0
0% 20% 40% 60% 80% 100% 120% 140%
F
60.0
70.0
EFF
80.0
100.0
90.0
Torque (ft-lb)
Efficiency (%) P.F. (%) Cur rent (Amps)
41.8 40.0 62.9 22.4 0.00 3600
116 115 75.0 18.2 7.6 15.0
0 650 3060 3525 3600
P.F. (%)
3600 3583 3545 3545 3525 3,508 3502 0
0.00 5.5 11.1 16.7 22.4 25.9 28.1 41.8
5.0 46.5 69.5 79.6 85.0 86.2 86.9 39.0
LR Pull-Up BD Rated Idle
FAREEDA DUDEKULA
7.6 8.5 11.0 14.4 18.2 20.9 22.5 116
9/17/2018 215TTDWD4022
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
Torque (ft-lb)
RPM
Efficiency (%)
Motor Speed Data
LOAD
88.9 91.8 92.1 91.0 89.8 89.7
Data Sheet
Torque Amps
Uncontrolled Copy

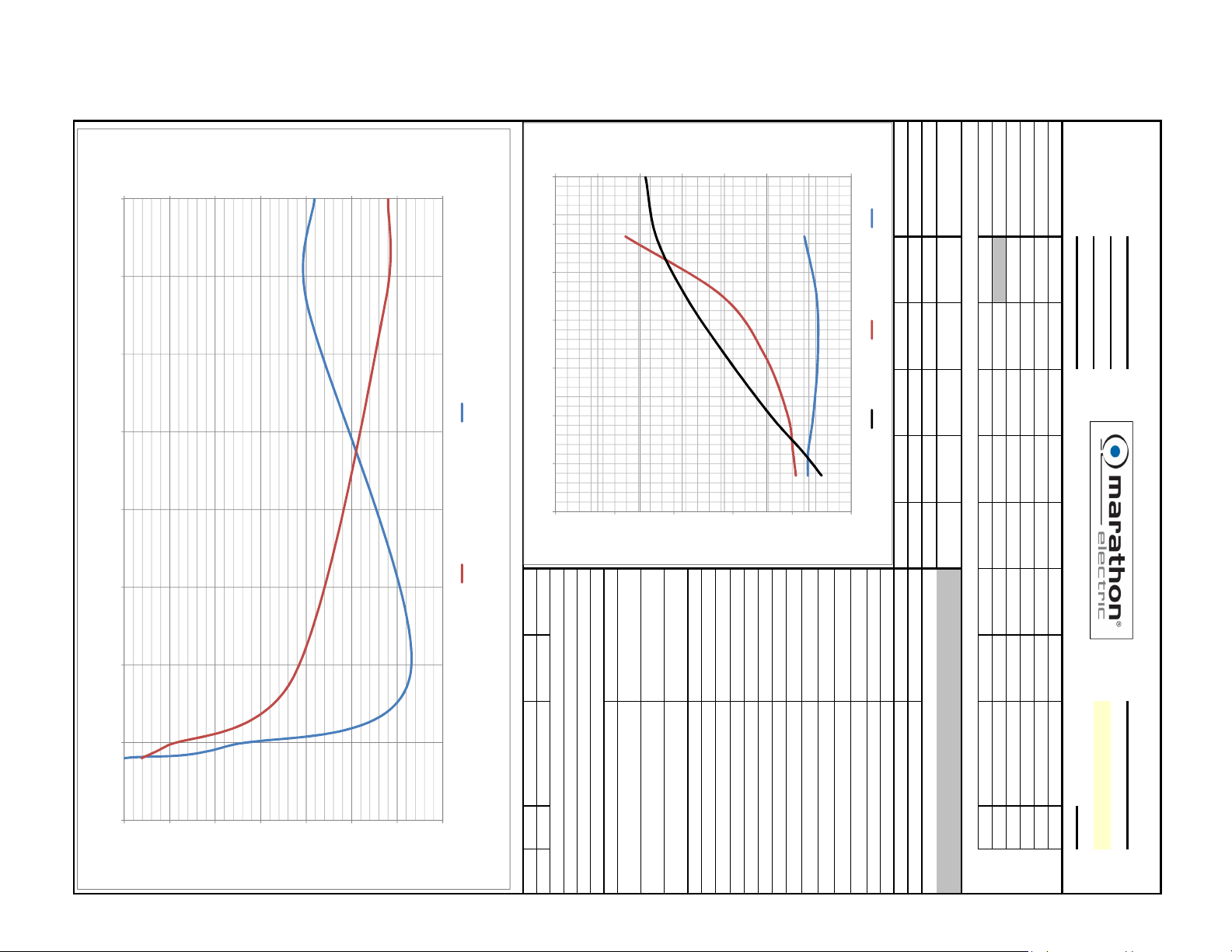

Speed -Torque Curve
Motor Load Data
RPM
0.0
0.5580 0.3210 1.3200 0.8640 34.2080
R1 R2 X1 X2 Xm
EQUIV CKT (OHMS / PHASE)
0.0
20.0
40.0
60.0
80.0
100.0
120.0
140.0
AMP
S
5.0
10.0
15.0
20.0
25.0
A
M
P
S
Rotor/Shaft wk²
Duty
Ambient
Elevation
Ref Wdg
Sound Pressure @ 1M
VFD Rating
Outline Dwg SS86566-1115
Conn. Diag 005010.01
0
0
Additional Specifications:
Design
LR Code letter
Service Factor
Temp Rise @ FL
Construction
Voltage
Frequency
HP
Sync. RPM
Frame
Enclosure
Information Block
K2152225 NONE
CONT
1,000
0.50
75 dBA
NONE
feet
Lb-Ft²
1.15
40
40
°
°
C
C
60
G
A
Hz
215182TTFC6080
230/460
TDW
DP
V
Submittal
Data @
460
6 of 6
