Product Information

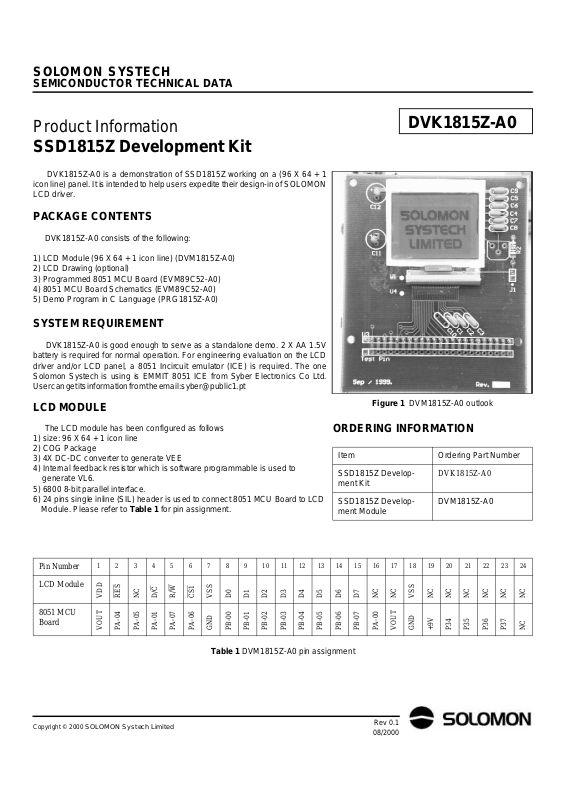

SSD1815Z Development Kit
DVK1815Z-A0 is a demonstration of SSD1815Z working on a (96 X 64 + 1
icon line) panel. It is intended to help users expedite their design-in of SOLOMON
LCD driver.
PACKAGE CONTENTS
DVK1815Z-A0 consists of the following:
1) LCD Module (96 X 64 + 1 icon line) (DVM1815Z-A0)
2) LCD Drawing (optional)
3) Programmed 8051 MCU Board (EVM89C52-A0)
4) 8051 MCU Board Schematics (EVM89C52-A0)
5) Demo Program in C Language (PRG1815Z-A0)
SYSTEM REQUIREMENT
DVK1815Z-A0 is good enough to serve as a standalone demo. 2 X AA 1.5V
battery is required for normal operation. For engineering evaluation on the LCD
driver and/or LCD panel, a 8051 Incircuit emulator (ICE) is required. The one
Solomon Systech is using is EMMIT 8051 ICE from Syber Electronics Co Ltd.
User can get its information from the email: [email protected]
LCD MODULE
Table 1 DVM1815Z-A0 pin assignment
Pin Number
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
LCD Module
VDD
RES
NC
D/C
R/W
CS1
VSS
D0
D1
D2
D3
D4
D5
D6
D7
NC
NC
VSS
NC
NC
NC
NC
NC
NC
8051 MCU
Board
VOUT
PA-04
PA-05
PA-01
PA-07
PA-06
GND
PB-00
PB-01
PB-02
PB-03
PB-04
PB-05
PB-06
PB-07
PA-00
VOUT
GND
+9V
P34
P35
P36
P37
NC
DVK1815Z-A0
Figure 1 DVM1815Z-A0 outlook
The LCD module has been configured as follows
1) size: 96 X 64 + 1 icon line
2) COG Package
3) 4X DC-DC converter to generate VEE
4) Internal feedback resistor which is software programmable is used to
generate VL6.
5) 6800 8-bit parallel interface.
6) 24 pins single inline (SIL) header is used to connect 8051 MCU Board to LCD
Module. Please refer to Table 1 for pin assignment.
ORDERING INFORMATION
Item Ordering Part Number
SSD1815Z Develop-
ment Kit
DVK1815Z-A0
SSD1815Z Development Module
DVM1815Z-A0
Page 2
2
SOLOMON
DVK1815Z-A0
Rev 0.1
08/2000
8051 MCU BOARD
The 8051 MCU Board is powered up by 2 X AA 1.5V battery. A 2X DC converter (ICL7660) is used to generate 4.8V to supply 8051 MCU. This voltage is
also regulated by LM317 to generate VOUT (adjustable from 1.8V to 3.5V)
which in turn powers up solomon LCD driver. All logic output from 8051 are
down-converted from 4.8V to VOUT through 74HC4050 non-inverting buffer.
User can change VOUT by tuning T1 (1K trimmer).The MCU board is configured
to run at a speed of 4MHz. 4 dummy keys are reserved for developing userinteractive application such as tuning contrast.
Figure 2 EVM89C52-A0 outlook
Figure 3 DVM1815Z-A0 schematics
Page 3
3
SOLOMON
DVK1815Z-A0 Rev 0.1
08/2000
PROGRAMMING NOTE
/****************************************************************************
* PRG1815Z-A0 *
* 1815 Evaluation Program *
*****************************************************************************/
#include "reg8751.h"
#define controlport P0
#define dataport P1
/****************************************************
* A) HardWare Interface *
* *
* PORT A 7 6 5 4 3 2 1 0 *
* RW CS -- RES -- -- DC -- *
* PORT B 7 6 5 4 3 2 1 0 *
* D7 D6 D5 D4 D3 D2 D1 D0 *
* *
****************************************************/
/****************************************************
* B) Command Table per device *
****************************************************/
#define DisplayOff 0xAE
#define DisplayOn 0xAF
#define DisplayStart 0x40
#define PageAddr 0xB0
#define ColAddrHi 0x10
#define ColAddrLo 0x00
#define SegRemapOff 0xA0
#define SegRemapOn 0xA1
#define NormalDisp 0xA6
#define ReverseDisp 0xA7
#define SWRest 0xE2
#define ComRemapOff 0xC0
#define ComRemapOn 0xC8
#define PwrCtrlReg 0x28
#define OPampBuffer 0x01
#define IntReg 0x02
#define IntVolBstr 0x04
#define IntRegRatio 0x20
#define ContCtrlReg 0x81
#define Device SSD1815Z /* device under demo */
#define ColNo 96 /* number of Column/Seg on LCD glass*/
#define RowNo 64 /* number of Row/Com/Mux */
#define PS 1 /* fixed to Parallel mode */
#define PageNo 8 /* Total no of RAM pages */
#define IconPage 8 /* Icon Page number */
#define SSLNameNo 3
/****************************************************
* C) Global Variable Definition *
****************************************************/
Page 4
4
SOLOMON
DVK1815Z-A0
Rev 0.1
08/2000
unsigned char WC_CSH;
unsigned char WC_CSL;
unsigned char WD_CSH;
unsigned char WD_CSL;
unsigned char RES_CSH;
unsigned char RES_CSL;
/****************************************************
* D) Hardcoded Graphics *
****************************************************/
unsigned char code PAGEQ0[48]={ 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x80,0x80,0x80,0x80,0x80,0x80,0x80,0xC0,
0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,
0x80,0x80,0xC0,0x80,0x00,0x80,0x80,0x80,
0x80,0x80,0x80,0xC0,0x80,0x00,0x00,0x00};
unsigned char code PAGEQ1[48]={ 0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,
0xBF,0x92,0xD2,0x92,0x12,0x92,0x92,0xBF,
0x80,0x80,0xC0,0x80,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0xFF,0x12,0x12,0x12,
0x12,0x12,0x3F,0x00,0x00,0x3F,0x12,0x12,
0x12,0x12,0x12,0xFF,0x00,0x00,0x00,0x00};
unsigned char code PAGEQ2[48]={ 0x00,0x00,0x00,0x00,0x7F,0x24,0x24,0x24,
0x24,0x24,0x7F,0x00,0x00,0x7F,0x24,0x24,
0x24,0x24,0x7F,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x7F,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,
0x20,0x60,0x60,0x3F,0x00,0x00,0x00,0X00};
unsigned char * SSLName[3]={PAGEQ0, PAGEQ1, PAGEQ2};
/****************************************************
* E) Function Prototypes *
* SetMode(Mode) *
* delay(n) *
* resetchip() *
* SingleCmd(i) *
* SingleData(i) *
* SetRAMAddr(Page,Col) *
* SetContrast(Gain,Step) *
* InitDisplay() *
* clearRAM(start,stop) *
****************************************************/
void SetMode(unsigned char Mode)
{
WC_CSH = 0x7d; //for demoboard MCU
WC_CSL = 0x3d; /* Parallel mode */
WD_CSH = 0x7f; /* Master mode */
WD_CSL = 0x3f; /* 6800 mode */
RES_CSH = 0xff;
RES_CSL = 0xef;
}
Page 5
5
SOLOMON
DVK1815Z-A0 Rev 0.1
08/2000
void delay(unsigned int n) /* wait n seconds*/
{
unsigned int i;
unsigned int j;
for (i=0;i<500;i++)
for (j=0;j<n*2;j++) { ;}
}
void resetchip()
{
unsigned int i;
controlport=RES_CSL;
for (i=1;i<500;i++);
dataport = 0xff;
dataport = 0xff;
dataport = 0xff;
for (i=1;i<500;i++);
controlport=RES_CSH;
}
void SingleCmd(unsigned char i)
/* send the value in the accumulator to LCD driver as a command*/
{
dataport=i;
controlport=WC_CSH;
controlport=WC_CSL;
controlport=WC_CSH;
}
void SingleData(unsigned char i)
/* send the value in the accumulator to LCD driver as a command*/
{
dataport=i;
controlport=WD_CSH;
controlport=WD_CSL;
controlport=WD_CSH;
}
void SetRAMAddr (unsigned char Page, unsigned char Col)
{
unsigned char temp;
temp = 0x0f & Page;
SingleCmd(PageAddr | temp);
temp = 0x0f & (Col >> 4);
SingleCmd(ColAddrHi | temp);
temp = 0x0f & Col;
SingleCmd(ColAddrLo | temp);
}
void SetContrast(unsigned char Gain, Step) {
SingleCmd(IntRegRatio | (0x0f & Gain));
SingleCmd(ContCtrlReg);
Page 6
6
SOLOMON
DVK1815Z-A0
Rev 0.1
08/2000
SingleCmd((0x3f & Step));
}
void InitDisplay() {
SingleCmd(DisplayOff);
SingleCmd(SegRemapOn);
SingleCmd(ComRemapOn);
SetContrast(6, 0x36);
SingleCmd(PwrCtrlReg | IntVolBstr | IntReg | OPampBuffer);
SingleCmd(DisplayOn);
}
void clearRAM(unsigned char startpage,stoppage)
{
unsigned char i,j;
for (j=startpage;j<stoppage;j++) {
SetRAMAddr(j,0x00);
for (i=0; i<132; i++) {
SingleData(0x00);
}
}
}
/****************************************************
* F) Main Function *
****************************************************/
main()
{
unsigned char i, j;
start: SetMode(PS);
resetchip();
clearRAM(0,9);
/****************************/
/* Show device demo */
/****************************/
InitDisplay();
SingleCmd(DisplayOn);
/****************************/
/* Display SSL Chinese */
/* Message */
/****************************/
SingleCmd(DisplayStart);
for (j=0; j<SSLNameNo; j++) {
SetRAMAddr(j+2, 0x18);
for (i=0; i<48; i++) {
SingleData(SSLName[j][i]);
}
}
delay(100);
goto start;
}
Page 7
