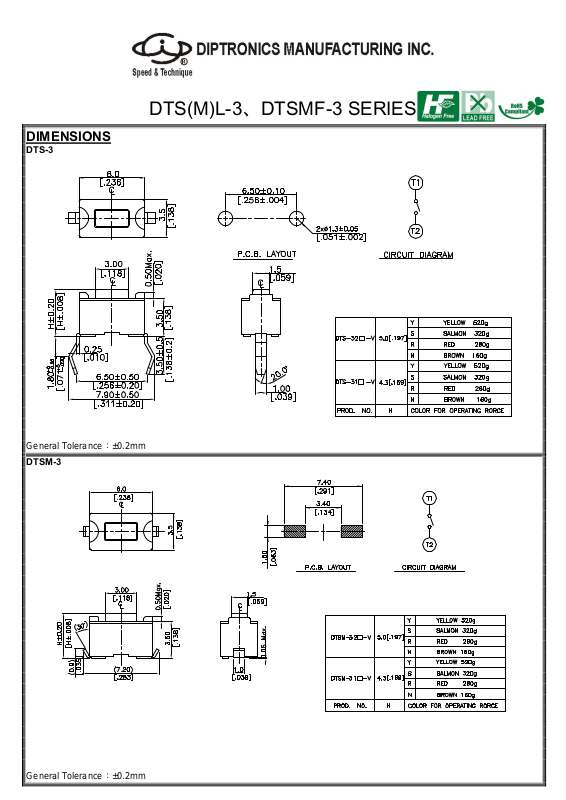

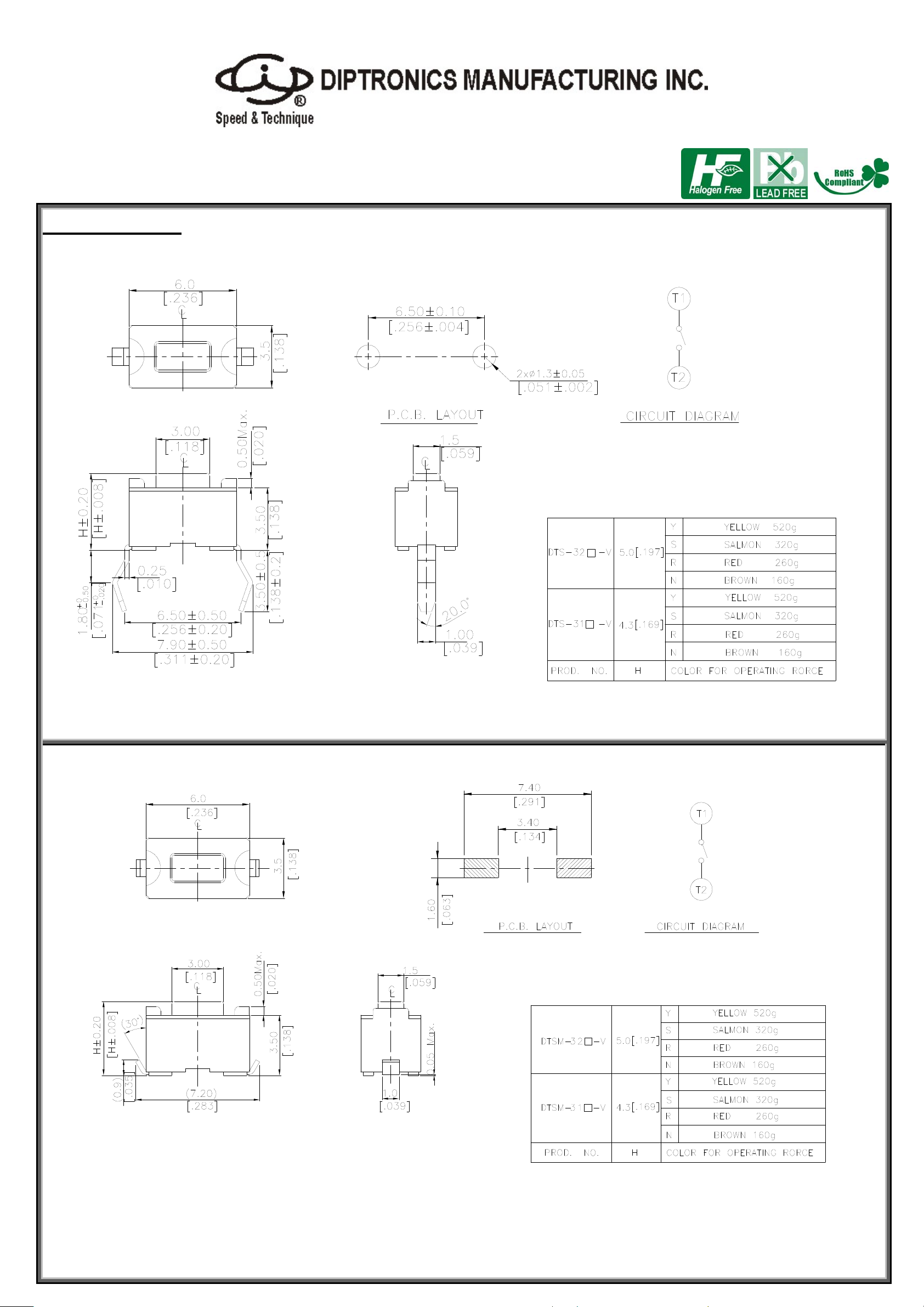

DIMENSIONS
DTS-3
General Tolerance：±0.2mm
DTS(M)L-3、DTSMF-3 SERIES
DTSM-3
General Tolerance：±0.2mm

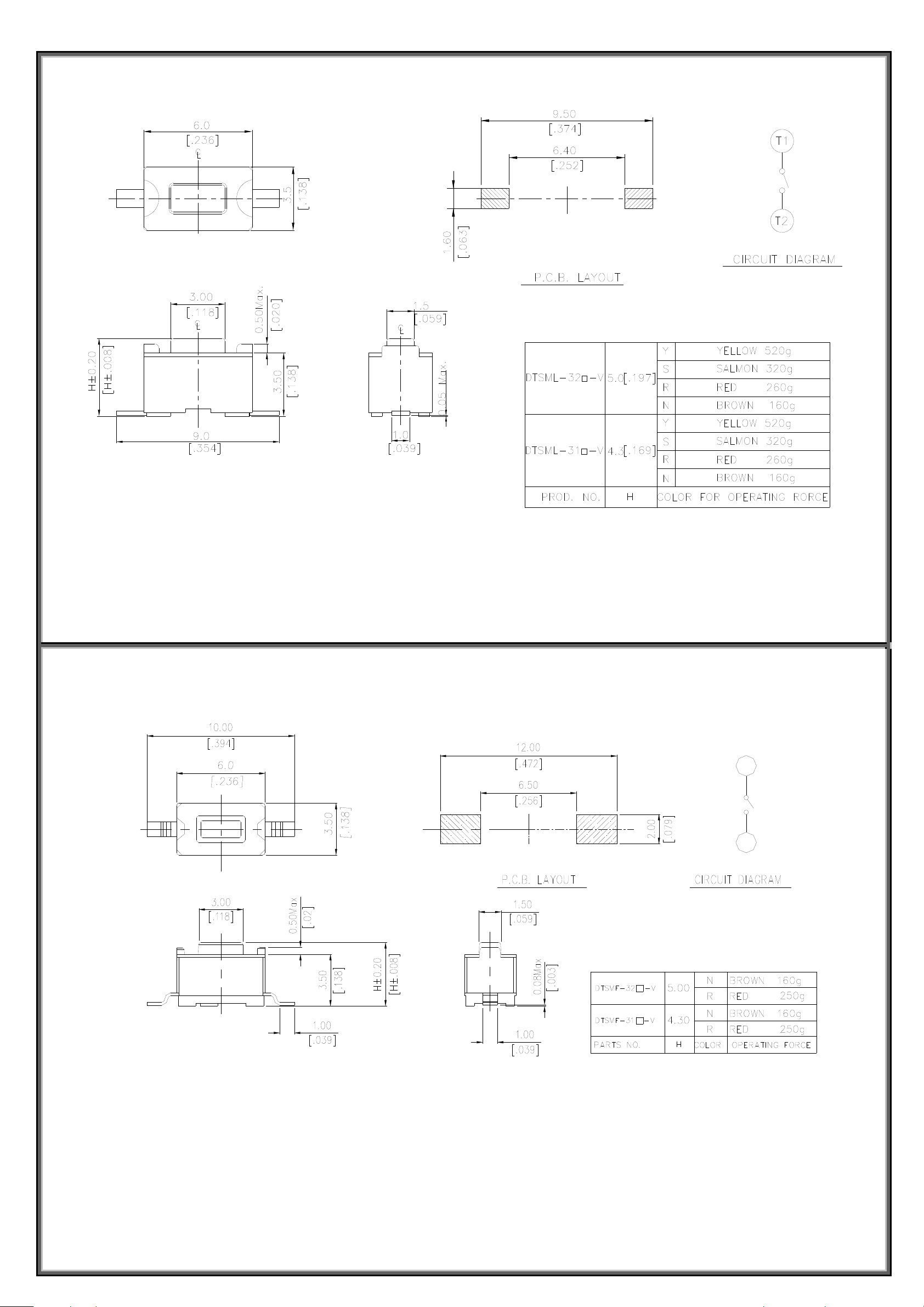

Page 2
DTSML-3
General Tolerance：±0.2mm
DTSMF-3
General Tolerance：±0.2mm
T1
T2
Page 3
HOW TO ORDER
DTS- □ - □ □ □ - □ - □
Package Style:
=Bag(Through Hole Only)
B= Tube Package
T/R = Tape & Reel
Soldering:
V=Lead Free Solderable
Q=Halogen Free
Color of Stem for Operating Force:
N = Brown, 160g
R = Red, 260gf
S = Salmon, 320gf
Y = Yellow, 520gf
Dimension H:
1 = 4.3mm
2 = 5.0mm
Prod. Size: 3 = 3.5x6mm
□ = Through Hole Type
M =S.M.T/J-bend outwardl
ML = S.M.T/Flat
MF = S.M.T/Gull-wing
Tactile Switch 3.5x6mm
SPECIFICATION MATERIAL
△MECHANICAL △COVER: Stainless steel
Operation Force: 520 ± 130gf Yellow (Y) △BASE: UL94V-0 High-Temp. Thermoplastic
320 ± 80gf Salmon (S)
260 ± 50gf Red (R) STEM: △ UL94V-0 High-Temp. Thermoplastic
160 ± 50gf Brown (N) Color: Brown, (160gf), Red (260gf)
Stroke: 0.25 +0.2/ - 0.1 mm Salmon (320gf), Yellow (520gf)
Operation Temperature: -25℃ to +70℃ △CONTACT DISC: Stainless with silver cladding
Storage Temperature: -30℃ to +80℃ △TERMINAL: Brass with silver plated
△ELECTRICAL
Electrical Life: 50,000 cycles for 160gf
30,000 cycles for 260gf, 320gf, 520gf
Rating: 50mA, 12VDC
Contact Resistance: 100mΩ max.
Insulation Resistance: 100MΩ min. at 500VDC
Dielectric Strength: 250VAC/ 1minute
Contact Arrangement: 1 pole 1 throw
Page 4

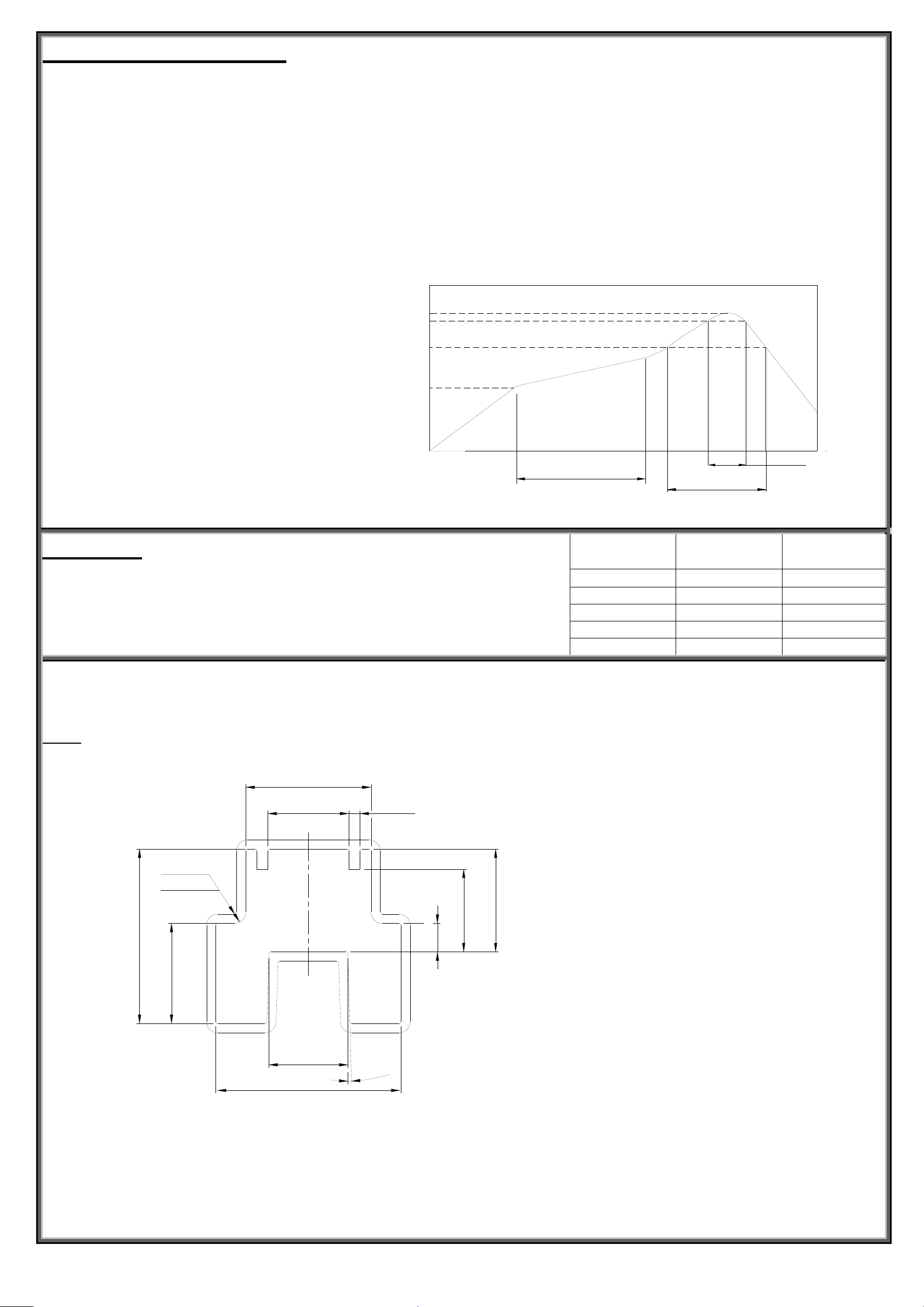

SOLDERING PROCESS
△HAND SOLDERING : Use a soldering iron of 30 watts, controlled at 350 approximately ℃ max 5 seconds while
applying solder.
△REFLOW SOLDERING: When applying reflow soldering, the peak temperature or the reflow oven should be set
at 260 max.℃
△WAVE SOLDERING: Recommended solder temperature at 500℉ (260℃) max. 5 seconds for through hole type.
subject to P.C.B 1.6mm thickness.
△Reflow Temperature Profile:
MAX
260°
255°
230°
150°
Room
Temperature
5~10sec
120~150sec
60sec
TIME(sec)
PACKING
Part Number
Number
Per Tube
DTS-3 135
Number
Per Reel
-
DTS(M)L-31 135 1800
DTS(M)L-32 135 1600
DTSMF-31 1800
DTSMF-32 1600
TUBE
±0.10
6.80
4.40
C
L
+0.0
-0.20
2x0.60
18xR0.10
10xR0.60
-0.0
+0.20
-0.20
+0.0
4.50
5.60
±0.10
9.50
1.55
5.45
+0.20
4.30
-0.0
10.0
+0.20
-0.0
)
°
5
.
1
(
General Tolerance：±0.2mm

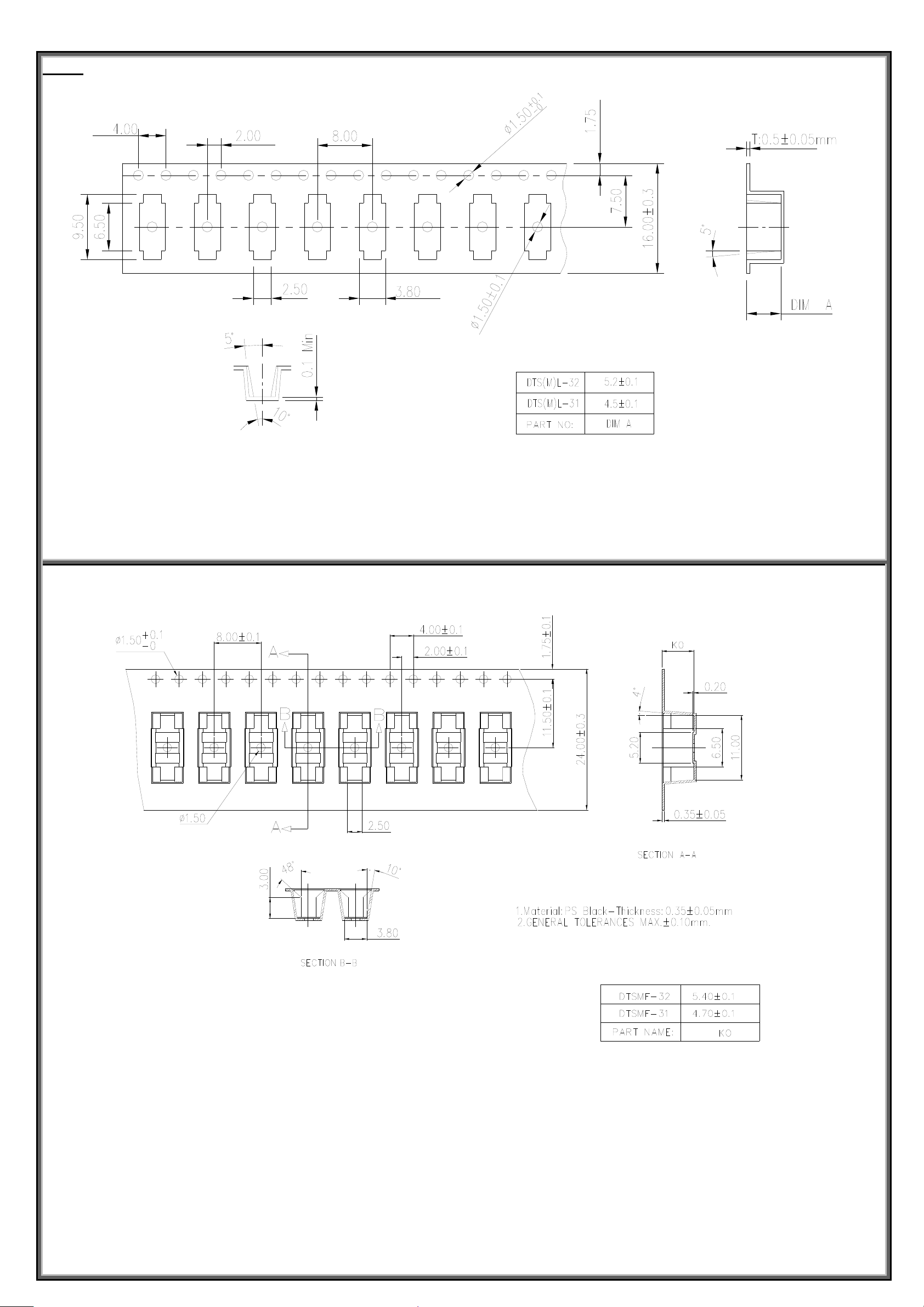

Page 5
REEL
General Tolerance：±0.1mm
DTSMF-3
General Tolerance：±0.1mm
