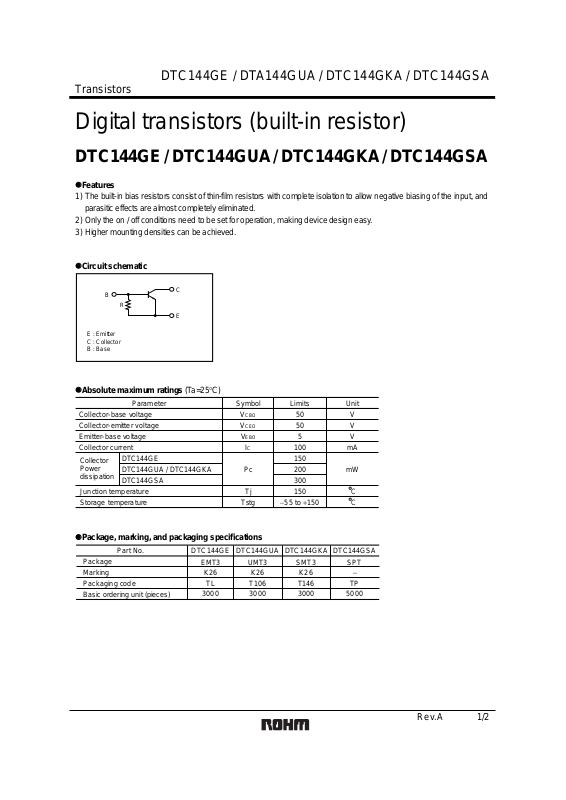

Page 1
DTC144GE / DTA144GUA / DTC144GKA / DTC144GSA
Transistors
Digital transistors (built-in resistor)
DTC144GE / DTC144GUA / DTC144GKA / DTC144GSA
zFeatures
1) The built-in bias resistors consist of thin-film resistors with complete isolation to allo w negati ve biasing o f the input, and
parasitic effects are almost completely eliminated.
2) Only the on / off conditions need to be set for operation, making device design easy .
3) Higher mounting densities can be achieved.
zCircuit schematic
B
E : Emitter
C : Collector
B : Base
R
C
E
zAbsolute maximum ratings (Ta=25°C)
Parameter Symbol
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector
Power
dissipation
Junction temperature
Storage temperature
DTC144GE
DTC144GUA / DTC144GKA
DTC144GSA
V
CBO
V
CEO
V
EBO
I
Pc
Tj
Tstg
C
zPackage, marking, and packaging specifications
Part No. DTC144GE
Package
Marking
Packaging code
Basic ordering unit (pieces)
EMT3
K26
TL
3000
DTC144GUA
UMT3
K26
T106
3000
Limits
50
50
5
100
150
200
300
150
−55 to +150
DTC144GKA
SMT3
K26
T146
3000
Unit
V
V
V
mA
mW
C
C
DTC144GSA
SPT
−
TP
5000
Rev.A 1/2
Page 2
DTC144GE / DTA144GUA / DTC144GKA / DTC144GSA
Transistors
zElectrical characteristics (Ta=25°C)
Parameter
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Collector cutoff current
Emitter cutoff current
Collector-emitter saturation voltage
DC current
Emitter-base resistance
Transition frequency
Transition frequency of the device.
∗
zElectrical characteristics curves
transfer ratio
1k
V
CE
=5V
500
(V)
200
FE
100
50
20
10
5
DC CURRENT GAIN : h
2
1
100µ 200µ 500µ 1m 2m 5m 10m 20m 50m 100m
Ta=25°C
COLLECTOR CURRENT : I
Fig.1 DC current gain
vs. Collector current
Symbol Min. Typ. Max. Unit Conditions
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
V
CE(sat)
h
FE
R
f
T
Ta=100°C
Ta= −40°C
C
(A)
50
50
5
−
65
−
68
32.9
−
−
−
−
−
−
−
−
47
250
) (V)
sat
(
CE
COLLECTOR SATURATION VOLTAGE : V
−
−
−
0.5
130
0.3
−
61.1
−
1
I
C/IB
=20/1
500m
200m
100m
50m
20m
10m
5m
2m
1m
100µ 200µ 500µ 1m 2m 5m 10m 20m 50m 100m
COLLECTOR CURRENT : I
V
V
V
µA
µA
V
−
kΩ
MHz
Ta=25°C
I
C
=50µA
I
C
=1mA
E
=160µA
I
V
CB
=50V
V
EB
=4V
I
C
=10mA , IB=0.5mA
I
C
=5mA , VCE=5V
−
CE
=10V , IE= −5mA , f=100MHz
V
Ta=100°C
Ta= −40°C
C
(A)
Fig.2 Collector-Emitter saturation voltage
vs. Collector current
∗
Rev.A 2/2
Page 3
Appendix
No technical content pages of this document may be reproduced in any form or transmitted by any
means without prior permission of ROHM CO.,LTD.
The contents described herein are subject to change without notice. The specifications for the
product described in this document are for reference only. Upon actual use, therefore, please request
that specifications to be separately delivered.
Application circuit diagrams and circuit constants contained herein are shown as examples of standard
use and operation. Please pay careful attention to the peripheral conditions when designing circuits
and deciding upon circuit constants in the set.
Any data, including, but not limited to application circuit diagrams information, described herein
are intended only as illustrations of such devices and not as the specifications for such devices. ROHM
CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any
third party's intellectual property rights or other proprietary rights, and further, assumes no liability of
whatsoever nature in the event of any such infringement, or arising from or connected with or related
to the use of such devices.
Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or
otherwise dispose of the same, no express or implied right or license to practice or commercially
exploit any intellectual property rights or other proprietary rights owned or controlled by
ROHM CO., LTD. is granted to any such buyer.
Products listed in this document are no antiradiation design.
Notes
The products listed in this document are designed to be used with ordinary electronic equipment or devices
(such as audio visual equipment, office-automation equipment, communications devices, electrical
appliances and electronic toys).
Should you intend to use these products with equipment or devices which require an extremely high level of
reliability and the malfunction of with would directly endanger human life (such as medical instruments,
transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other
safety devices), please be sure to consult with our sales representative in advance.
About Export Control Order in Japan
Products described herein are the objects of controlled goods in Annex 1 (Item 16) of Export Trade Control
Order in Japan.
In case of export from Japan, please confirm if it applies to "objective" criteria or an "informed" (by MITI clause)
on the basis of "catch all controls for Non-Proliferation of Weapons of Mass Destruction.
Appendix1-Rev1.1
