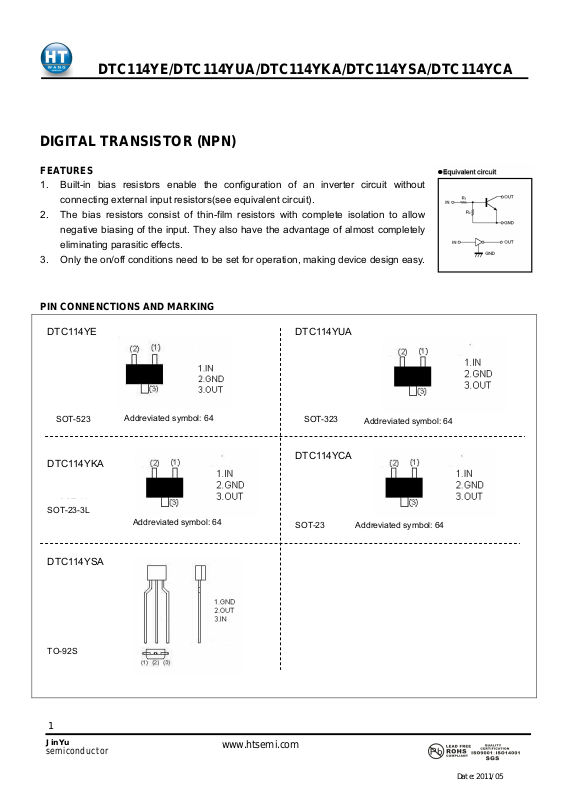

Page 1
DTC114YE/DTC114YUA
/DTC114YKA/DTC114YSA/DTC114YCA
DIGITAL TRANSISTOR (NPN)
FEATURES
1. Built-in bias resistors enable the configuration of an inverter circuit without
connecting external input resistors(see equivalent circuit).
2. The bias resistors consist of thin-film resistors with complete isolation to allow
negative biasing of the input. They also have the advantage of almost completely
eliminating parasitic effects.
3. Only the on/off conditions need to be set for operation, making device design easy.
PIN CONNENCTIONS AND MARKING
DTC114YE DTC114YUA
SOT-523 SOT-323
DTC114YKA
SOT-23
SOT-23-3L
DTC114YSA
TO-92S
Addreviated symbol: 64
Addreviated symbol: 64
DTA114ECA
DTC114YCA
SOT-23
Addreviated symbol: 64
Addreviated symbol: 64
１
JinYu
semiconductor
www.htsemi.com
Ｄａｔｅ：２０１１／０５
Page 2
Absolute maximum ratings(Ta=25℃)
DTC114YE/DTC114YUA
/DTC114YKA/DTC114YSA/DTC114YCA
Parameter Symbol
Limits (DTC114Y□ )
E UA KA CA SA
50 V
Supply voltage
Input voltage
V
CC
-6to+40 V
V
IN
IO 70 mA
Output current
I
100 mA
C(Max.)
P
Power dissipation
Junction temperature
Storage temperature
150 200 300 mW
C
Tj 150
Tstg -55 to+ 150
Electrical characteristics (Ta=25℃)
Parameter Symbol Min. Typ Max. Unit Conditions
Input voltage
Output voltage
Input current
Output current
DC current gain
Input resistance
Resistance ratio
Transition frequency
V
V
V
I
I
G
R
R
f
0.3 VCC=5V ,IO=100µA
I(off)
1.4
I(on)
0.3 V IO/II=5mA/0.25mA
O(on)
0.88 mA VI=5V
I
0.5 µA VCC=50V ,VI=0
O(off)
68 VO=5V ,IO=5mA
I
7 10 13 KΩ
1
3.7 4.7 5.7
2/R1
250 MHz Vo=10V ,Io=5mA,f=100MHz
T
V
VO=0.3V ,IO=1mA
Unit
℃
℃
Typical Characteristics
２
JinYu
semiconductor
www.htsemi.com
Ｄａｔｅ：２０１１／０５
