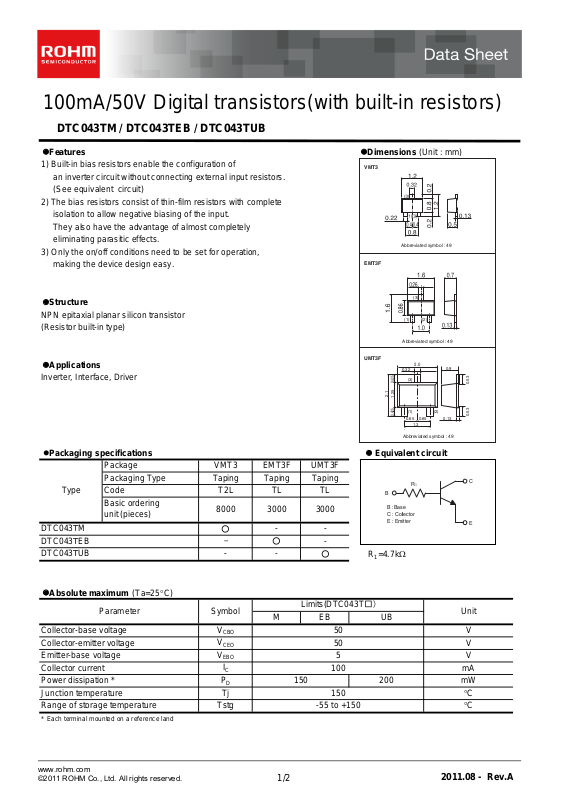

100mA/50V Digital transistors(with built-in resistors)

B : Bas e C : Collector E : Emitter

DTC043TM / DTC043TEB / DTC043TUB

Features Dimensions (Unit : mm)

1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors. (See equivalent circuit)

2) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.

3) Only the on/off conditions need to be set for operation, making the device design easy.

VMT3

Abbreviated symbol : 49

EMT3F

Structure

NPN epitaxial planar silicon transistor

(3)

(1) (2)

(Resistor built-in type)

Abbreviated symbol : 49

Applications

UMT3F

Inverter, Interface, Driver

2.0

0.32

(3)

0.4250.425

2.1

1.25

(1) (2)

0.65 0.65

1.3

Abbreviated symbol : 49

Packaging specifications  Equivalent circuit

Package VMT3 EMT3F

UMT3F

Packaging Type Taping Taping Taping

Type

DTC043ＴM DTC043ＴEB

Code T2L TL Basic ordering

unit (pieces)

8000 3000 3000

○

-○

DTC043ＴUB - -

○

=4.7k

0.9

0.530.53

0.13

Absolute maximum (Ta=25C)

Parameter Symbol

Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Power dissipation *

CBO

CEO

EBO

Limits(DTC043T□)

MEB UB

50 V 50 V

100 mA

150 200 Junction temperature Tj 150 Range of storage temperature Tstg -55 to +150

* Each terminal mounted on a reference land

1/2

Unit

C C

2011.08 - Rev.A

Page 2

DTC043TM / DTC043TEB / DTC043TUB

Electrical characteristics (Ta=25C)

Parameter Min. Typ.

Collector-Base breakdown voltage 50 -

Collector-Emitter breakdown voltage 50 -

Emitter-Base breakdown voltage 5 -

Collector cut-off current - -

Emitter cut-off current - -

Collector-Emitter saturation voltage -

DC current gain

Transition frequency * - 250

Input resistance 3.29 4.7

* Characteristics of built-in transistor

Symbol Max. Unit

CBO

CEO

EBO

CBO

EBO

CE(sat)

100 -

0.05

Electrical characteristics curves

-V

500 nA

0.15 V

600 -

- MHz

6.11

k

Test Conditions

=50A

=1mA

IE=50A

VCB=50V

VEB=4V

=5mA / IB=0.5mA

VCE=10V / IC=5mA

=10V / IE=-5mA

f=100MHz

Data Sheet

1000

100

DC CURRENT GAIN : h

Ta=125ºC

Ta=75ºC Ta=25ºC

Ta=-40ºC

0.1 1 10 100

COLLECTOR CURRENT : IC (mA)

VCE=10V

COLLECTOR SATURATION VOLTAGE :

Ta=125ºC

Ta=75ºC

0.1

(V)

CE(sat)

0.01

0.001

0.1 1 10 100

Ta=25ºC

Ta=-40ºC

COLLECTOR CURRNET : IC (mA)

IC/IB=10

Fig.1 DC Current Gain vs. Collector Current Fig.2 Collector Saturation Voltage vs. Collector Current

2/2

2011.08 - Rev.A
