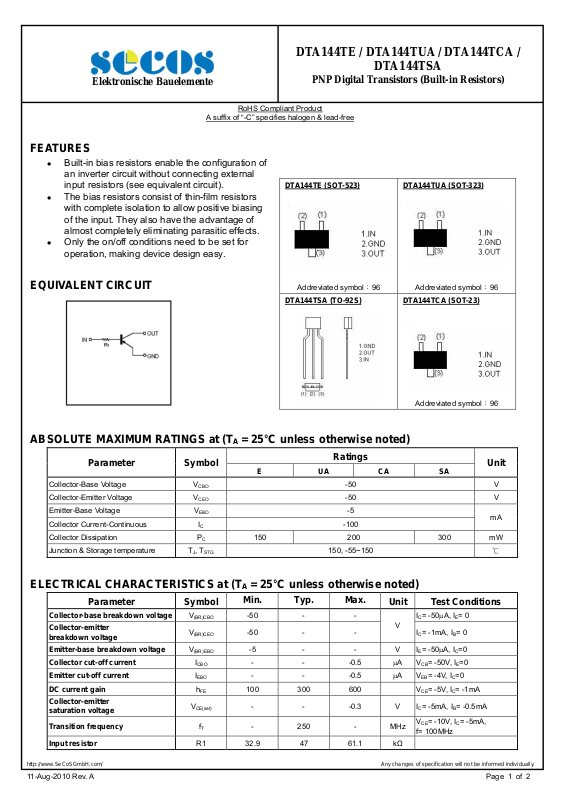

Page 1
Elektronische Bauelemente
A suffix of “-C” specifies halogen & lead-free
FEATURES
Built-in bias resistors enable the configuration of
an inverter circuit without connecting external
input resistors (see equivalent circuit).
The bias resistors consist of thin-film resistors
with complete isolation to allow positive biasing
of the input. They also have the advantage of
almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for
operation, making device design easy.
EQUIVALENT CIRCUIT
RoHS Compliant Product
DTA144TE / DTA144TUA / DTA144TCA /
DTA144TSA
PNP Digital Transistors (Built-in Resistors)
DTA144TE (SOT-523)
Addreviated symbol：96
DTA144TSA (TO-92S)
DTA144TUA (SOT-323)
Addreviated symbol：96
DTA144TCA (SOT-23)
Addreviated symbol：96
ABSOLUTE MAXIMUM RATINGS at (TA = 25°C unless otherwise noted)
Parameter Symbol
E UA CA SA
Collector-Base Voltage V
Collector-Emitter Voltage V
Emitter-Base Voltage V
Collector Current-Continuous IC -100
Collector Dissipation PC 150 200 300 mW
Junction & Storage temperature TJ, T
-50 V
CBO
-50 V
CEO
-5
EBO
150, -55~150 ℃
STG
Ratings
Unit
mA
ELECTRICAL CHARACTERISTICS at (TA = 25°C unless otherwise noted)
Parameter Symbol
Collector-base breakdown voltage V
Collector-emitter
breakdown voltage
Emitter-base breakdown voltage V
Collector cut-off current I
Emitter cut-off current I
DC current gain h
Collector-emitter
saturation voltage
Transition frequency f
Input resistor R1 32.9 47 61.1 kΩ
-50 - -
(BR)CBO
V
-50 - - IC= -1mA, IB= 0
(BR)CEO
-5 - - V IE= -50A, IC=0
(BR)EBO
- - -0.5 A VCB= -50V, IE=0
CBO
- - -0.5 A VEB= -4V, IC=0
EBO
100 300 600 VCE= -5V, IC= -1mA
FE
V
- - -0.3 V IC= -5mA, IB= -0.5mA
CE(sat)
- 250 - MHz
T
Min. Typ. Max.
Unit Test Conditions
IC= -50A, IE= 0
V
V
f= 100MHz
= -10V, IC= -5mA,
CE
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
11-Aug-2010 Rev. A Page 1 of 2
Page 2
Elektronische Bauelemente

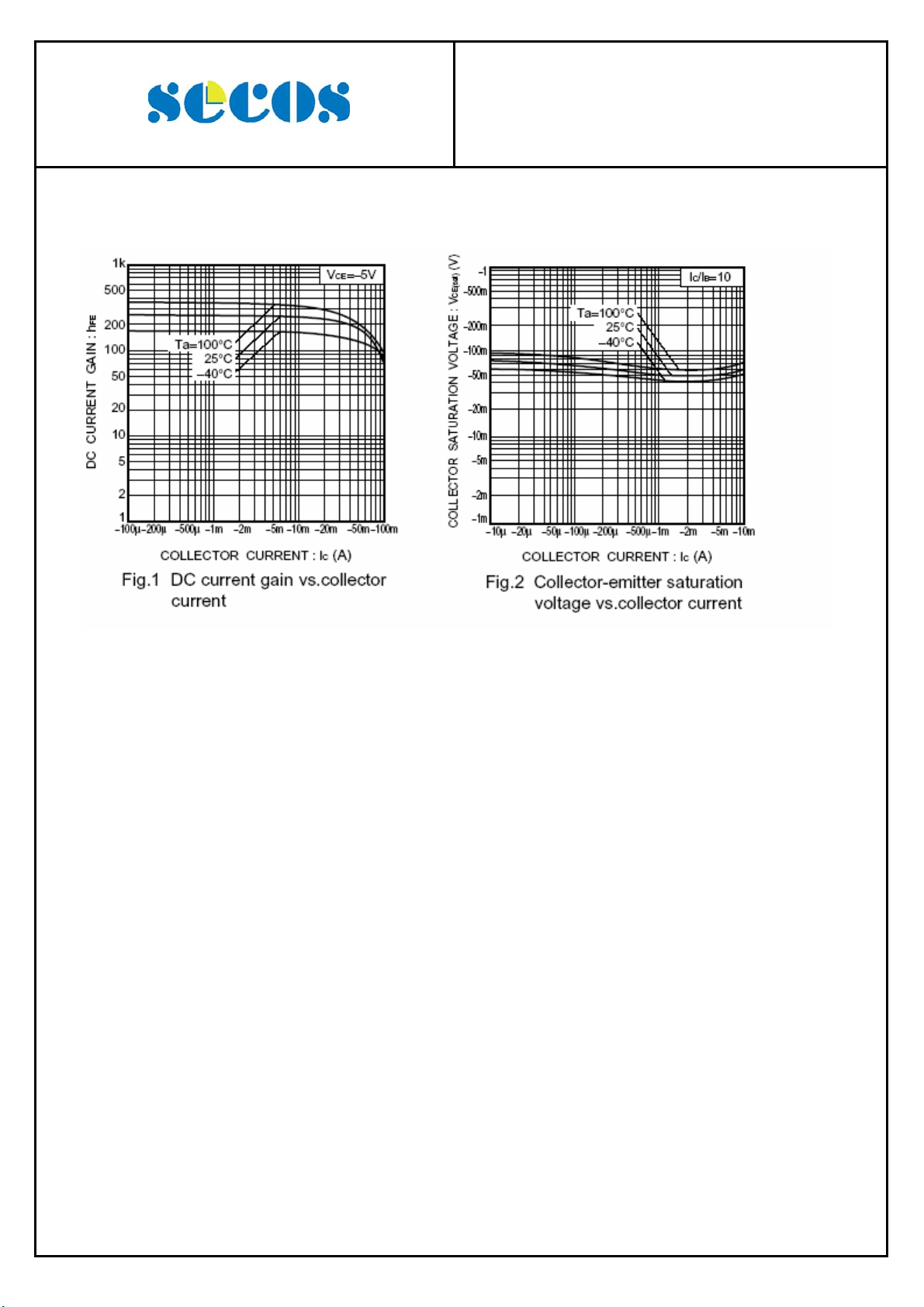

CHARACTERISTIC CURVES
DTA144TE / DTA144TUA / DTA144TCA /
PNP Digital Transistors (Built-in Resistors)
DTA144TSA
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
11-Aug-2010 Rev. A Page 2 of 2
