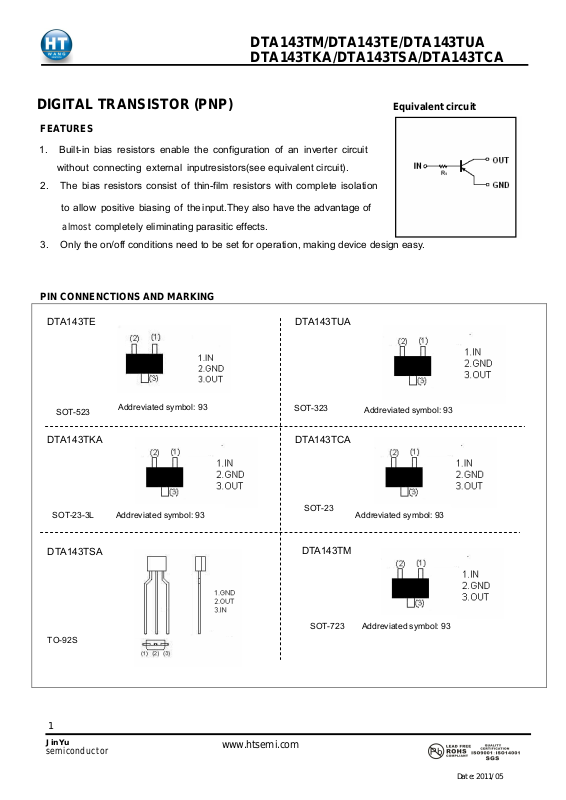

DTA143 TM/DTA143 TE/DTA143 TUA
DTA143 TKA/DTA143 TSA/DTA143 TCA
DIGITAL TRANSISTOR (PNP)
FEATURES
1. Built-in bias resistors enable the configuration of an inverter circuit
without connecting external input
2. The bias resistors consist of thin-film resistors with complete isolation
to allow positive biasing of the
almost
3. Only the on/off conditions need to be set for operation, making device design easy.
PIN CONNENCTIONS AND MARKING
DTA143TE DTA143TUA
completely eliminating parasitic effects.
resistors(see equivalent circuit).
input.They also have the advantage of
Equivalent circuit
SOT-523
SOT-23-3L
DTA143TSA
TO-92S
Addreviated symbol: 93
Addreviated symbol: 93
SOT-323
DTA114ECA DTA143TCA DTA143TKA
SOT-23
DTA114ECA DTA143TM
SOT-723
Addreviated symbol: 93
Addreviated symbol: 93
Addreviated symbol: 93
１
JinYu
semiconductor
www.htsemi.com
Ｄａｔｅ：２０１１／０５
Page 2
Absolute maximum ratings(Ta=25℃)
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector Power dissipation
Junction temperature
Storage temperature
Electrical characteristics (Ta=25℃)
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Collector cut-off current
Emitter cut-off current
Collector-emitter saturation voltage
DC current transfer ratio
Input resistance
Transition frequency
Typical Characteristics
Parameter Symbol
Parameter Symbol Min. Typ Max. Unit Conditions
V
V
V
V
DTA143 TM/DTA143 TE/DTA143 TUA
DTA143 TKA/DTA143 TSA/DTA143 TCA
Limits (DTA143T□ )
M E UA CA KA SA
V
V
V
(BR)CBO
(BR)CEO
(BR)EBO
I
I
CE(sat)
h
-50 V
(BR)CBO
-50 V
(BR)CEO
-5 V
(BR)EBO
-100 mA
I
C
100 150 200 300 mW
P
C
Tj 150 ℃
Tstg -55~150 ℃
-50 V Ic=-50µA
-50 V Ic=-1mA
-5 V IE=-50µA
-0.5 µA VCB=-50V
CBO
-0.5 µA VEB=-4V
EBO
-0.3 V IC=-5mA,IB=-0.25mA
100 600 VCE=-5V,IC=-1mA
FE
3.29 4.7 6.11 KΩ
R
1
250 MHz VCE=-10V ,IE=5mA,f=100MHz
f
T
Unit
２
JinYu
semiconductor
www.htsemi.com
Ｄａｔｅ：２０１１／０５
