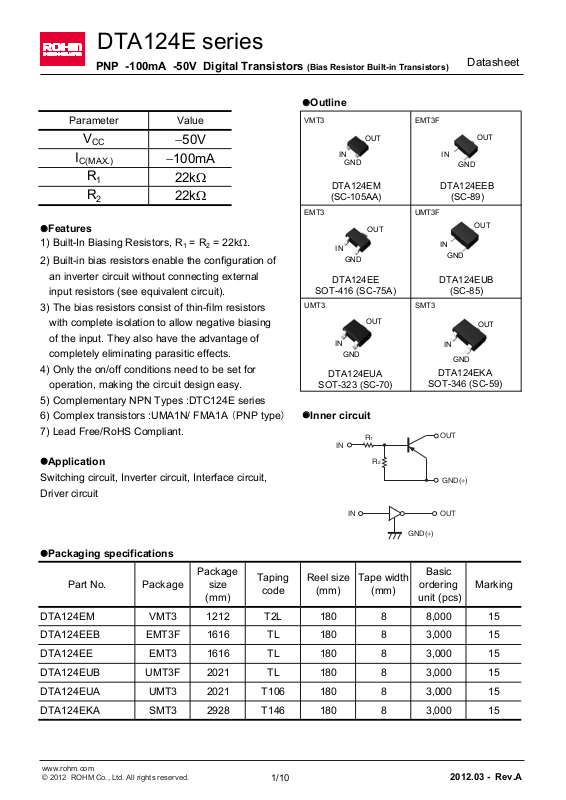

DTA124E series

PNP -100mA -50V Digital Transistors

(Bias Resistor Built-in Transistors)

Outline

Parameter Value

V

CC

I

C(MAX.)

R

1

R

2

50V

100mA

22k
22k

VMT3 EMT3F

IN

GND

DTA124EM

(SC-105AA)

EMT3 UMT3F

Features

1) Built-In Biasing Resistors, R

2) Built-in bias resistors enable the configuration of

an inverter circuit without connecting external

input resistors (see equivalent circuit).

3) The bias resistors consist of thin-film resistors

= R2 = 22k.

1

IN

GND

DTA124EE

SOT-416 (SC-75A)

UMT3 SMT3

with complete isolation to allow negative biasing

of the input. They also have the advantage of

completely eliminating parasitic effects.

4) Only the on/off conditions need to be set for

operation, making the circuit design easy.

IN

GND

DTA124EUA

SOT-323 (SC-70)

5) Complementary NPN Types :DTC124E series

6) Complex transistors :UMA1N/ FMA1A （PNP type） Inner circuit

OUT

OUT

OUT

OUT

IN

GND

DTA124EEB

(SC-89)

OUT

IN

GND

DTA124EUB

(SC-85)

OUT

IN

GND

DTA124EKA

SOT-346 (SC-59)

7) Lead Free/RoHS Compliant.

Application

Switching circuit, Inverter circuit, Interface circuit,

R

IN

1

R

2

OUT

GND(+)

Driver circuit

IN

GND(+)

OUT

Packaging specifications

Basic

ordering

unit (pcs)

Marking

15

Part No. Package

Package

size

(mm)

Taping

code

Reel size

(mm)

Tape width

(mm)

DTA124EM VMT3 1212 T2L 180 8 8,000

DTA124EEB EMT3F 1616 TL 180 8 3,000 15

3,000 15

3,000 15

DTA124EUB UMT3F 2021 TL 180

DTA124EUA UMT3 2021 T106 180 8

8DTA124EE EMT3 1616 TL 180

8 3,000 15

DTA124EKA SMT3 2928 T146 180 8 3,000 15

1/10

2012.03 - Rev.A

DTA124E series

Absolute maximum ratings (Ta = 25C)

Parameter Symbol Values Unit

Data Sheet

Supply voltage

Input voltage

Output current

Collector current

Power dissipation

DTA124EM
DTA124EEB
DTA124EE

DTA124EUB
DTA124EUA
DTA124EKA

Junction temperature

Range of storage temperature

Electrical characteristics(Ta = 25C)

Parameter Symbol Conditions UnitMin. Typ. Max.

V

I(off)

Input voltage

V

I(on)

V

CC

V

IN

I

O

C(MAX.)

*2

P

D

T

j

T

stg

*1

I

V

= 5V, IO = 100μA

CC

VO = 0.2V, IO = 5mA

50

40 to 10

30

100

150 mW

200 mW

150

55 to 150 C

--

3

--

0.5

V

V

mA

mA

C

V

Output voltage

Input current

Output current

DC current gain

Input resistance

Resistance ratio

V

I

R

O(on)

I

I

O(off)

G

R

2/R1

f

T

IO / II = 10mA / 0.5mA

VI = 5V

V

VO = 5V, IO = 5mA

I

1

V

*1

f = 100MHz

*1 Characteristics of built-in transistor

*2 Each terminal mounted on a reference footprint

= 50V, VI = 0V

CC

-

-

= 10V, IE = 5mA,

CE

-

--

--

0.1 0.3

0.36

0.5

V

mA

A

56---

15.4 22 28.6

k

0.8 1 1.2 -

- 250 -

MHzTransition frequency

www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.

2/10

2012.03 - Rev.A

DTA124E series

Electrical characteristic curves(Ta = 25°C)

Data Sheet

Fig.1 Input voltage vs. output current

(ON characteristics)

−100

−50

−20

[V]

−10

I(on)

Ta= −40°C

25°C

100°C

−100μ

−200μ−2m −20m−500μ−5m −50m

−1m −10m −100m

OUTPUT CURRENT : IO[A]

INPUT VOLTAGE : V

−5

−2

−1

−500m

−200m

−100m

VO= −0.3V

Fig.2 Output current vs. input voltage

(OFF characteristics)

−10m
VCC=−5V

−5m

−2m

Ta=100°C

[A]

O

OUTPUT CURRENT : I

−1m

−500μ

−200μ

−100μ

−50μ

−20μ

−10μ

−5μ

−2μ

−1μ

25°C

−40°C

0 −3.0

−0.5 −1.0 −1.5 −2.0 −2.5

INPUT VOLTAGE : V

I(off)

[V]

Fig.3 Output current vs. output voltage

I

=

I

-130μA

-120μA

-110μA

-100μA

-90μA

-80μA

-70μA

-60μA

-50μA

-40μA

0A

[mA]

OUTPUT CURRENT : I

-30

Ta=25ºC

-25

O

-20

-15

-10

-5

0

0-5-10

OUTPUT VOLTAGE : VO[V]

Fig.4 DC current gain vs. output current

1k

500

200

I

100

50

20

10

5

Ta=100°C

25°C

−40°C

DC CURRENT GAIN : G

2

1

−100μ−1m −10m −100m

−200μ−2m −20m−500μ−5m −50m

OUTPUT CURRENT : IO[A]

VO= −5V

www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.

3/10

2012.03 - Rev.A

DTA124E series

Electrical characteristic curves(Ta = 25°C)

Fig.5 Output voltage vs. output current

Data Sheet

[V]

O(on)

OUTPUT VOLTAGE : V

−1

−500m

−200m

−100m

−50m

−20m

−10m

−5m

−2m

−1m

−100μ−1m −10m −100m−200μ−2m −20m−500μ−5m −50m

Ta=100°C

25°C

−40°C

OUTPUT CURRENT : IO[A]

lO/lI=20

www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.

4/10

2012.03 - Rev.A

DTA124E series

Dimensions (Unit : mm)

Data Sheet

VMT3

D

b1

e b

A

E

x S A

A1

c

L

H

A

l1

S

Lp

b3

l1

e1

b2

e

Patterm ofterminalpositionareas

DIM

A 0.45 0.55 0.018 0.022

A1 0.00 0.10 0 0.004

b 0.17 0.27 0.007 0.011

b1 0.27 0.37 0.011 0.015

c 0.08 0.1 8 0.003 0.007
D 1.10 1.30 0.043 0.051
E 0.70 0.90 0.028 0.035
e

H

E

L 0.10 0.30 0.004 -

Lp 0.20 0.40 0.008 -

x- 0.10 -0.004

DIM

e1
b2 - 0.37 - 0.015
b3 - 0.47 - 0.019

l1 - 0.5 0 - 0.02

MILIMETERS INCHES

MIN MAX MIN MAX

0.40 0.02

1.10 1.30 0.043 0.051

MILIMETERS INCHES

MIN MAX MI N MAX

0.80 0.03

Dimension in mm/inches

www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.

5/10

2012.03 - Rev.A

DTA124E series

Dimensions (Unit : mm)

Data Sheet

EMT3F

x S A

D

A

L

E

E

H

b

c

e

Lp

e

A2A1

A

e1

l1

S

b2

Patterm ofterminalpositionareas

DIM

MILIMETERS INCHES

MIN MAX MIN MAX

A 0.65 0.85
A1 0.00 0.10 0 0.004
A2 0.60 0.80 0.024 0.031

b 0.21 0.36 0.008 0.014

c 0.08 0.18 0.003 0.007

D 1.50 1.70 0.059 0.067

E 0.76 0.96 0.03 0.038

e
H

E

1.50 1.70 0.059 0.067

L

0.50 0.02

0.37 0.015

Lp 0.35 0.55 0.014 0.022

x - 0.10 - 0.004

DIM

MILIMETERS INCHES

MIN MAX MIN MAX

e1 - 1.05 - 0.041

b2 - 0.46 - 0.018

l1 - 0.65 - 0.026

Dimension in mm/inches

www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.

6/10

2012.03 - Rev.A

DTA124E series

Dimensions (Unit : mm)

Data Sheet

EMT3

D

b1

A

c

Q

E

E

H

L1

Lp

e

b

x S A

A3

b3

l1

A

e1

l1

A1

S

e

b2

Patterm ofterminalpositionareas

DIM

A 0.60 0.80 0.024 0.031
A1 0.00 0.10 0 0.004
A3

b 0.15 0.30 0.006 0.012

b1 0.25 0.40 0.01 0.016

c 0.10 0.20 0.004 0.008

D 1.50 1.70 0.059 0.067

E 0.70 0.90 0.028 0.035

e
H

E

L1 0.10 - 0.004 ­Lp 0.15 - 0.006 -

Q 0.05 0.25 0.002 0.01

x - 0.10 - 0.004

DIM

e1
b2 - 0.40 - 0.016
b3 - 0.50 - 0.02

l1 - 0.70 - 0.028

MILIMETERS INCHES

MIN MAX MIN MAX

0.25 0.01

0.50 0.02

1.40 1.80 0.055 0.071

MILIMETERS INCHES

MIN MAX MIN MAX

1.10 0.04

Dimension in mm/inches

www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.

7/10

2012.03 - Rev.A

DTA124E series

Dimensions (Unit : mm)

Data Sheet

UMT3F

x S A

D

b

e

A1 A2

A

L

E

E

H

c

e

A

e1

S

l1

Lp

b2

Patterm ofterminalpositionareas

DIM

MILIMETERS

MIN MAX MIN MAX

INCHES

A 0.85 1.05 0.033 0.041
A1 0.00 0.10 0 0.004
A2 0.80 1.00 0.031 0.039

b 0.27 0.42 0.011 0.017

c 0.08 0.18 0.003 0.007

D 1.90 2.10 0.075 0.083

E 1.15 1.35 0.045 0.053

e
H

E

2.00 2.20 0.079 0.087

L

0.65 0.03

0.425

0.02

Lp 0.43 0.63 0.017 0.025

x - 0.10 - 0.004

DIM

e1

MILIMETERS INCHES

MIN MAX MIN MAX

1.47 0.058

b2 - 0.52 - 0.02

l1 - 0.83 - 0.033

Dimension in mm/inches

www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.

8/10

2012.03 - Rev.A

DTA124E series

Dimensions (Unit : mm)

Data Sheet

UMT3

D

A

c

Q

E

e

b

E

H

L1

A3

Lp

x S A

e

A

e1

l1

A1

S

b2

Patterm ofterminalpositionareas

DIM

A 0.80 1.00 0.031 0.039
A1 0.00 0.10 0 0.004
A3

b 0.15 0.30 0.006 0.012
c 0.10 0.20 0.004 0.008
D 1.90 2.10 0.075 0.083
E 1.15 1.35 0.045 0.053
e

H

E

L1 0.20 0.50 0.008 0.02

Lp 0.25 0.55 0.01 0.022

Q 0.10 0.30 0.004 0.012

x - 0.10 - 0.004

DIM

e1

b2 - 0.50 - 0.02

l1 - 0.65 - 0.026

MILIMETERS INCHES

MIN MAX MIN MAX

0.25 0.01

0.65 0.03

2.00 2.20 0.079 0.087

MILIMETERS INCHES

MIN MAX MIN MAX

1.55 0.06

Dimension in mm/inches

www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.

9/10

2012.03 - Rev.A

DTA124E series

Dimensions (Unit : mm)

Data Sheet

SMT3

D

e

b

A

E

E

H

x S A

A

A1

c

Q

L1

A3

e

l1

S

b2

Lp

e1

Patterm ofterminalpositionareas

DIM

A 1.00 1.30 - 0.051

A1 0.00 0.10 0 0.004
A3

b 0.35 0.50 0.014 0.02

c 0.09 0.25 0.004 0.01
D 2.80 3.00 0.11 0.118

E 1.50 1.80 0.059 0.071

e

H

E

L1 0.30 0.60 0.012 0.024
Lp 0.40 0.70 0.016 0.028

Q 0.20 0.30 0.008 0.012

x - 0.10 - 0.004

y - 0.10 - 0.004

DIM

e1
b2 0.60 - 0.024

l1 - 0.90 - 0.035

MILIMETERS INCHES

MIN MAX MIN MAX

0.25 0.01

0.95 0.04

2.60 3.00 0.102 0.118

MILIMETERS INCHES

MIN MAX MIN MAX

2.10 0.08

Dimension in mm/inches

www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.

10/10

2012.03 - Rev.A

Notes

No copying or reproduction of this document, in part or in whole, is permitted without the
consent of ROHM Co.,Ltd.

The content specied herein is subject to change for improvement without notice.

The content specied herein is for the purpose of introducing ROHM's products (hereinafter
"Products"). If you wish to use any such Product, please be sure to refer to the specications,
which can be obtained from ROHM upon request.

Examples of application circuits, circuit constants and any other information contained herein
illustrate the standard usage and operations of the Products. The peripheral conditions must
be taken into account when designing circuits for mass production.

Great care was taken in ensuring the accuracy of the information specied in this document.
However, should you incur any damage arising from any inaccuracy or misprint of such
information, ROHM shall bear no responsibility for such damage.

The technical information specied herein is intended only to show the typical functions of and
examples of application circuits for the Products. ROHM does not grant you, explicitly or
implicitly, any license to use or exercise intellectual property or other rights held by ROHM and
other parties. ROHM shall bear no responsibility whatsoever for any dispute arising from the
use of such technical information.

The Products specied in this document are intended to be used with general-use electronic
equipment or devices (such as audio visual equipment, ofce-automation equipment, commu­nication devices, electronic appliances and amusement devices).

The Products specied in this document are not designed to be radiation tolerant.

While ROHM always makes efforts to enhance the quality and reliability of its Products, a
Product may fail or malfunction for a variety of reasons.

Please be sure to implement in your equipment using the Products safety measures to guard
against the possibility of physical injury, re or any other damage caused in the event of the
failure of any Product, such as derating, redundancy, re control and fail-safe designs. ROHM
shall bear no responsibility whatsoever for your use of any Product outside of the prescribed
scope or not in accordance with the instruction manual.

The Products are not designed or manufactured to be used with any equipment, device or
system which requires an extremely high level of reliability the failure or malfunction of which
may result in a direct threat to human life or create a risk of human injury (such as a medical
instrument, transpor tation equipment, aerospace machinery, nuclear-reactor controller, fuel­controller or other safety device). ROHM shall bear no responsibility in any way for use of any
of the Products for the above special purposes. If a Product is intended to be used for any
such special purpose, please contact a ROHM sales representative before purchasing.

If you intend to export or ship overseas any Product or technology specied herein that may
be controlled under the Foreign Exchange and the Foreign Trade Law, you will be required to
obtain a license or permit under the Law.

Notice

Thank you for your accessing to ROHM product informations.
More detail product informations and catalogs are available, please contact us.

ROHM Customer Support System

www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.

http://www.rohm.com/contact/

R1120A
