DTA123YE/DTA123YUA/
DTA123YCA/DTA123YKA/DTA123YSA
DIGITAL TRANSISTOR(PNP)
DIGITAL TRANSISTOR (PNP)
Features
1) Built-in bias resistors enable the configuration of an inverter circuit
without connecting external input resistors (see equivalent circuit).
2) The bias resistors consist of thin-film resistors with complete isolation
to allow positive biasing of the input. They also have the advantage of
almost completely eliminating parasitic effects.
3) Only the on/off conditions need to be set for operation, making device design easy.

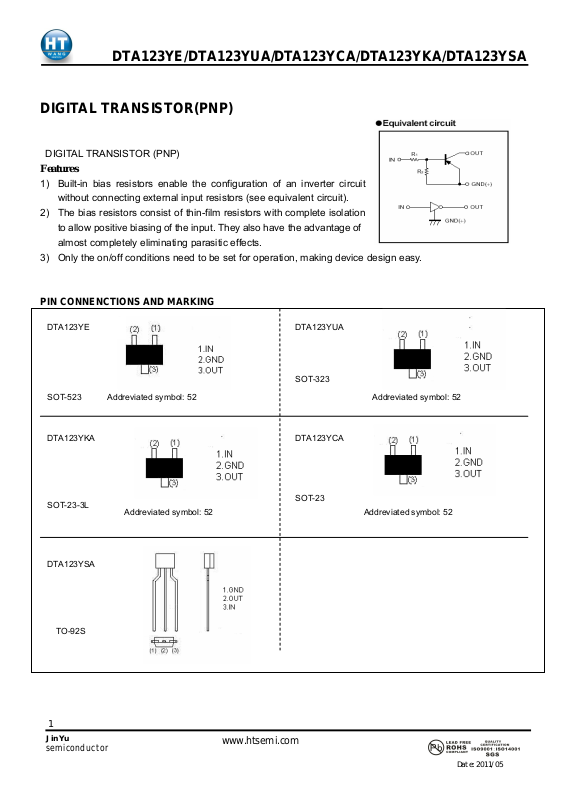

PIN CONNENCTIONS AND MARKING
DTA123YE DTA123YUA
SOT-523
Addreviated symbol: 52
DTA123YKA DTA123YCA
SOT-23-3L
Addreviated symbol: 52
DTA123YSA
TO-92S
１
JinYu
semiconductor
www.htsemi.com
DTC114EUA
SOT-323
Addreviated symbol: 52
SOT-23
Addreviated symbol: 52
Ｄａｔｅ：２０１１／０５
Page 2
DTA123YE/DTA123YUA/
DTA123YCA/DTA123YKA/DTA123YSA
Absolute maximum ratings(Ta=25℃)
Parameter Symbol
Supply voltage
Input voltage
Output current
Power dissipation
Junction
temperature
Storage temperature
V
CC
V
IN
IO -100
I
C(MAX)
Pd 150 200 300 mW
T
j
Tstg -55~150
-50 V
-12~5 V
-100
150
E UA KA CA SA
Electrical characteristics (Ta=25℃)
Parameter Symbol Min. Typ Max. Unit Conditions
V
-0.3 VCC=-5V ,IO=-100µA
Input voltage
Output voltage
Input current
Output current
DC current gain
Input resistance
Resistance ratio
Transition frequency
I(off)
-3
V
I(on)
-0.3 V IO/II=-10mA/-0.5mA
V
O(on)
-3.8 mA VI=-5V
I
I
-0.5 µA VCC=-50V ,VI=0
I
O(off)
33 VO=-5V ,IO=-10mA
G
I
1.54 2.2 2.86 KΩ
R
1
3.6 4.5 5.5
R
2/R1
250 MHz VCE=-10V ,IE=5mA,f=100MHz
f
T
Limits (DTA123Y□ )
V
=-0.3V ,IO=-20
V
O
mA
Unit
mA
℃
℃
Typical Characteristics
２
JinYu
semiconductor
www.htsemi.com
Ｄａｔｅ：２０１１／０５
