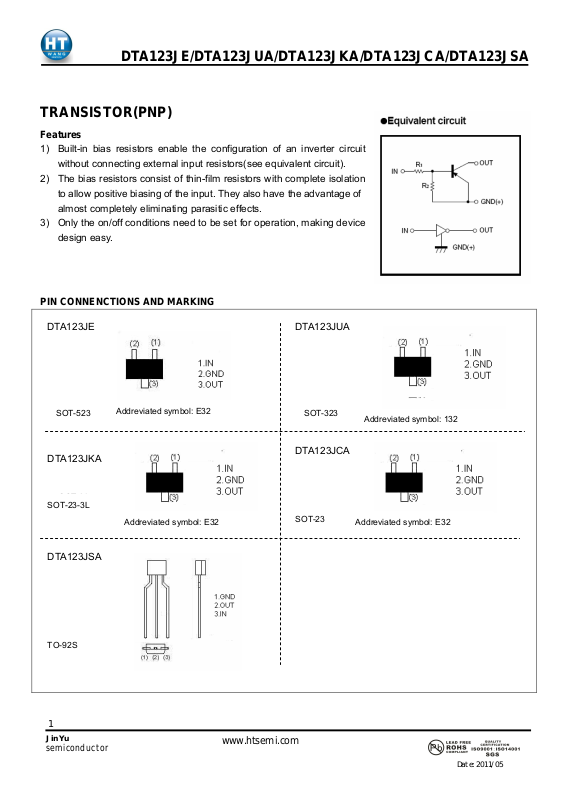

Page 1
DTA123JE/DTA123JUA/
DTA123JKA/DTA123JCA/DTA123JSA
TRANSISTOR(PNP)
Features
1) Built-in bias resistors enable the configuration of an inverter circuit
without connecting external input resistors(see equivalent circuit).
2) The bias resistors consist of thin-film resistors with complete isolation
to allow positive biasing of the input. They also have the advantage of
almost completely eliminating parasitic effects.
3) Only the on/off conditions need to be set for operation, making device
design easy.
PIN CONNENCTIONS AND MARKING
DTA123JE DTA123JUA
SOT-523 SOT-323
DTA123JKA
SOT-23
SOT-23-3L
DTA123JSA
TO-92S
Addreviated symbol: E32
Addreviated symbol: E32
DTA114ECA
DTA123JCA
SOT-23
Addreviated symbol: 132
Addreviated symbol: E32
１
JinYu
semiconductor
www.htsemi.com
Ｄａｔｅ：２０１１／０５
Page 2
Absolute maximum ratings(Ta=25℃)
DTA123JE/DTA123JUA/
DTA123JKA/DTA123JCA/DTA123JSA
Parameter Symbol
Limits (DTA123J□ )
E UA KA CA SA
-50 V
Supply voltage
Input voltage
Output current
Power dissipation
Junction temperature
Storage temperature
V
CC
-12~+5 V
V
IN
IO -100
I
-100
C(MAX)
Pd 150 200 300 mW
Tj 150
Tstg -55~150
Electrical characteristics (Ta=25℃)
Parameter Symbol Min. Typ Max. Unit Conditions
V
-0.5 VCC=-5V, IO=-100µA
Input voltage
Output voltage
Input current
Output current
DC current gain
Input resistance
Resistance ratio
Transition frequency
I(off)
-1.1
V
I(on)
-0.1 -0.3 V IO/II=-5mA/-0.25mA
V
O(on)
-3.6 mA VI=-5V
I
I
-0.5 µA VCC=-50V, VI=0
I
O(off)
80 VO=-5V, IO=-10mA
G
I
1.54 2.2 2.86 KΩ -
R
1
17 21 26 -
R
2/R1
250 MHz VO=-10V, IO=-5mA, f=100MHz
f
T
V
=-0.3V, IO=-5mA
V
O
Unit
mA
℃
℃
Typical Characteristics
２
JinYu
semiconductor
www.htsemi.com
Ｄａｔｅ：２０１１／０５
