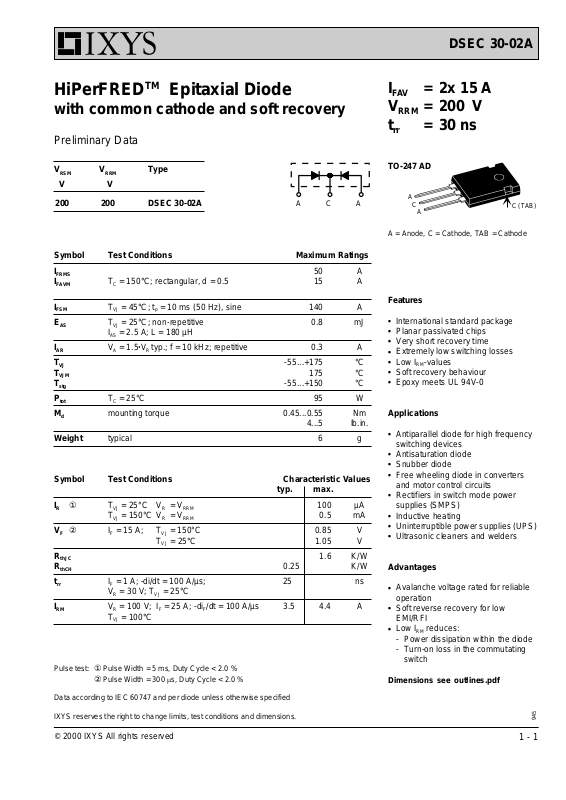

Page 1
DSEC 30-02A
HiPerFREDTM Epitaxial Diode
with common cathode and soft recovery
Preliminary Data
V
RSM
V V
200 200 DSEC 30-02A
Symbol Test Conditions Maximum Ratings
I
FRMS
I
FAVM
I
FSM
E
AS
I
AR
T
VJ
T
VJM
T
stg
P
tot
M
d
Weight typical 6 g
Symbol Test Conditions Characteristic Values
① TVJ = 25°C VR= V
I
R
VF② IF = 15 A; TVJ= 150°C 0.85 V
R
thJC
R
thCH
t
rr
I
RM
Pulse test: ① Pulse Width = 5 ms, Duty Cycle < 2.0 %
V
RRM
Type
A C A
50 A
TC = 150°C; rectangular, d = 0.5 15 A
TVJ = 45°C; tp = 10 ms (50 Hz), sine 140 A
TVJ = 25°C; non-repetitive 0.8 mJ
IAS = 2.5 A; L = 180 µH
VA = 1.5·VR typ.; f = 10 kHz; repetitive 0.3 A
-55...+175 °C
175 °C
-55...+150 °C
TC = 25°C 95 W
mounting torque 0.45...0.55 Nm
4...5 lb.in.
typ. max.
100 µA
0.5 mA
TVJ = 150°C VR= V
RRM
RRM
TVJ= 25°C 1.05 V
1.6 K/W
0.25 K/W
IF = 1 A; -di/dt = 100 A/µs; 25 ns
VR = 30 V; TVJ = 25°C
VR = 100 V; IF = 25 A; -diF/dt = 100 A/µs 3.5 4.4 A
TVJ = 100°C
② Pulse Width = 300 ms, Duty Cycle < 2.0 %
I
FAV
V
t
rr
= 2x 15 A
= 200 V
RRM
= 30 ns
TO-247 AD
A
C
A
A = Anode, C = Cathode, TAB = Cathode
C (TAB)
Features
●
International standard package
●
Planar passivated chips
●
Very short recovery time
●
Extremely low switching losses
●
Low IRM-values
●
Soft recovery behaviour
●
Epoxy meets UL 94V-0
Applications
●
Antiparallel diode for high frequency
switching devices
●
Antisaturation diode
●
Snubber diode
●
Free wheeling diode in converters
and motor control circuits
●
Rectifiers in switch mode power
supplies (SMPS)
●
Inductive heating
●
Uninterruptible power supplies (UPS)
●
Ultrasonic cleaners and welders
Advantages
●
Avalanche voltage rated for reliable
operation
●
Soft reverse recovery for low
EMI/RFI
●
Low IRM reduces:
- Power dissipation within the diode
- Turn-on loss in the commutating
switch
Dimensions see outlines.pdf
Data according to IEC 60747 and per diode unless otherwise specified
IXYS reserves the right to change limits, test conditions and dimensions.
© 2000 IXYS All rights reserved
945
1 - 1
