DS96F173C/DS96F173M/DS96F175C/DS96F175M
EIA-485/EIA-422 Quad Differential Receivers

DS96F173C/DS96F173M/DS96F175C/DS96F175M EIA-485/EIA-422 Quad Differential Receivers

May 1998

General Description

The DS96F173 and the DS96F175 are high speed quad dif­ferential line receivers designed to meet the EIA-485 stan­dard. The DS96F173andthe DS96F175 offer improved per­formance due to the use of L-FAST bipolar technology. The
use of LFAST technology allows the DS96F173 and
DS96F175 to operate at higher speeds while minimizing
power consumption.

The DS96F173 and the DS96F175 have TRI-STATE
puts and are optimized for balanced multipoint data bus
transmission at rates up to 15 Mbps. The receivers feature
high input impedance, input hysteresis for increased noise
immunity, and input sensitivity of 200 mV over a common
mode input voltage range of −7V to +12V.The receivers are
therefore suitable for multipoint applications in noisy environ­ments. The DS96F173 features an active high and active
low Enable, common to all four receivers. The DS96F175
features separate active high Enables for each receiver pair.

®

Features

n Meets EIA-485, EIA-422A, EIA-423A standards
n Designed for multipoint bus applications
n TRI-STATE outputs
n Common mode input voltage range: −7V to +12V
n Operates from single +5.0V supply
n Reduced power consumption (I
n Input sensitivity of

out-

n Input hysteresis of 50 mV typical
n High input impedance
n Military temperature range available
n Qualified for MIL STD 883C
n Available to standard military drawings (SMD)
n Available in DIP(J), LCC(E), and FlatPak (W) packages
n DS96F173 and DS96F175 are lead and function

compatible with SN75173/175 or the
AM26LS32/MC3486

±

200 mV over common mode range

Logic Diagrams Function Tables

(Each Receiver) DS96F173

Differential Inputs Enable Output

A–B E E

V

≥ 0.2V H X H

ID

V

≤ −0.2V H X L

DS009627-10

DS96F175

ID

XLXZ
XXHZ

H = High Level
L = Low Level
Z = High Impedance (off)
X = Don’t Care

= 50 mA max)

CC

Y

XL H

XL L

(Each Receiver) DS96F175

DS009627-11

TRI-STATE®is a registered trademark of National Semiconductor Corporation.

© 1998 National Semiconductor Corporation DS009627 www.national.com

Differential Inputs Enable Output

A–B E Y

V

≥ 0.2V H H

ID

V

≤ −0.2V H L

ID

XLZ

COMMERCIAL
Absolute Maximum Ratings

Specifications for the 883 version of this product are
listed separately.

Storage Temperature Range (T
Lead Temperature

(Soldering, 60 sec.) 300˚C

Max. Package Power Dissipation (Note 1) at 25˚C

Ceramic DIP (J) 1500 mW
Supply Voltage 7.0V
Input Voltage, A or B Inputs
Differential Input Voltage
Enable Input Voltage 7.0V

) −65˚C to +175˚C

STG

(Note 2)

±

25V

±

25V

Recommended Operating
Conditions

Supply Voltage (V

)

CC

DS96F173C/DS96F175C 4.75 5.0 5.25 V

Common Mode Input

Voltage (V

Differential Input Voltage

)

(V

ID

) −7 +12 V

CM

Output Current HIGH (I
Output Current LOW (I
Operating Temperature (T

DS96F173C/DS96F175C 0 25 70 ˚C

Note 1: Derate package 10 mW/˚C above 25˚C.

Min Typ Max Units

|12| V

) −400 µA

OH

)11mA

OL

)

A

Low Level Output Current 50 mA

Electrical Characteristics (Notes 3, 4)

Over recommended supply voltage and operating temperature ranges, unless otherwise specified

Symbol Parameter Conditions Min Typ Max Units

V

TH

V

TL

V

TH−VTL

V

IH

V

IL

V

IC

V

OH

V

OL

I

OZ

I

I

I

IH

I

IL

R

I

I

OS

I

CC

I

CCX

Differential-Input VO=V

OH

High Threshold Voltage
Differential-Input (Note 5) VO=V

OL

−0.2 V
Low Threshold Voltage
Hysteresis (Note 6) VCM=0V 50 mV
Enable Input Voltage HIGH 2.0 V
Enable Input Voltage LOW 0.8 V
Enable Input Clamp Voltage II= −18 mA −1.5 V
Output Voltage HIGH VID= 200 mV 0˚C to +70˚C 2.8 V

I

= −400 µA −55˚C to +125˚C 2.5

OH

Output Voltage LOW VID= −200 mV IOL= 8.0 mA 0.45 V

I

= 11 mA 0.50

OL

High-Impedance State Output VO= 0.4V to 2.4V
Line Input Current (Note 7) Other Input = 0V VI= 12V 1.0 mA

V

= −7.0V −0.8

I

Enable Input Current HIGH VIH= 2.7V 20 µA
Enable Input Current LOW VIL= 0.4V −100 µA
Input Resistance 14 18 22 kΩ
Short Circuit Output Current (Note 8) −15 −85 mA
Supply Current No Load Outputs Enabled 50 mA

Outputs Disabled 50

0.2 V

±

20 µA

COMMERCIAL

Switching Characteristics

VCC= 5.0V, TA= 25˚C

Symbol Parameter Conditions Min Typ Max Units

t

PLH

t

PHL

t

ZH

t

ZL

t

HZ

www.national.com 2

Propagation Delay Time, VID= −2.5V to +2.5V, 5.0 15 22 ns
Low to High Level Output C

=15pF,

L

Figure 1

Propagation Delay Time, VCM= 0V 5.0 15 22 ns
High to Low Level Output
Output Enable Time to High Level CL=15pF,
Output Enable Time to Low Level CL=15pF,
Output Disable Time from High Level CL= 5.0 pF,

Figure 2
Figure 3

Figure 2

12 16 ns
13 18 ns
14 20 ns

Switching Characteristics (Continued)

VCC= 5.0V, TA= 25˚C

Symbol Parameter Conditions Min Typ Max Units

t

LZ

|t

PLH–tPHL

Note 2: “Absolute Maximum Ratings” are those values beyond which the safety of the device cannot be guaranteed. They are not meant to imply that the devices
should be operated at these limits. The tables of “Electrical Characteristics” provide conditions for actual device operation.

Note 3: Unless otherwise specified min/max limits apply across the 0˚C to +70˚C range for the DS96F173C/DS96F175C. All typicals are given for V
= 25˚C.

Note 4: All currents into the device pins are positive; all currents out of the device pins are negative. All voltages are reference to ground unless otherwise specified.
Note 5: The algebraic convention, when the less positive (more negative) limit is designated minimum, is used in this data sheet for common mode input voltage

and threshold voltage levels only.

Note 6: Hysteresis is the difference between the positive-going input threshold voltage. V
Note 7: Refer to EIA-485 Standard for exact conditions.
Note 8: Only one output at a time should be shorted.

Output Disable Time from Low Level CL= 5.0 pF,

| Pulse Width Distortion (SKEW)

Figure 1

Order Number: DS96F173CJ

DS96F175CJ
See NS Package Number J16A

Figure 3

14 18 ns

1.0 3.0 ns

, and the negative going input threshold voltage, VTL.

TH

= 5V and T

CC

A

www.national.com3

MIL-STD-883C
Absolute Maximum Ratings

For complete Military Specifications, refer to the appro­priate SMD or MDS.

Storage Temperature Range (T
Lead Temperature

(Soldering, 60 sec.) 300˚C

Max. Package Power Dissipation (Note 9) at 25˚C

Ceramic DIP (J) 1500 mW
Ceramic Flatpak (W) 1034 mW

Ceramic LCC (E) 1500 mW
Supply Voltage 7.0V
Input Voltage, A or B Inputs
Differential Input Voltage

) −65˚C to +175˚C

STG

(Note 2)

±

25V

±

25V

Recommended Operating
Conditions

Min Typ Max Units

Supply Voltage (V

DS96F173M/DS96F175M 4.50 5.0 5.50 V

Common Mode
Input Voltage (V

Differential Input Voltage (V
Output Current HIGH (I
Output Current LOW (I
Operating Temperature (T

DS96F173M/DS96F175M −55 25 125 ˚C

Note 9: Above TA= 25˚C derate J package 10 mW/˚C, W package

6.90 mW/˚C, E package 11.11 mW/˚C.

)

CC

)

CM

) −400 µA

OH

)11mA

OL

)

A

−7 +12 V

) |12| V

ID

Enable Input Voltage 7.0V
Low Level Output Current 50 mA

Electrical Characteristics (Notes 3, 4)

Over recommended supply voltage and operating temperature ranges, unless otherwise specified

Symbol Parameter Conditions Min Max Units

V

TH

V

TL

V

IH

V

IL

V

IC

V

OH

V

OL

I

OZ

I

I

I

IH

I

IL

R

I

I

OS

I

CC

I

CCX

Differential-Input
High Threshold Voltage

Differential-Input (Note 5)
Low Threshold Voltage

Enable Input Voltage HIGH 2.0 V
Enable Input Voltage LOW 0.8 V
Enable Input Clamp Voltage II= −18 mA, VCC= 4.5V −1.5 V
Output Voltage HIGH VID= 200 mV

Output Voltage LOW VID= −200 mV IOL= 8.0 mA 0.45 V
High-Impedance State Output VO= 0.4V, 2.4V, VCC= 5.5V
Line Input Current (Note 7) Other Input = 0V VI= 12V 1.0

Enable Input Current HIGH VIH= 2.7V, VCC= 5.5V 20 µA
Enable Input Current LOW VIL= 0.4V, VCC= 5.5V −100 µA
Input Resistance 10 kΩ
Short Circuit Output Current (Note 8) −15 −85 mA
Supply Current No Load Outputs Enabled

VCC= 4.5V, 5.5V

= 0V, 12V, −12V

V

CM

VCC= 4.5V, 5.5V

= 0V, 12V, −12V

V

CM

= −400 µA

I

OH

−0.2 V

−55˚C to +125˚C

= −7.0V −0.8

V

I

2.5 V

or Disabled

0.2 V

±

20 µA

50 mA

mA

MIL-STD-883C

Switching Characteristics

VCC= 5.0V

Symbol Parameter Conditions T

t

PLH

t

PHL

t

ZH

www.national.com 4

Propagation Delay Time, VID= −2.5V to +2.5V, 15 22 30 30 ns
Low to High Level Output C

=15pF,

L

Figure 1

Propagation Delay Time, VCM=0V 15 22 30 30 ns
High to Low Level Output
Output Enable Time to High

CL=15pF,

Figure 2

Level

= 25˚C TA= −55˚C TA=

A

125˚C

Typ Max Max Max

12 16 27 27 ns

Units

Switching Characteristics (Continued)

VCC= 5.0V

Symbol Parameter Conditions T

t

ZL

t

HZ

t

LZ

|t

PLH–tPHL

Output Enable Time to Low
Level

Output Disable Time from High
Level

Output Disable Time from Low
Level

| Pulse Width Distortion (SKEW)

SMD Number: DS96F173MJ 5962-9076602 MEA

DS96F173MW 5962-9076602 MFA
DS96F173ME 5962-9076602 M2A
DS96F175MJ 5962-9076601 MEA
DS96F175MW 5962-9076601 MFA
DS96F175ME 5962-9076601 M2A

Order Number: 883 Marking SMD Marking

DS96F173MJ/883 DS96F173MJ-SMD
DS96F175MJ/883 DS96F175MJ-SMD
See NS Package Number
J16A

DS96F173ME/883 DS96F173ME-SMD
DS96F175ME/883 DS96F175ME-SMD
See NS Package Number
E20A

CL=15pF,

CL= 5.0 pF,

=20pF,

C

L

CL= 5.0 pF,

Figure 1

Figure 3

Figure 2

(Note 15) 14 20 27 27 ns

Figure 2

(Note 15) 14 30 37 37 ns

Figure 3

= 25˚C TA= −55˚C TA=

A

125˚C

Units

Typ Max Max Max

13 18 27 27 ns

14 18 30 30 ns

1 3 5.0 5.0 ns

DS96F173MW/883 DS96F173MW-SMD
DS96F175MW/883 DS96F175MW-SMD
See NS Package Number
W16A
For complete Military Product Specifications, refer

to the appropriate SMD or MDS.

www.national.com5

Connection Diagrams

DS96F173

16-Lead Ceramic Dual-In-Line Package

NS Package Number J16A

DS96F175

*NC— No Connection

Top View

Top View

DS009627-1

20-Lead Ceramic Leadless Chip Carrier

NS Package Number E20A

DS009627-12

DS009627-2

Top View

DS009627-13

Top View

www.national.com 6

Connection Diagrams (Continued)

16-Lead Ceramic Flatpak

NS Package Number W16A

DS009627-14

Top View

Order Numbers are located at the end of the respective Electrical Tables.

Parameter Measurement Information

DS009627-3

FIGURE 1. t

PLH,tPHL

FIGURE 2. tHZ,tZH(Notes 10, 11, 13, 14)

(Notes 10, 11)

DS009627-5

DS009627-15

Top View

DS009627-4

DS009627-6

www.national.com7

Parameter Measurement Information (Continued)

DS009627-7

FIGURE 3. tZL,tLZ(Notes 10, 11, 13, 14)

Note 10: The input pulse is supplied by a generator having the following characteristics: f = 1.0 MHz, 50%duty cycle, tr≤ 6.0 ns, tf≤ 6.0 ns, ZO=50Ω.
Note 11: C
Note 12: DS96F173 with active high and active low Enables are shown. DS96F175 has active high Enable only.
Note 13: All diodes are 1N916 or equivalent.
Note 14: To test the active low Enable E of DS96F173, ground E and apply an inverted input waveform to E . DS96F175 has active high enable only.
Note 15: Testing at 20 pF assures conformance to 5 pF specification.

includes probe and stray capacitance.

L

Typical Application

DS009627-8

DS009627-9

FIGURE 4.

Note: The line length should be terminated at both ends in its characteristic impedance. Stub lengths off the main line should be kept as short as possible.

www.national.com 8

Physical Dimensions inches (millimeters) unless otherwise noted

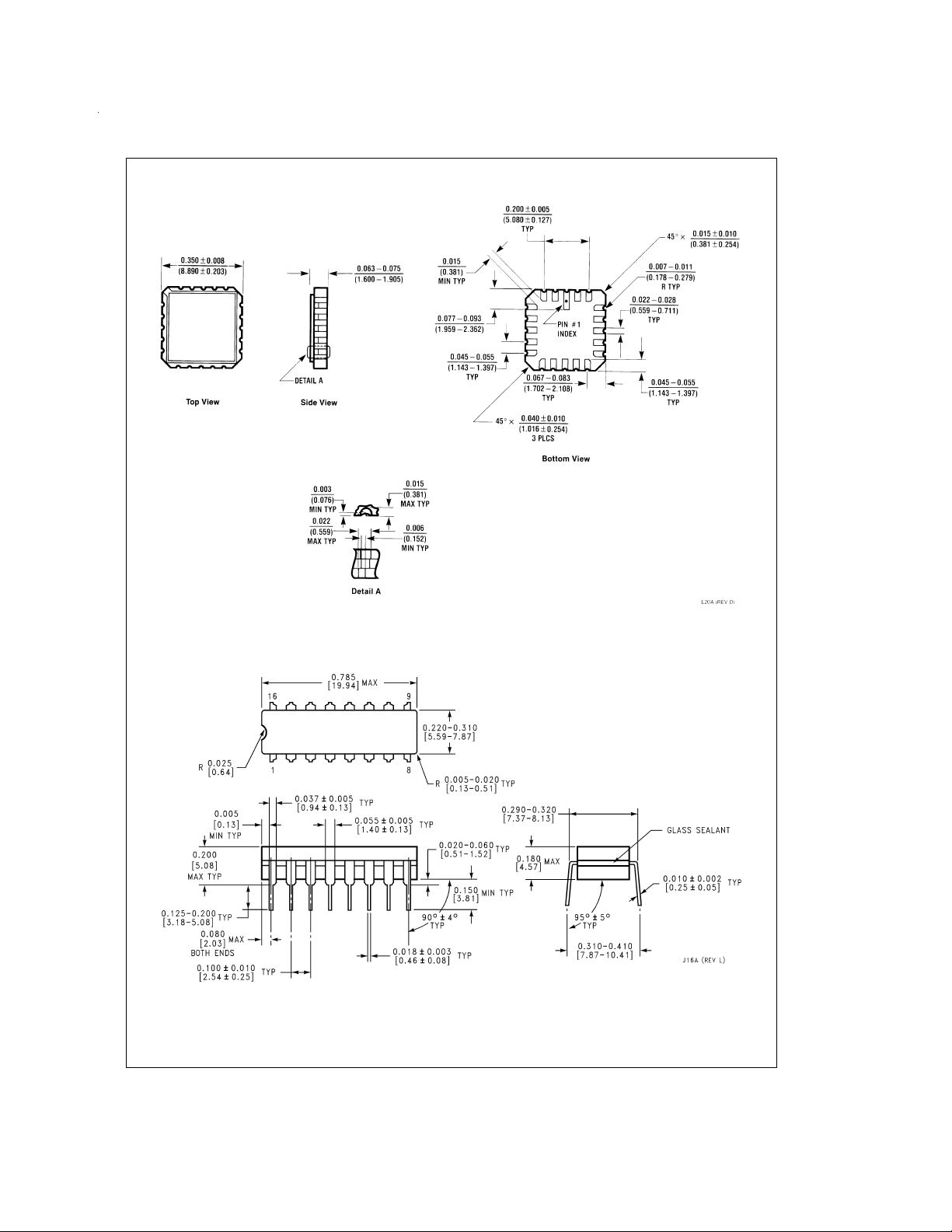

20-Lead Ceramic Leadless Chip Carrier (E)

Order Number DS96F173ME/883 or DS96F175ME/883

NS Package Number E20A

Order Number DS96F173CJ, DS96F175CJ, DS96F173MJ/883 or DS96F175MJ/883

16-Lead Ceramic Dual-In-Line Package (J)

NS Package Number J16A

www.national.com9

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

Order Number DS96F173MW/883 or DS96F175MW/883

16-Lead Ceramic FlatPak (W)

NS Package Number W16A

LIFE SUPPORT POLICY

NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DE­VICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF NATIONAL SEMI­CONDUCTOR CORPORATION. As used herein:

1. Life support devices or systems are devices or sys-

tems which, (a) are intended for surgical implant into
the body, or (b) support or sustain life, and whose fail­ure to perform when properly used in accordance

2. A critical component in any component of a life support
device or system whose failure to perform can be rea­sonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.

with instructions for use provided in the labeling, can
be reasonably expected to result in a significant injury
to the user.

National Semiconductor
Corporation

Americas

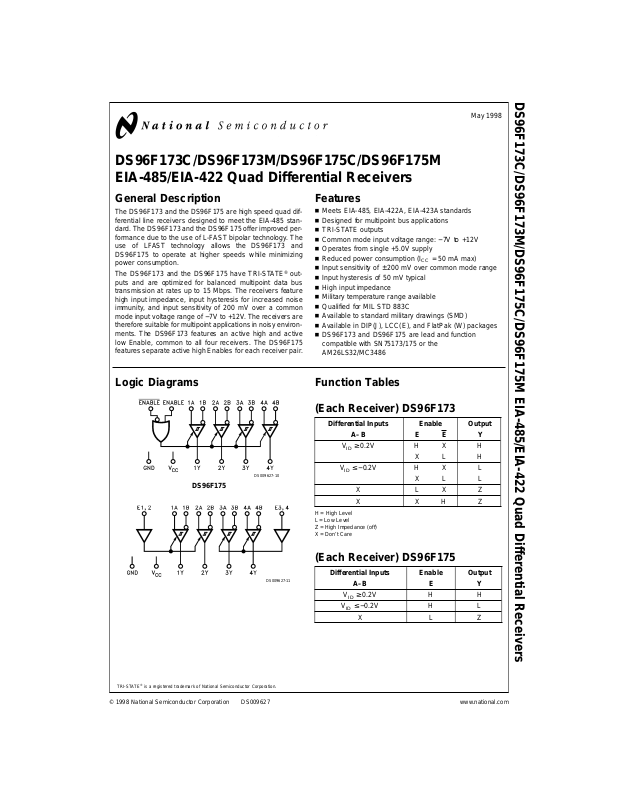

DS96F173C/DS96F173M/DS96F175C/DS96F175M EIA-485/EIA-422 Quad Differential Receivers

Tel: [phone]
Fax: [phone]
Email: [email protected]

www.national.com

National Semiconductor
Europe

Fax: [phone]

Email: [email protected]
Deutsch Tel: [phone]
English Tel: [phone]
Français Tel: [phone]
Italiano Tel: [phone]

National Semiconductor
Asia Pacific Customer
Response Group

Tel: [phone]
Fax: [phone]
Email: [email protected]

National Semiconductor
Japan Ltd.

Tel: [phone]
Fax: [phone]

National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
