DS26LS31C/DS26LS31M
Quad High Speed Differential Line Driver

DS26LS31C/DS26LS31M Quad High Speed Differential Line Driver

June 1998

General Description

The DS26LS31 is a quad differential line driver designed for
digital data transmission over balanced lines. The
DS26LS31 meets all the requirements of EIA Standard
RS-422 andFederal Standard 1020. It is designed to provide
unipolar differential drive to twisted-pair or parallel-wire
transmission lines.

The circuit provides an enable and disable function common
to all four drivers. The DS26LS31 features TRI-STATE
puts and logically ANDed complementary outputs. The in­puts are all LS compatible and are all one unit load.

®

out-

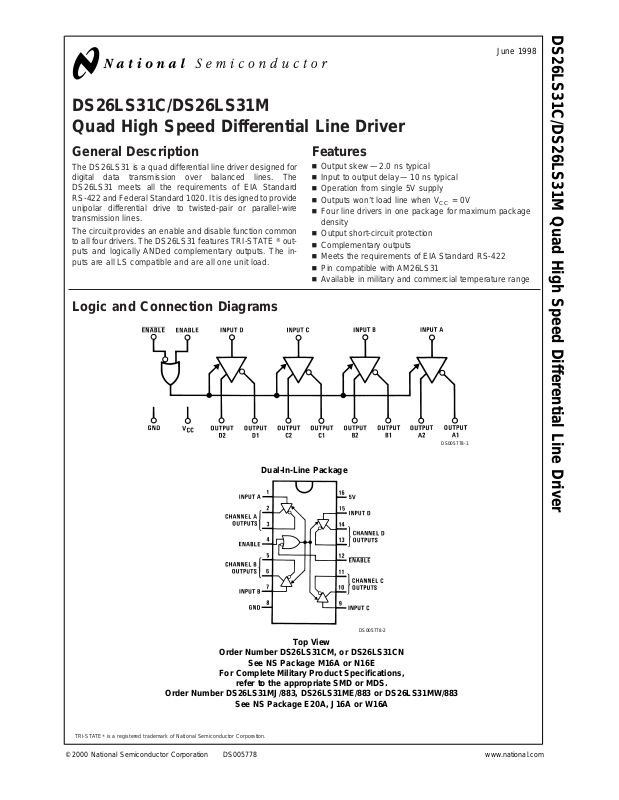

Logic and Connection Diagrams

Features

n Output skew —2.0 ns typical
n Input to output delay—10 ns typical
n Operation from single 5V supply
n Outputs won’t load line when V
n Four line drivers in one package for maximum package

density

n Output short-circuit protection
n Complementary outputs
n Meets the requirements of EIA Standard RS-422
n Pin compatible with AM26LS31
n Available in military and commercial temperature range

=0V

CC

DS005778-1

Dual-In-Line Package

DS005778-2

Top View

Order Number DS26LS31CM, or DS26LS31CN

See NS Package M16A or N16E

For Complete Military Product Specifications,

refer to the appropriate SMD or MDS.

Order Number DS26LS31MJ/883, DS26LS31ME/883 or DS26LS31MW/883

See NS Package E20A, J16A or W16A

TRI-STATE®is a registered trademark of National Semiconductor Corporation.

© 2000 National Semiconductor Corporation DS005778 www.national.com

Absolute Maximum Ratings (Note 2)

If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.

Supply Voltage 7V
Input Voltage 7V
Output Voltage 5.5V
Output Voltage (Power OFF) −0.25 to 6V

DS26LS31C/DS26LS31M

Maximum Power Dissipation (Note 1) at 25˚C

Cavity Package 1509 mW
Molded DIP Package 1476 mW

Operating Conditions

Min Max Units

Supply Voltage, V

DS26LS31M 4.5 5.5 V
DS26LS31 4.75 5.25 V

Temperature, T

DS26LS31M −55 +125 ˚C
DS26LS31 0 +70 ˚C

Note 1: Derate cavity package 10.1 mW/˚C above 25˚C; derate molded DIP
package 11.9 mW/˚C above 25˚C; derate SO package 8.41 mW/˚C above
25˚C.

CC

A

SO Package 1051 mW

Electrical Characteristics (Notes 3, 4, 5)

Symbol Parameter Conditions Min Typ Max Units

V

OH

V

OL

V

IH

V

IL

I

IL

I

IH

I

I

I

O

V

CL

I

SC

I

CC

Output High Voltage IOH= −20 mA 2.5 V
Output Low Voltage IOL= 20 mA 0.5 V
Input High Voltage 2.0 V
Input Low Voltage 0.8 V
Input Low Current VIN= 0.4V −40 −200 µA
Input High Current VIN= 2.7V 20 µA
Input Reverse Current VIN= 7V 0.1 mA
TRI-STATE Output Current VO= 2.5V 20 µA

V

= 0.5V −20 µA

O

Input Clamp Voltage IIN= −18 mA −1.5 V
Output Short-Circuit Current −30 −150 mA
Power Supply Current All Outputs Disabled 35 60 mA

or Active

Switching Characteristics

VCC= 5V, TA= 25˚C

Symbol Parameter Conditions Min Typ Max Units

t

PLH

t

PHL

Skew Output to Output C
t

LZ

t

HZ

t

ZL

t

ZH

Note 2: “Absolute Maximum Ratings” are those values beyond which the safety of the device cannot be guaranteed. They are not meant to imply that the devices
should be operated at these limits. The tables of “Electrical Characteristics” provide conditions for actual device operation.

Note 3: Unless otherwise specified min/max limits apply across the −55˚C to +125˚C temperature range for the DS726LS31M and across the 0˚C to +70˚C range
for the DS26LS31. All typicals are given for V

Note 4: All currents into device pins are positive; all currents out of device pins are negative. All voltages are referenced to ground unless otherwise specified.
Note 5: Only one output at a time should be shorted.

Input to Output CL=30pF 10 15 ns
Input to Output CL=30pF 10 15 ns

= 30 pF 2.0 6.0 ns

L

Enable to Output CL= 10 pF, S2 Open 15 35 ns
Enable to Output CL= 10 pF, S1 Open 15 25 ns
Enable to Output CL= 30 pF, S2 Open 20 30 ns
Enable to Output CL= 30 pF, S1 Open 20 30 ns

= 5V and TA= 25˚C.

CC

www.national.com 2

AC Test Circuit and Switching Time Waveforms

S1 and S2 of load circuit are closed except where shown.

FIGURE 1. AC Test Circuit

DS26LS31C/DS26LS31M

DS005778-3

f = 1 MHz, tr≤ 15 ns, tf≤ 6ns

f = 1 MHz, tr≤ 15 ns, tf≤ 6ns

Typical Applications

DS005778-4

FIGURE 2. Propagation Delays

DS005778-5

FIGURE 3. Enable and Disable Times

Two-Wire Balanced System, RS-422

Note 6: RTis optional although highly recommended to reduce reflection.

DS005778-6

www.national.com3

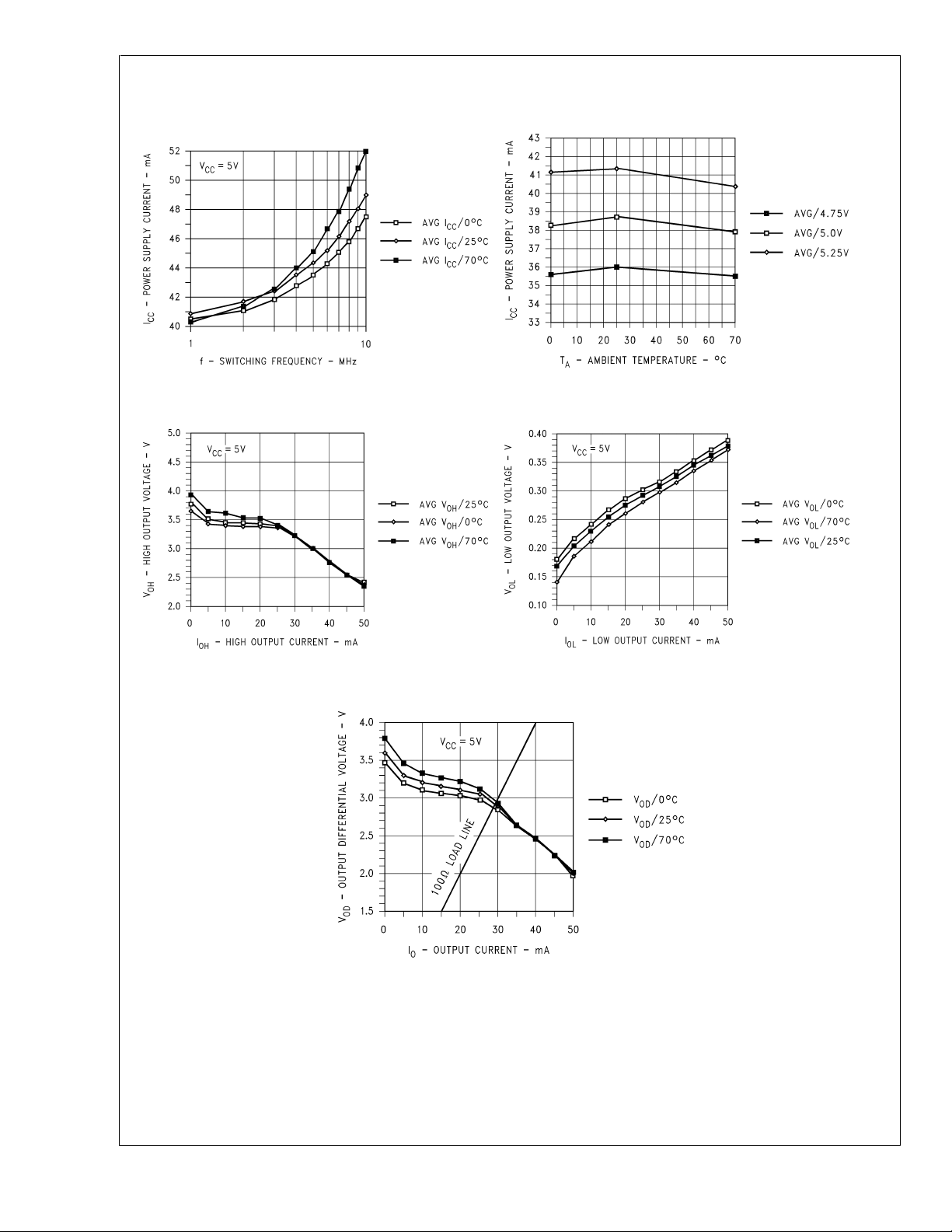

Typical Performance Characteristics

DS26LS31CN Unloaded I
vs Frequency vs T

A

DS26LS31C/DS26LS31M

DS26LS31CN VOHvs IOHvs T

C

DS005778-7

A

DS26LS31 ICCvs VCCvs T

A

DS26LS31CN VOLvs IOLvs T

DS005778-8

A

DS26LS31CN VODvs IOvs T

DS005778-9

A

DS005778-11

DS005778-10

www.national.com 4

Physical Dimensions inches (millimeters) unless otherwise noted

DS26LS31C/DS26LS31M

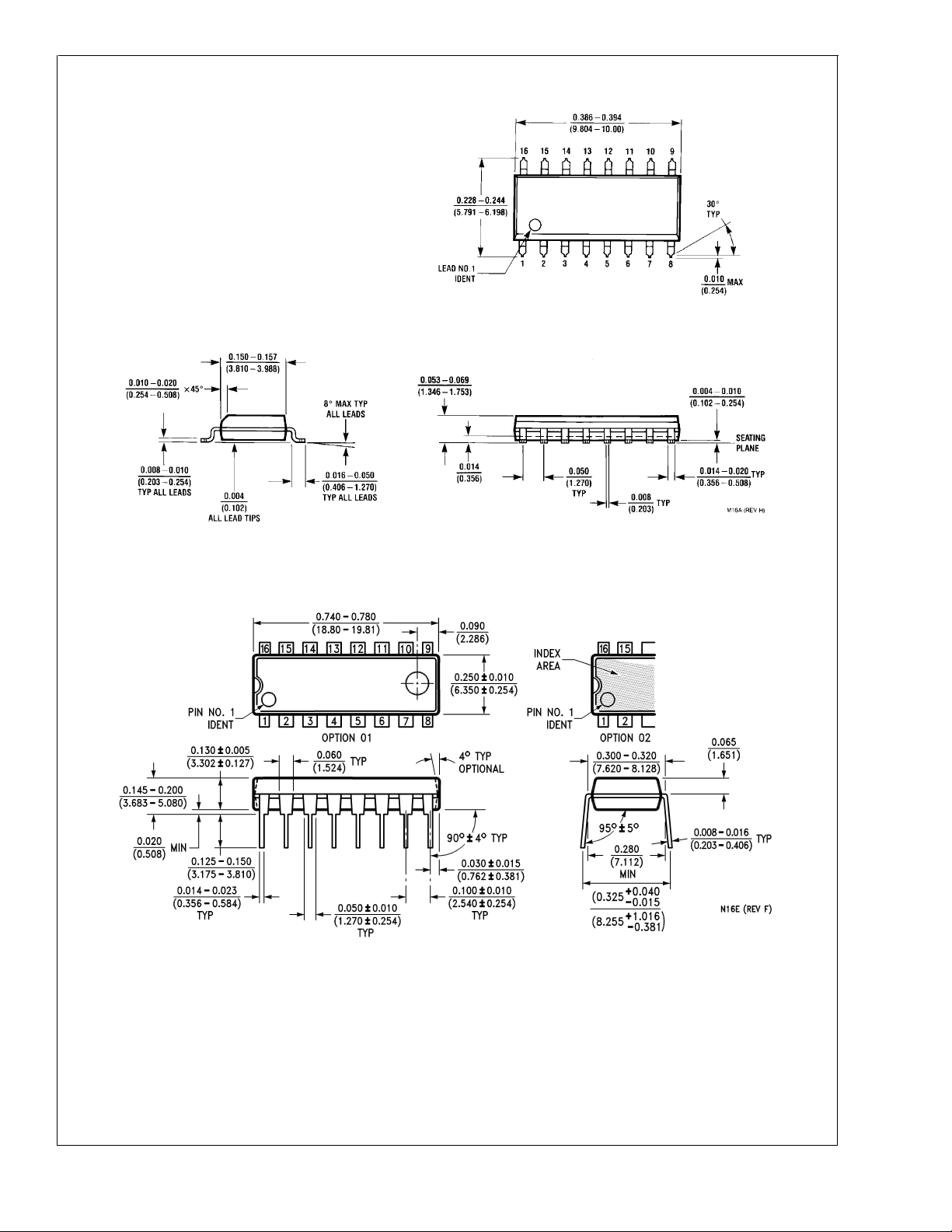

Small Outline Package (M)

Order Number DS26LS31CM

NS Package Number M16A

Molded Dual-In-Line Package (N)

Order Number DS26LS31CN

NS Package Number N16E

www.national.com5

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

DS26LS31C/DS26LS31M

16 Lead Ceramic Flatpak (F)

Order Number DS26LS31MW/883

NS Package Number W16A

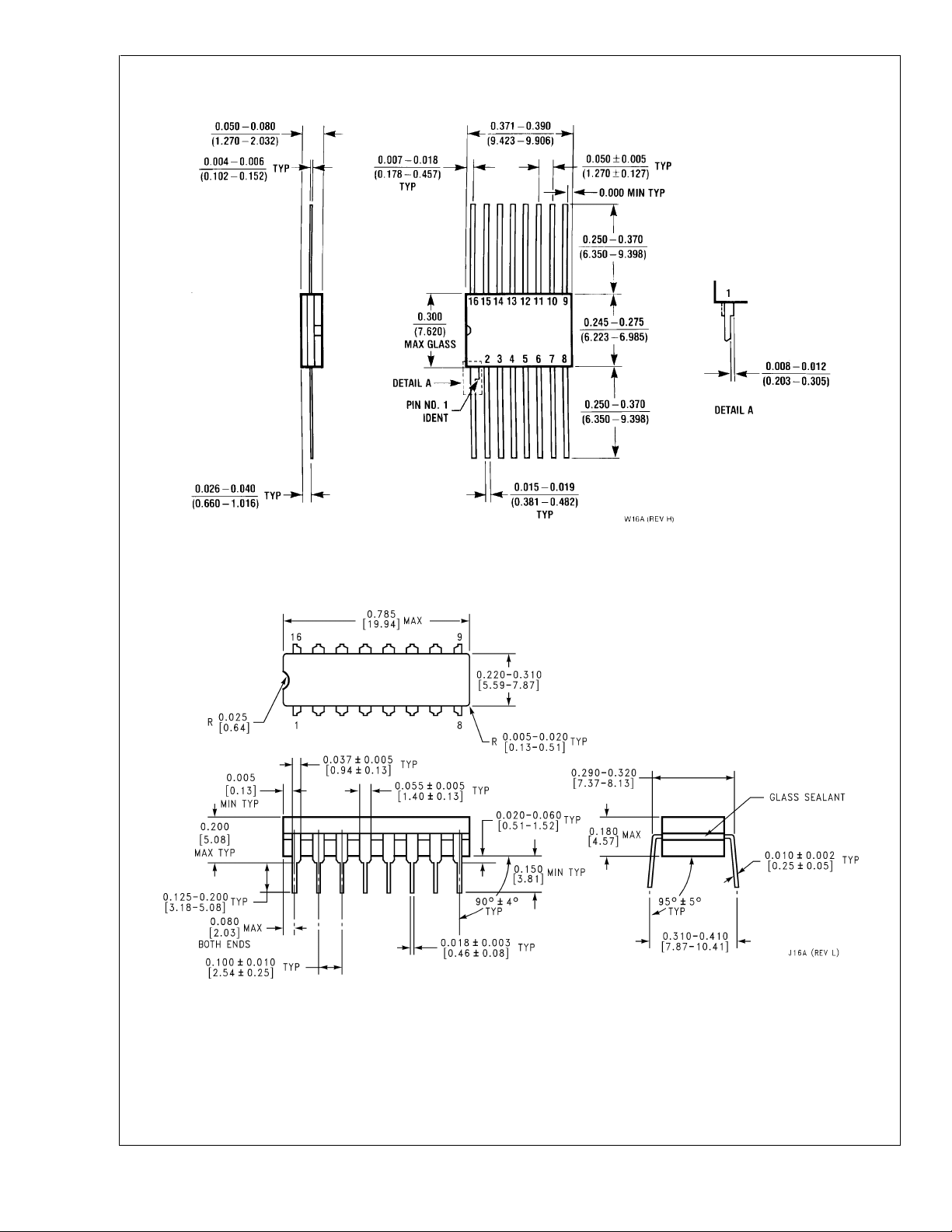

16 Lead Ceramic Dual-in-Line Package (J)

Order Number DS26LS31MJ/883

NS Package Number J16A

www.national.com 6

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

DS26LS31C/DS26LS31M Quad High Speed Differential Line Driver

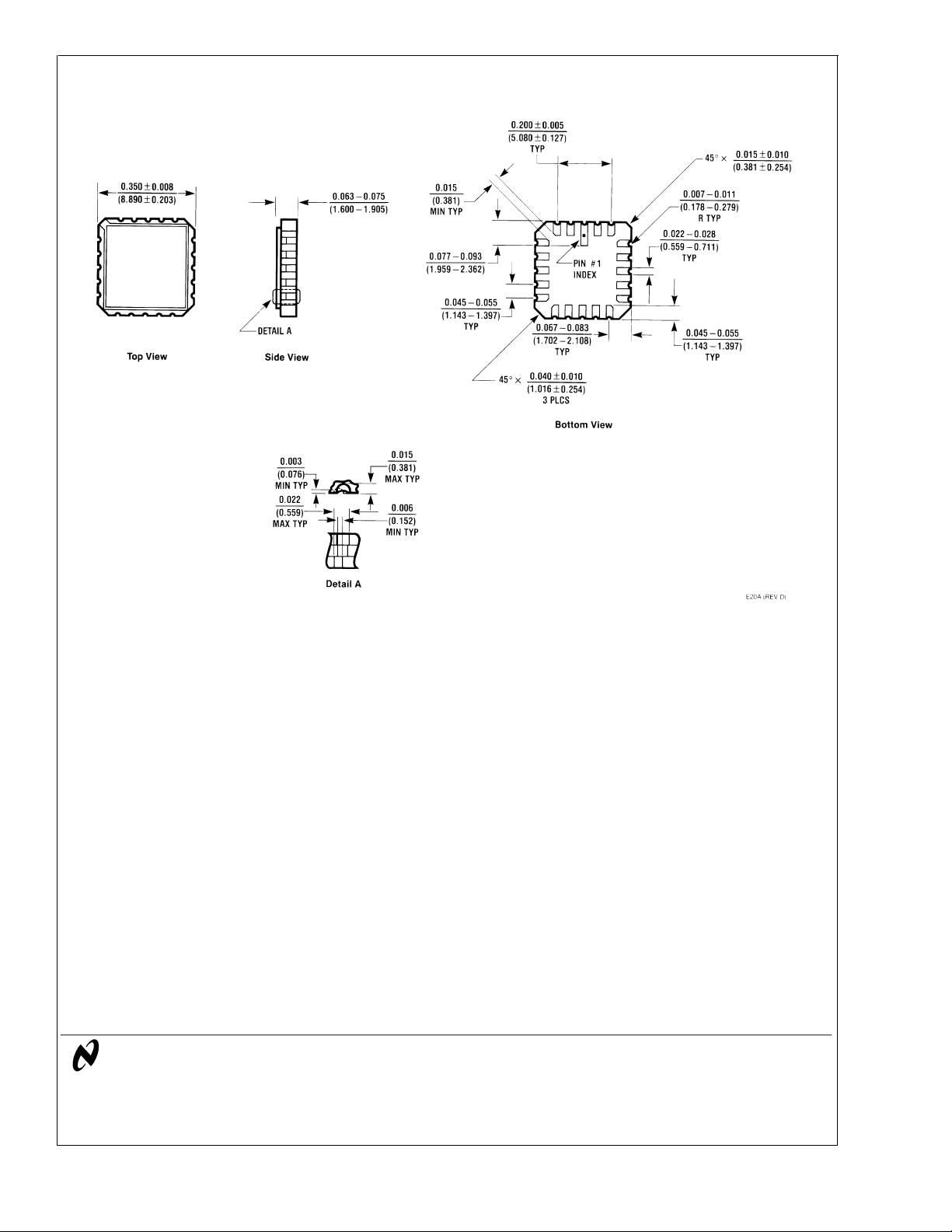

20 Lead Ceramic Leadless Chip Carrier (E)

Order Number DS26LS31MJE/883

NS Package Number E20A
