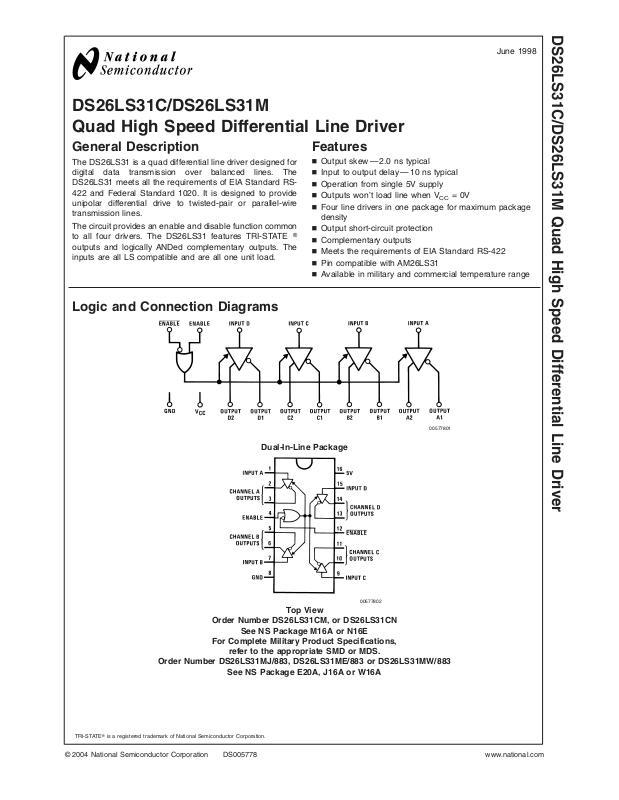

Datasheet DS26LS31CM Specification

DS26LS31C/DS26LS31M
Quad High Speed Differential Line Driver

DS26LS31C/DS26LS31M Quad High Speed Differential Line Driver

June 1998

General Description

The DS26LS31 is a quad differential line driver designed for
digital data transmission over balanced lines. The
DS26LS31 meets all the requirements of EIA Standard RS­422 and Federal Standard 1020. It is designed to provide
unipolar differential drive to twisted-pair or parallel-wire
transmission lines.

The circuit provides an enable and disable function common
to all four drivers. The DS26LS31 features TRI-STATE
outputs and logically ANDed complementary outputs. The
inputs are all LS compatible and are all one unit load.

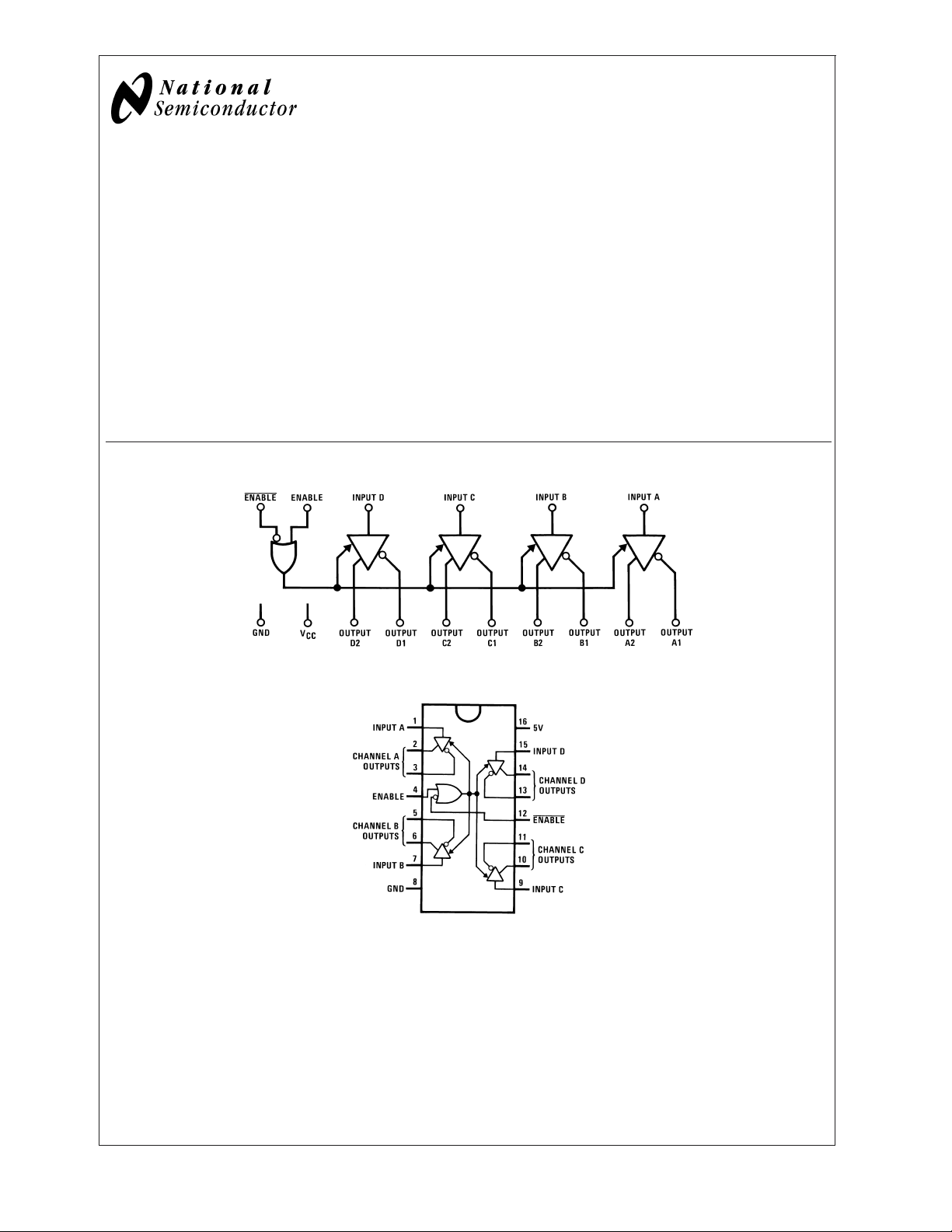

Logic and Connection Diagrams

Features

n Output skew — 2.0 ns typical
n Input to output delay — 10 ns typical
n Operation from single 5V supply
n Outputs won’t load line when V
n Four line drivers in one package for maximum package

density

n Output short-circuit protection

®

n Complementary outputs
n Meets the requirements of EIA Standard RS-422
n Pin compatible with AM26LS31
n Available in military and commercial temperature range

CC

00577801

=0V

Order Number DS26LS31CM, or DS26LS31CN

See NS Package M16A or N16E

For Complete Military Product Specifications,

refer to the appropriate SMD or MDS.

Order Number DS26LS31MJ/883, DS26LS31ME/883 or DS26LS31MW/883

See NS Package E20A, J16A or W16A

TRI-STATE®is a registered trademark of National Semiconductor Corporation.

Dual-In-Line Package

00577802

Top View

© 2004 National Semiconductor Corporation DS005778 www.national.com

Absolute Maximum Ratings (Note 2)

If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.

Supply Voltage 7V

Input Voltage 7V

Output Voltage 5.5V

Output Voltage (Power OFF) −0.25 to 6V

DS26LS31C/DS26LS31M

Maximum Power Dissipation (Note 1) at 25˚C

Cavity Package 1509 mW

Molded DIP Package 1476 mW

Operating Conditions

Min Max Units

Supply Voltage, V

DS26LS31M 4.5 5.5 V

DS26LS31 4.75 5.25 V

Temperature, T

DS26LS31M −55 +125 ˚C

DS26LS31 0 +70 ˚C

Note 1: Derate cavity package 10.1 mW/˚C above 25˚C; derate molded DIP
package 11.9 mW/˚C above 25˚C; derate SO package 8.41 mW/˚C above
25˚C.

CC

A

SO Package 1051 mW

Electrical Characteristics (Notes 3, 4, 5)

Symbol Parameter Conditions Min Typ Max Units

V

OH

V

OL

V

IH

V

IL

I

IL

I

IH

I

I

I

O

V

CL

I

SC

I

CC

Output High Voltage IOH= −20 mA 2.5 V

Output Low Voltage IOL=20mA 0.5 V

Input High Voltage 2.0 V

Input Low Voltage 0.8 V

Input Low Current VIN= 0.4V −40 −200 µA

Input High Current VIN= 2.7V 20 µA

Input Reverse Current VIN= 7V 0.1 mA

TRI-STATE Output Current VO= 2.5V 20 µA

V

= 0.5V −20 µA

O

Input Clamp Voltage IIN= −18 mA −1.5 V

Output Short-Circuit Current −30 −150 mA

Power Supply Current All Outputs Disabled 35 60 mA

or Active

Switching Characteristics

VCC= 5V, TA= 25˚C

Symbol Parameter Conditions Min Typ Max Units

t

PLH

t

PHL

Skew Output to Output C

t

LZ

t

HZ

t

ZL

t

ZH

Note 2: “Absolute Maximum Ratings” are those values beyond which the safety of the device cannot be guaranteed. They are not meant to imply that the devices
should be operated at these limits. The tables of “Electrical Characteristics” provide conditions for actual device operation.

Note 3: Unless otherwise specified min/max limits apply across the −55˚C to +125˚C temperature range for the DS726LS31M and across the 0˚C to +70˚C range
for the DS26LS31. All typicals are given for V

Note 4: All currents into device pins are positive; all currents out of device pins are negative. All voltages are referenced to ground unless otherwise specified.

Note 5: Only one output at a time should be shorted.

Input to Output CL=30pF 10 15 ns

Input to Output CL=30pF 10 15 ns

= 30 pF 2.0 6.0 ns

L

Enable to Output CL= 10 pF, S2 Open 15 35 ns

Enable to Output CL= 10 pF, S1 Open 15 25 ns

Enable to Output CL= 30 pF, S2 Open 20 30 ns

Enable to Output CL= 30 pF, S1 Open 20 30 ns

= 5V and TA= 25˚C.

CC

www.national.com 2

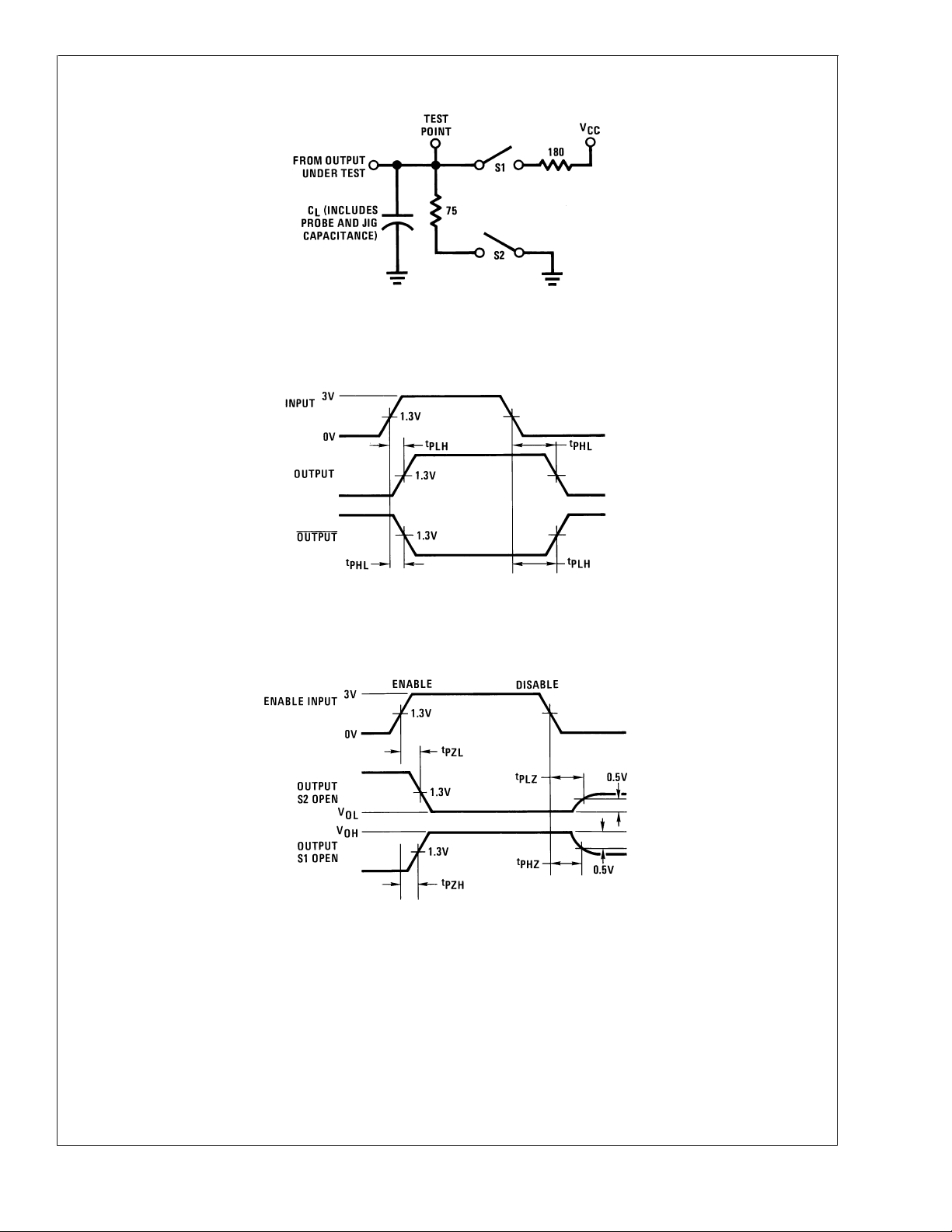

AC Test Circuit and Switching Time Waveforms

DS26LS31C/DS26LS31M

S1 and S2 of load circuit are closed except where shown.

f = 1 MHz, tr≤ 15 ns, tf≤ 6ns

00577803

FIGURE 1. AC Test Circuit

00577804

FIGURE 2. Propagation Delays

f = 1 MHz, tr≤ 15 ns, tf≤ 6ns

00577805

FIGURE 3. Enable and Disable Times

www.national.com3

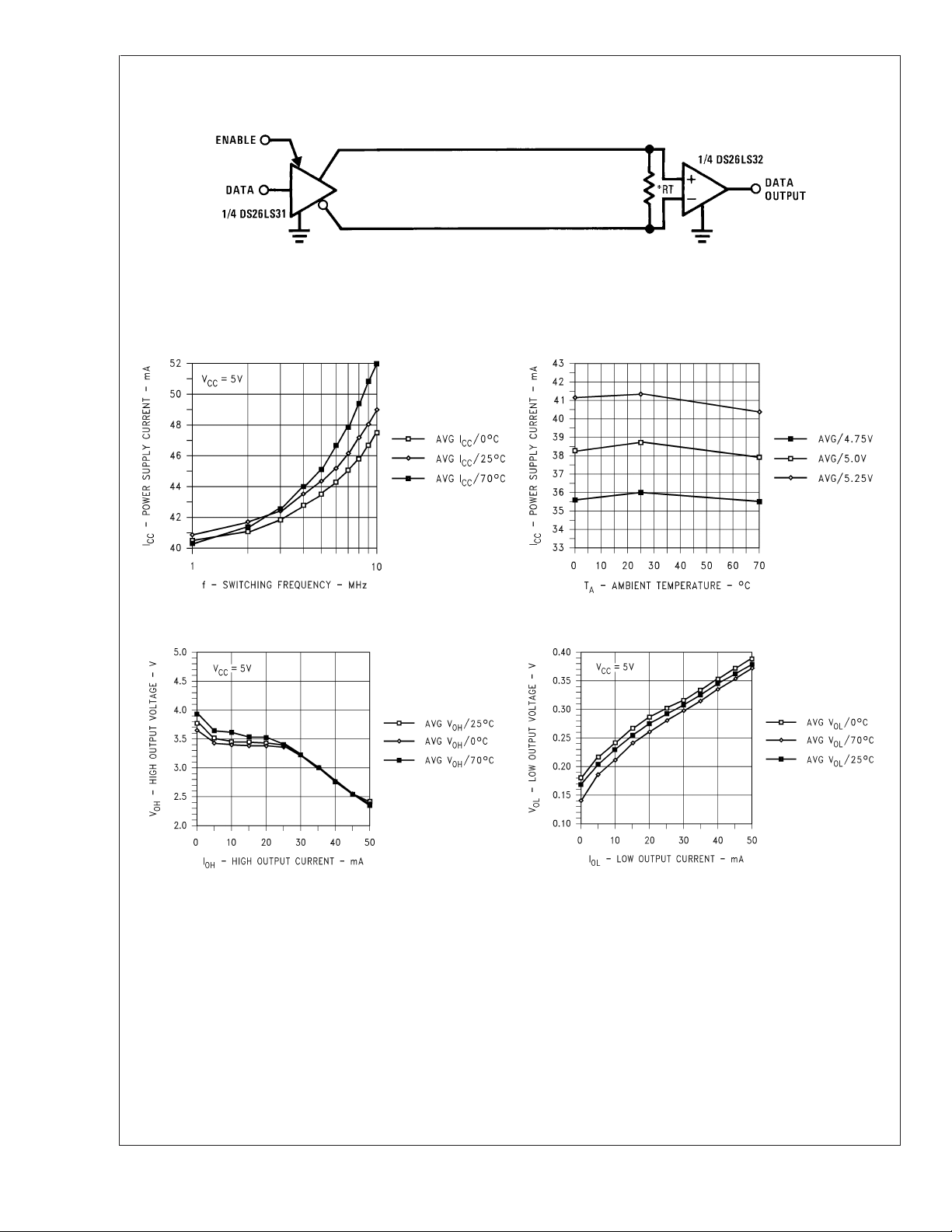

Typical Applications

Two-Wire Balanced System, RS-422

DS26LS31C/DS26LS31M

Note 6: RTis optional although highly recommended to reduce reflection.

Typical Performance Characteristics

00577806

DS26LS31CN Unloaded ICvs Frequency vs T

DS26LS31CN VOHvs IOHvs T

A

A

00577807

DS26LS31 ICCvs VCCvs T

DS26LS31CN VOLvs IOLvs T

A

00577808

A

00577809

www.national.com 4

00577810

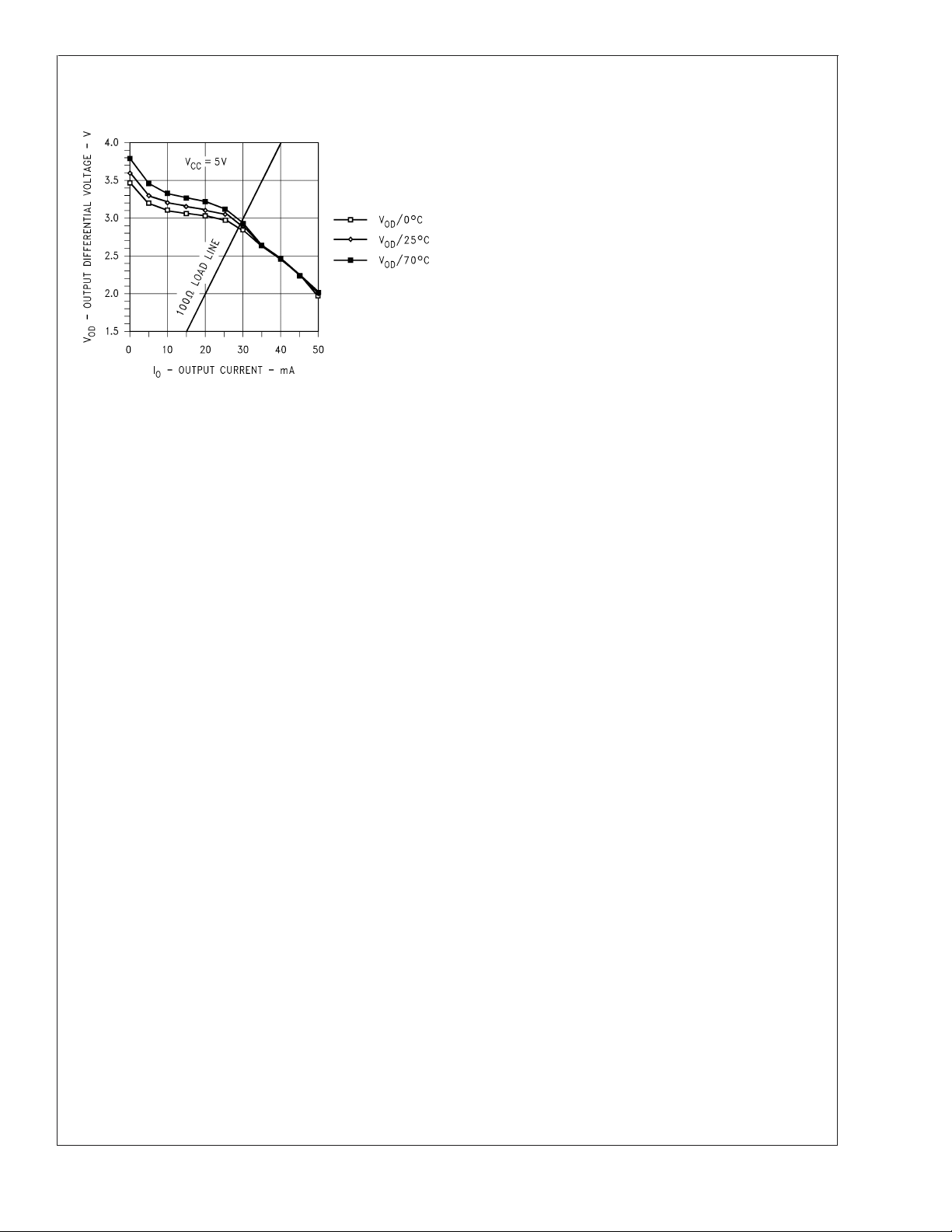

Typical Performance Characteristics (Continued)

DS26LS31C/DS26LS31M

DS26LS31CN V

vs IOvs T

OD

A

00577811

www.national.com5

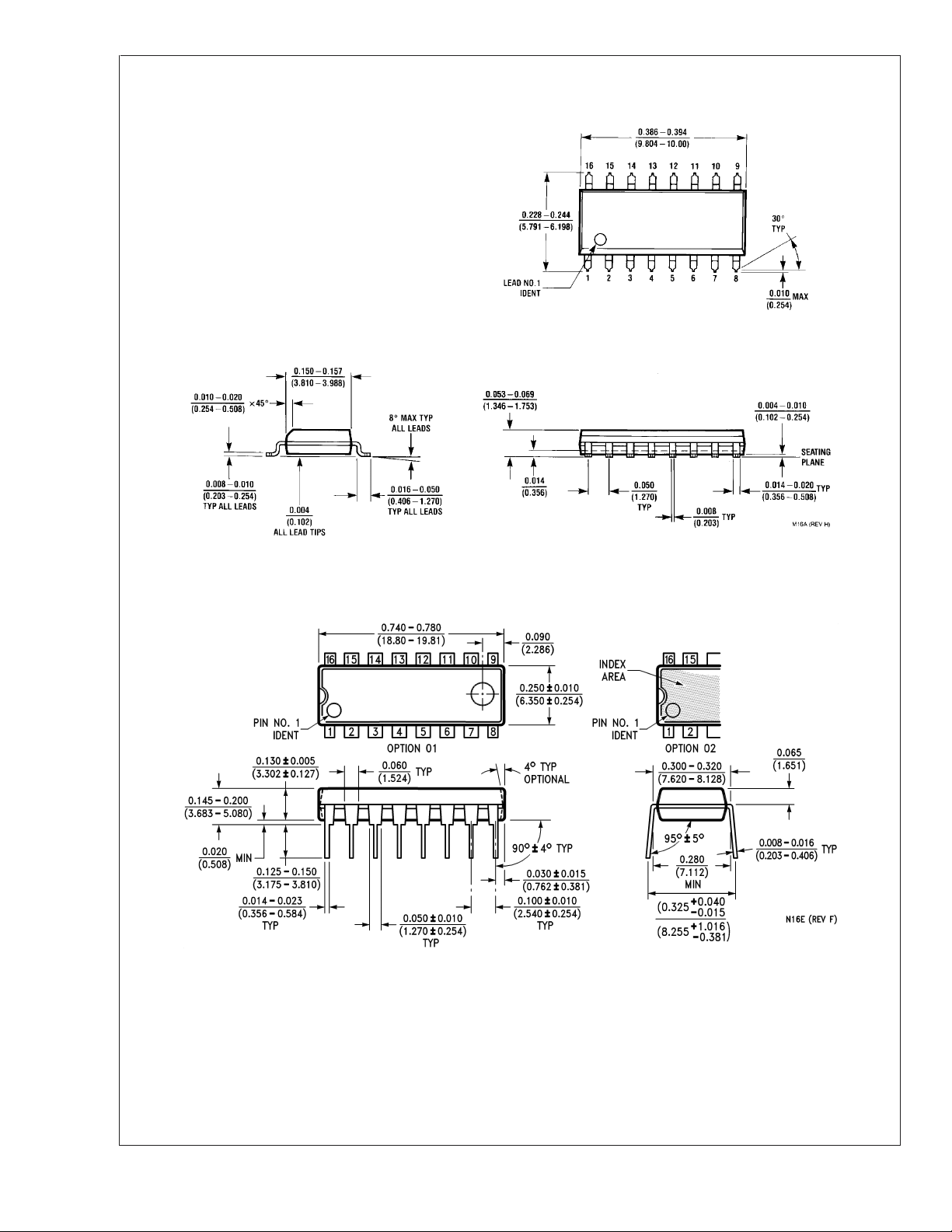

Physical Dimensions inches (millimeters)

unless otherwise noted

DS26LS31C/DS26LS31M

Small Outline Package (M)

Order Number DS26LS31CM

NS Package Number M16A

Molded Dual-In-Line Package (N)

Order Number DS26LS31CN

NS Package Number N16E

www.national.com 6

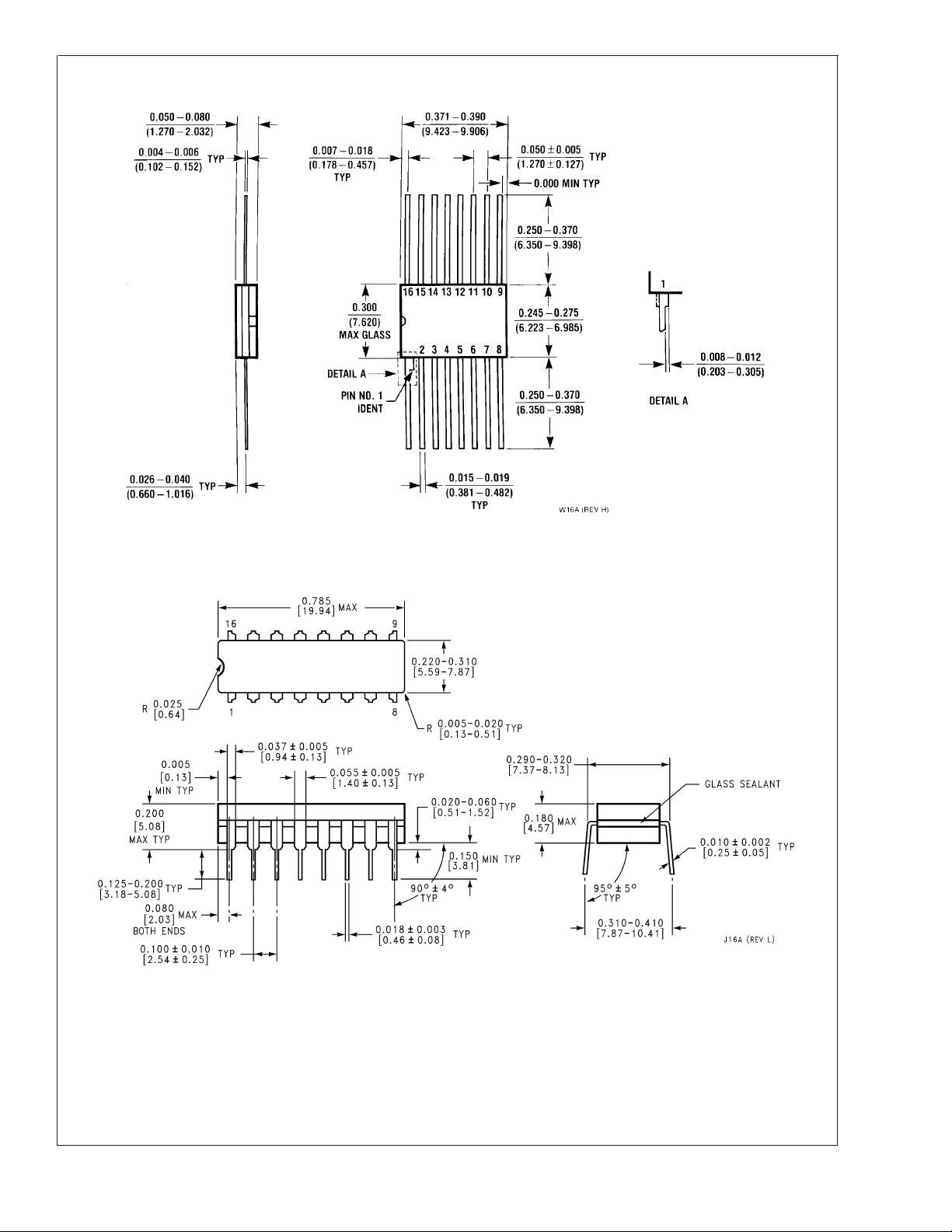

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

DS26LS31C/DS26LS31M

16 Lead Ceramic Flatpak (F)

Order Number DS26LS31MW/883

NS Package Number W16A

16 Lead Ceramic Dual-in-Line Package (J)

Order Number DS26LS31MJ/883

NS Package Number J16A

www.national.com7

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

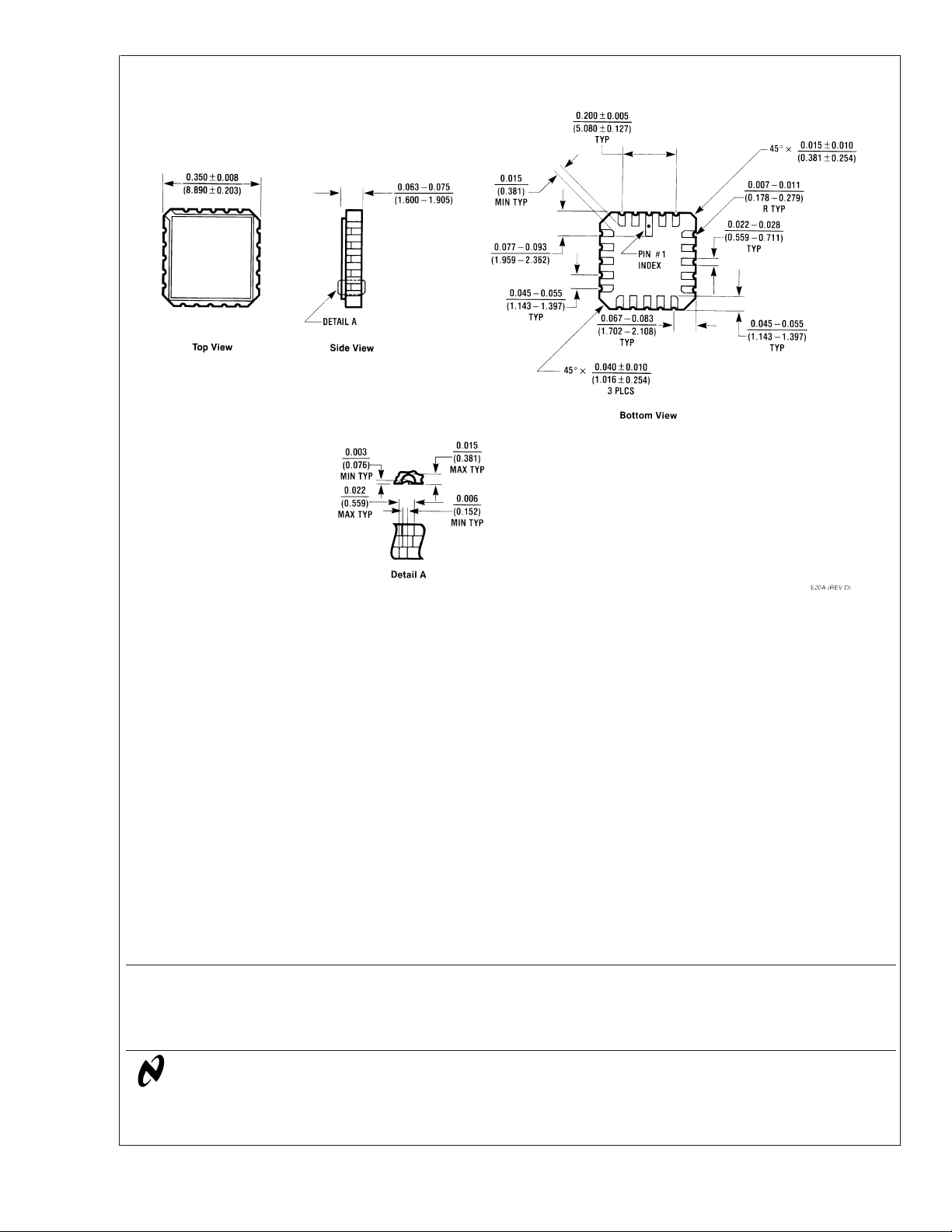

20 Lead Ceramic Leadless Chip Carrier (E)

Order Number DS26LS31MJE/883

NS Package Number E20A
