Page 1
OPTREX
First Edition
Approved by
Production Div.

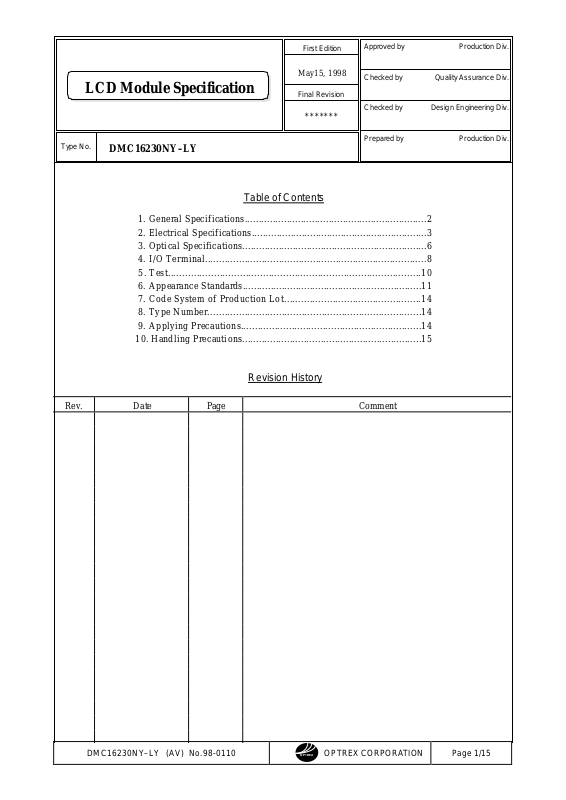

LCD Module Specification
Type No.
DMC16230NY–LY
1. General Specifications.................................................................2
2. Electrical Specifications...............................................................3
3. Optical Specifications..................................................................6
4. I/O Terminal..............................................................................8
5. Test........................................................................................10
6. Appearance Standards................................................................11
7. Code System of Production Lot................................................14
8. Type Number...........................................................................14
9. Applying Precautions................................................................14
10. Handling Precautions................................................................15
May15, 1998
Final Revision
*******
Table of Contents
Checked by
Checked by
Prepared by
Quality Assurance Div.
Design Engineering Div.
Production Div.
Revision History
Rev. Date Page Comment
DMC16230NY–LY (AV) No.98-0110 OPTREX CORPORATION Page 1/15
Page 2
OPTREX
1. General Specifications
Operating Temp. : min. 0˚C ~ max. 50˚C
Storage Temp. : min. -20˚C ~ max. 70˚C
Display Format : 16 characters × 2 lines
Display Fonts : 5 × 7 dots + cursor ( 1 character )
Viewing Area : 99.0 (W) × 24.0 (H) mm
Outline Dimensions : 122.0 (W) × 44.0 (H) × 14.6 max. (D) mm
Weight : 75g max.
LCD Type : NTD-7136
( STN / Yellow -mode / Transmissive )
Viewing Angle : 6:00
Backlight : LED Backlight / Yellow-green
Drawings : Dimensional Outline UE-31362B
DMC16230NY–LY (AV) No.98-0110 OPTREX CORPORATION Page 2/15
Page 3
OPTREX
2. Electrical Specifications
2.1. Absolute Maximum Ratings
VSS=0V
Parameter Symbol Conditions Min. Max. Units
Supply Voltage
VCC-VSS – -0.3 7.0 V
(Logic)
Supply Voltage
VCC-VEE – 0 13.0 V
(LCD Drive)
Input Voltage VI – -0.3 VCC+0.3 V
2.2. DC Characteristics
Ta=25˚C, VSS=0V
Parameter Symbol Conditions Min. Typ. Max. Units
Supply Voltage
VCC-VSS – 4.5 – 5.5 V
(Logic)
Supply Voltage
VCC-VEE Shown in 3.1 V
(LCD Drive)
High Level
VIH VCC=5.0V±10% 2.2 – VCC V
Input Voltage
Low Level
VIL VCC=5.0V±10% 0 – 0.6 V
Input Voltage
High Level
VOH IOH=-0.205mA 2.4 – VCC V
Output Voltage
Low Level
VOL IOL=1.2mA 0 – 0.4 V
Output Voltage
Supply Current ICC VCC-VSS=5.0V – 1.8 3.0 mA
DMC16230NY–LY (AV) No.98-0110 OPTREX CORPORATION Page 3/15
Page 4
OPTREX
2.3. AC Characteristics
VCC=5.0V±10%
Parameter Symbol Conditions Min. Max. Units
Enable Cycle Time tCYC Fig.1, 2 500 – ns
Enable Pulse Width PWEH Fig.1, 2 230 – ns
Enable Rise/Fall Time tEr, tEf Fig.1, 2 – 20 ns
Address Setup Time tAS Fig.1, 2 40 – ns
Address Hold Time tAH Fig.1, 2 10 – ns
Write Data Setup Time tDSW Fig.1 80 – ns
Write Data Hold Time tDHW Fig.1 10 – ns
Read Data Delay Time tDDR Fig.2 – 160 ns
Read Data Hold Time tDHR Fig.2 5 – ns
V
RS
R/W
E
DB0~DB7 Valid Data
IH
V
IL
t
AS
V
IL
PW
EH
t
r tEf
E
V
IH
V
IL
t
DSW
V
IH
V
IL
V
IH
t
CYC
Fig.1 Write Operation Timing
V
RS
IH
V
IL
t
AS
V
IH
V
IL
t
AH
V
IL
V
IL
t
DHW
V
IH
V
IL
t
AH
V
IL
V
IH
V
IL
t
CYC
V
IH
t
f
E
V
IL
t
DHR
V
IL
V
OH
V
OL
V
R/W
E
DB0~DB7 Valid Data
IH
PW
EH
t
r
E
V
IH
V
IL
t
DDR
V
IH
V
OH
V
OL
Fig.2 Read Operation Timing
DMC16230NY–LY (AV) No.98-0110 OPTREX CORPORATION Page 4/15
Page 5
OPTREX
2.4. Lighting Specifications
2.4.1. Absolute Maximum Ratings
Ta=25˚C
Parameter Symbol Conditions Min. Typ. Max. Units
Foward Current IF Note 1 – – 480 mA
Reverse Voltage VR – – – 8 V
LED Power Dissipation PD – – – 2.1 W
Note 1 : Refer to the foward current derating curve.
IF (mA)
480
280
50250 Ta (˚C)
2.4.2. Operating Characteristics
Ta=25˚C
Parameter Symbol Conditions Min. Typ. Max. Units
Foward Voltage VF IF = 240mA 3.8 4.0 4.2 V
Luminance of
L IF = 240mA 70 – – cd/m
Backlight Surface
2
DMC16230NY–LY (AV) No.98-0110 OPTREX CORPORATION Page 5/15
Page 6
OPTREX

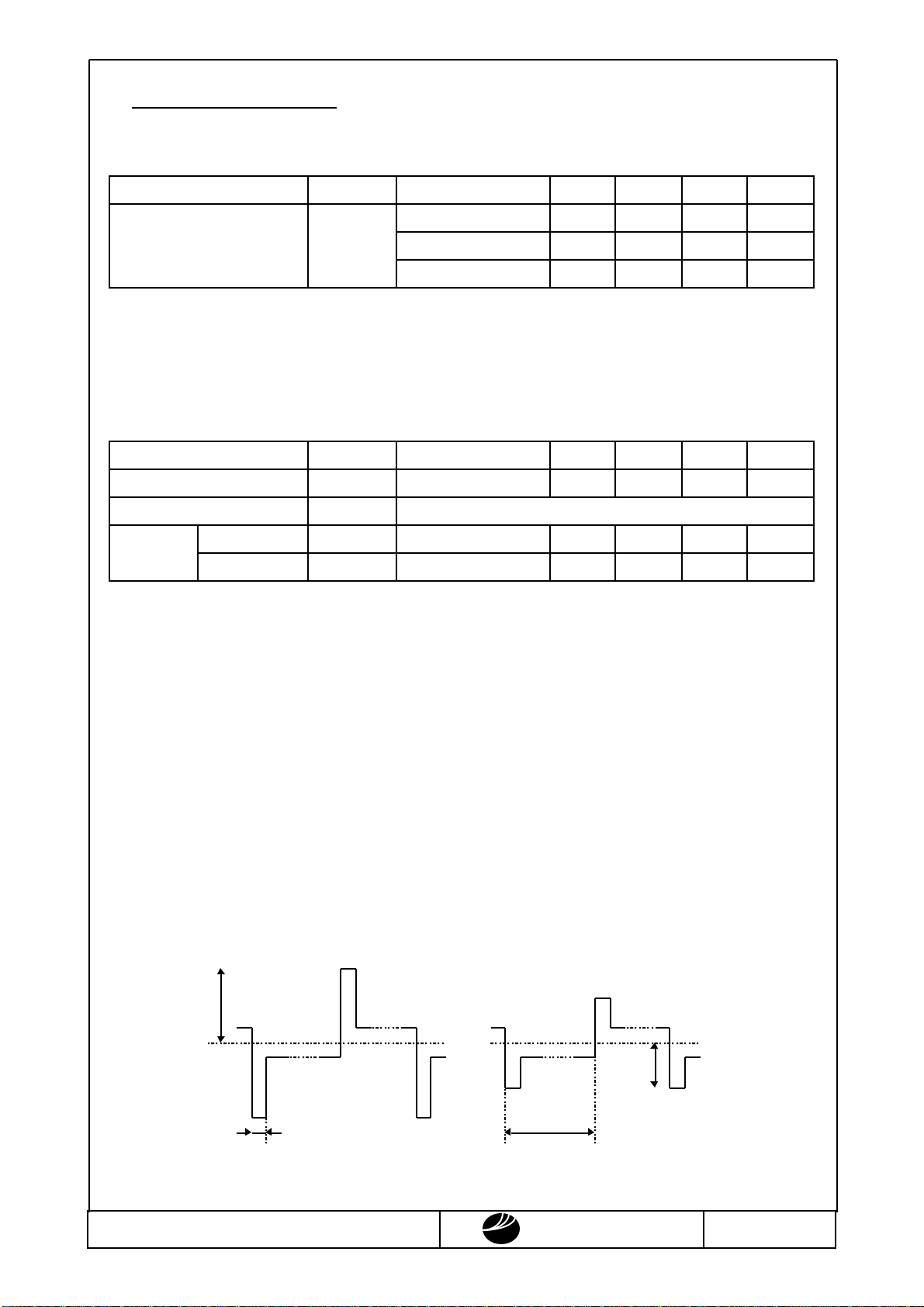

3. Optical Specifications
3.1. LCD Driving Voltage
Parameter Symbol Conditions Min. Typ. Max. Units
Recommended Ta= 0˚C – – 5.3 V
LCD Driving Voltage VCC-VEE Ta=25˚C 4.4 4.7 5.0 V
Note 1 Ta=50˚C 4.1 – – V
Note 1 : Voltage (Applied actual waveform to LCD Module) for the best contrast. The range of
minimum and maximum shows tolerance of the operating voltage. The specified contrast ratio and
response time are not guaranteed over the entire range.
3.2. Optical Characteristics
Ta=25˚C, 1/16 Duty, 1/5 Bias, VD=4.5V (Note 4), θ= 0˚, φ = –˚
Parameter Symbol Conditions Min. Typ. Max. Units
Contrast Ratio Note 1 CR θ = 0˚, φ = –˚ – 8 –
Viewing Angle Shown in 3.3
Response Rise Note 2 TON – – 140 210 ms
Time Decay Note 3 TOFF – – 180 270 ms
Note 1 : Contrast ratio is definded as follows.
CR = LOFF / LON
LON : Luminance of the ON segments
LOFF : Luminance of the OFF segments
Note 2 : The time that the luminance level reaches 90% of the saturation level from 0% when ON
signal is applied.
Note 3 : The time that the luminance level reaches 10% of the saturation level from 100% when OFF
signal is applied.
Note 4 : Definition of Driving Voltage VD
Assuming that the typical driving waveforms shown below are applied to the LCD Panel at
1/A Duty - 1/B Bias ( A : Duty Number, B : Bias Number ). Driving voltage VD is definded
as follows.
VD = (Vth1+Vth2) / 2
Vth1 :The voltage VO-P that should provide 50% of the satulation level in the luminance at
the segment which the ON signal is applied to.
Vth2 :The voltage VO-P that should provide 50% of the satulation level in the luminance at
the segment which the OFF signal is applied to.
VO-P
( B-2 )×VO-P / B
1 / ( fF×A )
(ON SIGNAL)
DMC16230NY–LY (AV) No.98-0110 OPTREX CORPORATION Page 6/15
1 / fF
(OFF SIGNAL)
Page 7
OPTREX

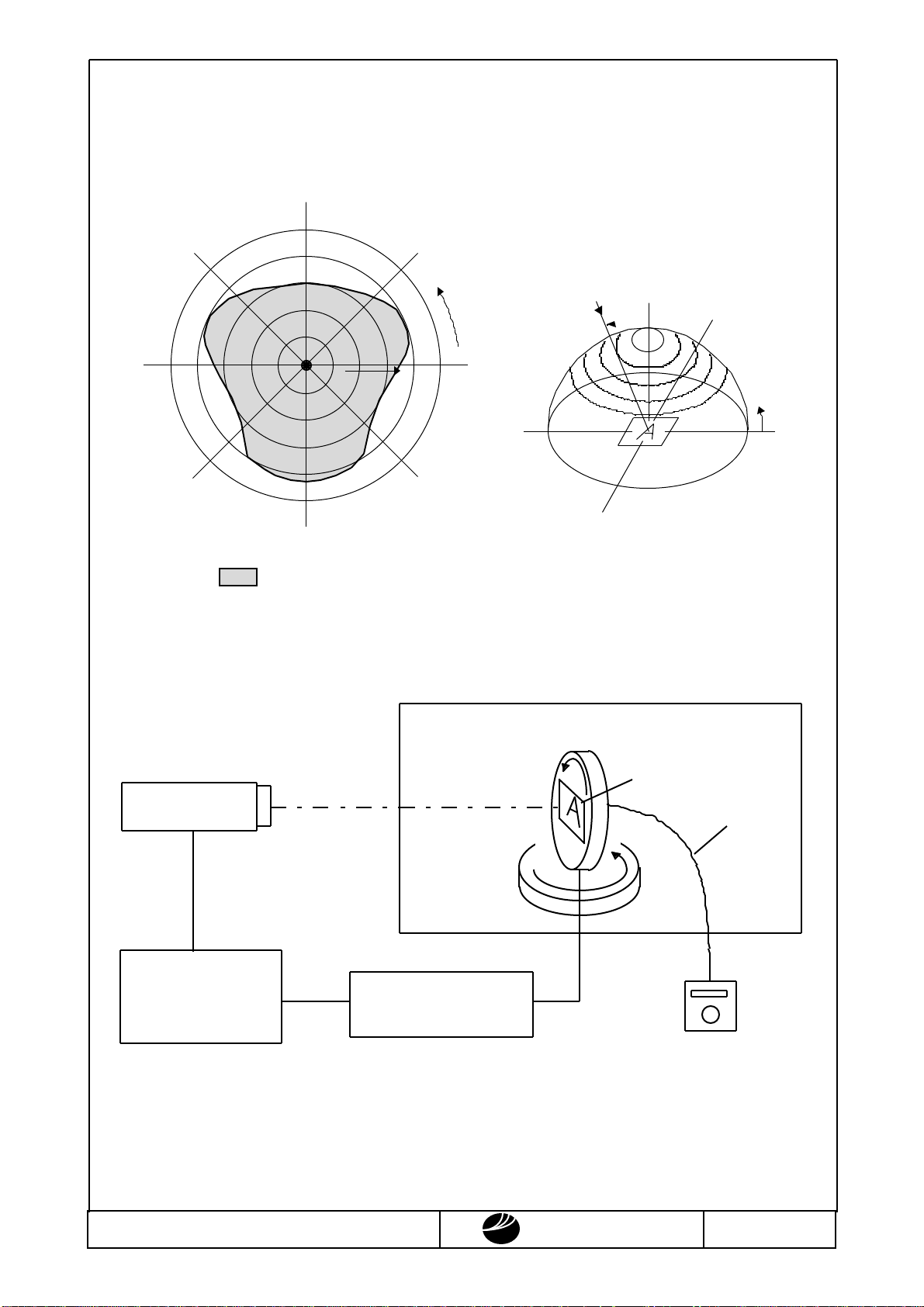

3.3. Definition of Viewing Angle and Optimum Viewing Area
•Point ● shows the point where contrast ratio is measured. : θ= 0˚, φ = –˚
•Driving condition : 1/16 Duty, 1/5 Bias, VD=4.7V, fF=84.4Hz
90˚
135˚
180˚
•Area shows typ. CR≥2
3.4. System Block Diagram
10 20 30 40 50
θ
270˚
45˚
315˚225˚
φ
(φ= 0˚)
180˚
270˚
θ
90˚
φ
0˚
Photometer
#1980A WB
Computer
Temperature Chamber
Control Unit &
Waveform Generator
Rotation Table (θ,φ)
φ
θ
LCD
Optical Fiber
Halogen bulb
DMC16230NY–LY (AV) No.98-0110 OPTREX CORPORATION Page 7/15
Page 8
OPTREX

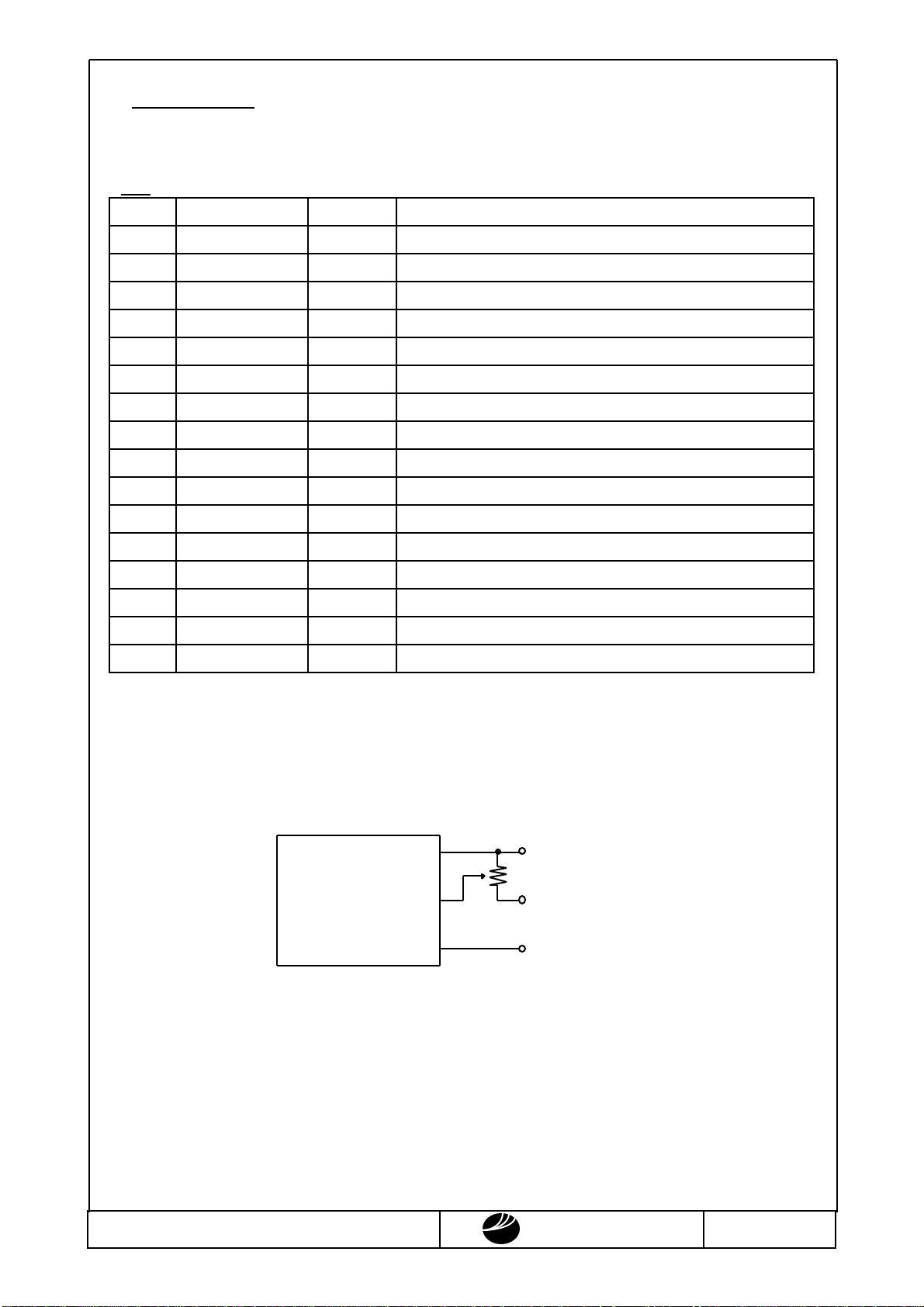

4. I/O Terminal
4.1. Pin Assignment
CN1
No. Symbol Level Function
1 VSS – Power Supply (0V, GND)
2 VCC – Power Supply for Logic
3 VEE – Power Supply for LCD Drive
4 RS H / L Register Select Signal
5 R/W H / L Read/Write Select Signal H : Read L : Write
6 E H / L Enable Signal (No pull-up Resister)
7 DB0 H / L Data Bus Line / Non-connection at 4-bit operation
8 DB1 H / L Data Bus Line / Non-connection at 4-bit operation
9 DB2 H / L Data Bus Line / Non-connection at 4-bit operation
10 DB3 H / L Data Bus Line / Non-connection at 4-bit operation
11 DB4 H / L Data Bus Line
12 DB5 H / L Data Bus Line
13 DB6 H / L Data Bus Line
14 DB7 H / L Data Bus Line
15 LED CATHODE – LED Cathode Terminal
16 LED ANODE – LED Anode Terminal
4.2. Example of Power Supply
It is recommended to apply a potentiometer for the contrast adjust due to the tolerance
of the driving voltage and its temperature dependence.
MODULE
VCC
VR
VEE
VSS
VR=10~20K Ω
VCC (+Voltage)
VEE (-Voltage)
VSS (0V)
DMC16230NY–LY (AV) No.98-0110 OPTREX CORPORATION Page 8/15
Page 9
OPTREX

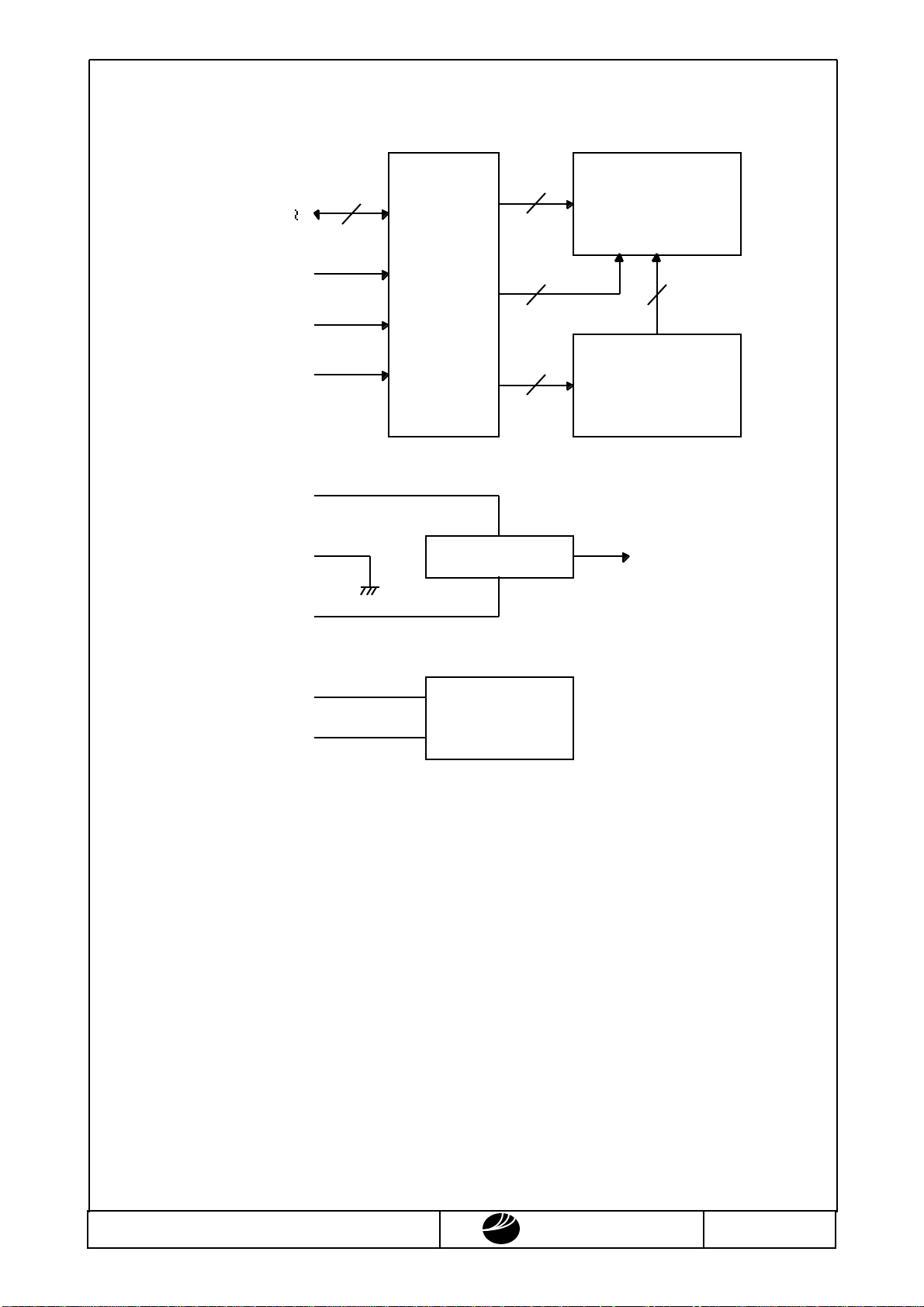

4.3. Block Diagram
DB7
DB0
R/W
RS
VCC
VSS
VEE
8
COM 16
L C D P
16 characters × 2 lines
E
Control LSI
HD44780
SEG 40
SEG 40
or equivalent
4
Column Driver
LC7930N × 1
or equivalent
To LSIBias Circuit
LED ANODE
LED CATHODE
LED Backlight
DMC16230NY–LY (AV) No.98-0110 OPTREX CORPORATION Page 9/15
Page 10
OPTREX

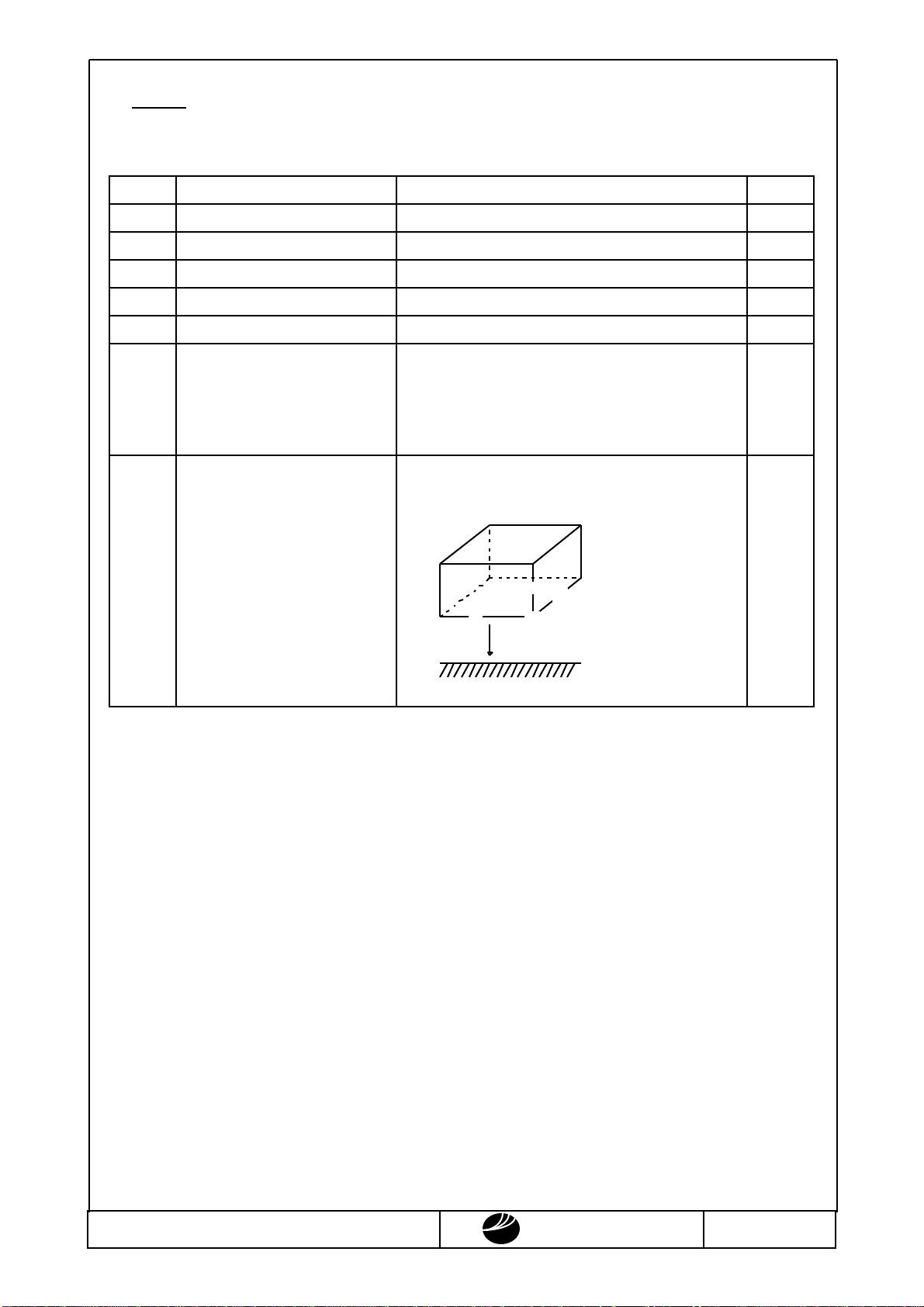

5. Test
Dropping method corner dropping
Face dropping
Edge dropping
No change on display and in operation under the following test condition.
No. Parameter Conditions Notes
1 High Temperature Operating 50˚C±2˚C, 96hrs (operation state)
2 Low Temperature Operating 0˚C±2˚C, 96hrs (operation state) 3
3 High Temperature Storage 70˚C±2˚C, 96hrs 4
4 Low Temperature Storage -20˚C±2˚C, 96hrs 3, 4
5 Damp Proof Test 40˚C±2˚C, 90~95%RH, 96hrs 3, 4
6 Vibration Test Total fixed amplitude : 1.5mm 5
Vibration Frequency : 10~55Hz
One cycle 60 seconds to 3 directions of X, Y, Z for
each 15 minutes
7 Shock Test To be measured after dropping from 60cm high on
the concrete surface in packing state.
F
E
B
D
G
A
60cm
Concrete Surface
C
A corner : once
B,C,D edge : once
E,F,G face : once
Note 1 : Unless otherwise specified, tests will be conducted under the following condition.
Temperature : 20±5˚C
Humidity : 65±5%
Note 2 : Unless otherwise specified, tests will be not conducted under functioning state.
Note 3 : No dew condensation to be observed.
Note 4 : The function test shall be conducted after 4 hours storage at the normal temperature and humidity
after removed from the test chamber.
Note 5 : Vibration test will be conducted to the product itself without putting it in a container.
DMC16230NY–LY (AV) No.98-0110 OPTREX CORPORATION Page 10/15
Page 11
OPTREX

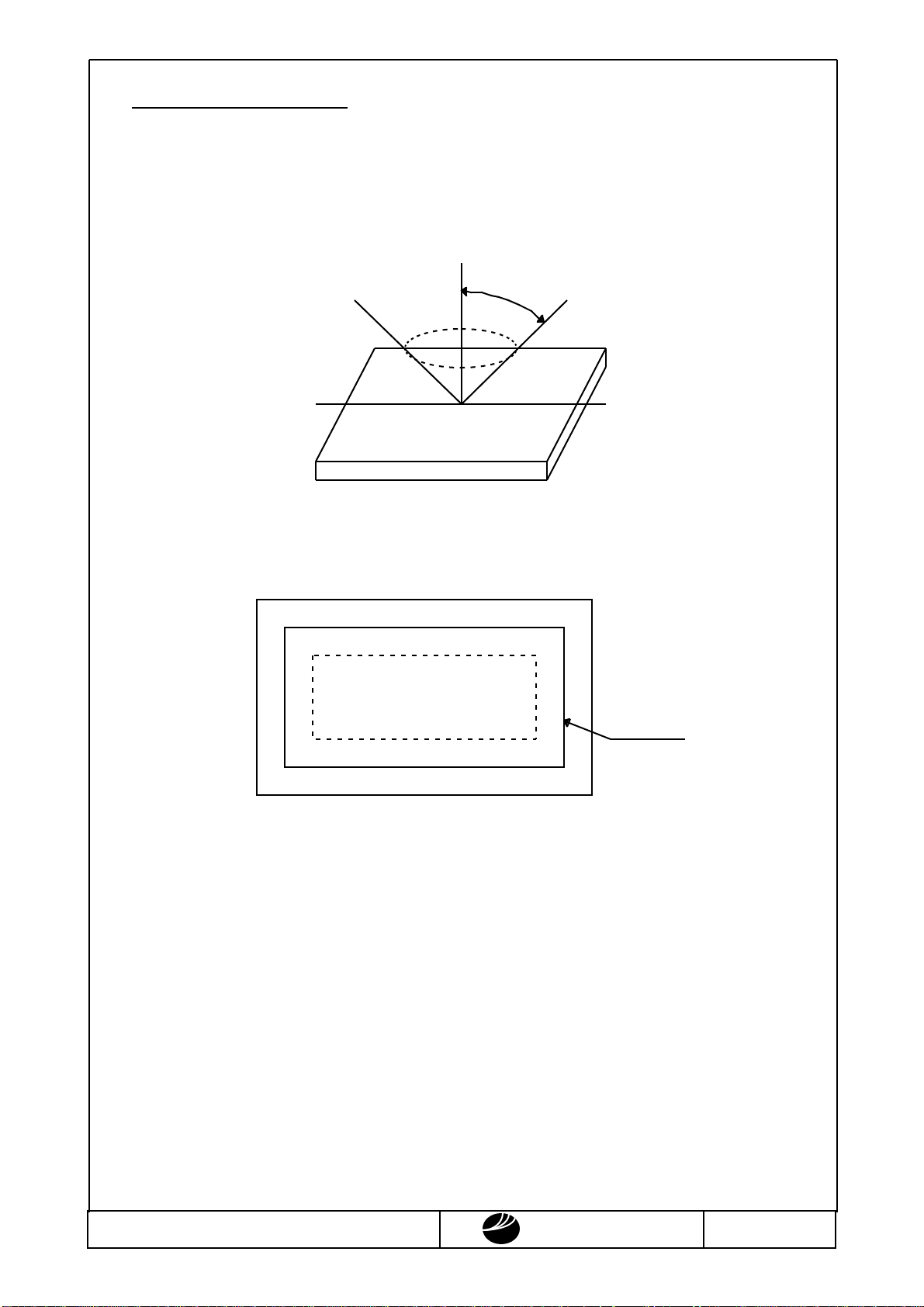

6. Appearance Standards
6.1. Inspection conditions
The LCD shall be inspected under 40W white fluorescent light.
The distance between the eyes and the sample shall be more than 30cm.
All directions for inspecting the sample should be within 45˚against perpendicular line.
45˚
6.2. Definition of applicable Zones
A Zone : Active display area
B Zone : Area from outside of "A Zone" to validity viewing area
C Zone : Rest parts
A Zone + B Zone = Validity viewing area
A Zone
B Zone
C Zone
Bezel Flame
DMC16230NY–LY (AV) No.98-0110 OPTREX CORPORATION Page 11/15
Page 12
OPTREX
6.3. Standards
No. Parameter Criteria
1 Black and (1) Round Shape
White Spots, Zone Acceptable Number
Foreign Substances Dimension (mm) A B C
D ≤ 0.1 * * *
0.1 < D ≤ 0.2 5 5 *
0.2 < D ≤ 0.3 0 1 *
0.3 < D 0 0 *
D = ( Long + Short ) / 2 * : Disregard
(2) Line Shape
Zone Acceptable Number
X(mm) Y(mm) A B C
– 0.02≥W * * *
2.0≥L 0.03≥W 3 3 *
1.0≥L 0.04≥W 1 2 *
2 Air Bubbles
(between glass Zone Acceptable Number
& polarizer) Dimension (mm) A B C
1.0≥L 0.05≥W 0 2 *
– 0.05<W In the same way (1)
X : Length Y : Width * : Disregard
Total defects shall not exceed 5.
D ≤ 0.15 * * *
0.15< D ≤ 0.3 2 3 *
0.3 < D ≤ 0.5 1 2 *
0.5 < D ≤ 1.0 0 1 *
* : Disregard
Total defects shall not exceed 3.
DMC16230NY–LY (AV) No.98-0110 OPTREX CORPORATION Page 12/15
Page 13
OPTREX

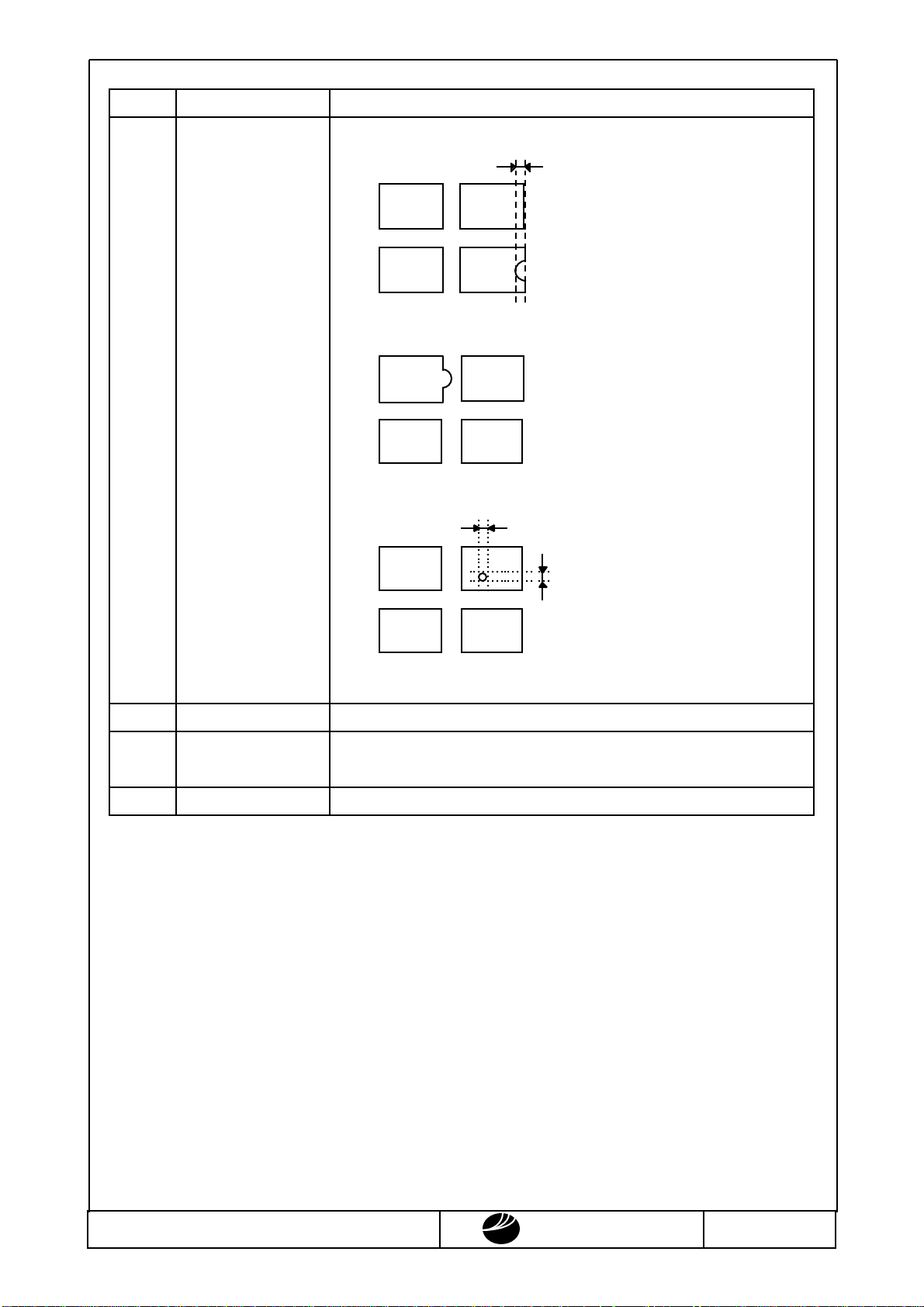

No. Parameter Criteria
3 The Shape of Dot (1) Dot Shape (with Dent)
0.15 ≥
(2) Dot Shape (with Projection)
Should not be connected to next dot.
(3) Pin Hole
X
As per the sketch of left hand.
(X+Y) / 2≤0.2mm
Y
(Less than 0.1mm is no counted.)
Total defects shall not exceed 5.
4 Polarizer Scratches Not to be conspicuous defects.
5 Polarizer Dirts If the stains are removed easily from LCDP surface, the module is not
defective.
6 Color Variation Not to be conspicuous defects.
DMC16230NY–LY (AV) No.98-0110 OPTREX CORPORATION Page 13/15
Page 14
OPTREX
7. Code System of Production Lot
The production lot of module is specified as follows.
¨ ¨ ¨ ¨ ¨ ¨
Factory Number (Numeral)
Factory Code (Alphabet)
Production Week (1~5)
Production Month (1~9, X, Y, Z)
Production Year (Lower 2 digits)
8. Type Number
The type number of module is specified on the back of module as follows.
DMC16230 NY–LY
Stamp
Etching or Printing
9. Applying Precautions
Please contact us when questions and/or new problems not specified in this specifications arise.
DMC16230NY–LY (AV) No.98-0110 OPTREX CORPORATION Page 14/15
Page 15
OPTREX
10. Handling Precautions
Optrex Products are designed for use in ordinary electronic devices such as business machines,
telecommunications equipment, measurement devices and etc..
Optrex Products are not designed, intended, or authorized for use in any application in which the failure
of the product could result in a situation where personal injury or death may occur. These applications
include, but are not limited to, life-sustaining equipment, nuclear control devices, aerospace equipment,
devices related to hazardous or flammable materials, etc. (If Buyer intends to purchase or use the Optrex
Products for such unintended or unauthorized applications, Buyer must secure prior written consent to
such use by a responsible officer of Optrex Corporation.) Should Buyer purchase or use Optrex Products
for any such unintended or unauthorized application (without such consent), Buyer shall indemnify and
hold Optrex and its officers, employees, subsidiaries, affiliates and distributors harmless against all
claims, costs, damages and expenses, and reasonable attorney's fees, arising out of, directly or indirectly,
any claim of personal injury or death associated with such unintended or unauthorized use, even if such
claim alleges that Optrex was negligent regarding the design or manufacture of the part.
1) LCD may be broken because it is made of glass.
2) Polarizer is a soft material and can easily be scratched.
3) Please avoid static electricity.
① Please be sure to ground human body and electric appliances during work.
② It is preferable to use conductive mat on table and wear cotton clothes or conduction processed fiber.
Synthetic fiber is not recommended.
③ Please slowly peel off protective film, because static electricity may be charged.
4) If it is necessary to store LCD modules for a long time, please comply with the following procedures.
If storage condition is not satisfactory, display (especially polarizer) may be deteriorated or soldering
I/O terminals may become difficult (some oxide is generated at I/O terminals plating).
① Store as delivered by Optrex
② If you store as unpacked, put in anti-static bag, seal its opening and store where it is not subjected
to direct sunshine nor fluorescent lamp.
③ Store at temperature 0 to +35˚C and at low humidity. Please refer to our specification sheets for
storage temperature range and humidity condition.
5) The module does not contain excess current limiter.
Please design the limiter to cut excess current in your power supply circuit.
6) Liquid crystal may be leaked when display is broken. Never taste it. If your hands or clothes touch it,
please immediately wash using soap.
7) The connection between the bezel and VSS (GND) is not specified in the module.
(Some module do not maintain connection between them.)
Please consult OPTREX to specify the connection.
Optrex shall not be responsible for any infringement of industrial property rights of third parties in any
country arising out of the application or use of Optrex Products, except which directly concern the
structure or production of such products.
DMC16230NY–LY (AV) No.98-0110 OPTREX CORPORATION Page 15/15
Loading...
