DMC16230 (AA) No.97-0264 OPTREX CORPORATION Page 1/14
OPTREX
Type No.
*******
Oct 28, 1997
First Edition
Final Revision
Quality Assurance Div.
Production Div.
Checked by
Checked by
Approved by
Production Div.
Design Engineering Div.
Prepared by

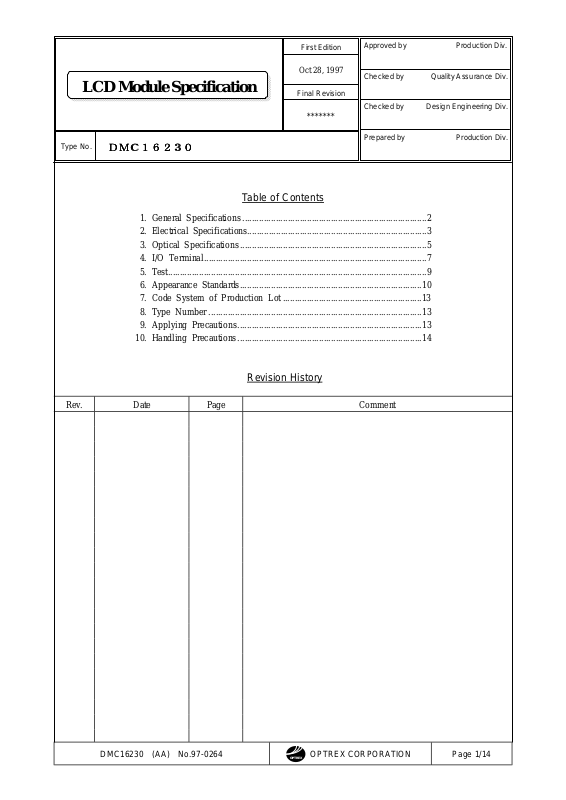

LCD Module Specification
ＤＭＣ１６２３０
ＤＭＣ１６２３０ＤＭＣ１６２３０
ＤＭＣ１６２３０
Table of Contents
1. General Specifications.............................................................................2
2. Electrical Specifications...........................................................................3
3. Optical Specifications..............................................................................5
4. I/O Terminal.............................................................................................7
5. Test............................................................................................................9
6. Appearance Standards............................................................................10
7. Code System of Production Lot..........................................................13
8. Type Number .........................................................................................13
9. Applying Precautions.............................................................................13
10. Handling Precautions.............................................................................14
Revision History
Rev. Date Page Comment
Page 2
DMC16230 (AA) No.97-0264 OPTREX CORPORATION Page 2/14
OPTREX
1.General Specifications
Operating Temp.
：
min. 0℃ ～ max. 50℃
Storage Temp.
：
min. -20℃ ～ max. 70℃
Display Format
：
16 characters × 2 lines
Display Fonts
：
5 × 7 dots ＋ cursor ( 1 character )
Viewing Area
：
99.0 (W) × 24.0 (H) mm
Outline Dimensions
：
122.0 (W) × 44.0 (H) × 11.0 max. (D) mm
W eight
：
60g max.
LCD Type
：
FRD-7136
( TN / Clear-mode / Reflective )
Viewing Angle
：
6:00
Backlight
：
None
Drawings
：
Dimensional Outline UE-30327A
Page 3
DMC16230 (AA) No.97-0264 OPTREX CORPORATION Page 3/14
OPTREX
2.Electrical Specifications
2.1.Absolute Maximum Ratings
V
SS
=0V
Parameter Symbol Conditions Min. Max. Units
Supply Voltage
(Logic)
VCC-VSS
－
-0.3 7.0 V
Supply Voltage
(LCD Drive)
VCC-VEE
－
0 13.0 V
Input Voltage VI
－
-0.3 VCC+0.3 V
2.2.DC Characteristics
Ta=25℃, V
SS
=0V
Parameter Symbol Conditions Min. Typ. Max. Units
Supply Voltage
(Logic)
VCC-VSS
－
4.5 － 5.5 V
Supply Voltage
(LCD Drive)
VCC-VEE Shown in 3.1 V
High Level
Input Voltage
VIH VCC=5.0V±10% 2.2 － V
CC
V
Low Level
Input Voltage
VIL VCC=5.0V±10% 0 － 0.6 V
High Level
Output Voltage
VOH IOH=-0.205mA 2.4 － V
CC
V
Low Level
Output Voltage
VOL IOL=1.2mA 0 － 0.4 V
Supply Current ICC VCC-VSS=5.0V
－
1.5 5.0 mA
Page 4
DMC16230 (AA) No.97-0264 OPTREX CORPORATION Page 4/14
OPTREX
2.3.AC Characteristics
V
CC
=5.0V±10%
Parameter Symbol Conditions Min. Max. Units
Enable Cycle Time
t
CYC
Fig.1, 2 500
－
ns
Enable Pulse Width PWEH Fig.1, 2 230
－
ns
Enable Rise/Fall Time
t
E
r,
t
E
f Fig.1, 2 － 20 ns
Address Setup Time
t
AS
Fig.1, 2 40
－
ns
Address Hold Time
t
AH
Fig.1, 2 10
－
ns
Write Data Setup Time
t
DSW
Fig.1 80 － ns
Write Data Hold Time
t
DHW
Fig.1 10 － ns
Read Data Delay Time
t
DDR
Fig.2 － 160 ns
Read Data Hold Time
t
DHR
Fig.2 5
－
ns
Fig.1 Write Operation Timing
Fig.2 Read Operation Timing
E
R/W
V
IH
V
IL
PW
EH
V
IL
t
CYC
t
E
r
t
E
f
t
DSW
t
DHW
t
AH
t
AS
V
IL
RS
DB0～DB7
Valid Data
V
IH
V
IL
V
IH
V
IL
V
IH
V
IL
V
IL
V
IH
V
IL
V
IH
V
IL
E
R/W
V
IH
V
IH
V
IH
PW
EH
t
DDR
t
E
f
t
CYC
t
DHR
t
E
r
t
AH
t
AS
V
IL
RS
DB0～DB7
Valid Data
V
IH
V
IL
V
IH
V
IL
V
IH
V
IL
V
IL
V
OH
V
OL
V
OH
V
OL
Page 5
DMC16230 (AA) No.97-0264 OPTREX CORPORATION Page 5/14
OPTREX
3.Optical Specifications
3.1.LCD Driving Voltage
Parameter Symbol Conditions Min. Typ. Max. Units
Recommended Ta= 0℃
－
－
5.0 V
LCD Driving Voltage VCC-VEE Ta=25℃ 4.2 4.5 4.8 V
Note 1 Ta=50℃ 3.6 －
－
V
Note 1 : Voltage (Applied actual waveform to LCD Module) for the best contrast. The range of
minimum and maximum shows tolerance of the operating voltage. The specified contrast ratio and
response time are not guaranteed over the entire range.
3.2.Optical Characteristics
Ta=25℃, 1/16 Duty, 1/5 Bias, V
D
=4.5V (Note 4), θ=10ﾟ, φ=270ﾟ
Parameter Symbol Conditions Min. Typ. Max. Units
Contrast Ratio Note 1 CR
θ
=20ﾟ, φ=270ﾟ
－
3.5 －
Viewing Angle Shown in 3.3
Response Rise Note 2 TON
－
－
180 270 ms
Time Decay Note 3 T
OFF
－
－
130 200 ms
Note 1 : Contrast ratio is definded as follows.
CR = L
OFF
/ LON CR = LON / L
OFF
L
ON
: Luminance of the ON segments
L
OFF
: Luminance of the OFF segments
Note 2 : The time that the luminance level reaches 90% of the saturation level from 0% when ON
signal is applied.
Note 3 : The time that the luminance level reaches 10% of the saturation level from 100% when OFF
signal is applied.
Note 4 : Definition of Driving Voltage V
D
Assuming that the typical driving waveforms shown below are applied to the LCD Panel at
1/A Duty - 1/B Bias ( A : Duty Number, B : Bias Number ). Driving voltage V
D
is definded
as follows.
V
D
= (Vth1+Vth2) / 2
Vth1 : The volt age V
O-P
that should provide 50% of the satulation level in the luminance
measured atθ= 10ﾟ, φ= ﾟon the segment which the ON signal is applied to.
Vth2 : The volt age V
O-P
that should provide 26% of the satulation level in the luminance
measured atθ= 40ﾟ, φ= ﾟon the segment which the OFF signal is applied to.
V
O-P
1 /
f
F
(
B-2
)
×
V
O-P
/ B
1 /
(
f
F
×
A
)
〈
OFF SIGNAL
〉
〈
ON SIGNAL
〉
Page 6
DMC16230 (AA) No.97-0264 OPTREX CORPORATION Page 6/14
OPTREX

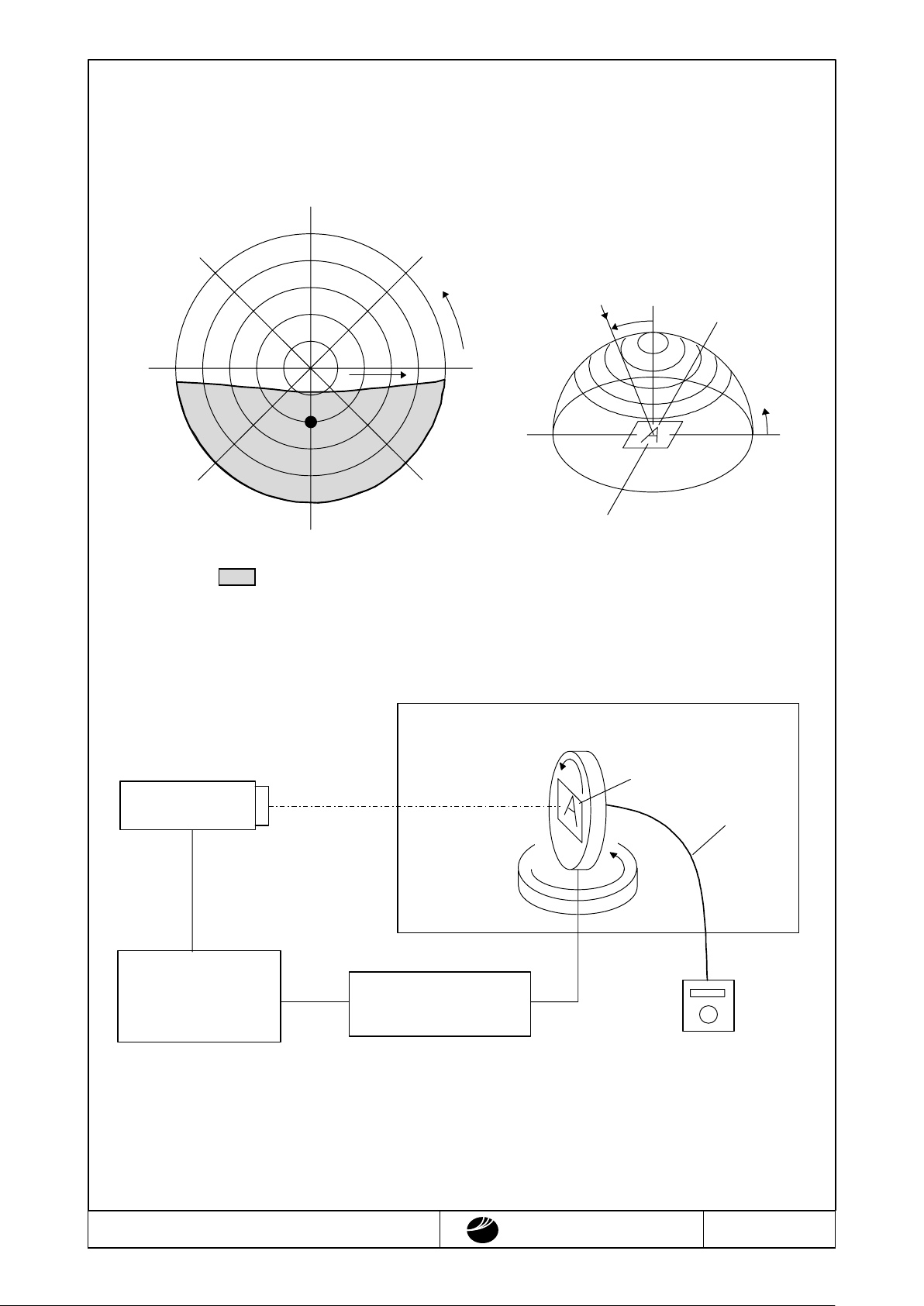

3.3.Definition of Viewing Angle and Optimum Viewing Area
･
Point ● shows the point where contrast ratio is measured. : θ= 0ﾟ, φ=－ﾟ
･
Driving condition : 1/16 Duty, 1/5 Bias, V
D
=4.5V,
f
F
=84.4Hz
･
Area shows typ. CR≧2
3.4.System Block Diagram
0ﾟ
90ﾟ
180ﾟ
270ﾟ
θ
φ
270ﾟ
135ﾟ
315ﾟ
225
ﾟ
45ﾟ
180ﾟ
90ﾟ
θ
(φ= 0ﾟ）
φ
10 20 30 40 50
φ
Halogen bulb
Computer
Rotation Table (θ,φ)
Temperature Chamber
LCD
Optical Fiber
Waveform Generator
Control Unit &
#1980A WB
Photometer
θ
Page 7
DMC16230 (AA) No.97-0264 OPTREX CORPORATION Page 7/14
OPTREX

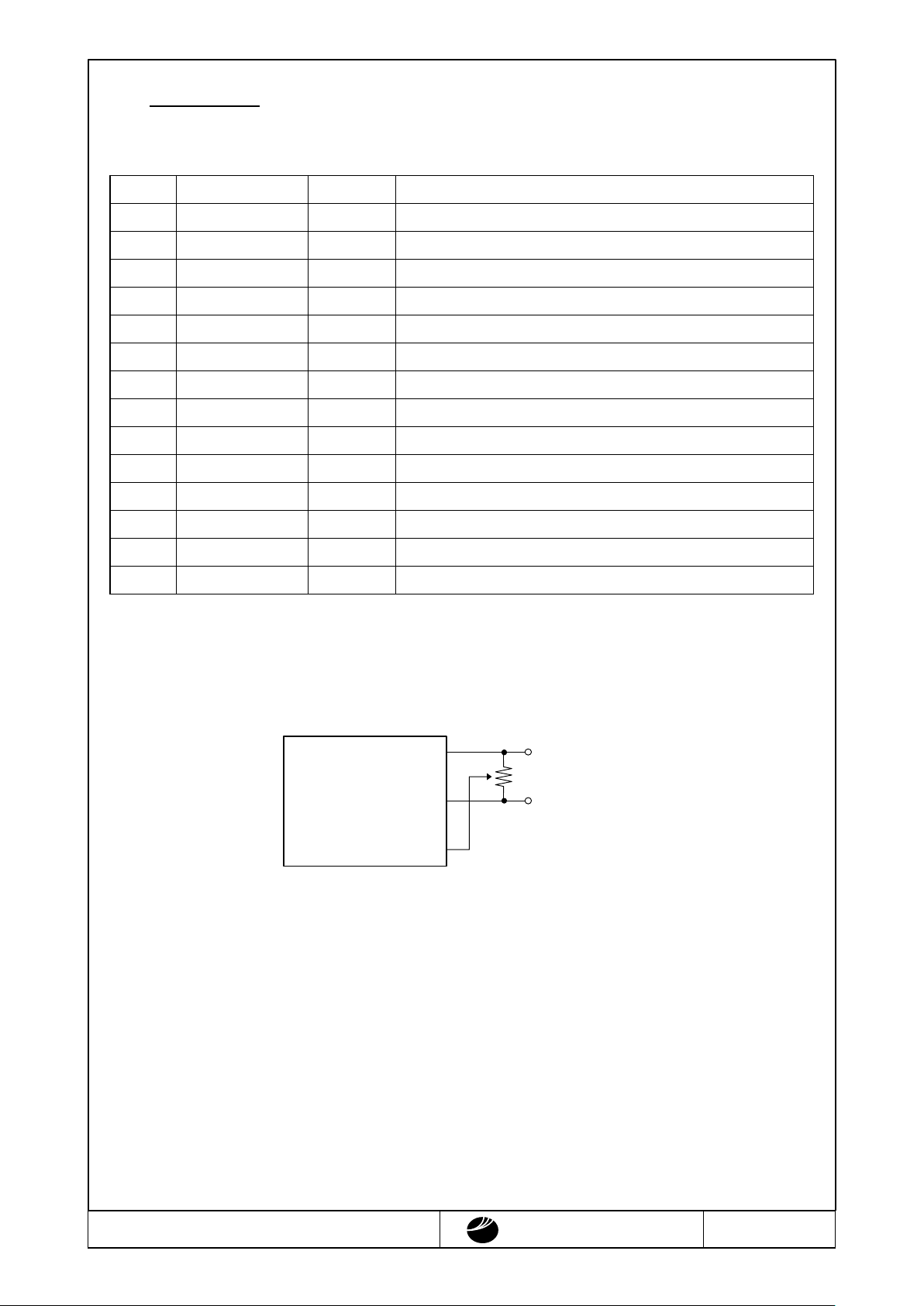

4.I/O Terminal
4.1.Pin Assignment
No. Symbol Level Function
1
V
SS
－
P o wer Supply (0V, GND)
2
V
CC
－
Po wer Supply for Logic
3
V
EE
－
Power Supply for LCD Drive
4
RS H / L Register Select Signal
5
R/W H / L Read/Write Select Signal H : Read L : Write
6
E H / L Enable Signal (No pull-up Resister)
7
DB0 H / L Data Bus Line / Non-connection at 4-bit operation
8
DB1 H / L Data Bus Line / Non-connection at 4-bit operation
9
DB2 H / L Data Bus Line / Non-connection at 4-bit operation
10
DB3 H / L Data Bus Line / Non-connection at 4-bit operation
11
DB4 H / L Data Bus Line
12
DB5 H / L Data Bus Line
13
DB6 H / L Data Bus Line
14
DB7 H / L Data Bus Line
4.2.Example of Power Supply
It is recommended to apply a potentiometer for the contrast adjust due to the tolerance
of the driving voltage and its temperature dependence.
MODULE
VCC
VEE
VSS
VCC (+Voltage)
VR=10～20K
Ω
VSS (0V)
VR
Page 8
DMC16230 (AA) No.97-0264 OPTREX CORPORATION Page 8/14
OPTREX

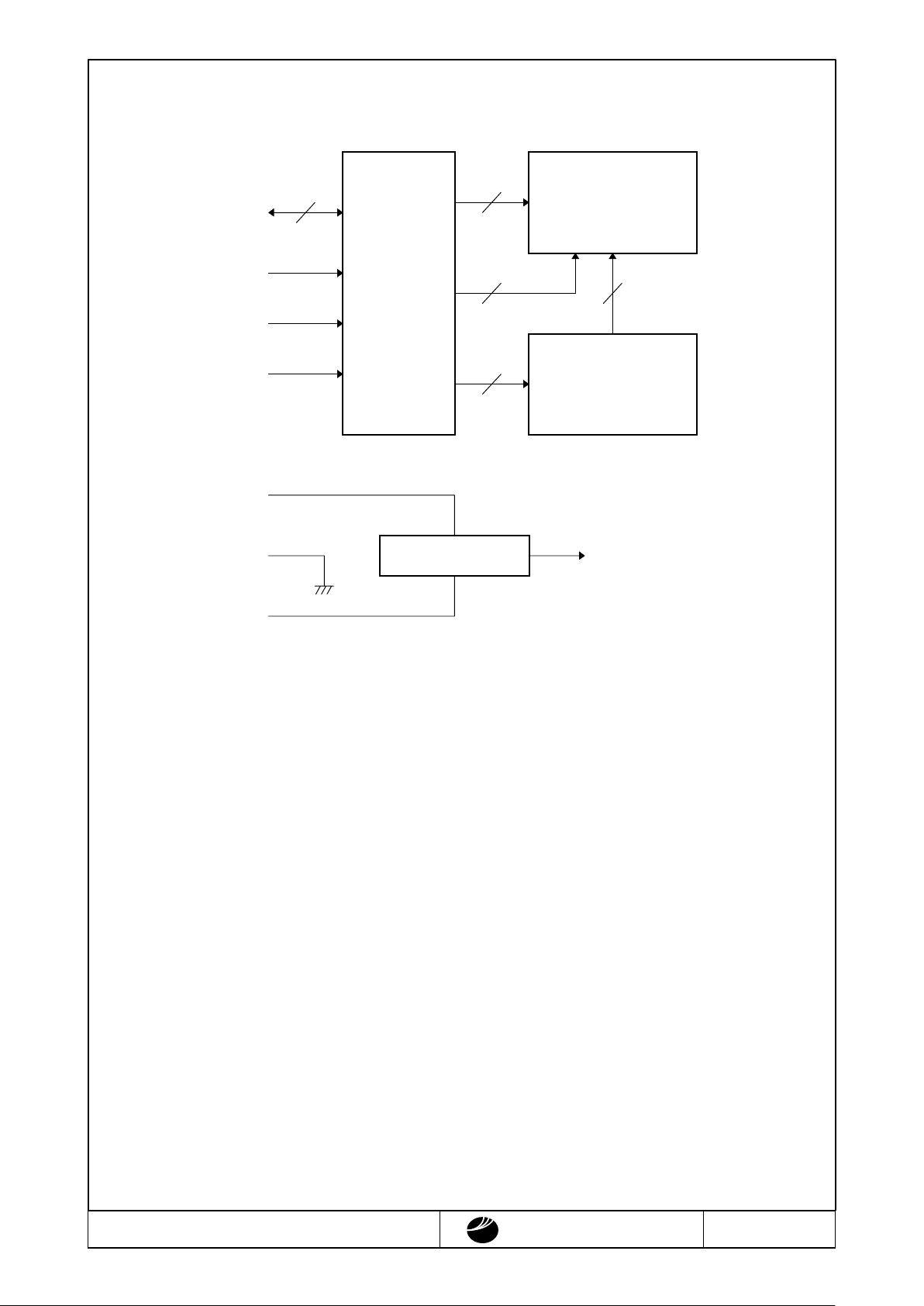

4.3.Block Diagram
～
E
R/W
RS
Control LSI
or equivalent
HD44780
L C D P
16 characters × 2 lines
Column Driver
or equivalent
LC7930N × 1
DB7
DB0
4
SEG 40
SEG 40
COM 16
8
VEE
VSS
VCC
To LSIBias Circuit
Page 9
DMC16230 (AA) No.97-0264 OPTREX CORPORATION Page 9/14
OPTREX

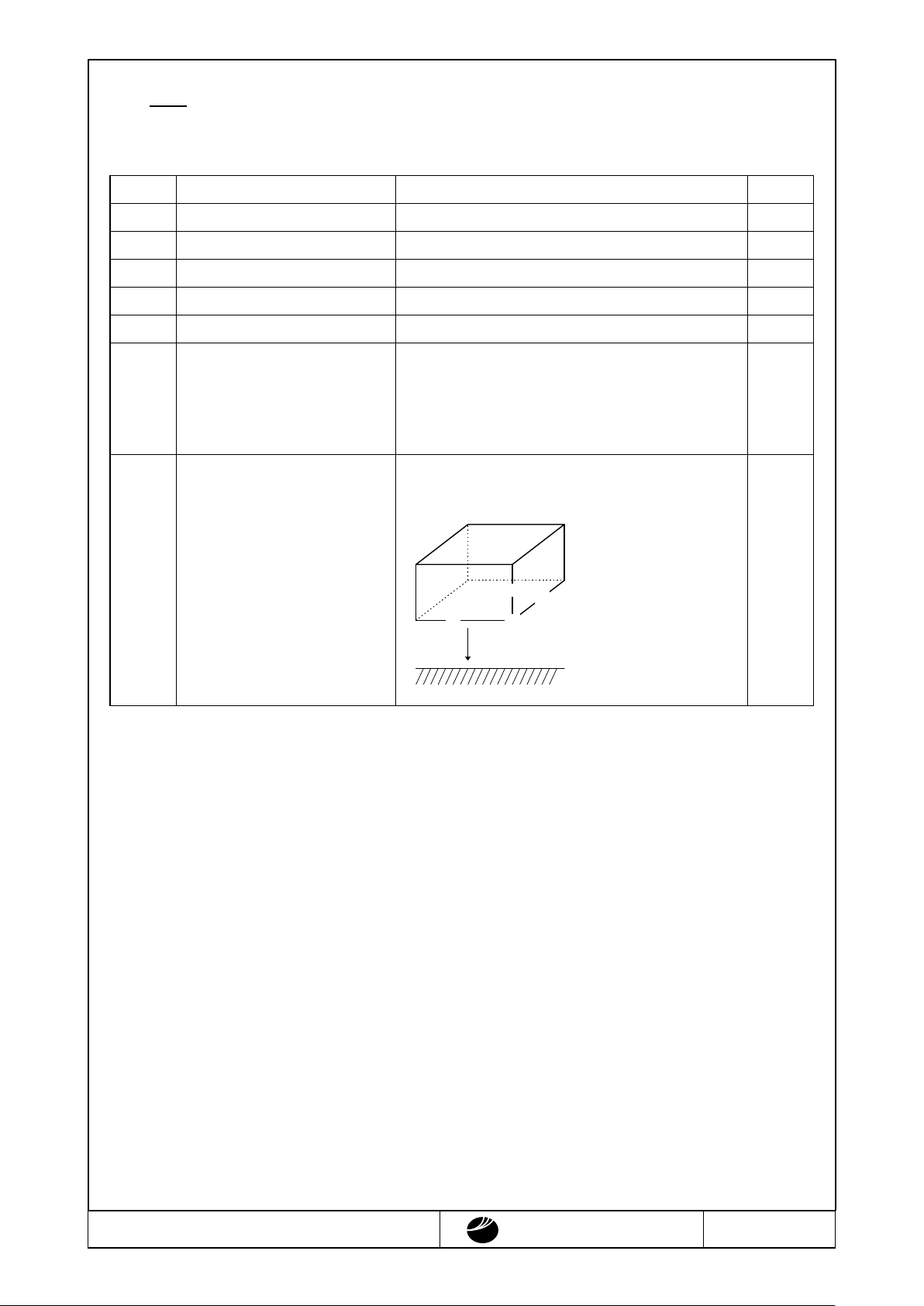

5.Test
No change on display and in operation under the following test condition.
No. Parameter Conditions Notes
1 High Temperature Operating 50
℃±2℃
, 96hrs (operation state)
2 Low Temperature Operating 0
℃±2℃
, 96hrs (operation state) 3
3 High Temperature Storage 60
℃±2℃
, 96hrs 4
4 Low Temperature Storage -20
℃±2℃
, 96hrs 3, 4
5 Damp Proof Test 40
℃±2℃
, 90～95%RH, 96hrs 3, 4
6 Vibration Test Total fixed amplitude : 1.5mm 5
Vibration Frequency : 10～55Hz
One cycle 60 seconds to 3 directions of X, Y, Z for
each 15 minutes
7 Shock Test To be measured after dropping from 60cm high on
the concrete surface in packing state.
Note 1 : Unless otherwise specified, tests will be conducted under the following condition.
Temperature : 20±5℃
Humidity : 65±5%
Note 2 : Unless otherwise specified, tests will be not conducted under functioning state.
Note 3 : No dew condensation to be observed.
Note 4 : The function test shall be conducted after 4 hours storage at the normal temperature and humidity
after removed from the test chamber.
Note 5 : Vibration test will be conducted to the product itself without putting it in a container.
E
A
G
D
C
F
60cm
Con crete Surface
Dropping method corner dropping
E,F,G face : once
B,C,D edge : once
A corner : once
Face dropping
Edge dropping
B
Page 10
DMC16230 (AA) No.97-0264 OPTREX CORPORATION Page 10/14
OPTREX

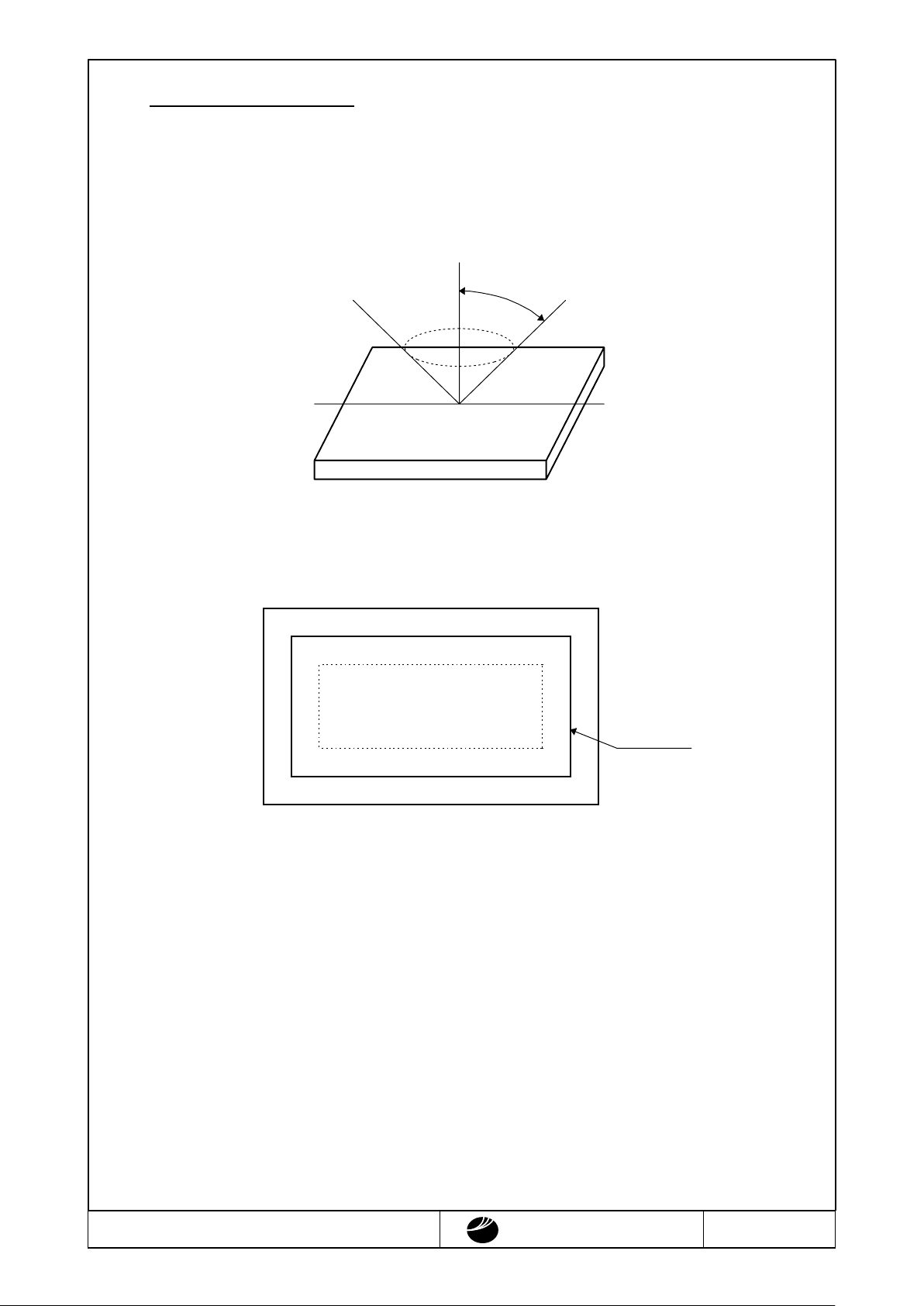

6.Appearance Standards
6.1.Inspection conditions
The LCD shall be inspected under 40W white fluorescent light.
The distance between the eyes and the sample shall be more than 30cm.
All directions for inspecting the sample should be within 45ﾟagainst perpendicular line.
6.2.Definition of applicable Zones
A Zone : Active display area
B Zone : Area from outside of "A Zone" to validity viewing area
C Zone : Rest parts
A Zone + B Zone = Validity viewing area
A Zone
B Zone
C Zone
Bezel Flame
45
ﾟ
Page 11
DMC16230 (AA) No.97-0264 OPTREX CORPORATION Page 11/14
OPTREX
6.3.Standards
No. Parameter Criteria
1 Black and (1) Round Shape
White Spots, Zone Acceptable Number
Foreign Substances Dimension (mm) A B C
D ≦ 0.1 * * *
0.1
＜
D ≦ 0.2 5 5 *
0.2
＜
D ≦ 0.3 0 1 *
0.3
＜
D 0 0 *
D = ( Long + Short ) / 2 * : Disregard
(2) Line Shape
Zone Acceptable Number
X(mm) Y(mm) A B C
－ 0.02≧W * * *
2.0≧L 0.03≧W 3 3 *
1.0≧L 0.04≧W 1 2 *
1.0≧L 0.05≧W 0 2 *
－ 0.05＜W In the same way (1)
X : Length Y : Width * : Disregard
Total defects shall not exceed 5.
2 Air Bubbles
(between glass Zone Acceptable Number
& polari zer) Dimension (mm) A B C
D ≦0.15 * * *
0.15＜ D ≦0.3 2 3 *
0.3
＜
D ≦0.5 1 2 *
0.5
＜
D ≦1.0 0 1 *
* : Disregard
Total defects shall not exceed 3.
Page 12
DMC16230 (AA) No.97-0264 OPTREX CORPORATION Page 12/14
OPTREX

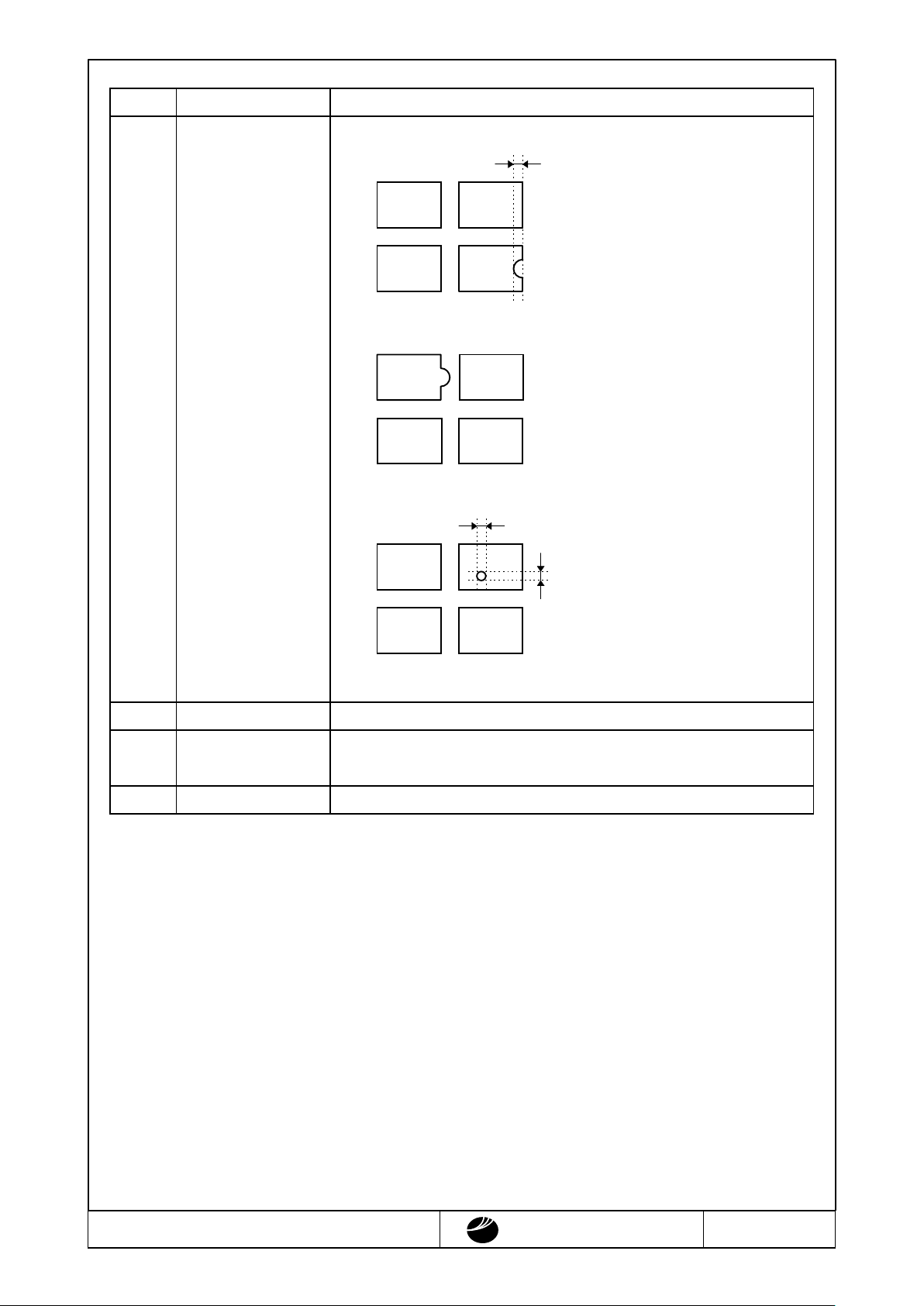

No. Parameter Criteria
3 The Shape of Dot (1) Dot Shape (with Dent)
As per the sketch of left hand.
(2) Dot Shape (with Projection)
Should not be connected to next dot.
(3) Pin Hole
(X+Y) / 2≦0.2mm
(Less than 0.1mm is no counted.)
Total defects shall not exceed 5.
4 Polarizer Scratches Not to be conspicuous defects.
5 Polarizer Dirts If the stains are removed easily from LCDP surface, the module is not
defective.
6 Color Variation Not to be conspicuous defects.
0.15
≧
Y
X
Page 13
DMC16230 (AA) No.97-0264 OPTREX CORPORATION Page 13/14
OPTREX
7.Code System of Production Lot
The production lot of module is specified as follows.
□
□
□ □ □ □
Factory Number (Numeral)
Factory Code (Alphabet)
Production Week (1～5)
Producti on Month (1～9, X, Y, Z)
Production Year (Lower 2 digits)
8.Type Number
The type number of module is specified on the back of module as follows.
ＤＭＣ１６２３０
Etching or Printing
9.Applying Precautions
Please contact us when questions and/or new problems not specified in this specifications arise.
Page 14
DMC16230 (AA) No.97-0264 OPTREX CORPORATION Page 14/14
OPTREX
10.Handling Precautions
Optrex Products are designed for use in ordinary electronic devices such as business machines,
telecommunications equipment, measurement devices and etc..
Optrex Products are not designed, intended, or authorized for use in any application in which the failure of
the product could result in a situation where personal injury or death may occur. These applications
include, but are not limited to, life-sustaining equipment, nuclear control devices, aerospace equipment,
devices related to hazardous or flammable materials, etc. (If Buyer intends to purchase or use the Optrex
Products for such unintended or unauthorized applications, Buyer must secure prior written consent to
such use by a responsible officer of Optrex Corporation.) Should Buyer purchase or use Optrex Products
for any such unintended or unauthorized application (without such consent), Buyer shall indemnify and
hold Optrex and its officers, employees, subsidiaries, affiliates and distributors harmless against all claims,
costs, damages and expenses, and reasonable attorney's fees, arising out of, directly or indirectly, any
claim of personal injury or death associated with such unintended or unauthorized use, even if such claim
alleges that Optrex was negligent regar ding the design or manufacture of the part.
1) LCD may be broken because it is made of glass.
2) Polarizer is a soft material and can easily be scratched.
3) Please avoid static electricity.
①
Please be sure to ground human body and electric appliances during work.
②
It is preferable to use conductive mat on table and wear cotton clothes or conduction processed fiber.
Synthetic fiber is no t recommended.
③
Please slowly peel off protective film, because static electricity may be charged.
4) If it is necessary to store LCD modules for a long time, please comply with the following procedures.
If storage condition is not satisfactory, display (especially polarizer) may be deteriorated or soldering
I/O terminals may become difficult (some oxide is generated at I/O terminals plating).
①
Store as delivered by Optrex
②
If you store as unpacked, put in anti-static bag, seal its opening and store where it is not subjected to
direct sunshine nor fluorescent l amp.
③
Store at temperature 0 to +35℃ and at low humidity. Please refer to our specification sheets for
storage temperature range and humidity condition.
5) The module does not contain excess current limiter.
Please design the limiter to cut excess current in your power supply circuit.
6) Liquid crystal may be leaked when display is broken. Never taste it. If your hands or clothes touch it,
please immediately wash using soap.
7) The connection between the bezel and V
SS
(GND) is not specified in the module.
(Some module do not maintain connection between them.)
Please consult OPTREX to specify the connection.
Optrex shall not be responsible for any infringement of industrial property rights of third parties in any
country arising out of the application or use of Optrex Products, except which directly concern the
structure or production of such products.
Loading...
