Page 1
© 2000 Fairchild Semiconductor Corporation DS006393 www.fairchildsemi.com
August 1986
Revised March 2000

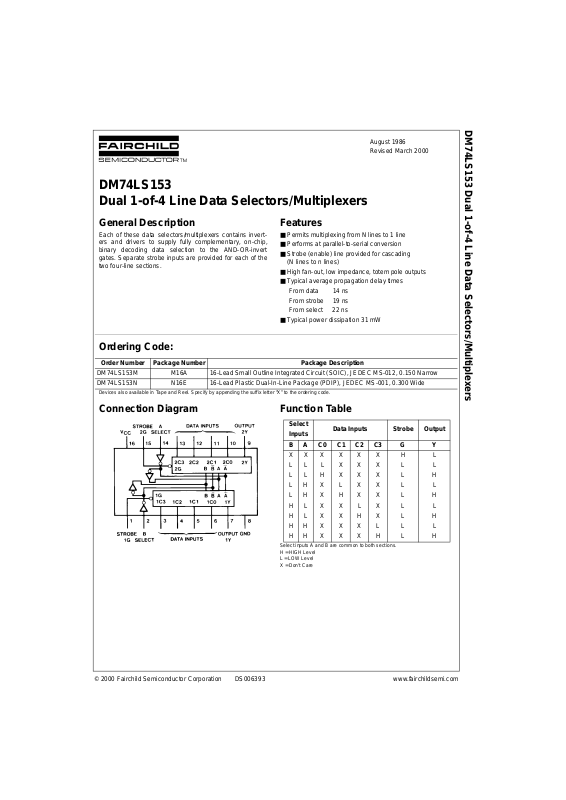

DM74LS153 Dual 1-of-4 Line Data Selectors/Multiplexers
DM74LS153
Dual 1-of-4 Line Data Selectors/Multiplexers
General Description
Each of these data selectors/multiplexers contains inverters and drivers to supply fully complementary, on-chip,
binary decoding data selection to the AND-OR-invert
gates. Separate strob e inputs ar e provided for each of the
two four-line sections.
Features
■ Permits multiplexing from N lines to 1 line
■ Performs at parallel-to-serial conversion
■ Strobe (enable) line provided for cascading
(N lines to n lines)
■ High fan-out, low impedance, totem pole outputs
■ Typical average propagation delay times
From data 14 ns
From strobe 19 ns
From select 22 ns
■ Typical power dissipation 31 mW
Ordering Code:
Devices also availab le in Tape and Reel. Specify by appending th e s uffix let t er “X” to the ordering code.
Connection Diagram Function Table
Select inputs A and B are common to both sections.
H = HIGH Level
L = LOW Level
X = Don't Care
Order Number Package Number Package Description
DM74LS153M M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
DM74LS153N N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Select
Data Inputs Strobe Output
Inputs
B A C0 C1 C2 C3 G Y
XXXXXX H L
LL L X X X L L
LLH X X X L H
LH X L X X L L
LH X H X X L H
HL X X L X L L
HL X X H X L H
HH X X X L L L
HH X X X H L H
Page 2
www.fairchildsemi.com 2
DM74LS153
Logic Diagram
Page 3
3 www.fairchildsemi.com
DM74LS153
Absolute Maximum Ratings(Note 1)
Note 1: The “Absolute Maximum Ratings ” are those val ues beyond w hich
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommend ed O peratin g Cond itions” t able w ill defin e the condition s
for actual device operation.
Recommended Operating Conditions
Electrical Characteristics
over recommended operating free air temperature range (unless otherwise noted)
Note 2: All typicals are at VCC = 5V, TA = 25° C.
Note 3: Not more than one output should be shorted at a time, and the duration should not exceed one second.
Note 4: I
CC
is measured with all outputs OPEN and all other inputs GROUNDED.
Switching Characteristics
at VCC = 5V and TA = 25°C
Supply Voltage 7V
Input Voltage 7V
Operating Free Air Temperature Range 0°C to +70°C
Storage Temperature Range −65°C to +150° C
Symbol Parameter Min Nom Max Units
V
CC
Supply Voltage 4.75 5 5.25 V
V
IH
HIGH Level Input Voltage 2 V
V
IL
LOW Level Input Voltage 0.8 V
I
OH
HIGH Level Output Current −0.4 mA
I
OL
LOW Level Output Current 8 mA
T
A
Free Air Operating Temperature 0 70 °C
Symbol Parameter Conditions Min
Typ
Max Units
(Note 2)
V
I
Input Clamp Voltage VCC = Min, II = −18 mA −1.5 V
V
OH
HIGH Level VCC = Min, IOH = Max
2.7 3.4 V
Output Voltage VIL = Max, VIH = Min
V
OL
LOW Level VCC = Min, IOL = Max
0.35 0.5
Output Voltage VIL = Max, VIH = Min V
IOL = 4 mA, VCC = Min 0.25 0.4
I
I
Input Current @ Max Input Voltage VCC = Max, VI = 7V 0.1 mA
I
IH
HIGH Level Input Current VCC = Max, VI = 2.7V 20 µA
I
IL
LOW Level Input Current VCC = Max, VI = 0.4V −0.36 mA
I
OS
Short Circuit Output Current VCC = Max (Note 3) −20 −100 mA
I
CC
Supply Current VCC = Max (Note 4) 6.2 10 mA
From (Input)
RL = 2 kΩ
Symbol Parameter to (Output)
CL = 15 pF CL = 50 pF
Units
MinMaxMinMax
t
PLH
Propagation Delay Time
Data to Y 15 20 ns
LOW-to-HIGH Level Output
t
PHL
Propagation Delay Time
Data to Y 26 35 ns
HIGH-to-LOW Level Output
t
PLH
Propagation Delay Time
Select to Y 29 35 ns
LOW-to-HIGH Level Output
t
PHL
Propagation Delay Time
Select to Y 38 45 ns
HIGH-to-LOW Level Output
t
PLH
Propagation Delay Time
Strobe to Y 24 30 ns
LOW-to-HIGH Level Output
t
PHL
Propagation Delay Time
Strobe to Y 32 40 ns
HIGH-to-LOW Level Output
Page 4
www.fairchildsemi.com 4
DM74LS153

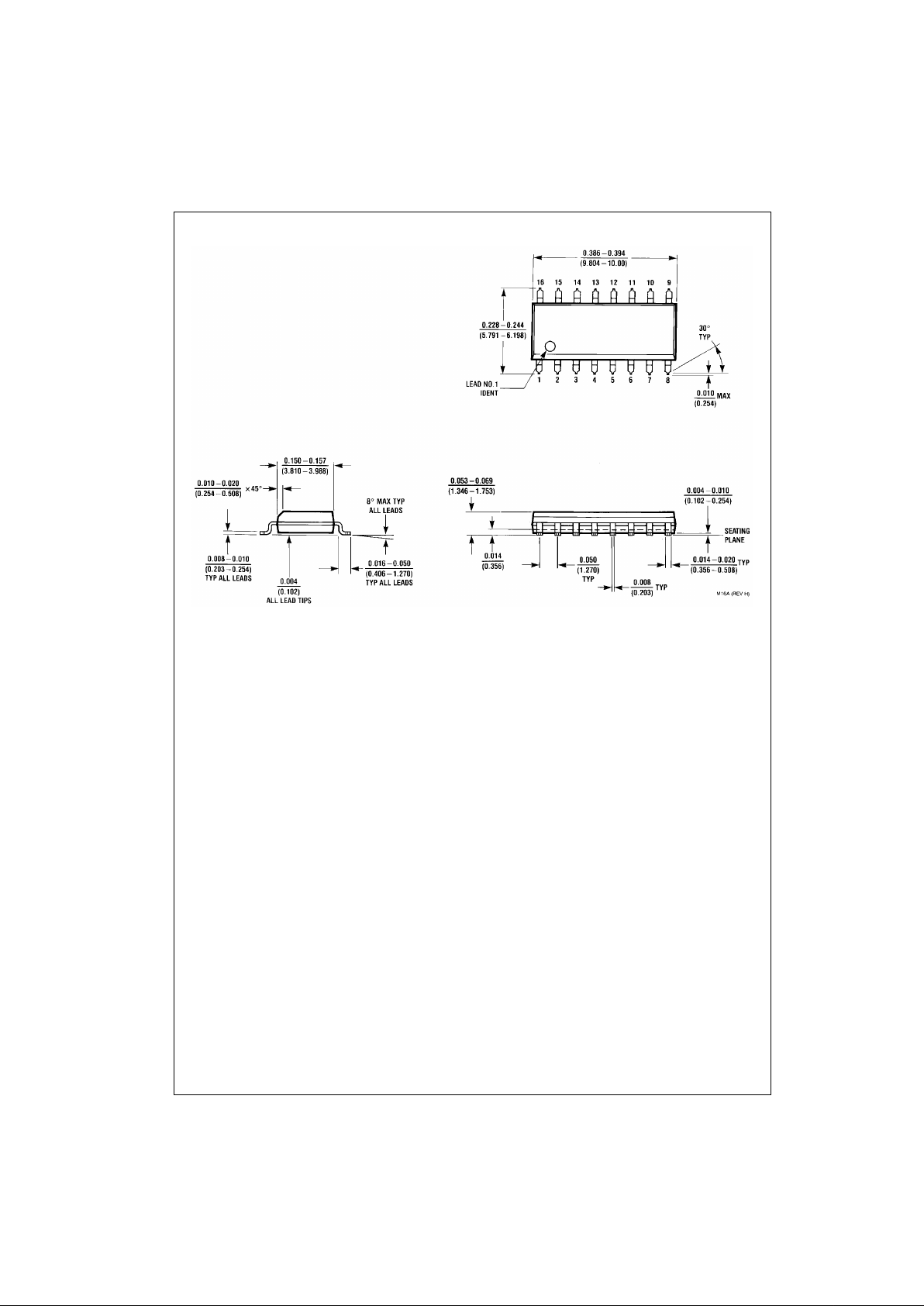

Physical Dimensions inches (millimeters) unless otherwise noted
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
Package Number M16A
Page 5
5 www.fairchildsemi.com
DM74LS153 Dual 1-of-4 Line Data Selectors/Multiplexers

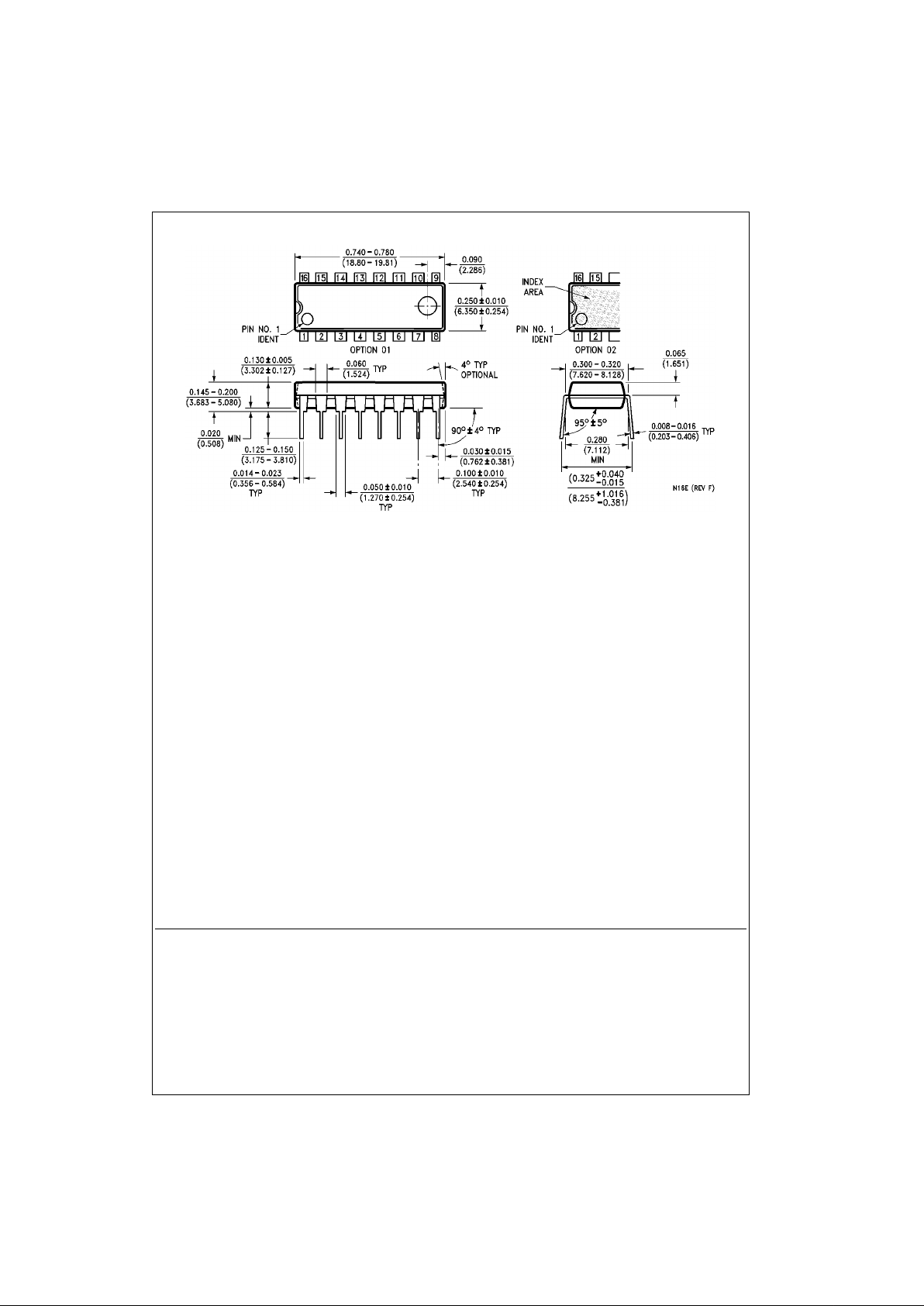

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Package Number N16E
