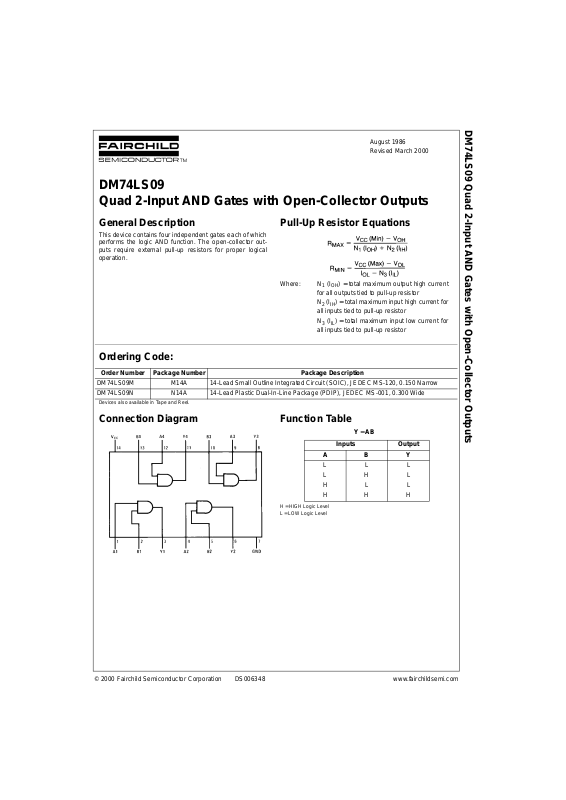

DM74LS09 Quad 2-Input AND Gates with Open-Collector Outputs
DM74LS09
Quad 2-Input AND Gates with Open-Collector Outputs
General Description
This device contains four independent gates each of which
performs the logic A ND function. The open-collector ou tputs require external pull-up resistors for proper logical
operation.
Pull-Up Resistor Equations
Where: N1 (IOH) = total maximum output high c urrent
for all outputs tied to pull-up resistor
N
2
(IIH) = total maximum input high current for
all inputs tied to pull-up resistor
N
3
(IIL) = total maximum input low current for
all inputs tied to pull-up resistor
Ordering Code:
Devices also availab le in Tape and Reel.
Connection Diagram Function Table
Y = AB
H = HIGH Logic Level
L = LOW Logic Level
Order Number Package Number Package Description
DM74LS09M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow
DM74LS09N N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Inputs Output
ABY
LLL
LHL
HLL
HHH
Page 2
www.fairchildsemi.com 2
DM74LS09
Absolute Maximum Ratings(Note 1)
Note 1: The “Absolute Maximum Ratings” are those values beyond which
the safety of the dev ice cannot be guaranteed. T he device sh ould not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommend ed O peratin g Cond itions” t able w ill defin e the co ndition s
for actual device operation.
Recommended Operating Conditions
Electrical Characteristics
over recommended operating free air temperature range (unless otherwise noted)
Note 2: All typicals are at VCC = 5V, TA = 25°C.
Switching Characteristics
at VCC = 5V and TA = 25°C
Supply Voltage 7V
Input Voltage 7V
Output Voltage 7V
Operating Free Air Temperature Range 0°C to +70°C
Storage Temperature Range −65°C to +150°C
Symbol Parameter Min Nom Max Units
V
CC
Supply Voltage 4.75 5 5. 25 V
V
IH
HIGH Level Input Voltage 2 V
V
IL
LOW Level Input Voltage 0.8 V
V
OH
HIGH Level Output Voltage 5.5 V
I
OL
LOW Level Output Current 8 mA
T
A
Free Air Operating Temperature 0 70 °C
Symbol Parameter Conditions Min
Typ
Max Units
(Note 2)
V
I
Input Clamp Voltage VCC = Min, II = −18 mA −1.5 V
I
CEX
HIGH Level VCC = Min, VO = 5.5V
100 µA
Output Current VIH = Min
V
OL
LOW Level VCC = Min, IOL = Max
0.35 0.5
Output Voltage VIL = Max V
IOL = 4 mA, VCC = Min 0.25 0.4
I
I
Input Current @ Max Input Voltage VCC = Max, VI = 7V 0.1 mA
I
IH
HIGH Level Input Current VCC = Max, VI = 2.7V 20 µA
I
IL
LOW Level Input Current VCC = Max, VI = 0.4V −0.36 mA
I
CCH
Supply Current with Outputs HIGH VCC = Max 2.4 4.8 mA
I
CCL
Supply Current with Outputs LOW VCC = Max 4.4 8.8 mA
RL = 2 kΩ
Symbol Parameter CL = 15 pF CL = 50 pF Units
MinMaxMinMax
t
PLH
Propagation Delay Time
5 20 8 45 ns
LOW-to-HIGH Level Output
t
PHL
Propagation Delay Time
4 15 6 27 ns
HIGH-to-LOW Level Output
Page 3
3 www.fairchildsemi.com
DM74LS09
Physical Dimensions inches (millimeters) unless otherwise noted

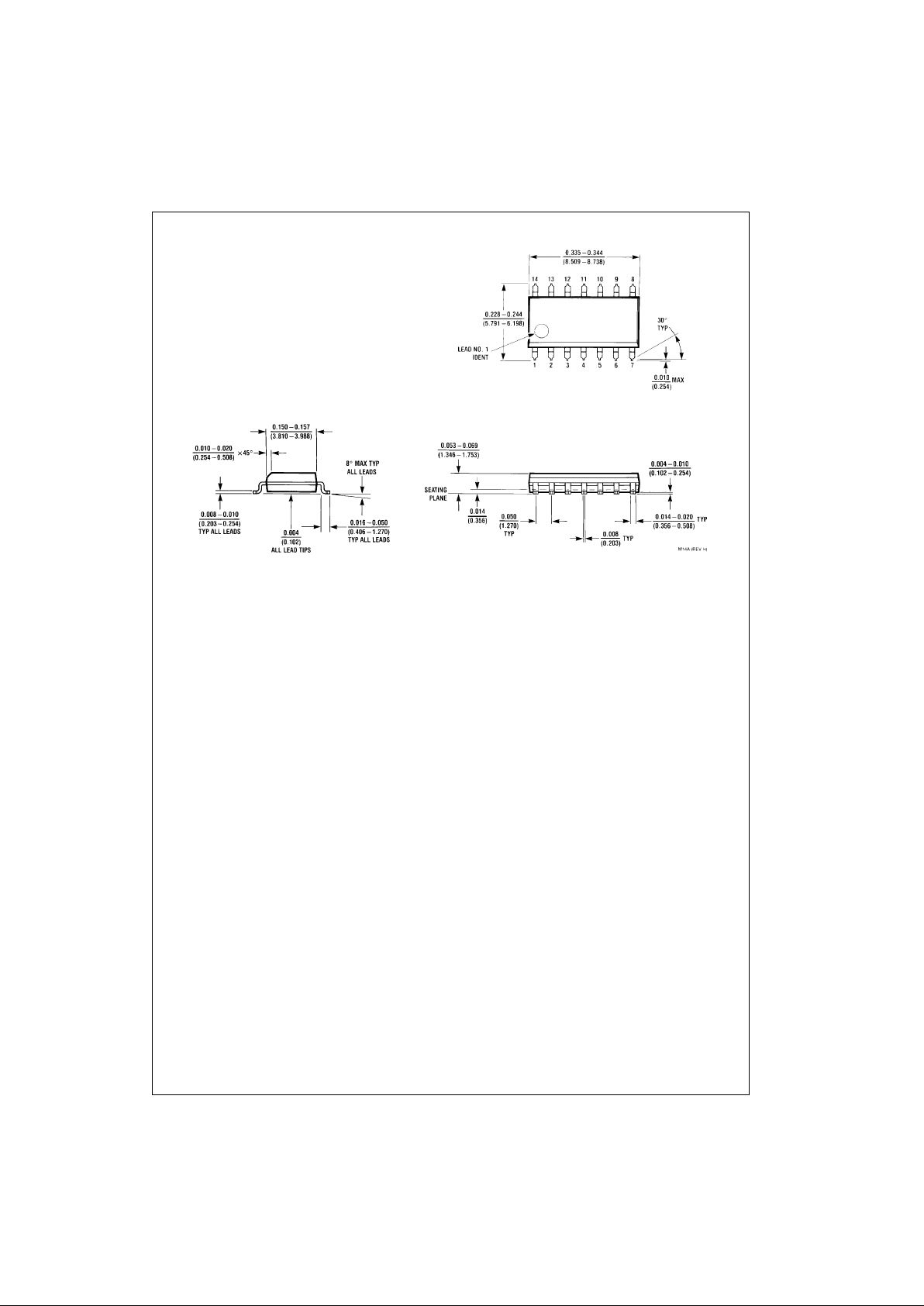

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow
Package Number M14A
Page 4
www.fairchildsemi.com 4
DM74LS09 Quad 2-Input AND Gates with Open-Collector Outputs
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

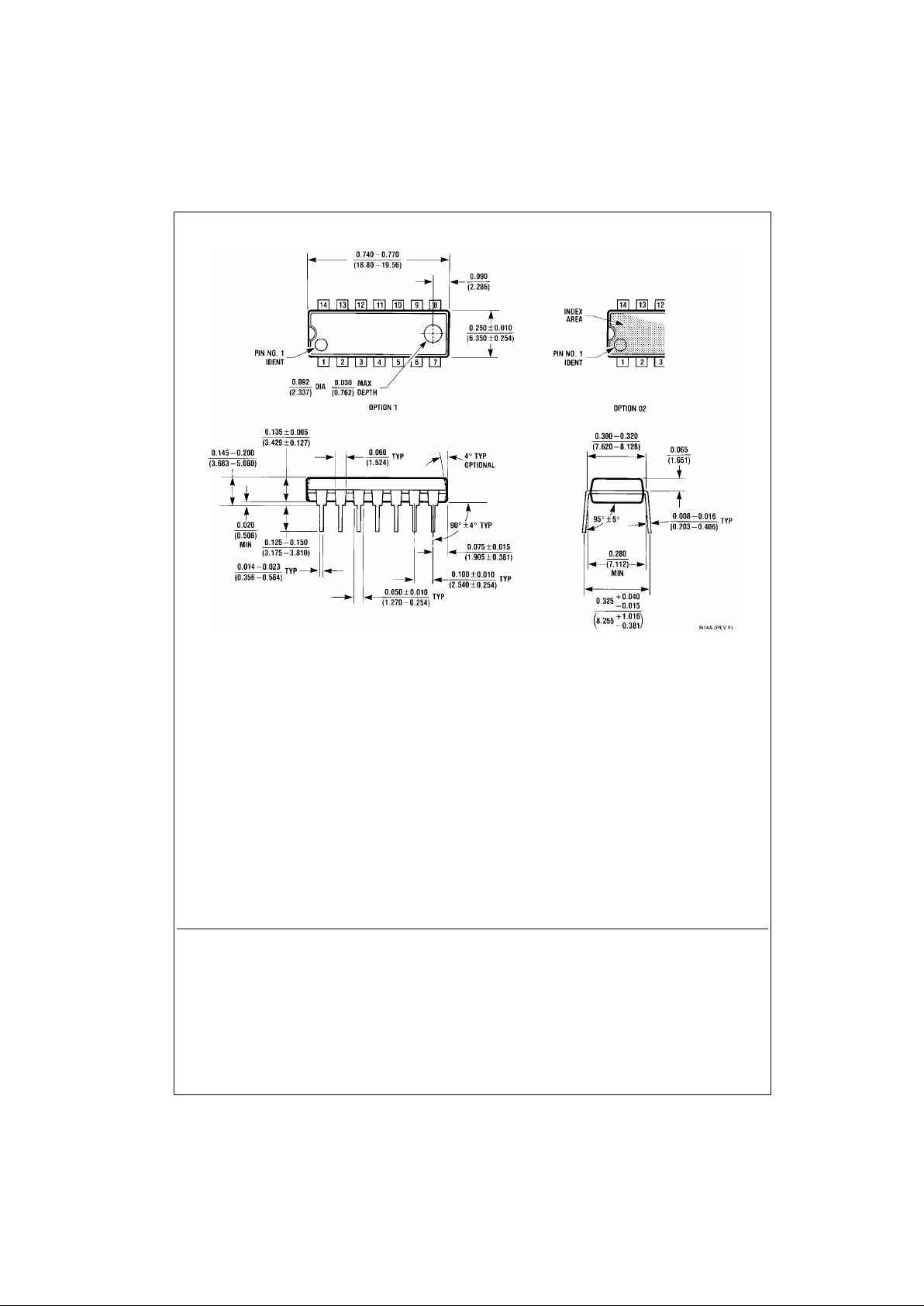

14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Package Number N14A
Fairchild does not assume any responsibility for use of any circuitry described, no circuit pate nt licenses are implied and
Fairchild reserves the right at any time without notice to change said circuitry and specifications.
