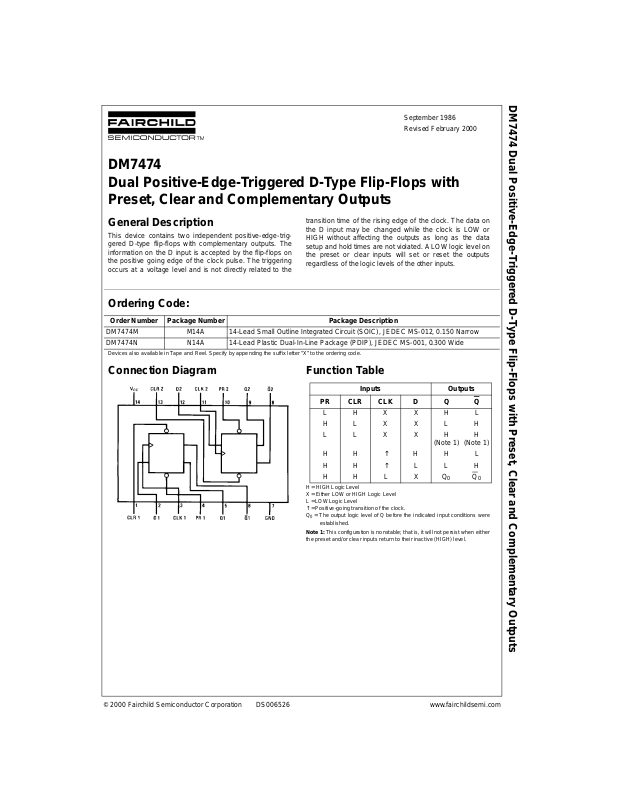

DM7474
Dual Positive-Edge-Triggered D-Type Flip-Flops with
Preset, Clear and Complementary Outputs
DM7474 Dual Positive-Edge-Triggered D-Type Flip-Flops with Pres et, Clear and Complementary Outputs
General Description
This device contains two independent positive-edge-triggered D-type flip-flops with complementary outputs. The
information on the D i nput is accepted by the flip-flops on
the positive going edge of the clock pulse. The triggering
occurs at a voltage level and is not directly r elated to the
transition time of the rising ed ge of the clock. The data on
the D input may be changed wh ile the clock is LOW or
HIGH without affecting the outputs as long as the data
setup and hold times are not violated. A LOW logic level on
the preset or clear inputs will set or reset the outputs
regardless of the logic levels of the other inputs.
Ordering Code:
Order Number Package Number Package Description
DM7474M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
DM7474N N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also availab le in Tape and Reel. Specify by appending th e s uffix let t er “X” to the ordering cod e.
Connection Diagram Function Table
Inputs Outputs
PR CLR CLK D Q Q
LHXXHL
HLXXLH
LLXXH
HH↑ HHL
HH↑ LLH
HHLXQ
H = HIGH Logic Level
X = Either LOW or HIGH Logic Level
L = LOW Logic Level
↑ = Positive-going transit ion of the clock.
= The out put logic lev el of Q be fore the in dica ted input con ditio ns were
Q
0
established.
Note 1: This configuration is nonstable; that is, it will not persist when either
the preset and/or clear inputs return to thei r inactive (HIGH) level.
(Note 1)H(Note 1)
0
Q
0
© 2000 Fairchild Semiconductor Corporation DS006526 www.fairchildsemi.com
Page 2
Absolute Maximum Ratings(Note 2)
Supply Voltage 7V
DM7474
Input Voltage 5.5V
Operating Free Air Temperature Range 0°C to +70°C
Storage Temperature Range −65°C to +150°C
Note 2: The “Absolute Maximum Ratin gs” are those v alues beyon d which
the safety of the dev ice cannot be guaranteed. T he device sh ould not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommend ed O peratin g Cond itions” t able w ill defin e the c ondit ions
for actual device operation.
Recommended Operating Conditions
Symbol Parameter Min Nom Max Units
V
V
V
I
I
f
t
CC
IH
IL
OH
OL
CLK
W
Supply Voltage 4.75 5 5.25 V
HIGH Level Input Voltage 2 V
LOW Level Input Voltage 0.8 V
HIGH Level Output Current −0.4 mA
LOW Level Output Current 16 mA
Clock Frequency (Note 4) 0 15 MHz
Pulse Width Clock HIGH 30
(Note 4) Clock LOW 37
Clear LOW 30
Preset LOW 30
t
SU
t
H
T
A
Note 3: The symbol (↑) indicates the rising edge of the clock pulse is used for reference.
Note 4: T
Input Setup Time (Note 3)(Note 4) 20↑ ns
Input Hold Time (Note 3)(Note 4) 5↑ ns
Free Air Operating Temperature 0 70 °C
= 25°C and VCC = 5V.
A
Electrical Characteristics
over recommended operating free air temperature range (unless otherwise noted)
Symbol Parameter Conditions Min
V
I
V
OH
V
OL
I
I
I
IH
I
IL
I
OS
I
CC
Note 5: All typicals are at VCC = 5V, TA = 25°C.
Note 6: Not more than one output should be shorted at a time.
Note 7: With all outputs open, I
Note 8: Clear is tested with preset HIGH and preset is tested with clear HIGH.
Input Clamp Voltage VCC = Min, II = −12 mA −1.5 V
HIGH Level VCC = Min, IOH = Max
Output Voltage VIL = Max, VIH = Min
LOW Level VCC = Min, IOL = Max
Output Voltage VIH = Min, VIL = Max
Input Current @ Max Input Voltage VCC = Max, VI = 5.5V 1 mA
HIGH Level VCC = Max D 40
Input Current VI = 2.4V Clock 80
LOW Level VCC = Max D −1.6
Input Current VI = 0.4V Clock −3.2
(Note 8) Clear −3.2
Short Circuit Output Current VCC = Max (Note 6) −18 −55 mA
Supply Current VCC = Max (Note 7) 17 30 mA
is measured with the Q and Q outputs HIGH in tur n. At th e t im e of measurement the c loc k is grounded.
CC
Clear 120
Preset 40
Preset −1.6
2.4 3.4 V
Typ
(Note 5)
0.2 0.4 V
ns
Max Units
µA
mA
www.fairchildsemi.com 2
Page 3
Switching Characteristics
at VCC = 5V and TA = 25°C
Symbol Parameter
f
t
t
t
t
t
t
MAX
PHL
PLH
PHL
PLH
PHL
PLH
Maximum Clock
Frequency
Propagation Delay Time
HIGH-to-LOW Level Output
Propagation Delay Time
LOW-to-HIGH Level Output
Propagation Delay Time
HIGH-to-LOW Level Output
Propagation Delay Time
LOW-to-HIGH Level Output
Propagation Delay Time
HIGH-to-LOW Level Output
Propagation Delay Time
LOW-to-HIGH Level Output
From (Input)
To (Output) Min Max
Preset to Q 40 ns
Preset to Q 25 ns
Clear to Q 40 ns
Clear to Q 25 ns
Clock to Q or Q 40 ns
Clock to Q or Q 25 ns
RL = 400Ω, CL = 15 pF
15 MHz
Units
DM7474
3 www.fairchildsemi.com
Page 4
Physical Dimensions inches (millimeters) unless otherwise noted
DM7474

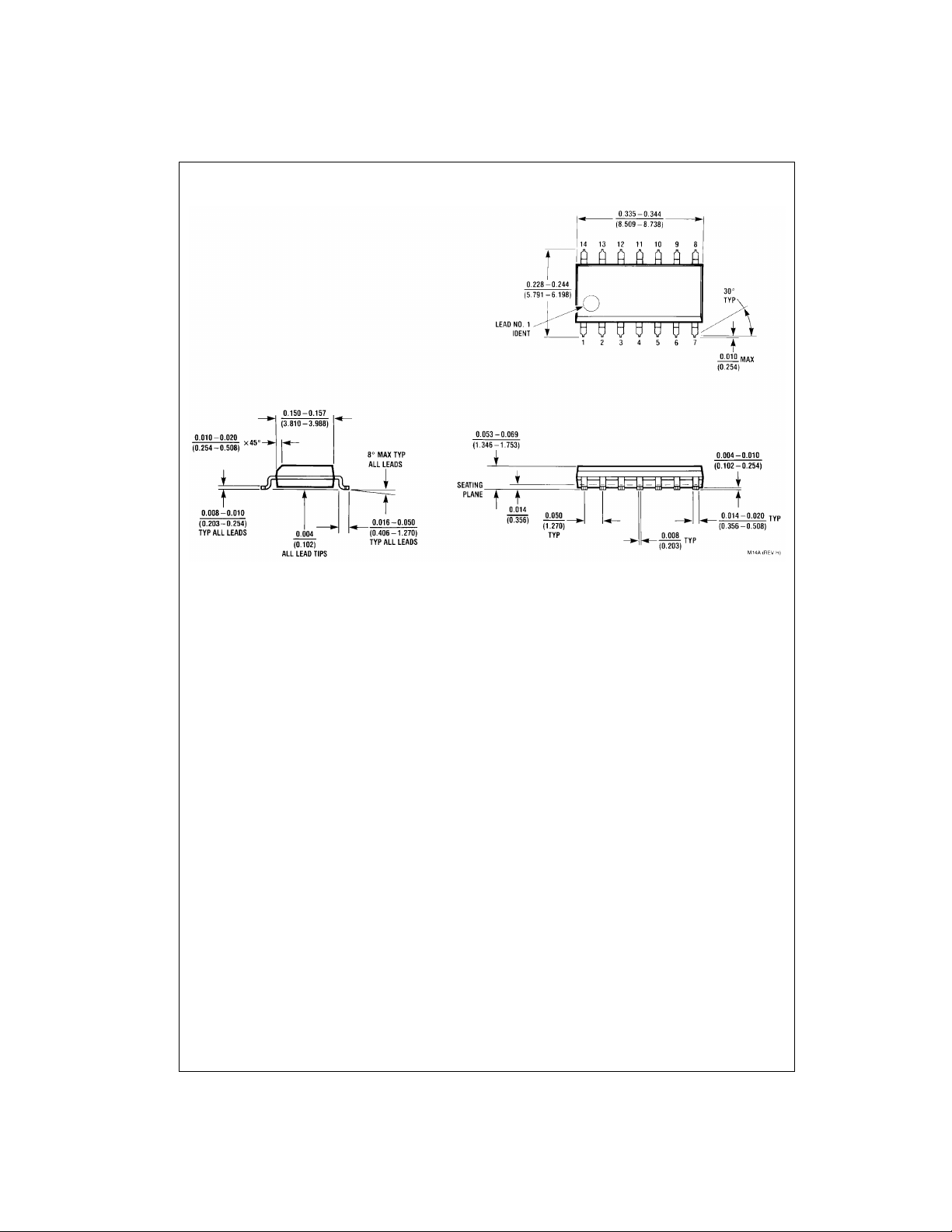

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
Package Number M14A
www.fairchildsemi.com 4
Page 5
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
DM7474 Dual Positive-Edge-Triggered D-Type Flip-Flops with Pres et, Clear and Complementary Outputs

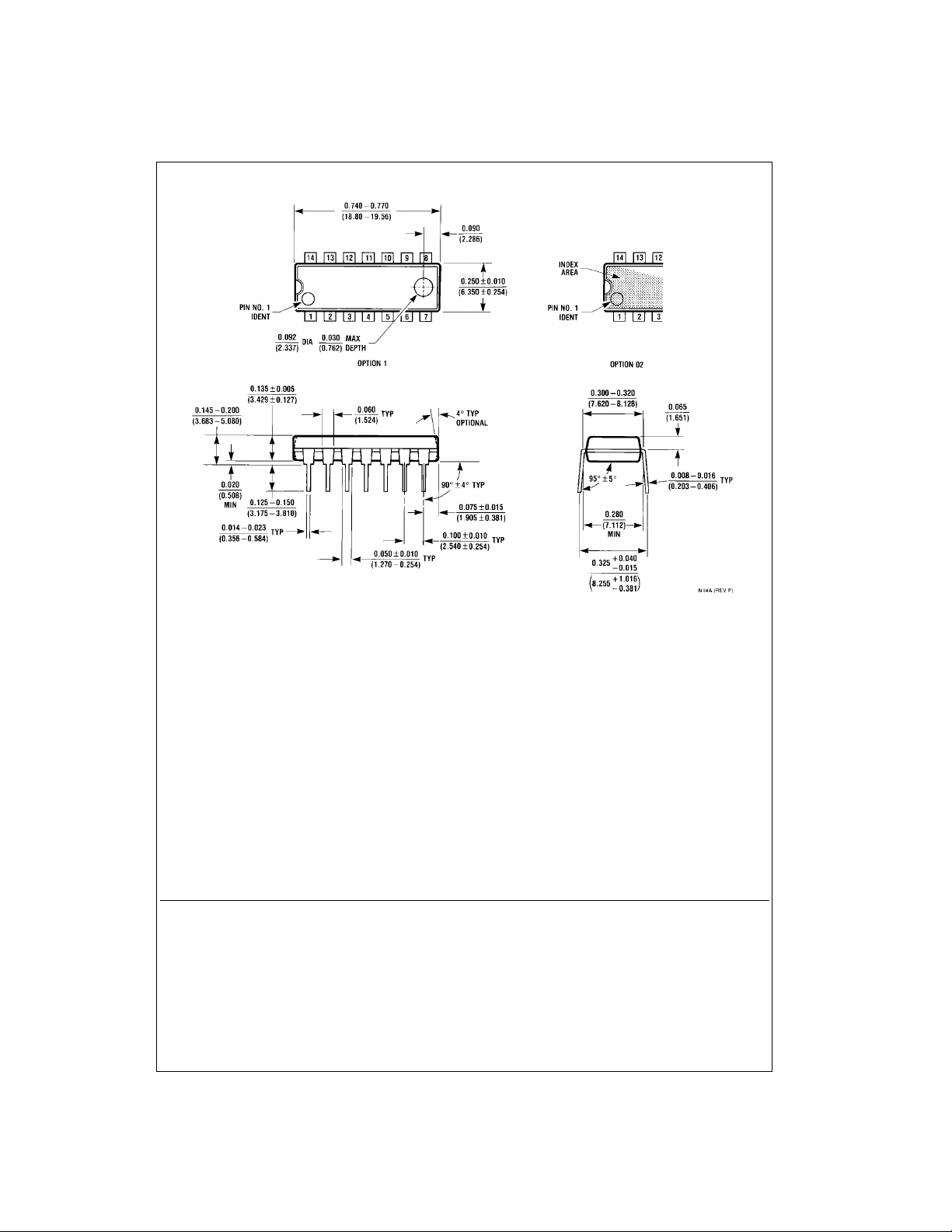

14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Fairchild does not assume any responsibility for use of any circuitry described, no circuit patent license s are implied and
Fairchild reserves the right at any time without notice to change said circuitry and specifications.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provide d in the labe l ing, can be re asonably expected to result in a significant injury to the
user.
Package Number N14A
2. A critical componen t in any com ponen t of a life s upport
device or system whose failu re to perform can b e reasonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
www.fairchildsemi.com
5 www.fairchildsemi.com
