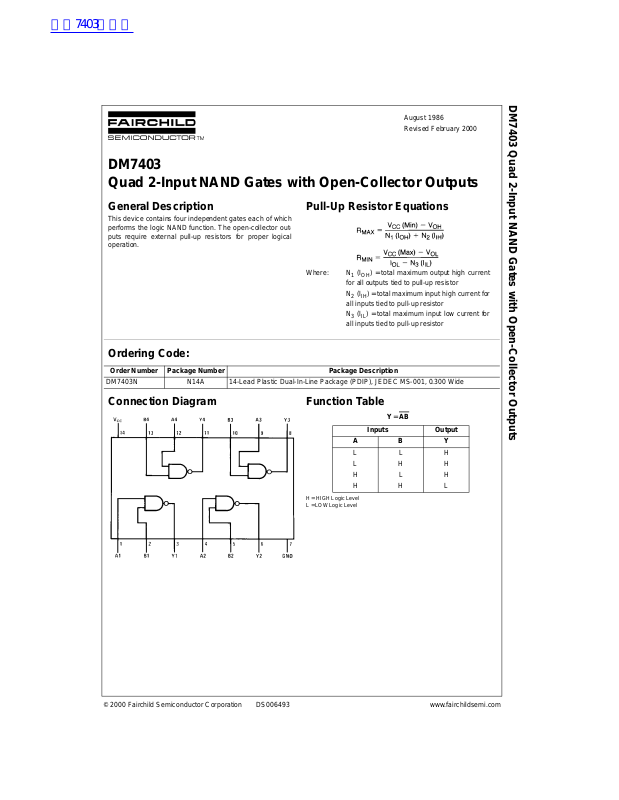

DM7403 Quad 2-Input NAND Gates with Open-Collector Outputs

August 1986 Revised February 2000

General Description

This device contains four independent gates each of which performs the logic N AND functio n. The open -collector outputs require external pull-up resistors for proper logical operation.

Pull-Up Resistor Equations

Where: N1 (IOH) = total maximum output high c urrent

for all outputs tied to pull-up resistor

(IIH) = total maximum input high current for

all inputs tied to pull-up resistor

(IIL) = total maximum input low current for

all inputs tied to pull-up resistor

Ordering Code:

Order Number Package Number Package Description

DM7403N N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide

Connection Diagram Function Table

Y = AB

Inputs Output

ABY

LLH LHH HLH HHL

H = HIGH Logic Level L = LOW Logic Level

Page 2

Absolute Maximum Ratings(Note 1)

Supply Voltage 7V

DM7403

Input Voltage 5.5V Output Voltage 7V Operating Free Air Temperature Range 0°C to +70°C Storage Temperature Range −65°C to +150°C

Note 1: The “Absolute Maximum Ratings” are those values beyond which the safety of the dev ice cannot be guaranteed. T he device sh ould not be operated at these limits. The parametric values defined in the Electrical Characteristics tables are not guaranteed at the absolute maximum ratings. The “Recommend ed O peratin g Cond itions” t able w ill defin e the c ondit ions for actual device operation.

Recommended Operating Conditions

Symbol Parameter Min Nom Max Units

Supply Voltage 4.75 5 5.25 V HIGH Level Input Voltage 2 V LOW Level Input Voltage 0.8 V HIGH Level Output Voltage 5.5 V LOW Level Ou tput Current 16 mA Free Air Operating Temperature 0 70 °C

Electrical Characteristics

over recommended operating free air temperature range (unless otherwise noted)

Symbol Parameter Conditions Min

CEX

CCH

CCL

Note 2: All typicals are at VCC = 5V, TA = 25°C.

Input Clamp Voltage VCC = Min, II = −12 mA −1.5 V HIGH Level VCC = Min, VO = 5.5V Output Current VIL = Max LOW Level VCC = Min, IOL = Max Output Voltage VIH = Min Input Current @ Max Input Voltage VCC = Max, VI = 5.5V 1 mA HIGH Level Input Current VCC = Max, VI = 2.4V 40 µA LOW Level Input Current VCC = Max, VI = 0.4V −1.6 mA Supply Current with Outputs HIGH VCC = Max 4 8 mA Supply Current with Outputs LOW VCC = Max 12 22 mA

Typ

(Note 2)

0.2 0.4 V

Max Units

250 µA

Switching Characteristics

at VCC = 5V and TA = 25°C

Symbol Parameter Co nditions Min Max Units

PLH

PHL

www.fairchildsemi.com 2

Propagation Delay Time CL = 15 pF LOW-to-HIGH Level Output RL = 4 kΩ (t Propagation Delay Time RL = 400Ω (t HIGH-to-LOW Level Output

PLH

PHL

)

45 ns

15 ns

Page 3

Physical Dimensions inches (millimeters) unless otherwise noted

DM7403 Quad 2-Input NAND Gates with Open-Collector Outputs

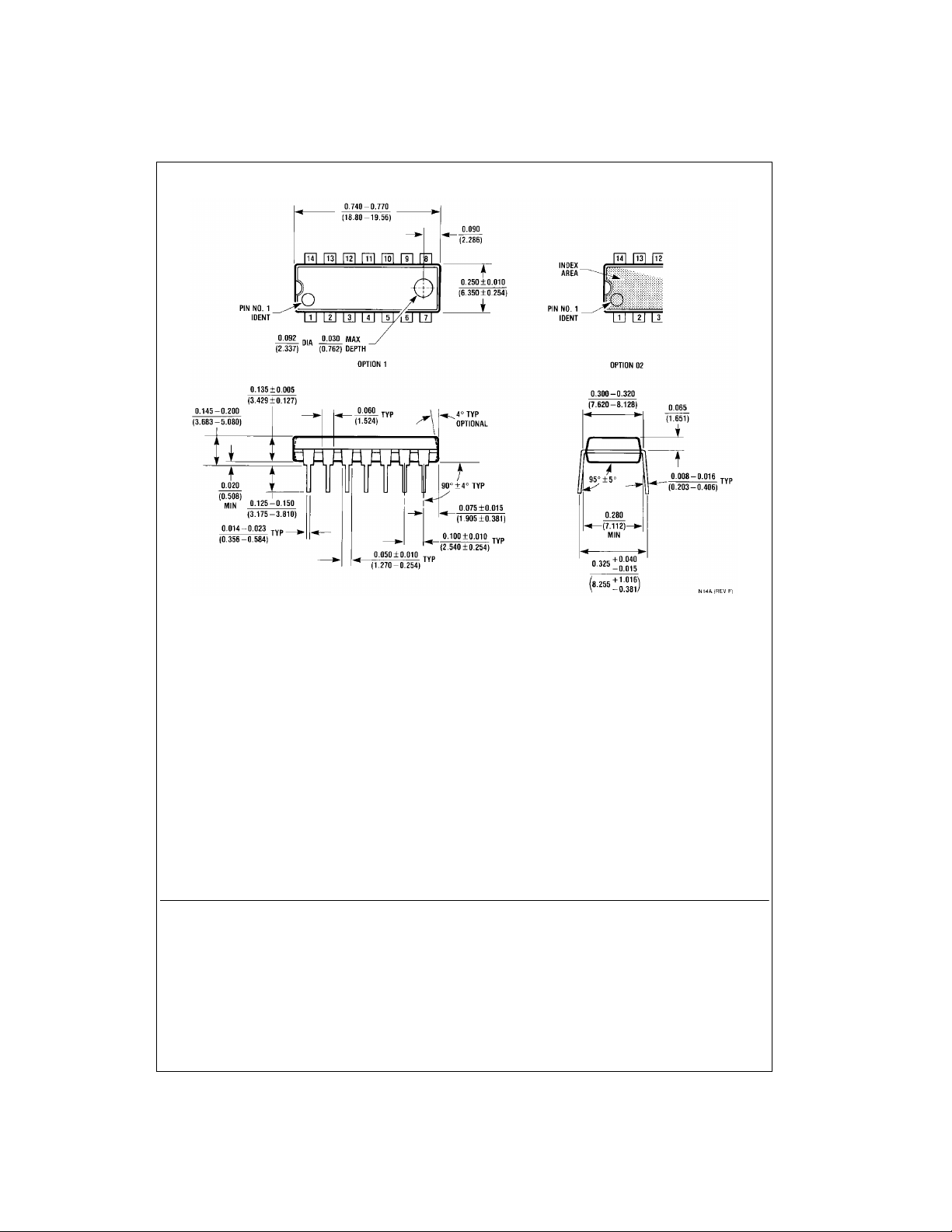

14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide

Fairchild does not assume any responsibility for use of any circuitry described, no circuit patent license s are implied and Fairchild reserves the right at any time without notice to change said circuitry and specifications.
