DM54LS259/DM74LS259 8-Bit Addressable Latches

May 1992

DM54LS259/DM74LS259 8-Bit Addressable Latches

General Description

These 8-bit addressable latches are designed for general
purpose storage applications in digital systems. Specific
uses include working registers, serial-holding registers, and
active-high decoders or demultiplexers. They are multifunc­tional devices capable of storing single-line data in eight
addressable latches, and being a 1-of-8 decoder or demulti­plexer with active-high outputs.

Four distinct modes of operation are selectable by control­ling the clear and enable inputs as enumerated in the func­tion table. In the addressable-latch mode, data at the data­in terminal is written into the addressed latch. The ad­dressed latch will follow the data input with all unaddressed
latches remaining in their previous states. In the memory
mode, all latches remain in their previous states and are
unaffected by the data or address inputs. To eliminate the
possibility of entering erroneous data in the latches, the en­able should be held high (inactive) while the address lines
are changing. In the 1-of-8 decoding or demultiplexing
mode, the addressed output will follow the level of the D
input with all other outputs low. In the clear mode, all out­puts are low and unaffected by the address and data inputs.

Features

Y

8-Bit parallel-out storage register performs serial-to-par­allel conversion with storage

Y

Asynchronous parallel clear

Y

Active high decoder

Y

Enable/disable input simplifies expansion

Y

Direct replacement for Fairchild 9334

Y

Expandable for N-bit applications

Y

Four distinct functional modes

Y

Typical propagation delay times:

Enable-to-output 18 ns
Data-to-output 16 ns
Address-to-output 21 ns
Clear-to-output 17 ns

Y

Fan-out

I

OL

(sink current)
54LS259 4 mA
74LS259 8 mA

I

OH

(source current)b0.4 mA

Y

Typical ICC22 mA

Connection Diagram

Dual-In-Line Package

TL/F/6418– 1

Order Number DM54LS259E, DM54LS259J,

DM54LS259W, DM74LS259M,

DM74LS259WM or DM74LS259N

See NS Package Number E20A, J16A,

M16A, M16B, N16E or W16A

Function Table

Inputs Output of Each

Addressed Other Function

Clear E

Latch Output

HL D Qi0Addressable Latch
HH Q

i0

Qi0Memory
L L D L 8-Line Demultiplexer
L H L L Clear

Latch Selection Table

Select Inputs

Latch

CBA

Addressed

LLL 0
LLH 1
LHL 2
LHH 3
HLL 4
HLH 5
HHL 6
HHH 7

H

e

High Level, LeLow Level

D

e

the Level of the Data Input

Q

i0

e

the Level of Qi(ie0, 1, . . . 7, as Appropriate) before the Indicated

Steady-State Input Conditions Were Established.

C

1995 National Semiconductor Corporation RRD-B30M105/Printed in U. S. A.

Absolute Maximum Ratings (Note)

If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales
Office/Distributors for availability and specifications.

Supply Voltage 7V

Input Voltage 7V

Operating Free Air Temperature Range

DM54

b

55§Ctoa125§C

DM74LS 0

§

Ctoa70§C

Storage Temperature Range

b

65§Ctoa150§C

Note:

The ‘‘Absolute Maximum Ratings’’ are those values
beyond which the safety of the device cannot be guaran­teed. The device should not be operated at these limits. The
parametric values defined in the ‘‘Electrical Characteristics’’
table are not guaranteed at the absolute maximum ratings.
The ‘‘Recommended Operating Conditions’’ table will define
the conditions for actual device operation.

Recommended Operating Conditions

Symbol Parameter

DM54LS259 DM74LS259

Units

Min Nom Max Min Nom Max

V

CC

Supply Voltage 4.5 5 5.5 4.75 5 5.25 V

V

IH

High Level Input Voltage 2 2 V

V

IL

Low Level Input Voltage 0.7 0.8 V

I

OH

High Level Output Current

b

0.4

b

0.4 mA

I

OL

Low Level Output Current 4 8 mA

t

W

Pulse Width Enable 17 15

ns

(Note 7)

Clear 17 15

t

SU

Setup Time Data 20

u

15

u

ns

(Notes 1, 2,3&7)

Select 15

v

15

v

t

H

Hold Time Data 5

u

2.5

u

ns

(Notes 1,2&7)

Select 0

u

2.5

u

T

A

Free Air Operating Temperature

b

55 125 0 70

§

C

Electrical Characteristics over recommended operating free air temperature range (unless otherwise noted)

Symbol Parameter Conditions Min

Typ

Max Units

(Note 4)

V

I

Input Clamp Voltage V

CC

e

Min, I

I

eb

18 mA

b

1.5 V

V

OH

High Level Output V

CC

e

Min, I

OH

e

Max DM54 2.5

V

Voltage V

IL

e

Max, V

IH

e

Min

DM74 2.7 3.4

V

OL

Low Level Output V

CC

e

Min, I

OL

e

Max DM54 0.4

Voltage V

IL

e

Max, V

IH

e

Min

DM74 0.35 0.5 V

I

OL

e

4 mA, V

CC

e

Min DM74 0.25 0.4

I

I

Input Current@Max V

CC

e

Max, V

I

e

7V DM74

0.1 mA

Input Voltage V

I

e

10V

DM54

I

IH

High Level Input V

CC

e

Max, V

I

e

2.7V
20 mA

Current

I

IL

Low Level Input V

CC

e

Max, V

I

e

0.4V

b

0.4

Current mA

Enable V

CC

e

Max, V

I

e

0.4V

b

0.8

I

OS

Short Circuit V

CC

e

Max DM54

b

20

b

100

mA

Output Current (Note 5)

DM74

b

20

b

100

I

CC

Supply Current V

CC

e

Max (Note 6) 22 36 mA

Note 1: The symbols (v,u) indicate the edge of the clock pulse used for reference:ufor rising edge,vfor falling edge.

Note 2: Setup and hold times are with reference to the enable input.

Note 3: The select-to-enable setup time is the time before the High-to-Low enable transition that the select must be stable so that the correct latch is selected and

the others not affected.

Note 4: All typicals are at V

CC

e

5V, T

A

e

25§C.

Note 5: Not more than one output should be shorted at a time, and the duration should not exceed one second.

Note 6: I

CC

is measured with all inputs at 4.5V, and all outputs open.

Note 7: T

A

e

25§C and V

CC

e

5V.

2

Switching Characteristics at V

CC

e

5V and T

A

e

25§C

DM54LS DM74LS

Symbol Parameter

From (Input)

C

L

e

15 pF

C

L

e

50 pF

Units

To (Output) R

L

e

2kX

Min Max Min Max

t

PLH

Propagation Delay Time Enable to

27 38 ns

Low to High Level Output Output

t

PHL

Propagation Delay Time Enable to

24 32 ns

High to Low Level Output Output

t

PLH

Propagation Delay Time Data to

30 35 ns

Low to High Level Output Output

t

PHL

Propagation Delay Time Data to

20 30 ns

High to Low Level Output Output

t

PLH

Propagation Delay Time Select to

30 41 ns

Low to High Level Output Output

t

PHL

Propagation Delay Time Select to

29 38 ns

High to Low Level Output Output

t

PHL

Propagation Delay Time Clear to

18 36 ns

High to Low Level Output Output

Physical Dimensions inches (millimeters)

Ceramic Leadless Chip Carrier (E)

Order Number DM54LS259E

NS Package Number E20A

3

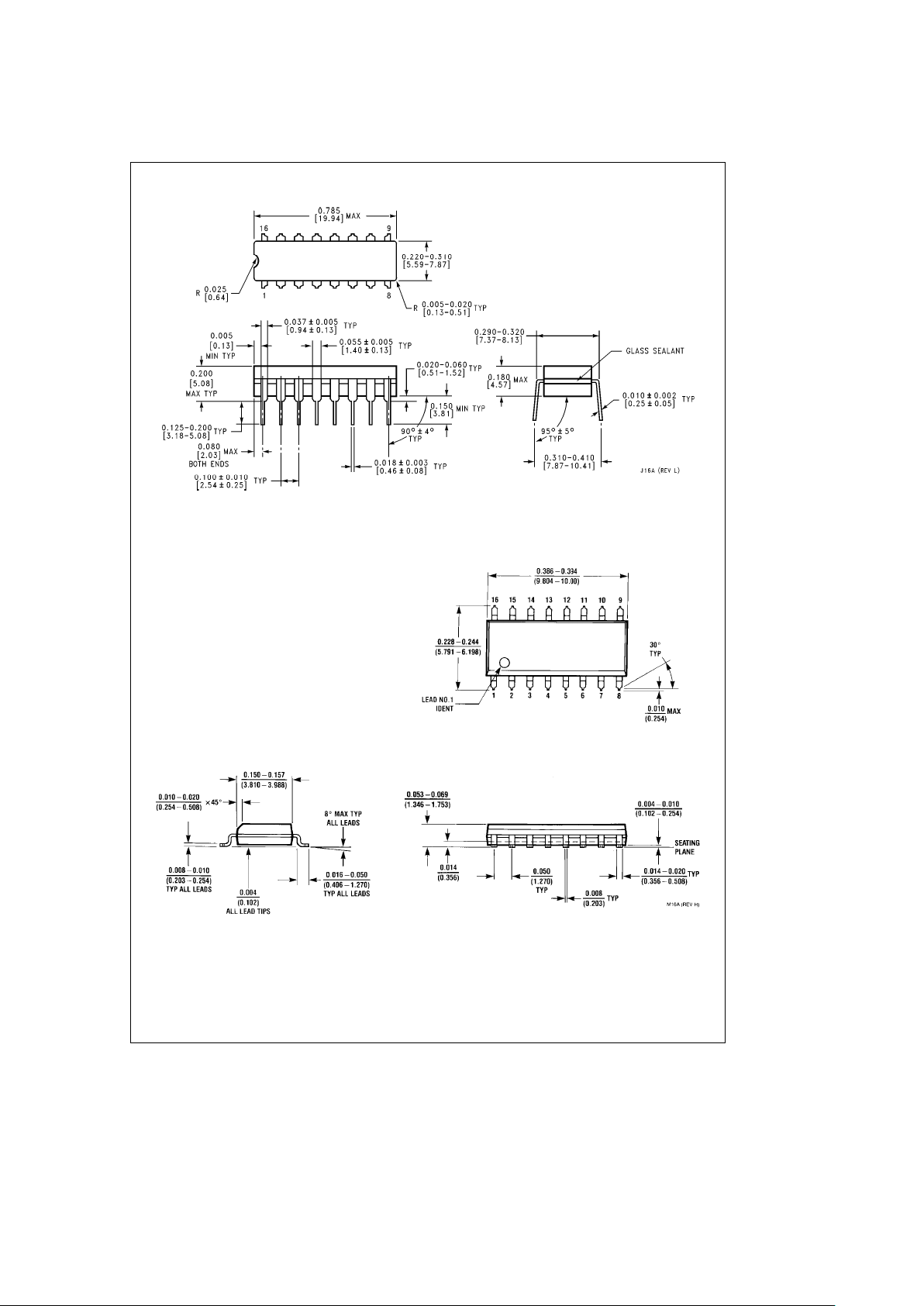

Physical Dimensions inches (millimeters) (Continued)

16-Lead Ceramic Dual-In-Line Package (J)

Order Number DM54LS259J

NS Package Number J16A

16-Lead Molded Package Small Outline (SO)

Order Number DM74LS259M

NS Package Number M16A

4

Physical Dimensions inches (millimeters) (Continued)

16-Lead Wide Small Outline Molded Package (M)

Order Number DM74LS259WM

NS Package Number M16B

16-Lead Molded Dual-In-Line Package (N)

Order Number DM74LS259N

NS Package Number N16E

5

DM54LS259/DM74LS259 8-Bit Addressable Latches

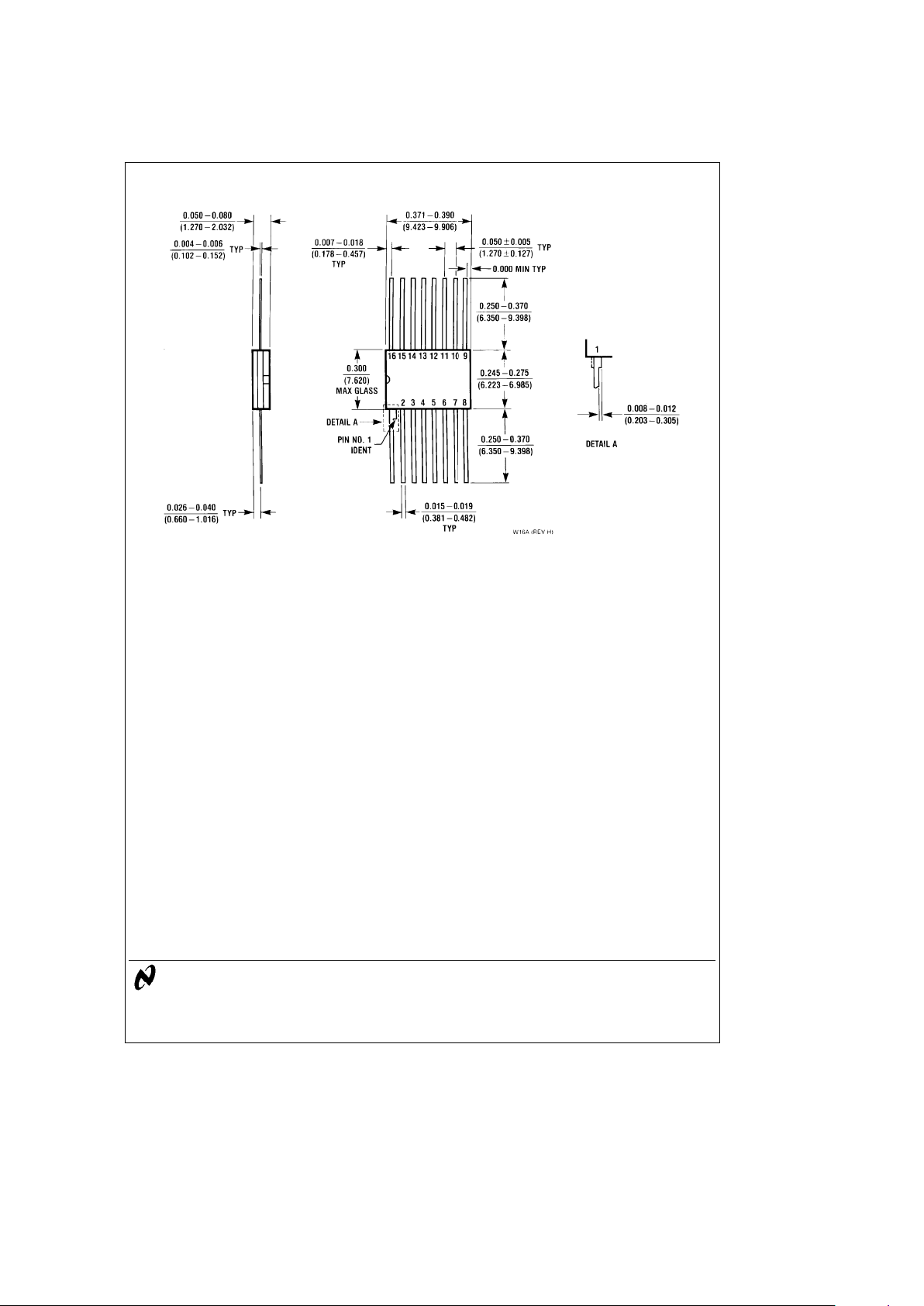

Physical Dimensions inches (millimeters) (Continued)

16-Lead Ceramic Flat Package (W)

Order Number DM54LS259W

NS Package Number W16A
