DM5403/DM7403 Quad 2-Input NAND Gates with Open-Collector Outputs
June 1989
DM5403/DM7403 Quad 2-Input NAND Gates
with Open-Collector Outputs
General Description
This device contains four independent gates each of which
performs the logic NAND function. The open-collector outputs require external pull-up resistors for proper logical operation.
Pull-Up Resistor Equations
R
MAX
e
VCC(Min)bV
OH
N1(IOH)aN2(IIH)
R
MIN
e
VCC(Max)bV
OL
I
OL
b
N3(IIL)
Where: N
1(IOH
)etotal maximum output high current for all
outputs tied to pull-up resistor
N
2(IIH
)etotal maximum input high current for all
inputs tied to pull-up resistor
N
3(IIL
)etotal maximum input low current for all
inputs tied to pull-up resistor
Connection Diagram
Dual-In-Line Package
TL/F/6493– 1
Order Number DM5403J or DM7403N
See NS Package Number J14A or N14A
Function Table
YeAB
Inputs Output
AB Y
LL H
LH H
HL H
HH L
H
e
High Logic Level
L
e
Low Logic Level
C
1995 National Semiconductor Corporation RRD-B30M105/Printed in U. S. A.
Page 2
Absolute Maximum Ratings (Note)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales
Office/Distributors for availability and specifications.
Supply Voltage 7V
Input Voltage 5.5V
Output Voltage 7V
Operating Free Air Temperature Range
DM54
b
55§Ctoa125§C
DM74 0
§
Ctoa70§C
Storage Temperature Range
b
65§Ctoa150§C
Note:
The ‘‘Absolute Maximum Ratings’’ are those values
beyond which the safety of the device cannot be guaranteed. The device should not be operated at these limits. The
parametric values defined in the ‘‘Electrical Characteristics’’
table are not guaranteed at the absolute maximum ratings.
The ‘‘Recommended Operating Conditions’’ table will define
the conditions for actual device operation.
Recommended Operating Conditions
Symbol Parameter
DM5403 DM7403
Units
Min Nom Max Min Nom Max
V
CC
Supply Voltage 4.5 5 5.5 4.75 5 5.25 V
V
IH
High Level Input Voltage 2 2 V
V
IL
Low Level Input Voltage 0.8 0.8 V
V
OH
High Level Output Voltage 5.5 5.5 V
I
OL
Low Level Output Current 16 16 mA
T
A
Free Air Operating Temperature
b
55 125 0 70
§
C
Electrical Characteristics
over recommended operating free air temperature range (unless otherwise noted)
Symbol Parameter Conditions Min
Typ
Max Units
(Note 1)
V
I
Input Clamp Voltage V
CC
e
Min, I
I
eb
12 mA
b
1.5 V
I
CEX
High Level Output V
CC
e
Min, V
O
e
5.5V
250 mA
Current V
IL
e
Max
V
OL
Low Level Output V
CC
e
Min, I
OL
e
Max
0.2 0.4 V
Voltage V
IH
e
Min
I
I
Input Current@Max V
CC
e
Max, V
I
e
5.5V
1mA
Input Voltage
I
IH
High Level Input Current V
CC
e
Max, V
I
e
2.4V 40 mA
I
IL
Low Level Input Current V
CC
e
Max, V
I
e
0.4V
b
1.6 mA
I
CCH
Supply Current with V
CC
e
Max
48mA
Outputs High
I
CCL
Supply Current with V
CC
e
Max
12 22 mA
Outputs Low
Switching Characteristics at V
CC
e
5V and T
A
e
25§C (See Section 1 for Test Waveforms and Output Load)
Symbol Parameter Conditions Min Max Units
t
PLH
Propagation Delay Time C
L
e
15 pF
45 ns
Low to High Level Output R
L
e
4kX(t
PLH
)
t
PHL
Propagation Delay Time
R
L
e
400X (t
PHL
)
15 ns
High to Low Level Output
Note 1: All typicals are at V
CC
e
5V, T
A
e
25§C.
2
Page 3
Physical Dimensions inches (millimeters)

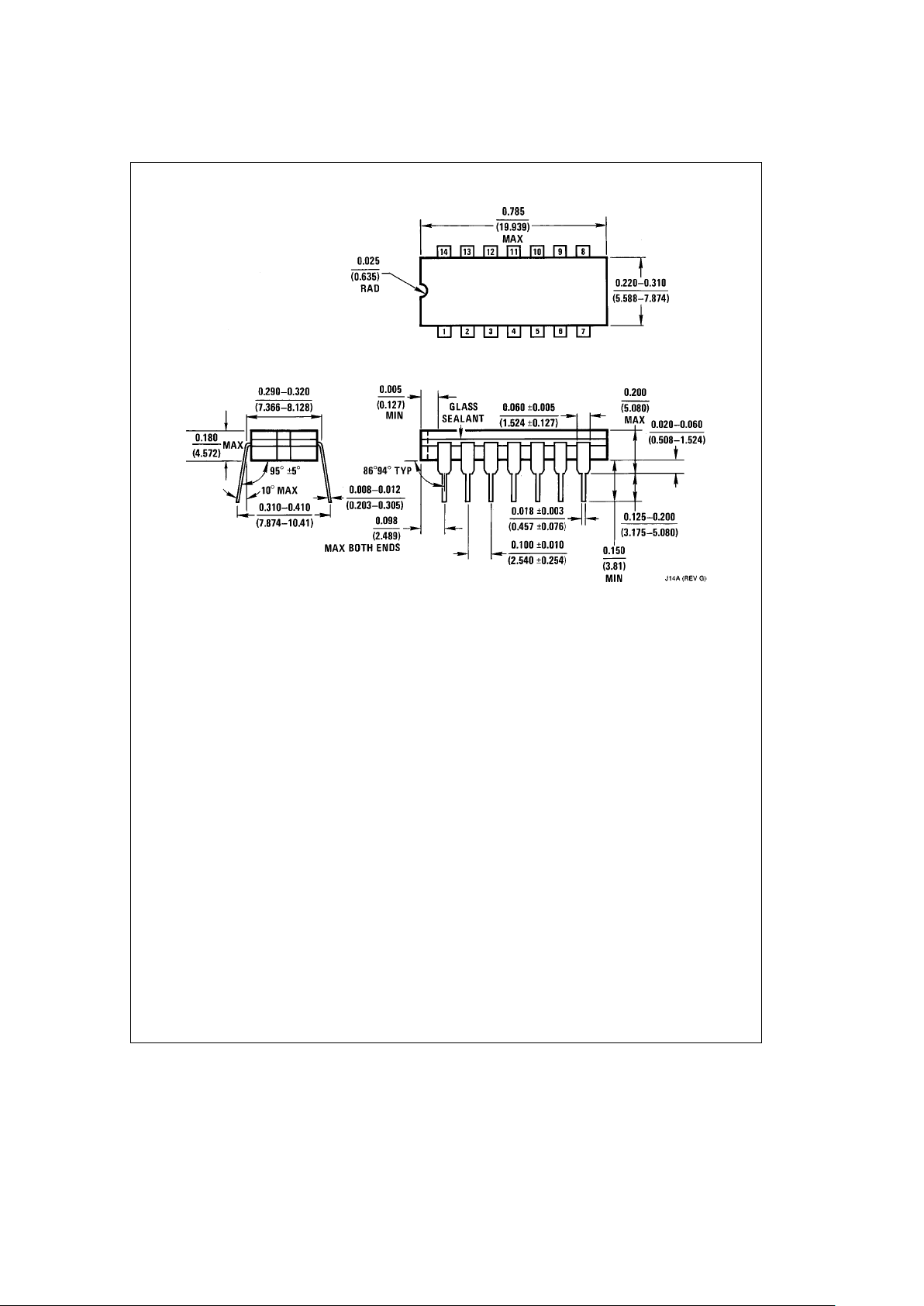

14-Lead Ceramic Dual-In-Line Package (J)
Order Number DM5403J
NS Package Number J14A
3
Page 4
DM5403/DM7403 Quad 2-Input NAND Gates with Open-Collector Outputs
Physical Dimensions inches (millimeters) (Continued)

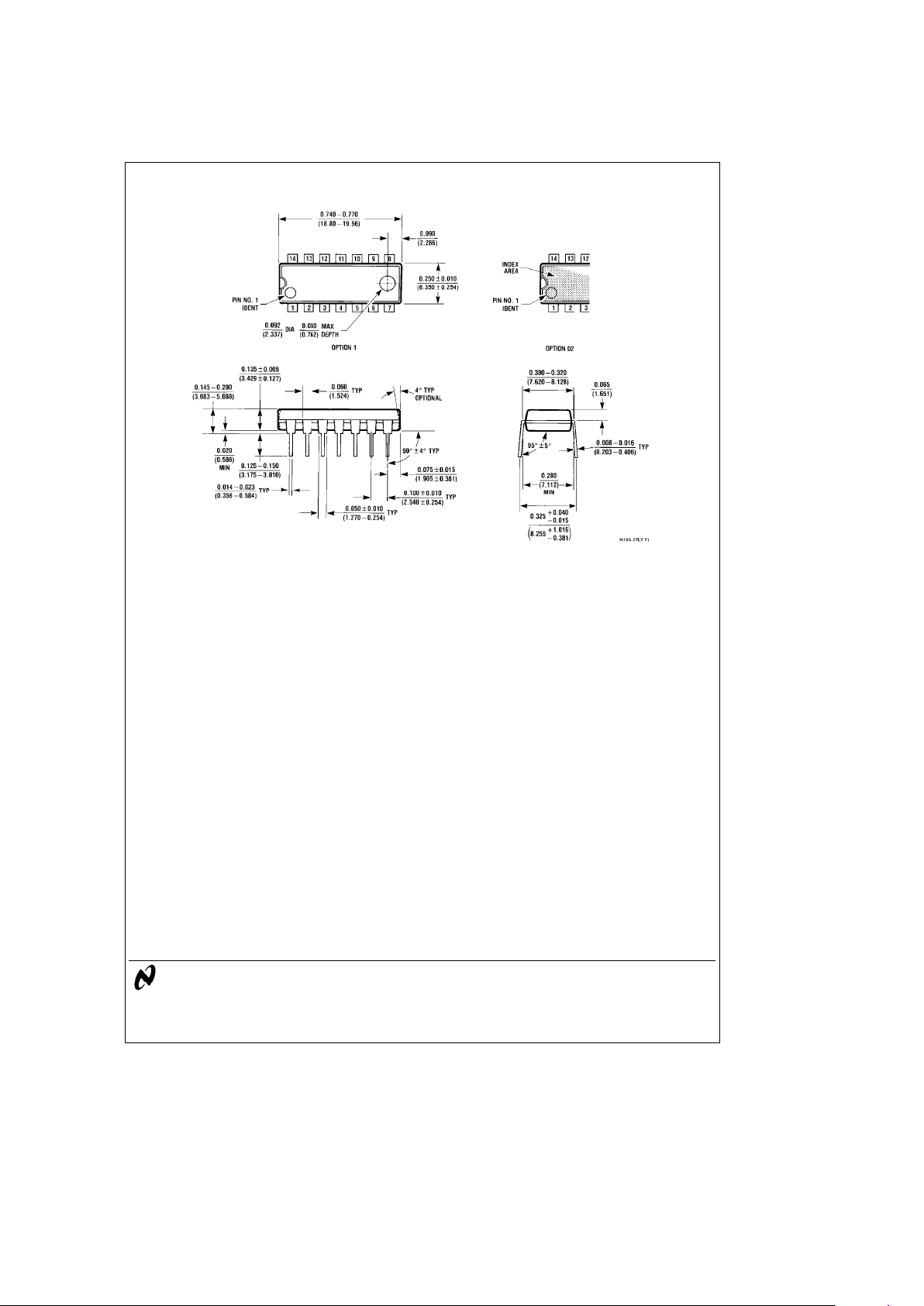

14-Lead Molded Dual-In-Line Package (N)
Order Number DM7403N
NS Package Number N14A
