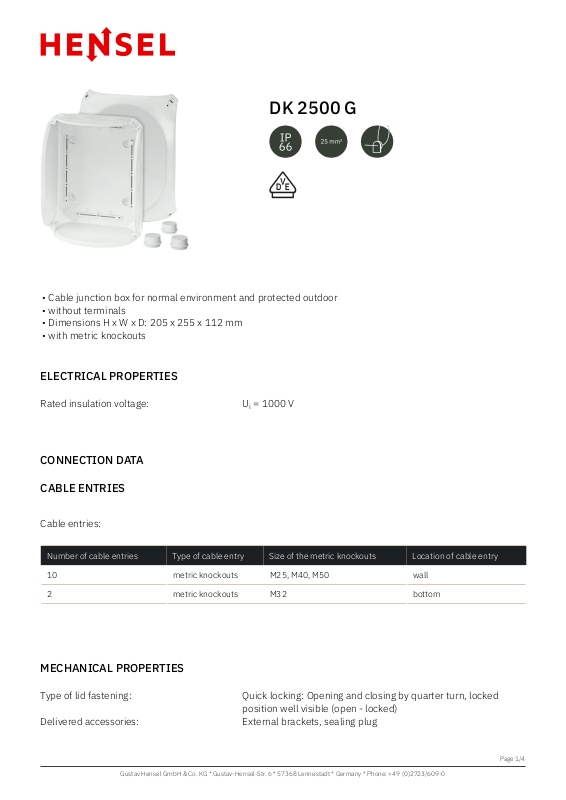

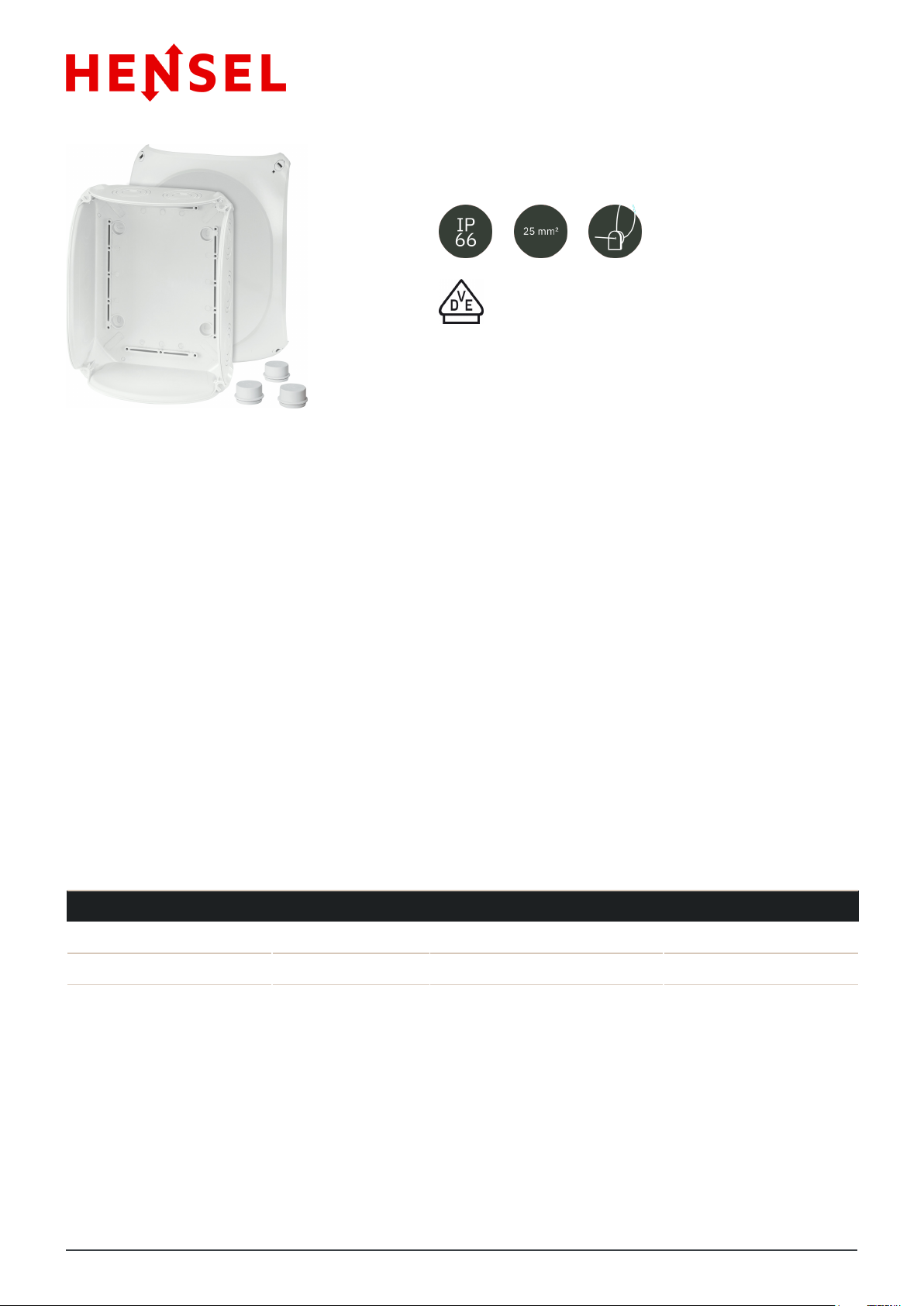

Datasheet DK 2500 G Specification

Cable junction box for normal environment and protected outdoor•
without terminals•
Dimensions H x W x D: 205 x 255 x 112mm•
with metric knockouts•

ELECTRICAL PROPERTIES

DK 2500 G

Rated insulation voltage: Ui = 1000 V

CONNECTION DATA

CABLE ENTRIES

Cable entries:

Number of cable entries Type of cable entry Size of the metric knockouts Location of cable entry

10 metric knockouts M25, M40, M50 wall

2 metric knockouts M32 bottom

MECHANICAL PROPERTIES

Type of lid fastening: Quick locking: Opening and closing by quarter turn, locked

position well visible (open - locked)

Delivered accessories: External brackets, sealing plug

Gustav Hensel GmbH & Co. KG * Gustav-Hensel-Str. 6 * 57368 Lennestadt * Germany * Phone: [phone]

Page1/4

IP degree of protection: IP66

IP degree of protection of the included Grommets 3x ESM 40:

IP55, sealing range
Impact strength: IK07
Sealable without accessories: Yes

AMBIENT CONDITIONS

Application area: Indoor installation
Maximum ambient temperature 24 h: 35 °C
Ambient temperature: -25 °C up to +40 °C
Relative humidity:

≤ 50 % at 40 °C, ≤ 100 % at 25 °C

MATERIAL PROPERTIES

Material: Polycarbonate
Glow wire test according to IEC
60695-2-11: 750 °C
UL 94: V-2
Temperature resistance: -25 °C up to +80 °C
Halogen-free: Yes
Silicone-free: Yes

DIMENSIONS

Height: 205 mm
Width: 255 mm
Depth: 112 mm
Net weight: 0.671 kg
Mounting height: 170 mm
Mounting width: 220 mm
Mounting depth: 96 mm

COLOURS

Colour: Grey, similar to RAL 7035

CERTIFICATES

conforming to the standards: DIN EN 60670-1/-22, IEC 60670-1/-22

Gustav Hensel GmbH & Co. KG * Gustav-Hensel-Str. 6 * 57368 Lennestadt * Germany * Phone: [phone]

Page2/4

Certicates:

Type of certicate Certicate number

VDE 40049684

SALES DATA

Product number: 62000015
EAN: 4012591125075
Pack unit: 2
Customs tariff number: 85369010
ETIM class: DYNAMIC: EC002600 - Box/housing for surface mounting on

the wall/ceiling

ETIM-8.0: EC002600 - Box/housing for surface mounting on the

wall/ceiling

ETIM-7.0: EC002600 - Box/housing for surface mounting on the

wall/ceiling

ETIM-6.0: EC002600 - Box/housing for surface mounting on the

wall/ceiling

ETIM-5.0: EC002600 - Box/housing for surface mounting on the

wall/ceiling

ETIM-4.0: EC002600 - Box/housing for surface mounting on the

wall/ceiling

NOTE

When using the sealing plugs supplied, the specied protection class is not changed.

TENDER TEXT

Nominal cross-section: 25 mm², dimensions HxWxD 205 x 255 x 112 mm, Cable junction boxes in
accordance with IEC 60670-22 with metric knockouts. Suitable for indoor and protected outdoor installation
in accordance with DIN VDE 0100, part 737. For ambient temperatures of maximum value +40 °C and
minimum value -25 °C, with relative humidity of 50 % at +40 °C or 100 % at +25 °C. Material temperature
resistance from -25 °C to +70 °C, burning behaviour according to IEC 60695-2-11 - glow wire test 750°C, UL
Subject 94 V-2. Degree of protection in accordance with IEC 60529: IP 66 with AKM cable glands. Rated
insulation voltage: 1000 V. Material: thermoplastics, halogen- and silicone-free. Colour: grey, RAL 7035. Lid
fastening with quick fasteners, sealable without accessories. Plug-in external brackets for wall mounting
included. Make: HENSEL ENYCASE DK.

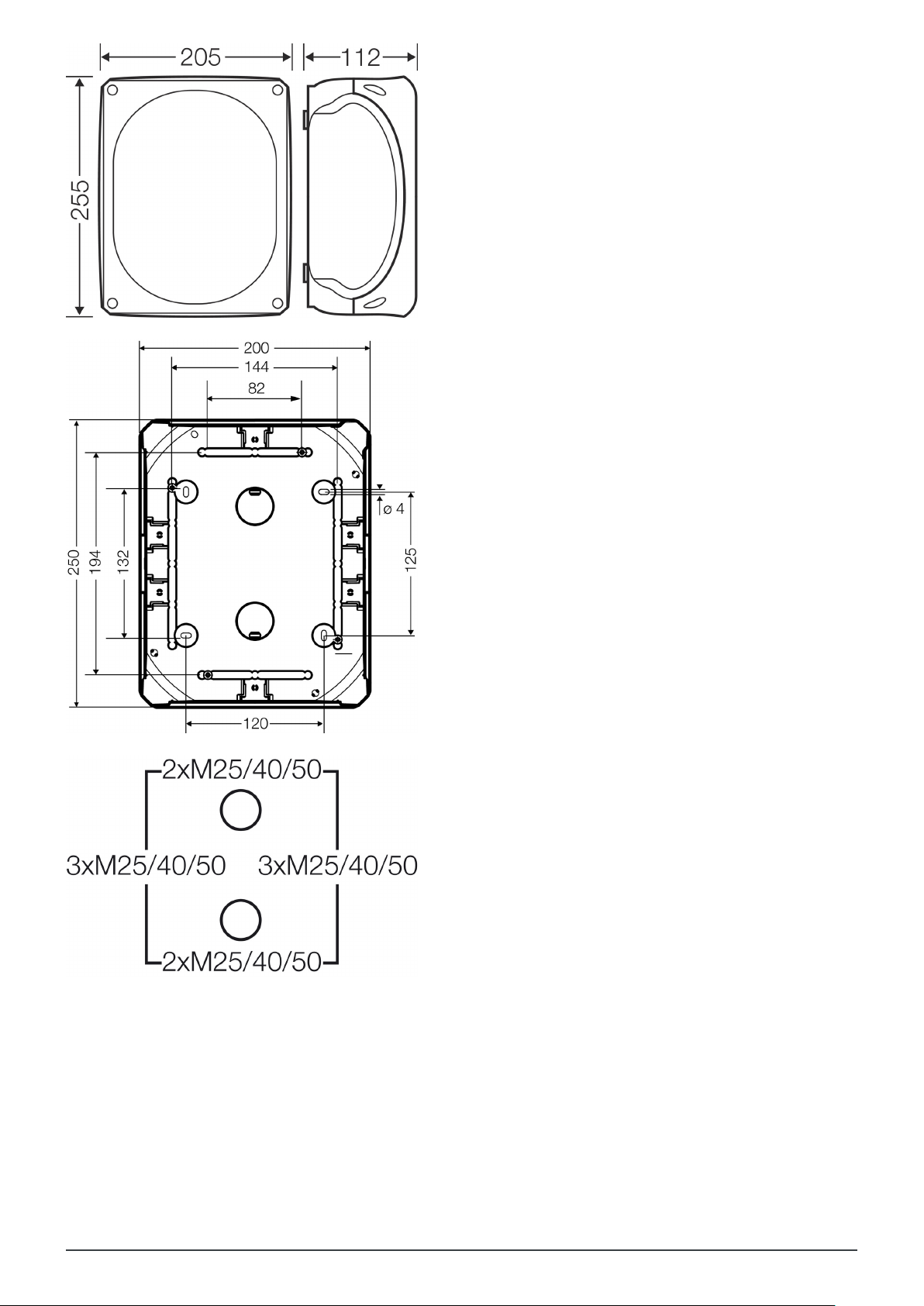

DRAWINGS
