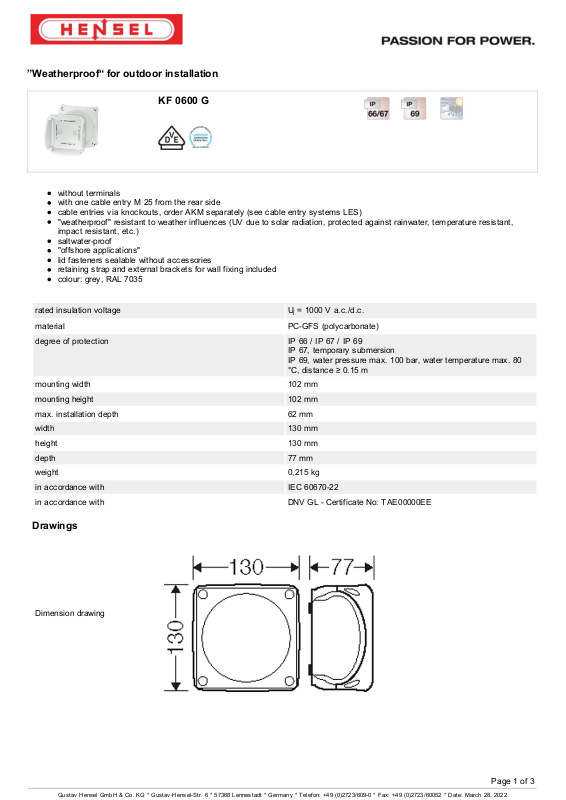

Page 1
without terminals
with one cable entry M 25 from the rear side
cable entries via knockouts, order AKM separately (see cable entry systems LES)
"weatherproof" resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant,
impact resistant, etc.)
saltwater-proof
"offshore applications"
lid fasteners sealable without accessories
retaining strap and external brackets for wall fixing included
colour: grey, RAL 7035
rated insulation voltage Ui = 1000 V a.c./d.c.
material PC-GFS (polycarbonate)
degree of protection IP 66 / IP 67 / IP 69
IP 67, temporary submersion
IP 69, water pressure max. 100 bar, water temperature max. 80
°C, distance ≥ 0.15 m
mounting width 102 mm
mounting height 102 mm
max. installation depth 62 mm
width 130 mm
height 130 mm
depth 77 mm
weight 0,215 kg
in accordance with IEC 60670-22
in accordance with DNV GL - Certificate No: TAE00000EE
Drawings
Dimension drawing
”Weatherproof“ for outdoor installation
KF 0600 G
Page 1 of 3
Gust av Hens el GmbH & Co. KG * Gus tav -Hens el-St r. 6 * 57368 Lennes tadt * Germany * T elefon: +49 (0)2723/ 609-0 * F ax: +49 (0)2723/ 60052 * D ate: Marc h 28. 2022
Page 2
Detail mass
Box walls
Operating and ambient conditions
Application area Suitable for for outdoor installation (harsh environment and/or
outdoor).
To reduce the formation and accumulation of condensed water see
technical information.
Resistant to occasional cleaning procedures (direct jet) Resistance to occasional cleaning procedures (direct jet) with high-
pressure cleaner without cleaning additives, water pressure: max
100 bar, water temperature: max 80 °C, distance ≥ 0.15 m, in
accordance with DIN EN 60529:2014-09 (IEC 60529:2013) = IP 69.
Only with cable entries HENSEL AKM or ASS.
Ambient temperature Average value over 24 hours + 55 °C
Maximum value + 70 °C
Minimum value - 25 °C
Fire protection in the event of internal faults Demands placed on electrical devices from standards and laws
Minimum requirements
- Glow wire test in accordance with IEC 60695-2-11:
- 650°C for boxes and cable glands
- 850°C for parts of insulating material necessary to retain current
carrying parts in position
Burning behaviour Glow wire test IEC 60695-2-11: 960 °C
UL Subject 94: V-0
flame-retardant
self-extinguishing
Degree of protection against mechanical load IK09 (10 Joule)
”Weatherproof“ for outdoor installation
KF 0600 G
Page 2 of 3
Gust av Hens el GmbH & Co. KG * Gus tav -Hens el-St r. 6 * 57368 Lennes tadt * Germany * T elefon: +49 (0)2723/ 609-0 * F ax: +49 (0)2723/ 60052 * D ate: Marc h 28. 2022
Page 3
Toxic behaviour halogen-free
silicone-free
"halogen-free" in accordance with the examination of the cables
and insulated wires - corrosiveness of fumes - as per IEC 60754-2
Note: For material properties see technical data.
