without terminals
with elastic membranes, which can be removed for cable entry via cable glands, sealing range 9.0-17.0 mm
with one cable entry in the bottom, sealing range Ø 6.0-15.0 mm
lid fasteners sealable without accessories
retaining strap and external brackets for wall fixing included
colour: grey, RAL 7035
To close opened membranes use grommets type EDK. Degree of protection = IP 66.
rated insulation voltage Ui = 1000 V a.c./d.c.
material PP (polypropylene)
degree of protection IP 66
mounting width 83 mm
mounting height 83 mm
max. installation depth 55 mm
width 104 mm
height 104 mm
depth 70 mm
weight 0,122 kg
in accordance with IEC 60670-22
Drawings

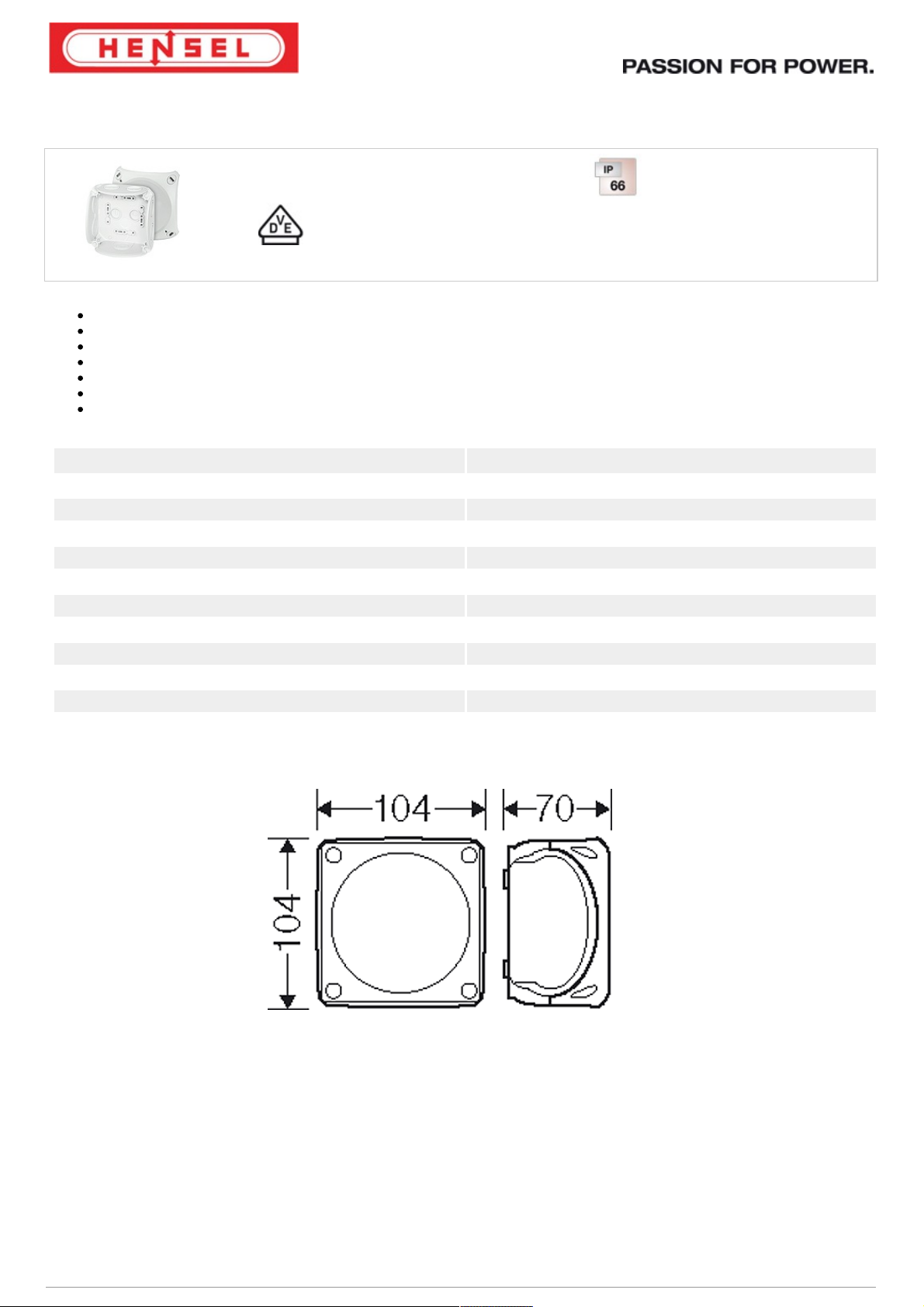

Dimension drawing
With or without terminals
DK 0400 G
Page 1 of 3
Gust av Hensel GmbH & Co. KG * Gustav -Hens el-Str. 6 * 57368 Lennes tadt * Germany * T elefon: +49 (0)2723/ 609-0 * F ax: +49 (0)2723/60052 * D ate: M arch 28. 2022
Page 2
Detail mass
Box walls
Operating and ambient conditions
Application area Suitable for indoor installation and outdoor installation, protected
against weather influences
Ambient temperature Maximum value + 40 °C
Minimum value - 25 °C
Fire protection in the event of internal faults Demands placed on electrical devices from standards and laws
Minimum requirements
- Glow wire test in accordance with IEC 60695-2-11:
- 650°C for boxes and cable glands
- 850°C for parts of insulating material necessary to retain current
carrying parts in position
Burning behaviour Glow wire test IEC 60695-2-11: 750 °C
UL Subject 94: V-2
flame-retardant
self-extinguishing
Degree of protection against mechanical load IK07 (2 Joule)
Toxic behaviour halogen-free
silicone-free
"halogen-free" in accordance with the examination of the cables
and insulated wires - corrosiveness of fumes - as per IEC 60754-2
Note: For material properties see technical data.
With or without terminals
DK 0400 G
