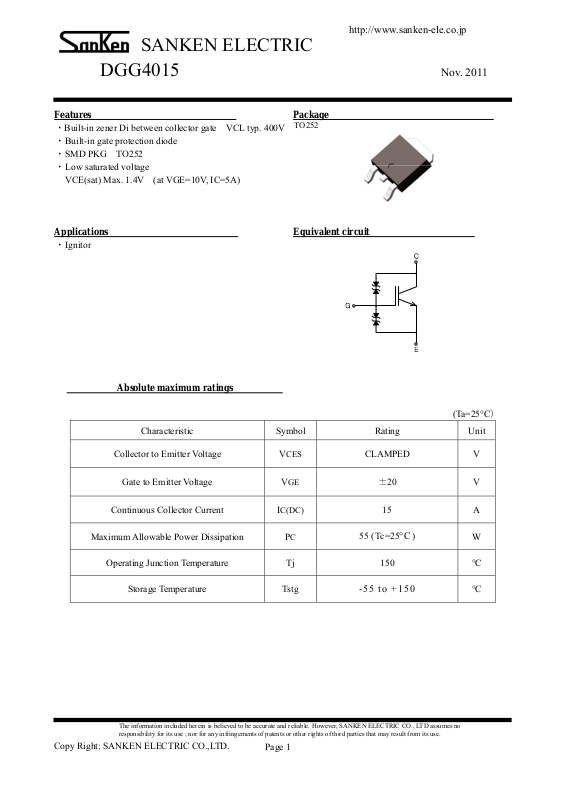

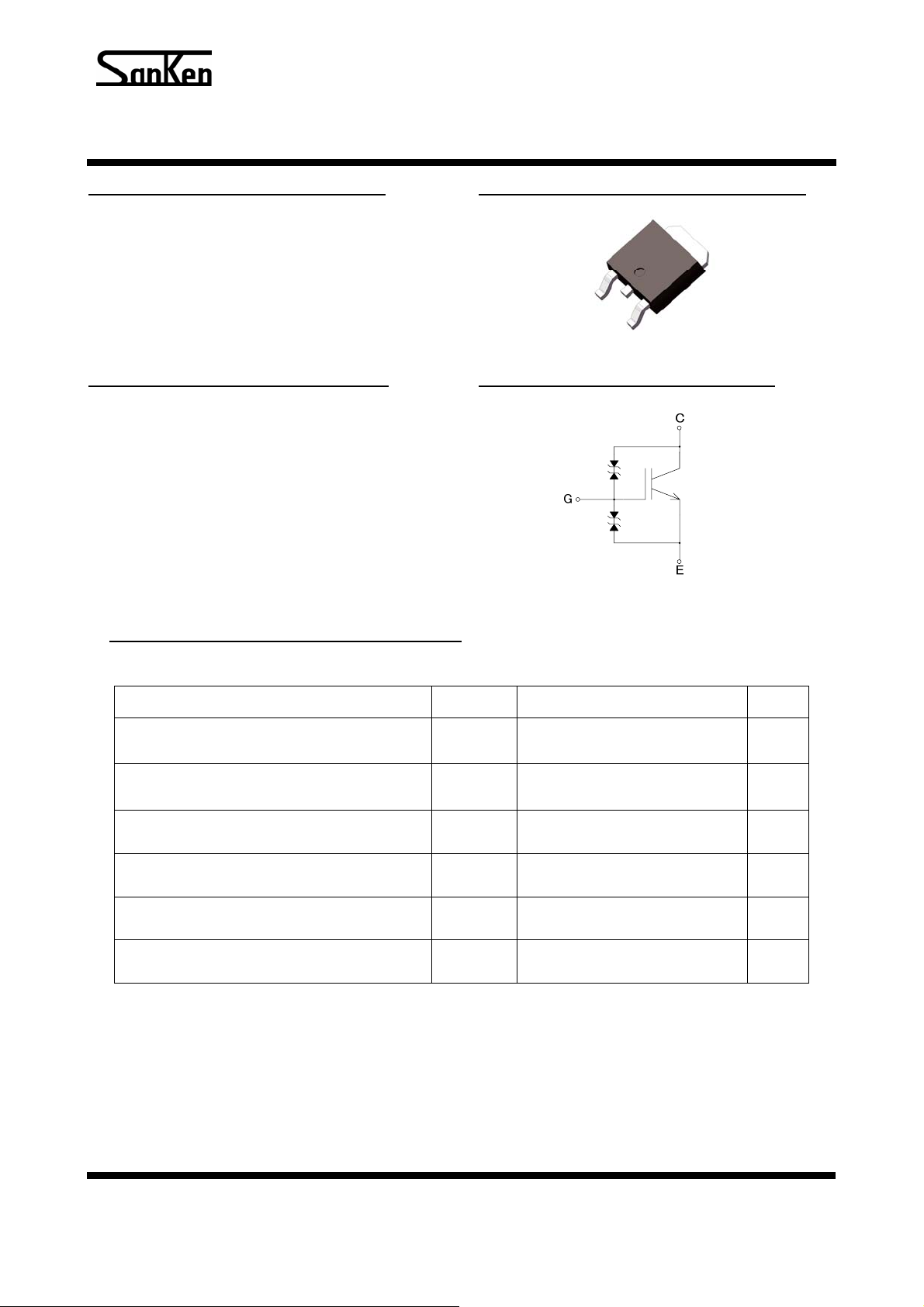

Page 1
http://www.sanken-ele.co.jp
SANKEN ELECTRIC
DGG4015 Nov. 2011
Features
・Built-in zener Di between collector gate VCL typ. 400V
・Built-in gate protection diode
・SMD PKG TO252
・Low saturated voltage
VCE(sat) Max. 1.4V (at VGE=10V, IC=5A)
Applications
・Ignitor
Absolute maximum ratings
(Ta=25°C）
Package
TO252
Equivalent circuit
Characteristic Symbol Rating Unit
Collector to Emitter Voltage VCES CLAMPED V
Gate to Emitter Voltage VGE
Continuous Collector Current IC(DC) 15 A
Maximum Allowable Power Dissipation PC
Operating Junction Temperature Tj 150 °C
Storage Temperature Tstg
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no
responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 1
±20
55 (Tc=25
-55 to +150
°C)
V
W
°C
Page 2
http://www.sanken-ele.co.jp
SANKEN ELECTRIC
DGG4015 Nov. 2011
Electrical characteristics
Characteristic Symbol Test Conditions
MIN. TYP. MAX.
Limits
(Ta=25°C）
Unit
Collector to Emitter Breakdown Voltage
Gate to Emitter Breakdown Voltage
Emitter to Collector Breakdown Voltage
Collector to Emitter Leakage Current
Gate to Emitter Leakage Curren IGES VGE=±20V,VCE=0V ±100 μA
Gate Threshold Voltage
Collector to Emitter Saturation Voltage
Collector to Emitter Saturation Voltage
Collector to Emitter Saturation Voltage
V(BR)CES IC= 2mA, VGE=0V 375 400 425 V
V(BR)GES
V(BR)ECS
ICES
VGE(th) VCE= 10V, IC=1mA 1.4 1.8 2.2 V
VCE(sat) VGE=4.5V, IC= 5A 1.2 1.5 V
VCE(sat) VGE=10V, IC= 5A 1.1 1.4 V
VCE(sat) VGE=10V, IC= 10A 1.4 1.7 V
IG=±100μA,
VCE=0V
IEC=10mA,
VGE=0V
VCE=300V,
VGE=0V
±20 V
20 V
100 μA
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Self Clamped Inductive Switching Energy
Cies 700
VCE=10V
Coes
Cres
ES/B
f=1.0MHz
VGE=0V
L=5mH, Rg=200
300
220
Ω 150 mJ
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no
responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 2
pF
Page 3
http://www.sanken-ele.co.jp
SANKEN ELECTRIC
DGG4015 Nov. 2011

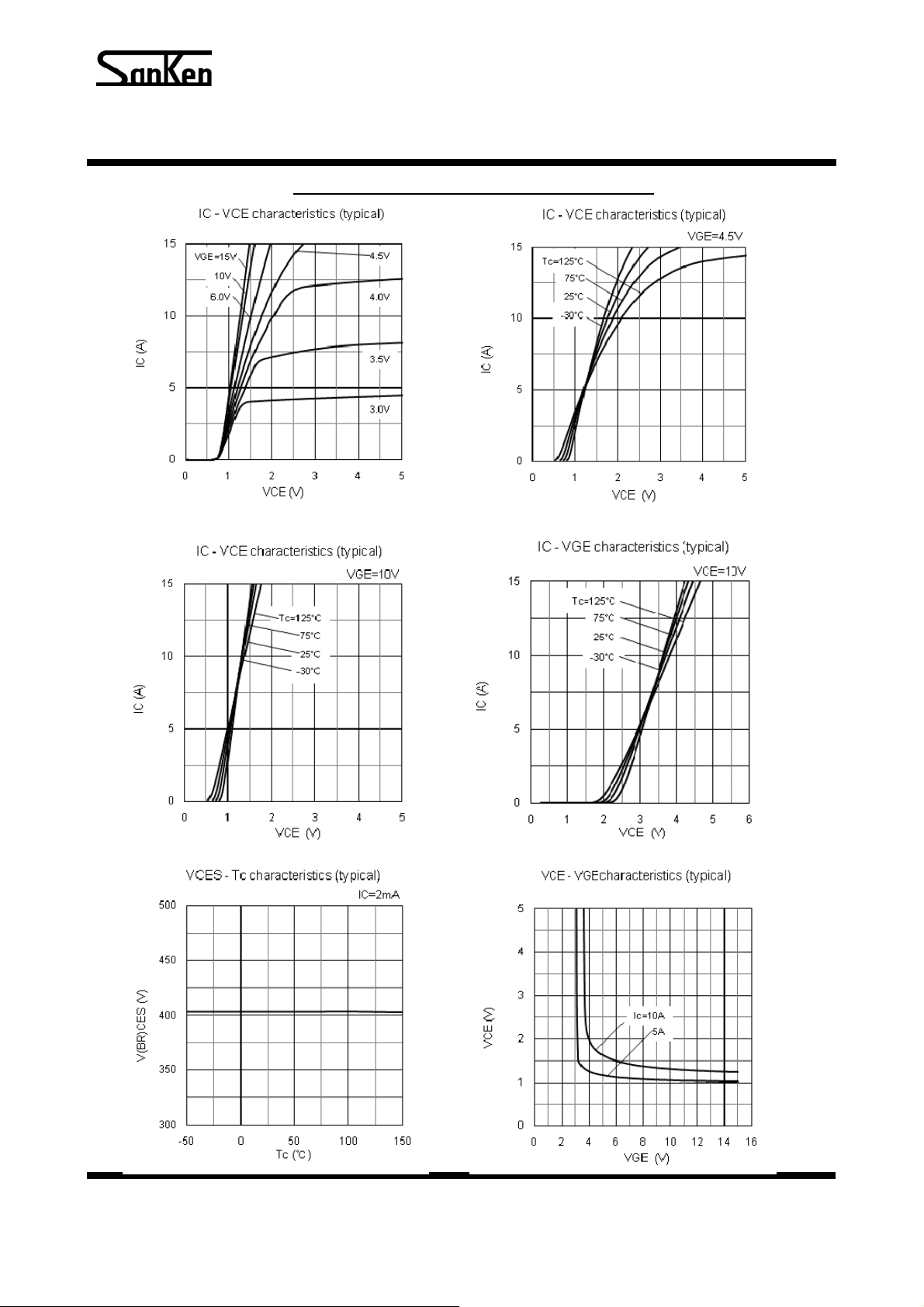

Characteristic Curves (Tc=25°C)
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no
responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 3
Page 4
http://www.sanken-ele.co.jp
SANKEN ELECTRIC
DGG4015 Nov. 2011

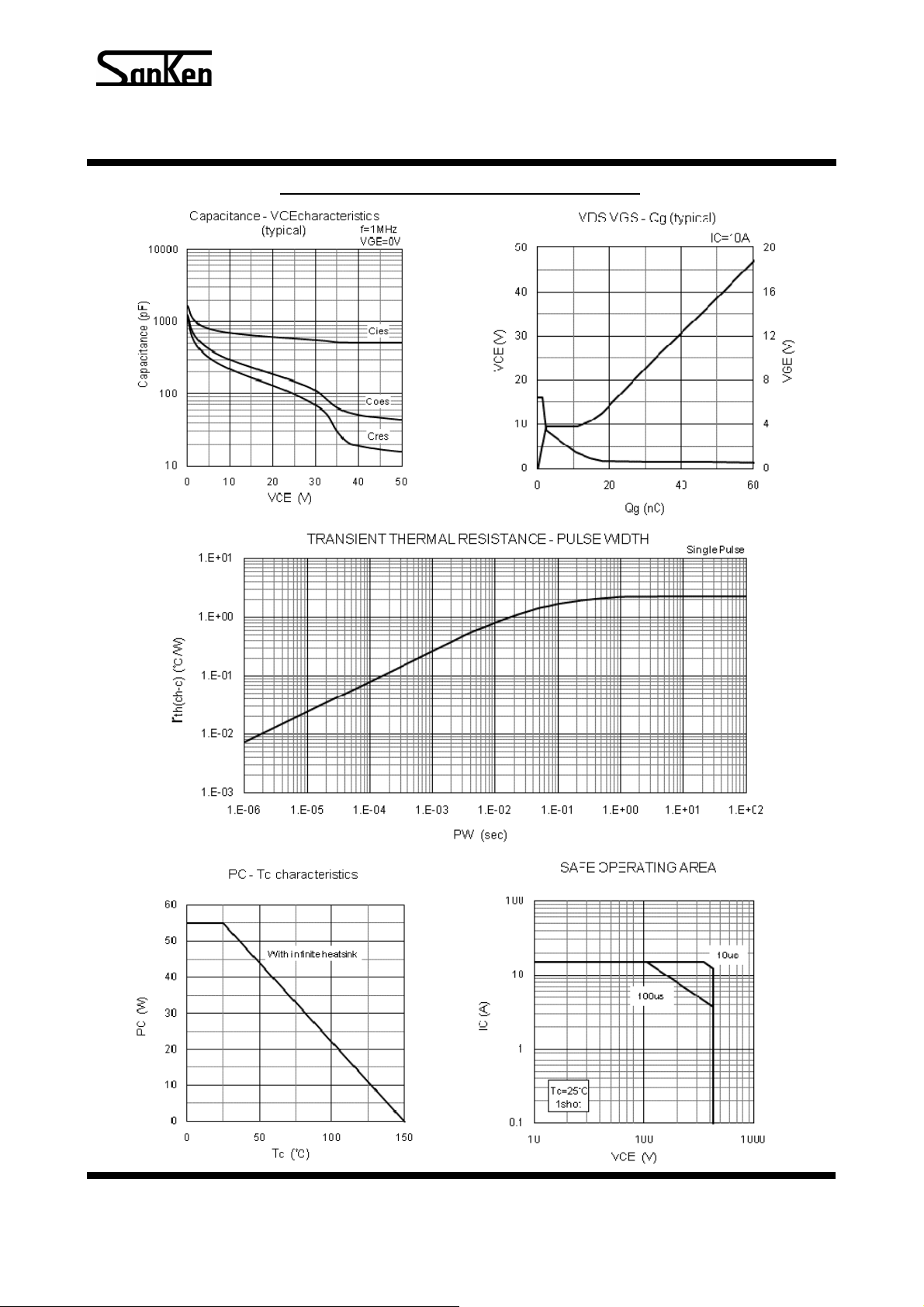

Characteristic Curves (Tc=25°C)
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no
responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 4
Page 5
http://www.sanken-ele.co.jp
SANKEN ELECTRIC
DGG4015 Nov. 2011

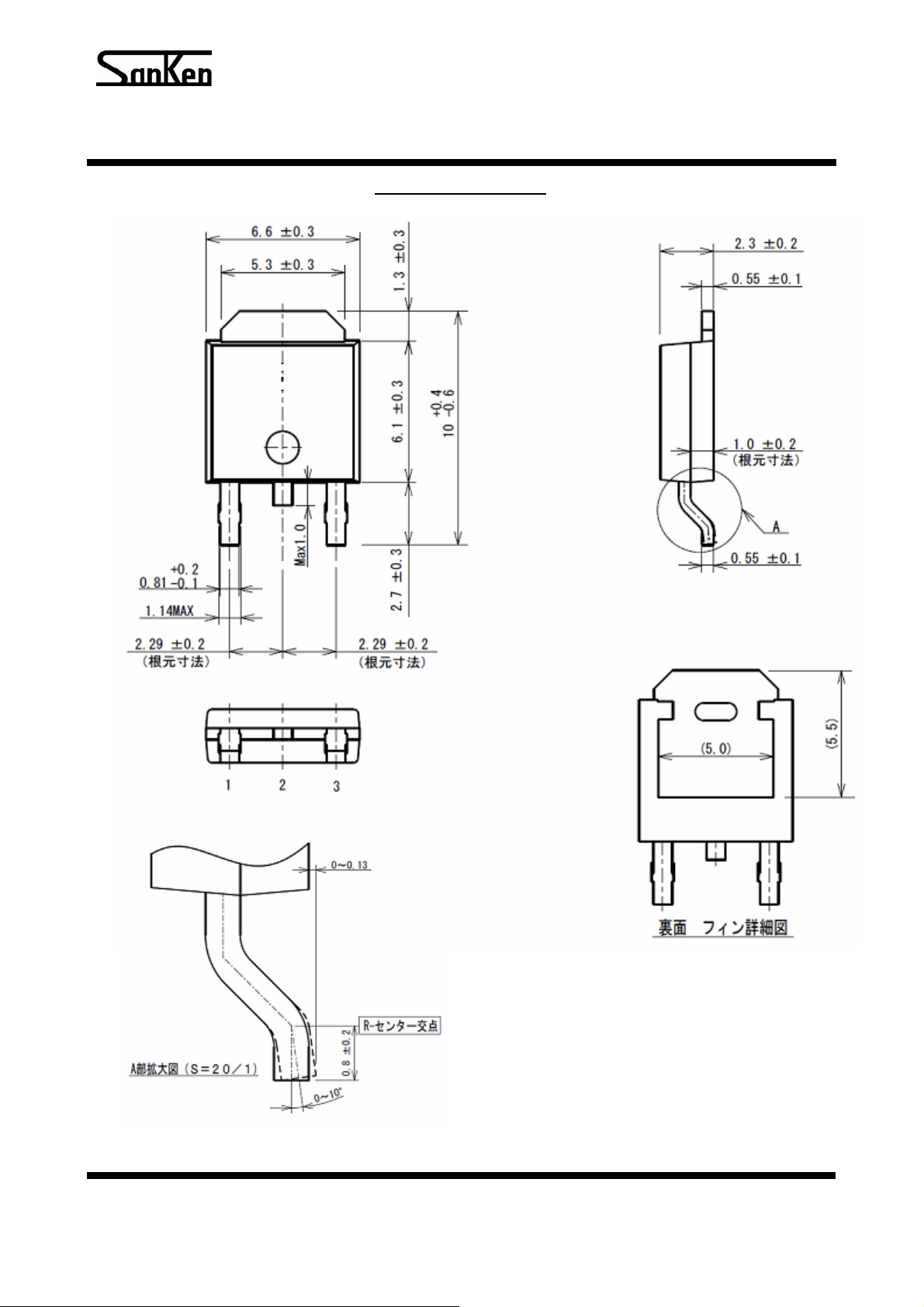

Outline
TO252
Pin assignment
(1) Gate
(2) Drain
(3) Source
Wight Approx : 6.5g
Weight Approx.0.33g
The information included herein is believed to be accurate and reliable. However, SANKEN ELECTRIC CO., LTD assumes no
responsibility for its use ; nor for any infringements of patents or other rights of third parties that may result from its use.
Copy Right: SANKEN ELECTRIC CO.,LTD.
Page 5
