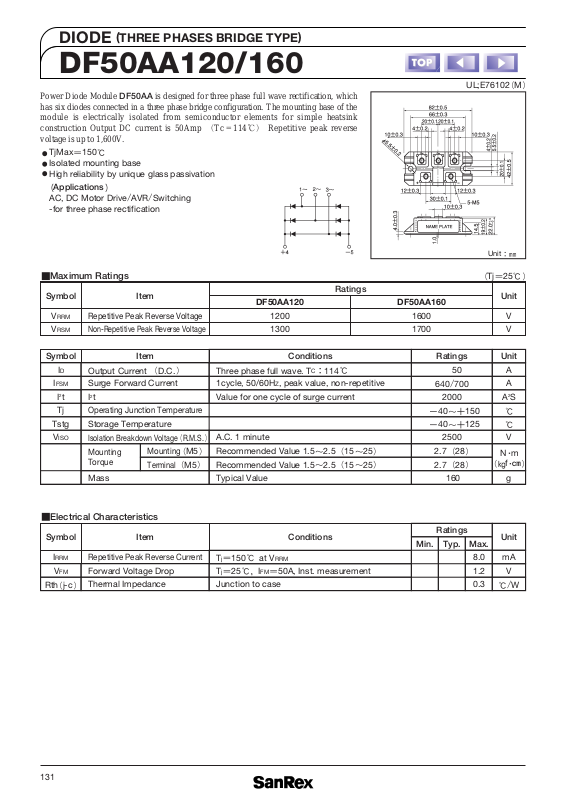

Page 1
131
DF50AA120/160
DIODE
(
THREE PHASES BRIDGE TYPE
)
Power Diode Module DF50AA is designed for three phase full wave rectification, which
has six diodes connected in a three phase bridge configuration. The mounting base of the
module is electrically isolated from semiconductor elements for simple heatsink
construction Output DC current is 50Amp
Tc 114 Repetitive peak reverse
voltage is up to 1,600V.
TjMax 150
Isolated mounting base
High reliability by unique glass passivation
Applications
AC, DC Motor Drive/AVR/Switching
-for three phase rectification
Maximum Ratings
Tj 25
Symbol Item
Ratings
DF50AA120
1200
1300
Unit
VRRM
VRSM
Repetitive Peak Reverse Voltage
Non-Repetitive Peak Reverse Voltage
DF50AA160
1600
1700
V
V
Unit
Symbol Item
Output Current D.C.
Conditions Ratings Unit
AID
Three phase full wave. TC114
50
IFSM
Surge Forward Current
1cycle, 50/60HZ, peak value, non-repetitive
640/700
A
I
2
t
I2t Value for one cycle of surge current 2000 A2S
Tj
Operating Junction Temperature
40 150
Tstg Storage Temperature
40 125
V
ISO
Isolation Breakdown Voltage R.M.S.
Mounting
Torque
A.C. 1 minute 2500 V
Mounting
M5
Terminal
M5
Mass
Recommended Value 1.5 2.5 15 25
Recommended Value 1.5 2.5 15 25
2.7 28
2.7 28
N m
f B
gTypical Value 160
Electrical Characteristics
Symbol
IRRM
Item
Repetitive Peak Reverse Current
Conditions
Tj150 at V
RRM
Unit
mA
VFM Forward Voltage Drop
Tj25 IFM50A, Inst. measurement
V
Rth j-c
Thermal Impedance Junction to case
/W
Ratings
Min. Typ. Max.
8.0
1.2
0.3
UL;E76102 M

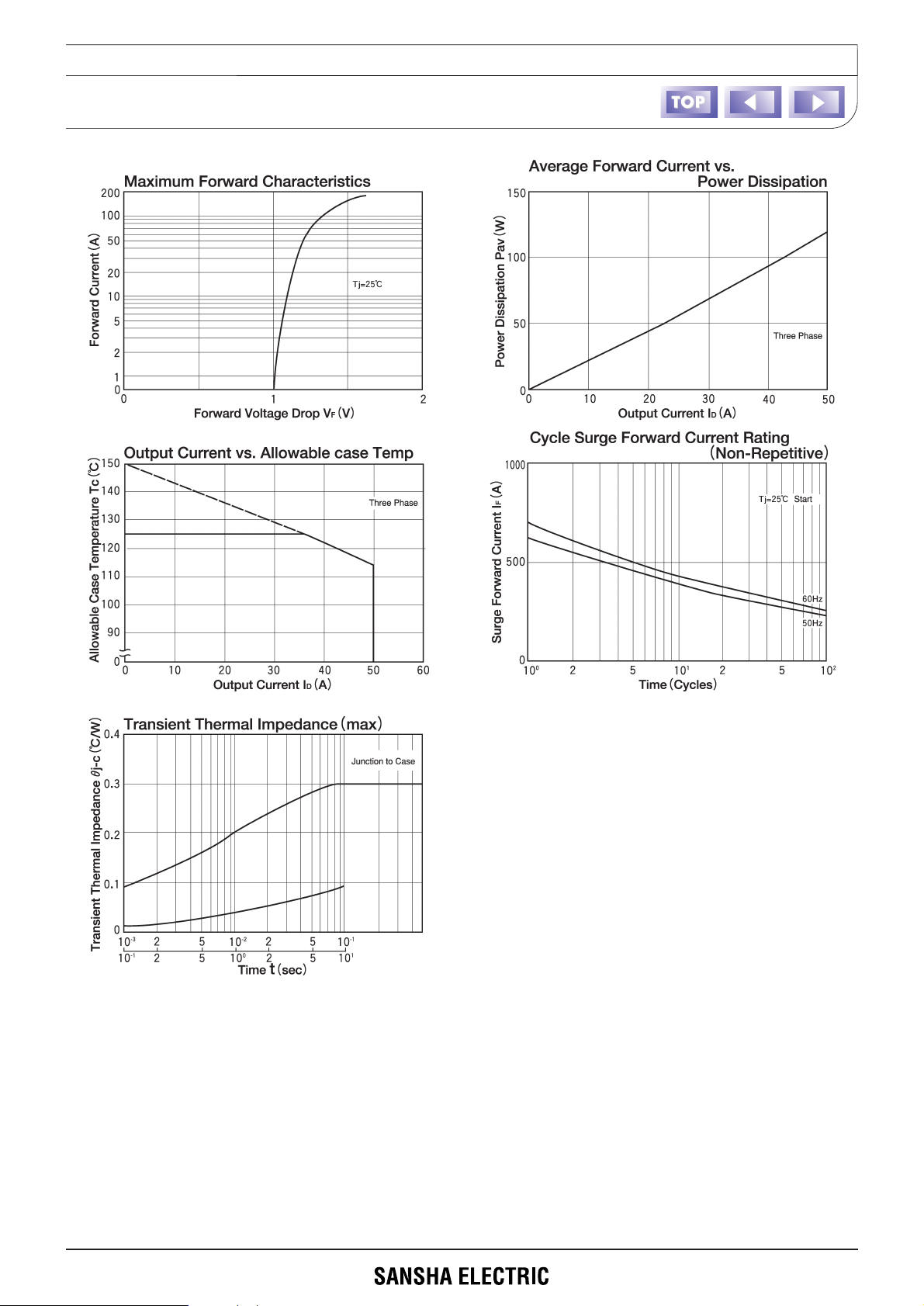

Page 2
132
DF50AA120/160
