Page 1
117

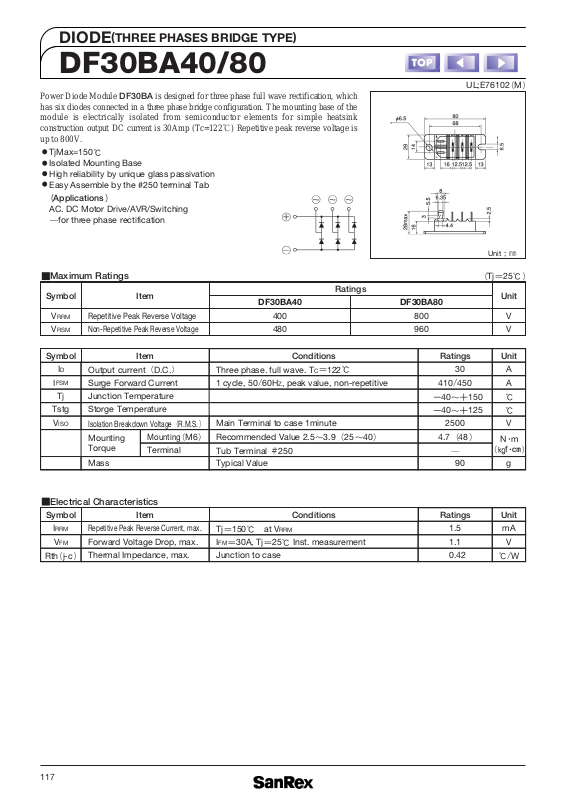

DF30BA40/80

DIODE
(
THREE PHASES BRIDGE TYPE
)
Unit a
Maximum Ratings
Symbol Item
Ratings
DF30BA40
400
480
DF30BA80
800
960
Unit
VRRM
VRSM
Repetitive Peak Reverse Voltage
Non-Repetitive Peak Reverse Voltage
V
V
Symbol Item
Output current D.C.
Conditions Ratings Unit
AI
D
Three phase. full wave. TC122
30
I
FSM
Surge Forward Current
1 cycle, 50/60HZ, peak value, non-repetitive 410/450
A
Tj Junction Temperature
40 150
Tstg Storge Temperature
40 125
V
ISO
Isolation Breakdown Voltage R.M.S.
Main Terminal to case 1minute 2500 V
Mounting Torque
Mounting
M6
Terminal
Mass
Recommended Value 2.5 3.9 25 40
Tub Terminal 250
4.7 48
N m
f B
g
Typical Value
90
Electrical Characteristics
Symbol
IRRM
Item
Repetitive Peak Reverse Current, max.
Conditions
Tj 150 at V
RRM
Ratings
1.5
1.1
0.42
Unit
mA
VFM Forward Voltage Drop, max.
IFM30A, Tj 25 Inst. measurement
V
Rth j-c
Thermal Impedance, max. Junction to case
/W
Power Diode Module DF30BA is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction output DC current is 30Amp (Tc=122
) Repetitive peak reverse voltage is
up to 800V.
TjMax=150 Isolated Mounting Base High reliability by unique glass passivation Easy Assemble by the #250 terminal Tab
Applications
AC. DC Motor Drive/AVR/Switching
for three phase rectification
UL;E76102
M
Page 2
118
DF30BA40/80
