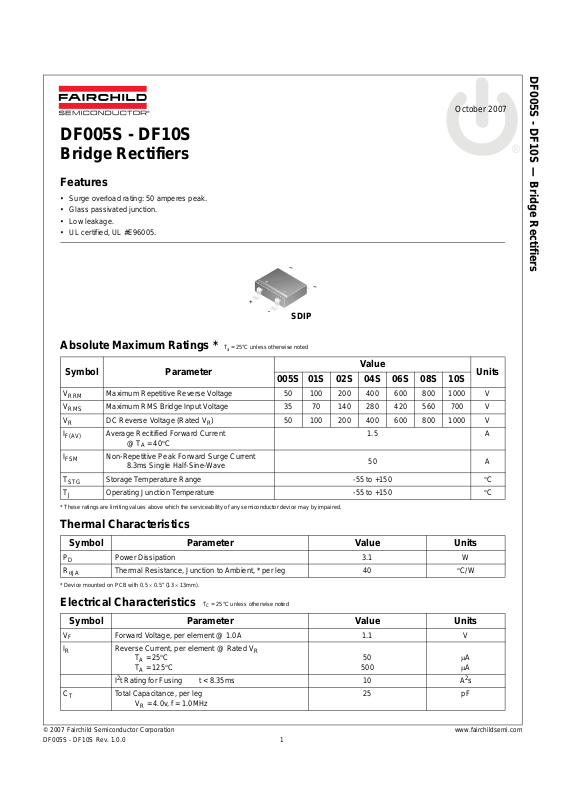

DF005S - DF10S
Bridge Rectifiers
Features
• Surge overload rating: 50 amperes peak.
• Low leakage.
• UL certified, UL #E96005.
DF005S - DF10S — Bridge Rectifiers
October 2007
~
~
+
-
SDIP
Absolute Maximum Ratings * T
= 25°C unless otherwise noted
a
Value
Symbol Parameter
V
RRM
V
RMS
V
R
I
F(AV)
I
FSM
T
STG
T
J
* These ratings are limiting values above which the serviceability of any semiconductor device may by impaired.
Maximum Repetitive Reverse Voltage 50 100 200 400 600 800 1000 V Maximum RMS Bridge Input Voltage 35 70 140 280 420 560 700 V DC Reverse Voltage (Rated VR) 50 100 200 400 600 800 1000 V Average Recitified Forward Current
@ TA = 40°C
Non-Repetitive Peak Forward Surge Current
8.3ms Single Half-Sine-Wave Storage Temperature Range -55 to +150 °C Operating Junction Temperature -55 to +150 °C
005S 01S 02S 04S 06S 08S 10S
1.5 A
50 A
Thermal Characteristics
Symbol Parameter Value Units
P
D
R
θJA
* Device mounted on PCB with 0.5 × 0.5” (13 × 13mm).
Electrical Characteristics T
Symbol Parameter Value Units
V
F
I
R
C
T
Power Dissipation 3.1 W Thermal Resistance, Junction to Ambient, * per leg 40 °C/W
= 25°C unless otherwise noted
C
Forward Voltage, per element @ 1.0A 1.1 V Reverse Current, per element @ Rated V
TA = 25°C
TA = 125°C I2t Rating for Fusing t < 8.35ms 10 A2s Total Capacitance, per leg
VR = 4.0v, f = 1.0MHz
R
50
500
25 pF
Units
μA μA
© 2007 Fairchild Semiconductor Corporation www.fairchildsemi.com DF005S - DF10S Rev. 1.0.0 1
Page 2
Typical Performance Characteristics
Figure 1. Figure 2.
DF005S - DF10S — Bridge Rectifiers
Non-Repe tit ive Surge Current
[A]
50
[A]
FSM
40
30
20
10
0
12 51020 50100
Peak Forward Surge Current, I
NUMBER OF CYCLES AT 60Hz
1.5
F
1
0.5
0
20 40 60 80 100 120 140 160
Average Rectified Forward Current, I
Figure 3. Figure 4.
Forwar d Char acteristics
[A]
F
10
1
[μA]
10
R
Output Rectified Current
AMBIENT TEMPERATURE ( C)
Reverse Characteristics
º
T = 100 C
A
1
º
0.1
º
T = 25 C
Forward Current, I
0.01
0.4 0.6 0.8 1 1.2 1.4
A
Pulse Width = 200μs
F OR WAR D VOLTAGE (V)
Reverse Current, I
0.1
º
T = 25 C
A
0.01 0 20406080100120140
NORMALIZED REVERSE VOLTAGE (%)
© 2007 Fairchild Semiconductor Corporation www.fairchildsemi.com DF005S - DF10S Rev. 1.0.0 2
