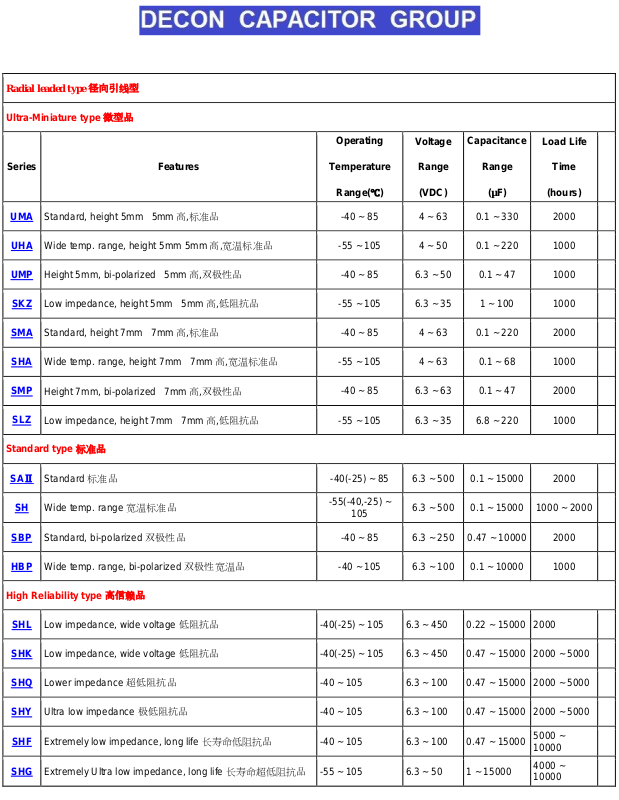

Radial leaded type 径向引线型
Ultra-Miniature type 微型品
Series
Features
Operating
Temperature
Range(℃)
Voltage
Range
(VDC)
Capacitance
Range
(µF)
Load Life
Time
(hours)
UMA
Standard, height 5mm 5mm 高,标准品
-40 ~ 85
4 ~ 63
0.1 ~ 330
2000
UHA
Wide temp. range, height 5mm 5mm 高,宽温标准品
-55 ~ 105
4 ~ 50
0.1 ~ 220
1000
UMP
Height 5mm, bi-polarized 5mm 高,双极性品
-40 ~ 85
6.3 ~ 50
0.1 ~ 47
1000
SKZ
Low impedance, height 5mm 5mm 高,低阻抗品
-55 ~ 105
6.3 ~ 35
1 ~ 100
1000
SMA
Standard, height 7mm 7mm 高,标准品
-40 ~ 85
4 ~ 63
0.1 ~ 220
2000
SHA
Wide temp. range, height 7mm 7mm 高,宽温标准品
-55 ~ 105
4 ~ 63
0.1 ~ 68
1000
SMP
Height 7mm, bi-polarized 7mm 高,双极性品
-40 ~ 85
6.3 ~ 63
0.1 ~ 47
2000
SLZ
Low impedance, height 7mm 7mm 高,低阻抗品
-55 ~ 105
6.3 ~ 35
6.8 ~ 220
1000
Standard type 标准品
SAⅡ
Standard 标准品
-40(-25) ~ 85
6.3 ~ 500
0.1 ~ 15000
2000
SH
Wide temp. range 宽温标准品
-55(-40,-25) ~
105
6.3 ~ 500
0.1 ~ 15000
1000 ~ 2000
SBP
Standard, bi-polarized 双极性品
-40 ~ 85
6.3 ~ 250
0.47 ~ 10000
2000
HBP
Wide temp. range, bi-polarized 双极性宽温品
-40 ~ 105
6.3 ~ 100
0.1 ~ 10000
1000
High Reliability type 高信赖品
SHL
Low impedance, wide voltage 低阻抗品
-40(-25) ~ 105
6.3 ~ 450
0.22 ~ 15000
2000
SHK
Low impedance, wide voltage 低阻抗品
-40(-25) ~ 105
6.3 ~ 450
0.47 ~ 15000
2000 ~ 5000
SHQ
Lower impedance 超低阻抗品
-40 ~ 105
6.3 ~ 100
0.47 ~ 15000
2000 ~ 5000
SHY
Ultra low impedance 极低阻抗品
-40 ~ 105
6.3 ~ 100
0.47 ~ 15000
2000 ~ 5000
SHF
Extremely low impedance, long life 长寿命低阻抗品
-40 ~ 105
6.3 ~ 100
0.47 ~ 15000
5000 ~
10000
SHG
Extremely Ultra low impedance, long life 长寿命超低阻抗品
-55 ~ 105
6.3 ~ 50
1 ~ 15000
4000 ~
10000
Page 2
SHX
Ultra low impedance 长寿命极低阻抗品
-40 ~ 105
6.3 ~ 100
0.47 ~ 15000
5000 ~ 10000
SHR
Extremely lower impedance 长寿命超低阻抗品
-40 ~ 105
6.3 ~ 100
0.47 ~ 15000
5000 ~ 10000
SHU
For Slim PSU 2000 hours at 105℃ 电源用细长品
-40(-25) ~ 105
250 ~ 450
15 ~ 150
2000
SHV
For Slim PSU, 10000 hours at 105℃ 电源用细长品，长寿命
-40(-25) ~ 105
250 ~ 450
15 ~ 150
5000 ~
10000
SHT
High temp. range, for 125℃ use 高温度品
-55(-40) ~ 125
6.3 ~ 250
1.0 ~ 15000
2000
BS
High ripple current 高纹波品
-40(-25) ~ 105
160 ~ 450
1.0 ~ 150
5000
BT
High ripple current, long life 长寿命高纹波品
-25 ~ 105
160 ~ 450
6.8 ~ 150
10000
BK
High ripple current, long life, high temperature 长寿命高温
高纹波品
-40(-25) ~ 105
160 ~ 400
2.2 ~ 47
5000
Special type 特殊品
SV
For saving lamp & ballast 节能灯、镇流器专用品
-40(-25) ~ 105
160 ~ 450
1.0 ~ 220
2000
FS
For photo flash 闪光灯专用品
-20 ~ 55
260 ~ 330
60 ~ 180
---
FR
For flame retardancy 阻燃品
-25 ~ 105
400 ~ 450
2.2 ~ 120
2000
SNP
For crossover networks 音响分频专用品
-40 ~ 85
50, 100,
200
1.0 ~ 100
2000
SRM
For horizontal current correction 水平校正专用品
-40 ~ 85
25,50
1.0 ~ 10
2000
SLL
Low leakage current 低漏电品
-40 ~ 85
10 ~ 100
1.0 ~ 4700
2000
Axial leaded type 轴向引线型
AKP
For Speaker Network 轴向引线型，双极型品
-40 ~ 105
50,100
1.0 ~ 330
1000
Page 3
Snap-in type 焊针型
Series
Features
Operating
Temperature
Range(℃)
Voltage
Range
(VDC)
Capacitance
Range
(µF)
Load Life
Time
(hours)
LS
Standard 标准品
-40(-25) ~ 85
6.3 ~ 500
56 ~ 100000
2000
LT
Wide temp. range 宽温标准品
-40(-25) ~ 105
6.3 ~ 500
47 ~ 68000
2000
LV
Wide temp. range, long life 宽温长寿命品
-40(-25) ~ 105
10 ~ 450
47 ~ 56000
3000
LQ
Wide temp. range, long life 宽温长寿命品
-40(-25) ~ 105
160 ~ 450
47 ~ 1500
5000 LZ
Long life, low impedance 长寿命低阻抗品
-40(-25) ~ 85
160 ~ 450
47 ~ 2200
5000
LR
Long Life, Low Impedance 长寿命低阻抗品
-40(-25) ~ 105
10 ~ 450
100 ~ 33000
5000
LX
Wide temp. range, long life 宽温长寿命品
-40(-25) ~ 105
160 ~ 450
47 ~ 1800
7000 LW
Ultra long life 超长寿命品
-25 ~ 85
200 ~ 450
68 ~ 2200
10000
LB
High Temperature Range, For 125℃ Use 高温度品
-40 ~ 125
10 ~ 250
100 ~ 15000
1000
Lug Terminal 焊片型
LU
For general use 标准品
-40(-25) ~ 85
160 ~ 450
68 ~ 68000
2000
Screw type 螺丝型
WS
Standard 标准品
-40(-25) ~ 85
10 ~ 600
100 ~ 680000
2000
WT
Wide temp. range 宽温标准品
-40(-25) ~ 105
10 ~ 500
180 ~ 680000
2000
WQ
For inverter circuits, long life 长寿命品
-40(-25) ~ 105
10 ~ 500
330 ~ 390000
5000
WX
For inverter circuits, long life 长寿命品
-40 ~ 105
350 ~ 450
90 ~ 15000
10000
WL
High ripple, high reliability long life 长寿命品
-25 ~ 85
350 ~ 450
2200 ~ 12000
20000
WH
High ripple, high reliability long life 长寿命品
-25 ~ 85
350 ~ 500
470 ~ 22000
10000
WK
High ripple, high reliability long life 长寿命品
-40(-25) ~ 85
10 ~ 450
1000 ~ 1500000
5000
WF
For inverter circuits 特高压品
-25 ~ 85
350 ~ 600
1000 ~ 12000
2000 ~ 5000
Page 4
SMD type 贴片型
Series
Features
Operating
Temperature
Range(℃)
Voltage
Range
(VDC)
Capacitance
Range
(µF)
Load Life
Time
(hours)
VCS (SS)
Standard 标准品
-40 ~ 85
4 ~ 100
0.1 ~ 6800
2000
VCK (HT)
Standard, wide temp. 宽温标准品
-40 ~ 105
4 ~ 100
0.1 ~ 6800
1000 ~ 2000
VCN
(NP)
Bi-polarized 双极性标准品
-40 ~ 85
6.3 ~ 50
0.1 ~ 100
1000
VKP
Bi-polarized, wide temp. 双极性宽温品
-55 ~ 105
6.3 ~ 50
0.1 ~ 47
1000
VSC
Low leakage current 低漏电品
-40 ~ 85
6.3 ~ 50
0.1 ~ 220
2000
VLZ
Low impedance 低阻抗品
-55 ~ 105
6.3 ~ 50
1 ~ 4700
1000 ~ 2000
VKZ
Extra lower impedance 超低阻抗品
-55 ~ 105
6.3 ~ 50
4.7 ~ 4700
1000 ~ 3000
VFZ
Long life with extra lower impedance 极低阻抗品
-55 ~ 105
6.3 ~ 100
3.3 ~ 4700
2000 ~ 5000
VEL
Long life assurance 长寿命品
-55 ~ 105
6.3 ~ 50
0.1 ~ 3300
2000 ~ 3000
VKL
5000 hours load life 长寿命品
-55 ~ 105
6.3 ~ 100
0.1 ~ 3300
3000 ~ 5000
VKH
High reliability 高温度品
-40 ~ 125
10 ~ 450
3.3 ~ 2200
1000 ~ 5000
VHU
Middle & High Voltage 中高压品
-40 ~ 105
160 ~ 450
3.3 ~ 47
5000
