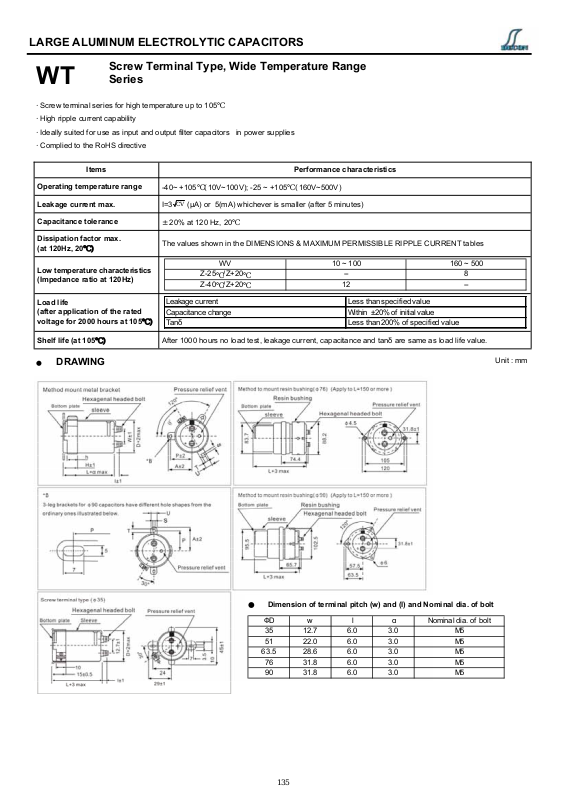

LARGE ALUMINUM ELECTROLYTIC CAPACITORS

Screw Terminal Type, Wide Temperature Range

· Screw terminal series for high temperature up to 105℃

· High ripple current capability

· Ideally suited for use as input and output filter capacitors in power supplies

· Complied to the RoHS directive

Series

Items Performance characteristics

Operating temperature range

Leakage current max. I=3 (µA) or 5(mA) whichever is smaller (after 5 minutes)

Capacitance tolerance

Dissipation factor max. (at 120Hz, 20℃)

Low temperature characteristics (Impedance ratio at 120Hz)

Load life (after application of the rated

voltage for 2000 hours at 105℃)

Shelf life (at 105℃)

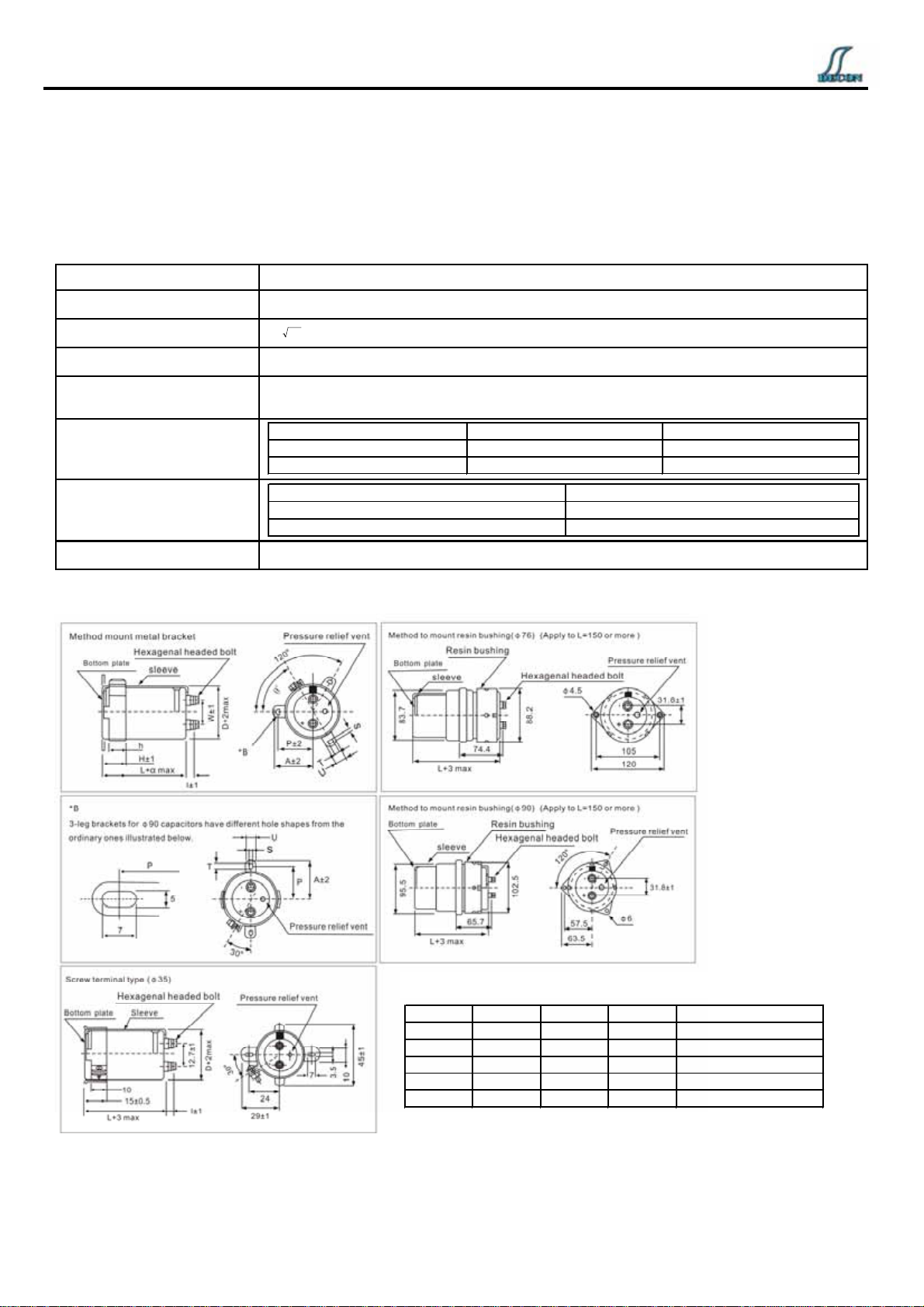

● DRAWING

-40~ +105℃(10V~100V); -25 ~ +105℃(160V~500V)

±20% at 120 Hz, 20℃

The values shown in the DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT tables

Leakage current Less than specif ied value Capacitanc e change Within ±20% of initial value Tan δ Less than 200% of spec if ied value

After 1000 hours no load test, leakage current, capacitance and tanδ are same as load life value.

WV 10 ~ 100 160 ~ 500 Z-25℃/Z+20 Z-40℃/Z+20

℃ ℃

-- 8

12 --

Unit : mm

● Dimension of terminal pitch (w) and (l) and Nominal dia. of bolt

ФDw l α Nominal dia. of bolt

35 12.7 6.0 3.0 M5 51 22.0 6.0 3.0 M5

63.5 28.6 6.0 3.0 M5 76 31.8 6.0 3.0 M5 90 31.8 6.0 3.0 M5

135

Page 2

LARGE ALUMINUM ELECTROLYTIC CAPACITORS

● Dimension of mounting bracket

Symbol ΦD

P A T S U

θ°

H h

● FREQUENCY COEFFICIENT OF PERMISSIBLE RIPPLE CURRENT

10 ~ 50

63 ~ 80

100

160 ~ 250

350 ~ 500

Series

3 - Le g 2 - Le g

51 63.5 76 90 35 51 63.5 76 90

32.5 38.1 44.5 50.8 24.0 33.2 40.5 46.5 53.0

38.5 43.0 49.2 58.5 29.0 40.0 46.5 53.0 59.0

7.5 8.0 7.0 8.0 6.0 6.0 7.0 6.0 6.0

5.0 5.0 5.0 5.0 3.5 4.5 4.5 4.5 4.5

12.0 14.0 14.0 18.0 10.0 14.0 14.0 14.0 14.0

60.0 60.0 60.0 60.0 30.0 30.0 30.0 30.0 30.0

20.0 25.0 30.0 35.0 15.0 25.0 35.0 35.0 35.0

15.0 20.0 24.0 25.0 10.0 15.0 20.0 20.0 20.0

Frequenc Size

Φ35 ~ Φ90 0.95 1.00 1.03 1.05 1.09 1.12

Φ35 0.90 1.00 1.06 1.10 1.18 1.22

Φ51 ~ Φ90 0.95 1.00 1.03 1.05 1.09 1.12

Φ35 0.82 1.00 1.12 1.22 1.30 1.33 Φ51 0.90 1.00 1.06 1.10 1.18 1.22

Φ63.5 ~ Φ90 0.95 1.00 1.03 1.05 1.09 1.12

Φ35 0.80 1.00 1.19 1.34 1.46 1.52

Φ51 ~ Φ63.5 0.81 1.00 1.14 1.26 1.36 1.41

Φ76 ~ Φ90 0.82 1.00 1.12 1.22 1.30 1.33 Φ35 ~ Φ90 0.80 1.00 1.19 1.34 1.46 1.52

50Hz 120Hz 300Hz 1kHz 10kHz 50kHz

● DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT

WV µF

12000

15000

18000

22000

27000

33000

39000

47000

56000

68000

82000

100000

120000

150000

180000

220000

270000

330000

390000

470000

560000

680000

35×50 0.45 7.1 35×60 0.40 8.0 35×80 0.35 10.2

35×50 0.50 7.1 35×60 0.45 8.5 35×80 0.40 11.1

35×60 0.50 8.6 35×80 0.45 9.9 35×100 0.40 12.5

35×80 0.50 10.3 35×80 0.50 11.3 35×120 0.40 14.9

35×80 0.60 10.3 35×100 0.50 12.2 51×80 0.45 12.1

35×100 0.60 12.3 35×100 0.55 14.3 51×100 0.45 15.7

35×100 0.65 12.9 51×80 0.55 12.3 51×100 0.50 15.7

35×120 0.65 15.5 51×80 0.65 12.3 51×120 0.50 18.5

51×80 0.75 14.3 51×100 0.65 15.1 63.5×100 0.65 18.6

51×100 0.80 16.5 51×120 0.70 17.6 63.5×120 0.65 22.4

51×120 0.80 19.6 51×120 0.80 18.1 63.5×120 0.80 22.4

51×120 0.85 21.0 63.5×120 0.85 24.0 76×120 0.85 26.6

63.5×120 1.00 24.5 63.5×120 1.00 24.5 76×120 1.00 27.1

63.5×120 1.20 24.6 76×120 1.30 26.4 76×140 1.20 31.0

76×120 1.50 26.6 76×120 1.50 26.6 90×140 1.50 31.1

76×120 1.80 26.8 76×140 1.60 32.3

76×140 2.00 29.5 90×140 2.00 35.1

90×140 2.40 32.5 90×140 2.40 38.3

10 16 25

35×50 0.40 6.1 35×60 0.35 7.7

35×50 0.40 7.0 35×60 0.35 8.4

Ripple current (A rms) at 105℃, 120Hz

Dis sipation factor max. at 20℃, 120Hz

Case size Φ D×L (mm)

35×50 0.35 5.9

35×50 0.35 6.9

136

Page 3

LARGE ALUMINUM ELECTROLYTIC CAPACITORS

● DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT

WV µF

2700 3300 3900 4700 5600 6800

8200 10000 12000 15000 18000 22000 27000 33000 39000 47000 56000 68000 82000

100000 120000 150000 180000 220000 270000

Series

35 50 63

35×50 0.20 4.1 35×50 0.20 5.6 35×50 0.20 4.5 35×50 0.20 5.6 35×50 0.20 4.8 35×60 0.20 6.3

35×50 0.25 4.8 35×60 0.20 6.6 35×50 0.30 4.8 35×60 0.25 5.5 35×80 0.20 8.9 35×50 0.30 5.2 35×80 0.25 6.7 35×80 0.25 8.9 35×60 0.30 6.1 35×80 0.25 7.4 35×100 0.25 9.9 35×60 0.30 6.8 35×80 0.25 8.3 35×120 0.25 11.9 35×80 0.30 8.3 35×100 0.25 9.7 51×80 0.25 13.3 35×80 0.30 9.1 35×120 0.25 11.7 51×100 0.25 14.7

35×100 0.30 10.9 51×80 0.25 13.2 51×120 0.25 17.4 35×120 0.30 13.1 51×100 0.25 16.1 51×120 0.25 19.2

51×80 0.35 11.5 51×120 0.25 16.4 63.5×100 0.30 20.0

51×100 0.35 14.0 51×120 0.30 17.4 63.5×120 0.30 23.8 51×100 0.40 14.3 63.5×100 0.35 17.4 63.5×120 0.30 26.1 51×120 0.40 17.0 63.5×120 0.35 20.8 76×120 0.35 29.4

63.5×100 0.45 18.5 76×120 0.40 23.6 76×140 0.40 32.0

63.5×120 0.45 22.0 76×120 0.45 24.4 76×140 0.50 32.0

63.5×120 0.55 22.0 76×120 0.55 24.4 90×140 0.60 34.9 76×120 0.65 24.8 90×140 0.60 29.9 76×120 0.80 24.8 90×140 0.75 29.9 76×120 0.80 29.3 Ripple current (A rms ) at 105℃, 120Hz 90×120 1.00 31.9 Dis sipation fac tor max . at 20℃, 120Hz

35×50 0.20 4.1 35×50 0.20 5.5

Case size Φ D×L ( mm)

WV µF

560 680

820 1000 1200 1500 1800 2200 2700 3300 3900 4700 5600 6800 8200

10000 12000 15000 18000 22000 27000 33000 39000 47000 56000 68000 82000

80 100 160

35×50 0.15 2.0 35×50 0.15 2.2 35×50 0.15 2.4 35×50 0.15 2.7 35×60 0.15 3.2 35×60 0.15 3.6

35×50 0.10 4.1 35×80 0.15 4.3 35×50 0.15 4.3 35×50 0.10 4.5 35×80 0.15 4.8 35×50 0.15 4.9 35×60 0.10 5.3 35×100 0.15 5.6 35×50 0.15 5.4 35×80 0.10 6.4 35×120 0.15 6.5 35×60 0.15 6.1 35×80 0.12 6.3 51×80 0.20 6.5 35×60 0.15 6.7 35×100 0.12 8.1 51×100 0.20 7.8 35×80 0.15 8.1 35×100 0.12 8.1 51×100 0.20 8.7 35×80 0.15 8.8 35×120 0.15 8.7 51×120 0.20 10.4

35×100 0.20 9.2 51×80 0.15 9.6 63.5×100 0.20 10.5 35×120 0.20 11.0 51×100 0.15 10.9 63.5×120 0.20 12.6

51×80 0.20 12.1 51×120 0.15 14.0 76×100 0.20 14.1

51×100 0.20 14.9 51×120 0.15 15.6 76×120 0.20 17.1 51×120 0.20 17.8 63.5×100 0.20 15.6 76×140 0.20 20.1 51×120 0.20 19.8 63.5×120 0.20 16.3 90×140 0.25 21.8

63.5×100 0.25 20.5 76×120 0.25 17.8 90×140 0.25 24.0 76×100 0.25 25.0 76×120 0.25 19.8 76×100 0.30 25.0 76×140 0.30 20.9 76×120 0.30 26.4 90×140 0.30 25.1 76×120 0.30 27.2 90×140 0.30 27.4 76×140 0.35 29.6 90×140 0.40 33.2

137

Page 4

LARGE ALUMINUM ELECTROLYTIC CAPACITORS

● DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT

WV µF

180 220 270 330 390 470 560 680

820 1000 1200 1500 1800 2200 2700 3300 3900 4700 5600 6800 8200

10000 12000 15000 18000

Series

200 250 350

35×500.151.8 35×500.102.0 35×50 0.15 1.7 35×50 0.15 2.0 35×50 0.10 2.2 35×50 0.15 1.9 35×50 0.15 2.2 35×60 0.10 2.6 35×50 0.15 2.1 35×50 0.15 2.5 35×60 0.10 2.8 35×50 0.15 2.3 35×50 0.15 2.6 35×80 0.10 3.2 35×50 0.15 2.9 35×60 0.15 3.2 35×80 0.15 3.2 35×50 0.15 2.8 35×80 0.15 3.5 35×100 0.15 3.6 35×60 0.15 3.4 35×80 0.20 4.2 35×120 0.15 4.4 35×60 0.15 3.6 35×80 0.20 4.0 51×80 0.15 5.3 35×80 0.15 4.4 35×100 0.20 4.6 51×90 0.15 6.5 35×80 0.15 4.8 35×120 0.20 5.5 51×110 0.15 6.9

35×100 0.15 5.7 51×80 0.20 6.4 51×110 0.15 7.7 35×120 0.15 6.8 51×100 0.20 8.4 63.5×90 0.15 9.7

51×80 0.15 7.8 51×120 0.20 10.1

51×100 0.15 9.3 51×120 0.20 11.0 76×90 0.15 11.9

63.5×100 0.20 10.1 63.5×120 0.20 12.5

63.5×100 0.20 11.0 63.5×120 0.20 12.6 76×130 0.15 16.6

63.5×120 0.20 13.1 76×120 0.20 15.4 76×140 0.15 19.0

63.5×120 0.20 14.4 76×120 0.20 16.8 90×140 0.15 20.5 76×120 0.20 17.7 76×140 0.20 17.0 76×120 0.20 19.4 90×140 0.20 20.2 76×140 0.20 23.2 90×140 0.25 24.9

35×50 0.10 1.6 35×50 0.10 1.8

WV µF

180 220 270 330 390 470 560 680

820 1000 1200 1500 1800 2200

2700

3300

3900

4700

5600 6800 8200

10000 12000 15000

400 450 500

35×50 0.10 1.8 35×50 0.10 2.0 35×80 0.15 2.50 35×50 0.10 2.3 35×60 0.10 2.8 35×100 0.15 2.80 51×80 0.15 2.4 35×60 0.10 3.0 35×80 0.10 3.2 51×80 0.15 4.10 51×80 0.15 2.9

35×80 0.15 3.2 35×100 0.15 3.9 51×90 0.15 5.10 51×100 0.15 3.8 35×120 0.15 4.6

51×80 0.15 5.1 51×90 0.15 7.45 51×110 0.15 4.6

51×90 0.15 5.9 51×120 0.15 7.6 51×120 0.15 8.10 63.5×110 0.15 6.2

63.5×90 0.15 9.3 63.5×110 0.15 10.30 63.5×130 0.15 8.1

76×100 0.15 10.40

63.5×120 0.15

76×120 0.15 14.7 76×130 0.15 14.70

76×140 0.15 15.0 76×150 0.15 17.20 90×150 0.15 13.5 90×130 0.15 18.1 90×150 0.15 19.20 90×170 0.15 15.8

11.0 76×100 0.15 10.90

90×190 0.15 23.40 90×220 0.15 19.4 90×200 0.15 24.10 90×250 0.15 22.8 90×230 0.15 28.30 90×250 0.15 32.80

Ripple current (A rms ) at 105℃, 120Hz Dissipation factor max. at 20℃, 120Hz

Case size Φ D×L ( mm)

138

63.5×150 0.15 8.4 76×110 0.15 7.8

63.5×170 0.15 9.9 76×150 0.15 9.9 76×150 0.15 10.6 76×190 0.15 13.1 90×150 0.15 12.4
