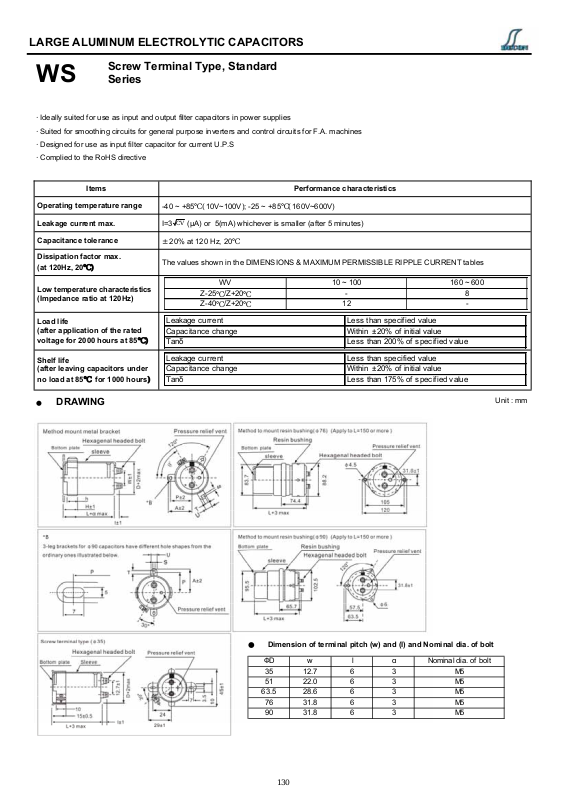

LARGE ALUMINUM ELECTROLYTIC CAPACITORS
Screw Terminal Type, Standard
WS
· Ideally suited for use as input and output filter capacitors in power supplies
· Suited for smoothing circuits for general purpose inverters and control circuits for F.A. machines
· Complied to the RoHS directive
Series
Items Performance characteristics
Operating temperature range
Leakage current max. I=3 (µA) or 5(mA) whichever is smaller (after 5 minutes)
Capacitance tolerance
Dissipation factor max. (at 120Hz, 20℃)
Low temperature characteristics (Impedance ratio at 120Hz)
Load life (after application of the rated
voltage for 2000 hours at 85℃)
Shelf life (after leaving capacitors under
no load at 85℃ for 1000 hours)
● DRAWING
-40 ~ +85℃(10V~100V); -25 ~ +85℃(160V~600V)
CV
±20% at 120 Hz, 20℃
The values shown in the DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT tables
Leakage current Less than spec ified value Capacitance change Within ±20% of initial value Tanδ Less than 200% of specif ied value
Leakage current Less than spec ified value Capacitance c hange Within ±20% of initial value Tanδ Less than 175% of specif ied value
WV 10 ~ 100 160 ~ 600 Z-25℃/Z+20 Z-40℃/Z+20
℃ ℃
-8
12 -
Unit : mm
● Dimension of terminal pitch (w) and (l) and Nominal dia. of bolt
ФDw l α Nominal dia. of bolt
35 12.7 6 3 M5 51 22.0 6 3 M5
63.5 28.6 6 3 M5 76 31.8 6 3 M5 90 31.8 6 3 M5
130
Page 2
LARGE ALUMINUM ELECTROLYTIC CAPACITORS
WS
● Dimension of mounting bracket
Symbol ΦD
P A T S U
θ°
H h
● FREQUENCY COEFFICIENT OF PERMISSIBLE RIPPLE CURRENT
WV
10 ~ 50
63 ~ 80
100
160 ~ 250
350 ~ 600
Series
3 - Le g 2 - Le g
51 63.5 76 90 35 51 63.5 76 90
32.5 38.1 44.5 50.8 24.0 33.2 40.5 46.5 53.0
38.5 43.0 49.2 58.5 29.0 40.0 46.5 53.0 59.0
7.5 8.0 7.0 8.0 6.0 6.0 7.0 6.0 6.0
5.0 5.0 5.0 5.0 3.5 4.5 4.5 4.5 4.5
12.0 14.0 14.0 18.0 10.0 14.0 14.0 14.0 14.0
60.0 60.0 60.0 60.0 30.0 30.0 30.0 30.0 30.0
20.0 25.0 30.0 35.0 15.0 25.0 35.0 35.0 35.0
15.0 20.0 24.0 25.0 10.0 15.0 20.0 20.0 20.0
Freque ncy Size
Φ35 ~ Φ90 0.95 1.00 1.03 1.05 1.09 1.12
Φ35 0.90 1.00 1.06 1.10 1.18 1.22
Φ51 ~ Φ90 0.95 1.00 1.03 1.05 1.09 1.12
Φ35 0.82 1.00 1.12 1.22 1.30 1.33 Φ51 0.90 1.00 1.06 1.10 1.18 1.22
Φ63.5 ~ Φ90 0.95 1.00 1.03 1.05 1.09 1.12
Φ35 0.80 1.00 1.19 1.34 1.46 1.52
Φ51 ~ Φ63.5 0.81 1.00 1.14 1.26 1.36 1.41
Φ76 ~ Φ90 0.82 1.00 1.12 1.22 1.30 1.33 Φ35 ~ Φ90 0.80 1.00 1.10 1.30 1.40 1.50
50Hz 120Hz 300Hz 1kHz 10kHz 50kHz
● DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT
WV µF
18000
22000
27000
33000
39000
47000
56000
68000
82000
100000
120000
150000
180000
220000
270000
330000
390000
470000
560000
680000
35×50 0.60 4.7 35×80 0.40 6.2
35×80 0.60 7.0 35×100 0.70 8.0 51×80 0.50 9.7
35×100 0.70 8.0 35×120 0.70 9.6 51×100 0.60 10.8
35×120 0.70 9.4 51×80 0.80 9.6 51×120 0.60 12.0
51×80 0.90 9.8 51×100 0.90 11.2
51×100 1.00 10.3 51×120 1.00 14.2 63.5×100 0.80 15.0
51×120 1.20 12.8 63.5×100 1.20 15.3 76×100 0.90 18.3
63.5×100 1.50 15.3 76×100 1.60 18.0 76×140 1.20 22.1
63.5×120 2.00 16.0 76×100 1.80 19.3
76×120 2.50 17.3 76×140 2.00 20.7 90×140 1.50 25.8
76×120 3.00 18.7
10 16 25
35×500.454.2
35×80 0.60 6.5 35×120 0.45 8.3
63.5×120 1.30 17.1 76×120 1.00 20.7
Ripple current (A rms) at 85℃, 120Hz
Dissipation factor max. at 20℃, 120Hz
Case size Φ D×L ( mm)
35×50 0.35 4.0
35×100 0.40 7.4
63.5×100 0.75 14.7
131
Page 3
LARGE ALUMINUM ELECTROLYTIC CAPACITORS
WS
● DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT
WV µF
5600
10000
15000
18000
22000
27000
33000
39000
47000
56000
68000
82000
100000
120000
150000
180000
220000
270000
330000
470000
Series
35 50 63
35×50 0.25 3.9 35×80 0.25 4.0
35×50 0.30 3.9 35×100 0.25 5.3
35×80 0.25 5.2 35×120 0.25 6.2
35×100 0.30 5.7 51×80 0.30 6.5
35×120 0.35 6.6
35×80 0.40 6.0 51×100 0.35 8.1
35×100 0.40 6.7 51×80 0.40 7.4 51×120 0.35 9.5
35×120 0.45 8.0 63.5×100 0.40 10.2
51×100 0.40 9.8
51×80 0.50 8.5 51×120 0.45 11.1 63.5×120 0.45 12.7
51×100 0.55 10.3 63.5×100 0.50 12.2
51×120 0.60 12.8 63.5×120 0.50 15.0 76×140 0.50 19.0
63.5×100 0.70 13.2 76×120 0.60 18.1 90×140 0.55 22.0
63.5×120 0.70 15.3 76×140 0.70 19.5
76×100 0.75 17.8
76×120 0.80 18.4 90×140 0.80 23.2
76×140 0.90 22.0 Ripple current (A rms) at 85℃, 120Hz
90×140 1.00 28.0 Dis sipation factor max. at 20℃, 120Hz
35×50 0.20 3.0
76×120 0.45 16.7
Case size Φ D×L ( mm)
WV µF
1200
2200
2700
3300
4700
5600
6800
8200
10000
12000
15000
18000
22000
27000
33000
39000
47000
68000
82000
100000
80 100 160
35×50 0.15 2.0
35×50 0.10 2.1 35×80 0.15 3.4
35×100 0.15 3.7
35×50 0.15 2.5 35×120 0.15 4.5
35×80 0.15 3.4 51×80 0.20 5.6
35×80 0.20 3.7 35×100 0.15 4.2 51×100 0.20 7.5
35×120 0.15 5.0 51×120 0.20 8.1
35×100 0.20 4.9 51×80 0.20 5.2 63.5×100 0.20 9.8
35×120 0.20 5.4 63.5×120 0.20 10.8
51×80 0.25 6.0 76×100 0.20 12.7
51×120 0.20 8.1 76×120 0.20 14.0
51×100 0.30 7.1 63.5×100 0.25 8.6 76×140 0.20 16.6
51×120 0.30 8.6 63.5×120 0.25 10.3
63.5×100 0.35 9.3 76×100 0.25 11.1 90×140 0.25 18.9
76×120 0.25 12.4
63.5×120 0.35 12.0 76×140 0.25 14.3
76×120 0.35 15.4 90×140 0.30 18.0
76×140 0.35 18.1
90×140 0.40 21.0
132
Page 4
LARGE ALUMINUM ELECTROLYTIC CAPACITORS
WS
● DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT
WV µF
390
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000
12000
15000
18000
22000
Series
200 250 350
35×50 0.15 1.3
35×500.151.6
35×80 0.15 2.3 35×120 0.25 4.2
35×100 0.15 3.0 51×70 0.25 4.5
35×80 0.15 2.8 35×120 0.15 3.3
35×100 0.15 3.6 51×80 0.15 3.7 51×90 0.25 5.8
35×120 0.15 4.0
51×100 0.15 5.151×800.154.5
51×120 0.15 5.9 63.5×110 0.25 9.2
51×100 0.15 6.5 63.5×100
51×120 0.15 7.6 76×110 0.25 11.7
63.5×120 0.20 8.7 76×130 0.25 14.0
63.5×100 0.20 9.5 76×150 0.25 15.6
63.5×120 0.20 11.0 76×120 0.20 11.1
76×100 0.20 11.5 76×140 0.20 13.0 90×150 0.25 20.0
76×120 0.20 12.8 90×140 0.20 14.9
76×140 0.20 15.0 Ripple current (A r ms) at 85℃, 120Hz
90×140 0.25 15.6 Dis sipation factor max. at 20℃, 120Hz
0.2 6.9
Case size Φ D×L ( mm)
35×50 0.25 1.9
35×80 0.25 2.9
35×100 0.25 3.8
51×130 0.25 8.3
63.5×90 0.25 8.0
63.5×130 0.25 10.9
76×90 0.25 10.3
133
Page 5
LARGE ALUMINUM ELECTROLYTIC CAPACITORS
WS
● DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT
WV µF
120
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000
Series
400 450 500
35×50 0.25 1.3 35×80 0.25 1.2
35×50 0.25 1.5 35×100 0.25 1.4
35×80 0.25 2.1 51×80 0.25 1.8
35×80 0.25 2.3
35×100 0.25 2.8 51×100 0.25 2.5
35×100 0.25 3.0 35×120 0.25 3.1 51×110 0.25 2.8
35×120 0.25 3.4 51×70 0.25 3.4 51×110 0.25 3.2
51×70 0.25 3.8 51×90 0.25 4.2
51×100
51×90 0.25 5.1 51×120 0.25 5.6 63.5×110 0.25 4.8
51×130 0.25 6.4 63.5×90 0.25 6.2 63.5×130 0.25 5.7
63.5×90 0.25 6.9 63.5×110 0.25 7.4 76×110 0.25 6.5
63.5×110 0.25 8.2
63.5×130 0.25 9.4
76×90 0.25 8.9
76×110 0.25 10.4 76×130 0.25 10.8
76×130 0.25 11.9 76×150 0.25 12.8
76×150 0.25 14.0
90×150 0.25 18.2
63.5×130 0.25 8.7
76×90 0.25 8.2
90×150 0.25 16.5
0.25
5.0
35×50 0.25 0.7
35×120 0.25 1.7
51×120 0.25 4.0
63.5×90 0.25 4.0
0.25 8.476×110 0.25 9.4 76×130
WV µF
100
180
270
330
390
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
550 600
35×500.250.6
35×800.251.0
35×100 0.25 1.3
35×120 0.25 1.6
51×800.251.7
51×100 0.25 2.1
63.5×100 0.25 2.5
51×120 0.25 2.7
63.5×120 0.25 3.0 Case size Φ D×L ( mm)
51×130 0.25 3.1 Dissipation factor max. at 20℃, 120Hz
63.5×130 0.25 3.5 Ripple current (A rms ) at 85℃, 120Hz
63.5×120 0.30 5.3
76×100 0.25 4.2 76×100 0.30 6.0
76×100 0.25 4.6 76×120 0.30 7.3
76×100 0.25 5.2 76×140 0.30 8.6
76×110 0.25 5.9 90×120 0.30 9.6
90×140 0.30 11.3
76×140 0.25 8.0 90×160 0.30 13.2
90×180 0.30 15.6
