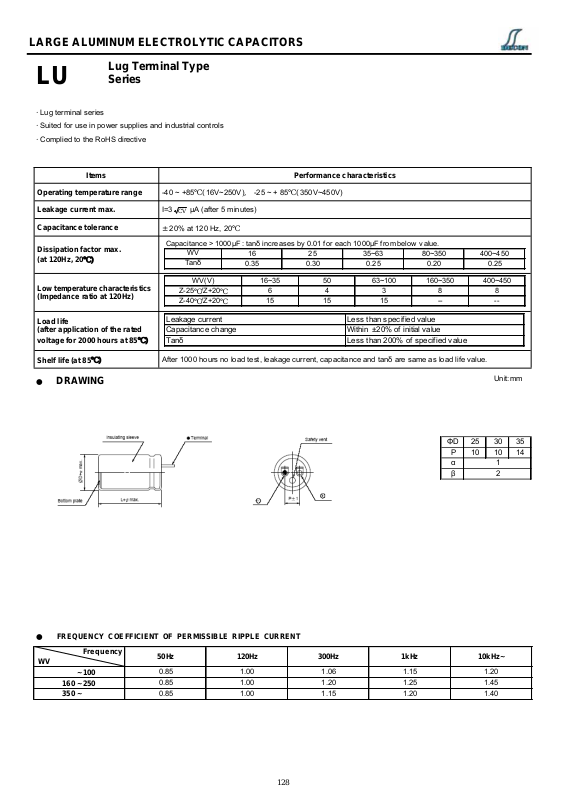

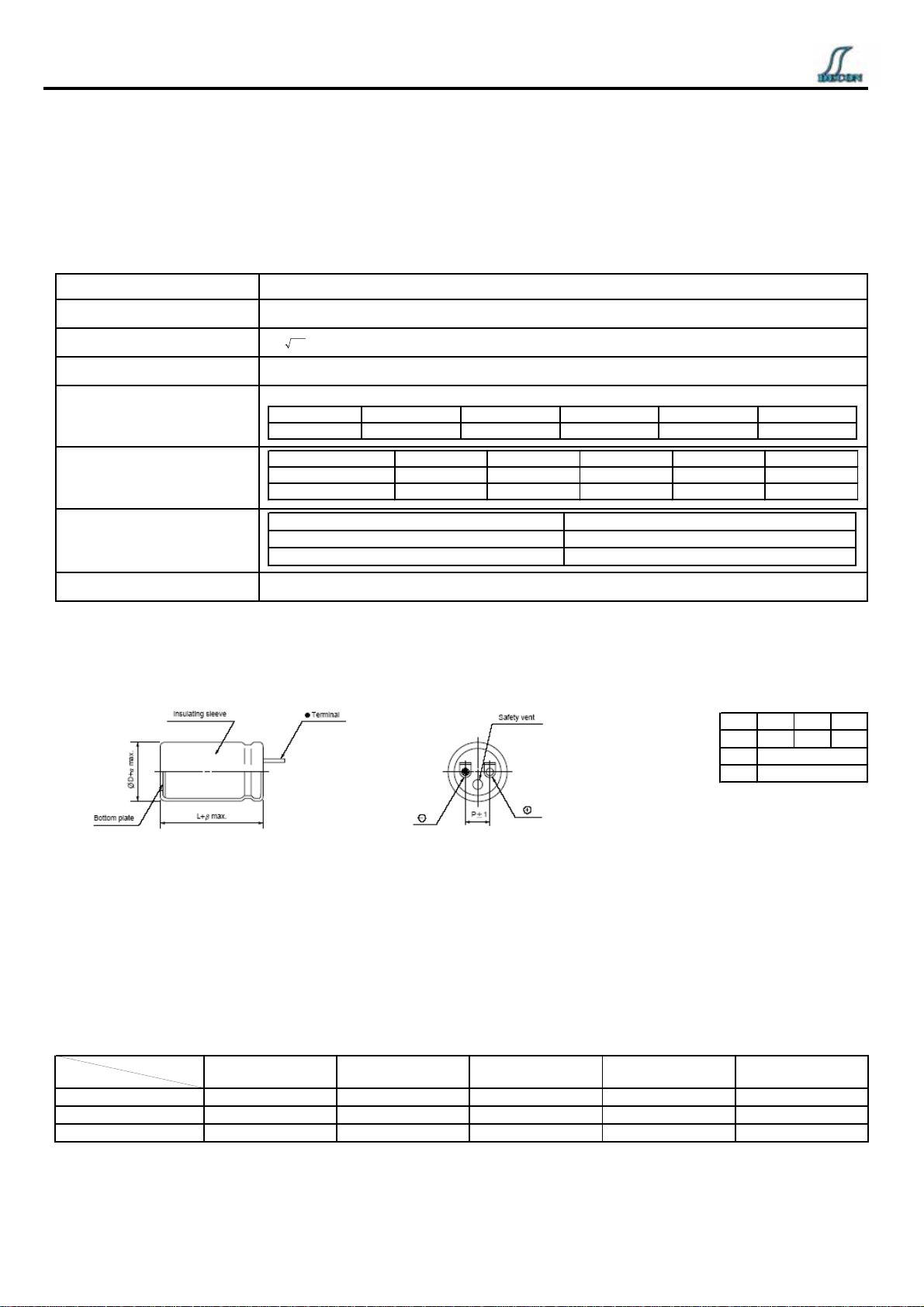

LARGE ALUMINUM ELECTROLYTIC CAPACITORS
Lug Terminal Type
LU
· Lug terminal series
· Suited for use in power supplies and industrial controls
· Complied to the RoHS directive
Series
Items Performance characteristics
Operating temperature range
Leakage current max. I=3 µA (after 5 minutes)
Capacitance tolerance
Dissipation factor max.
(at 120Hz, 20℃)
Low temperature characteristics
(Impedance ratio at 120Hz)
Load life
(after application of the rated
voltage for 2000 hours at 85℃)
Shelf life (at 85℃)
● DRAWING
-40 ~ +85℃(16V~250V), -25 ~ + 85℃(350V~450V)
CV
±20% at 120 Hz, 20℃
Capacitance > 1000µF : tanδ increas es by 0.01 for eac h 1000µF fr om below value.
WV
Tanδ
After 1000 hours no load test, leakage current, capacitance and tanδ are same as load life value.
WV(V) 16~35 50 63~100 160~350 400~450
Z-25℃/Z+20
Z-40℃/Z+20
Leakage current Less than specified value
Capacitance change Within ±20% of initial value
Tan δ Less than 200% of specified value
16 25 35~63 80~350 400~450
0.35 0.30 0.25 0.20 0.25
℃
℃
64388
15 15 15 -- --
Unit:mm
ΦD25 30 35
P101014
α
β 2
1
● FREQUENCY COEFFICIENT OF PERMISSIBLE RIPPLE CURRENT
Frequency
WV
~ 100
160 ~ 250
350 ~
50Hz 120Hz 300Hz 1kHz 10kHz~
0.85 1.00 1.06 1.15 1.20
0.85 1.00 1.20 1.25 1.45
0.85 1.00 1.15 1.20 1.40
128
Page 2
LARGE ALUMINUM ELECTROLYTIC CAPACITORS
LU
● DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT
WV
µF
3300
4700
6800
10000
15000
22000
33000
47000
68000
WV
µF
330
470
680
1000
1500
2200
3300
4700
6800
10000
15000
22000
Series
16 25 35 50
25×30 3.12 25×40 3.73 25×50 4.07
25×30 3.42 25×40 4.03 25×50 4.71 30×50 5.08
25×40 4.41 25×50 5.07 30×50 5.81 35×60 6.67
25×50 5.44 30×50 6.15 35×60 7.44 35×80 8.34
30×50 6.57 35×60 7.85 35×80 9.18
35×60 8.19 35×80 9.49
35×80 9.85
25×30 1.60 25×60 2.09 30×50 2.09
25×30 1.92 25×40 2.13 30×60 2.69 35×60 2.87
25×30 2.05 25×40 2.52 25×50 2.75 35×60 3.40 35×80 3.81
25×40 2.73 25×50 3.29 30×50 3.55 35×100 5.02
25×50 3.50 25×60 4.14 35×60 4.76
25×60 4.38 30×60 5.15 35×80 6.17
30×60 5.46 35×80 7.08
35×80 7.48
35×100 9.16
25×30 2.46
25×30 2.89 25×40 3.21
20063 80 100 160
25×30 0.92 25×30 0.92
25×40 1.22 25×40 1.22
25×50 1.60 25×50 1.60
µF
WV
68
100
150
220
330
470
680
1000
1500
2200
250 350 400 450
25×30 0.37
25×30 0.51 25×30 0.45 25×40 0.50
25×40 0.69 25×40 0.62 25×50 0.67
25×30 0.75 25×50 0.91 25×50 0.81 30×50 0.88
25×40 1.02 25×60 1.20 30×60 1.16 35×60 1.24
25×50 1.33 30×60 1.54 35×60 1.47 35×80 1.65
30×50 1.73 35×60 1.98 35×80 1.99 35×100 2.18
30×60 2.25 35×100 2.96 Ripple current (A rms) at 85℃, 120Hz
35×80 3.22 Case size ΦD×L ( mm)
35×100 4.19
