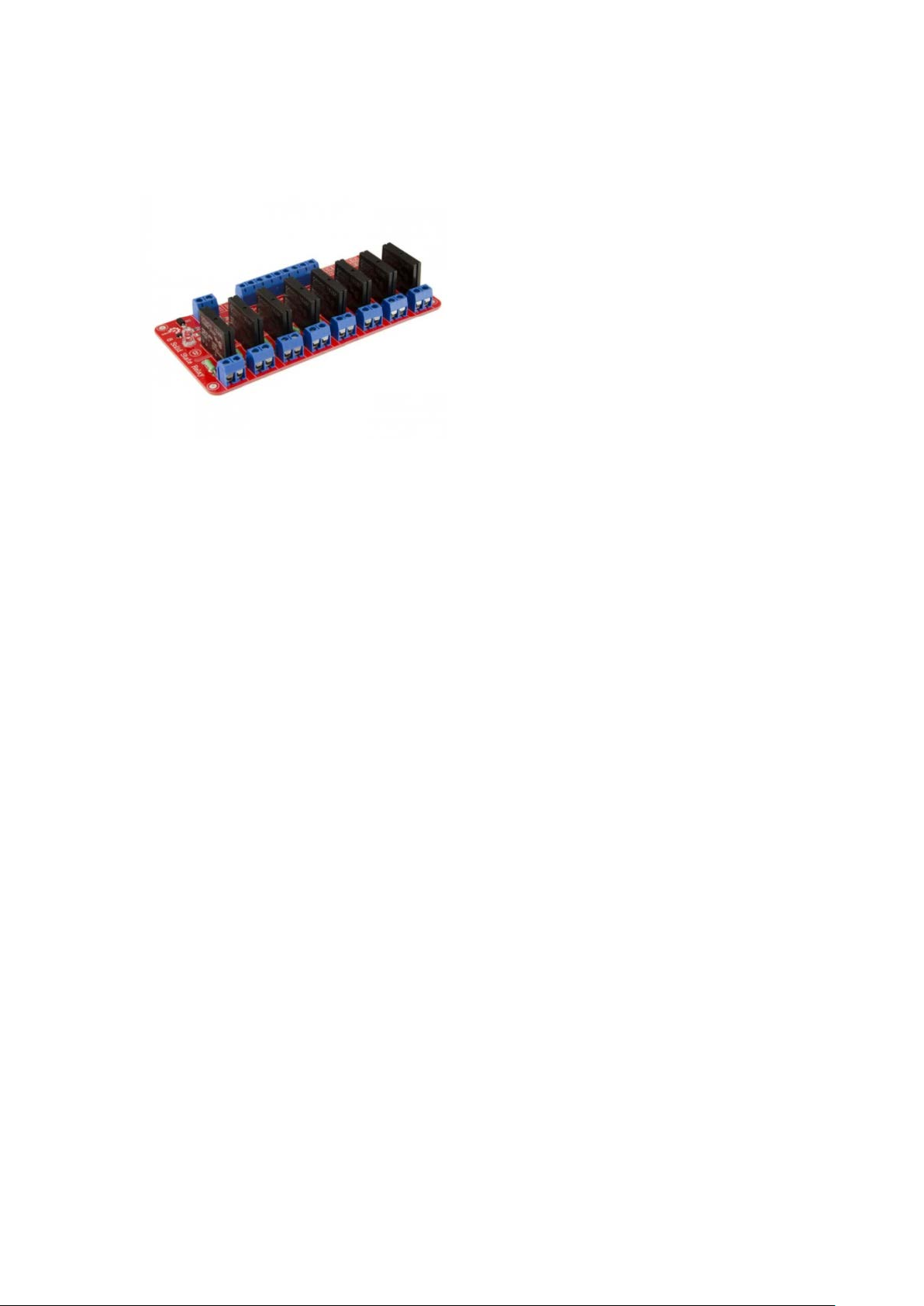

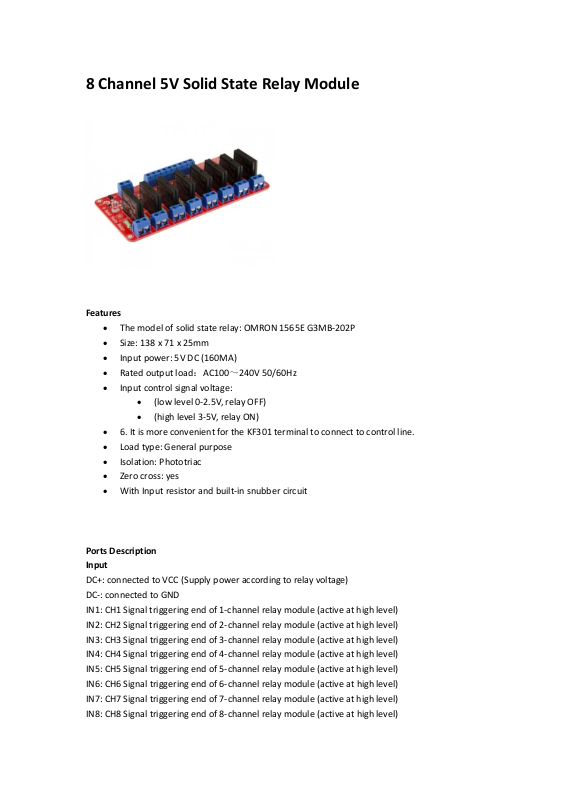

8 Channel 5V Solid State Relay Module
Features
• The model of solid state relay: OMRON 1565E G3MB-202P
• Size: 138 x 71 x 25mm
• Input power: 5V DC (160MA)
• Rated output load：AC100～240V 50/60Hz
• Input control signal voltage:
• (low level 0-2.5V, relay OFF)
• (high level 3-5V, relay ON)
• 6. It is more convenient for the KF301 terminal to connect to control line.
• Load type: General purpose
• Isolation: Phototriac
• Zero cross: yes
• With Input resistor and built-in snubber circuit
Ports Description
Input
DC+: connected to VCC (Supply power according to relay voltage)
DC-: connected to GND
IN1: CH1 Signal triggering end of 1-channel relay module (active at high level)
IN2: CH2 Signal triggering end of 2-channel relay module (active at high level)
IN3: CH3 Signal triggering end of 3-channel relay module (active at high level)
IN4: CH4 Signal triggering end of 4-channel relay module (active at high level)
IN5: CH5 Signal triggering end of 5-channel relay module (active at high level)
IN6: CH6 Signal triggering end of 6-channel relay module (active at high level)
IN7: CH7 Signal triggering end of 7-channel relay module (active at high level)
IN8: CH8 Signal triggering end of 8-channel relay module (active at high level)
