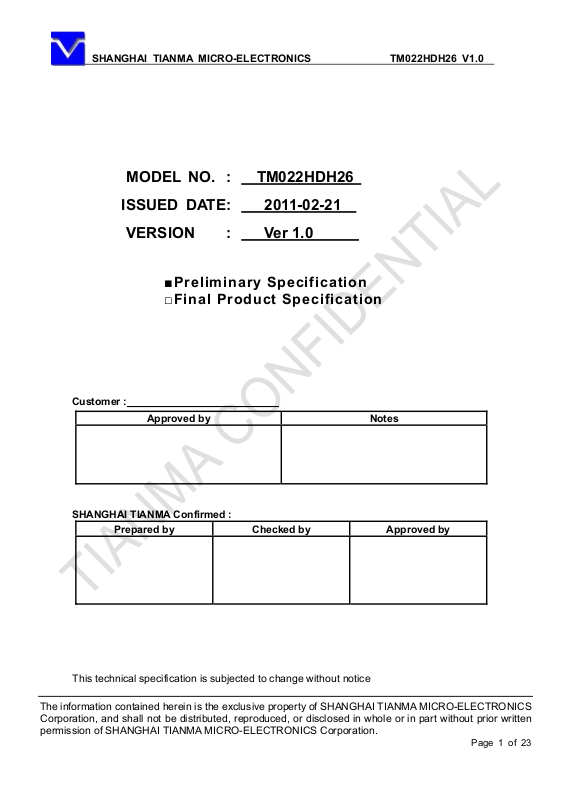

SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0
Coversheet
MODEL NO. : TM022HDH26
ISSUED DATE: 2011-02-21
VERSION : Ver 1.0
■Preliminary Specification
□Final Product Specification
Customer :
Approved by Notes
SHANGHAI TIANMA Confirmed :
Prepared by Checked by Approved by
This technical specification is subjected to change without notice
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 1 of 23
Page 2
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0
Table of Contents
Coversheet ........................................................................................................................................ 1
Table of Contents .............................................................................................................................. 2
Record of Revision ............................................................................................................................ 3
1 General Specifications ............................................................................................................... 4
2 Input/Output Terminals ............................................................................................................... 5
3 Absolute Maximum Ratings ....................................................................................................... 6
4 Electrical Characteristics ............................................................................................................ 7
5 Timing Chart ............................................................................................................................... 9
6 Optical Characteristics ............................................................................................................. 15
7 Environmental / Reliability Test ................................................................................................ 19

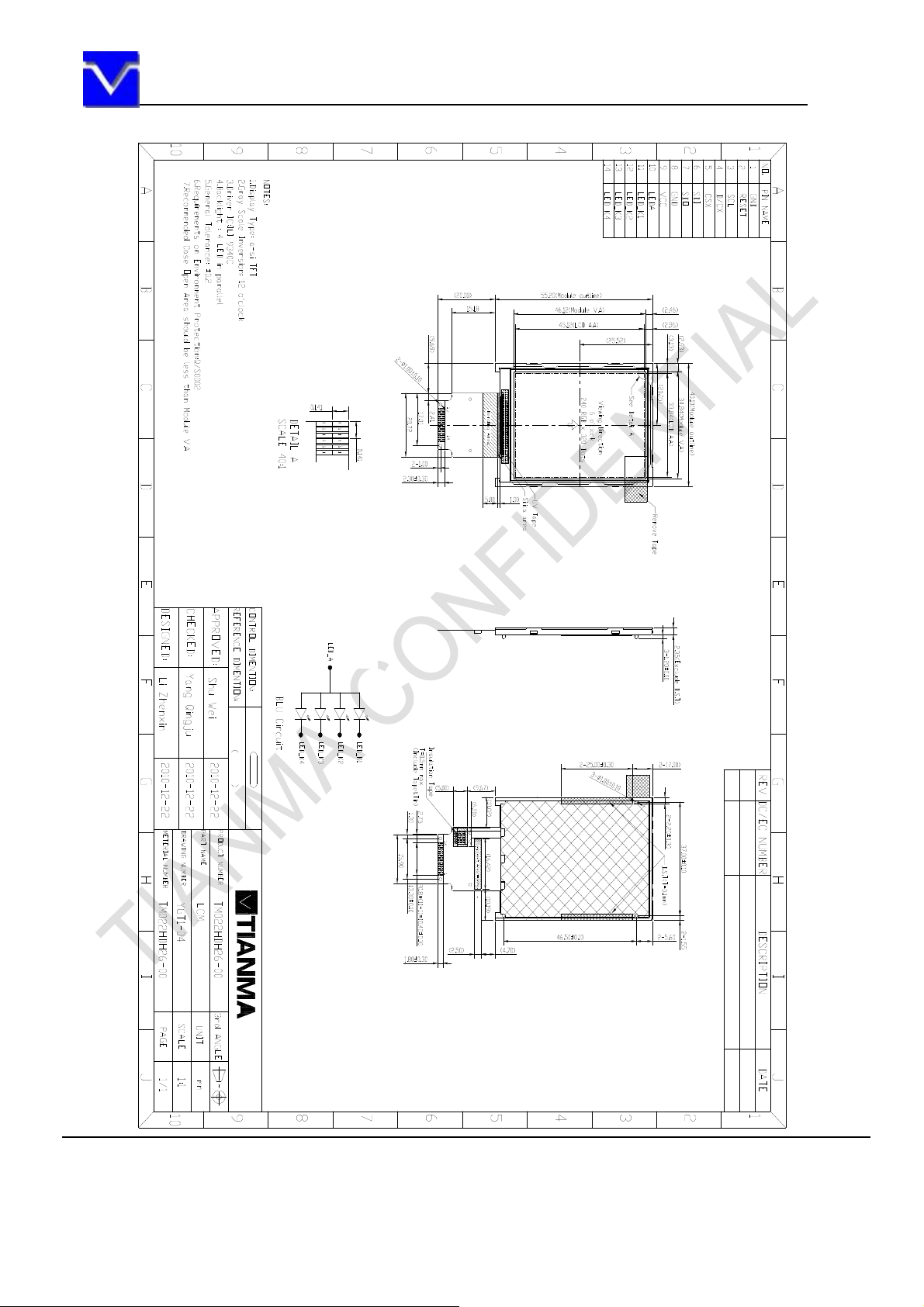

8 Mechanical And FPCA Drawing ............................................................................................... 20

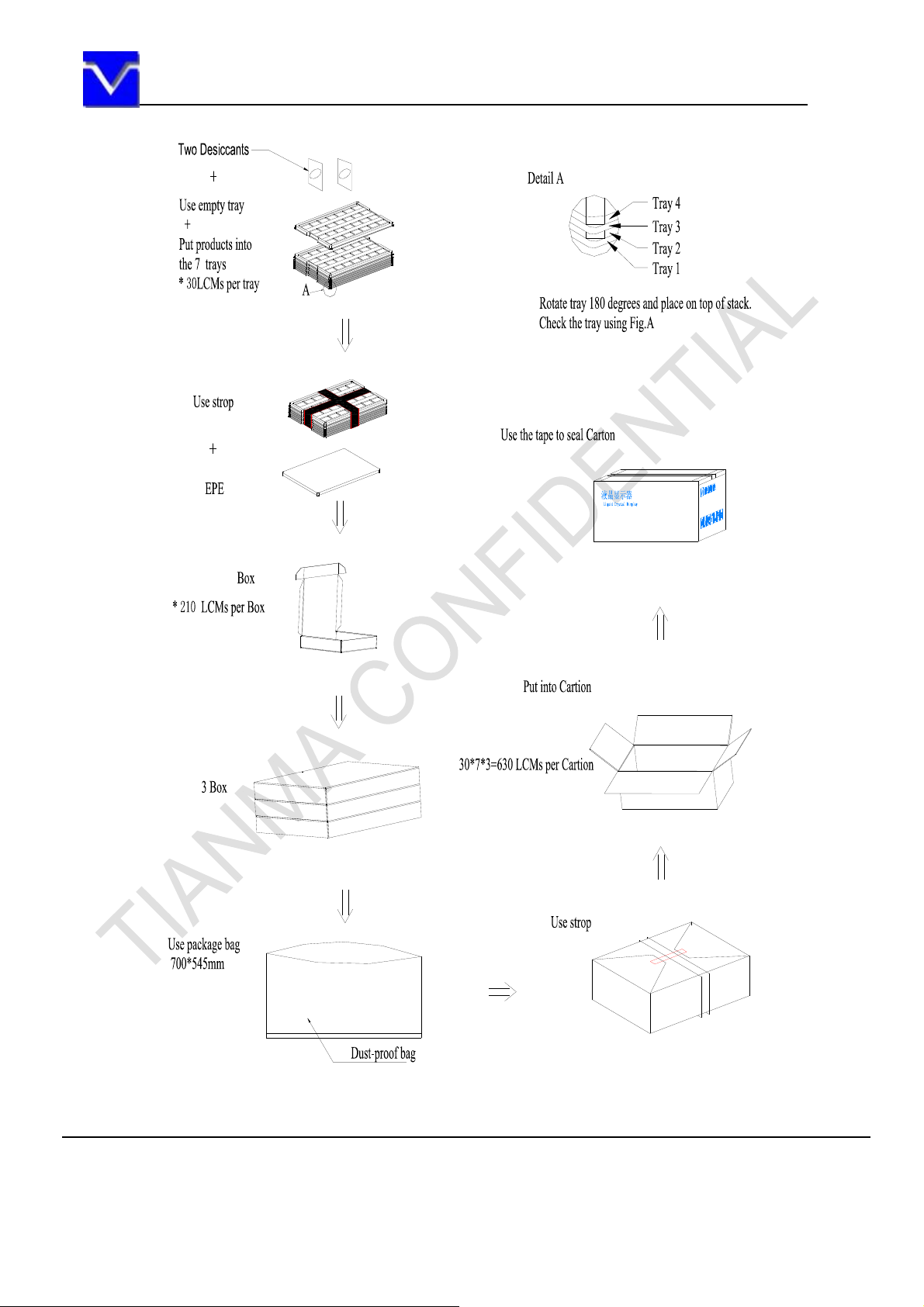

9 Packing Drawing ...................................................................................................................... 21
10 Precautions For Use of LCD Modules ...................................................................................... 23
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 2 of 23
Page 3
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0
Record of Revision
Rev Issued Date Description Editor
1.0 2011-2-21 Preliminary Specification Release Jin Zhao
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 3 of 23
Page 4
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0
1 General Specifications
Feature Spec
Size 2.2 inch
Resolution 240(RGB) x 320
Interface 4-Wire SPI
Color Depth 262K/65K
Technology Type a-Si
Display Spec.
Pixel Pitch (mm)
0.141X0.141
Pixel Configuration R.G.B. Vertical Stripe
Display Mode TM with Normally White
Surface Treatment(Up Polarizer) Clear Type(3H)
Viewing Direction 6 o’clock
Gray Scale Inversion Direction 12 o’clock
LCM (W x H x D) (mm) 40.10x55.20x2.35
Active Area(mm) 33.84x45.12
Mechanical
Characteristics
With/Without TSP Without TSP
Weight (g) TBD
LED Numbers 4 LEDs
Electronic Driver IC ILI9340C
Note 1: Viewing direction for best image quality is different from TFT definition, there is a 180
degree shift.
Note 2: Requirements on Environmental Protection: Q/S0002
Note 3: LCM weight tolerance: +/- 5%
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 4 of 23
Page 5
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0
2 Input/Output Terminals
2.1 TFT LCD Panel
No Symbol I/O Description Comment
1 GND P Power Ground
2 RESET I Reset Signal
3 SCL I
4 D/CX I
5 CS I Chip select signal
6 SDI I Serial input signal
7 SDO O Serial output signal
8 GND P Power Ground
9 VCC P Power Supply of Analog/Logic Circuit
10 LEDA P LED anode
11 LEDK1 P LED cathode
12 LEDK2 P LED cathode
13 LEDK3 P LED cathode
14 LEDK4 P LED cathode
Serial interface clock in 4-wire 8-bit serial data
interface
Command or parameter select in 4-wire 8-bit
serial data interface
Note1: I/O definition:
I-----Input O---Output P----Power/Ground NC--- Not connected
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 5 of 23
Page 6
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0
3 Absolute Maximum Ratings
3.1 Driving TFT LCD Panel
Ta = 25
Item Symbol MIN MAX Unit Remark
Logic Supply Voltage VCC
Analog Supply Voltage VCC
-0.3 4.6 V
-0.3 4.6 V
o
C
Input voltage
CS/D/CX/SCL/SDI
Back Light Forward
Current
Operating Temperature Top
Storage Temperature Tst
/RESET
I
F
-0.3 IOVCC+0.5 V
- 25 mA ONE LED
-20 70
-30 80
℃
℃
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 6 of 23
Page 7
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0
4 Electrical Characteristics
4.1 Driving TFT LCD Panel
GND=0V, Ta=25℃
Item Symbol MIN TYP MAX Unit Remark
Logic Supply Voltage VCC 1.65 2.8 3.3 V
Analog Supply Voltage VCC 2.3 2.8 3.3 V
Input Signal
Voltage
Output
Signal
Voltage
High
Level
Low Level VIL - -
High
Level
Low Level VOL - -
VIH 0.7 VCC - VCC V
0.3
VCC
VOH 0.8 VCC - - V
0.2
VCC
Black Mode - 18.10 - m W
(Panel+LSI)
Power Consumption
8 color Mode - 8.16 - m W
Sleeping
Mode
- 0.035 - m W
4.2 Driving Backlight Ta=25℃
Item Symbol Min Typ Max Unit Remark
Forward Current IF -- 15 25 mA For each LED
Forward Voltage VF (2.9) 3.2 (3.4) V 4 LEDs
Power Consumption WBL -- 192 -- mW

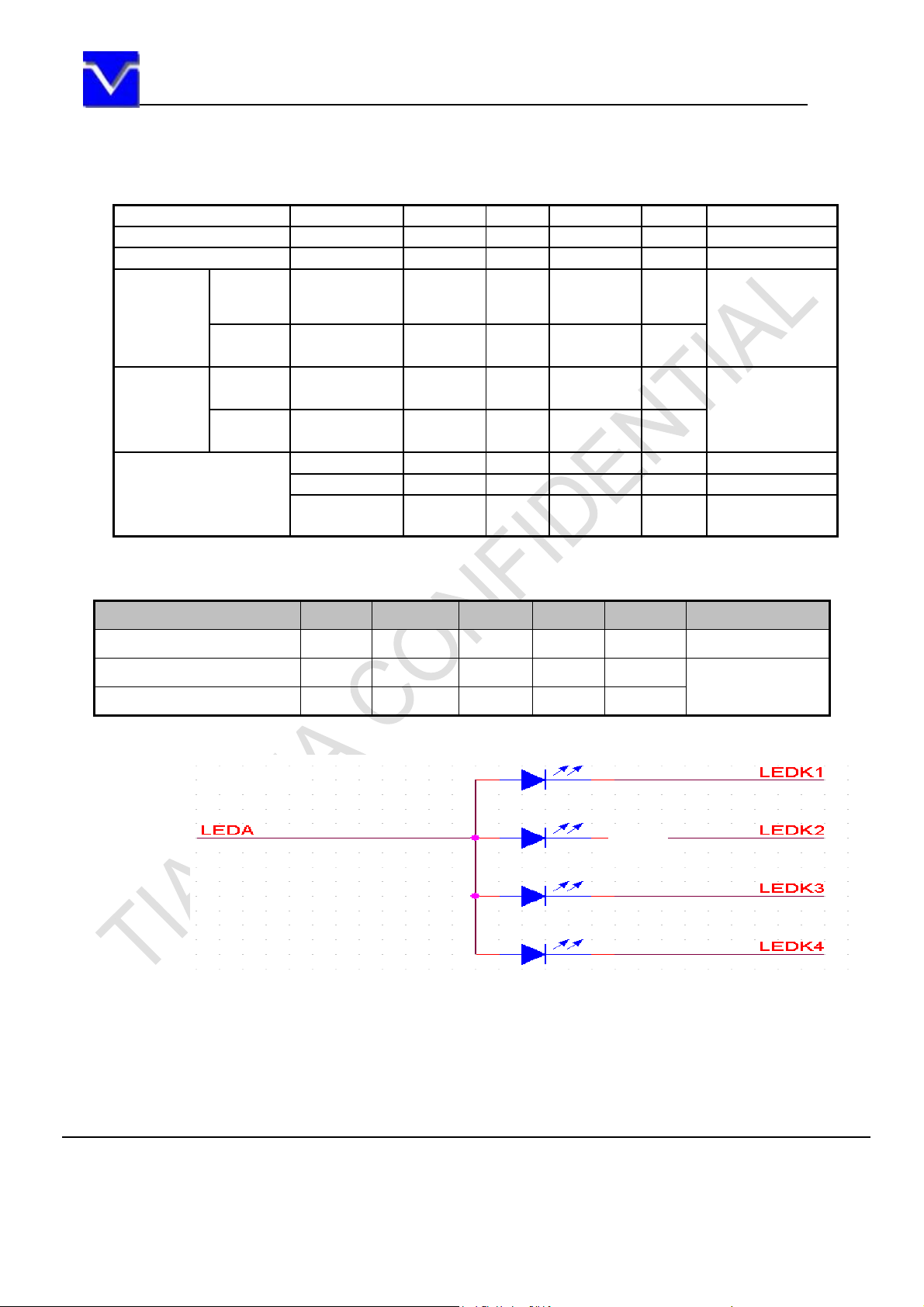

Note1: Figure below shows the connection of backlight LED.
V
V
( in parallel)
C1
Note 2: One LED: I
=15 mA, VF =3.2V
F
Note 3: The Minimum Life of LED: 20,000 hours
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 7 of 23
Page 8
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0

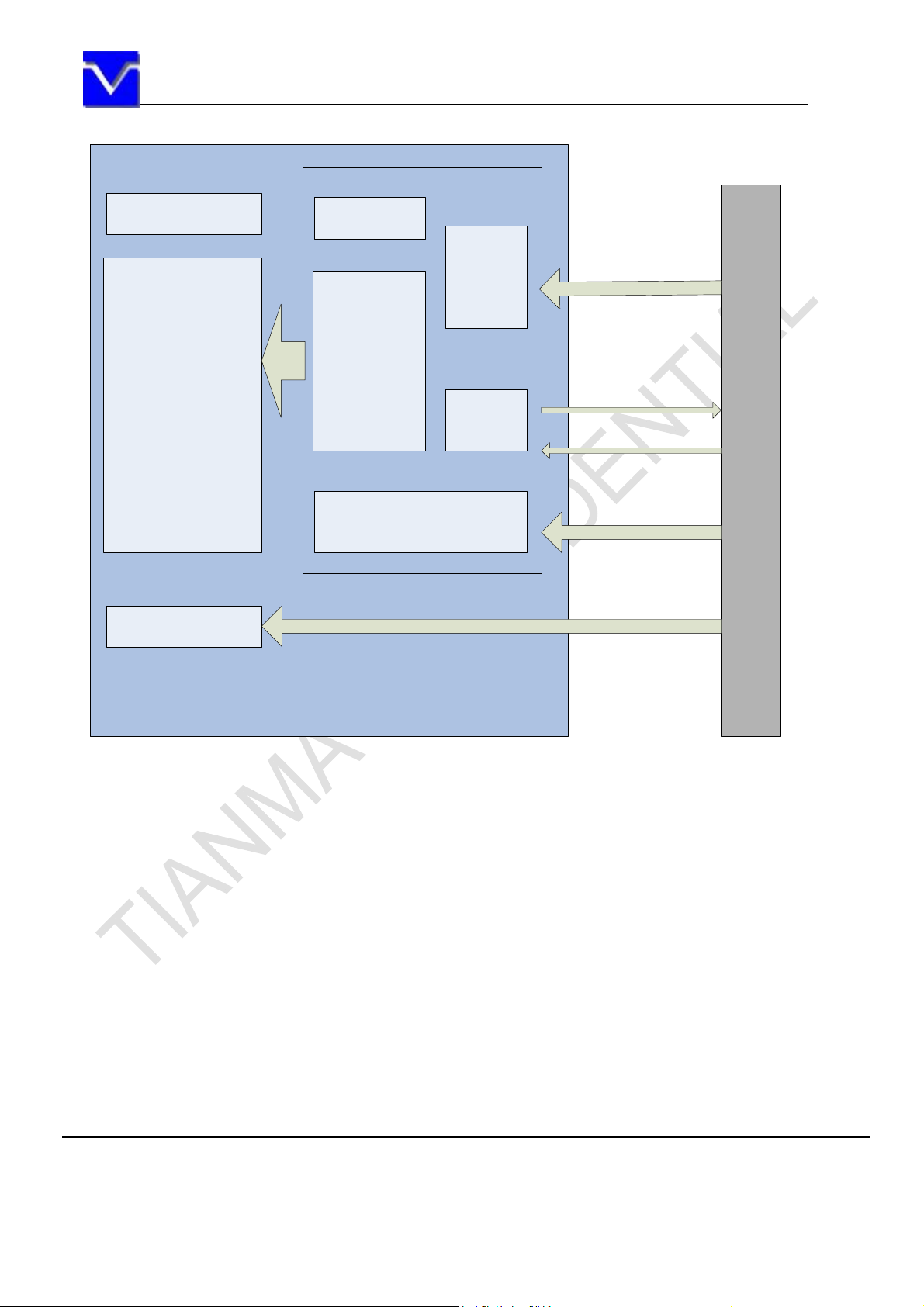

4.3 Block Diagram
LCD Panel
2.2 inch
240(RGB)*320
BLU
RAM
Source + Gate
Driver
Grayscale
Manipulation Voltage
LEDA,LEDK1,LEDK2,LEDK3,LEDK4
VCOM &
TCON
DC/DC
CS,D/CX,SCL.SDI
SDO
RESET
VCC,GND
F
P
C
Data BUS
Control
signal
input
interface
RESET
POWER
BLU
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 8 of 23
Page 9
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0
5 Timing Chart

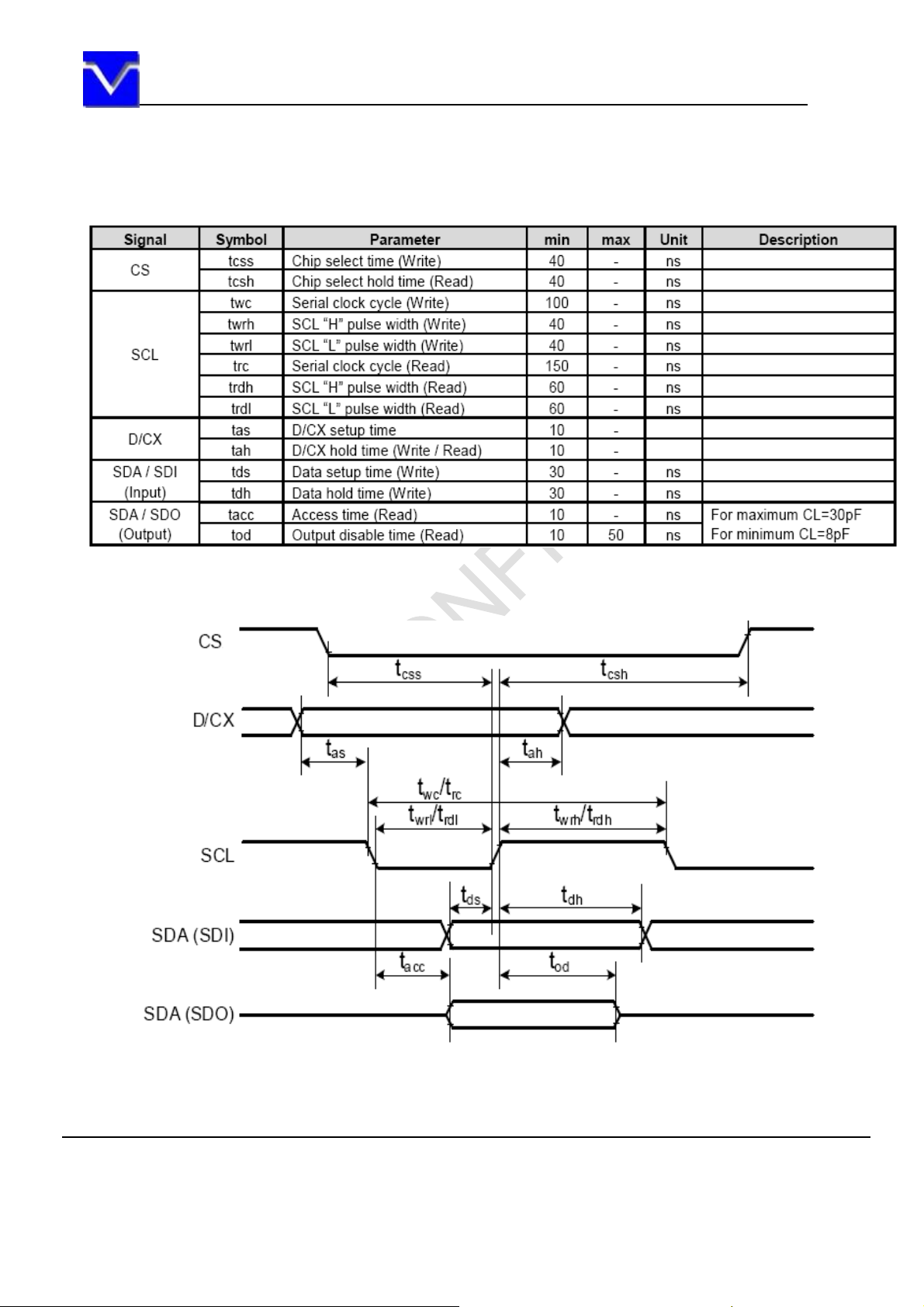

5.1 Timing Parameter
Ta =2 5℃
Table 5.0 timing parameter
Figure 5.1 Serial interface characteristics
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 9 of 23
Page 10
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0

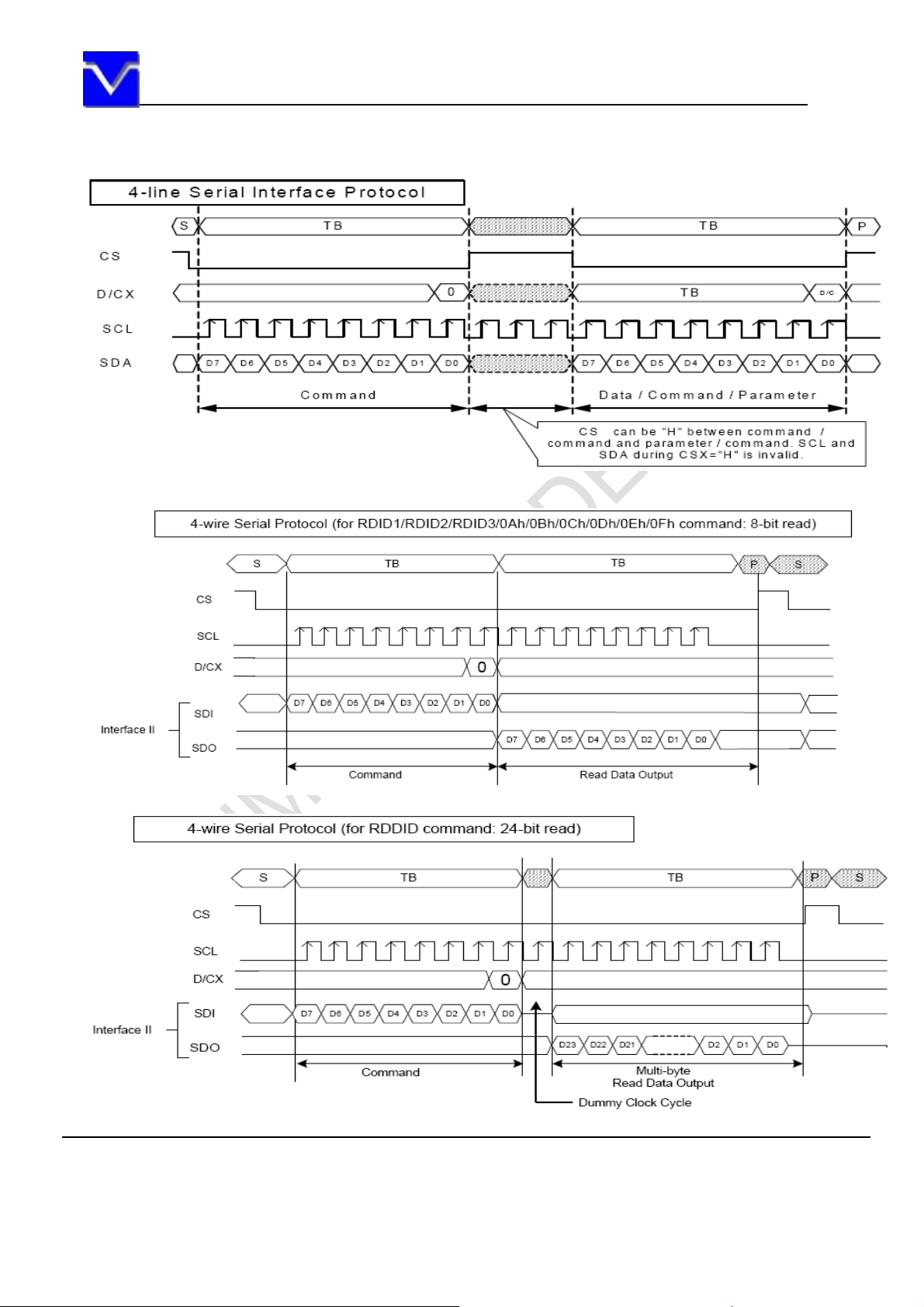

5.2 Register write/read timing
a. Write to register
Figure 5.2 Register write timing in serial bus system interface
b. Read from register
Figure 5.3 Register read timing in serial bus system interface
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 10 of 23
Page 11
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0

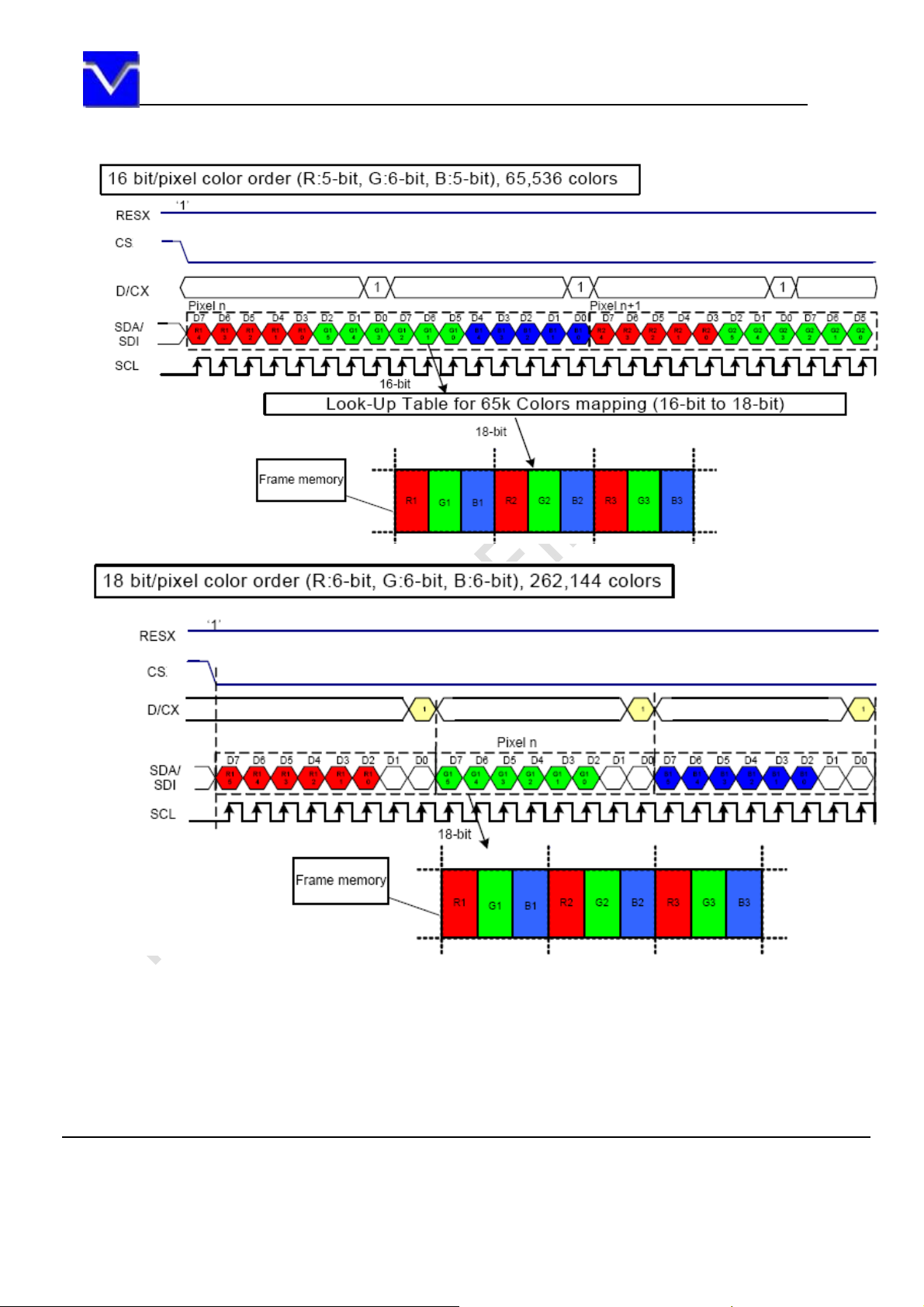

5.3 GRAM Writing Characteristics（565 mode）
666 mode
Figure 5.4 GRAM Writing Characteristics for 555/666 mode of 4-Wire SPI
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 11 of 23
Page 12
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0

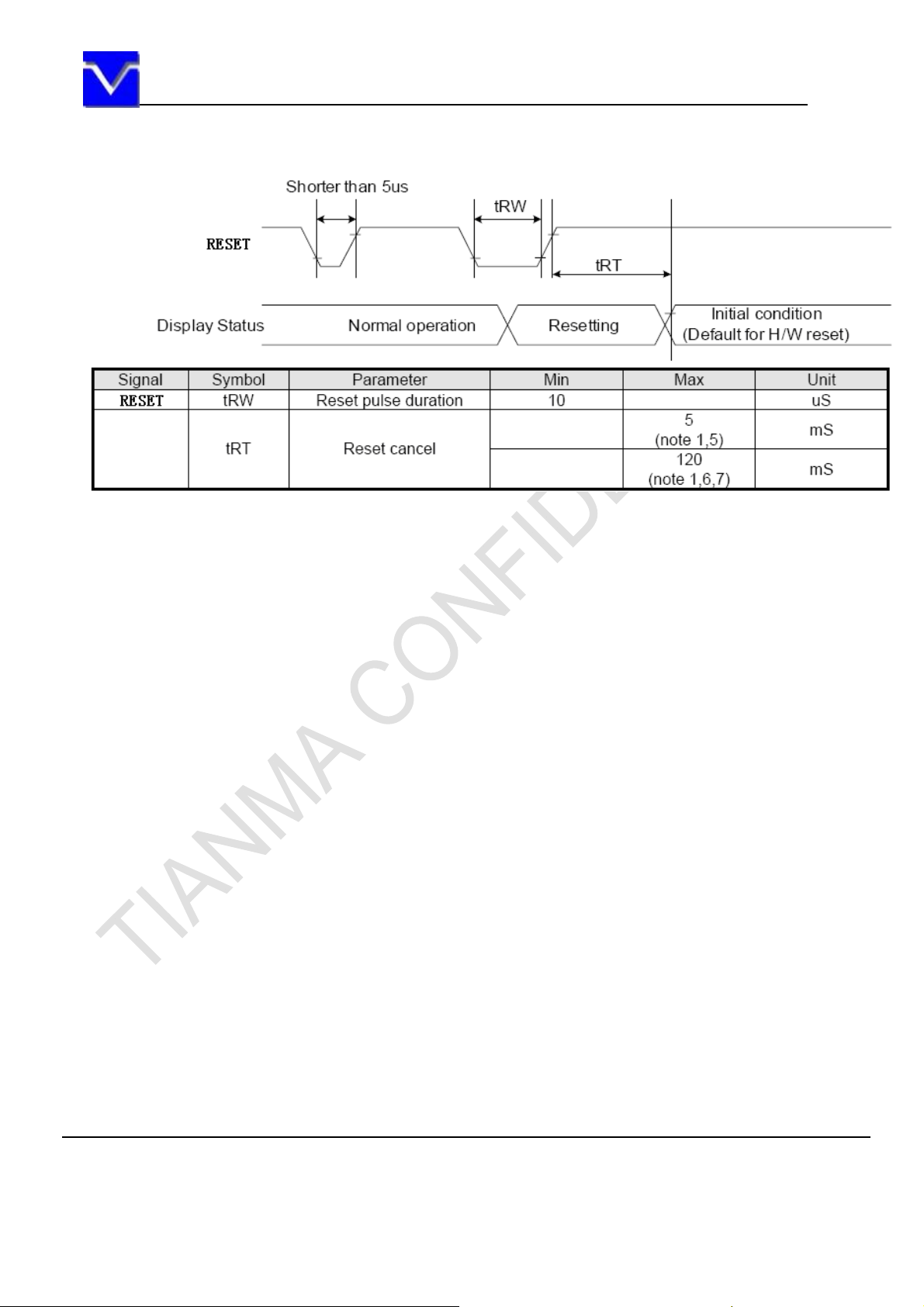

5.4 Reset Timing Characteristics
Ta =2 5℃
Figure 5.5 RESET Timing
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 12 of 23
Page 13
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0
5.5 Power On/Off sequence

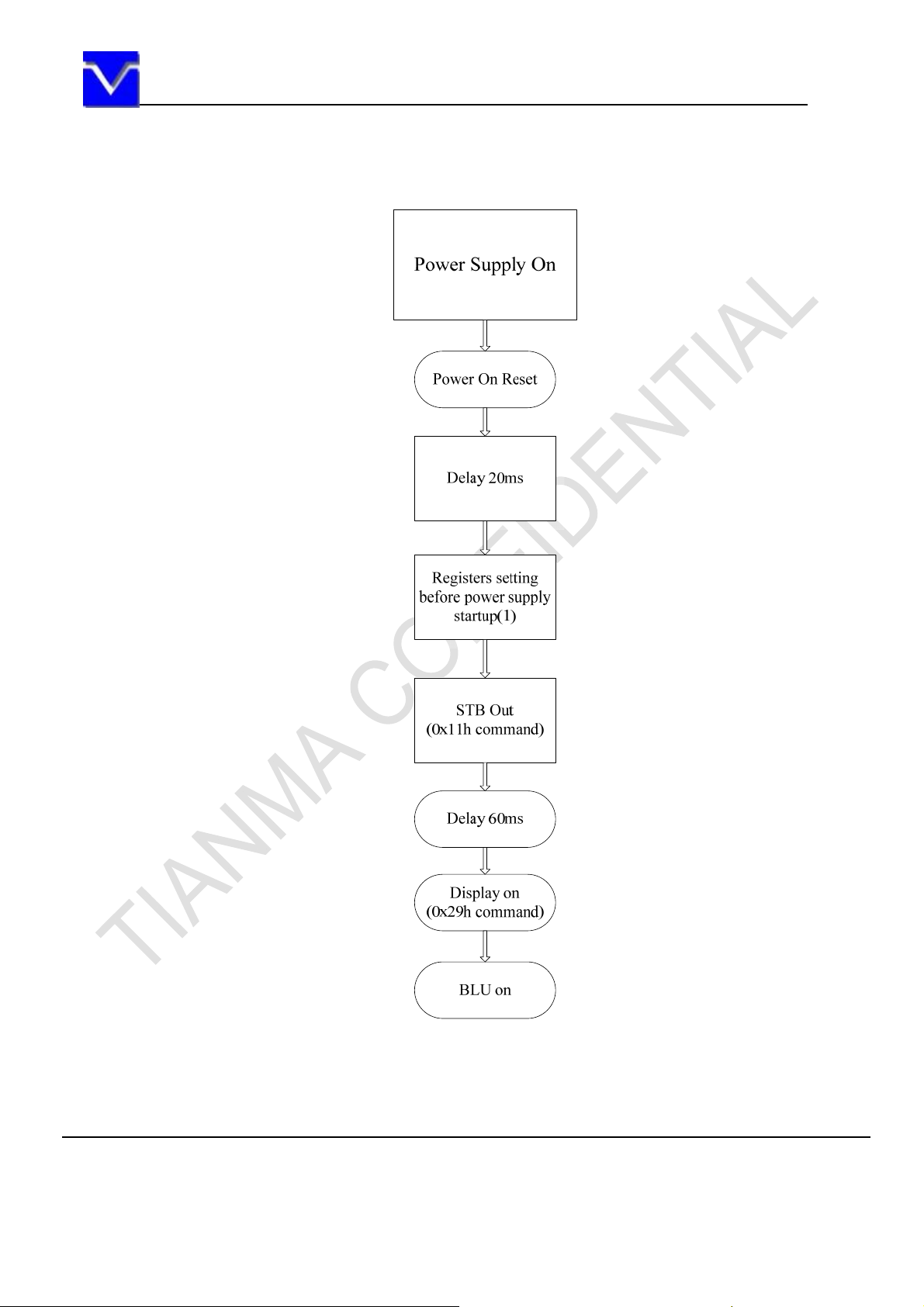

5.5.1 Power on Sequence
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 13 of 23
Page 14
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0
5.5.2 Power off Sequence
Normal Display
Display off
sequence
BLU OFF
Display off
(0x28h command)
STB IN
(0x10h command)
Power supply off
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 14 of 23
Page 15
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0
6 Optical Characteristics
Ta=25℃
Item Symbol Condition Min Typ Max Unit Remark
θT
60 70 -
θB 50 60 -
View Angles
≧
CR 10
Degree Note 2
θL 60 70 -
θR 60 70 -
Contrast Ratio CR θ=0° 400 500 -
T
ON
Response Time
25℃ - 20 30 ms
TOFF
x
0.245 0.295 0.345
White
y 0.274 0.324 0.374
x 0.556 0.606 0.656
Red
Chromaticity
y 0.277 0.327 0.377
x 0.294 0.344 0.394
Backlight is
on
Green
y 0.484 0.534 0.584
x 0.096 0.146 0.196
Blue
y 0.056 0.106 0.156
Note1
Note3
Note1
Note4
Note5
Note1
Uniformity U -- 80 -- %
Note1
Note6
NTSC -- 50 -- % Note 5
Luminance L 200 240 -- cd/m2
Note1
Note7
Test Conditions:
1. V
=3.2V, IL=20mA (Backlight current), the ambient temperature is 25℃.
F
2. The test systems refer to Note 1 and Note 2.
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 15 of 23
Page 16
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0

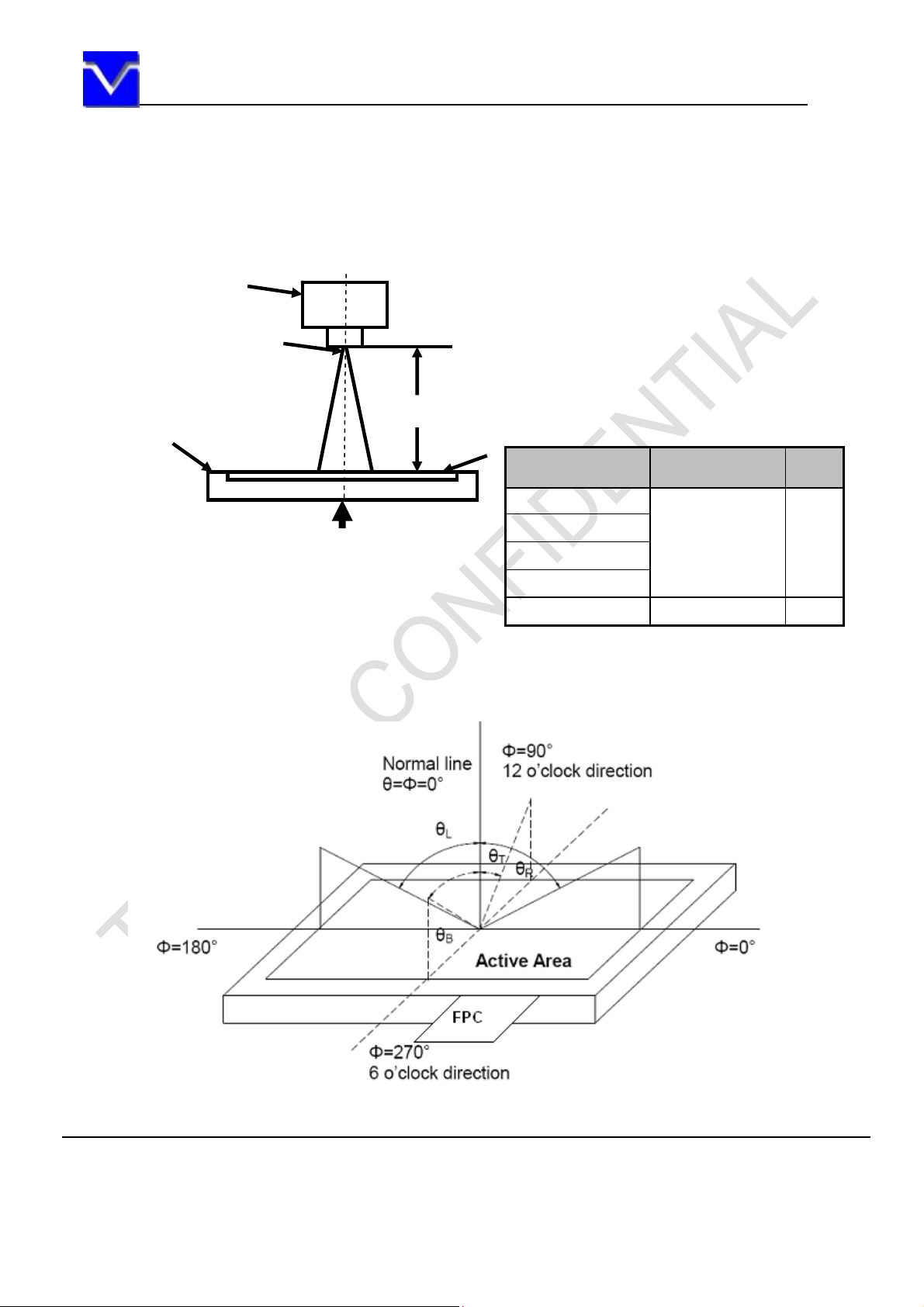

Note 1: Definition of optical measurement system.
The optical characteristics should be measured in dark room. After 5 minutes operation, the optical
properties are measured at the center point of the LCD screen. All input terminals LCD panel must
be ground when measuring the center area of the panel.
Photo detector
Field
500mm
TFT-LCD Module
LCD Panel
Item
detector
Field
Contrast Ratio
The center of the screen
Luminance
SR-3A 1°
Chromaticity
Lum Uniformity
Response Time BM-7A 2°
Note 2
: Definition of viewing angle range and measurement system.
viewing angle is measured at the center point of the LCD by CONOSCOPE(ergo-80).
Fig. 1 Definition of viewing angle
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 16 of 23
Page 17
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0

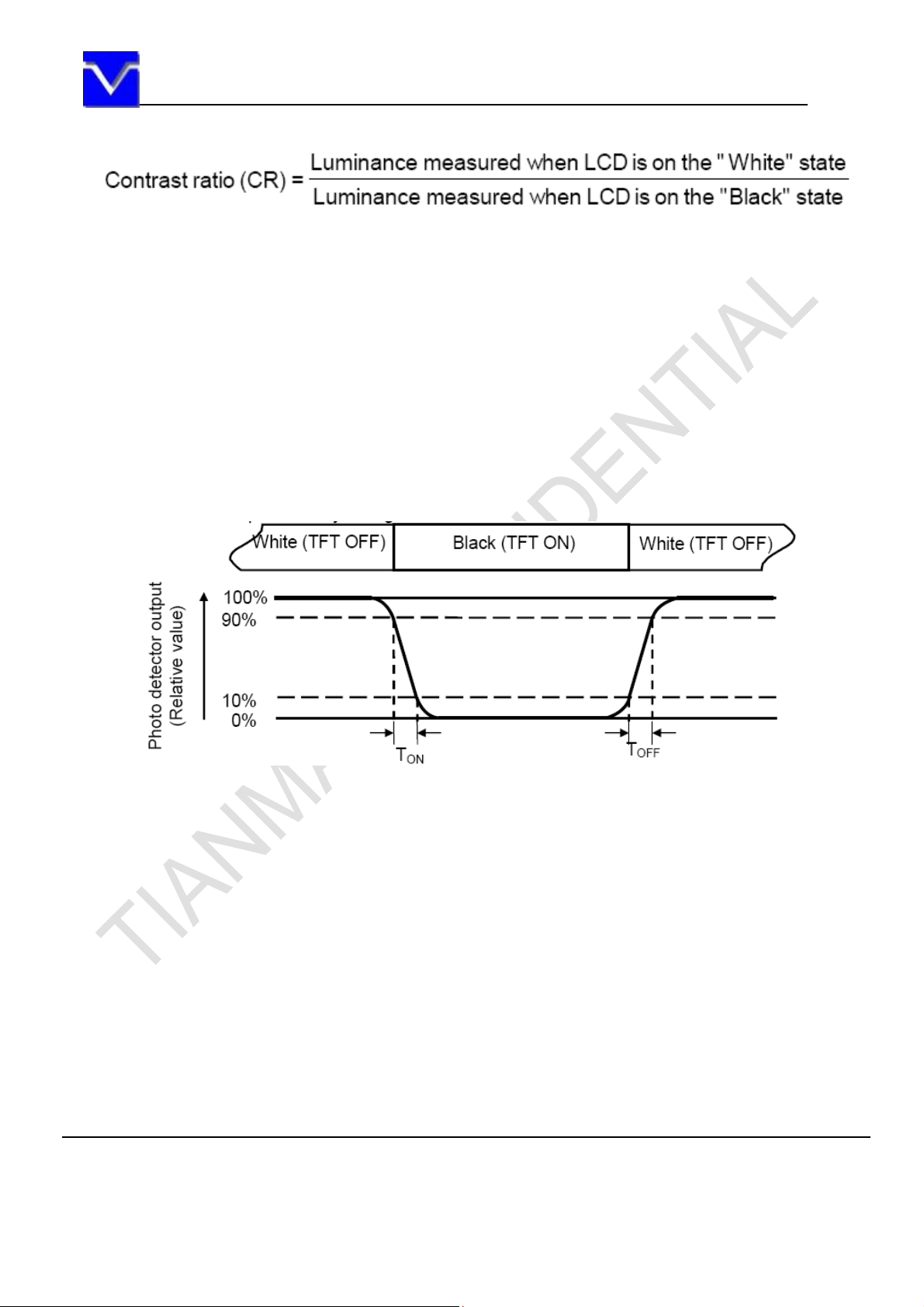

Note 3:Definition of contrast ratio
“White state “: The state is that the LCD should be driven by Vwhite.
“Black state”: The state is that the LCD should be driven by Vblack.
Vwhite: To be determined Vblack: To be determined.
Note 4: Definition of Response time
The response time is defined as the LCD optical switching time interval between “White” state and
“Black” state. Rise time (TON) is the time between photo detector output intensity changed from
90% to 10%. And fall time (TOFF) is the time between photo detector output intensity changed from
10% to 90%.
Note 5: Definition of color chromaticity (CIE1931)
Color coordinates measured at center point of LCD.
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 17 of 23
Page 18
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0

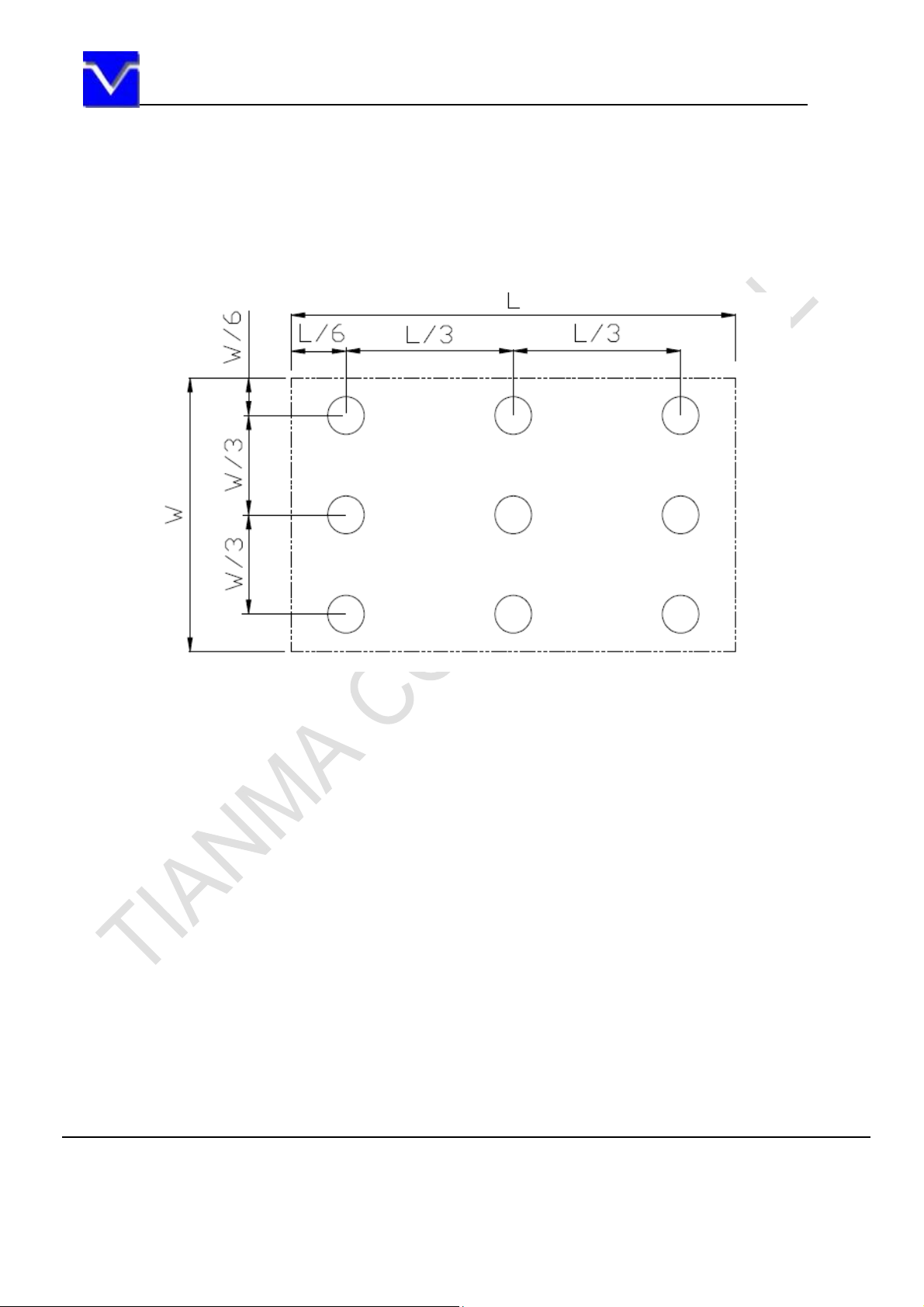

Note 6: Definition of Luminance Uniformity
Active area is divided into 9 measuring areas (Refer Fig. 2). Every measuring point is placed at the
center of each measuring area.
Luminance Uniformity (U) = Lmin/ Lmax
L-------Active area length W----- Active area width
Fig. 2 Definition of uniformity
Lmax: The measured maximum luminance of all measurement position.
Lmin: The measured minimum luminance of all measurement position.
Note 7:
Definition of Luminance:
Measure the luminance of white state at center point.
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 18 of 23
Page 19
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0
7 Environmental / Reliability Test
No Test Item Condition Remarks
High
1
Temperature
Operation
Low Temperature
2
Operation
High
3
Temperature
Storage
Low Temperature
4
Storage
High
Temperature &
5
High Humidity
Storage
Thermal Shock
6
(Non-operation)
Electro Static
7
Discharge
(Operation)
8
9
10
Vibration
(Non-operation)
Shock
(Non-operation)
Package
Drop Test
Ts=+70℃, 240hrs
Ta =- 20 ℃, 240hrs
Ta=+80℃, 240hrs
Ta =- 30 ℃, 240hrs
Ta=+60℃, 90% RH
240 hours
-30℃ 30 min~+70℃ 30 min,
Change time:5min, 20 Cycles
Note1
IEC60068-2-1:2007,GB2423.2-2008
IEC60068-2-1:2007
GB2423.1-2008
IEC60068-2-1:2007
GB2423.2-2008
IEC60068-2-1:2007
GB2423.1-2008
Note2
IEC60068-2-78 :2001
GB/T2423.3—2006
Start with cold temperature,
End with high temperature,
IEC60068-2-14:1984,GB2423.22-2002
C=150pF, R=330Ω，5points/panel
Air:±8KV, 5times;
Contact:±4KV, 5 times;
（Environment: 15℃～35℃,
IEC61000-4-2:2001
GB/T17626.2-2006
30%～60%, 86Kpa～106Kpa）
Frequency range:10~55Hz,
Stroke:1.5mm
Sweep:10Hz~55Hz~10Hz 2
hours
for each direction of X.Y.Z.
IEC60068-2-6:1982
GB/T2423.10—1995
(6 hours for total) (Package
condition)
100G 6ms, ±X,±Y,±Z 3times,
for each direction
Height:80 cm,
1 corner, 3 edges, 6 surfaces
IEC60068-2-27:1987
GB/T2423.5—1995
IEC60068-2-32:1990
GB/T2423.8—1995
Note1: Ts is the temperature of panel’s surface.
Note2: Ta is the ambient temperature of sample.
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 19 of 23
Page 20
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0
8 Mechanical And FPCA Drawing
C1
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 20 of 23
Page 21
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0
9 Packing Drawing
Dimensions(m
No Item Model (Material)
1 LCM module TM022HDH26-00 40.1×55.2×2.35 TBD 630
2 Tray
3
EPE
4 Anti-static bag
5
6
7 Carton
8
EPE 485×330×5 0.0183 3
BOX
Desiccant Desiccant 45×50 0.002 6
Total weight TBDKg
PET（Transmit）
PE 700×545 0.046 1
CORRUGATED
PAPER 520×345×74 0.3879 3
CORRUGATED
PAPER 544×365×250 1.01 1
m)
485×330×11.8 0.172 24
Unit
Weight(Kg) Quantity Remark
Anti-stati
c
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 21 of 23
Page 22
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 22 of 23
Page 23
SHANGHAI TIANMA MICRO-ELECTRONICS TM022HDH26 V1.0
10 Precautions For Use of LCD Modules
10.5 Handling Precautions.
10.5.1 The display panel is made of glass. Do not subject it to a mechanical shock by dropping it
from a high place, etc.
10.5.2 If the display panel is damaged and the liquid crystal substance inside it leaks out, be sure not
to get any in your mouth, if the substance comes into contact with your skin or clothes,
promptly wash it off using soap and water.
10.5.3 Do not apply excessive force to the display surface or the adjoining areas since this may
cause the color tone to vary.
10.5.4 The polarizer covering the display surface of the LCD module is soft and easily scratched.
Handle this polarizer carefully.
10.5.5 If the display surface is contaminated, breathe on the surface and gently wipe it with a soft dry
cloth. If still not completely clear, moisten cloth with one of the following solvents:
－ Isopropyl alcohol
－ Ethyl alcohol
Solvents other than those mentioned above may damage the polarizer. Especially, do not use
the following:
－ Water
－ Ketone
－ Aromatic solvents
10.5.6 Do not attempt to disassemble the LCD Module.
10.5.7 If the logic circuit power is off, do not apply the input signals.
10.5.8 To prevent destruction of the elements by static electricity, be careful to maintain an optimum
work environment.
10.5.8.1 Be sure to ground the body when handling the LCD Modules.
10.5.8.2 Tools required for assembly, such as soldering irons, must be properly ground.
10.5.8.3 To reduce the amount of static electricity generated, do not conduct assembly and other
work under dry conditions.
10.5.8.4 The LCD Module is coated with a film to protect the display surface. Be care when peeling
off this protective film since static electricity may be generated.
10.6 Storage precautions
10.6.1 When storing the LCD modules, avoid exposure to direct sunlight or to the light of fluorescent
lamps.
10.6.2 The LCD modules should be stored under the storage temperature range. If the LCD modules
will be stored for a long time, the recommend condition is:
Temperature : 0℃ ～ 40℃ Relatively humidity: ≤80%
10.6.3 The LCD modules should be stored in the room without acid, alkali and harmful gas.
10.7 Transportation Precautions:
The LCD modules should be no falling and violent shocking during transportation, and also
should avoid excessive press, water, damp and sunshine.
The information contained herein is the exclusive property of SHANGHAI TIANMA MICRO-ELECTRONICS
Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written
permission of SHANGHAI TIANMA MICRO-ELECTRONICS Corporation.
Page 23 of 23
Loading...
