SERVICE MANUAL

DBTV1301

Design and specifications are subject to change without notice.

COLOR TELEVISION RECEIVER

ORIGINAL

MFR'S VERSION B

SER VICE MANUAL

Please file the revision with the original version.

COLOR TELEVISION RECEIVER

DBTV1301

REVISION 2

MFR’S VERSION H

H

MFR’S VERSION

C

PCB010

TMX494B

TMX494A

TU001

TECC1040PG32D

NJH3022U268 A34AGT13X98(L)

V801

I

A34JXV70X28N45

A34AGT13X98(L)

Change of CRT

PART NO. DESCRIPTION PART NO. DESCRIPTION ! V801 098Q1404B2 CRT W/DY A34AGT13X98(L) 098Y140497 CRT W/DY A34JXV70X28N45 ! R429 R655812R7J R,FUSE 2.7 OHM 1W R655812R2J R,FUSE 2.2 OHM 1W

C804 CS0KB04K2K CC 270 PF 50V B CS0KB04L2K CC 330 PF 50V B C805 CS0KB04K2K CC 270 PF 50V B CS0KB04L2K CC 330 PF 50V B C806 CS0KB04K2K CC 270 PF 50V B CS0KB04L2K CC 330 PF 50V B

! CP401 069X450029 CONNECTOR PCB SIDE B05B-DVS 069D450049 CONNECTOR PCB SIDE TD-50-5P

PCB010 A3J804A010

MAIN PCB ASS'Y (VERSION I) TMX494B

A3J804C010

MAIN PCB ASS'Y (VERSION H) TMX494B

MAIN PCB's are not interchangeable.

ELECTRICAL REPLACEMENTPARTS LIST

REF. NO.

MFR'S VERSION I MFR'S VERSION H

M3J8-04C

K193015

SPEC.NO.

O/R NO.

SERVICE MANUAL

DBTV1301

Design and specifications are subject to change without notice.

COLOR TELEVISION RECEIVER

ORIGINAL

MFR'S VERSION B

6. AVOID AN X-RAY1. KEEP THE NOTICES

5. TAKE CARE TO DEAL WITH THE CATHODE-RAY TUBE

In the condition that an explosion-proof cathoderay tube is set in this equipment, safety is secured against implosion. However, when removing it or serving from backward, it is dangerous to give a shock. Take enough care to deal with it.

Safety is secured against an X-ray by considering about the cathode-ray tube and the high voltage peripheral circuit, etc. Therefore, when repairing the high voltage peripheral circuit, use the designated parts and make sure not modify the circuit. Repairing except indicates causes rising of high voltage, and it emits an X-ray from the cathoderay tube.

Please include the following informations when you order parts. (Particularly the VERSION LETTER.)

1. MODEL NUMBER and VERSION LETTER The MODEL NUMBER can be found on the back of each product and the VERSION LETTER can be

found at the end of the SERIAL NUMBER.

2. PART NO. and DESCRIPTION You can find it in your SERVICE MANUAL.

Inferior silicon grease can damage IC's and transistors. When replacing an IC's or transistors, use only specified silicon grease (YG6260M). Remove all old silicon before applying new silicon.

IMPORTANT

HOW TO ORDER PARTS

SERVICING NOTICES ON CHECKING

As for the places which need special attentions, they are indicated with the labels or seals on the cabinet, chassis and parts. Make sure to keep the indications and notices in the operation manual.

2. AVOID AN ELECTRIC SHOCK

There is a high voltage part inside. Avoid an electric shock while the electric current is flowing.

3. USE THE DESIGNATED PARTS

The parts in this equipment have the specific characters of incombustibility and withstand voltage for safety. Therefore, the part which is replaced should be used the part which has the same character. Especially as to the important parts for safety which is indicated in the circuit diagram or the table of parts as a mark, the designated parts must be used.

PUT PARTS AND WIRES IN THE ORIGINAL POSITION AFTER ASSEMBLING OR WIRING

4.

There are parts which use the insulation material such as a tube or tape for safety, or which are assembled in the condition that these do not contact with the printed board. The inside wiring is designed not to get closer to the pyrogenic parts and high voltage parts. Therefore, put these parts in the original positions.

7.PERFORM A SAFETY CHECK AFTER SERVICING

Confirm that the screws, parts and wiring which were removed in order to service are put in the original positions, or whether there are the portions which are deteriorated around the serviced places serviced or not. Check the insulation between the antenna terminal or external metal and the AC cord plug blades. And be sure the safety of that.

(INSULATION CHECK PROCEDURE)

1.

2.

3.

4.

Unplug the plug from the AC outlet. Remove the antenna terminal on TV and turn on the TV. Insulation resistance between the cord plug terminals and the eternal exposure metal [Note 2] should be more than 1M ohm by using the 500V insulation resistance meter [Note 1]. If the insulation resistance is less than 1M ohm, the inspection repair should be required.

[Note 1]

If you have not the 500V insulation resistance meter, use a Tester.

[Note 2]

External exposure metal: Antenna terminal

A1-1

Earphone jack

CONTENTS

A2-1

A1-1 A1-1 A1-1 A2-1 A3-1~A3-4

B1-1 B2-1, B2-2 C-1 C-1 C-1 D-1~D-4 E-1, E-2

F-1~F-4 G-1, G-2

G-3, G-4 G-5, G-6 G-7, G-8 G-9, G-10 H-1, H-2 I-1 J1-1 J2-1, J2-2

SERVICING NOTICES ON CHECKING......................................................................................................

HOW TO ORDER PARTS...........................................................................................................................

IMPORTANT................................................................................................................................................

CONTENTS.................................................................................................................................................

GENERAL SPECIFICATIONS....................................................................................................................

DISASSEMBLY INSTRUCTIONS

1. REMOVAL OF ANODE CAP........................................................................................................

2. REMOVAL AND INSTALLATION OF FALT PACKAGE IC..........................................................

SERVICE MODE LIST.................................................................................................................................

CONFIRMATION OF HOURS USED..........................................................................................................

WHAN REPLACING EEPROM (MEMORY) IC...........................................................................................

ELECTRICAL ADJUSTMENTS..................................................................................................................

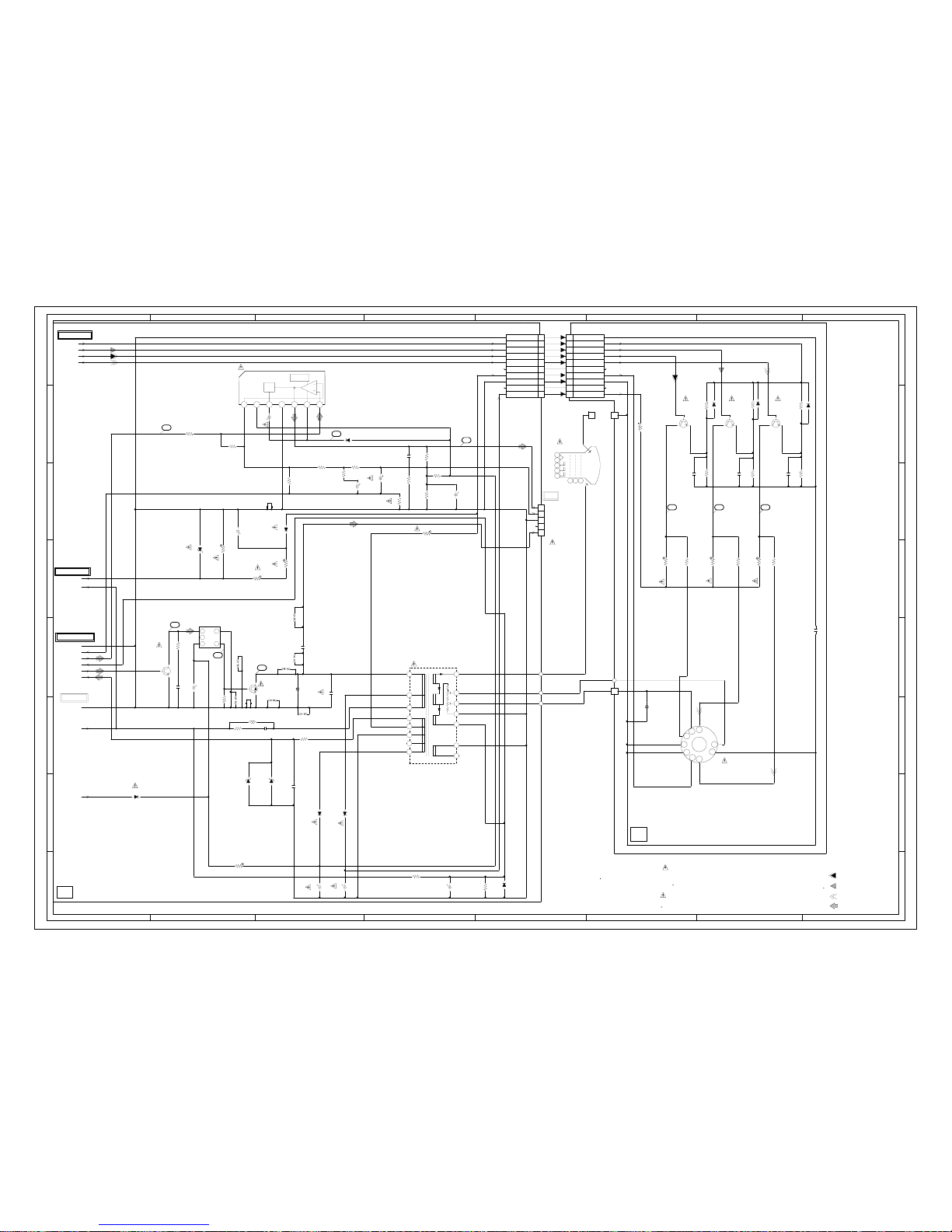

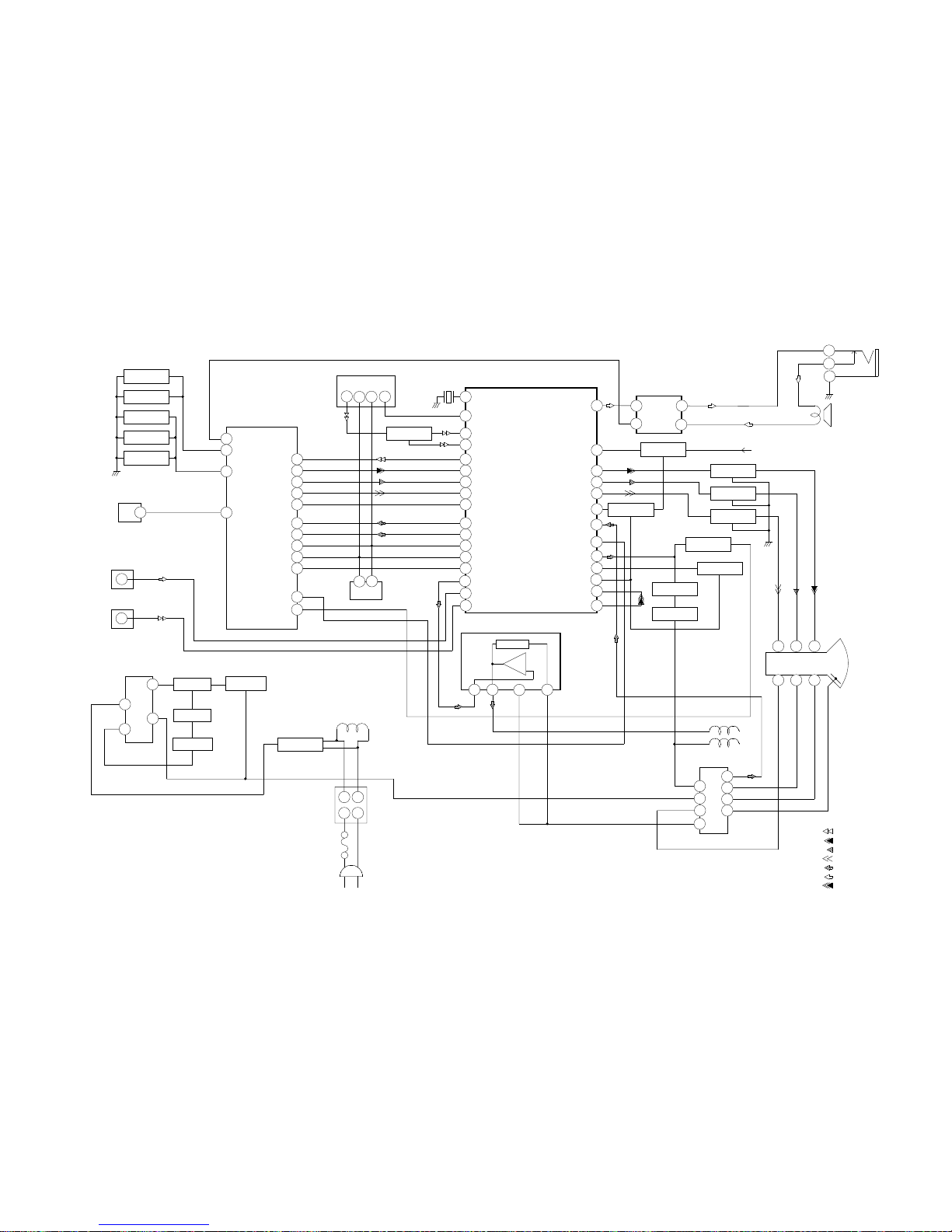

BLOCK DIAGRAM......................................................................................................................................

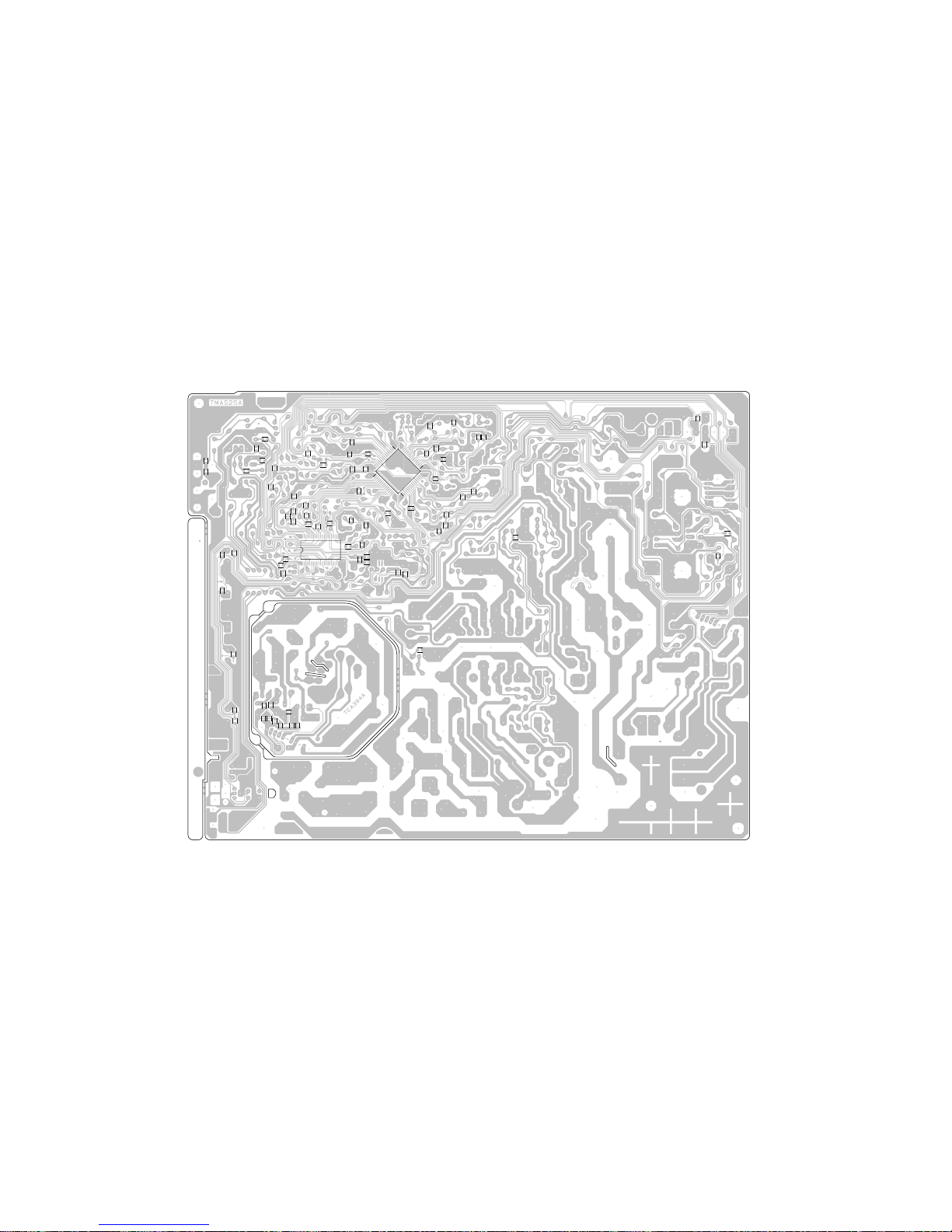

PRINTED CIRCUIT BOARDS

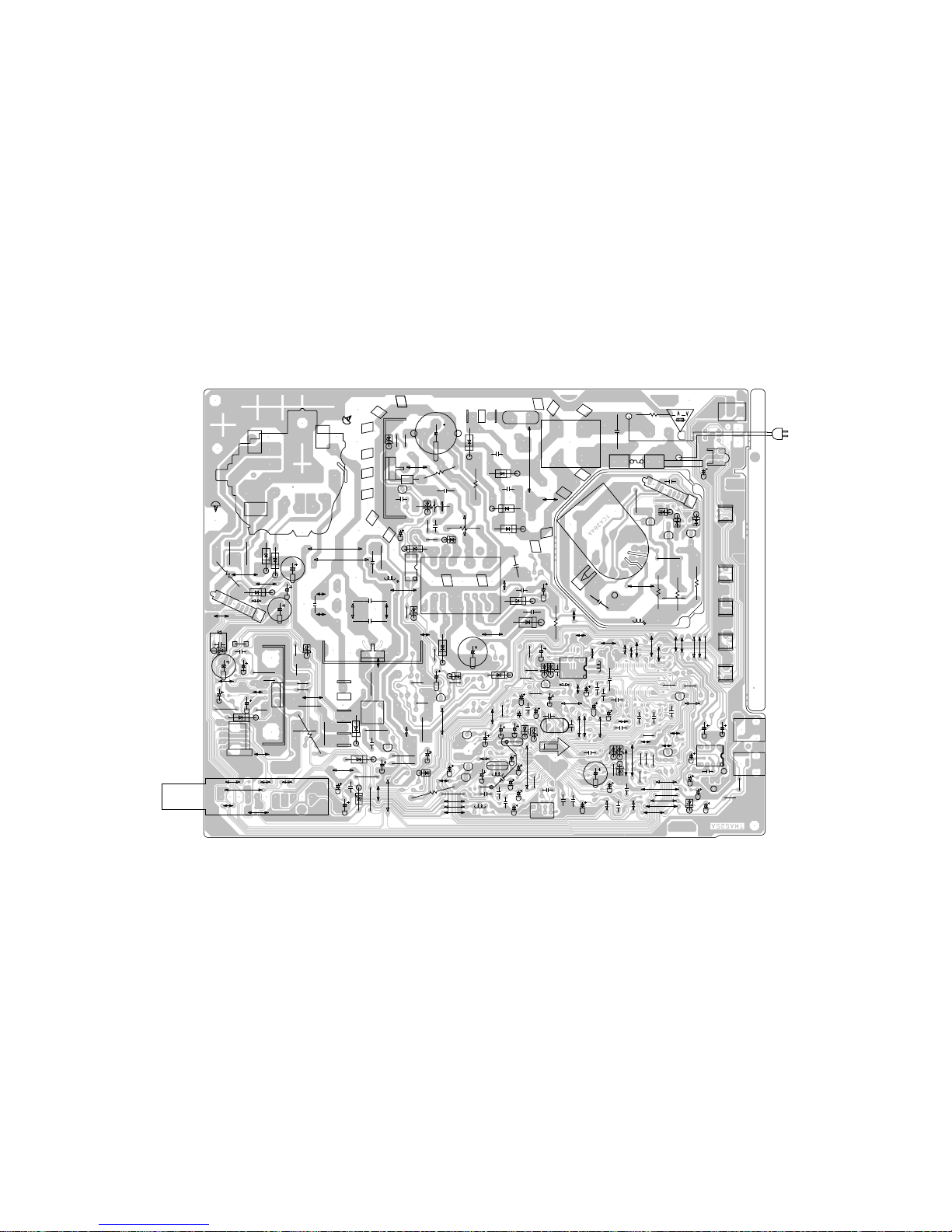

MAIN/CRT..........................................................................................................................................

SCHEMATIC DIAGRAMS

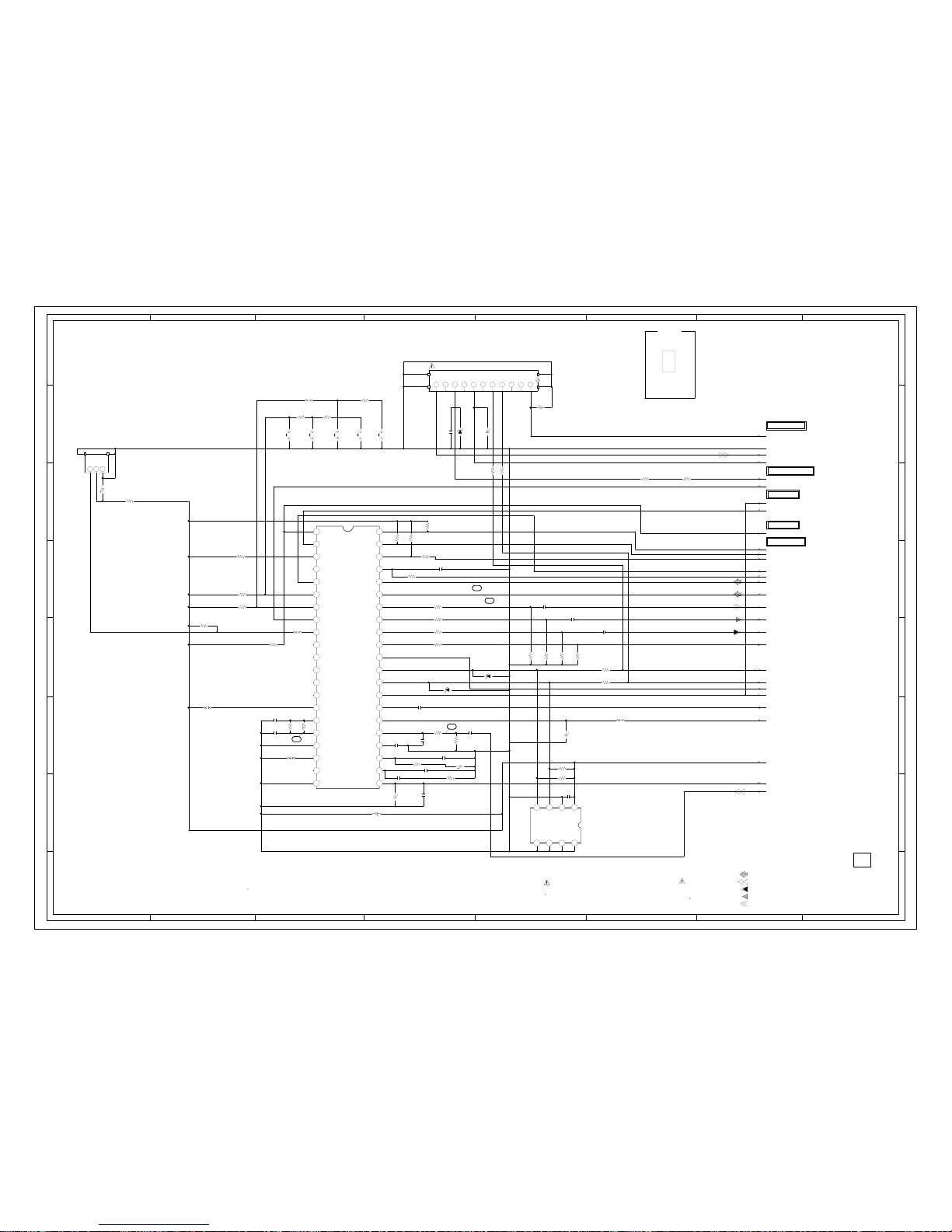

MICON/TUNER..................................................................................................................................

CHROMA...........................................................................................................................................

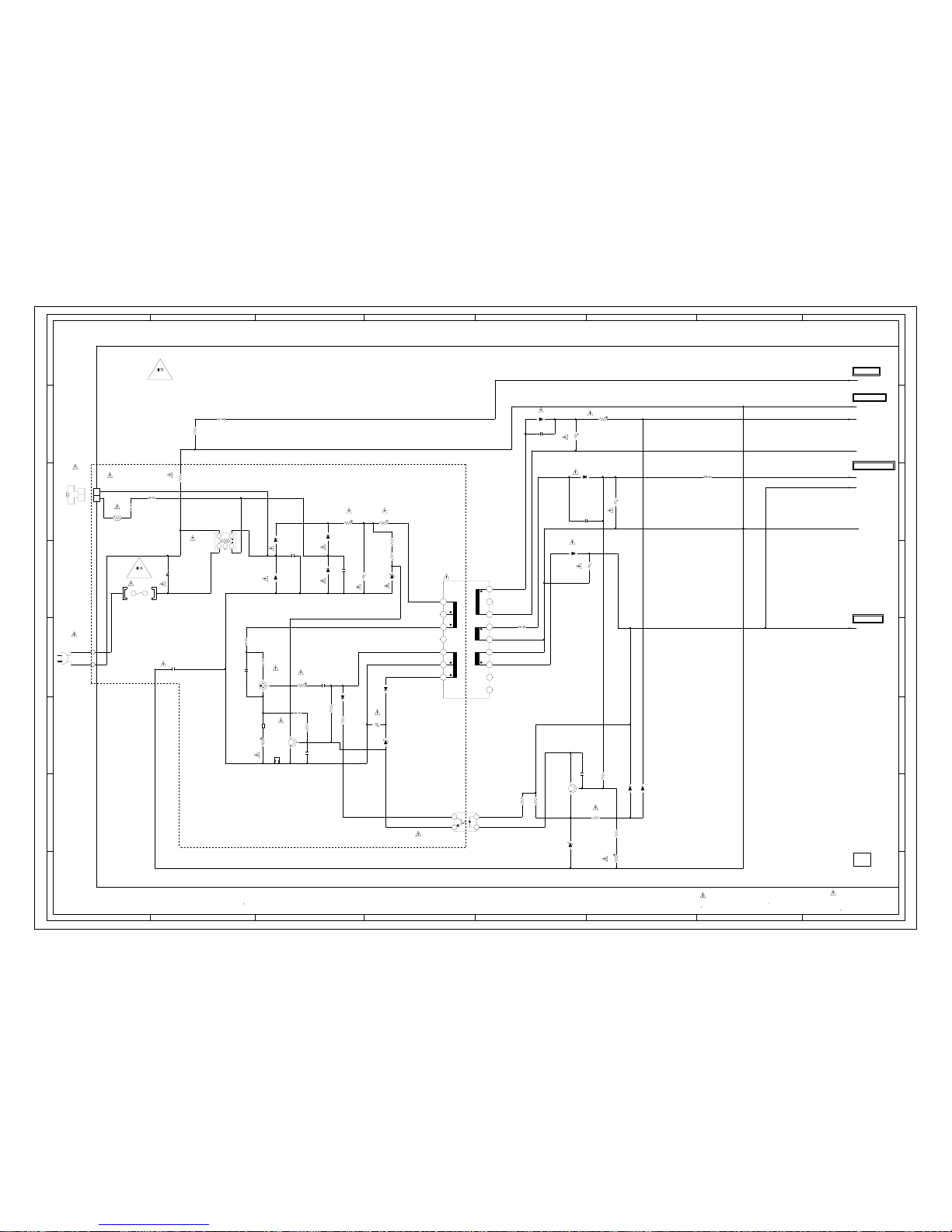

TV POWER........................................................................................................................................

DEFLECTION/CRT............................................................................................................................

SOUND/AV........................................................................................................................................

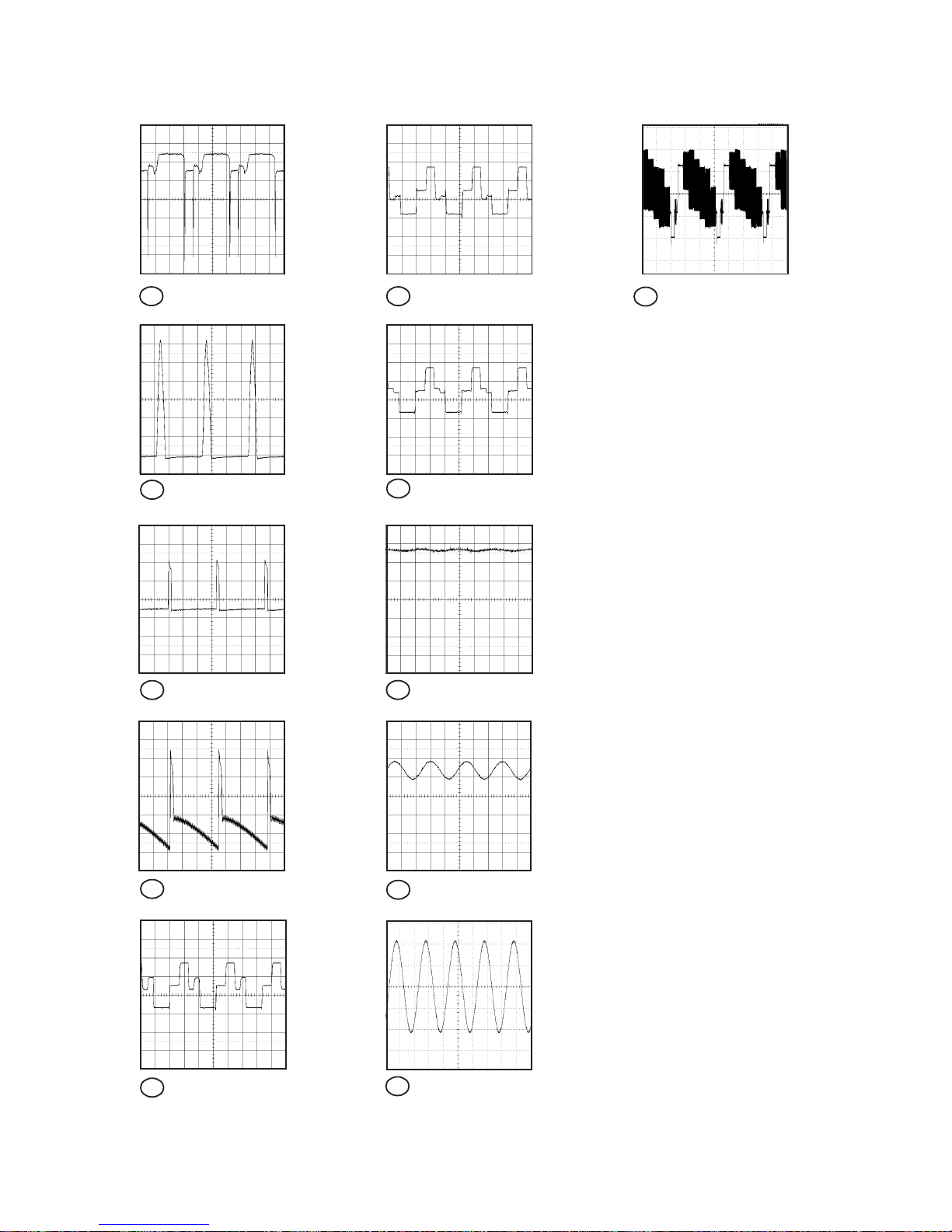

WAVEFORMS.............................................................................................................................................

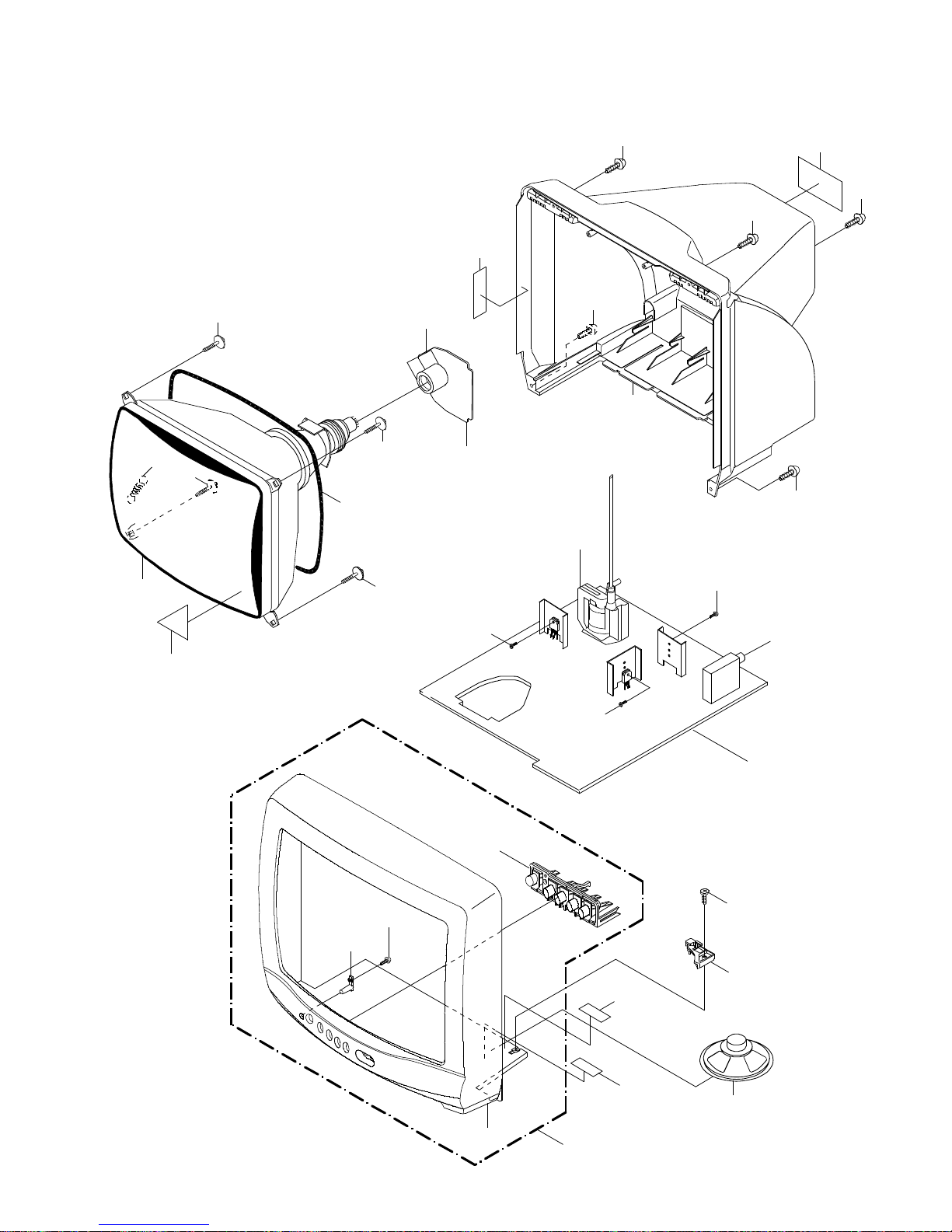

MECHANICAL EXPLODED VIEW..............................................................................................................

MECHANICAL REPLACEMENT PARTS LIST..........................................................................................

ELECTRICAL REPLACEMENT PARTS LIST............................................................................................

GENERAL SPECIFICATIONS

G-1 TV CRT CRT Size / Visual Size 13 inch / 335.4mmV

System CRT Type Normal

Deflection 90 degree

Magnetic Field BV/BH +0.45G/0.18G Color System NTSC Speaker 1Speaker

Position Bottom

Size 3 Inch

Impedance 8 ohm Sound Output MAX 1.0 W

10%(Typical) 0.8 W NTSC3.58+4.43 /PAL60Hz No

G-2 Tuning Broadcasting System US System M

System Tuner and System 1Tuner

Receive CH Destination Others

Tuning System F-Synth

Input Impedance VHF/UHF 75 ohm

2 - 69, 4A, A-5 - A-1,

CH Coverage A - I, J - W, W+1 - W+84 Intermediate Picture(FP) 45.75MHz Frequency Sound(FS) 41.25MHz

FP-FS 4.50MHz Preset CH

No

Stereo/Dual TV Sound

No

Tuner Sound Muting Yes

G-3 Power Power Source AC 120V AC 60Hz

DC Power Consumption at AC

54 W at AC 120 V 60 Hz Stand by (at AC) 5 W at AC 120 V 60 Hz Per Year -- kWh/Year

Protector Power Fuse Yes

G-4 Regulation Safety UL/CSA

Radiation FCC /DOC X-Radiation DHHS/HWC

G-5 Temperature Operation

+

5oC

~ +4

0oC

Storage

-2

0oC

~ +

60oC

G-6 Operating Humidity Less then 80% RH G-7 On Screen Menu Yes

Display Menu Type Character

Picture Yes

Contrast Yes Brightness Yes Color Yes Tint Yes Sharpness Yes

Audio No

Bass No Treble No Balance No BBE On/Off No Stable Sound On/Off No

CH Set Up Yes

TV/CATV Yes Auto CH Memory Yes Add/ Delete Yes

Language Yes V-chip Yes

CH Label No Favorite CH No Color Stream DVD/DTV No

Control Level Yes

Sound Yes Brightness Yes Contrast Yes Color Yes Tint (NTSC Only) Yes Sharpness Yes Tuning No Bass No Treble No Balance No Back Light No

Stereo,Audio Output,SAP No Video Yes Color Stream No Channel(TV/Cable) Yes

A3-1

GENERAL SPECIFICATIONS

CH Label No Sleep Timer Yes Sound Mute Yes V-chip Rating Yes

G-8 OSD Language English French Spanish

OSD Language Setting English

G-9 Clock and Sleep Timer Max Time 120 Min

Timer Step 10 Min

On/Off Timer Program(On Tim / Off Tim) No Wake Up Timer No Timer Back-up (at Power Off Mode) more than -- Min Sec

G-10 Remote Unit RC-DW

Control Glow in Dark Remocon No

Format NEC Custom Code 86-05 h Power Source Voltage(D.C) 3V

UM size x pcs UM-4 x 2 pcs

Total Keys 27 Keys Keys Power Yes

1 Yes 2 Yes 3 Yes 4 Yes 5 Yes 6 Yes 7 Yes 8 Yes 9 Yes 0 Yes 100 No CH Up Yes CH Down Yes Volume Up Yes Volume Down Yes TV/Caption/Text Yes CH1/CH2 Yes TV/Video(TV/AV) Yes CH RTN/CH ENT(Quick View) Yes Sleep Yes RE Call(Call) Yes Reset Yes Menu Yes Enter Yes Mute Yes Exit No MTS(Audio Select) No Set + Yes Set - Yes

Multi Brand Keys CH Up(VCR) No

CH Down(VCR) No Pause/Still No TV/VCR(VCR) No Code No FF No Rew No Rec No Play No Stop No TV No VCR No Cable No

G-11 Features Auto Degauss Yes

Auto Shut Off Yes Canal+ No CATV Yes Anti-theft No Rental No Memory(Last CH) Yes Memory(Last Volume) Yes V-Chip Yes

Type USA,ORION Type

BBE No Auto Search No CH Allocation No SAP No Channel Lock No Just Clock Function No

A3-2

GENERAL SPECIFICATIONS

Game Position No CH Label No VM Circuit No Full OSD No Premiere No Comb Filter No

Lines

Auto CH Memory Yes Hotel Lock No Closed Caption Yes Stable Sound No Energy Star No Favorite CH No

G-12 Accessories Owner's Manual Language English /French

w/Guarantee Card

No Remote Control Unit Yes Rod Antenna

No

Poles Terminal

Loop Antenna

No

Terminal -

U/V Mixer

No DC Car Cord (Center+)

No Guarantee Card Yes Warning Sheet

No Circuit Diagram

No Antenna Change Plug

No Service Facility List

No Important Safeguard

No Dew/AHC Caution Sheet

No AC Plug Adapter

No Quick Set-up Sheet

No Battery

No

UM size x pcs OEM Brand

No AC Cord

No AV Cord (2Pin-1Pin)

No Registration Card

No PTB Sheet

No 300 ohm to 75 ohm Antenna Adapter

No

G-13 Interface Switch Front Power Yes

System Select No Main Power SW No Sub Power No Channel Up/Reset Yes Channel Down/Enter Yes Volume Up/Set Up Yes Volume Down/Set Down Yes MENU=Volume Up+Volume Down Yes

Rear AC/DC No

TV/CATV Selector No Degauss No Main Power SW No

Indicator Power No

Stand-by No On Timer No

Terminals Front Video Input

RCA

Audio Input

RCA x 1

Other Terminal

Ear Phone

Rear Video Input(Rear1) No

Video Input(Rear2) No Audio Input(Rear1) No Audio Input(Rear2) No Video Output No Audio Output No Euro Scart No Color Stream No Diversity No Ext Speaker No DC Jack 12V(Center +) No VHF/UHF Antenna Input

F Type

AC Outlet No

G-14 Set Size Approx. W x D x H (mm) 362 x 360 x 320.5 G-15 Weight Net (Approx.) 9.5 kg

( 20.9 lbs)

Gross (Approx.)

11.0kg

( 24.4lbs)

G-16 Carton Master Carton

No

Content

----

Sets

A3-3

GENERAL SPECIFICATIONS

Material --

/--

Dimensions W x D x H(mm) -- x -- x -- Description of Origin

No

Gift Box Yes

Material Double Full Color Carton W/Photo Dimensions W x D x H(mm) 440 x 408 x 380 Design As per Buyer's Description of Origin Yes

Drop Test

Natural Dropping At 1 Corner / 3 Edges

/ 6 Surfaces

Height (cm) 62

Container Stuffing

866

Sets/40' container

G-17 Cabinet Material Cabinet Front PS 94V0 DECABROM

Cabinet Rear PS 94V0 DECABROM

A3-4

1. REMOVAL OF ANODE CAP

Read the following NOTED items before starting work.

After turning the power off there might still be a potential voltage that is very dangerous. When removing the Anode Cap, make sure to discharge the Anode Cap's potential voltage. Do not use pliers to loosen or tighten the Anode Cap terminal, this may cause the spring to be damaged.

REMOVAL

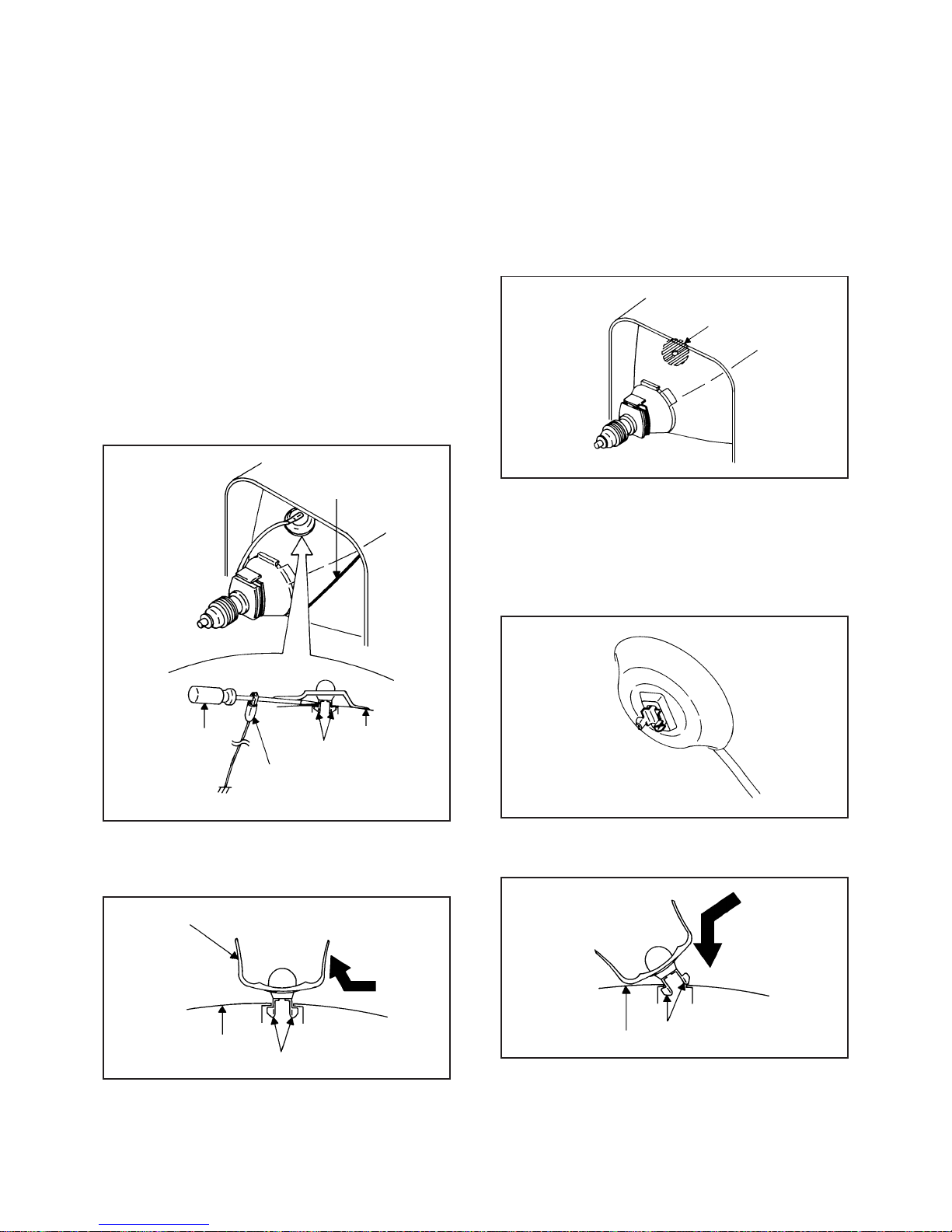

1.Follow the steps as follows to discharge the Anode Cap.

(Refer to Fig. 1-1.)

Connect one end of an Alligator Clip to the metal part of a flat-blade screwdriver and the other end to ground. While holding the plastic part of the insulated screwdriver, touch the support of the Anode with the tip of the screwdriver. A cracking noise will be heard as the voltage is discharged.

Flip up the sides of the Rubber Cap in the direction of the arrow and remove one side of the support.

(Refer to Fig. 1-2.)

2.

GND on the CRT

Screwdriver

Alligator Clip

Support

CRT

GND on the CRT

Rubber Cap

CRT

Support

Fig. 1-2

3.After one side is removed, pull in the opposite direction to remove the other.

NOTE

Take care not to damage the Rubber Cap.

INSTALLATION

1.Clean the spot where the cap was located with a small amount of alcohol. (Refer to Fig. 1-3.)

Location of Anode Cap

NOTE

Confirm that there is no dirt, dust, etc. at the spot where the cap was located.

2.3.Arrange the wire of the Anode Cap and make sure the wire is not twisted. Turn over the Rubber Cap. (Refer to Fig. 1-4.)

4.Insert one end of the Anode Support into the anode button, then the other as shown in Fig. 1-5.

5.6.Confirm that the Support is securely connected. Put on the Rubber Cap without moving any parts.

CRT

Support

DISASSEMBLY INSTRUCTIONS

Fig. 1-3

Fig. 1-4

Fig. 1-5

*

Fig. 1-1

B1-1

Masking Tape (Cotton Tape)

DISASSEMBLY INSTRUCTIONS

2.

REMOVAL

IC

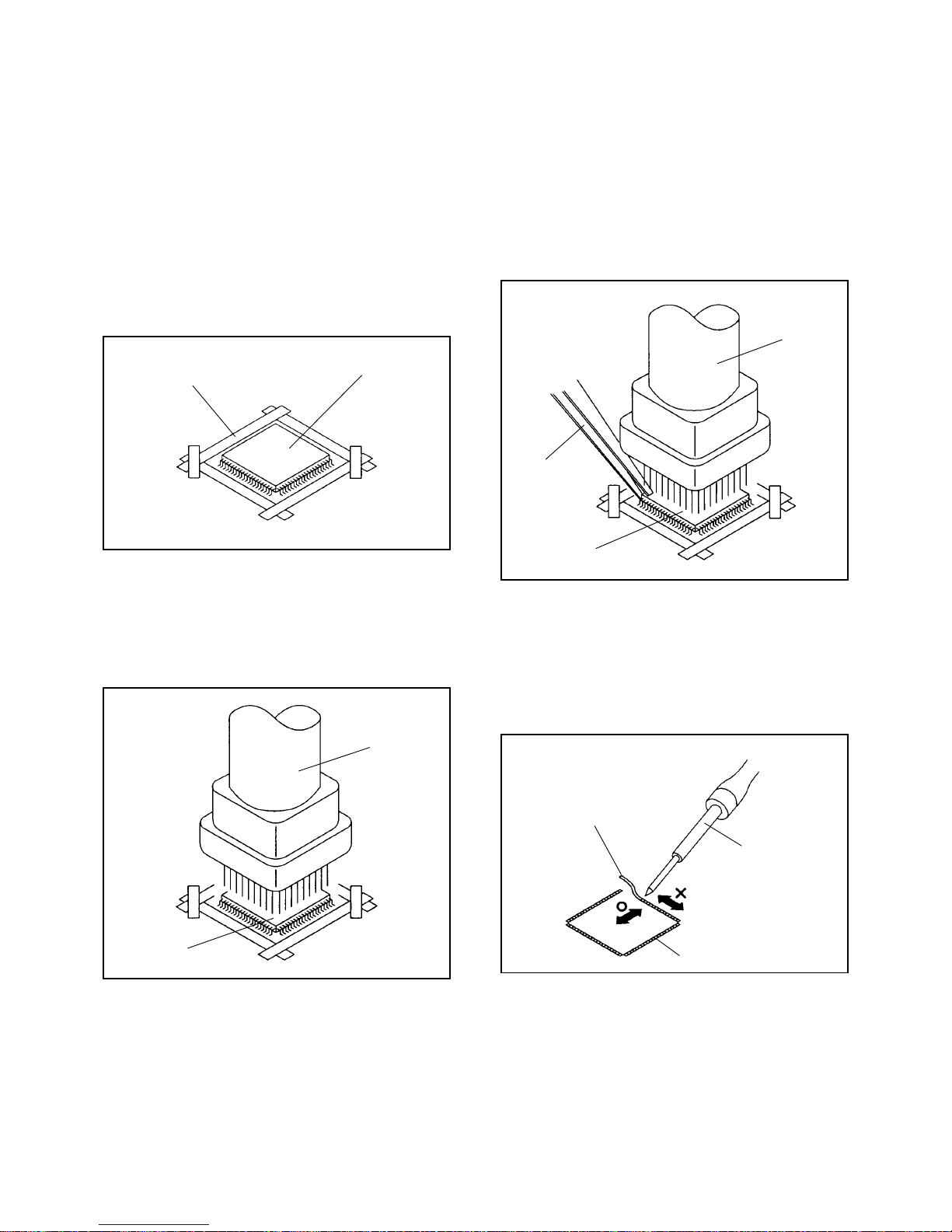

Put the Masking Tape (cotton tape) around the Flat Package IC to protect other parts from any damage.

(Refer to Fig. 2-1.)

1.

Fig. 2-1

NOTE

REMOVAL AND INSTALLATION OF FLAT PACKAGE IC

Some ICs on the PCB are affixed with glue, so be careful not to break or damage the foil of each IC leads or solder lands under the IC when removing it.

NOTE

Masking is carried out on all the parts located within 10 mm distance from IC leads.

Blower type IC desoldering machine

IC

Heat the IC leads using a blower type IC desoldering machine. (Refer to Fig. 2-2.)

2.

Fig. 2-2

NOTE

Do not add the rotating and the back and forth directions force on the IC, until IC can move back and forth easily after desoldering the IC leads completely.

When IC starts moving back and forth easily after desoldering completely, pickup the corner of the IC using a tweezers and remove the IC by moving with the IC desoldering machine. (Refer to Fig. 2-3.)

3.

Blower type IC desoldering machine

IC

Fig. 2-3

Tweezers

Peel off the Masking Tape.4. Absorb the solder left on the pattern using the Braided

Shield Wire. (Refer to Fig. 2-4.)

5.

NOTE

Do not move the Braided Shield Wire in the vertical direction towards the IC pattern.

Braided Shield Wire

Soldering Iron

Fig. 2-4

IC pattern

B2-1

DISASSEMBLY INSTRUCTIONS

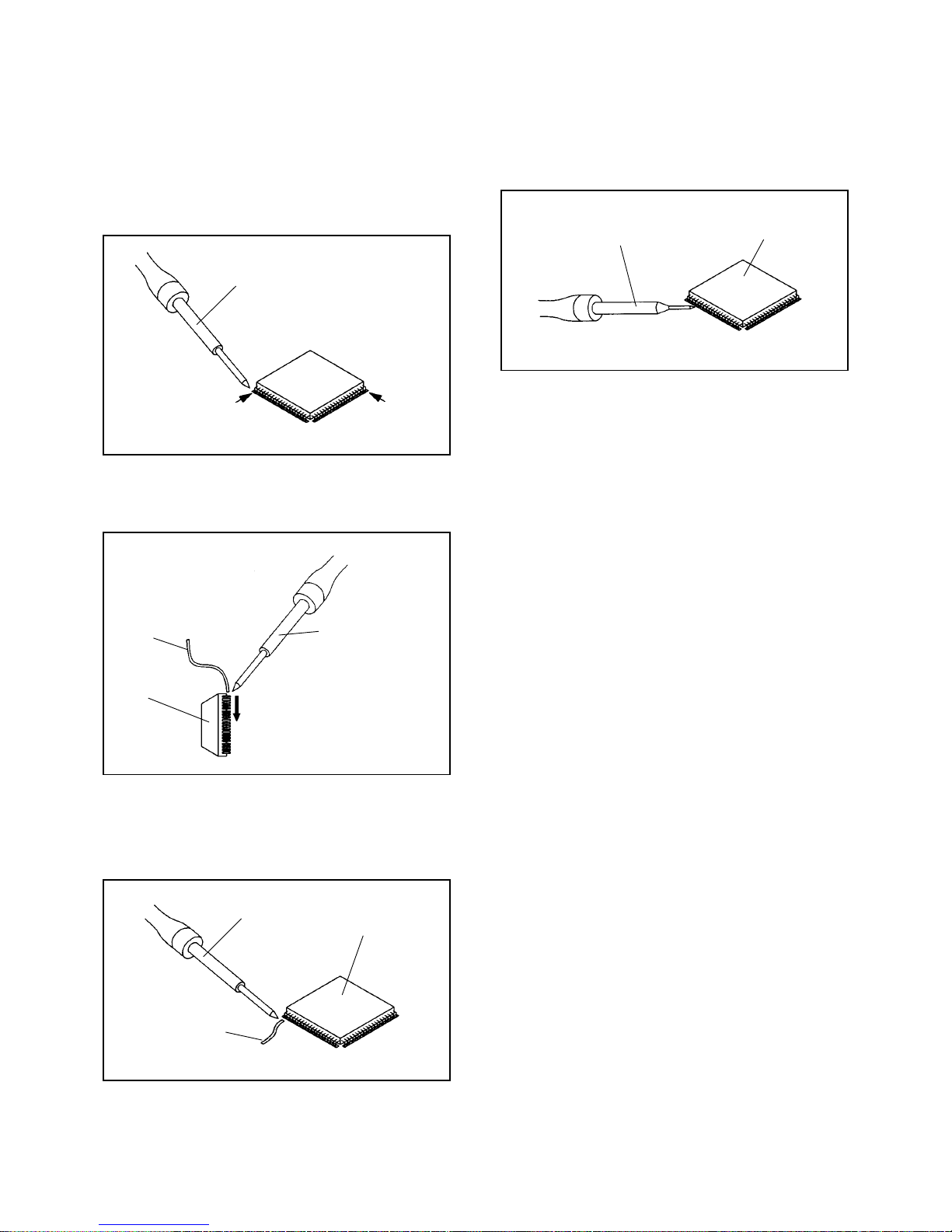

Supply soldering from upper position to lower position

IC

Supply the solder from the upper position of IC leads sliding to the lower position of the IC leads.

(Refer to Fig. 2-6.)

2.

Fig. 2-6

Soldering IronSolder

IC

Absorb the solder left on the lead using the Braided Shield Wire. (Refer to Fig. 2-7.)

3.

Fig. 2-7

Soldering Iron

Braided Shield Wire

NOTE

Do not absorb the solder to excess.

IC

When bridge-soldering between terminals and/or the soldering amount are not enough, resolder using a Thintip Soldering Iron. (Refer to Fig. 2-8.)

4.

Fig. 2-8

Thin-tip Soldering Iron

NOTE

When the IC leads are bent during soldering and/or repairing, do not repair the bending of leads. If the bending of leads are repaired, the pattern may be damaged. So, be always sure to replace the IC in this case.

Finally, confirm the soldering status on four sides of the IC using a magnifying glass. Confirm that no abnormality is found on the soldering position and installation position of the parts around the IC. If some abnormality is found, correct by resoldering.

5.

Solder temporarily

Soldering Iron

INSTALLATION

Take care of the polarity of new IC and then install the new IC fitting on the printed circuit pattern. Then solder each lead on the diagonal positions of IC temporarily.

(Refer to Fig. 2-5.)

1.

Fig. 2-5

Solder temporarily

B2-2

SERVICE MODE LIST

This unit provided with the following SERVICE MODES so you can repair, examine and adjust easily. To enter the Service Mode, press both set key and remote control key for more than 1 second.

Set Key Remocon Key Operations

VOL. (-) MIN

0

Releasing of V-CHIP PASSWORD.

VOL. (-) MIN 1

Initialization of the factory. NOTE: Do not use this for the normal servicing. If you set a factory initialization, the memories are reser such as the clock setting, the cheannel setting, the POWER ON total hours, and PLAY/REC total hours.

C-1

CONFIRMATION OF HOURS USED

POWER ON total hours can be checked on the screen. Total hours are displayed in 16 system of notation.

1.

2.

3.

Set the VOLUME to minimum. Press both VOL. DOWN button on the set and Channel button (6) on the remote control for more than 1 second. After the confirmation of using hours, turn off the power.

INIT 00 83

0010

CRT ON

ADDRESS DATA

FIG. 1

Initial setting content of MEMORY IC. POWER ON total hours.

= (16 x 16 x 16 x thousands digit value) + (16 x 16 x hundreds digit value) + (16 x tens digit value) + (ones digit value)

WHEN REPLACING EEPROM (MEMORY) IC

If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to ensure correct data settings while making reference to TABLE 1.

Table 1

1.

2.

3.

4.

5.

6.

7.

8. The unit will now have the correct DATA for the new MEMORY IC.

Enter DATA SET mode by setting VOLUME to minimum. Press both VOL. DOWN button on the set and Channel button (6) on the remote control for more than 1 second. ADDRESS and DATA should appear as FIG 1. ADDRESS is now selected and should "blink". Using the SET + or - keys on the remote, step through the ADDRESS until required ADDRESS to be changed is reached. Press ENTER to select DATA. When DATA is selected, it will "blink". Again, step through the DATA using SET + or - until required DATA value has been selected. Pressing ENTER will take you back to ADDRESS for further selection if necessary. Repeat steps 3 to 6 until all data has been checked. When satisfied correct DATA has been entered, turn POWER off (return to STANDBY MODE) to finish DATA input.

+9

+2

INI +0 +1

+3 +4 +5 +6

+7

00

+8 +A

09 B3

24 19 01 00 4408 20 98 02

+B +C

+D +E +F

05

00

D5 FF

A5

VOL. (-) MIN

6

POWER ON total hours is displayed on the screen. Refer to the "CONFIRMATION OF HOURS USED".

Can be checked of the INITIAL DATA of MEMORY IC. Refer to the "WHEN REPLACING EEPROM (MEMORY) IC".

VOL. (-) MIN 8

Writing of EEPROM initial data. NOTE: Do not use this for the normal servicing.

VOL. (-) MIN

Display of the Adjustment MENU on the screen. Refer to the "ELECTRICAL ADJUSTMENT" (On-Screen Display Adjustment).

9

ELECTRICAL ADJUSTMENTS

1.

Read and perform these adjustments when repairing the circuits or replacing electrical parts or PCB assemblies.

CAUTION

•

Use an isolation transformer when performing any service on this chassis. Before removing the anode cap, discharge electricity because it contains high voltage. When removing a PCB or related component, after unfastening or changing a wire, be sure to put the wire back in its original position. Inferior silicon grease can damage IC's and transistors. When When you exchange IC and Transistor for a heat sink, apply the silicon grease (YG6260M) on the contract section of the heat sink, Before applying new silicon grease, remove all the old silicon grease. (Old grease may cause damages to the IC and Transistor.)

2. BASIC ADJUSTMENTS

2-1: RF AGC DELAY

D-1

Place the set with Aging Test for more than 15 minutes. Receive an 63dB monoscope pattern.

Connect the digital voltmeter to W043. Activate the adjustment mode display of Fig. 1-1 and press the channel button (02) on the remote control to select "RF.AGC". Press the VOL. UP/DOWN button on the remote control until the digital voltmeter is 2.5V ± 0.05V.

1.

2.

3.

4.

5.

BEFORE MAKING ELECTRICAL ADJUSTMENTS

2-2: CUT OFF

1.

2.

3.

4.

Adjust the unit to the following settings. R.DRIVE=10, B.DRIVE=10, R.BIAS=64, G.BIAS=64, B.BIAS=64, BRIGHTNESS=120, CONTRAST=40. Place the set with Aging Test for more than 15 minutes. Activate the adjustment mode display of Fig. 1-1 and press the channel button (01) on the remote control to select "CUT OFF". Adjust the Screen Volume until a dim raster is obtained.

2-3: FOCUS

1.

2.

3.

Receive the monoscope pattern. Turn the Focus Volume fully counterclockwise once. Adjust the Focus Volume until picture is distinct.

2-4: WHITE BALANCE NOTE: Adjust after performing CUT OFF adjustment.

Place the set with Aging Test for more than 10 minutes. Receive the white 100% signal from the Pattern Generator. Using the adjustment control, set the brightness and contrast to normal position. Activate the adjustment mode display of Fig. 1-1 and press the channel button (10) on the remote control to select "R.BIAS". Using the VOL. UP/DOWN button on the remote control, adjust the R.BIAS. Press the CH. UP/DOWN button on the remote control to select the "R.DRIVE", "B.DRIVE", "G.BIAS" or "B.BIAS". Using the VOL. UP/DOWN button on the remote control, adjust the R.DRIVE, B.DRIVE, G.BIAS or B.BIAS. Perform the above adjustments 6 and 7 until the white color is looked like a white.

1.

2.

3.

4.

5.

6.

7.

8.

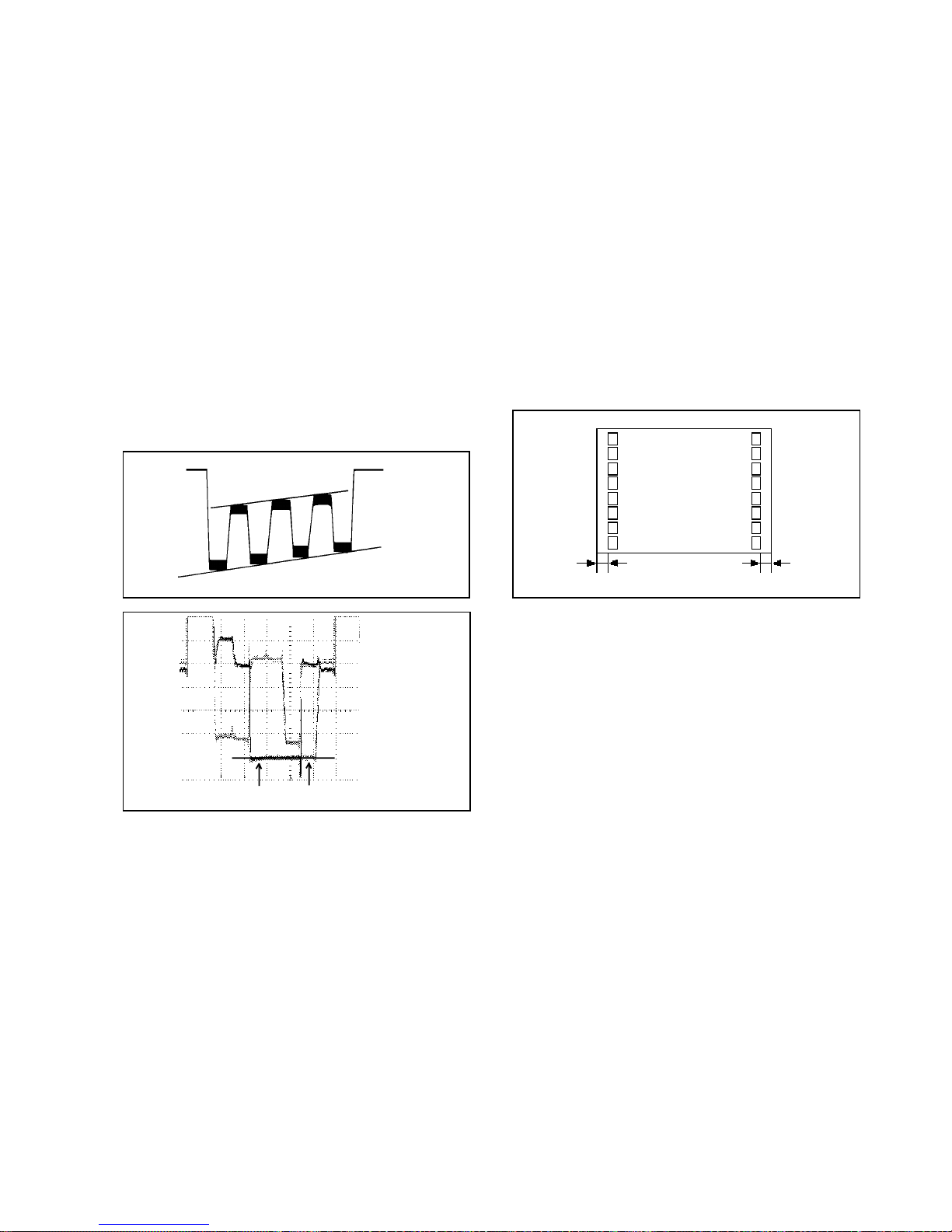

1. Synchro Scope

2. Digital Voltmeter

On-Screen Display Adjustment

In the condition of NO indication on the screen. Press the VOL. DOWN button on the set and the Channel button (9) on the remote control for more than 1 second to appear the adjustment mode on the screen as shown in Fig. 1-1.

1.

Fig. 1-1

Use the Channel UP/DOWN button or Channel button (0-9) on the remote control to select the options shown in Fig. 1-2. Press the MENU button on the remote control to end the adjustments.

2.

3.

Prepare the following measurement tools for electrical adjustments.

FUNCTION

OSD H CUT OFF RF DELAY VIF VCO H.VCO H.PHASE V.SIZE V.SHIFT R.DRIVE B.DRIVE R.BIAS G.BIAS B.BIAS BRIGHT CENT BRIGHT MAX BRIGHT MIN

NO.

00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15

Fig. 1-2

FUNCTION

CONTRAST CENT CONTRAST MAX CONTRAST MIN COLOR CENT COLOR MAX COLOR MIN TINT SHARPNESS FM LEVEL LEVEL SEPARATION 1 SEPARATION 2 TEST MONO TEST STEREO X-RAY TEST

NO.

16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

TV

00 OSD 15

D-2

ELECTRICAL ADJUSTMENTS

2-9: OSD HORIZONTAL

1.2.Activate the adjustment mode display of Fig. 1-1. Press the VOL. UP/DOWN button on the remote control until the difference of A and B becomes minimum. (Refer to Fig. 2-3)

BA

TV

00 OSD 15

Fig. 2-3

2-10: VIF VCO

1.

2.

3.

4.

5.

Place the set with Aging Test for more than 10 minutes. Receive an 80dB monoscope pattern. Connect the digital voltmeter between the pin 5 of CP601 and the GND. Activate the adjustment mode display of Fig. 1-1 and press the channel button (03) on the remote control to select "V.VCO". Press the VOL. UP/DOWN button on the remote control until the digital voltmeter is 2.5V.

Receive an 70dB the color bar pattern. Activate the adjustment mode display of Fig. 1-1 press the channel button (17) on the remote control to select "CONT.MAX". Press the VOL. UP/DOWN button on the remote control until the contrast step No. become "40". Press the TV/AV button on the remote to set to the AV mode. Then perform the above adjustment 2. Press the VOL. UP/DOWN button on the remote control until the contrast step No. become "38".

1.

2.

3.

4.

5.

2-12: SUB CONTRAST

Receive an 70dB monoscope pattern. Activate the adjustment mode display of Fig. 1-1 and press the channel button (13) on the remote control to select "BRI.CENT". Press the VOL. UP/DOWN button on the remote control until the screen begin to shine. Press the TV/AV button on the remote to set to the AV mode. Then perform the above adjustment 2, 3.

1.

2.

3.

4.

2-11: SUB BRIGHTNESS

2-8: VERTICAL SHIFT

1.

2.

3.

Receive the crosshatch signal from the Pattern Generator. Activate the adjustment mode display of Fig. 1-1 and press the channel button (07) on the remote control to select "V.SFT". Press the VOL. UP/DOWN button on the remote control until the horizontal line becomes fit to the notch of the shadow mask.

NOTE: Adjust after performing adjustments in section 2-7

2-5: SUB TINT/SUB COLOR

1.

2.

3.

4.

5.

6.

7.

8.

9.

Receive the color bar pattern. Connect the oscilloscope to TP023. Activate the adjustment mode display of Fig. 1-1 and press the channel button (22) on the remote control to select "TINT". Press the VOL. UP/DOWN button on the remote control until the section "A" becomes as straight line

(Refer to Fig. 2-1)

Connect the oscilloscope to TP022. Activate the adjustment mode display of Fig. 1-1 and press the channel button (19) on the remote control to select "COL.CENT". Press the VOL. UP/DOWN button on the remote control until the red color level is adjusted to 100% of the white level. (Refer to Fig. 2-2) Receive the color bar pattern. (Audio Video Input) Press the TV/AV button on the remote control to set to the AV mode. Then perform the above adjustments 2~7

Fig. 2-1

100%

white 100% red 100%

Fig. 2-2

"A"

2-7: VERTICAL SIZE

1.

2.

3.

4.

Receive the crosshatch signal from the Pattern Generator. Activate the adjustment mode display of Fig. 1-1 and press the channel button (06) on the remote control to select "V.SIZE". Press the VOL. UP/DOWN button on the remote control until the SHIFT quantity of the OVER SCAN on upside and downside becomes 10 ± 2%. Receive a broadcast and check if the picture is normal.

NOTE: Adjust after performing adjustments in section 2-6

2-6: HORIZONTAL PHASE

1.

2.

3.

Receive the center cross signal from the Pattern Generator. Activate the adjustment mode display of Fig. 1-1 and press the channel button (05) on the remote control to select "H.PHAS". Press the VOL. UP/DOWN button on the remote control until the SHIFT quantity of the OVER SCAN on right and left becomes minimum.

2-13: Confirmation of Fixed Value (step No.)

Please check if the fixed values of the each adjustment items are set correctly referring below.

NO.

04 14 15 16 18 20 21 23 24 25 26 27 28 29

FUNCTION

H VCO BRIGHT MAX BRIGHT MIN CONT CENT CONT MIN COLOR MAX COLOR MIN SHARPNESS FM LEVEL LEVEL SEPARATION 1 SEPARATION 2 TEST MONO TEST STERO

RF

04 140 60 30 12 74 01 40 00 00 00 00 00 00

ELECTRICAL ADJUSTMENTS

D-3

AV

04 140 60 30 12 75 01 40 00 00 00 00 00 00

ELECTRICAL ADJUSTMENTS

3.

1.

2.

3.

1.

2.

3.

4.

5.

6.

7.

8.

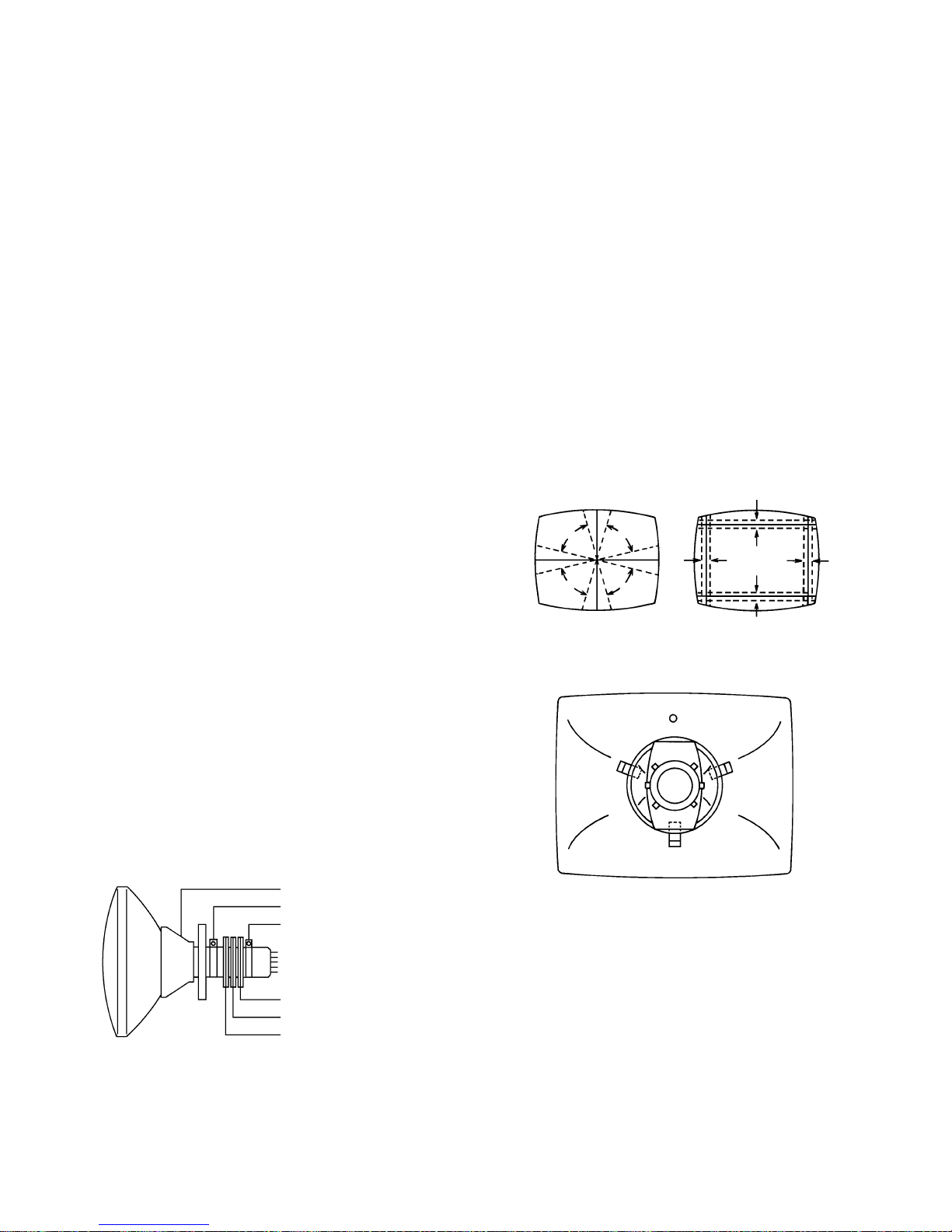

3-2: PURITY NOTE

Adjust after performing adjustments in section 3-1.

1.

2.

3.

4.

5.

Receive the green raster pattern from color bar generator. Adjust the pair of purity magnets to center the color on the screen. Adjust the pair of purity magnets so the color at the ends are equally wide. Move the deflection yoke backward (to neck side) slowly, and stop it at the position when the whole screen is green. Confirm red and blue colors. Adjust the slant of the deflection yoke while watching the screen, then tighten the fixing screw.

DEFLECTION YOKE DEFLECTION YOKE SCREW MAGNET SCREW

PURITY MAGNETS 6 POLE MAGNETS

4 POLE MAGNETS

Fig. 3-1

PURITY AND CONVERGENCE ADJUSTMENTS

NOTE

3-1: STATIC CONVERGENCE (ROUGH ADJUSTMENT)

Tighten the screw for the magnet. Refer to the adjusted CRT for the position. (Refer to Fig. 3-1) If the deflection yoke and magnet are in one body, untighten the screw for the body. Receive the green raster pattern from the color bar generator. Slide the deflection yoke until it touches the funnel side of the CRT. Adjust center of screen to green, with red and blue on the sides, using the pair of purity magnets. Switch the color bar generator from the green raster pattern to the crosshatch pattern. Combine red and blue of the 3 color crosshatch pattern on the center of the screen by adjusting the pair of 4 pole magnets. Combine red/blue (magenta) and green by adjusting the pair of 6 pole magnets. Adjust the crosshatch pattern to change to white by repeating steps 6 and 7.

Turn the unit on and let it warm up for at least 30 minutes before performing the following adjustments. Place the CRT surface facing east or west to reduce the terrestrial magnetism. Turn ON the unit and demagnetize with a Degauss Coil.

3-3: STATIC CONVERGENCE

D-4

1.

2.

3.

3-4: DYNAMIC CONVERGENCE

Adjust after performing adjustments in section 3-3.

1.2.Adjust the differences around the screen by moving the deflection yoke upward/downward and right/left.

(Refer to Fig. 3-2-a)

Insert three wedges between the deflection yoke and CRT funnel to fix the deflection yoke.

(Refer to Fig. 3-2-b)

R G B

Fig. 3-2-a

WEDGE

WEDGE POSITION

Fig. 3-2-b

R G B

Receive the crosshatch pattern from the color bar generator. Combine red and blue of the 3 color crosshatch pattern on the center of the screen by adjusting the pair of 4 pole magnets. Combine red/blue (magenta) and green by adjusting the pair of 6 pole magnets.

UPWARD/DOWNWARD SLANT RIGHT/LEFT SLANT

Adjust after performing adjustments in section 3-2.

NOTE

ELECTRICAL ADJUSTMENTS

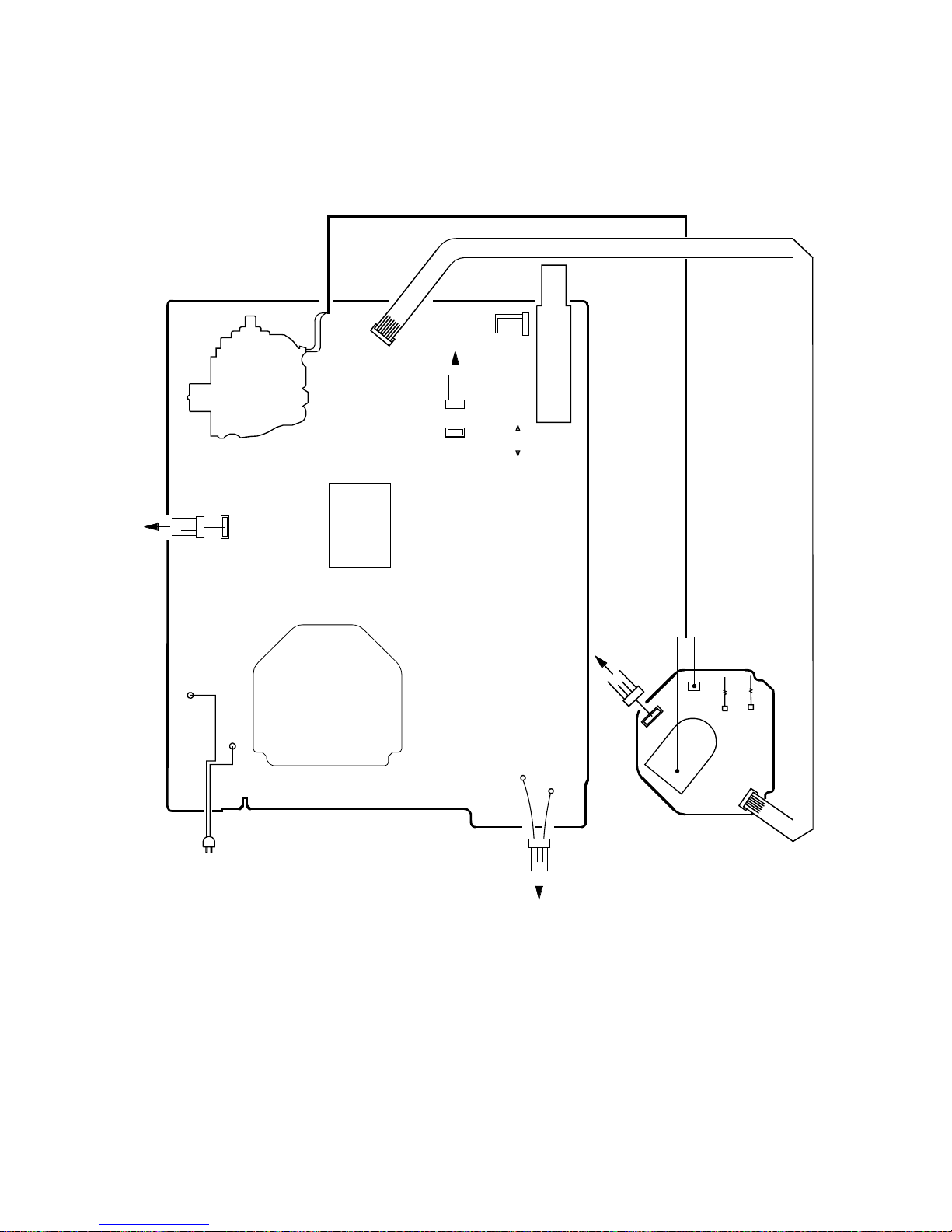

4. ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE (WIRING CONNECTION)

D-5

MAIN PCB

TU001

FB401

CRT PCB

CP806

CP801

CD806

CP802B

CP802A

TP022

R803

TP023

R807

CP601

T502

S501B

S501A

CD501

AC IN

CD802

CD101A

SPEAKER

CD101B

CD801

CRT

CP401

CRT

L503

CP502

J801

W043

OS101

BLOCK DIAGRAM

20

15

14

16

59

64

63

47

51

CF601

SAW FILTER

30

AGC

IF

TU001

11

1

CHROMA IC IC601 M61250FP

PUMP UP

7365

V-OUT IC IC401 AN5522

IC1001 AN7511

SP1001

Q801

RED OUT

Q802

GREEN OUT

Q803

BLUE OUT

CRT

3

9

7

RGB

Heater

F

8

37

V. SYNC

MICON IC IC101 OEC7073A

9

HV

F S

FB401

10

1

Q402

H. DRIVE

Q401

H. OUTPUT

AUDIO MUTE1

28

4

34

X602

3.579545MHz

Q606

REG.

2 6

E-1 E-2

SOUND AMP

IC

2

POWER

VOL. UP

KEY1

6

CH. UP

VOL. DOWN

CH. DOWN

1

REMOCON

9

4

SDA

5

SCL

4

30

SCL1

31

SDA1

6

5

MEMORY IC IC199 S-24C02BDP-1A

27 26

5

8

UNREG + 12V

11

3

AUDIO OUT

8.7V REG OUT

R OUT G OUT B OUT

POWER ON CONT

H OUT

X' TAL

RF AGC OUT

VIF IN (1)

VIF IN (2)

V PULSE OUT SCL SDA MCU RESET

V OUT

KEY2

7

SDA

SCL

19

INV FBP OUT38

H. SYNC

24

33

BLANK BL

FAST BLK

21

B IN36

BLUE B

22

35

GREEN G

G IN

23

R IN

34

RED R

26

CVIN

31

Y SW OUT

32

AT5.7V REG OUT

42

VREG VCC

10

FBP IN

Q603

REG.

DY

49

P.CON 5.7V REG

Q604, Q605

REG.

D501~D504 RECTIFIER

2

5

1

3

L501

AC IN

F501

R. SIGNAL

B. SIGNAL

DEFLECTION SIGNAL

G. SIGNAL

AUDIO SIGNAL

TUNER VIDEO SIGNAL

Q507

Q504 FEED BACK

T502

4

8

13

FEED BACK

SW

Q502

BUFFER

Q501 SWITCHING

6

41

TV/Y IN

58

VIF VIDEO OUT

LUMINANCE SIGNAL

27

RESET

Q610

H-CTL

42

H-CTL

DEGAUSS COIL

L503

53

EXT AUDIO IN

38

EXT C in

J703

2

J702

2

2 3 1

J1001

AMP

+

-

29

POWER

C123

IC199

X602

SW101

SW102

SW104

SW105

FH501

FH502

F501

CP502

R500

R445

R002

C004

C003

R410

R403

C437

D410

R418

R423

C417

C427

C418

C414

D404

R421

C446

C440

Q402

T401

R446

R429

J1001

IC1001

R415

R413

C

P802A

OS101

W001

W002

R1007

TU001

W003

W004

W005

W006

C526_1

D501

D503

D502

C502

C503

Q504

D509

R508

R510

R511

C509

Q502

D508

C501

D506

C514

C518

C515

D528

SW103

CP601

AFC

GND

ABL

8V

12V

25V

B+

COL

T502

R417

D001

C448

C407

D505

C517

D513

IC401

CP401

Q507

FB401

D510

W826

W007

R527

R422

C506

D504

R427

C002

J703

J702

W008

R515

R517_1

S501B

S501A

W009

R424

W010

C443_1

C435

W011

W803

C

5

21

R001

C403

C511

HS501

HS402

HS401

Q401

W824

C505

W012

R701

W013

W014

C1005

C1003

C1004

C1001

L101

W835

C128

C101

C122

C120

C115

C613_2

C621

C601

C628

C605

CF604

L607

C632

C606

C642

C604

CF603

C630

Q605

Q604

Q606

C619

C624

D601

D602

W017

C625

Q603

C638

W818

W018

W019

C635

R635

C612

D610

D611

D612

W022

R614

C603

Q610

Q609

R627

R631

R630

R

6

29

W023 W024

W025

R606

W026

D605

W027

C519

W030

R805_1

W031

CP802B

C819

CP801

Q803

Q801

Q802

R806

R803_1

R807_1

CP806_1

J801

L801

C118

W034

R401

R408

D619

W036

D406_1

W037

R514

C402

R402

C444_3

W040

W041

CF601_1

W042

W043

W044

C647

W821

C645

W831

W897

W832

W896

R804_1

R802_1

R512

W046

W047

R641

R519

R518

D514

R513

R110

W049

CD101B

CD101A

C801

W050

D403

D405

D411

W809

W051

C119

W812

D522

W056

W057

R108

R107

R448_1

R

5

4

2

W015

W016

R1003

W058

R117

R648

C616

R520

R509

R146_1

D512

R623

D803

D801

D802

W059

C627

C629_1

W805

C127

C126

R506

TH501

W836

D604

D607

C130

L501_1

D408

R501

C1006

C1002_1

W032

C626

C602

C607

W052

C637

C639

C124

C622

B503

C640

C434

R409

TP402

R704

L402

W060

R616

W845

W806

C139

C141

C136

W817

W840

R624

W834

W820

W842

W823

W844

W804

W829

W819

Q501

CD501

L601

C634

C422_1

R416

R139

W035

W828

W814

D606

S101A

S

101B

4A125VOR250V

PRINTED CIRCUIT BOARDS

MAIN/CRT (INSERTED PARTS)

SOLDER SIDE

F-1

F-2

D407

AGC

IC101

IC601

R128

R101

R126

R419

R420

C513

R112

R703

R702

R143

R113

R1005

R1004

R127

C113 C114

R132

R115

R124

R104

R122

R102

R123

R103

R121

R120

R106

R105

R130

C121

C138

R134

R601

R602

R609

R622

R615

C655

R628

R639

R632

R633

R646

R642

C140

R619

R625

R605

R617

R141

R142

R811

R809

R814

R815

R813

R816

R129

R638

R626

R1001

R133

R612

R111

C810

C808

C809

R118

R1008

R125

C618

C623

R529

PRINTED CIRCUIT BOARDS

MAIN/CRT (CHIP MOUNTED PARTS)

SOLDER SIDE

F-3 F-4

17

33

49

1

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

THE DC VOLTAGE AT EACH PART WAS MEASURED

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST

WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

NOTE:

C120

0.001 CH

C113

12P CH

C141

0.1 F

C139

0.1 F

C136

0.1 F

C140

820P W

C114

12P CH

C119

0.1 F

C124

0.01 B

C138

560P W

C130

0.01 B

C121 220P B

C101

0.001 CH

C004 0.022 F

C126 0.01 B

C127 470P B

C115

0.150V KA

C122 150V KA

C002 4706.3V YK

C003

4.750V KA

C123

1025V KA

R111

47K

R139 1001/4W

R130 1K

R117

47K

R127

2.7K

R126

2.7K

R101

560

R123

4.7K R122

4.7K R121

4.7K R120

4.7K

R124

4.7K

R104

680

R103

680

R102

680

R001

18K 1/2W

R002

18K 1/2W

R112

2.2K R113

2.2K

R141

270

R142

270

R128

560

R115

47K

R132

47K

R129

1M

R134

470

R118

47K

R108

100 R107

100

R143

47

R105 4.7K

R106 4.7KR133 1K

R1101K 1/4W

R125

47K

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

DANS LA NOMENCLATURE DES PIECES

N’UTILISER QUE CELLS DECRITES

DANGEREUSES AN POINT DE VUE SECURITE

ETANTLES PIECES REPAREES PAR UNATTENTION:

DESCRIBED IN PARTS LIST ONLY

CRITICAL FOR SAFETY,USE ONES

ARESINCE THESE PARTS MARKED BYCAUTION:

D607 MTZJ5.6B

D604 MTZJ5.6B

D001 MTZJ30B

W814

W840

W806

W845

W835

L101

3.3uH

SW101

SKHVBED010

CH UP

SW102

SKHVBED010

CH DOWN

SW103

SKHVBED010

VOL UP

SW104

SKHVBED010

VOL DOWN

SW105

SKHVBED010

POWER

TU001 TECC1040PG32E

1

10

11

12 13

14 15

23456

7

8

9

C118

3306.3V YK

C128

33010V YK

IC199

S-24C02BDP-1A

MEMORY IC

1234

5678

GNDB+Vout

OS101

PIC-37143SY

123

IC101 OEC7073A

MICON IC

110111213141516171819 22021

22 23 24 25 26 27 28 29

3

30 31 32 33 34 35 36 37 38 39

4

40 41 42

56789

DEFLECTION SIGNAL

B.SIGNAL

G.SIGNAL

R.SIGNAL

TUNER VIDEO SIGNAL

TM101

RC-DW010

AGC

GND

IF

TUNER+5V

+B

X-RAY

POWER

DEGAUSS

AUDIO_MUTE

H_CTL PROTECT_H I2C_OFF

AFT SYNC HD

VD

OSD_B

OSD_G

OSD_R

OSD_BLK

SDA

SCL

CLOCK_CONT

POWER

FSC

RESET

AT+5V

AT+5VBACKUP

Y_VIDEO

1

2

4

3

FROM POWER

G-2G-1

0

4.98

0

4.98

0

4.95

2.27

5

4.99

2.69

0

5.2

1.05

2.26

0.9

3.6

5.2

2.8

5.2

4.7

4.98

5

4.8

5.2

5

5.2

0.8

3.2

TMA525

NC

IF

BTL

BPL

V.S

SDA

SCL

ADRES

AGC

30.0

4.6

6.2

1.3

NC

000

4.9

4.8

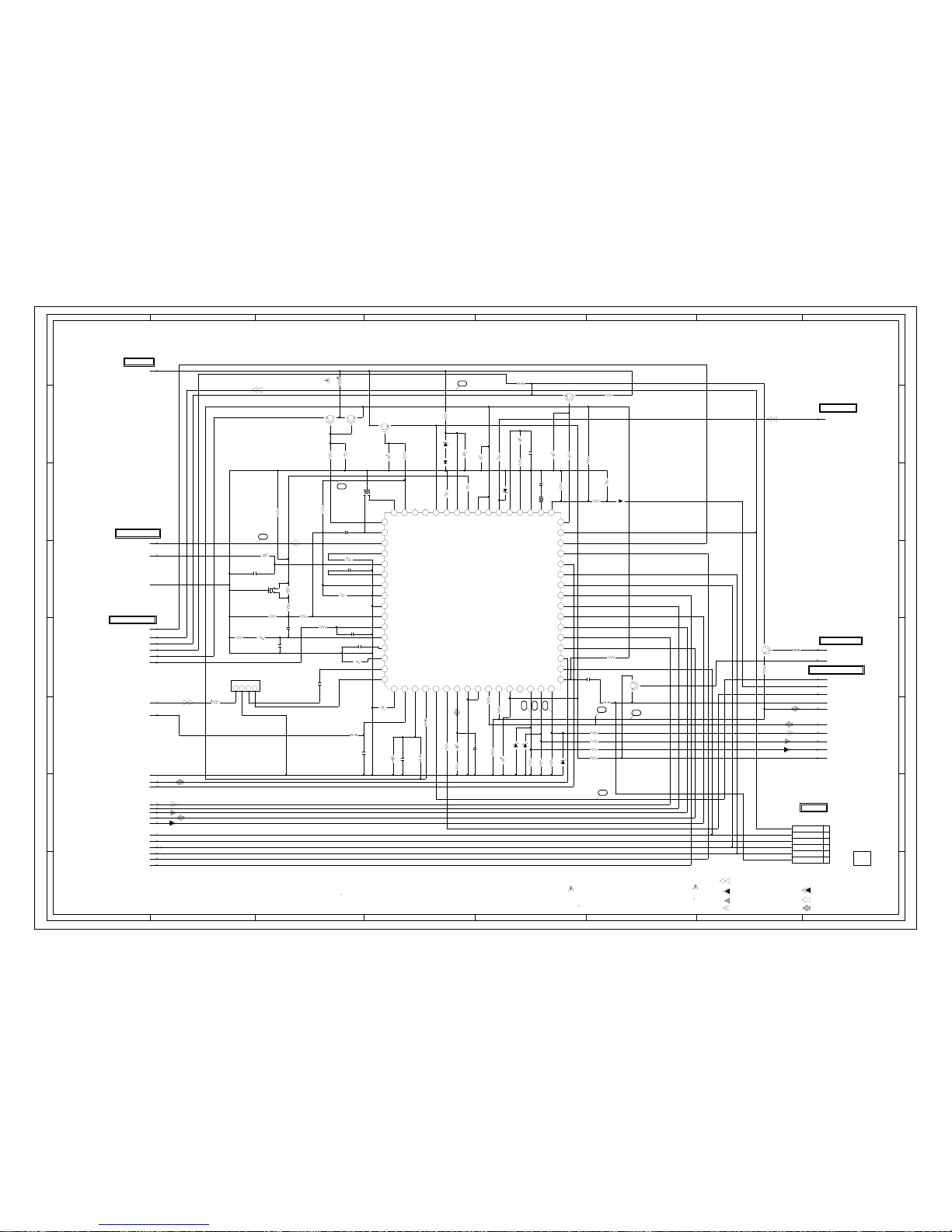

MICON/TUNER SCHEMATIC DIAGRAM

(MAIN PCB)

0

4.8

4.9

VCC

Xout

VSS

CNVSS

Xin

OSC2

OSC1

P.FAIL

REMOCON

X-RAY

BLUE B

GREEN G

RED R

BLANK

RESET

CVIN

V.HOLD

HLF

SCL1

SDA1

FSC IN

ACCESSORY

POWER

CLOCK CONT

V.SYNC

H.SYNC

I2C_OFF

STANDBY_H

SYNC

AV1

AV2

X-RAY_TEST

KEY2

KEY1

AFT

FILT

H_CTL

PROTECT_H

NC

AUDIO MUTE

EXT MUTE

ON TIMER

DEGAUSS

NC

4.8

0000

4.904.8

VSSE2E1

E0 VCC

MODE

SCL

SDA

PCB010

FROM/TO CHROMA

FROM DEFLECTION/CRT

TO SOUND/AV

FROM/TO CHROMA

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

L601

0.56uH

X602

3.579545MHz

IS NON POLAR ONE.

THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP

THE RESISTOR MARKED F IS FUSE RESISTOR.NOTE:

D601

1SS133

D605

11E1-EIC

Q603

KTC3203_Y

REG

Q605

KTC3203_Y

REG

Q604

KTC3203_Y

REG

Q606

KTC3203_Y

REG

Q610

KTC3198

H.CTL

Q609

KTC3198

H.CTL

C627

150V NA

LUMINANCE SIGNAL AUDIO SIGNAL

IC601 M61250FP

CHROMA IC

1101112

13 14 15 16

17 18 19

2

20 21 22 23 24 25 26 27 28 29

3

30 31 32

333435363738394404142434445464748

49

5

50515253545556575859

6

6061626364

789

CF603

SFSRA4M50CF00-A0

CF604

TPSRA4M50C00-A0

CP601

00_8283_0611_00_000

1

2

3

4

5

6

R629

333W

GNDOUTOUTIN

CF601_1 TSF5229P3

1234

THE DC VOLTAGE AT EACH PART WAS MEASURED

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST

WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

NOTE:

C634

100P CH

C639

0.01 B

C623 0.0033 Y

C602 0.01 B

C626

0.01 B

C607 0.01 B

C616

15P CH

C655

0.0068 Y

C606

100P CH

C618

22P CH

C637 0.01 B

C622

0.022 B

C621

0.01 B

C640

0.01 B

C628

0.2250V KA

C629_1

150V YK

C619

2.250V KA

C625

150V KA

C645

4716V YK

C635 4716V YK

C632 0.150V KA

C624

4716V YK

C647

150V KA

C638

1050V KA

C601 1006.3V YK

C630

4716V YK

C603

150V KA

C612

100010V YK

C642

150V KA

C605

0.4750V KA

C613_2

163V MKT

C604 150V KA

R624

47

R146_1

220 1/4W

R614 2.2K

R619 2.2K

R625 2.2K

R630

100

R627 100

R617 1K

R631 100

R601

2.2K

R602

1K

R635

100

R639

1.5K

R628

100

R606

10K

R623 120 1/4W

R626

22K

R632

220

R646

47K

R638

22K

R642

1K

R648

1M

R612

1K

R633

8.2K

R615

470

R622

68

R605

4.7K

R641 22K 1/4W

R609

220

R616

10M

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

DANS LA NOMENCLATURE DES PIECES

N’UTILISER QUE CELLS DECRITES

DANGEREUSES AN POINT DE VUE SECURITE

ETANTLES PIECES REPAREES PAR UNATTENTION:

DESCRIBED IN PARTS LIST ONLY

CRITICAL FOR SAFETY,USE ONES

ARESINCE THESE PARTS MARKED BYCAUTION:

D606 MTZJ6.8B

D612

MTZJ12B

D610 MTZJ12B

D602

MTZJ8.2B

D611 MTZJ12B

W823

W842

W818

W820

W817

W834

L607

15uH

DEFLECTION SIGNALB.SIGNAL

G.SIGNAL

R.SIGNAL

TUNER VIDEO SIGNAL

UNREG+12V

VIDEO_IN

AUDIO_OUT

RESET

AUDIO_IN

GND

CLOCK_CONT

RESET

Y_VIDEO

AT+5V

VD

AT+5VBACKUP H_CTL

TUNER+5V

OSD_BLK

PROTECT_H

AGC

SYNC

V_OUT

ABCL

OSD_G

OSD_R

OSD_B

V_FEEDBACK

IF GND

H_OUT

HD

AFT

H_SYNC

B.OUT

G.OUT

R.OUT

CLAMP

GND

HD

POWER

OSD_B

OSD_BLK

OSD_G

VD

OSD_R

SYNC

I2C_OFF

SDA

SCL FSC

CLOCK_CONT

8

9

10

5

7

FROMPOWER

G-3 G-4

(MAIN PCB)

FROM SOUND/AV

FROM/TO MICON/TUNER

NC NC

1.51

2.86

2.27

4.5

2.19

0

3.2

3.15

3.08

2.5

2.38

2.21

5.65

5.63.183.1002.51.84.72.88.72.557.96008.63

1.70

4.8

4.9

2.8

2.4

4.7

4.8

4.7

4.8

3.2

4.92

3.6

4.8

3.6

3.63.63.608663.452.74.24.84.82.634.62

6

5.69

5

7.9

6

0

NC

FROM/TO DEFLECTION/CRT

TEST POINT

6

11

12

00

0

13

4.9 7.2

5.5

7.2

5.5

8.8

5.5

4.9

R OUT

G OUT

VIF Vcc

V OUT

V RAMP FEEDBACK

AFC FILTER

DEF GND

FBP IN

H OUT

STRAT UP Vcc

INTELLIGENT MONI

INV FBP OUT

V PULSE OUT

B IN

R IN

G IN

FAST BLK

CLOCK CONT

SDA

SCL

POWER ON CONT

MCU RESET

Y SW OUT

VIDEO/CHROMA GND

CHROMA APC FILTER

EXT C in

VIDEO CHROMA Vcc

TV/Y IN

33 ACL/ABCL

34 X’TAL

VREG Vcc

fsc OUT 1

fsc OUT 2

Hi Vcc

NC

32 AT5.7V REG OUT

QIF OUT

AUDIO OUT

AUDIO BYPASS

EXT AUDIO IN

FM DIRECT OUT

VIF VCO F/B

VIF GND

VIF VIDEO OUT

RF AGC OUT

VIF APC FILTER

VIF IN (1)

IF AGC FILTER1

IF AGC FILTER2

64 VIF IN (2)

1 V RAMP CAP

2 AFT OUT

47 8.7V REG OUT 48 LIMITER IN 49 P.Con5.7V REG

16 B OUT

17 H VCO F/B

NC

7.9

8.5

11.3

NC

FROM/TO SOUND/AV

FROM MICON/TUNER

SCL

SDA

IIC_OFF

INT.MONI

VIDEO

GND

TMA525

CHROMA SCHEMATIC DIAGRAM

PCB010

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

B503

W5RH3.5X5X1.0

CP502

A1561WV2-2P

1

2

HS501

763WSAA013

R501

5.6 5W

21

L503

8R140030

DEGAUSS COIL

FH502

EYF-52BC

FH501

EYF-52BC

F501

51MS040LCC

233004-MB000

Q504

LTV-817M-VB

FEED BACK

1

2

34

L501_1

1R5A102F20

12

3

45

TH501

ZPB45BL3R0A

R518

5.6K +-1%

R514

0.22 1W

T502 81290904

10

11

12

13

14

15

16

17

18

2

3

4

5

6

7

8

4A 125V

TYPE 4A 125V (F501).

D’INCEIE N’UTILISER QUE DES FUSIBLE DE MEME

POUR UNE PROTECTION CONTINUE LES RISQUESATTENTION:

FUSE.

REPLACE ONLY WITH THE SAME TYPE 4A 125V (F501)

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,CAUTION:

S501AS501B

S

D

G

Q501

STP5NC50FP

BLACK

WHITE

BLADE

WIDE

CD501_2 0R414903

AC120V_60Hz

IS NON POLAR ONE.

THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP

THE RESISTOR MARKED F IS FUSE RESISTOR.NOTE:

D510

RU2AM-EIC

D505

SB290S

D501

1N4005-EIC

D504

1N4005-EIC

D502

1N4005-EIC

D503

1N4005-EIC

D514

1SS133

D522

1SS133

D508

1SS133

D512

1SS133

D513

SB290S

Q507

KTC3198-AT

(Y,GR)

FEED BACK SWITCHING

Q502

KTC3198

BUFFER

R542

0.68 1W

R517_1

1.2 1W

R508

220 1W

THE DC VOLTAGE AT EACH PART WAS MEASURED

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST

WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

NOTE:

C518

470P500V B

C505

0.1275V PHE840

C502

0.001

500V

B

C503

0.001500V B

C506

0.0047250V KX

C509

0.047 M

C517

470P2KV RR

C513

0.001 Y

C501

0.0082 M

C514

680P2KV RR

C511

150V KA

C526_1

220200V YK

R529

47K

R527

150

R511

1.2M

1/4W

R500

3.3M 1/2W

+-10%

R510

1.2M

1/4W

R519

1.2K

R515

120K 1/2W

R513

2.2K

R512

680

R506

2.7K

R509

220

R520

12K1/4W

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

DANS LA NOMENCLATURE DES PIECES

N’UTILISER QUE CELLS DECRITES

DANGEREUSES AN POINT DE VUE SECURITE

ETANTLES PIECES REPAREES PAR UNATTENTION:

DESCRIBED IN PARTS LIST ONLY

CRITICAL FOR SAFETY,USE ONES

ARESINCE THESE PARTS MARKED BYCAUTION:

D506

MTZJ18B

D509

MTZJ18B

D528

MTZJ5.6B

W828

W819

W844

W829

W824

W804

W836

W821

C519

470

16V

YK

C515

100016V YK

C521

100160V MHE

DEGAUSS

GND

SOUND+B

SOUND_GND

+B

UNREG+12V

GND

UNREG+12V

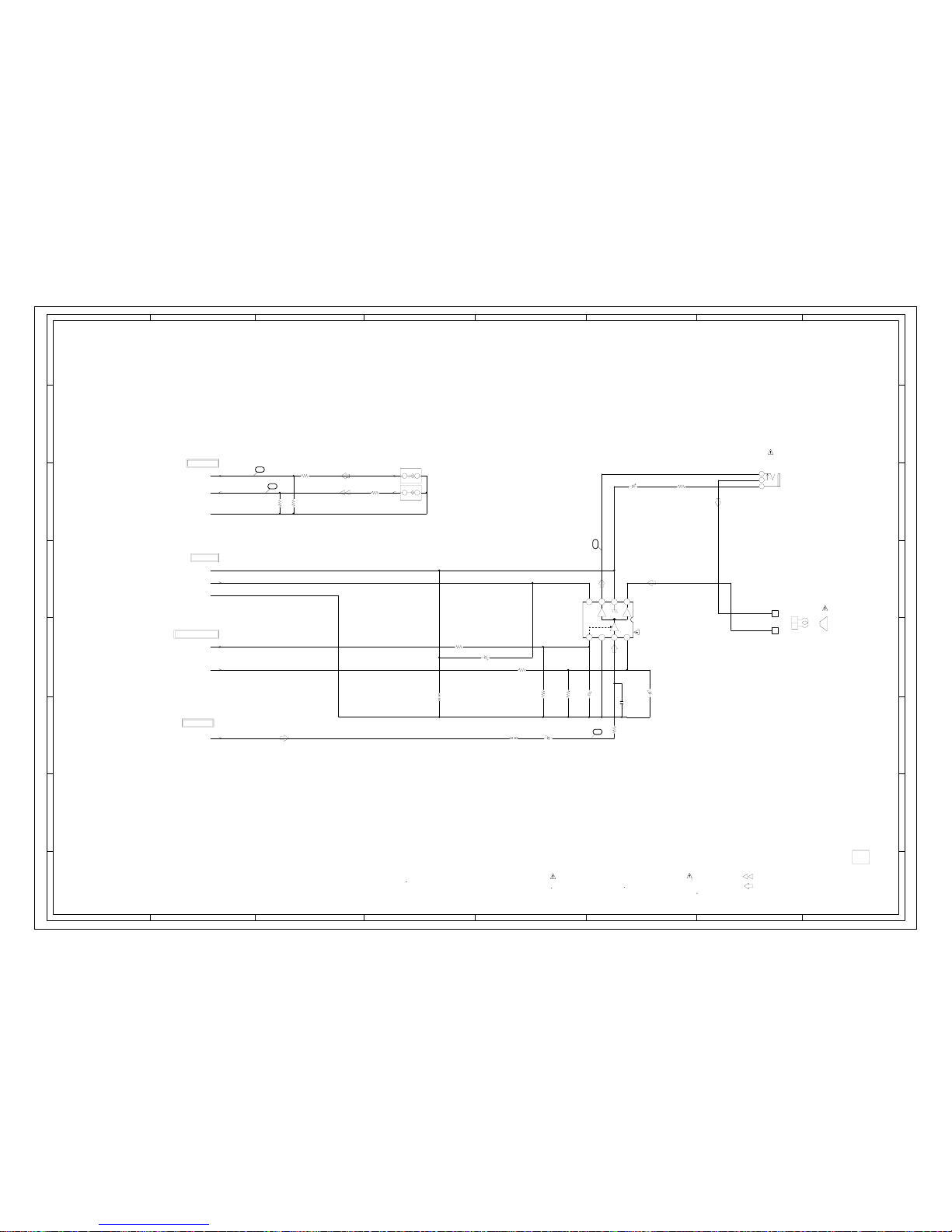

POWER SCHEMATIC DIAGRAM

TO MICON

TO SOUND/AV

G-6G-5

TO CHROMA

NC

TMA525

(MAIN PCB)

TO DEFLECTION/CRT

NC

9.5

5.5

6.0

9.50.1

10.511.5

4.8

0.1

0

4.8

144.0

10.0

NC

0

1.7

NC

0

132.3

11.3

NC

144.0

10.3

6.6

10.3

PCB010

0.1

ABC DEF GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

CP401

A1561WV2-A5P

1

2

3

4

5

IC401 AN5522V-OUT IC

1234567

T401

ETH09K14BZ

1

2

34

6

B

G

R

11

6

8

10

9

175

V801

A34JXV70X53N45

F

J801

ISMS01S

1

3

4

5

6

7

8

9

CP806_1 0

1

CP801

TBS-X01X-A1

1

CD801_1

0

Q401

2SD2627LS-CBC11

H.OUTPUT

VIDEO

8

E8

E25

E12

GND

TER

HEA

AFC

B+

GND

ABL

GND

COL

HV

F

S

FB401 3214029F

1

10

11

2

3

4

5

6

7

8

9

L801

220uH

CD802

6032014

CP802A

9253_010_000_000

1

10

2

3

4

5

6

7

8

9

CP802B

9253_010_000_000

1

10

2

3

4

5

6

7

8

9

HS401

763WSAA013

HS402

763WSAA013

R408

10K +-1%

R409

27K +-1%

R401

27K+-1%

R429

2.7

1W

D406_1

1SS133

D403

11E1-EIC

D410

AU02A-EIC

D405

AU02A-EIC

D408

11E1-EIC

D411

AU02A-EIC

D803 1SS133

D802 1SS133

D801 1SS133

Q402

2SC1627_Y

H.DRIVE

Q801

2SC1473A

RED OUT

Q802

2SC1473A

GREEN OUT

Q803

2SC1473A

BLUE OUT

R803_1 15K 1W

R805_1 15K 1W

R807_1 15K 1W

R448_1

820 2W

THE DC VOLTAGE AT EACH PART WAS MEASURED

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST

WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

NOTE:

C422_1

0.15100V

TF

C443_1

0.00471.25KV MPP

C801

330P B

C437

0.47250V

PMS

C440

0.0012500V

B

C402

0.01200V PP

C808

470P B

C809

470P B

C810

470P B

C819

0.0012KV B

C407

56P CH

C444_3

470P1.25KV MPP

C414

10035V

YK

C418

470

25V

YK

C448

22

200V

MHE

C403

47035V

YK

C435

0.1100V

MHE

C434

22100V YK

C446

2250V YK

R416

1 1/2W

R815

330

R813

330

R420

3.3K

R421

220K1/4W

R445

180K

1/4W

R806 2.7K

1/4W

R410

330 1/2W

R415

1.8K 1/2W

R816

330

R413

2.2K

1/2W

R403

22K1/4W

R427

100 1/4W

R422

2.2 1/2W

R419

470

R417

10K 1/4W

R418

22K1/4W

R446

470

1/2W

R423

100 1/4W

R424

470

R802_1 2.7K

1/4W

R804_1 2.7K 1/4W

R402

12 1/2W

R814 4.7K

R811 4.7K

R809 4.7K

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

DANS LA NOMENCLATURE DES PIECES

N’UTILISER QUE CELLS DECRITES

DANGEREUSES AN POINT DE VUE SECURITE

ETANTLES PIECES REPAREES PAR UNATTENTION:

DESCRIBED IN PARTS LIST ONLY

CRITICAL FOR SAFETY,USE ONES

ARESINCE THESE PARTS MARKED BYCAUTION:

D407

1SS133

D404

MTZJ6.2B

D619

MTZJ5.1B

W897

W831

W826

W832

W896W809

W812

L402 18uH

C427

1050V YK

C417

1050V YK

DEFLECTION SIGNAL

B.SIGNAL

G.SIGNAL

R.SIGNAL

GND GND

CLAMP

CLAMP CLAMP

G.OUT

G.OUT G.OUT

R.OUT

R.OUT R.OUT

B.OUT

B.OUT B.OUT

HEATER HEATER

GND GND

180V 180V

X-RAY

+B

GND

V_FEEDBACK

V_OUT

ABCL

H_OUT

H_SYNC

GND

+B

UNREG+12V

17

15

FROMPOWER

G-7 G-8

NOTE:THE RESISTOR MARKED F IS FUSE RESISTOR.

IS NON POLAR ONE.

THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP

UP

PUMP

PROTECTION

THERMAL

AMP

TCA384

TMA525

NC

SCREEN

FOCUS

NC

FOCUS

SCREEN

PCB110

NC

130.0

0

27.0

0.3

3.2

2.7

100.6

3.2

2.7

98.4

3.2

2.7

95.4

3.5 2.0 12.0 25.0 3.5

18

19

20 21 22

0

025.0

132.5

48.0

7.0

4.3

25.0

132.5

NC

(MAIN PCB)

DEFLECTION/CRT SCHEMATIC DIAGRAM

NC

GND GND

CLAMP CLAMP

G.OUT G.OUT

R.OUT R.OUT

B.OUT B.OUT

NC NC

HEATER HEATER

GND GND

NC NC

180V 180V

14

PCB010

TO DY

FROM CHROMA

130.0

FROM/TO CHROMA

16

NC

0

00

0

101.6

6.4

99.6

96.4

TO MICON/TUNER

1

ABC D E F GH

2

1

3

4

5

6

7

8

2

1

3

4

5

6

7

8

SPEAKER

SP1001 S08F21 8 OHM

J1001

HSJ1403-01-010

HEADPHONE_JACK

1

2

3

H

E

J703

AV1-09D-4

1

2

H

E

J702

AV1-09D-3

1

2

CD101A

CH012002

1

CD101B

CH012003

1

AUDIO SIGNAL

THE DC VOLTAGE AT EACH PART WAS MEASURED

WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST

WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.

NOTE:

C1004

0.0015 B

C1001

0.150V KA

C1005

1025V KA

C1006

4725V YK

R703

820

R702

47K

R701

68 1/4W

R704

10

R1003

68K

R1005

56K

R1004

100K

R1007

12 1/2W

R1001

47K

R1008

68K

OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE

NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME

DANS LA NOMENCLATURE DES PIECES

N’UTILISER QUE CELLS DECRITES

DANGEREUSES AN POINT DE VUE SECURITE

ETANTLES PIECES REPAREES PAR UNATTENTION:

DESCRIBED IN PARTS LIST ONLY

CRITICAL FOR SAFETY,USE ONES

ARESINCE THESE PARTS MARKED BYCAUTION:

W803

W805

C1002_1

47010V YK

C1003

150V KA

IC1001

AN7511

SOUND AMP IC

1234

5678

TUNER VIDEO SIGNAL

AUDIO_IN

VIDEO_IN

GND

SOUND_GND

SOUND+B

GND

AUDIO_MUTE

POWER

AUDIO_OUT

FROMPOWER

G-10G-9

TO CHROMA

FROM MICON/TUNER

VIDEO 2

AUDIO 2

26

25

(FRONT)

V_IN

A_IN

FROM CHROMA

1

2

-+

0

08.2 3.5 3.4

3.95.1 0.3

24

23

TMA525

PCB010

SOUND/AV SCHEMATIC DIAGRAM

(MAIN PCB)

MICON/TUNER

61

0.5V 20µs/div

2

5

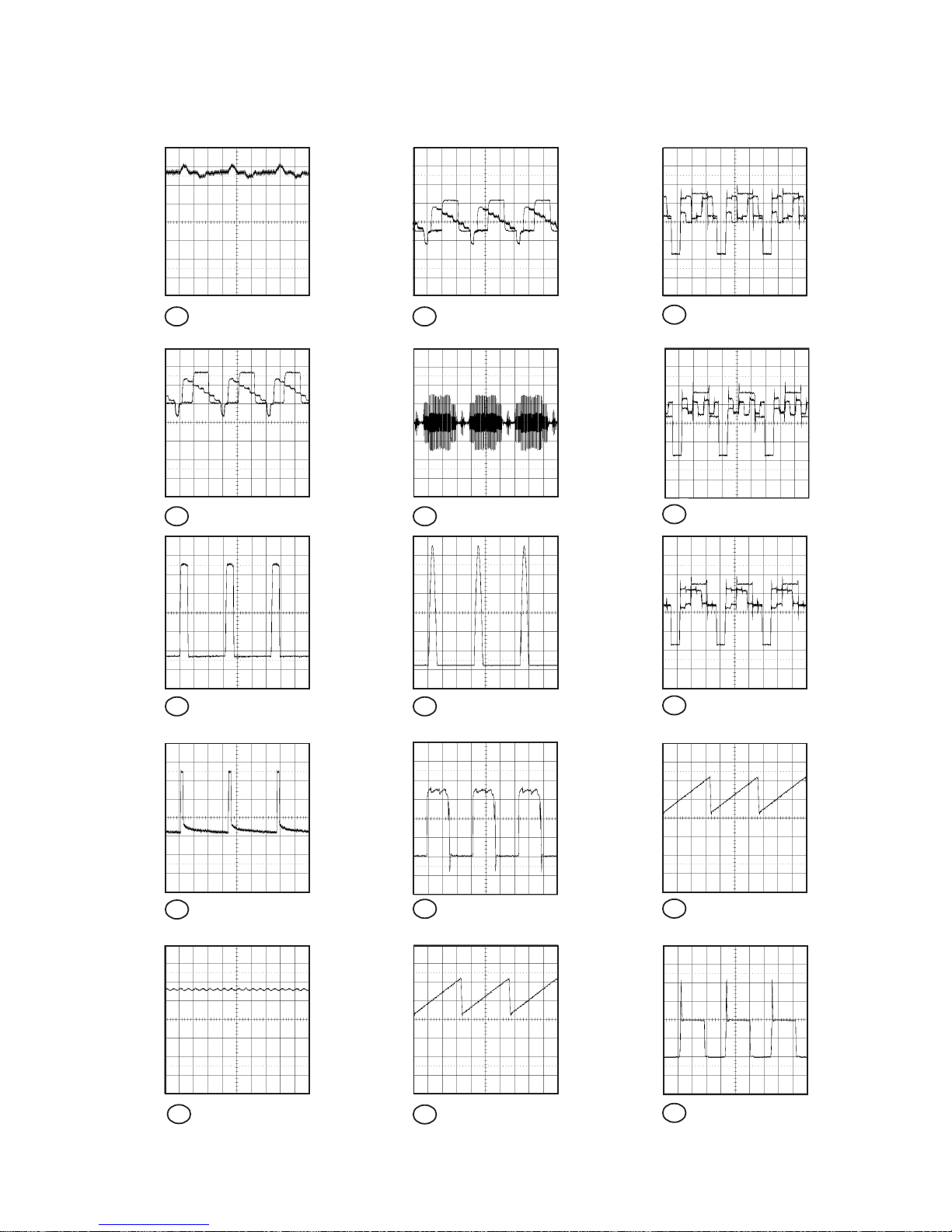

WAVEFORMS

0.5V 20µs/div

200mV 5ms/div

4

0.5V 2ms/div

200mV 20µs/div

7

9

200mV 20µs/div

CHROMA

0.5V 5ms/div

10

11

1V 20µs/div

12

1V 20µs/div

1V 20µs/div13

8

20V 20µs/div3

200mV 20µs/div

DEFLECTION/CRT

14

0.5V 5ms/div

15

20V 20µs/div

H-1

NOTE:The following waveforms were measured at the point of the corresponding

balloon number in the schematic diagram.

16

2V 20µs/div 21 50V 20µs/div

200V 20µs/div

17

22 50V 20µs/div

SOUND/AV

0.5V 1ms/div

23

10V 5ms/div18

10V 5ms/div

19

1V 1ms/div24

50V 20µs/div

20

NOTE:The following waveforms were measured at the point of the corresponding

balloon number in the schematic diagram.

H-2

WAVEFORMS

200mV 500µs/div

25

26500mV 20µs/div

MECHANICAL EXPLODED VIEW

I-1

FB401

206

PCB010 (MAIN PCB)

205

204

TU001

201

L503

110

J801

PCB110 (CRT PCB)

V801

106

103

SP1001

105

104

203

102

203

112

109

101

107

108

202

111

MECHANICAL REPLACEMENT PARTS LIST

REF. NO. PART NO. DESCRIPTION

101 A3L122C720 CABINET,FRONT ASS'Y 102 735WPA0396SPEAKER,HOLDER 103 701WPJB679CABINET,FRONT 104 713WPAA048GUIDE,REMOCON 105 735WPAA417BUTTON,FRAME 106 723000B319 FILM,DECORATION 107 702WPAA134CABINET,BACK 108 722552A020 SHEET,RATING 109 7230006818 SHEET,CAUTION

110 741WUA0019SPRING,EARTH 111 7220001119 SHEET,CSA WARNING 112 722000A023 SHEET,HWC

201 8121J50B54 SCREW,TAPPING(B0) GW20 5x28 202 8117540A64 SCREW,TAPPING(B0) TRUSS 4x16 203 8110630A04 SCREW,TAP TITE(P) BRAZIER 3x10 204 8109I30A04 SCREW,TAP TITE(B) WH7 3x10 205 8109630802 SCREW,TAP TITE(B) BRAZIER 3x8 206 8109I30604 SCREW,TAP TITE(B) WH7 3x6

--- JB5K0200 POLYBAG,INSTRUCTION

--- J3L10502 WARRANTY SHEET

--- J3L21101 INSTRUCTION BOOK

--- 791WHA0023LAMIFILM BAG

--- A3L211C975 INSTRUCTION BOOK KIT

--- 792WHAA018PACKAGE,BOTTOM

--- 792WHAA019PACKAGE,TOP

--- 793WCDB256GIFT BOX

--- 7230007398 SECURITY TAG

J1-1

ELECTRICAL REPLACEMENT PARTS LIST

REF. NO. PART NO. DESCRIPTION REF. NO. PART NO. DESCRIPTION

RESISTORS DIODES

!R401 R4X5T6273FR,METAL 27K OHM 1/6W D802 D1VT001330DIODE,SILICON 1SS133T-77 !R408 R4X5T6103FR,METAL 10K OHM 1/6W D803 D1VT001330DIODE,SILICON 1SS133T-77 !R409 R4X5T6273FR,METAL 27K OHM 1/6W

ICS

!R429 R655812R7JR,FUSE 2.7 OHM 1W IC101 I56F07073A IC OEC7073A

R448 R3X18A821JR,METAL OXIDE 820 OHM 2W IC199 A3L101C015IC S-24C02BDP-1A !R500 R0G3K2335KRC 3.3M OHM 1/2W !IC401 I01TD55220 IC AN5522 !R501 R5Y2CD5R6JR,CEMENT 5.6 OHM 5W IC601 I06FC61250 IC M61250FP !R508 R3X181221JR,METAL OXIDE 220 OHM 1W IC1001 I01DP75110IC AN7511 !R509 R001T6221JRC 220 OHM 1/6W

TRANSISTORS

!R514 R63581R22JR,FUSE 0.22 OHM 1W !Q401 TD30026270TRANSISTOR SILICON 2SD2627LS-CBC11 !R515 R002T2124JRC 120K OHM 1/2W !Q402 TC5T01627YTRANSISTOR SILICON 2SC1627_Y(TPE2) !R517 R3X1811R2JR,METAL OXIDE 1.2 OHM 1W !Q501 TJXG5NC500FET STP5NC50FP !R518 R4X5T6562FR,METAL 5.6K OHM 1/6W !Q502 TCATC31980TRANSISTOR,SILICON KTC3198-AT(Y,GR) !R519 R001T6122JRC 1.2K OHM 1/6W !Q504 0002E00610PHOTO COUPLER LTV-817M-VB !R542 R3X181R68JR,METAL OXIDE 0.68 OHM 1W Q507 TCATC31980TRANSISTOR,SILICON KTC3198-AT(Y,GR) !R629 R3X28B330JR,METAL OXIDE 33 OHM 3W Q603 TCAT032034TRANSISTOR, SILICON KTC3203_Y-AT !R803 R3X181153JR,METAL OXIDE 15K OHM 1W Q604 TCAT032034TRANSISTOR, SILICON KTC3203_Y-AT !R805 R3X181153JR,METAL OXIDE 15K OHM 1W Q605 TCAT032034TRANSISTOR, SILICON KTC3203_Y-AT !R807 R3X181153JR,METAL OXIDE 15K OHM 1W Q606 TCAT032034TRANSISTOR, SILICON KTC3203_Y-AT

CAPACITORS

Q609 TCATC31980TRANSISTOR,SILICON KTC3198-AT(Y,GR)

C402 P3N1F2103JCPP 0.01 UF 200V Q610 TCATC31980TRANSISTOR,SILICON KTC3198-AT(Y,GR) !C403 E02LT4471MCE 470 UF 35V !Q801 TCKT1473A0TRANSISTOR SILICON 2SC1473A-TA-(RQ) !C414 E02LT4101MCE 100 UF 35V !Q802 TCKT1473A0TRANSISTOR SILICON 2SC1473A-TA-(RQ) !C418 E02LT3471MCE 470 UF 25V !Q803 TCKT1473A0TRANSISTOR SILICON 2SC1473A-TA-(RQ) !C434 E02LT8220MCE 22 UF 100V

COILS &TRANSFORMERS

C437 P4J7F3474JCMPP 0.47 UF 250V PMS L101 021LA63R3KCOIL 3.3 UH !C443 P4N8FJ472HCMPP 0.0047UF 1.25KV L402 02186G180MCOIL 18 UH

C444 P4N8FJ471JCMPP 470 PF 1.25KV or !L501 029T00A7M1COIL,LINE FILTER 1R5A102F20

C0PLRR7Q2KCC 470 PF 2KV RR !L503 028R140030COIL,DEGAUSS 8R140030 !C446 E02LT5220MCE 22 UF 50V L601 021LA6R56MCOIL 0.56 UH !C448 E5EZ0C220MCE 22 UF 200V L607 021LA6150KCOIL 15 UH !C503 C0JTB0513KCC 0.001 UF 500V B L801 021673221KCOIL 220 UH !C505 P2472B104MCMP 0.1 UF 275V PHE840 T401 045009003J TRANS,HORIZONTAL DRIVEETH09K14BZ

C506 CB3930MQ3MCC 0.0047UF 250V !T502 0481290904TRANSFORMER,SWITCHING81290904 C514 C0PLRR7U2KCC 680 PF 2KV RR

JACKS

!C515 E02LT2102MCE 1000 UF 16V J702 060Q401077RCA JACK AV1-09D-3

C517 C0PLRR7Q2KCC 470 PF 2KV RR J703 060Q401076RCA JACK AV1-09D-4

!C519 E02LT2471MCE 470 UF 16V !J801 066F120018SOCKET,CRT ISMS01S

C521 E5EZFB101MCE 100 UF 160V J1001 0602121012JACK,RCA 3.5 HSJ1403-01-010

!C526 E02LFC221MCE 220 UF 200V

SWITCHES

C634 CQG0CH412JCC 100 PF 50V CH SW101 0504201T31SWITCH,TACT SKHVBED010 C819 C0JBB0713KCC 0.001 UF 2KV B SW102 0504201T31SWITCH,TACT SKHVBED010

DIODES

SW103 0504201T31SWITCH,TACT SKHVBED010 D001 D97U03001BDIODE,ZENER MTZJ30B T-77 SW104 0504201T31SWITCH,TACT SKHVBED010 D403 D2WT011E10DIODE SILICON 11E1-EIC SW105 0504201T31SWITCH,TACT SKHVBED010 D404 D97U06R21BDIODE,ZENER MTZJ6.2B T-77

P.C.BOARD ASSEMBLIES

!D405 D2WTAU02A0DIODE SILICON AU02A-EIC PCB010 A3L122C010PCB ASS'Y TMA525A

D406 D1VT001330DIODE,SILICON 1SS133T-77 PCB110 A3L117C110PCB ASS'Y TCA384A D407 D1VT001330DIODE,SILICON 1SS133T-77

MISCELLANEOUS

D408 D2WT011E10DIODE SILICON 11E1-EIC B503 024HT03553CORE,BEADS W5RH3.5X5X1.0

!D410 D2WTAU02A0DIODE SILICON AU02A-EIC !CD501 120R414903CORD AC BUSH 0R414903 !D411 D2WTAU02A0DIODE SILICON AU02A-EIC CF601 1029045R7GFILTER,SAW TSF5229P3

D501 D2WXN40050DIODE SILICON 1N4005-EIC CF603 1012T4R520FILTER,CERAMIC SFSRA4M50CF00-A0

!D502 D2WXN40050DIODE SILICON 1N4005-EIC CF604 1012T4R519FILTER,CERAMIC TRAP TPSRA4M50C00-A0 !D503 D2WXN40050DIODE SILICON 1N4005-EIC !CP401 069S450089CONNECTOR PCB SIDE A1561WV2-A5P

D504 D2WXN40050DIODE SILICON 1N4005-EIC !CP502 069S420110CONNECTOR PCB SIDE A1561WV2-2P

!D505 D2WXB290S0DIODE SILICON SB290S CP601 069E260659CONNECTOR PCB SIDE 00_8283_0611_00_000

D506 D97U01801BDIODE,ZENER MTZJ18B T-77 CP801 069W010030CONNECTOR PCB SIDE TBS-X01X-A1 D508 D1VT001330DIODE,SILICON 1SS133T-77 CD101A 06CH012002CORD CONNECTOR CH012002

!D509 D97U01801BDIODE,ZENER MTZJ18B T-77 CD101B 06CH012003CORD CONNECTOR CH012003 !D510 D2WXRU2AM0DIODE SILICON RU2AM-EIC CP802A 067N010039WIRE HOLDER 9253_010_000_000 or

D512 D1VT001330DIODE,SILICON 1SS133T-77 067U010049WIRE HOLDER B2013H02-10P

!D513 D2WXB290S0DIODE SILICON SB290S CP802B 067N010039WIRE HOLDER 9253_010_000_000 or

D514 D1VT001330DIODE,SILICON 1SS133T-77 067U010049WIRE HOLDER B2013H02-10P D522 D1VT001330DIODE,SILICON 1SS133T-77 !F501 081PC04004FUSE 51MS040LCC D528 D97U05R61BDIODE,ZENER MTZJ5.6B T-77 !FB401 043214029FTRANSFORMER FLYBACK 3214029F D601 D1VT001330DIODE,SILICON 1SS133T-77 FH501 06710T0006HOLDER,FUSE EYF-52BC D602 D97U08R21BDIODE,ZENER MTZJ8.2B T-77 FH502 06710T0006HOLDER,FUSE EYF-52BC D604 D97U05R61BDIODE,ZENER MTZJ5.6B T-77 OS101 077Q037003REMOTE RECEIVER PIC-37143SY D605 D2WT011E10DIODE SILICON 11E1-EIC S101 WHL6032014FLAT CABLE AWG26 10C BLACK 320MM D606 D97U06R81BDIODE,ZENER MTZJ6.8B T-77 SP1001 070Y132018SPEAKER S08F21 D607 D97U05R61BDIODE,ZENER MTZJ5.6B T-77 !TH501 DF5EL3R0A0DEGAUSS ELEMENT ZPB45BL3R0A D610 D97U01201BDIODE,ZENER MTZJ12B T-77 TM101 076N0DW010TRANSMITTER RC-DW010 D611 D97U01201BDIODE,ZENER MTZJ12B T-77 !TU001 0145K00056TUNER,VHF-UHF TECC1040PG32E D612 D97U01201BDIODE,ZENER MTZJ12B T-77 !V801 098Y1404B9CRT W/DY A34JXV70X53N45

!D619 D97U05R11BDIODE,ZENER MTZJ5.1B T-77 X602 100CT3R505CRYSTAL HC-49/C

D801 D1VT001330DIODE,SILICON 1SS133T-77

J2-1

ELECTRICAL REPLACEMENT PARTS LIST

RESISTOR

RC...................CARBON RESISTOR

CAPACITORS

CC...................CERAMIC CAPACITOR

CE...................ALUMI ELECTROLYTIC CAPACITOR

CP...................POLYESTER CAPACITOR

CPP..................POLYPROPYLENE CAPACITOR

CPL..................PLASTIC CAPACITOR

CMP.................METAL POLYESTER CAPACITOR

CMPL...............METAL PLASTIC CAPACITOR

CMPP...............METAL POLYPROPYLENE CAPACITOR

J2-2

M3L1-22C

K223001

SPEC.NO.

O/R NO.

SER VICE MANUAL

Design and specifications are subject to change without notice.

COLOR TELEVISION RECEIVER

DBTV1301

ORIGINAL 1

MFR’S VERSION I

I

MFR’S VERSION

C

PCB010

TMX494B

TMX494A

TUNER

TECC1040PG32D

NJH3022U268

ELECTRICAL ADJUSTMENTS

2. BASIC ADJUSTMENTS

2-1: RF AGC DELAY

1.

2.

3.

4.

5.

Place the set with Aging Test for more than 15 minutes. Receive the VHF HIGH (63dB). Connect the digital voltmeter to R606. Activate the adjustment mode display of Fig. 1-1 and press the channel button (02) on the remote control to select "RF AGC DELAY". Press the VOL. UP/DOWN button on the remote control until the digital voltmeter is 2.7 ± 0.05V.

(MFR'S VERSION I)

PCB VERSION UP

PART NO. DESCRIPTION PART NO. DESCRIPTION

PCB010 A3J804A010 MAIN PCB ASS'Y (VERSION C) TMX494A A3J804A010 MAIN PCB ASS'Y (VERSION I) TMX494B

MAIN PCB's are interchangeable.

Change of TUNER

PART NO. DESCRIPTION PART NO. DESCRIPTION

! TU001 0145W00052 TUNER,VHF-UHF NJH3022U268 0145K00055 TUNER,VHF-UHF TECC1040PG32D

R622 R903N8121J RC 120 OHM 1/8W R903N8271J RC 270 OHM 1/8W PCB010 A3J804A010 MAIN PCB ASS'Y (VERSION C) TMX494A A3J804A010 MAIN PCB ASS'Y (VERSION I) TMX494B

MAIN PCB's are interchangeable.

REF. NO.

ELECTRICAL REPLACEMENT PARTS LIST

MFR'S VERSION C MFR'S VERSION I

REF. NO.

M3J8-04A

K163008

SPEC.NO.

O/R NO.

6. AVOID AN X-RAY1. KEEP THE NOTICES

5. TAKE CARE TO DEAL WITH THE CATHODE-RAY TUBE

In the condition that an explosion-proof cathoderay tube is set in this equipment, safety is secured against implosion. However, when removing it or serving from backward, it is dangerous to give a shock. Take enough care to deal with it.

Safety is secured against an X-ray by considering about the cathode-ray tube and the high voltage peripheral circuit, etc. Therefore, when repairing the high voltage peripheral circuit, use the designated parts and make sure not modify the circuit. Repairing except indicates causes rising of high voltage, and it emits an X-ray from the cathoderay tube.

Please include the following informations when you order parts. (Particularly the VERSION LETTER.)

1. MODEL NUMBER and VERSION LETTER The MODEL NUMBER can be found on the back of each product and the VERSION LETTER can be

found at the end of the SERIAL NUMBER.

2. PART NO. and DESCRIPTION You can find it in your SERVICE MANUAL.

Inferior silicon grease can damage IC's and transistors. When replacing an IC's or transistors, use only specified silicon grease (YG6260M). Remove all old silicon before applying new silicon.

IMPORTANT

HOW TO ORDER PARTS

SERVICING NOTICES ON CHECKING

As for the places which need special attentions, they are indicated with the labels or seals on the cabinet, chassis and parts. Make sure to keep the indications and notices in the operation manual.

2. AVOID AN ELECTRIC SHOCK

There is a high voltage part inside. Avoid an electric shock while the electric current is flowing.

3. USE THE DESIGNATED PARTS

The parts in this equipment have the specific characters of incombustibility and withstand voltage for safety. Therefore, the part which is replaced should be used the part which has the same character. Especially as to the important parts for safety which is indicated in the circuit diagram or the table of parts as a mark, the designated parts must be used.

PUT PARTS AND WIRES IN THE ORIGINAL POSITION AFTER ASSEMBLING OR WIRING

4.

There are parts which use the insulation material such as a tube or tape for safety, or which are assembled in the condition that these do not contact with the printed board. The inside wiring is designed not to get closer to the pyrogenic parts and high voltage parts. Therefore, put these parts in the original positions.

7.PERFORM A SAFETY CHECK AFTER SERVICING

Confirm that the screws, parts and wiring which were removed in order to service are put in the original positions, or whether there are the portions which are deteriorated around the serviced places serviced or not. Check the insulation between the antenna terminal or external metal and the AC cord plug blades. And be sure the safety of that.

(INSULATION CHECK PROCEDURE)

1.

2.

3.

4.

Unplug the plug from the AC outlet. Remove the antenna terminal on TV and turn on the TV. Insulation resistance between the cord plug terminals and the eternal exposure metal [Note 2] should be more than 1M ohm by using the 500V insulation resistance meter [Note 1]. If the insulation resistance is less than 1M ohm, the inspection repair should be required.

[Note 1]

If you have not the 500V insulation resistance meter, use a Tester.

[Note 2]

External exposure metal: Antenna terminal

A1-1

Earphone jack
