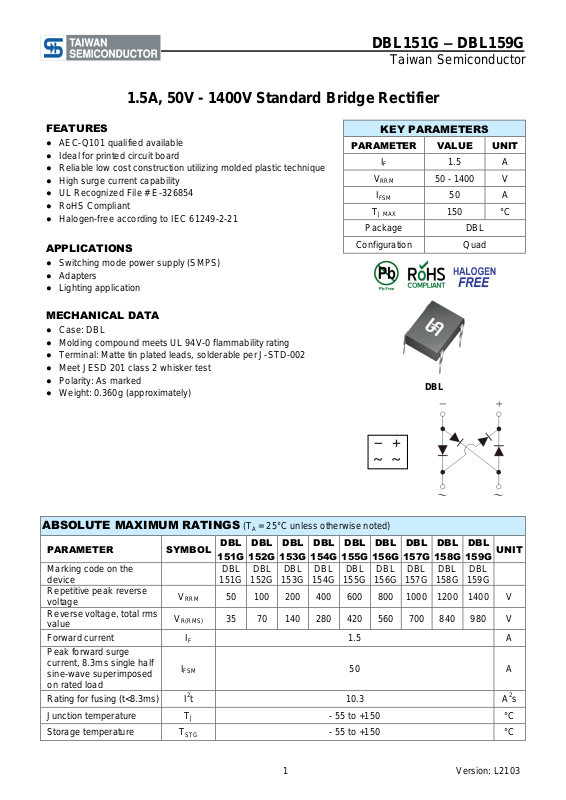

Page 1
DBL151G – DBL159G
FEATURES
● AEC-Q101 qualified available
● Ideal for printed circuit board
● Reliable low cost construction utilizing molded plastic technique
● High surge current capability
● UL Recognized File # E-326854
● RoHS Compliant
● Halogen-free according to IEC 61249-2-21
APPLICATIONS
● Switching mode power supply (SMPS)
● Adapters
● Lighting application
MECHANICAL DATA
● Case: DBL
● Molding compound meets UL 94V-0 flammability rating
● Terminal: Matte tin plated leads, solderable per J-STD-002
● Meet JESD 201 class 2 whisker test
● Polarity: As marked
● Weight: 0.360g (approximately)
KEY PARAMETERS
PARAMETER
VALUE
UNIT
IF
1.5 A V
RRM
50 - 1400
V
I
FSM
50
A
T
J MAX
150
°C
Package
DBL
Configuration
Quad
DBL
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C unless otherwise noted)
PARAMETER
SYMBOL
DBL
151G
DBL
152G
DBL
153G
DBL
154G
DBL
155G
DBL
156G
DBL
157G
DBL
158G
DBL
159G
UNIT
Marking code on the
device
DBL
151G
DBL
152G
DBL
153G
DBL
154G
DBL
155G
DBL
156G
DBL
157G
DBL
158G
DBL
159G
Repetitive peak reverse
voltage
V
RRM
50
100
200
400
600
800
1000
1200
1400
V
Reverse voltage, total rms
value
V
R(RMS)
35
70
140
280
420
560
700
840
980
V
Forward current
IF
1.5
A
Peak forward surge
current, 8.3ms single half
sine-wave superimposed
on rated load
I
FSM
50
A
Rating for fusing (t<8.3ms)
I2t
10.3
A2s
Junction temperature
TJ
- 55 to +150
°C
Storage temperature
T
STG
- 55 to +150
°C
Taiwan Semiconductor
1.5A, 50V - 1400V Standard Bridge Rectifier
1 Version: L2103
Page 2
DBL151G – DBL159G
THERMAL PERFORMANCE
PARAMETER
SYMBOL
TYP
UNIT
Junction-to-lead thermal resistance
R
ӨJL
15
°C/W
Junction-to-ambient thermal resistance
R
ӨJA
40
°C/W
ELECTRICAL SPECIFICATIONS (T
A
= 25°C unless otherwise noted)
PARAMETER
CONDITIONS
SYMBOL
TYP
MAX
UNIT
Forward voltage per diode
(1)
DBL151G
DBL152G
DBL153G
DBL154G
DBL155G
DBL156G
DBL157G
IF = 1.5A, TJ = 25°C
VF
-
1.10
V
DBL158G
DBL159G
-
1.25
V
Reverse current @ rated VR per diode
(2)
TJ = 25°C
IR
- 2 µA
TJ = 125°C
-
500
µA
Junction capacitance per diode
1MHz, VR = 4.0V
CJ
25 - pF
ORDERING INFORMATION
ORDERING CODE
(1)(2)
PACKAGE
PACKING
DBL15xG
DBL
50 / Tube
DBL15xGH
DBL
50 / Tube
Taiwan Semiconductor
Notes:
1. Pulse test with PW = 0.3ms
2. Pulse test with PW = 30ms
Notes:
1. “x” defines voltage from 50V(DBL151G) to 1400V(DBL159G)
2. “H” means AEC-Q101 qualified
2 Version: L2103
Page 3
DBL151G – DBL159G
Fig.1 Forward Current Derating Curve
Fig.2 Typical Junction Capacitance
Fig.3 Typical Reverse Characteristics
Fig.4 Typical Forward Characteristics
Fig.5 Maximum Non-Repetitive Forward Surge Current
0.0
0.5
1.0
1.5
2.0
0 25 50 75 100 125 150
1
10
100
1 10 100
f=1.0MHz
Vsig=50mVp-p
0.01
0.1
1
10
100
10 20 30 40 50 60 70 80 90 100
TJ=25°C
TJ=125°C
0.1
1
10
0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6
Pulse width 300μs
1% duty cycle
DBL151G - DBL157G
DBL158G - DBL159G
0
10
20
30
40
50
60
1 10 100
8.3ms single half sine wave
CAPACITANCE (pF)
INSTANTANEOUS REVERSE CURRENT (μA)
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
INSTANTANEOUS FORWARD CURRENT (A)
(A)
0.01
0.1
1
10
TJ=25°C
TJ=125°C
UF1DLW
FORWARD VOLTAGE (V)
AVERAGE FORWARD CURRENT (A)
REVERSE VOLTAGE (V)
AMBIENT TEMPERATURE (°C)
NUMBER OF CYCLES AT 60 Hz
PEAK FORWARD SURGE CURRENT (A)
CHARACTERISTICS CURVES
(TA = 25°C unless otherwise noted)
Taiwan Semiconductor
3 Version: L2103
Page 4
DBL151G – DBL159G
MARKING DIAGRAM
P/N
= Marking Code
G
= Green Compound
YW
= Date Code
F
= Factory Code
PACKAGE OUTLINE DIMENSIONS
DBL
Taiwan Semiconductor
4 Version: L2103
Page 5
DBL151G – DBL159G
Taiwan Semiconductor
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Purchasers are solely responsible for the choice, selection, and use of TSC products and TSC assumes no liability
for application assistance or the design of Purchasers’ products.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC’s terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
5 Version: L2103
