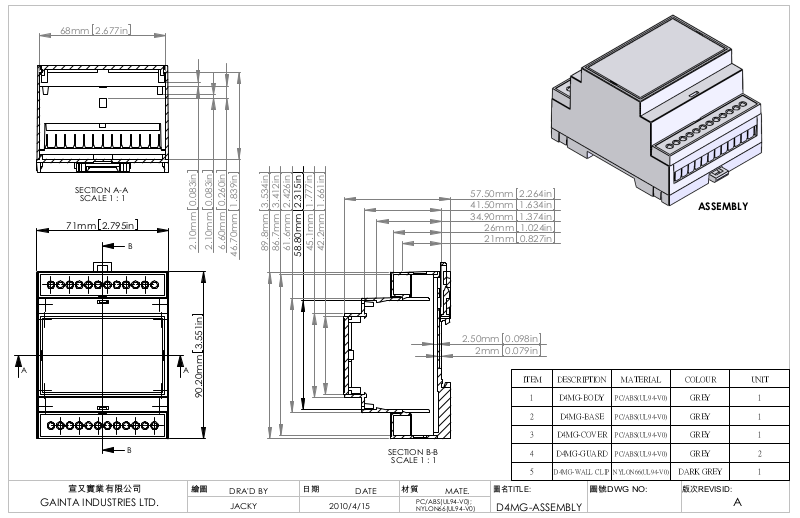

Page 1
68mm
2.677in
SECTION A-A
SCALE 1 : 1
71mm
A A
2.795in
B
0.260in
0.083in
0.083in
6.60mm
2.10mm
2.10mm
3.551in
1.839in
3.534in
89.8mm
46.70mm
3.412in
2.426in
2.315in
86.7mm
61.6mm
58.80mm
1.661in
1.777in
42.2mm
45.1mm
57.50mm
41.50mm
34.90mm
26mm
21mm
2.50mm
2mm
2.264in
1.634in
1.374in
1.024in
0.827in
0.098in
0.079in
ITEM
DESCRIPTION
MATERIAL
ASSEMBLY
COLOUR
UNIT
B
宣又實業有限公司
GAINTA INDUSTRIES LTD.
90.20mm
繪圖
DRA'D BY
JACKY
日期
DATE
2010/4/15
SECTION B-B
SCALE 1 : 1
材質
PC/ABS(UL94-V0);
NYLON66(UL94-V0)
MATE.
1
2
3
4
5
圖名TITLE:
D4MG-BODY
D4MG-BASE
D4MG-COVER
D4MG-GUARD
D4MG-WALL CLIP
D4MG-ASSEMBLY
PC/ABS(UL94-V0)
PC/ABS(UL94-V0)
PC/ABS(UL94-V0)
PC/ABS(UL94-V0)
NYLON66(UL94-V0)
圖號DWG NO:
GREY
GREY
GREY
GREY
DARK GREY
版次REVISID:
1
1
1
2
1
A
Page 2
D4MG-BODY
71mm
2.795in
A
56.50mm
47mm
25mm
6mm
2.224in
1.850in
0.984in
0.236in
D4MG-COVER
66.80mm
2.630in
C
1.654in
2.25mm
2mm
0.089in
0.079in
D4MG-BASE
A
3.551in
90.20mm
3.538in
2.426in
1.777in
89.87mm
61.62mm
45.14mm
C
42mm
SECTION C-C
SCALE 1 : 1
D4MG-GUARD
0.547in
69.60mm
SECTION A-A
SCALE 1 : 1
9.50mm
B
7.30mm
0.374in
0.287in
2.740in
D
13.90mm
19.40mm
5.08mm
5.08mm
0.764in
0.200in
0.200in
B
宣又實業有限公司
GAINTA INDUSTRIES LTD.
繪圖
DRA'D BY
JACKY
SECTION B-B
SCALE 1 : 1
日期
DATE
2010/4/15
D4MG-WALL CLIP
材質
PC/ABS(UL94-V0);
NYLON66(UL94-V0)
MATE.
1.319in
33.50mm
圖名TITLE:
D4MG-PART
4.55mm
63.80mm
69.37mm
28.50mm
0.179in
2.512in
2.731in
1.122in
圖號DWG NO:
SECTION D
SCALE 1 : 1
5.20mm
版次REVISID:
0.205in
A
