Page 1
PRODUCT INFORMATION PACKET
Model No: 056B17F5330
Catalog No: D404
1 1/2,1800,TEFC,56C,1/60/115/208-230
Brake
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 6
Page 2
Product Information Packet: Model No: 056B17F5330, Catalog No:D404 1 1/2,1800,TEFC,56C,1/60/115/208-230
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 115/208-230 V
Current
Service Factor
Efficiency 80 % Duty Continous
Insulation Class
KVA Code J Frame 56C
Enclosure Totally Enclosed Fan Cooled Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code
1.50 Hp
15.2/8.2-7.6 A
1.15
B
40 °C
Y
43
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
1.1 kW
1725 rpm
1
NO DESIGN CODE
6203
N
Technical Specifications
Electrical Type
Poles 4 Rotation Selective Counterclockwise
Capacitor Start Capacitor Run
Starting Method
Across The Line
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type NEMA 56
Overall Length
Shaft Diameter 0.625 in Shaft Extension 2.06 in
Assembly/Box Mounting

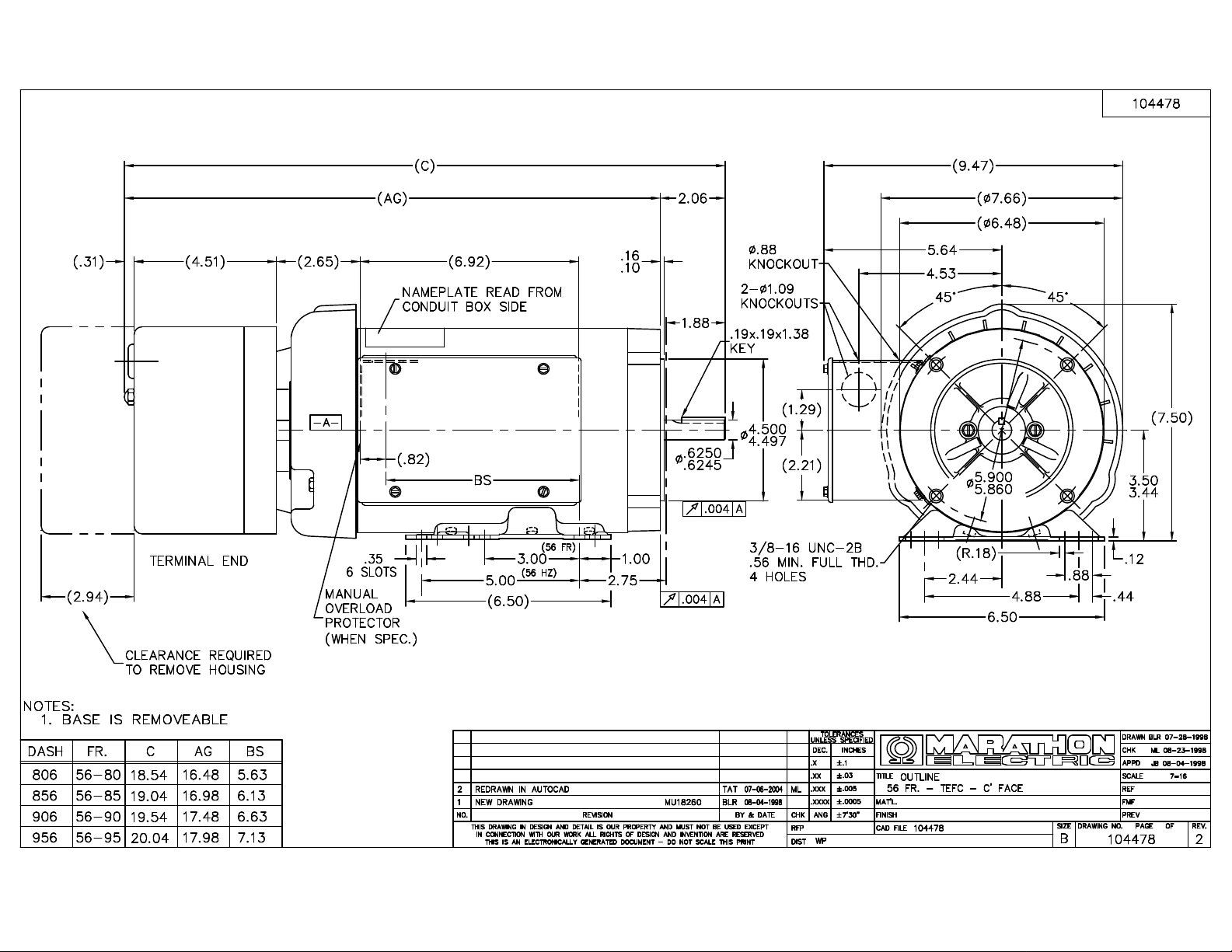

Outline Drawing
Bolt-on Base
19.04 in
F1 Only
B-104478-856
Motor Orientation
Frame Length

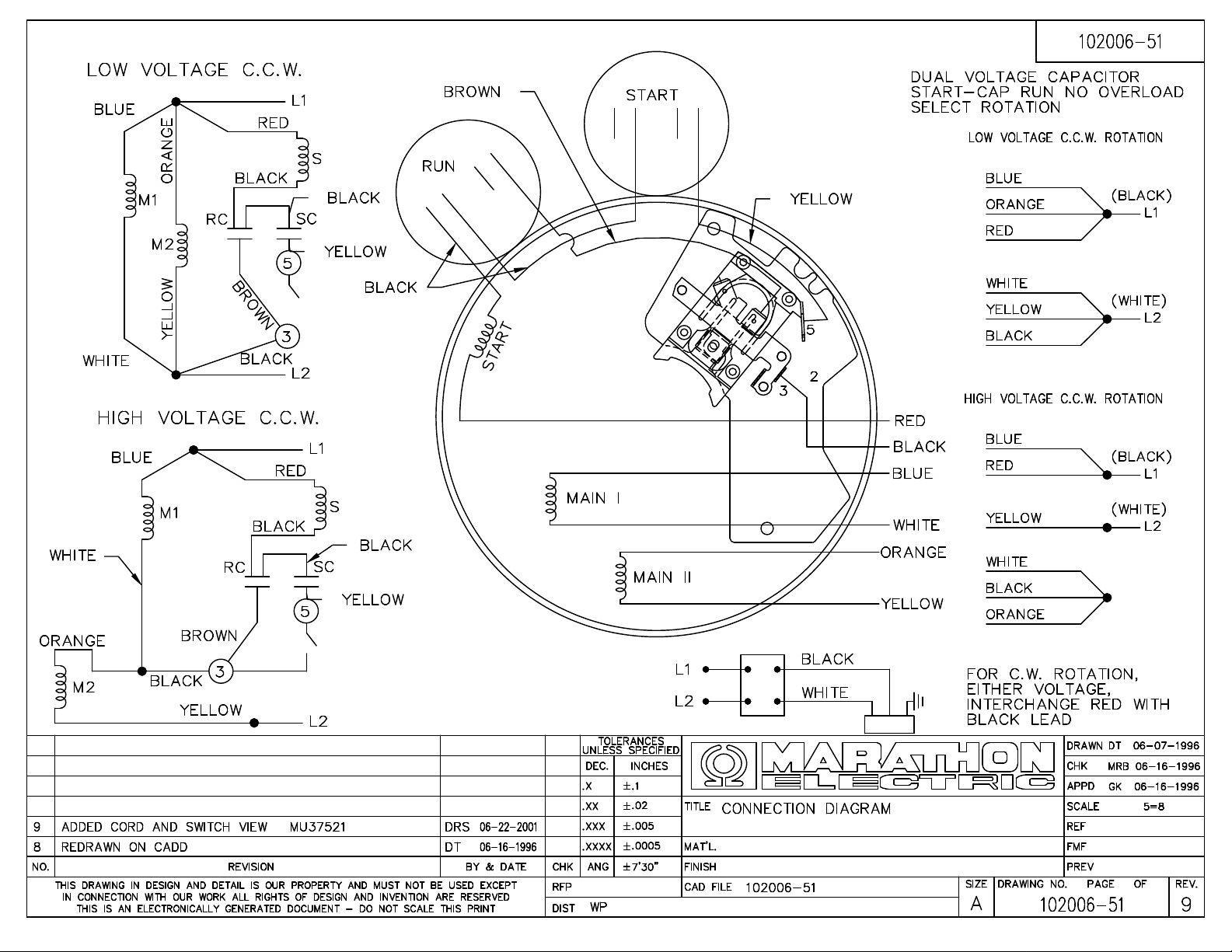

Connection Diagram
Horizontal
8.56 in
102006-51
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 06/29/2018
2 of 6
Page 3
7/5/2007 12:51:53 PM -
3 of 6
Page 4
7/5/2007 11:03:25 AM -
4 of 6
Page 5
CERTIFICATION DATA SHEET
Model#: 56B17F5330 F WINDING#: ZB406 NONE 3
CONN. DIAGRAM: 102006-51 ASSEMBLY: F1 ONLY
OUTLINE: B-104478-856
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
1 1/2&1 1.12&.75 1800 1725&1425 56C TEFC J NO DESIGN
CODE
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
1 60/50 115/208-
230#110/220
15.2/8.2-
7.6&15.6/7.8
ACROSS THE
LINE
CONTINUOUSB3 1.15/1.15 40 3300
FULL LOAD EFF:
80&71
3/4 LOAD EFF: 80.5 1/2 LOAD EFF: 76.1 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 80&58 3/4 LOAD PF: 71.2 1/2 LOAD PF: 61 0 CAP START CAP RUN 8.1 / 4.1
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
4.51 LB-FT 107.6 / 53.8 14.8 LB-FT 328 12.4 LB-FT 275 70
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
0 dBA 10 dBA 0 LB-FT^2 0 LB-FT^2 0 SEC. 0 0 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
C-FACE BRAKE BOLT-ON HORIZONTAL FALSE NONE FALSE NONE GRAY
(POWDER)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM STANDARD 56 NONE NONE 1144
STRESSPROOF
(C-223)
ROLLED STEEL
6203 6203
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: REGAL SUPPLIED AND MOUNT
NONE
STEARNS P/N 35467-74
56,000 NEMA 4
10 FT-LB 115/230-95/190 V 60/50
Hz
DATE: 06/21/2017 09:26:46 AM
Uncontrolled Copy
5 of 6
Page 6
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
6 of 6
