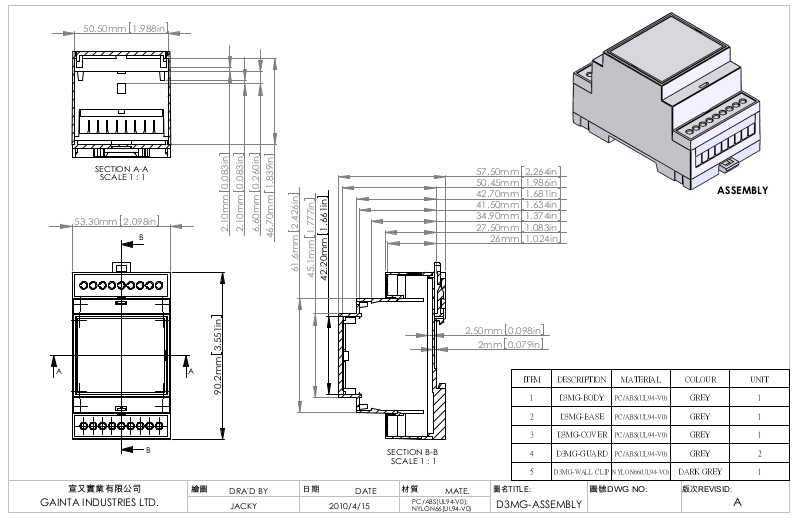

Page 1
50.50mm
1.988in
SECTION A-A
SCALE 1 : 1
53.30mm
2.098in
B
0.083in
0.083in
2.10mm
2.10mm
3.551in
0.260in
1.839in
6.60mm
46.70mm
2.426in
1.661in
1.777in
61.6mm
45.1mm
42.20mm
57.50mm
50.45mm
42.70mm
41.50mm
34.90mm
27.50mm
26mm
2.50mm
2mm
2.264in
1.986in
1.681in
1.634in
1.374in
1.083in
1.024in
0.098in
0.079in
ASSEMBLY
A A
B
宣又實業有限公司
GAINTA INDUSTRIES LTD.
繪圖
90.2mm
DRA'D BY
JACKY
日期
DATE
2010/4/15
SECTION B-B
SCALE 1 : 1
材質
PC/ABS(UL94-V0);
NYLON66(UL94-V0)
MATE.
ITEM
1
2
3
4
5
圖名TITLE:
DESCRIPTION
D3MG-BODY
D3MG-BASE
D3MG-COVER
D3MG-GUARD
D3MG-WALL CLIP
D3MG-ASSEMBLY
MATERIAL
PC/ABS(UL94-V0)
PC/ABS(UL94-V0)
PC/ABS(UL94-V0)
PC/ABS(UL94-V0)
NYLON66(UL94-VO)
圖號DWG NO:
COLOUR
GREY
GREY
GREY
GREY
DARK GREY
版次REVISID:
UNIT
1
1
1
2
1
A
Page 2
D3MG-BODY
56.50mm
2.224in
D3MG-COVER
53.30mm
A
2.098in
47mm
25mm
6mm
3.551in
90.2mm
1.850in
0.984in
0.236in
3.538in
2.426in
1.777in
89.87mm
61.62mm
45.14mm
49mm
D3MG-GUARD
52.80mm
1.929in
C
C
2.079in
2.50mm
2mm
1.650in
41.90mm
0.547in
0.098in
0.079in
SECTION C-C
SCALE 1 : 1
19.40mm
0.764in
D3MG-BASE
A
D
SECTION A-A
B
3.551in
9.50mm
6.50mm
0.374in
0.256in
SCALE 1 : 1
52.7mm
45mm
4.6mm
2.074in
1.772in
0.182in
D3MG-WALL CLIP
90.20mm
1.319in
13.90mm
5.08mm
5.08mm
0.200in
0.200in
5.20mm
4.20mm
SECTION D
SCALE 1 : 1
0.165in
0.205in
B
53.30mm
宣又實業有限公司
GAINTA INDUSTRIES LTD.
2.098in
繪圖
DRA'D BY
JACKY
SECTION B-B
SCALE 1 : 1
日期
DATE
2010/4/13
材質
PC/ABS(UL94-V0);
NYLON66(UL94-V0)
MATE.
圖名TITLE:
D3MG-PART
33.50mm
28.50mm
1.122in
圖號DWG NO:
版次REVISID:
A
