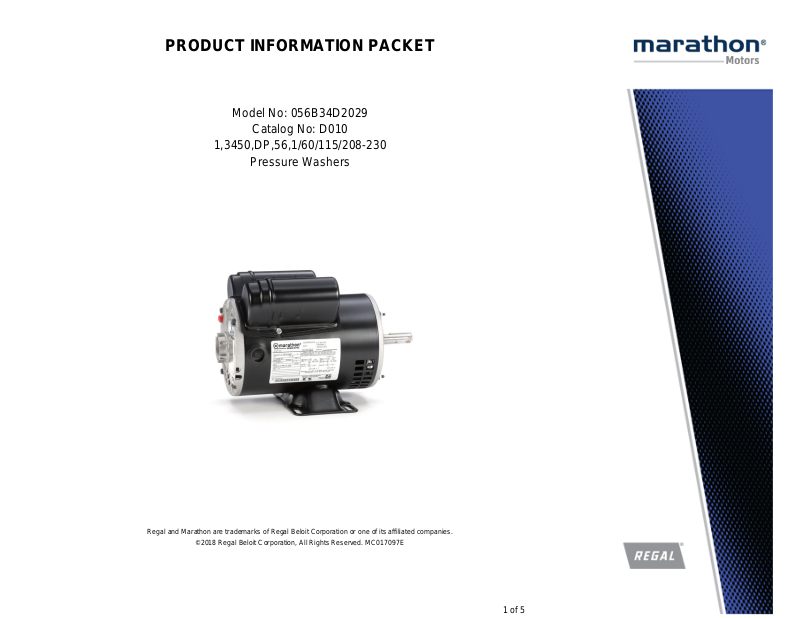

PRODUCT INFORMATION PACKET
Model No: 056B34D2029
Catalog No: D010
1,3450,DP,56,1/60/115/208-230
Pressure Washers
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Page 2
Product Information Packet: Model No: 056B34D2029, Catalog No:D010 1,3450,DP,56,1/60/115/208-230
Nameplate Specifications
Output HP 1 Hp Output KW 0.75 kW
Frequency
Current 10.6/5.5-5.3 A Speed 3450 rpm
Service Factor
Efficiency
Insulation Class B Design Code NO DESIGN CODE
KVA Code
Enclosure Drip Proof Overload Protector Manual
Ambient Temperature 40 °C Drive End Bearing Size 6203
Opp Drive End Bearing Size
CSA Y CE N
IP Code
60 Hz
1.15
72 %
E
6203
22
Voltage
Phase
Duty
Frame
UL
115/208-230 V
1
Continous
56
Recognized
Technical Specifications
Electrical Type
Poles
Mounting Rigid Base Motor Orientation Horizontal
Capacitor Start Capacitor Run
2
Starting Method
Rotation
Across The Line
Selective Counterclockwise
Drive End Bearing
Frame Material Rolled Steel Shaft Type T
Overall Length 11.72 in Shaft Diameter 0.625 in
Shaft Extension
Outline Drawing A-SS73736-775 Connection Diagram A-EE9002F
Ball
1.88 in
Opp Drive End Bearing
Assembly/Box Mounting
Ball
F1 Only
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/08/2018
2 of 5
Page 3
7/26/2007 2:18:48 PM -
3 of 5
Page 4
Uncontrolled Copy
4 of 5
Page 5
CERTIFICATION DATA SHEET
Model#: 56B34D2029 F WINDING#: BE48238 NONE 3

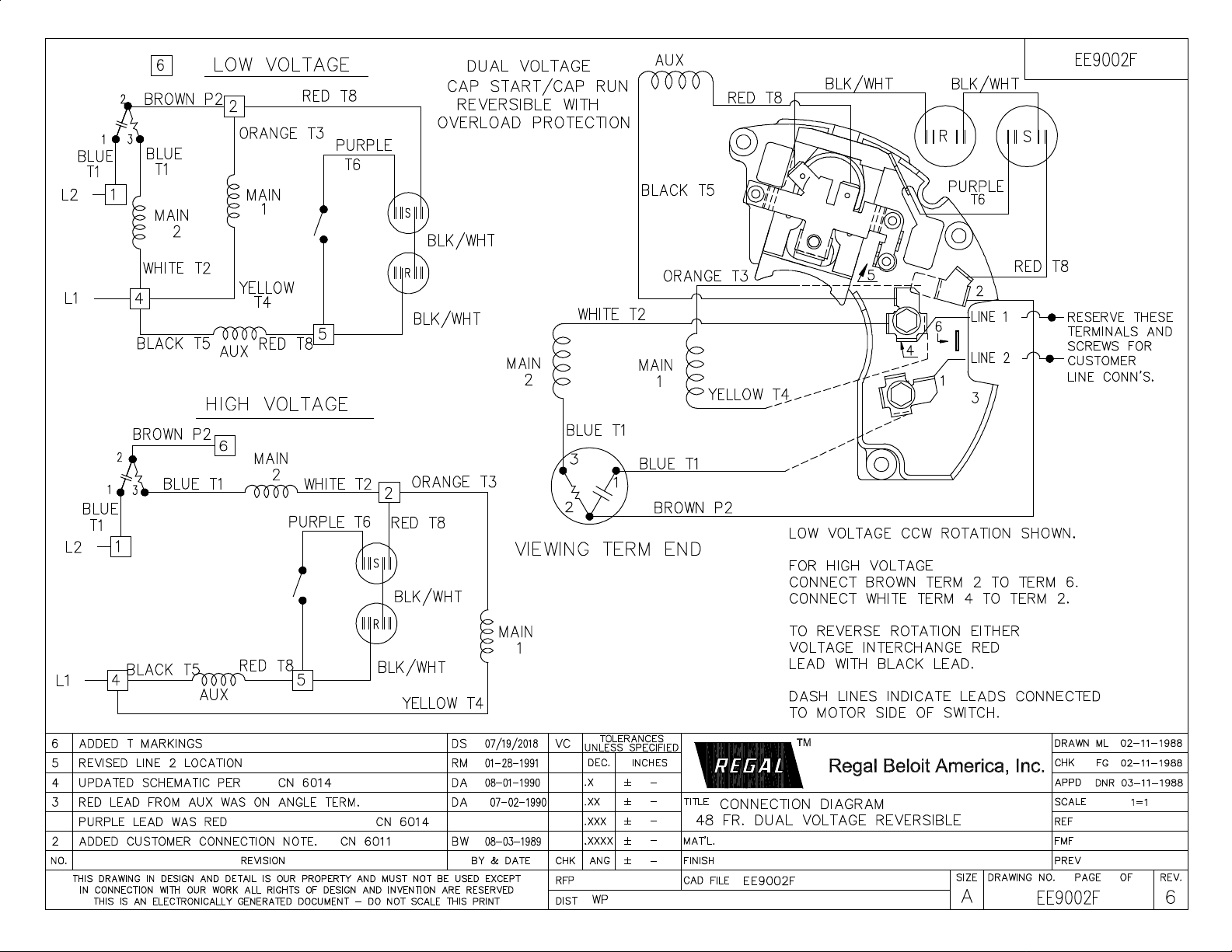

CONN. DIAGRAM: A-EE9002F ASSEMBLY: F1 ONLY

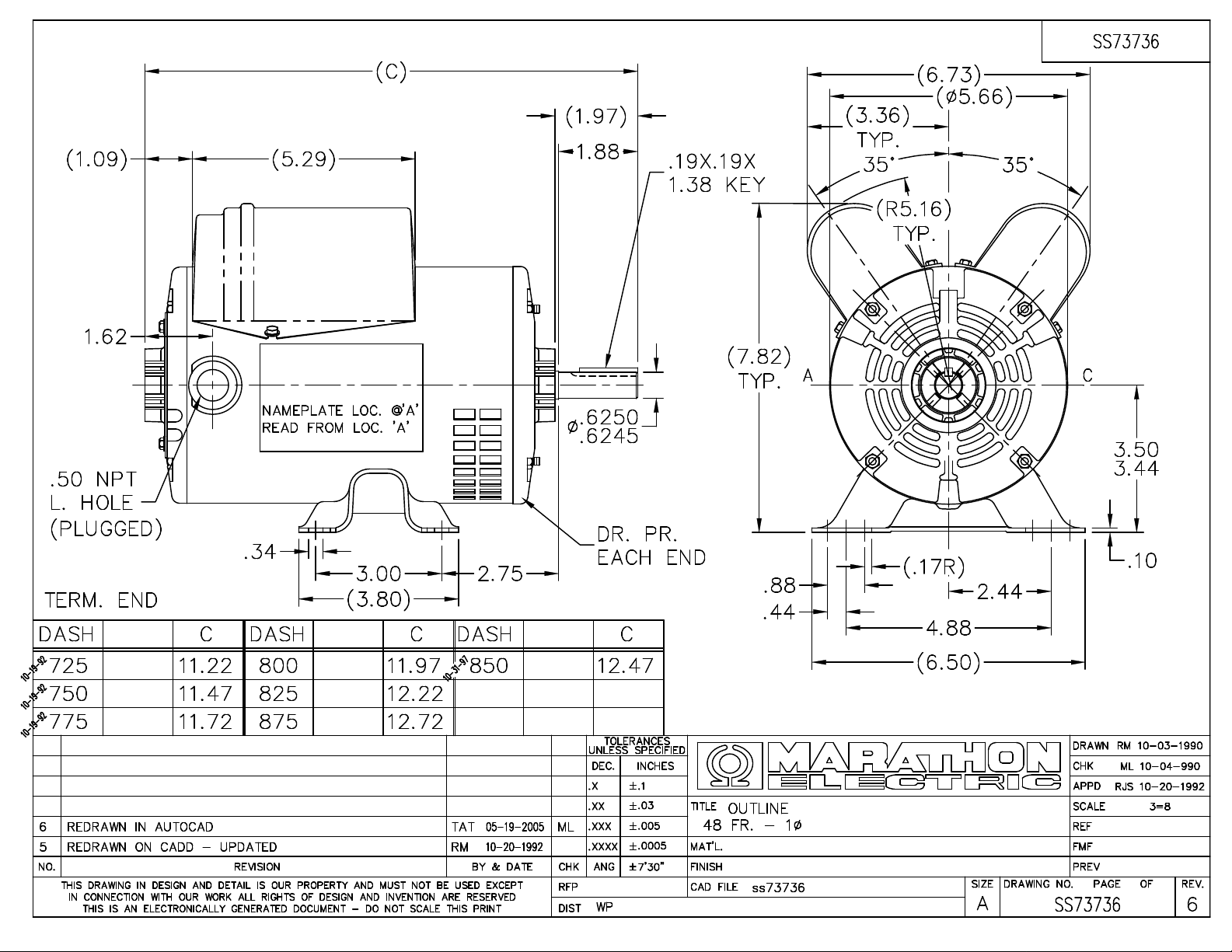

OUTLINE: A-SS73736-775
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
1 .75 3600 3450 56 DP E NO DESIGN
CODE
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
1 60 115/208-230 10.6/5.5-5.3 ACROSS THE
LINE
CONTINUOUSB3 1.15 40 3300
FULL LOAD EFF: - 3/4 LOAD EFF: 71 1/2 LOAD EFF: 58 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: - 3/4 LOAD PF: 79 1/2 LOAD PF: 60 -20 CAP START CAP RUN 6.5 / 3.2
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
23.9 LB-FT 74.6 / 37.3 55 LB-FT - 65.7 LB-FT - -
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
- dBA - dBA - LB-FT^2 - LB-FT^2 - SEC. - - LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
STANDARD STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE BLACK
(POWDER)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL MULTEMP SRL T NONE NONE 1144
STRESSPROOF
(C-223)
ROLLED STEEL
6203 6203
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE MANUAL NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/27/2017 06:20:40 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 5
