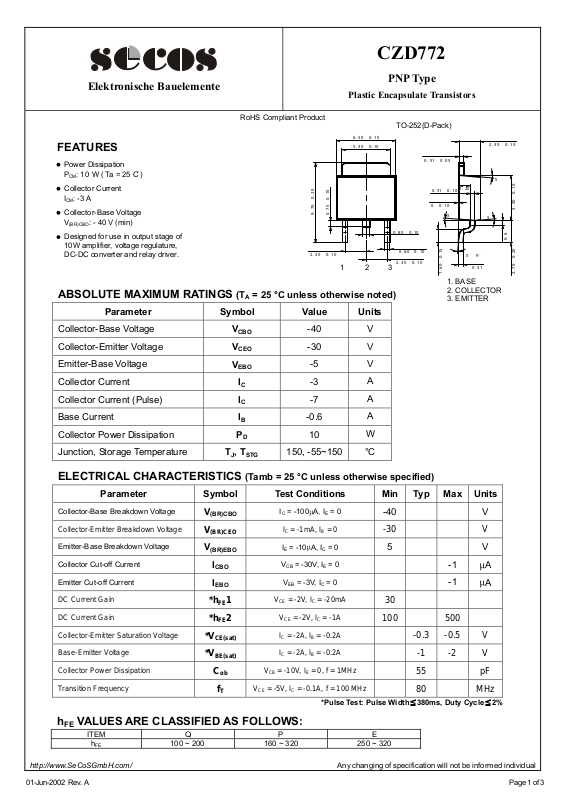

Page 1
CZD772
Elektronische Bauelemente
FEATURES
Power Dissipation
P
: 10 W ( Ta = 25 C )
CM
Collector Current
I
: -3 A
CM
Collector-Base Voltage
V
: - 40 V (min)
(BR)CBO
Designed for use in output stage of
10W amplifier, voltage regulature,
DC-DC converter and relay driver.
ABSOLUTE MAXIMUM RATINGS (T
Parameter Symbol Value Units
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Collector Current (Pulse)
V
V
V
Plastic Encapsulate Transistors
RoHS Compliant Product
6. 50 0. 15
5. 30 0. 10
0. 20
0. 10
9. 70
0. 75
2. 30 0. 10
1 2 3
= 25 °C unless otherwise noted)
A
CBO
CEO
EBO
I
C
IC
-40 V
-30
-5
-3
-7
PNP Type
V
V
A
A
TO-252(D-Pack)
0. 51 0. 05
0. 51 0. 10
0 0. 10
5
0. 80 0. 10
0. 60 0. 10
2. 30 0. 10
0. 15
1. 60
1. BASE
2. COLLECTOR
3. EMITTER
1. 20
2. 30 0. 10
5
0. 10
5. 50
5
0. 6
0
9
0. 51
0. 20
2. 70
Base Current
Collector Power Dissipation
Junction, Storage Temperature
IB
P
D
, T
T
J
STG
-0.6
10
150, -55~150 °C
A
W
ELECTRICAL CHARACTERISTICS (Tamb = 25 °C unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Units
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cut-off Current
Emitter Cut-off Current
DC Current Gain
DC Current Gain
Collector-Emitter Saturation Voltage
Base-Emitter Voltage
Collector Power Dissipation
Transition Frequency
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
*hFE1
*hFE2
*V
CE(sat)
*V
BE(sat)
Cob
fT
IC = -100 A, IE = 0
IC = -1mA, IB = 0
IE = -10 A, IC = 0
VCB = -30V, IE = 0
VEB = -3V, IC = 0
VCE = -2V, IC = -20mA
VCE = -2V, IC = -1A
IC = -2A, IB = -0.2A
IC = -2A, IB = -0.2A
VCB = -10V, IE = 0, f = 1MHz
VCE = -5V, IC = -0.1A, f = 100 MHz
*Pulse Test: Pulse Width 380ms, Duty Cycle 2%
-40 V
-30 V
5 V
-1
-1
30
100 500
-0.3 -0.5 V
-1 -2 V
55 pF
80 MHz
A
A
hFE VALUES ARE CLASSIFIED AS FOLLOWS:
ITEM
hFE 100 ~ 200 160 ~ 320 250 ~ 320
http://www.SeCoSGmbH.com/ Any changing of specification will not be informed individual
01-Jun-2002 Rev. A
Q
P E
Page 1 of 3
Page 2
CZD772
Elektronische Bauelemente

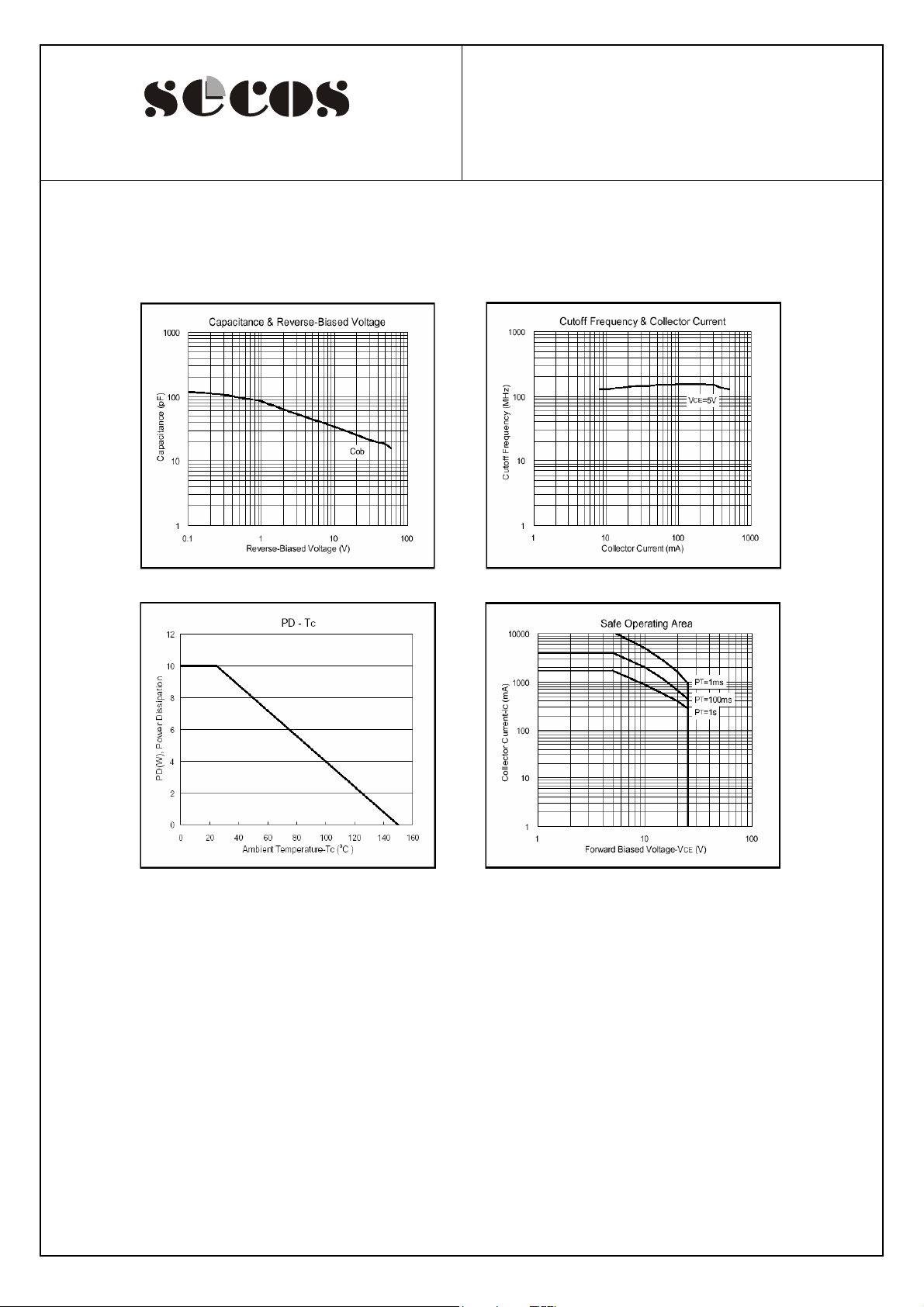

ƔELECTRICAL CHARACTERISTIC CURVES
PNP Type
Plastic Encapsulate Transistors
http://www.SeCoSGmbH.com/ Any changing of specification will not be informed individual
01-Jun-2002 Rev. A
Page 2 of
3
Page 3
CZD772
Elektronische Bauelemente
PNP Type
Plastic Encapsulate Transistors
http://www.SeCoSGmbH.com/ Any changing of specification will not be informed individual
01-Jun-2002 Rev. A
Page
3 of 3
