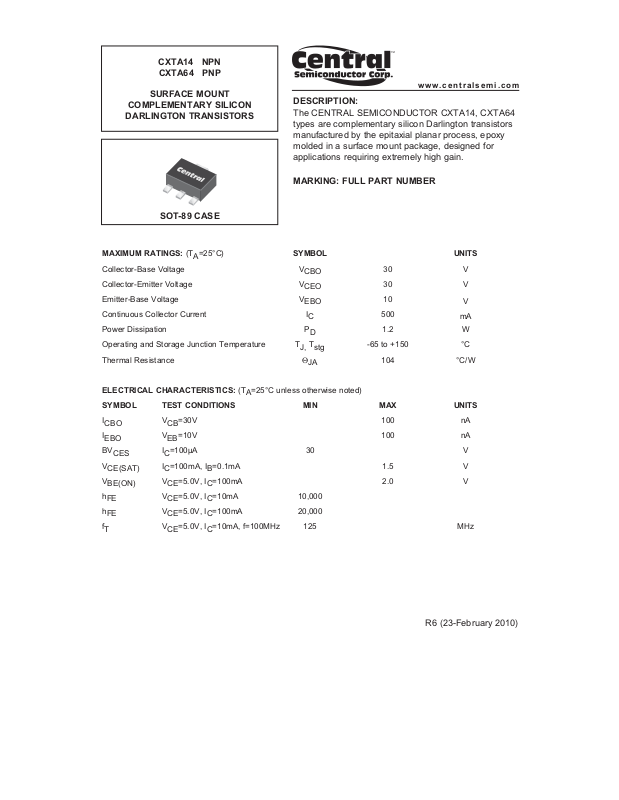

CXTA14 NPN
CXTA64 PNP
SURFACE MOUNT
COMPLEMENTARY SILICON
DARLINGTON TRANSISTORS
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CXTA14, CXTA64
types are complementary silicon Darlington transistors
www.centralsemi.com
manufactured by the epitaxial planar process, epoxy
molded in a surface mount package, designed for
applications requiring extremely high gain.
MARKING: FULL PART NUMBER
SOT-89 CASE
MAXIMUM RATINGS: (TA=25°C) SYMBOL UNITS
Collector-Base Voltage V
Collector-Emitter Voltage V
Emitter-Base Voltage V
Continuous Collector Current I
Power Dissipation P
Operating and Storage Junction Temperature TJ, T
Thermal Resistance ΘJA 104 °C/W
CBO
30 V
CEO
EBO
C
D
-65 to +150 °C
stg
30 V
10
V
500
1.2 W
mA
ELECTRICAL CHARACTERISTICS: (TA=25°C unless otherwise noted)
SYMBOL TEST CONDITIONS MIN MAX UNITS
I
V
CBO
I
V
EBO
BV
I
CES
V
CE(SAT)
V
hFE V
hFE V
fT V
VCE=5.0V, IC=100mA 2.0 V
BE(ON)
=30V 100 nA
CB
=10V 100 nA
EB
=100µA 30 V
C
IC=100mA, IB=0.1mA 1.5 V
=5.0V, IC=10mA 10,000
CE
=5.0V, IC=100mA 20,000
CE
=5.0V, IC=10mA, f=100MHz 125 MHz
CE
R6 (23-February 2010)
Page 2
CXTA14 NPN
CXTA64 PNP
SURFACE MOUNT
COMPLEMENTARY SILICON
DARLINGTON TRANSISTORS

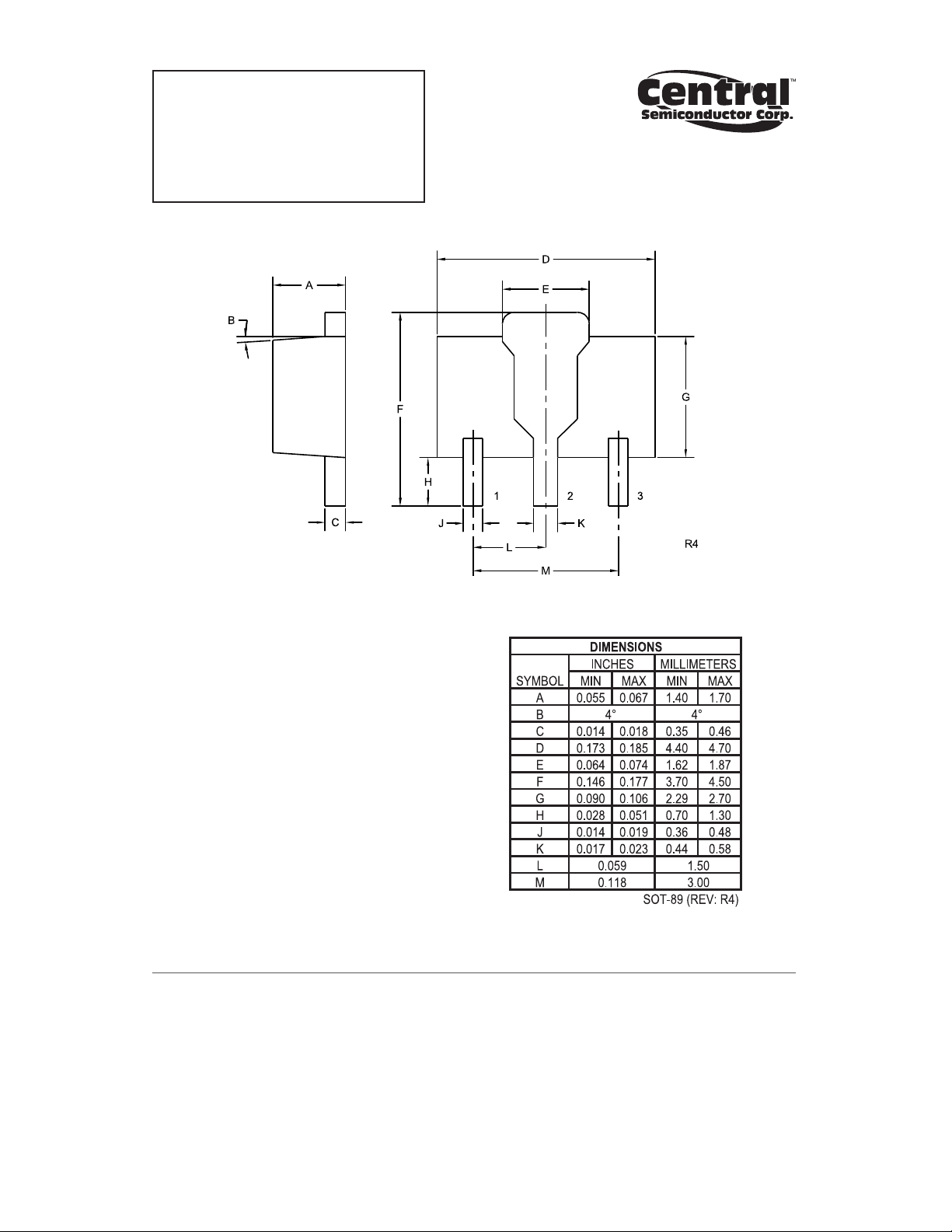

SOT-89 CASE - MECHANICAL OUTLINE
www.centralsemi.com
(Bottom View)
LEAD CODE:
1) Emitter
2) Collector
3) Base
MARKING:
FULL PART NUMBER
R6 (23-February 2010)
