Description

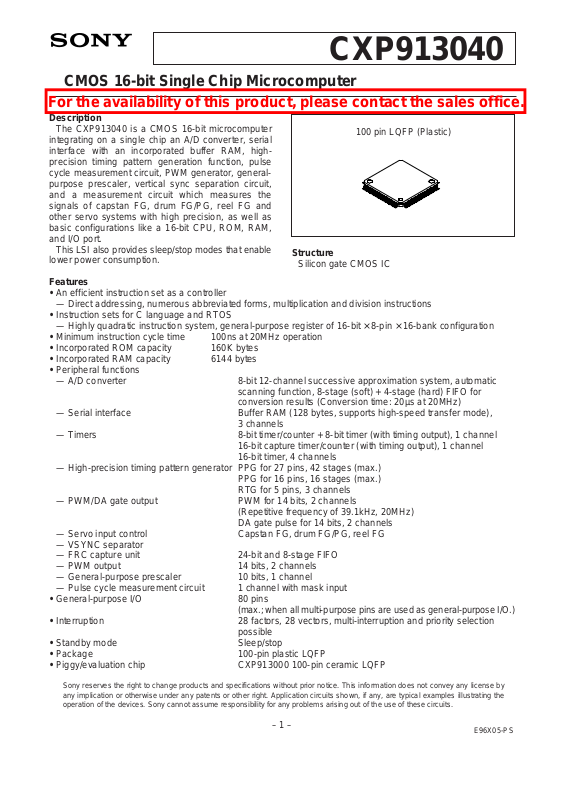

The CXP913040 is a CMOS 16-bit microcomputer
integrating on a single chip an A/D converter, serial
interface with an incorporated buffer RAM, highprecision timing pattern generation function, pulse
cycle measurement circuit, PWM generator, generalpurpose prescaler, vertical sync separation circuit,
and a measurement circuit which measures the
signals of capstan FG, drum FG/PG, reel FG and
other servo systems with high precision, as well as
basic configurations like a 16-bit CPU, ROM, RAM,
and I/O port.
This LSI also provides sleep/stop modes that enable
lower power consumption.
Features
• An efficient instruction set as a controller
— Direct addressing, numerous abbreviated forms, multiplication and division instructions
• Instruction sets for C language and RTOS
— Highly quadratic instruction system, general-purpose register of 16-bit × 8-pin × 16-bank configuration
• Minimum instruction cycle time 100ns at 20MHz operation
• Incorporated ROM capacity 160K bytes
• Incorporated RAM capacity 6144 bytes
• Peripheral functions
— A/D converter 8-bit 12-channel successive approximation system, automatic
scanning function, 8-stage (soft) + 4-stage (hard) FIFO for
conversion results (Conversion time: 20µs at 20MHz)
— Serial interface Buffer RAM (128 bytes, supports high-speed transfer mode),
3 channels
— Timers 8-bit timer/counter + 8-bit timer (with timing output), 1 channel
16-bit capture timer/counter (with timing output), 1 channel
16-bit timer, 4 channels
— High-precision timing pattern generator PPG for 27 pins, 42 stages (max.)
PPG for 16 pins, 16 stages (max.)
RTG for 5 pins, 3 channels
— PWM/DA gate output PWM for 14 bits, 2 channels
(Repetitive frequency of 39.1kHz, 20MHz)
DA gate pulse for 14 bits, 2 channels
— Servo input control Capstan FG, drum FG/PG, reel FG
— VSYNC separator
— FRC capture unit 24-bit and 8-stage FIFO
— PWM output 14 bits, 2 channels
— General-purpose prescaler 10 bits, 1 channel
— Pulse cycle measurement circuit 1 channel with mask input
• General-purpose I/O 80 pins
(max.; when all multi-purpose pins are used as general-purpose I/O.)
• Interruption 28 factors, 28 vectors, multi-interruption and priority selection
possible
• Standby mode Sleep/stop
• Package 100-pin plastic LQFP
• Piggy/evaluation chip CXP913000 100-pin ceramic LQFP
CXP913040
CMOS 16-bit Single Chip Microcomputer
– 1 –
E96X05-PS
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
100 pin LQFP (Plastic)
Structure
Silicon gate CMOS IC
For the availability of this product, please contact the sales office.
Page 2
– 2 –
CXP913040
Vss
V
DD
CLOCK
GENERATOR/
SYSTEM
CONTROLLER
RAM
6144 BYTES
SPC900
CPU CORE
FIFO
FRC
CAPTURE UNIT
5
10
4
SERIAL INTERFACE UNIT
(CH0)
RAM
8-BIT TIMER/COUNTER 0
8-BIT TIMER 1
V SYNC SEPARATOR
PULSE MEASURE UNIT
SERVO INPUT
CONTROL
CAPSTAN
DRUM
REEL
4
3
REAL-TIME
PULSE
GENERATOR
NMI
INT0
RST
8
PORT A
8
PORT B
8
PORT C
8
PORT D
PORT E
4
4
PORT F
PORT G
8
PORT H
PORT I
EXTAL
XTAL
PRESCALER
14-BIT PWM/DA GENERATOR
(× 2ch)
SERIAL INTERFACE UNIT
(CH1)
CH0
8
PORT J
RTO0
to
RTO4
PPO100
to
PPO109
16-BIT TIMER (× 4ch)
PROGRAMMABLE
PATTERN
GENERATOR
RAM(CH1)
CH1 CH2
FIFO
FIFO
A/D
CONVERTER
4
2
INT1
INT2
12
19
PPO000
to
PPO018
PROGRAMMABLE PRESCALER
PROGRAMMABLE
PATTERN
GENERATOR
RAM(CH0)
4
INTERRUPT CONTROLLER
2
SERIAL INTERFACE UNIT
(CH2)
16-BIT CAPTURE TIMER/COUNTER
RAM
RAM
2
AN0
to
AN11
AV
SS
AV
REF
AV
DD
14-BIT PWM GENERATOR (× 2ch)
8
2
6
4
4
2
2
PMSK
PMI
PWM3
PWM2
DA1
PWM0
EXI1
EXI0
RFG1
RFG0
CFG
SYNC1
SYNC0
T2
CINT
T1
EC0
SCK2
SO2
SI2
SCK1
SO1
SI1
CS1
DA0
PWM1
XOUT
(OSCO)
PCK/OSCI
PO
DPG
DFG
EC2
SCK0
SO0
SI0
CS0
CS2
ROM
160K BYTES
3
Block Diagram
Page 3
– 3 –
CXP913040
Pin Configuration (Top View)
PB4/PPO012
PB5/PPO013
PB6/PPO014
PB7/PPO015
PC0/PPO016
PC1/PPO017
PC2/PPO018
PC3/RTO0
PC4/RTO1
PC5/RTO2
PC6/RTO3
PC7/RTO4
VSS
PD0/KS0
PD1/KS1
PD2/KS2
PD3/KS3
PD4/KS4
PD5/KS5
PD6/KS6
PD7/KS7
PE0
PE1
PE2
PE3
AV
SS
AN3
AN2
AN1
PI7/AN0
VSS
PI6/XOUT
PI5/OSCO
PI4/PCK/OSCI
PI3/CS2/PO
PI2/SCK2
PI1/SO2
PI0/SI2
SCK0
SO0
SI0
CS0
PH7/CFG
PH6/DFG
PH5/DPG
PH4/PMSK
PH3/SYNC1
PH2/SYNC0/PMI
PH1/EXI1
PH0/EXI0
PB3/PPO011
PB2/PPO010
PB1/PPO009/PPO109
PB0/PPO008/PPO108
PA7/PPO007/PPO107
PA6/PPO006/PPO106
PA5/PPO005/PPO105
PA4/PPO004/PPO104
PA3/PPO003/PPO103
PA2/PPO002/PPO102
PA1/PPO001/PPO101
PA0/PPO000/PPO100
V
SS
V
DD
V
DD
PJ7/AN11/KS15
PJ6/AN10/KS14
PJ5/AN9/KS13
PJ4/AN8/KS12
PJ3/AN7/KS11
PJ2/AN6/KS10
PJ1/AN5/KS9
PJ0/AN4/KS8
AV
DD
AV
REF
PE4
PE5
PE6
PE7
PF0/EC0/INT0
PF1/EC2/INT1
PF2/CS1/NMI/CINT
PF3/SI1/INT2
PF4/SO1
PF5/SCK1
PF6/T1
PF7/T2
RST
V
SS
XTAL
EXTAL
V
DD
PG0/PWM0
PG1/PWM1
PG2/PWM2
PG3/PWM3
PG4/DA0
PG5/DA1
PG6/RFG0
PG7/RFG1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
76
77
78
79
80
26
27
28
29
30
40
39
38
37
36
35
34
31
32
33
41
42
43
44
45
46
47
48
49
50
81
82
83
84
88
87
86
85
89
90
100
99
98
97
96
95
94
91
92
93
51
52
53
54
55
56
57
58
59
60
70
69
68
67
63
64
65
66
61
62
71
72
73
74
75
Note) 1. Vss (Pins 13, 39, 70 and 88) must be connected to GND.
2. VDD (Pins 42, 86 and 87) must be connected to VDD.
