CXP87740A/87748A
CMOS 8-bit Single Chip Microcomputer
Description
The CXP87740A/87748A is a CMOS 8-bit microcomputer which consists of A/D converter, serial
interface, timer/counter, time base timer, vector
interruption, high precision timing pattern generation
circuit, PWM generator, PWM for tuner, VISS/VASS
circuit, 32kHz timer/event counter, remote control
receiving circuit, VCR vertical sync separation circuit
and the measuring circuit which measure signals of
capstan FG and drum FG/PG and other servo systems,
as well as basic configurations like 8-bit CPU, ROM,
RAM and I/O port. They are integrated into a single chip.
Also CXP87740A/87748A provides sleep/stop function
which enables to lower power consumption and ultra-low
speed instruction mode in 32kHz operation.
Features
• A wide instruction set (213 instructions) which cover various types of data
— 16-bit arithmetic instruction/multiplication and division instructions/boolean bit operation instruction
• Minimum instruction cycle During operation 333ns/12MHz (Supply voltage 3.0 to 5.5V)
During operation 250ns/16MHz (Supply voltage 4.5 to 5.5V)
During operation 122µs/32kHz
• Incorporated ROM capacity 40K bytes (CXP87740A)
48K bytes (CXP87748A)
• Incorporated RAM capacity 1344 bytes
• Peripheral functions
— A/D converter 8-bit, 12-channel, successive approximation system
(Conversion time 20.0µs/16MHz)
— Serial interface Incorporated 8-bit and 8-stage FIFO, 1-channel
(1 to 8 bytes auto transfer)
8-bit serial I/O, 1-channel
— Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer,
32kHz timer/counter
— High precision timing pattern generator PPG 19 pins 32-stage programmable
RTG 5-pins 2-channel
— PWM/DA gate output 12-bit, 2-channel (Repetitive frequency 62kHz/16MHz)
— Servo input control Capstan FG, Drum FG/PG, CTL input
— VSYNC separator
— FRC capture unit Incorporated 26-bit and 8-stage FIFO
— PWM output 14-bit, 1-channel
— VISS/VASS circuit Pulse duty auto detection circuit
— Remote control receiving circuit 8-bit pulse measuring counter, 6-stage FIFO
• Interruption 21 factors, 15 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 100-pin plastic QFP/LQFP
• Piggyback/evaluation chip CXP87700 100-pin ceramic QFP/LQFP
100 pin QFP (PIastic) 100 pin LQFP (PIastic)
Structure
Silicon gate CMOS IC
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
– 1 –
E94Z16-ST
Page 2
CXP87740A/87748A
Vss
V
DD
MP
RST
XTAL
EXTAL
TX
TEX
PE1/INT2
PI4/INT1/NMI
PE0/INT0
PA0 to PA7
8
PORT A
CLOCK
GENERATOR/
SYSTEM CONTROL
SPC700
CPU CORE
NMI
2
PB0 to PB7
8
PORT B
PC0 to PC7
8
PORT C
PD0 to PD7
PE0 to PE1
2
8
PORT D
RAM
1344 BYTES
ROM
40K/48K BYTES
INTERRUPT CONTROLLER
2
PF0 to PF3
PE2 to PE7
4
6
PORT E
PRESCALER/
2
2
PF4 to PF7
PG0 to PG7
4
8
PORT F
PORT G
32kHz
TIME BASE TIMER
TIMER/COUNTER
FIFO
FRC
CAPTURE UNIT
3
PH0 to PH7
8
PORT H
2
PORT I
PULSE
REALTIME
GENERATOR
PJ0 to PJ7
8
PI1 to PI7
7
RAM
PATTERN
GENERATOR
PROGRAMMABLE
2
PORT J
CH
CH0
4
1
5
PC7/RTO7
to
PC3/RTO3
PC2/PPO18
19
to
PA0/PPO0
AVss
REF
AV
AV
DD
AN0 to AN3
Block Diagram
A/D CONVERTER
SERIAL
12
SI0
CS0
to
PF0/AN4
PF7/AN11
FIFO
(CH1)
(CH0)
SERIAL INTERFACE UNIT
INTERFACE UNIT
SO0
SCK0
PI7/SI1
PI6/SO1
PI5/SCK1
8 BIT TIMER 1
8 BIT TIMER/COUNTER 0
V SYNC SEPARATOR
CAPSTAN
PE1/EC
PI3/TO/DDO
PG5/SYNC1
PG4/SYNC0
PG0/CFG
PG7/EXI1
PG6/EXI0
– 2 –
FIFO
CONTROL
SERVO INPUT
CTL
PG2/DPG
REMOCON INPUT
PI1/RMC
DRUM
PG1/DFG
PG3/PBCTL
VISS/VASS
14 BIT PWM GENERATOR
12 BIT PWM GENERATOR CH0
PI2/PWM
PE4/DAA0
PE2/PWM0
12 BIT PWM GENERATOR CH1
PI3/ADJ
PE7/DAB1
PE5/DAA1
PE6/DAB0
PE3/PWM1
Page 3
Pin Configuration 1 (Top View) 100 pin QFP package
PA6/PPO6
PA5/PPO5
PA4/PPO4
PA3/PPO3
PA2/PPO2
PA1/PPO1
PA0/PPO0
PB7/PPO15
PB6/PPO14
DD
V
NC
PA7/PPO7
CXP87740A/87748A
SS
TX
V
TEX
PI2/PWM
PI1/RMC
PI5/SCK1
PI4/INT1/NMI
PI3/TO/DDO/ADJ
PB5/PPO13
PB4/PPO12
PB3/PPO11
PB2/PPO10
PB1/PPO9
PB0/PPO8
PC7/RTO7
PC6/RTO6
PC5/RTO5
PC4/RTO4
PC3/RTO3
PC2/PPO18
PC1/PPO17
PC0/PPO16
PJ7
PJ6
PJ5
PJ4
PJ3
PJ2
PJ1
PJ0
PD7
PD6
PD5
PD4
PD3
PD2
PD1
PD0
10
12
13
15
17
19
14
16
18
20
23
25
29
30
11
21
22
24
26
27
28
100
99
98
1
2
3
4
5
6
7
8
9
32
31
33
97
34
96
35
95
36
94
37
93
38
92
39
91
40
90
41
89
42
88
43
87
44
45
86
85
46
84
47
83
48
82
49
81
50
80
79
78
77
76
75
71
69
68
67
66
65
64
63
62
60
59
58
57
55
53
52
51
74
73
72
70
61
56
54
PI6/SO1
PI7/SI1
PE0/INT0
PE1/EC/INT2
PE2/PWM0
PE3/PWM1
PE4/DAA0
PE5/DAA1
PE6/DAB0
PE7/DAB1
PG0/CFG
PG1/DFG
PG2/DPG
PG3/PBCTL
PG4/SYNC0
PG5/SYNC1
PG6/EXI0
PG7/EXI1
AN0
AN1
AN2
AN3
PF0/AN4
PF1/AN5
PF2/AN6
PF3/AN7
AV
DD
AVREF
AVSS
PF4/AN8
PH7
PH6
PH5
PH4
PH3
PH2
PH1
PH0
MP
RST
SS
V
XTAL
CS0
EXTAL
SI0
SO0
SCK0
Note) 1. NC (Pin 90) is always connected to VDD.
2. Vss (Pins 41 and 88) are both connected to GND.
– 3 –
PF5/AN9
PF6/AN10
PF7/AN11
Page 4
Pin Configuration 2 (Top View) 100 pin LQFP package
PA7/PPO7
PA6/PPO6
PA5/PPO5
PA4/PPO4
PA3/PPO3
PA2/PPO2
PA1/PPO1
PA0/PPO0
PB7/PPO15
PB6/PPO14
PB5/PPO13
PB4/PPO12
NC
CXP87740A/87748A
SS
DD
V
TX
V
TEX
PI2/PWM
PI1/RMC
PI5/SCK1
PI4/INT1/NMI
PI3/TO/DDO/ADJ
PI7/SI1
PI6/SO1
PE0/INT0
PB3/PPO11
PB2/PPO10
PB1/PPO9
PB0/PPO8
PC7/RTO7
PC6/RTO6
PC5/RTO5
PC4/RTO4
PC3/RTO3
PC2/PPO18
PC1/PPO17
PC0/PPO16
PJ7
PJ6
PJ5
PJ4
PJ3
PJ2
PJ1
PJ0
PD7
PD6
PD5
PD4
PD3
10
11
12
13
14
15
16
17
18
19
21
22
25
20
23
24
100
99
98
1
2
3
4
5
6
7
8
9
27
28
26
97
29
96
30
95
31
94
32
93
33
92
34
91
35
90
36
89
37
88
38
87
39
86
40
85
41
84
42
83
43
82
44
81
45
80
46
79
47
78
48
77
49
76
50
75
74
73
72
70
69
67
65
64
63
62
61
59
58
56
55
54
53
52
51
71
68
66
60
57
PE1/EC/INT2
PE2/PWM0
PE3/PWM1
PE4/DAA0
PE5/DAA1
PE6/DAB0
PE7/DAB1
PG0/CFG
PG1/DFG
PG2/DPG
PG3/PBCTL
PG4/SYNC0
PG5/SYNC1
PG6/EXI0
PG7/EXI1
AN0
AN1
AN2
AN3
PF0/AN4
PF1/AN5
PF2/AN6
PF3/AN7
DD
AV
AVREF
SS
MP
PD2
PD1
PD0
PH7
PH6
PH5
PH4
PH3
PH2
PH1
PH0
RST
V
XTAL
EXTAL
Note) 1. NC (Pin 88) is always connected to VDD.
2. Vss (Pins 39 and 86) are both connected to GND.
– 4 –
CS0
SI0
SO0
SCK0
PF6/AN10
PF7/AN11
PF4/AN8
PF5/AN9
SS
AV
Page 5

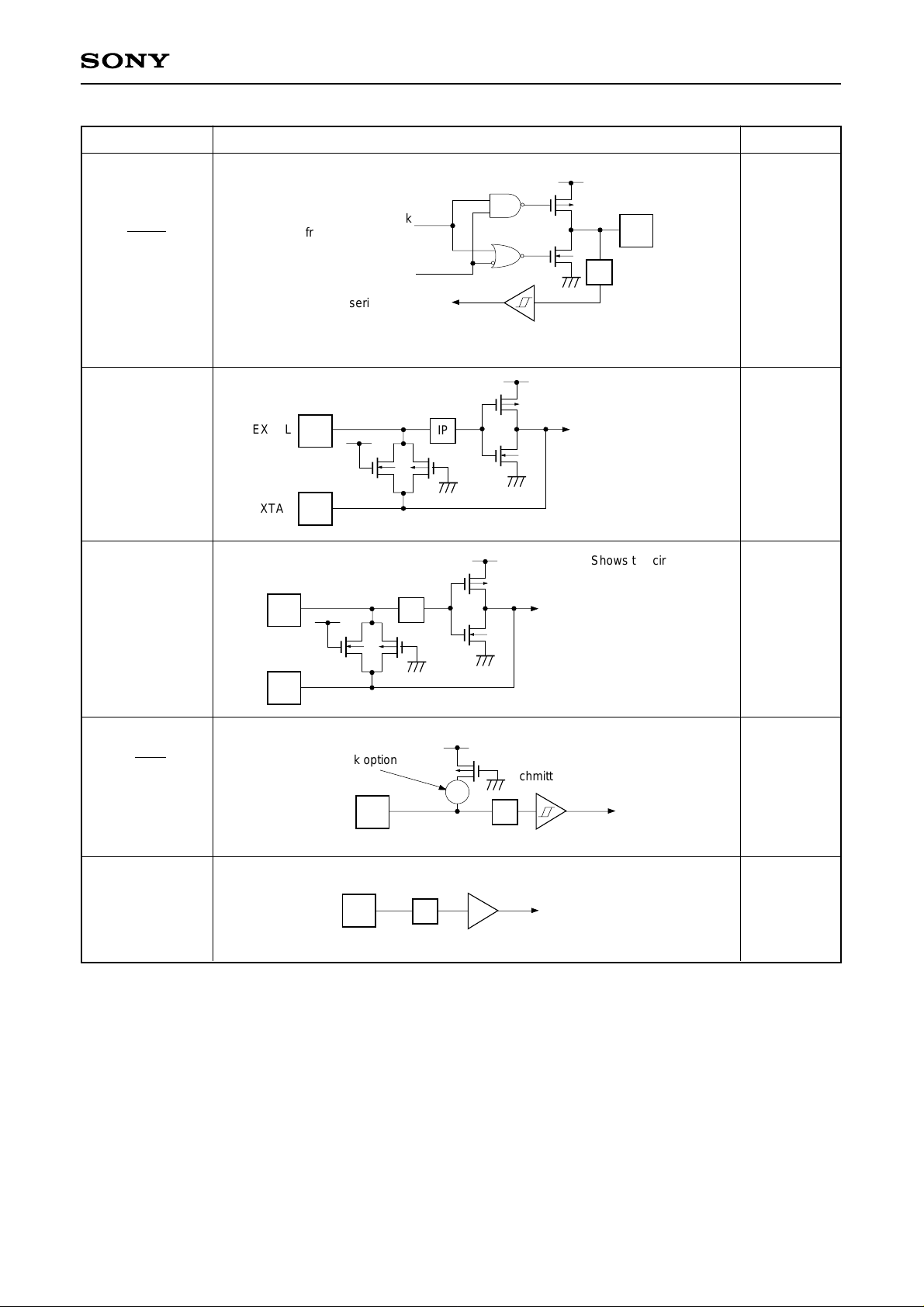

Pin Description
Symbol I/O Description
(Port A)
PA0/PPO0
to
PA7/PPO7
Output/
Real time
Output
8-bit output port. Data is
gated with PPO contents by
OR-gate and they are output.
(8 pins)
(Port B)
PB0/PPO8
to
PB7/PPO15
Output/
Real time
Output
8-bit output port. Data is
gated with PPO contents by
OR-gate and they are output.
(8 pins)
CXP87740A/87748A
Programmable pattern generator (PPG)
output.
Functions as high precision real time
pulse output port.
(19 pins)
PC0/PPO16
to
PC2/PPO18
PC3/RTO3
to
PC7/RTO7
PD0 to PD7
PE0/INT0
PE1/EC/INT2
PE2/PWM0
PE3/PWM1
PE4/DAA0
PE5/DAA1
PE6/DAB0
I/O/
Real time
Output
I/O/
Real time
Output
I/O
Input/input
Input/input/input
Output/output
Output/output
Output/output
Output/output
Output/output
(Port C)
8-bit I/O port, enables to
specify I/O by bit unit.
Data is gated with PPO or
RTO contents by OR-gate
and they are output.
(8 pins)
Real time pulse generator (RTG) output.
Functions as high precision real time
pulse output port. (5 pins)
(Port D)
8-bit I/O port. Enable to specify I/O by 4-bit unit.
Enables to drive 12mA sink current.
(8 pins)
Input pin to request external interruption.
Active when falling edge.
External event
input pin for
(Port E)
timer/counter.
8-bit port. Lower 2 bits are
input pins and upper 6 bits
are output pins.
PWM output pins.
(2 pins)
(8 pins)
DA gate pulse output pins.
(4 pins)
Input pin to request
external interruption.
Active when falling edge.
PE7/DAB1
AN0 to AN3
PF0/AN4
to
PF3/AN7
PF4/AN8
to
PF7/AN11
SCK0
SO0
SI0
CS0
Output/output
Input
Input/input
Output/input
I/O
Ouput
Input
Input
Analog input pins to A/D converter. (12 pins)
(Port F)
Lower 4 bits are input port and upper 4 bits are output port.
Lower 4 bits also serve as standby release input pin.
(8 pins)
Serial clock (CH0) I/O pin.
Serial data (CH0) output pin.
Serial data (CH0) input pin.
Serial chip select (CH0) input pin.
– 5 –
Page 6

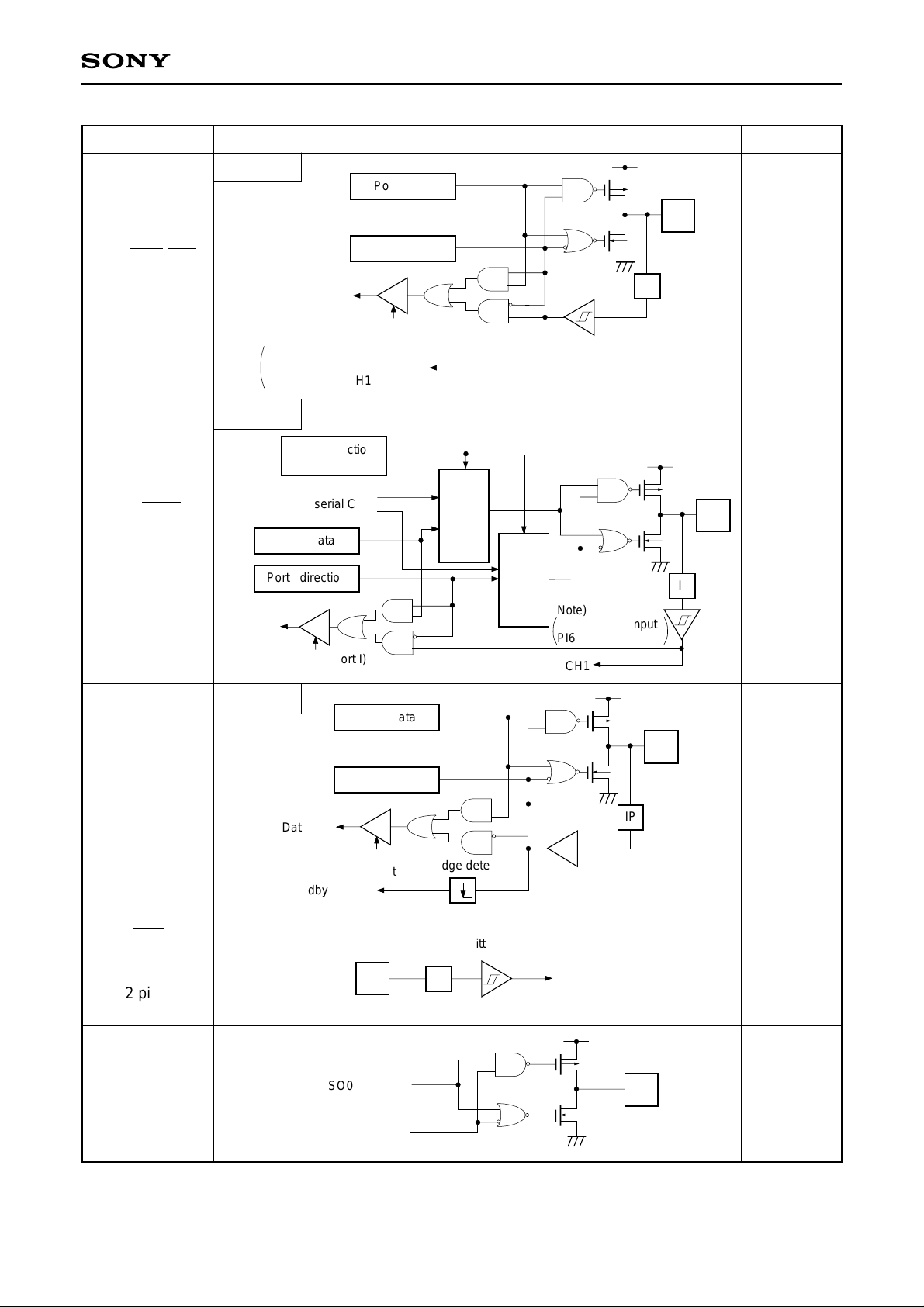

Symbol I/O Description
CXP87740A/87748A
PG0/CFG
PG1/DFG
PG2/DPG
PG3/PBCTL
PG4/SYNC0
PG5/SYNC1
PG6/EXI0
PG7/EXI1
PH0 to PH7
PI1/RMC
PI2/PWM
PI3/TO/
DDO/ADJ
PI4/INT1/
NMI
PI5/SCK1
Input/input
Input/input
Input/input
Input/input
Input/input
Input/input
Input/input
Input/input
Output
I/O/input
I/O/output
I/O/output/
output/output
I/O/input/Input
I/O/I/O
Capstan FG input pin.
Drum FG input pin.
Drum PG input pin.
(Port G)
Playback CTL pulse input pin.
8-bit input port.
(8 pins)
Composite sync signal input pin.
External input pin to FRC capture unit.
(Port H)
8-bit output port ; Medium withstand voltage (12V) and high current
(12mA), N-ch open drain output.
(8 pins)
Remote control receiving circuit input pin.
14-bit PWM output pin.
(Port I)
7-bit I/O port.
I/O port can be
specified by bit
unit.
(7 pins)
Timer/counter, CTL duty detection, 32kHz
oscillation adjustment output pin.
Input pin to request external interruption and non
maskable interruption. Active when falling edge.
Serial clock (CH1) I/O pin.
PI6/SO1
PI7/SI1
PJ0 to PJ7
EXTAL
XTAL
TEX
TX
RST
MP
AVDD
AVREF
AVss
VDD
Vss
I/O/output
I/O/input
I/O
Input
Output
Input
Output
Input
Input
Input
Serial data (CH1) output pin.
Serial data (CH1) input pin.
(Port J)
8-bit I/O port. Function as standby release input can be specified by bit
unit. I/O can be specified by bit unit.
Connecting pin of crystal oscillator for system clock. When supplying
the external clock, input the external clock to EXTAL pin and input
opposite phase clock to XTAL pin.
Connecting pin of crystal oscillator for 32kHz timer clock. When used
as event counter, input to TEX pin and leave TX pin open. (Feedback
resistor is not removed.)
System reset pin of active "L" level.
Microprocessor mode input pin. Always connect to GND.
Positive power supply pin of A/D converter.
Reference voltage input pin of A/D converter.
GND pin of A/D converter.
Positive power supply pin.
GND pin. Connect both Vss pins to GND.
– 6 –
Page 7
Input/Output Circuit Formats for Pins
CXP87740A/87748A
Pin
PA0/PPO0
to
PA7/PPO7
PB0/PPO8
to
PB7/PPO15
16 pins
PC0/PPO16
to
PC2/PPO18
PC3/RTO3
to
PC7/RTO7
Port A
Port B
Data bus
Port C
PPO data
Port A or Port B
RD
PPO, RTO data
Port C data
Port C direction
Circuit format
Output becomes active from high
impedance by data writing to port register.
(Every bit)
IP
Input
protection
circuit
When reset
Hi-Z
Hi-Z
8 pins
PD0
to
PD7
8 pins
Data bus
Port D
Data bus
RD (Port C)
Port D data
Port D direction
RD (Port D)
(Every 4 bits)
PD0 to 3
PD4 to 7
IP
High
current
12mA
Hi-Z
– 7 –
Page 8
CXP87740A/87748A
AAA
AAA
Pin
PE0/INT0
PE1/EC/INT2
2 pins
PE2/PWM0
PE3/PWM1
PE4/DAA0
PE5/DAA1
4 pins
Port E
Port E
Data bus
DA gate output
or PWM output
Hi-Z control
Port E data
Port/DA output
select
RD (Port E)
Circuit format
Schmitt input
IP
When reset
Hi-Z
Data bus
RD (Port E)
MPX
Hi-Z
PE6/DAB0
PE7/DAB1
2 pins
AN0
to
AN3
4 pins
PF0/AN4
to
PF3/AN7
Port E
Data bus
Port F
DA gate output
Hi-Z control
Port E data
Port/DA output
select
RD (Port E)
Input multiplexer
IP
Input multiplexer
IP
MPX
A/D converter
A/D converter
H level
Hi-Z
Hi-Z
4 pins
Data bus
RD (Port F)
– 8 –
Page 9
CXP87740A/87748A
A
A
Pin
PF4/AN8
to
PF7/AN11
4 pins
PG0/CFG
PG1/DFG
PG2/DPG
PG3/PBCTL
PG4/SYNC0
PG5/SYNC1
PG6/EXI0
PG7/EXI1
8 pins
Circuit format
Port F
Port F data
Data bus
RD
(Port F)
Port/AD select
Port G
Schmitt input
IP
RD (Port G)
Note) For PG4/SYNC0, PG5/SYNC1, CMOS schmitt input and TTL schmitt
input can be selected with the mask option.
Servo input
Data bus
IP
Input multiplexer
A/D
converter
When reset
Hi-Z
Hi-Z
PH0
to
PH7
8 pins
PI2/PWM
PI3/TO/
DDO/ADJ
2 pins
Port H
Port H data
Data bus
Port I
PI2: From 14-bit PWM
PI3: From timer/counter,
CTL duty detection circuit,
32kHz timer
Port I data
Port I direction
Data bus
RD (Port I)
RD (Port H)
Port I function
select
A
MPX
A
Medium withstand
voltage 12V
Hi-Z
High current
12mA
Hi-Z
IP
– 9 –
Page 10
CXP87740A/87748A
PIn
PI1/RMC
PI4/INT1/NMI
PI7/SI1
3 pins
PI5/SCK1
PI6/SO1
2 pins
Port I
Data bus
PI1: To remote control circuit
PI4: To interruption circuit
PI7: To serial CH1
Port I
Port I function
select
From serial CH1
Port I data
Port I direction
Data bus
RD (Port I)
Circuit format
Port I data
Port I direction
RD (Port I)
MPX
Schmitt input
MPX
Note)
PI5 is schmitt input
PI6 is inverter input
To serial CH1
When reset
IP
Hi-Z
Hi-Z
IP
PJ0
to
PJ7
8 pins
CS0
SI0
2 pins
SO0
1 pin
Port J
Port J data
Port J direction
Data bus
Standby release
SO0 from SIO
SO0 output enable
RD
(Port J)
Edge detection
Schmitt input
IP
To SIO
Hi-Z
IP
Hi-Z
Hi-Z
– 10 –
Page 11
CXP87740A/87748A
PIn
SCK0
1 pin
EXTAL
XTAL
2 pins
TEX
TX
2 pins
TEX
TX
EXTAL
XTAL
Circuit format
Internal serial clock
from SIO
SCK0 output enable
External serial clock to SIO
IP
When reset
IP
Schmitt input
• Shows the circuit
composition during
IP
32kHz
timer counter
oscillation.
• Feedback resistor is
removed during stop.
XTAL becomes "H"
level.
• Shows the circuit
composition during
oscillation.
• Feedback resistor is
removed during 32kHz
oscillation circuit stop
by software.
At this time TEX pin
outputs "L" level and TX
pin outputs "H" level.
Hi-Z
Oscillation
Oscillation
RST
1 pin
MP
1 pin
Mask option
Pull-up resistor
Schmitt input
OP
IP
IP
CPU mode
L level
Hi-Z
– 11 –
Page 12
CXP87740A/87748A
Absolute Maximum Ratings (Vss=0V)
Item Symbol Rating Unit Remarks
–0.3 to +7.0
AVss to +7.0
–0.3 to +0.3
–0.3 to +7.0
–0.3 to +7.0
–0.3 to +15.0
–5
–50
15
∗1
∗2
∗2
Supply voltage
Input voltage
Output voltage
Medium withstand output voltage
High level output current
High level total output current
VDD
AVDD
AVSS
VIN
VOUT
VOUTP
IOH
∑IOH
IOL
Low level output current
20
130
–20 to +75
–55 to +150
Low level total output current
Operating temperature
Storage temperature
IOLC
∑IOL
Topr
Tstg
600
Allowable power dissipation
∗1
AVDD and VDD should be set to a same voltage.
∗2
VIN and VOUT should not exceed VDD + 0.3V.
∗3
The high current operation transistors are the N-CH transistors of the PD and PH ports.
PD
380
V
V
V
V
V
V
mA
mA
mA
mA
mA
°C
°C
mW
PH pin
Total of output pins
Other than high current output
pins: per pin
High current port pin∗3: per pin
Total of output pins
QFP package type
LQFP package type
Note) Usage exceeding absolute maximum ratings may permanently impair the LSI. Normal operation should
better take place under the recommended operating conditions. Exceeding those conditions may
adversely affect the reliability of the LSI.
– 12 –
Page 13
CXP87740A/87748A
Recommended Operating Conditions (Vss = 0V)
Item Symbol Min.
Supply voltage
Analog power supply
HIgh level
input voltage
Low level
input voltage
VDD
AVDD
VIH
VIHS
VIHTS
VIHEX
VIL
VILS
VILTS
VILEX
4.5
3.0
2.7
2.7
2.5
3.0
0.7VDD
0.8VDD
2.2
VDD – 0.4
VDD – 0.2
0
0
0
0
–0.3
–0.3
Max. Unit Remarks
5.5
VVfc = 16MHz
Guaranteed range during high
speed mode (1/2 dividing
5.5
5.5
5.5
5.5
5.5
VDD
VDD
VDD
VDD + 0.3
VDD + 0.2
0.3VDD
0.2VDD
0.2VDD
0.8
0.4
0.2
fc = 12MHz
Guaranteed range during low speed mode
V
(1/16 dividing clock) operation
Guaranteed operation range by TEX clock
V
Guaranteed data hold operation range
V
during STOP
∗1
V
∗2
V
CMOS schmitt input
V
TTL schmitt input
V
EXTAL pin
V
EXTAL pin
V
∗2, ∗7
V
∗2, ∗8
V
CMOS schmitt input
V
TTL schmitt input
V
EXTAL pin
V
EXTAL pin
V
clock) operation
∗4, ∗7
∗5, ∗7
∗5, ∗8
TEX pin
TEX pin
∗4, ∗7
∗5, ∗7
∗5, ∗8
TEX pin
TEX pin
∗3
∗6, ∗7
∗6, ∗8
∗3
∗6, ∗7
∗6, ∗8
Operating temperature
∗1
AVDD and VDD should be set to a same voltage.
∗2
Normal input port (each pin of PC, PD, PE0 to PE1, PF0 to PF3, PG, PI and PJ), MP pin.
∗3
Each pin of CS0, SI0, SCK0, RST, PE0/INT0, PE1/EC/INT2, PG (For PG4 and PG5, when CMOS schmitt
Topr
–20
+75
°C
input is selected with mask option), PI1/RMC, PI4/INT1/NMI, PI5/SCK1 and PI7/SI1.
∗4
Each pin of PG4 and PG5 (When TTL schmitt input is selected with mask option)
∗5
It specifies only when the external clock is input.
∗6
It specifies only when the event count clock is input.
∗7
This case applies to the range of 4.5 to 5.5V supply voltage (VDD).
∗8
This case applies to the range of 3.0 to 3.6V supply voltage (VDD).
– 13 –
Page 14
Electrical Characteristics
DC Characteristics (VDD = 4.5 to 5.5V)
CXP87740A/87748A
(Ta = –20 to +75°C, Vss = 0V)
Item Symbol Pins Conditions Min.
High level
output voltage
Low level
output voltage
VOH
VOL
IIHE
PA to PD,
PE2 to PE7,
PF4 to PF7,
PH (VOL only)
PI1 to PI7
PJ, SO0, SCK0
PD, PH
VDD = 4.5V, IOH = –0.5mA
VDD = 4.5V, IOH = –1.2mA
VDD = 4.5V, IOL = 1.8mA
VDD = 4.5V, IOL = 3.6mA
VDD = 4.5V, IOL = 12.0mA
VDD = 5.5V, VIH = 5.5V
EXTAL
Input current
IILE
IIHT
VDD = 5.5V, VIL = 0.4V
VDD = 5.5V, VIH = 5.5V
TEX
IILT
IILR
RST
∗1
VDD = 5.5V,
VIL = 0.4V
PA to PG,
I/O leakage
current
IIZ
PI, PJ, MP
AN0 to AN3,
CS0, SI0, SO0
SCK0, RST
VDD = 5.5V,
VI = 0, 5.5V
∗1
Open drain
output leakage
current (N-CH
ILOH
PH
VDD = 5.5V
VOH = 12V
Tr OFF in state)
4.0
3.5
0.5
–0.5
0.1
–0.1
–1.5
Typ.
Max. Unit
V
V
0.4
0.6
1.5
40
–40
10
–10
–400
±10
50
V
V
V
µA
µA
µA
µA
µA
µA
µA
IDD1
VDD = 5V ± 0.5V
∗3
24
45
SLEEP mode
16MHz crystal oscillation (C1 = C2 = 15pF)
IDDS1
1.3
8
VDD = 5V ± 0.5V
32kHz crystal oscillation (C1 = C2 = 47pF)
Supply
current
∗2
IDD2
VDD
VDD = 3V ± 0.3V
35
100
SLEEP mode
IDDS2
6
30
VDD = 3V ± 0.3V
STOP mode
IDDS3
(EXTAL and TEX pins oscillation stop)
10
VDD = 5V ± 0.5V
Other than VDD,
Vss, AV
Input capacity
∗1
RST pin specifies the input current when the pull-up resistor is selected, and specifies leakage current
CIN
DD
AVss
Clock 1MHz
, and
0V other than the measured pins
10
20
when non-resistor is selected.
∗2
When entire output pins are open.
∗3
When setting upper 2 bits (CPU clock selection) of clock control register CLC (address: 00FEH) to "00" and
operating in high speed mode (1/2 dividing clock).
mA
mA
µA
µA
µA
pF
– 14 –
Page 15
CXP87740A/87748A
DC Characteristics (VDD = 3.0 to 3.6V) (Ta = –20 to +75°C, Vss = 0V)
Item Symbol Pins Conditions Min.
High level
output voltage
Low level
output voltage
VOH
VOL
IIHE
PA to PD,
PE2 to PE7,
PF4 to PF7,
PH (VOL only)
PI1 to PI7
PJ, SO0, SCK0
PD, PH
VDD = 3.0V, IOH = –0.15mA
VDD = 3.0V, IOH = 0.5mA
VDD = 3.0V, IOL = 1.2mA
VDD = 3.0V, IOL = 1.6mA
VDD = 3.0V, IOL = 5mA
VDD = 3.6V, VIH = 3.6V
EXTAL
Input current
IILE
IIHT
VDD = 3.6V, VIL = 0.3V
VDD = 3.6V, VIH = 3.6V
TEX
IILT
IILR
RST
∗1
VDD = 3.6V,
VIL = 0.3V
PA to PG,
I/O leakage
current
Open drain
output leakage
current
IIZ
ILOH
PI, PJ, MP
AN0 to AN3,
CS0, SI0, SO0
SCK0, RST
PH
VDD = 3.6V,
VI = 0, 3.6V
∗1
VDD = 3.6V,
VOH = 12V
2.7
2.3
0.3
–0.3
0.1
–0.1
–0.9
Typ.
Max. Unit
V
V
0.3
0.5
1.0
20
–20
10
–10
–200
±10
50
V
V
V
µA
µA
µA
µA
µA
µA
µA
IDD1
VDD = 3.3V ± 0.3V
∗3
11
25
SLEEP mode
12MHz crystal oscillation (C1 = C2 = 15pF)
Supply
current
IDDS1
∗2
VDD
VDD = 3.3V ± 0.3V
0.5
2.5
STOP mode
IDDS3
(EXTAL and TEX pins oscillation stop)
10
VDD = 3.3V ± 0.3V
Other than VDD,
Vss, AV
Input capacity
∗1
RST pin specifies the input current when the pull-up resistor is selected, and specifies leakage current
CIN
DD
AVss
Clock 1MHz
, and
0V other than the measured pins
10
20
when non-resistor is selected.
∗2
When entire output pins are open.
∗3
When setting upper 2 bits (CPU clock selection) of clock control register CLC (address: 00FEH) to "00" and
operating in high speed mode (1/2 dividing clock).
mA
mA
µA
pF
– 15 –
Page 16
A
A
A
AC Characteristics
(1) Clock timing
CXP87740A/87748A
(Ta = –20 to +75°C, VDD = 3.0 to 5.5V, Vss = 0V)
Item Symbol Pins Conditions Unit
System clock frequency
System clock input pulse width
System clock input
rise and fall times
Event count clock input
pulse width
Event count clock input
rise and fall times
System clock frequency
Event count clock input
pulse width
Event count clock input
rise and fall times
∗
tsys indicates three values according to the contents of the clock control register (address; 00FEH) upper
2 bits (CPU clock selection).
fC
tXL,
tXH
tCR,
tCF
tEH,
tEL
tER,
tEF
fC
tTL,
tTH
tTR,
tTF
XTAL
EXTAL
XTAL
EXTAL
XTAL
EXTAL
EC
EC
TEX
TX
TEX
TEX
Fig. 1,
Fig. 2
Fig. 1,
Fig. 2 (External clock drive)
Fig. 1, Fig. 2
(External clock drive)
Fig. 3
Fig. 3
Fig. 2 VDD = 2.7 to 5.5V
(32kHz clock applied condition)
Fig. 3
Fig. 3
VDD = 4.5 to 5.5V
VDD = 4.5 to 5.5V
Min.
1
1
28
37.5
tsys ×4
32.768
10
Max.
16
12
200
∗
20
20
tsys [ns] = 2000/fc (Upper 2-bit = "00"), 4000/fc (Upper 2-bit = "01"), 16000/fc (Upper 2-bit = "11")
MHz
ns
ns
ns
ns
kHz
µs
ms

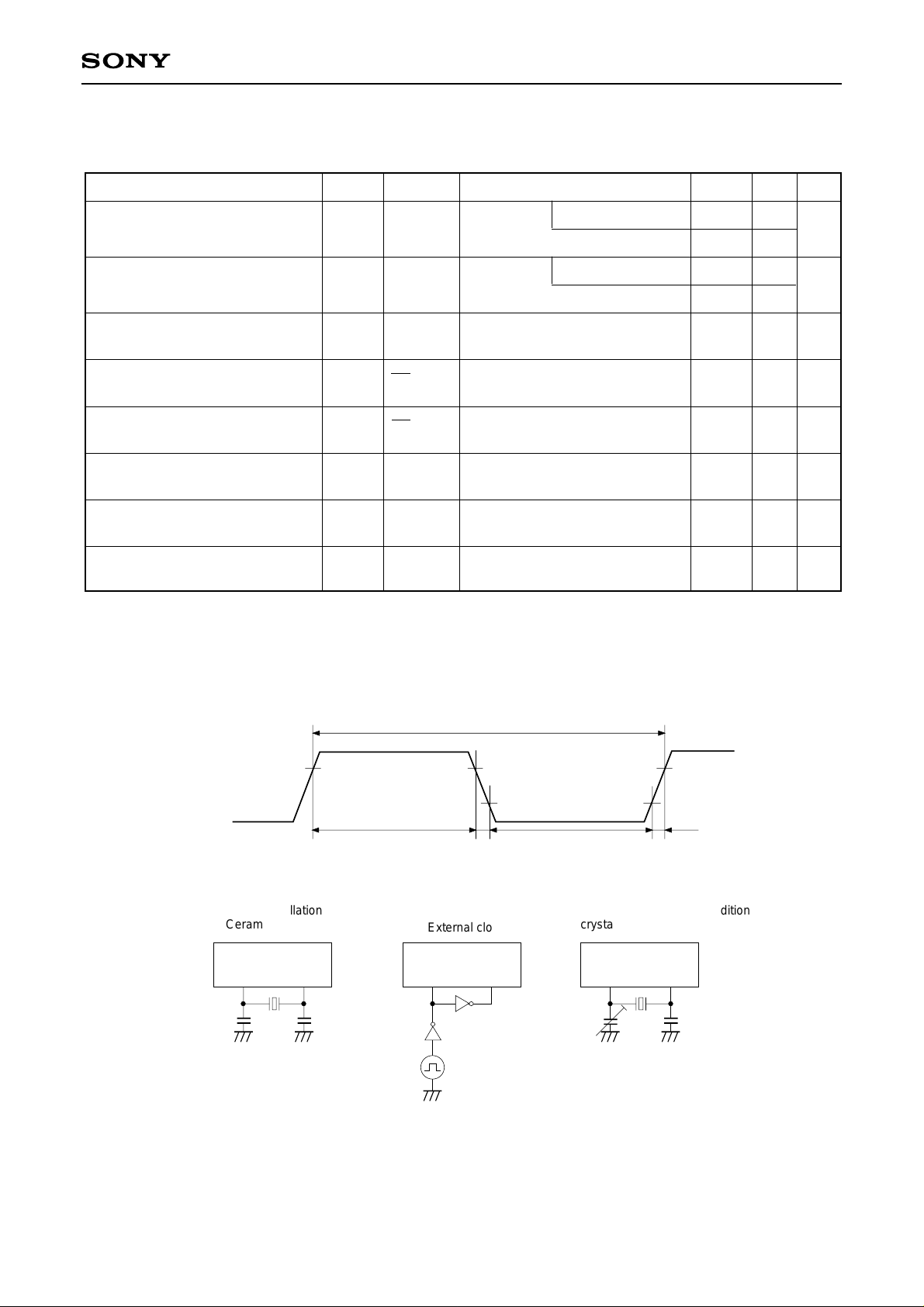

Fig. 1. Clock timing
EXTAL
Fig. 2. Clock applied condition
Crystal oscillation
Ceramic oscillation
EXTAL
AA
C
1 C2
XTAL
1/fc
t
XH tXLtCF tCR
32kHz clock applying condition
External clock
EXTAL
AA
74HC04
XTAL
crystal oscillation
TEX
AA
1
C
TX
DD – 0.4V
V
0.4V
C2
– 16 –
Page 17

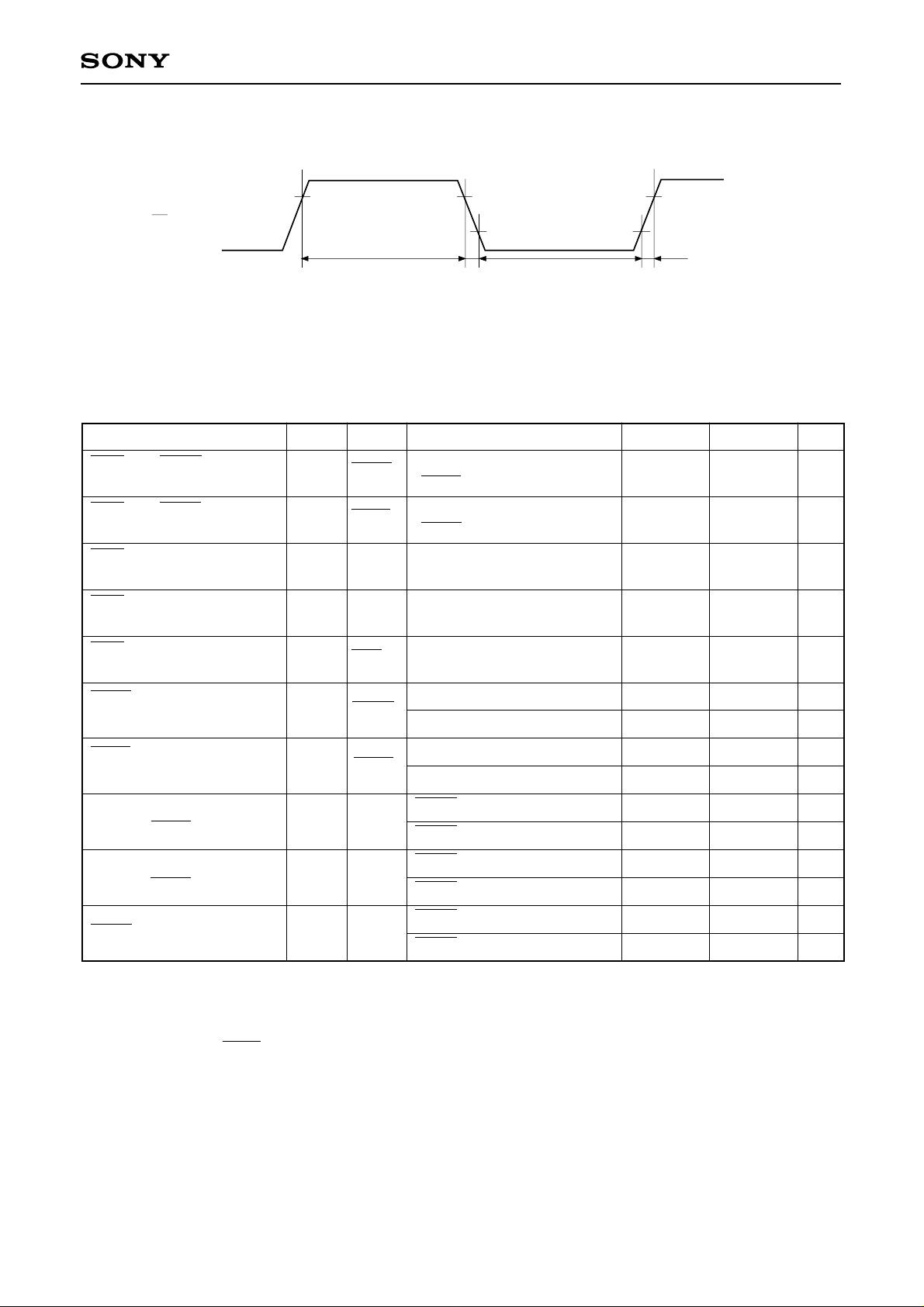

Fig. 3. Event count clock timing
CXP87740A/87748A
TEX
EC
t
EH tELtEF tER
tTH tTLtTF tTR
(2) Serial transfer (CH0) (Ta = –20 to +75°C, VDD = 4.5 to 5.5V, Vss = 0V)
Item
CS0 ↓→SCK0
delay time
CS0 ↑→SCK0
floating delay time
CS0 ↓→SO0
delay time
CS0 ↑→SO0
floating delay time
Symbol Pin Min.
tDCSK
tDCSKF
tDCSO
tDCSOF
SCK0
SCK0
SO0
SO0
Chip select transfer mode
(SCK0 = output mode)
Chip select transfer mode
(SCK0 = output mode)
Chip select transfer mode
Chip select transfer mode
0.8VDD
0.2VDD
Max. UnitCondition
tsys+200
tsys+200
tsys+200
tsys+200
ns
ns
ns
ns
CS0
high level width
SCK0
cycle time
SCK0
high and low level widths
SI0 input setup time
(against SCK0 ↑)
SI0 input hold time
(against SCK0 ↑)
SCK0 ↓→SO0 delay time
Note 1) tsys indicates three values according to the contents of the clock control register (address; 00FEH)
upper 2 bits (CPU clock selection).
tWHCS
tKCY
tKH
tKL
tSIK
tKSI
tKSO
CS0
SCK0
SCK0
SI0
SI0
SO0
Chip select transfer mode
Input mode
Output mode
Input mode
Output mode
SCK0 input mode
SCK0 output mode
SCK0 input mode
SCK0 output mode
SCK0 input mode
SCK0 output mode
tsys + 200
2tsys + 200
16000/fc
tsys + 100
8000/fc – 50
100
200
tsys + 200
100
tsys + 200
100
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
tsys [ns] = 2000/fc (Upper 2-bit = "00"), 4000/fc (Upper 2-bit = "01"), 16000/fc (Upper 2-bit = "11")
Note 2) The load of SCK0 output mode and SO0 output delay time is 50pF + 1TTL.
– 17 –
Page 18
CXP87740A/87748A
Serial transfer (CH0) (Ta = –20 to +75°C, VDD = 3.0 to 3.6V, Vss = 0V)
Item
CS0 ↓→SCK0
delay time
CS0 ↑→SCK0
floating delay time
CS0 ↓→SO0
delay time
CS0 ↑→SO0
floating delay time
CS0
high level width
SCK0
cycle time
SCK0
high and low level widths
SI0 input setup time
(against SCK0 ↑)
SI0 input hold time
(against SCK0 ↑)
SCK0 ↓→SO0 delay time
Symbol Pin Min.
tDCSK
tDCSKF
tDCSO
tDCSOF
tWHCS
tKCY
tKH
tKL
tSIK
tKSI
tKSO
SCK0
SCK0
SO0
SO0
CS0
SCK0
SCK0
SI0
SI0
SO0
Chip select transfer mode
(SCK0 = output mode)
Chip select transfer mode
(SCK0 = output mode)
Chip select transfer mode
Chip select transfer mode
Chip select transfer mode
Input mode
Output mode
Input mode
Output mode
SCK0 input mode
SCK0 output mode
SCK0 input mode
SCK0 output mode
SCK0 input mode
SCK0 output mode
tsys + 200
2tsys + 200
16000/fc
tsys + 100
8000/fc – 100
100
200
tsys + 200
100
Max. UnitCondition
tsys + 250
tsys + 200
tsys + 250
tsys + 200
tsys + 250
100
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
Note 1) tsys indicates three values according to the contents of the clock control register (address; 00FEH)
upper 2 bits (CPU clock selection).
tsys [ns] = 2000/fc (Upper 2-bit = "00"), 4000/fc (Upper 2-bit = "01"), 16000/fc (Upper 2-bit = "11")
Note 2) The load of SCK0 output mode and SO0 output delay time is 50pF.
– 18 –
Page 19

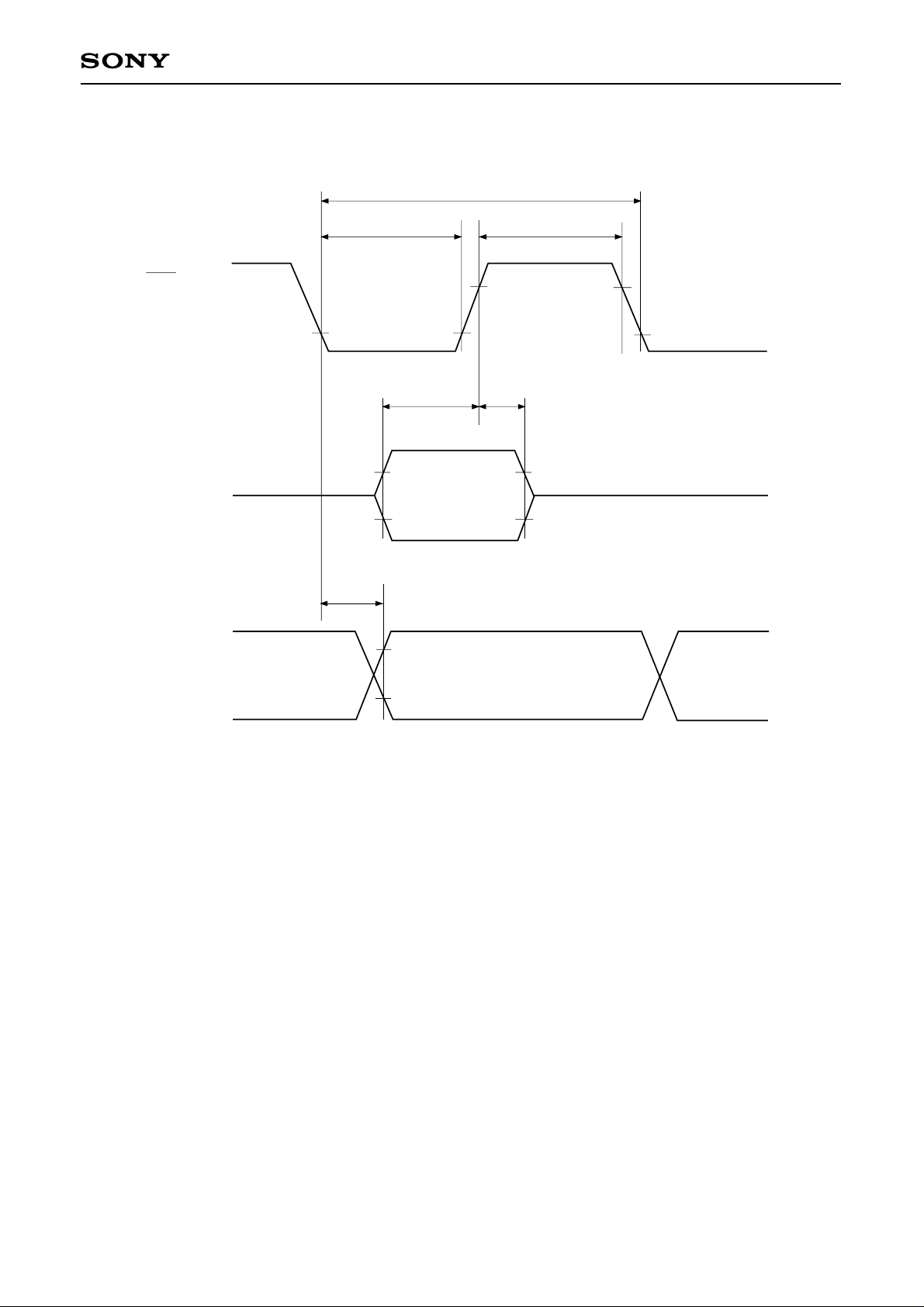

Fig. 4. Serial transfer CH0 timing
CS0
0.2VDD
CXP87740A/87748A
tWHCS
0.8VDD
tKCY
SCK0
SI0
tDCSK tDCSKF
tKL tKH
tKSI
tSIK
Input
data
0.8VDD
0.2VDD
0.8VDD
0.2VDD
0.8VDD
SO0
t
DCSO tKSO tDCSOF
Output
data
– 19 –
DD
0.8V
0.2VDD
Page 20
CXP87740A/87748A
Serial transfer (CH1) (Ta = –20 to +75°C, VDD = 4.5 to 5.5V, Vss = 0V)
Item Symbol Pins Min. Max. UnitConditions
SCK1 cycle time
SCK1 high and low
level widths
SI1 input setup time
(against SCK1 ↑)
SI1 input hold time
(against SCK1 ↑)
SCK1 ↓→SO1 delay time
Note) The load of SCK1 output mode and SO1 output delay time is 50pF + 1TTL.
Serial transfer (CH1) (Ta = –20 to +75°C, VDD = 3.0 to 3.6V, Vss = 0V)
Item Symbol Pins Min. Max. UnitConditions
SCK1 cycle time
tKCY
tKH
tKL
tSIK
tKSI
tKSO
tKCY
SCK1
SCK1
SI1
SI1
SO1
SCK1
Input mode
Output mode
Input mode
Output mode
SCK1 input mode
SCK1 output mode
SCK1 input mode
SCK1 output mode
SCK1 input mode
SCK1 output mode
Input mode
Output mode
1000
16000/fc
400
8000/fc – 50
100
200
200
100
1000
16000/fc
200
100
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
SCK1 high and low
level widths
SI1 input setup time
(against SCK1 ↑)
SI1 input hold time
(against SCK1 ↑)
SCK1 ↓→SO1 delay time
Note) The load of SCK1 output mode and SO1 output delay time is 50pF.
tKH
tKL
tSIK
tKSI
tKSO
SCK1
SI1
SI1
SO1
Input mode
Output mode
SCK1 input mode
SCK1 output mode
SCK1 input mode
SCK1 output mode
SCK1 input mode
SCK1 output mode
400
8000/fc – 100
100
200
200
100
250
100
ns
ns
ns
ns
ns
ns
ns
ns
– 20 –
Page 21
Fig. 5. Serial transfer CH1 timing
KCY
t
tKL tKH
CXP87740A/87748A
SCK1
SI1
SO1
tKSO
tSIK tKSI
Input data
0.8VDD
0.2VDD
0.8VDD
0.2V
Output data
0.8VDD
0.2VDD
DD
– 21 –
Page 22
CXP87740A/87748A
(3) A/D converter characteristics
Item Symbol Pins Conditions Min. Typ. Max. Unit
Resolution
Linearity error
Absolute error
Conversion time
Sampling time
Reference input voltage
Analog input voltage
tCONV
tSAMP
VREF
VIAN
IREF
AVREF current
IREFS
(Ta = –20 to +75°C, VDD = AVDD = 3.0 to 3.6V, AVREF = 2.7 to AVDD, Vss = AVSS = 0V)
Item Symbol Pins
Resolution
Linearity error
Absolute error
Conversion time
Sampling time
Reference input voltage
Analog input voltage
tCONV
tSAMP
VREF
VIAN
IREF
AVREF current
IREFS
(Ta = –20 to +75°C, VDD = AVDD = 4.5 to 5.5V, AVREF = 4.0 to AVDD, Vss = AVSS = 0V)
8
Bits
Ta = 25°C
±1±2LSB
VDD = AVDD = AVREF = 5.0V
LSB
µs
µs
mA
10 µA
AVREF
AN0 to AN11
AVREF
VSS = AVSS = 0V
Operating mode
SLEEP mode
STOP mode
160/fADC
12/fADC
∗
∗
AVDD – 0.5
0
0.6
AVDD
1.0
32kHz operating mode
Conditions
Ta = 25°C
Min.
Typ. Max. Unit
8
Bits
±1±2LSB
VDD = AVDD = AVREF = 3.3V
LSB
µs
µs
mA
µA
AVREF
AN0 to AN11
AVREF
VSS = AVSS = 0V
Operating mode
SLEEP mode
STOP mode
160/fADC
12/fADC
∗
AVDD – 0.3
0
∗
0.4
0.7
10
32kHz operating mode
V
V
VAVDD
Fig. 6. Definitions of A/D converter terms
FFH
FEH
Digital conversion value
01H
00H
Linearity error
Analog input
∗
The value of fADC is as follows by selecting ADC
operation clock (MSC: Address 01FFH bit 0).
When PS2 is selected, fADC = fc/2
When PS1 is selected, fADC = fc
V
FTVZT
– 22 –
Page 23

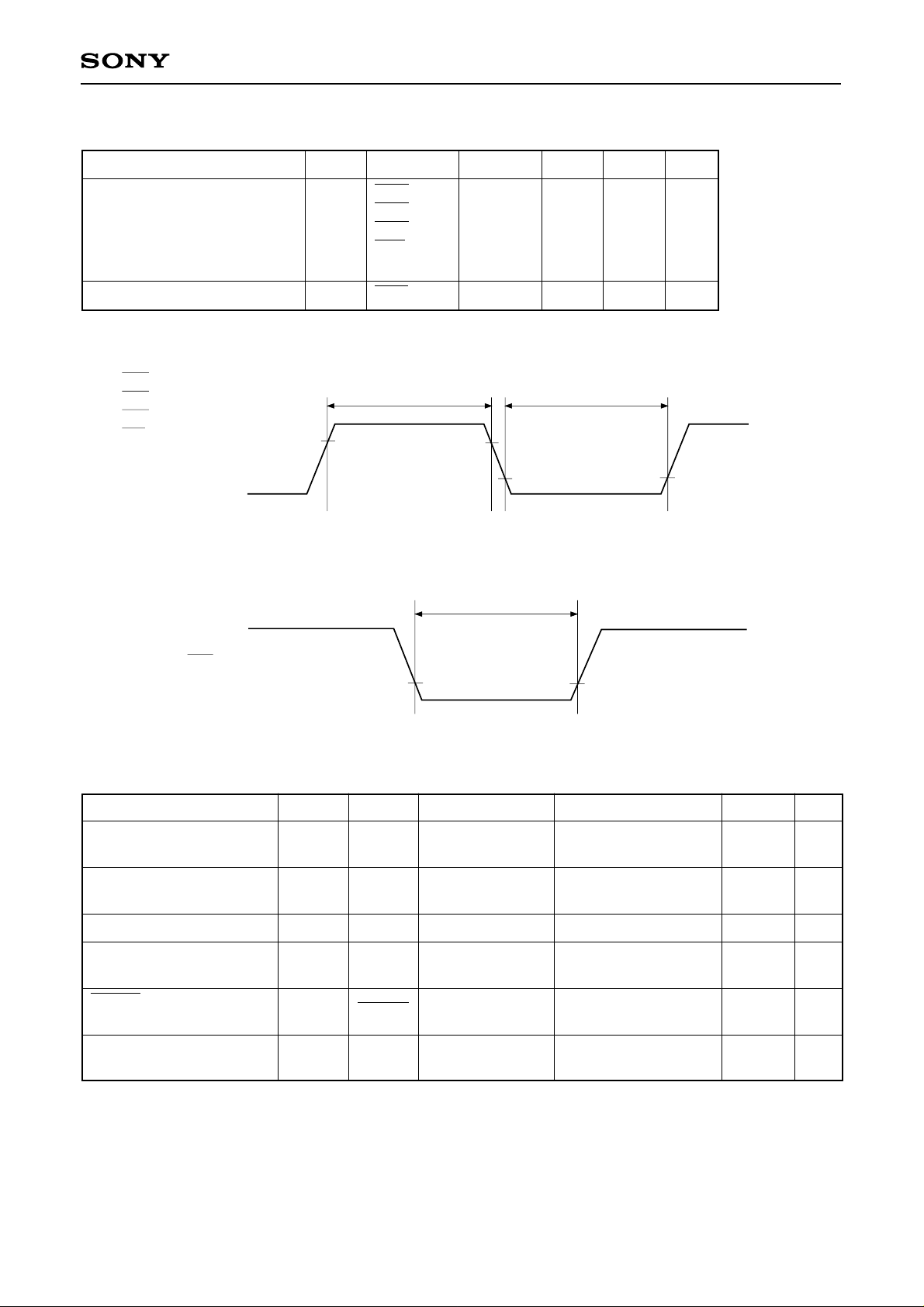

(4) Interruption, reset input (Ta = –20 to +75°C, VDD = 3.0 to 5.5V, Vss = 0V)
Item Symbol Pins Conditions Min. Max. Unit
INT0
External interruption
high and low level widths
tIH
tIL
INT1
INT2
NMI
PJ0 to PJ7
1
µs
CXP87740A/87748A
Reset input low level width
Fig. 7. Interruption input timing
INT0
INT1
INT2
NMI
PJ0 to PJ7
(During standby release input)
(Falling edge)
Fig. 8. Reset input timing
RST
tRSL
RST
tIH tIL
0.8VDD
tRSL
0.2VDD
32/fc
µs
0.2VDD
(5) Others (Ta = –20 to +75°C, VDD = 3.0 to 5.5V, Vss = 0V)
Item
CFG input
high and low level widths
DFG input
high and low level widths
DPG minimum pulse width
DPG minimum
removal time
PBCTL input
high and low level widths
EXI input
high and low level widths
Symbol Pins Min.
tCFH
tCFL
tDFH
tDFL
tDPW
trem
tCTH
tCTL
tEIH
tEIL
CFG
DFG
DPG
DPG
PBCTL
EXI0
EXI1
Conditions
tsys = 2000/fc
tsys = 2000/fc
tFRC × 24 + 200
tFRC × 8 + 200
50
50
tFRC × 8 + 200 + tsys
tFRC × 8 + 200 + tsys
Max. Unit
ns
ns
ns
ns
ns
ns
Note) tsys indicates three values according to the contents of the clock control register (address; 00FEH)
upper 2 bits (CPU clock selection).
tsys [ns] = 2000/fc (Upper 2-bit = "00"), 4000/fc (Upper 2-bit = "01"), 16000/fc (Upper 2-bit = "11")
tFRC [ns] = 1000/fc
– 23 –
Page 24
Fig. 9. Other timings
CXP87740A/87748A
tCFH tCFL
CFG
DFG
DPG
0.8VDD
0.2VDD
tDFH tDFL
0.8VDD
0.2VDD
trem tDPW trem
0.8VDD
PBCTL
EXI0
EXI1
tCTH tCTL
0.8VDD
0.2VDD
tEIH tEIL
0.8VDD
0.2VDD
– 24 –
Page 25
Supplement
A
Fig. 10. Recommended oscillation circuit
(i) (ii)
CXP87740A/87748A
EXTAL
AAA
1 C2
C
Manufacturer
RIVER
ELETEC
CO., LTD.
KINSEKI LTD.
XTAL
Rd
Model
HC-49/U03
HC-49/U (-S)
P3
C
fc (MHz)
8.00
10.00
12.00
16.00
8.00
10.00
12.00
16.00
32.768kHz
TEX
AA
1
C1 (pF) C2 (pF)
TX
C2
10
5
16
16
12
12
30
Rd
10
5
12
12
12
12
18
Rd (Ω)
0
0
470k
Circuit
example
(i)
(i)
(ii)
Those marked with an asterisk (∗) signify types with built-in ground capacitance (C1, C2).
Mask option table
Item
Reset pin pull-up resistor
Input circuit format
∗
In PG4/SYNC0 pin and PG5/SYNC1 pin, the input circuit format can be selected to every pin.
However, TTL schmitt can not be selected when the supply voltage (VDD) ranges from 3.5V to 5.5V.
∗
Non-existent
C-MOS schmitt
Content
Existent
TTL schmitt
– 25 –
Page 26

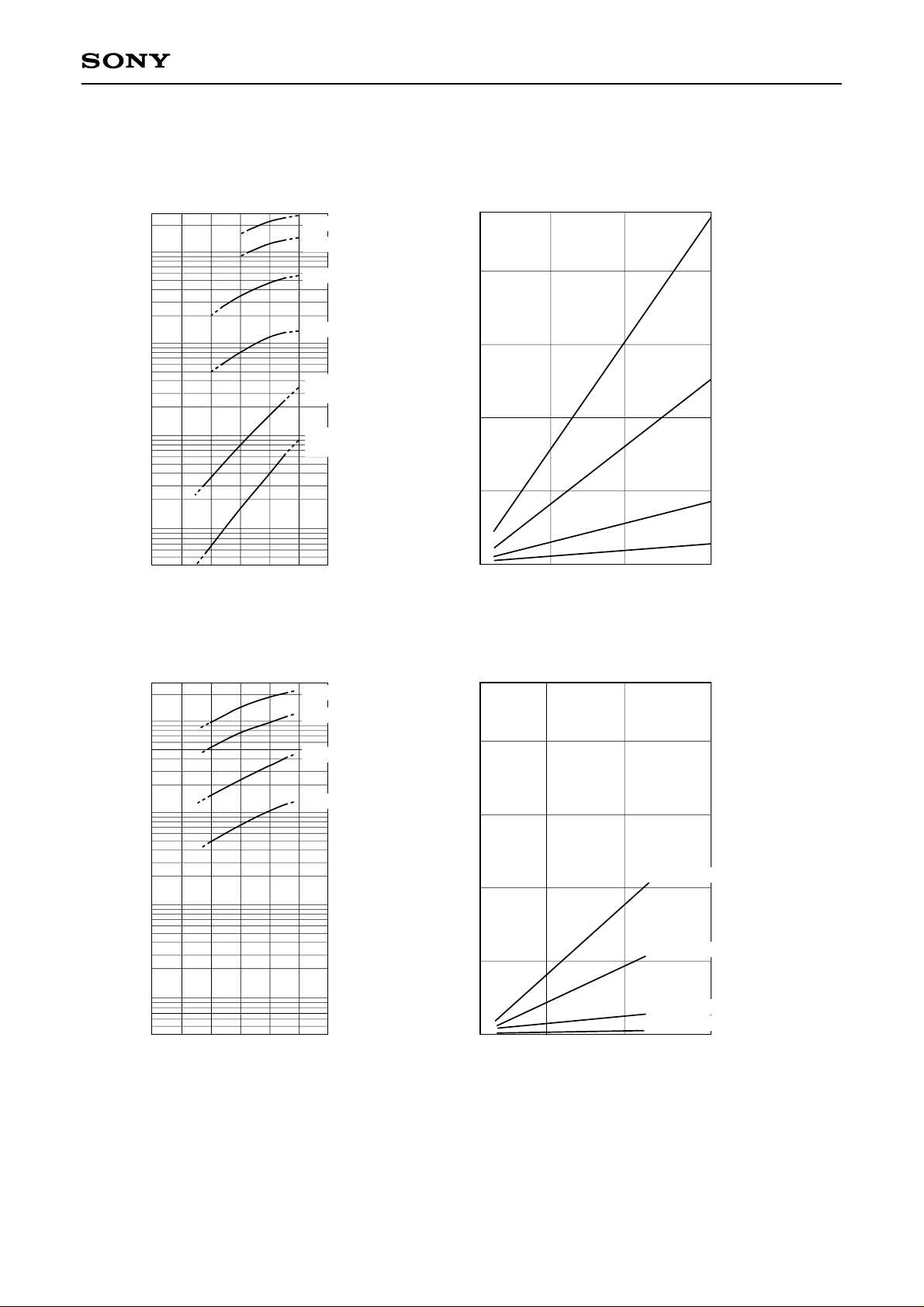

Characteristics Curve
CXP87740A/87748A
(fc = 16MHz, Ta = 25°C, Typical)
IDD vs. VDD
20.0
10.0
5.0
1.0
0.5
– Supply current [mA]
DD
I
0.1
(100µA)
0.05
(50µA)
0.01
(10µA)
DD – Supply voltage [V]
V
3
45
1/2 dividing mode
1/4 dividing mode
1/16 dividing mode
SLEEP mode
32kHz mode
(instruction)
32kHz mode
SLEEP
72
6
(VDD = 5V, Ta = 25°C, Typical)
20
15
– Supply current [mA]
10
DD
I
5
0
5
fc – System clock [MHz]
IDD vs. fc
10
1/2 dividing mode
1/4 dividing mode
1/16 dividing mode
SLEEP mode
16
(fc = 12MHz, Ta = 25°C, Typical)
IDD vs. VDD
20.0
10.0
5.0
1.0
0.5
– Supply current [mA]
DD
I
0.1
(100µA)
0.05
(50µA)
0.01
(10µA)
DD – Supply voltage [V]
V
3
45
1/2 dividing mode
1/4 dividing mode
1/16 dividing mode
SLEEP mode
6
72
(VDD = 3.3V, Ta = 25°C, Typical)
20
15
– Supply current [mA]
10
DD
I
5
0
510 16
fc – System clock [MHz]
IDD vs. fc
1/2 dividing mode
1/4 dividing mode
1/16 dividing mode
SLEEP mode
– 26 –
Page 27
Package Outline Unit: mm
100PIN QFP (PLASTIC)
23.9 ± 0.4
+ 0.4
20.0 – 0.1
+ 0.4
17.9 ± 0.4
14.0 – 0.01
+ 0.1
0.15 – 0.05
15.8 ± 0.4
CXP87740A/87748A
A
SONY CODE
EIAJ CODE
JEDEC CODE
76
75
0.65
0° to 15°
±0.12
0.15
(16.3)
DETAIL A
QFP-100P-L01
∗QFP100-P-1420-A
0.8 ± 0.2
100PIN LQFP (PLASTIC)
16.0 ± 0.2
∗ 14.0 ± 0.1
M
PACKAGE STRUCTURE
PACKAGE MATERIAL
LEAD TREATMENT
LEAD MATERIAL
PACKAGE WEIGHT
51
50
+ 0.35
2.75 – 0.15
EPOXY RESIN
SOLDER PLATING
COPPER / 42 ALLOY
1.4g
100
0.5 ± 0.08
SONY CODE
EIAJ CODE
JEDEC CODE
(15.0)
A
26
1
+ 0.08
0.18 – 0.03
(0.22)
25
+ 0.2
1.5 – 0.1
+ 0.05
0.127 – 0.02
0.5 ± 0.2
0.1
0.1 ± 0.1
NOTE: Dimension “∗” does not include mold protrusion.
0° to 10°
DETAIL A
LQFP-100P-L01
∗QFP100-P-1414-A
0.5 ± 0.2
PACKAGE STRUCTURE
PACKAGE MATERIAL
LEAD TREATMENT
LEAD MATERIAL
PACKAGE WEIGHT
EPOXY/PHENOL RESIN
SOLDER PLATING
42 ALLOY
– 27 –
Loading...
