CMOS 8-bit Single Chip Microcomputer
Description
The CXP87532/87540 is a CMOS 8-bit microcomputer which consists of arithmetic coprocessor,
A/D converter, serial interface, timer/counter, time
base timer, vector interruption, high precision timing
pattern generation circuit, PWM generator and the
measuring circuit which measures signals of capstan
FG, drum FG/PG, reel FG and other servo systems,
as well as basic configurations like 8-bit CPU, ROM,
RAM and I/O port. They are integrated into a single
chip.
Also this IC provides power on reset function,
sleep/stop function which enables to lower power
consumption.
Features
• A wide instruction set (213 instructions) which covers various types of data
— 16-bit operation multiplycation and division/boolean bit operation instructions
• Minimum instruction cycle During operation 326ns/12.288MHz
• Incorporated ROM capacity 32K bytes (CXP87532)
40K bytes (CXP87540)
• Incorporated RAM capacity 1344 bytes
• Peripheral functions
— Arithmetic coprocessor Multiplying with code, sum of products with code, high speed
execution of many bits shift rotation operation
— A/D converter 8-bit, 8-channel, successive approximation system
(Conversion time 13µs/12.288MHz)
Incorporated 3-stage FIFO for A/D conversion data
— Serial interface Incorporated buffer RAM for data
(1 to 128 bytes auto transfer) 2-channel
— Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer
— High precision timing pattern generator PPG (11 pins) 32-stage programmable
— PWM output 12-bit, 2-channel (Repeated frequency 48kHz)
8-bit, 3-channel (Repeated frequency 48kHz)
— Servo input control Capstan FG, Drum FG/PG, Reel FG input
— FRC capture unit Incorporated 28-bit and 8-stage FIFO
• Interruption 12 factors, 12 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 100-pin plastic QFP/LQFP
• Piggyback/Evaluation CXP87500 100-pin ceramic QFP/LQFP
Structure
Silicon gate CMOS IC
– 1 –
E93820A81-PS
Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by
any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the
operation of the devices. Sony cannot assume responsibility for any problems arising out of the use of these circuits.
CXP87532/87540
100 pin QFP (Plastic) 100 pin LQFP (Plastic)
Page 2
– 2 –
CXP87532/87540
6
SPC700
CPU CORE
CO-PROCESSOR
PROM
32K/40K BYTES
CLOCK GENERATOR/
SYSTEM CONTROL
RAM
1344 BYTES
PRESCALER/
TIME BASE TIMER
FRC
CAPTURE
UNIT
FIFO
INTERRUPT CONTROLLER
8BIT PWM GENERATOR 3CH
12BIT PWM GENERATOR 2CH
ATF SYNC UNIT
SWITCHING PULSE
GENRATOR
8BIT TIMER/COUNTER 0
8BIT TIMER 1
A/D CONVERTER
FIFO
SERVO
INPUT
CONTROL
DRUM
CAPSTAN
REEL
SERIAL
INTERFACE
UNIT
RAM
NM1
PE1/INT2
PE3/INT1
PE0/INT0
PE2/PWM0
PE3/PWM1
PE4/PWM2
PE5/PWM3
PE6/PWM4
PF0/AN0
to PF7/AN7
AV
DD
AVREF
AVSS
PA4/ATFS1
PA5/ATFS3
PA7/ATFS2
PK0/RFDT
PK1/MCLK
PE7/SWP
PA6/AREA
PG2/DREF
PG3/DPG
PG4/DFG
PG5/CFG
PG6/RFG0
PG7/RFG1
PA3/PROUT
PG0/EXI0
PG1/EXI1
SI0
SO0
PH2/SI1
PH1/SO1
PE1/EC
PB0/PPO0
to
PA2/PPO10
8
CS0
SCK0
PH3/CS1
PH0/SCK1
PA0 to PA7
PORT A
PB0 to PB7
PORT B
PC0 to PC7
PORT C
PD0 to PD7
PORT D
PE0 to PE1
PE2 to PE7
PORT E
PF0 to PF7
PORT F
PG0 to PG7
PORT G
PH0 to PH3
PH4 to PH7
PORT H
PI0 to PI7
PORT I
PK0 to PK3
PORT K
PJ0 to PJ7
PORT J
PROGRAMMABLE
PATTERN
GENERATOR
RAM
V
SS
V
DD
MP
XTAL
EXTAL
RST
Block Diagram
Page 3
– 3 –
CXP87532/87540
Pin Assignment 1 (Top View) 100pin QFP
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
40
39
38
37
36
35
34
31
32
33
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
70
69
68
67
63
64
65
66
61
62
71
72
73
74
81
82
83
84
75
76
77
78
88
87
86
85
79
89
90
100
99
98
97
96
95
94
91
92
93
1
80
PE6/PWM4
PE7/SWP
PK0/RFDT
PK1/MCLK
PK2
PK3
PG0/EXI0
PG1/EXI1
PG2/DREF
PG3/DPG
PG4/DFG
PG5/CFG
PG6/RFG0
PG7/RFG1
PF0/AN0
PF1/AN1
PF2/AN2
PF3/AN3
PF4/AN4
PF5/AN5
PF6/AN6
PF7/AN7
AV
DD
AVREF
AVSS
SCK0
SO0
SI0
CS0
PH0/SCK1
PB5/PPO5
PB4/PPO4
PB3/PPO3
PB2/PPO2
PB1/PPO1
PB0/PPO0
PC7
PC6
PC5
PC4
PC3
PC2
PC1
PC0
PD7
PD6
PD5
PD4
PD3
PD2
PD1
PD0
PI7
PI6
PI5
PI4
PI3
PI2
PI1
PI0
PB6/PPO6
PB7/PPO7
PA0/PPO8
PA1/PPO9
PA2/PPO10
PA3/PROUT
PA4/ATFS1
PA5/ATFS3
PA6/AREA
PA7/ATFS2
NC
V
DD
V
SS
NMI
PE0/INT0
PE1/INT2/EC
PE2/PWM0
PE3/PWM1
PE4/PWM2
PE5/PWM3
PJ7
PJ6
PJ5
PJ4
PJ3
PJ2
PJ1
PJ0
MP
RST
V
SS
XTAL
EXTAL
PH7
PH6
PH5
PH4
PH3/INT1/CS1
PH2/SI1
PH1/SO1
Note) 1. NC (Pin 90) is always connected to VDD.
2. VSS (Pins 41 and 88) are both connected to GND.
3. MP (Pin 39) is always connected to VSS.
Page 4
– 4 –
CXP87532/87540
Pin Assignment 2 (Top View) 100pin LQFP
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
40
39
38
37
36
35
34
31
32
33
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
70
69
68
67
63
64
65
66
61
62
71
72
73
74
81
82
83
84
75
76
77
78
88
87
86
85
79
89
90
100
99
98
97
96
95
94
91
92
93
1
80
PE6/PWM4
PE7/SWP
PK0/RFDT
PK1/MCLK
PK2
PK3
PG0/EXI0
PG1/EXI1
PG2/DREF
PG3/DPG
PG4/DFG
PG5/CFG
PG6/RFG0
PG7/RFG1
PF0/AN0
PF1/AN1
PF2/AN2
PF3/AN3
PF4/AN4
PF5/AN5
PF6/AN6
PF7/AN7
AV
DD
AVREF
AVSS
PB3/PBO3
PB2/PPO2
PB1/PPO1
PB0/PPO0
PC7
PC6
PC5
PC4
PC3
PC2
PC1
PC0
PD7
PD6
PD5
PD4
PD3
PD2
PD1
PD0
PI7
PI6
PI5
PB6/PPO6
PB7/PPO7
PA0/PPO8
PA1/PPO9
PA2/PPO10
PA3/PROUT
PA4/ATFS1
PA5/ATFS3
PA6/AREA
PA7/ATFS2
NC
V
DD
V
SS
NMI
PE0/INT0
PE1/EC/INT2
PE2/PWM0
PE3/PWM1
PE4/PWM2
PE5/PWM3
PJ2
PJ1
PJ0
MP
RST
V
SS
XTAL
EXTAL
PH7
PH6
PH5
PH4
PH3/INT1/CS1
PH2/SI1
PH1/SO1
PJ7
PJ6
PJ5
PJ4
PJ3
26
27
28
29
30
PI4
PI3
PI2
PI1
PI0
PH0/SCK1
CS0
SCK0
SO0
SI0
PB4/PPO4
PB5/PPO5
Note) 1. NC (Pin 88) is always connected to VDD.
2. VSS (Pins 39 and 86) are both connected to GND.
3. MP (Pin 37) is always connected to VSS.
Page 5
– 5 –
CXP87532/87540
(Port C)
8-bit input/output port, enables to specify input/output by 4-bit unit.
(8 pins)
Output/
Real time output
Output/
Monitor output
Output/
Real time output
I/O
I/O
Input/Input
Input/Input/
Input
Output/Output
Output/Output
Input/Input
Input/Input
Input/Input
Input/Input
Input/Input
Input/Input
Input/Input
Input/Input
Input/Input
(Port B)
8-bit output port. Data is
gated with PPO by OR-gate
and they are output. (8 pins)
(Port D)
8-bit input/output port. Lower 4 bits can be specified as input/output by
bit unit and upper 4 bits can be specified as input/output by 4-bit unit.
(8 pins)
(Port E)
8-bit port. Lower 2 bits
are input pins and upper
6 bits are output pins.
(8 pins)
External input pin 0.
External input pin 1.
Drum reference signal input pin.
Drum PG input pin.
Drum FG input pin.
Capstan FG input pin.
Reel FG input pin.
Input pin to request external interruption.
Active when falling edge.
PWM output pins (5 pins)
SWP output pin.
Programmable pattern generator (PPG)
Output (3 pins) and capstan servo control
signal (1 pin).
Symbol I/O Description
PA0/PPO8
PA1/PPO9
PA2/PPO10
PA3/PROUT
PA4/ATFS1
PA5/ATFS3
PA6/AREA
PA7/ATFS2
PB0/PPO0
to
PB7/PPO7
PC0 to PC7
PD0 to PD7
PE0/INT0
PE1/EC/INT2
PE2/PWM0
to
PE6/PWM4
PE7/SWP
PF0/AN0
to
PF7/AN7
PG0/EXI0
PG1/EXI1
PG2/DREF
PG3/DPG
PG4/DFG
PG5/CFG
PG6/RFG0
PG7/RFG1
(Port A)
8-bit output port.
Data is gated with PPO
(3 pins), monitor signal
(4 pins) in relation to ATF,
control signal (1 pin) for
capstan servo by OR-gate
and they are output. (8 pins)
Monitor output in relation to ATF.
(4 pins)
Programmable pattern generator (PPG)
output. (8 pins)
External event
input pin for
timer/counter.
(Port F)
8-bit input port. (8 pins)
Upper 4 bits serve as
standby release input pin.
(Port G)
8-bit input port.
(8 pins)
Analog input pins to A/D converter.
(8 pins)
Pin Description
Input pin to request
external interruption.
Active when falling edge.
Page 6
– 6 –
CXP87532/87540
Symbol I/O Description
PH0/SCK1
PH1/SO1
PH2/SI1
PH3/INT1/
CS1
PH7 to PH4
PI0 to PI7
PJ0 to PJ7
PK0/RFDT
PK1/MCLK
PK2, PK3
SCK0
SO0
SI0
CS0
NMI
EXTAL
XTAL
RST
MP
AVDD
AVREF
AVSS
VDD
VSS
Input/I/O
Input/Output
Input/Input
Input/Input/Input
Output
I/O
I/O
I/O/Input
I/O/Input
I/O
I/O
Output
Input
Input
Input
Input
Output
I/O
Input
Input
Serial clock input/output pin.
Serial data output pin.
Serial data input pin.
Chip select input pin to serial interface.
Serial clock input/output pin.
Serial data output pin.
Serial data input pin.
Chip select input pin to serial interface.
Non-maskable interrupt request pin. Active during falling edge.
Connecting pin of crystal oscillator for system clock. When supplying
the external clock, input the external clock to EXTAL pin and set XTAL
pin to open.
System reset pin of active “L” level. RST pin is input/output pin, which
output “L” level by incorporated power on reset function when power
ON. (Mask option)
(Port H)
4-bit input port.
(4 pins)
Input pin to request
external interruption.
Active when falling edge.
(Port H)
4-bit output port. N-ch open drain output of middle tension proof (12V)
and large current (12mA). (4 pins)
(Port I)
8-bit input/output port, enables to specify input/output by 4-bit unit.
(8 pins)
(Port J)
8-bit input/output port, enables to specify input/output by 4-bit unit.
(8 pins)
(Port K)
4-bit input/output port,
enables to specify input/
output by bit unit. (4 pins)
Playback data input pin.
Channel clock input pin.
Test mode pin. This pin is always connected to GND.
Positive power supply pin of A/D converter.
Set the same voltage as VDD.
Reference voltage input pin of A/D converter.
GND pin of A/D converter.
Positive power supply pin.
GND pin. Connect both VSS pins to GND.
Page 7
– 7 –
CXP87532/87540
I/O Circuit Formats for Pins
Pin Circuit format When reset
Port A
Port B
Port C
Port D
Port E
Hi-Z
Hi-Z
Hi-Z
Hi-Z
PA0/PPO8
to
PA2/PPO10
PA3/PROUT
PA4/ATFS1
PA5/ATFS3
PA6/AREA
PA7/ATFS2
PB0/PPO0
to
PB7/PPO7
16 pins
PC0
to
PC7
8 pins
PD0
to
PD7
8 pins
PE0/INT0
PE1/EC/
INT2
2 pins
PPO, PROUT,
ATFS1 to ATFS3,
AREA, data
Data bus
Output becomes active from high impedance
by data writing to port register.
Port A or Port B
RD
Data bus
RD (Port D)
Port D direction
Port D data
IP
Large current
12mA
Lower 4 bits are by bit unit
and upper 4 bits are by 4bit unit
Data bus
RD (Port C)
Port C direction
Port C data
IP
Input protection
circuit
(Every 4 bits)
Buffer
IP
RD (Port E)
Data bus
Schmitt input
Page 8
– 8 –
CXP87532/87540
Port E
Port E
Port F
Port G
Hi-Z
H level
Hi-Z
Hi-Z
PE2/PWM0
PE3/PWM1
PE4/PWM2
PE5/PWM3
4 pins
PE6/PWM4
PE7/SWP
2 pins
PF0/AN0
to
PF7/AN7
8 pins
PG0/EXI0
PG1/EXI1
PG2/DREF
PG3/DPG
PG4/DFG
PG5/CFG
PG6/RFG0
PG7/RFG1
8 pins
Data bus
RD (Port E)
PWM output
MPX
Port/PWM output
select
Port E data
Hi-Z control
Data bus
RD (Port E)
Port/PWM, SWP
output select
PWM, SWP output
MPX
Port E data
IP
Input multiplexer
A/D converter
Analog/Digial
input select
RD (Port F)
Data bus
IP
RD (Port G)
Data bus
Schmitt input
Servo input
For PG0/EXI0 to PG7/RFG1, TTL schmitt input can be
selected with the mask option.
Pin Circuit format When reset
Page 9
– 9 –
CXP87532/87540
Pin Circuit format When reset
Port H
Port H
Port H
Port H
Hi-Z
Hi-Z
Hi-Z
Open
PH0/SCK1
1 pin
PH1/SO1
1 pin
PH2/SI1
PH3/CS1/
INT1
2 pins
PH4
to
PH7
4 pins
SCK1 output enable
Internal serial clock from SI0
IP
Schmitt input
Data bus
RD (Port H)
External serial clock to SI0
SO1 output enable
SO1 from SI0
IP
Data bus
RD (Port H)
IP
Data bus
Schmitt input
RD (Port H)
Data bus
RD (Port H)
Port H data
Large current
12mA
Middle tension
proof 12V
Page 10
– 10 –
CXP87532/87540
Port I
Port J
Port K
Hi-Z
Hi-Z
Hi-Z
When buffer
amplifier
input is
selected,
pulled up
internally
during
standby.
PI0
to
PI7
8 pins
PJ0
to
PJ7
8 pins
PK0/RFDT
1 pin
Data bus
RD (Port I)
Port I direction
Port I data
IP
Input protection
circuit
(Every 4 bits)
Buffer
Data bus
RD (Port J)
Port J direction
Port J data
IP
(Every 4 bits)
Data bus
RD (Port K)
Port K direction
Port K data
IP
Input protection
circuit
(Every bit)
Servo input
Buffer amplifier input can be selected with the mask option.
Pin Circuit format When reset
Page 11
– 11 –
CXP87532/87540
Pin Circuit format When reset
Port K
Port K
Hi-Z
Hi-Z
Hi-Z
Hi-Z
PK1/MCLK
1 pin
PK2
to
PK3
2 pins
CS0
SI0
2 pins
SO0
1 pin
Hi-Z
SCK0
1 pin
Data bus
RD (Port K)
Port K direction
Port K data
IP
Input protection
circuit
(Every bit)
Servo input
TTL schmitt input can be selected
with the mask option.
Data bus
RD (Port K)
Port K direction
Port K data
IP
(Every bit)
IP
Schmitt input
To SI0
SO0 output enable
SO0 from SI0
SCK0 output enable
Internal serial clock
from SI0
IP
Schmitt input
External serial clock to SI0
Page 12
– 12 –
CXP87532/87540
EXTAL
XTAL
Oscillation
1 pin
2 pins
RST
1 pin
L level
NMI
Hi-Z
IP
EXTAL
XTAL
• Shows the circuit
composition during
oscillation.
• Feedback resistor is
removed during stop.
Schmitt input
Pull-up resistor
From power on reset circuit
(Mask option)
Mask option
OP
IP
Schmitt input
Interruption circuit
Pin Circuit format When reset
Page 13
– 13 –
CXP87532/87540
Absolute Maximum Ratings (VSS = 0V reference)
∗1
AVDD and VDD should be set to the same voltage.
∗2
VIN and VOUT should not exceed VDD + 0.3V
∗3
The large current operation transistors are the N-ch transistors of the PD and PH4 to PH7.
Note) Usage exceeding absolute maximum ratings may permanently impair the LSI. Normal operation should
better take place under the recommended operating conditions. Exceeding those conditions may
adversely affect the reliability of the LSI.
Power supply voltage
Input voltage
Output voltage
Middle tension proof output voltage
High level output current
High level total output current
Low level output current
Low level total output current
Operating temperature
Storage temperature
Allowable power dissipation
VDD
AVDD
AVSS
VIN
VOUT
VOUTP
IOH
∑IOH
IOL
IOLC
∑IOL
Topr
Tstg
PD
mW
–0.3 to +7.0
AVSS to +7.0
∗1
–0.3 to +0.3
–0.3 to +7.0
∗2
–0.3 to +7.0
∗2
–0.3 to +15.0
–5
–50
15
20
130
–20 to +75
–55 to +150
600
380
V
V
V
V
V
mA
mA
mA
mA
mA
mA
°C
°C
PH pin
Total of entire output pins
Other than large current output pins : per pin
Large current port pin ∗3: per pin
Total of entire output pins
QFP package
LQFP package
Item
Symbol
Ratings Unit Remarks
Page 14
– 14 –
CXP87532/87540
Recommended Operating Conditions (VSS = 0V reference)
∗1
AVDD and VDD should be set to the same voltage.
∗2
Normal input port (Each pin of PC, PD, PF and PH1).
∗3
Each pin of NMI, CS0, SI0, SCK0, RST, PE0/INT0, PE1/EC/INT2, PH0/SCK1, PH2/SI1, PH3/INT1/CS1,
PG and PK1/MCLK (when CMOS schmitt input is selected with mask option for PG, PK1/MCLK).
∗4
Each pin of PG and PK1/MCLK (when TTL schmitt input is selected with mask option).
∗5
Specified only during external clock input.
Analog voltage
High level input
voltage
Low level input
voltage
Operating temperature
5.5
5.5
5.5
VDD
VDD
VDD
VDD + 0.3
0.3VDD
0.2VDD
0.8
0.4
+75
V
V
V
V
V
V
V
V
V
°C
V
Item Symbol Min. Max. Unit Remarks
4.5
2.5
4.5
0.7VDD
0.8VDD
2.2
VDD – 0.4
0
0
0
–0.3
–20
AVDD
VIH
VIHS
VIHTS
VIHEX
VIL
VILS
VILTS
VILEX
Topr
Guaranteed range during operation
Guaranteed data hold operation range during STOP
∗1
∗2
CMOS schmitt input
∗3
TTL schmitt input
∗4
EXTAL pin
∗5
∗2
CMOS schmitt input
∗3
TTL schmitt input
∗4
EXTAL pin
∗5
VDD
Power supply voltage
Page 15
– 15 –
CXP87532/87540
DC Characteristics (Ta = –20 to +75°C, VSS = 0V reference)
∗1
RST pin specifies only when the power on reset circuit is selected with mask option.
∗2
RST pin specifies the input current when the pull-up resistance is selected, and specifies leakage current
when non-resistance is selected.
∗3
PK0 pin specifies only when the normal input circuit is selected with mask option.
VDD = 4.5V, IOH = –0.5mA
VDD = 4.5V, IOH = –1.2mA
VDD = 4.5V, IOL = 1.8mA
VDD = 4.5V, IOL = 3.6mA
VDD = 4.5V, IOL = 12.0mA
VDD = 5.5V, VIH = 5.5V
VDD = 5.5V, VIL = 0.4V
VDD = 5.5V, VIL = 0.4V
VDD = 5.5V
VI = 0, 5.5V
VDD = 5.5V
VOH = 12V
Operating mode
(1/2 dividing clock)
12.288MHz crystal
oscillation
(C1 = C2 = 12pF)
Entire output pins open
Sleep mode
Stop mode
Clock 1MHz
0V other than the
measured pins
High level
output voltage
4.0
3.5
0.5
–0.5
–1.5
0.4
0.6
1.5
40
–40
–400
±10
50
V
V
V
V
V
µA
µA
µA
µA
µA
PD, PH4 to PH7
PA to PD, PE2 to PE7,
PH0, PH1, SO0, SCK0
PH4 to PH7
(V
OL only)
RST
∗1
(VOL only)
PI to PK
EXTAL
RST
∗2
PA to PG
PH0 to PH3,
CS0, SI0, SO0,
SCK0, NMI,
RST
∗2
PI to PK
∗3
PH4 to PH7
Item Symbol Pin Condition Min. Typ. Max. Unit
Other than VDD,
VSS, AVDD, and
AVSS pins
VDD
mA
mA
µA
pF
45
17
10
20
20
5
10
ILOH
IDD
IDDSL
IDDST
CIN
VOH
VOL
IIHE
IILE
IILR
IIZ
Low level
output voltage
Input current
I/O leakage
current
Open drain output
leakage current
(N-ch Tr OFF in
state)
Current power
supply
Input capacity
Page 16
– 16 –
CXP87532/87540
AC Characteristics
(1) Clock timing (Ta = –20 to +75°C, VDD = 4.5 to 5.5V, VSS = 0V reference)
∗1
tsys indicates three values according to the contents of the clock control register (address : 00FEH) upper
2 bits (CPU clock selection).
tsys [ns] = 2000/fc (Upper 2 bits = “00”), 4000/fc (Upper 2 bits = “01”), 16000/fc (Upper 2 bits = “11”)
System clock frequency
System clock input pulse
width
System clock input rising
and falling times
Event count input clock
pulse width
Event count input clock
rising and falling times
fC
tXL,
tXH
tCR,
tCF
tEH,
tEL
tER,
tEF
XTAL
EXTAL
EXTAL
EXTAL
EC
EC
12.288
200
20
MHz
ns
ns
ns
ms
Item Symbol Pin Condition Min. Max. Unit
Fig. 1, Fig. 2
Fig. 1, Fig. 2
External clock drive
Fig. 1, Fig. 2
External clock drive
Fig. 3
Fig. 3
1
36
tsys + 50
∗1
A
A
Crystal oscillation
Ceramic oscillation
EXTAL
XTAL
External clock
EXTAL
XTAL
C
1 C2

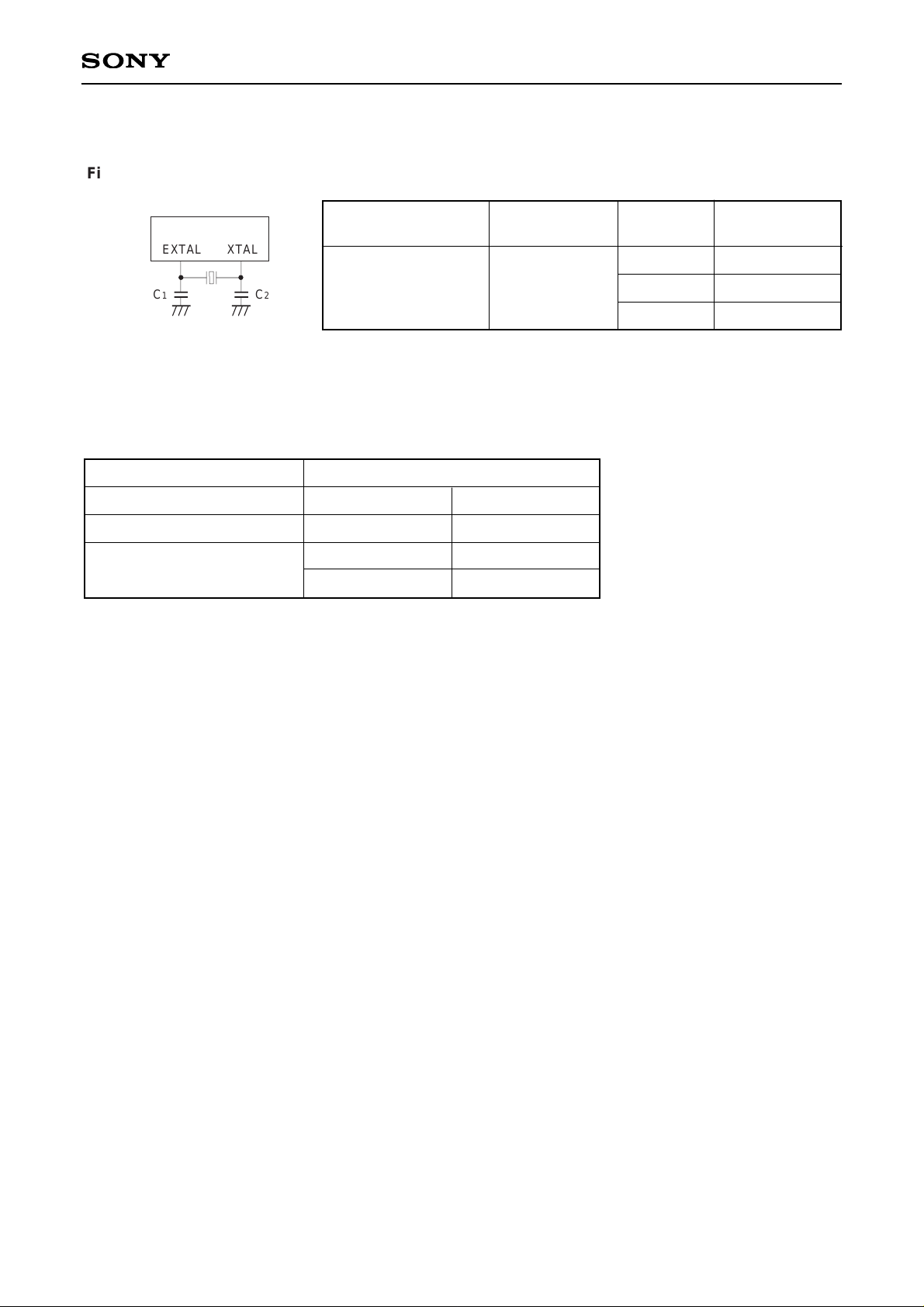

Fig. 2. Clock applying condition
Fig. 1. Clock timing
EXTAL
tXH tXLtCF tCR
0.4V
V
DD – 0.4V
1/fc
Fig. 3. Event count clock timing
EC
t
EH tELtEF tER
0.2VDD
0.8VDD
74HCO4
AAA
AAA
Page 17
– 17 –
CXP87532/87540
(2) Serial transfer (Ta = –20 to +75°C, VDD = 4.5 to 5.5V, VSS = 0V reference)
Note 1) tsys indicates three values according to the contents of the clock control register (address : 00FEH)
upper 2 bits (CPU clock selection).
tsys [ns] = 2000/fc (Upper 2 bits = “00”), 4000/fc (Upper 2 bits = “01”), 16000/fc (Upper 2 bits = “11”)
Note 2) The marks CS, SCK, SI and SO respectivery mean pins of CS → CS0, CS1, SCK → SCK0, SCK1,
SI → SI0, SI1 and SO → SO0, SO1.
Note 3) The load of SCK output mode and SO output delay time is 50pF + 1TTL.
CS ↓ → SCK delay
time
CS ↑ → SCK floating
delay time
CS ↓ → SO delay time
CS ↑ → SO floating
delay time
CS high level width
tsys + 200
2tsys + 200
8000/fc
tsys + 100
4000/fc – 50
–tsys + 100
200
2tsys + 100
100
tsys + 200
tsys + 200
tsys + 200
tsys + 200
2tsys + 200
100
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
Item Symbol Pin Condition Min. Max. Unit
Chip select transfer mode
(SCK = Output mode)
Chip select transfer mode
(SCK = Output mode)
Chip select transfer mode
Chip select transfer mode
Chip select transfer mode
Input mode
Output mode
Input mode
Output mode
SCK input mode
SCK output mode
SCK input mode
SCK output mode
SCK input mode
SCK output mode
SCK cycle time
SCK high and low
level widths
SI input setup time
(against SCK↑)
SI input hold time
(against SCK↑)
SCK ↓ → SO delay
time
tDCSK
tDCSKF
tDCSO
tDCSOF
tWHCS
tKCY
tKH
tKL
tSIK
tKSI
tKSO
SCK0,
SCK1
SCK0,
SCK1
SO0, SO1
SO0, SO1
CS0, CS1
SCK0,
SCK1
SCK0,
SCK1
SI0, SI1
SI0, SI1
SO0, SO1
Page 18
– 18 –
CXP87532/87540
Fig. 4. Serial transfer timing
CS0
CS1
SCK0
SCK1
0.2V
DD
0.8VDD
tWHCS
tDCSK
tDCSKF
0.8VDD
0.2VDD
0.8VDD
tKCY
tKL tKH
0.8VDD
0.2VDD
SI0
SI1
t
SIK
Input
data
t
DCSO
tKSO tDCSOF
Output
data
0.8V
DD
0.2VDD
SO0
SO1
tKSI
Page 19
– 19 –
CXP87532/87540

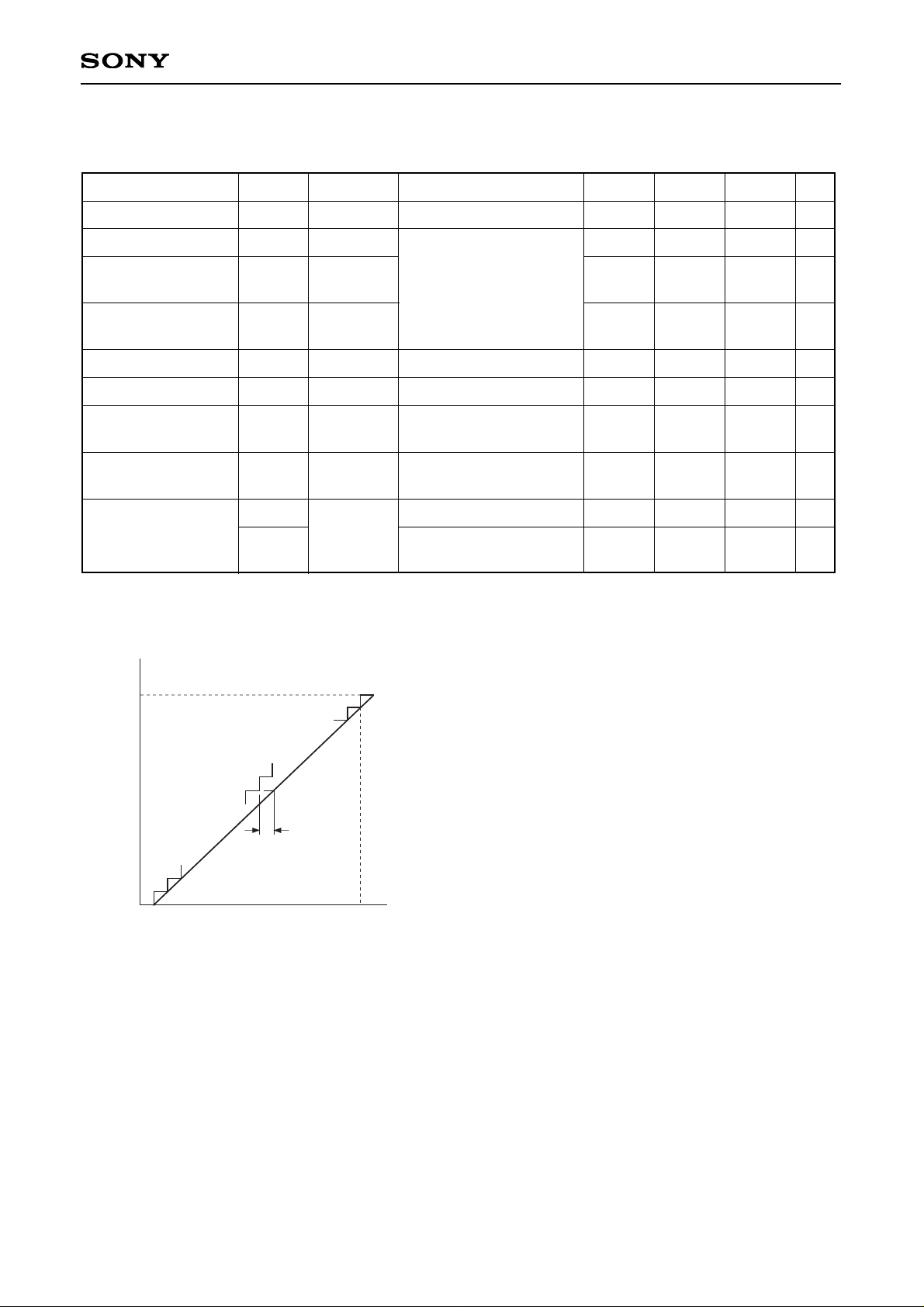

(3) A/D converter characteristics
(Ta = –20 to +75°C, VDD = AVDD = 4.5 to 5.5V, AVREF = 4.0 to AVDD, VSS = AVSS = 0V reference)
Conversion time
Sampling time
Reference input
voltage
Analog input
voltage
VZT
∗1
VFT
∗2
30
4970
tCONV
tSAMP
V
REF
V
IAN
IREF
AVREF
AN0 to
AN7
Ta = 25°C
VDD = AVDD = 5.0V
VSS = AVSS = 0V
Operating mode
Sleep mode
Stop mode
Linearity error
Zero transition
voltage
Resolution
AVREF current
AVREF
IREFS
µs
µs
V
V
AVDD
AVREF
1.0
mA
10
µA
0.6
160/fC
12/fC
AVDD – 0.5
0
Item Symbol Pin Condition Min. Typ. Max. Unit
Full scale
transition voltage
–10
4930
8
±1
70
5010
bits
LSB
mV
mV
Fig. 5. Definitions of A/D converter terms
Analog input
Linearity
error
V
FTVZT
00H
01H
FEH
FFH
Digital conversion value
∗
1
VZT : Indicates the value that digital conversion value
changes from 00H to 01H and vice versa.
∗
2
VFT : Indicates the value that digital conversion value
changes from FEH to FFH and vice versa.
Page 20
– 20 –
CXP87532/87540
(4) Interruption, reset input (Ta = –20 to +75°C, VDD = 4.5 to 5.5V, VSS = 0V reference)
(5) Power on reset
Power on reset
∗
(Ta = –20 to +75°C, VDD = 4.5 to 5.5V, VSS = 0V reference)
External interruption high
and low level widths
Reset input low level width
INT0
INT1
INT2
NMI
RST
1
8/fc
µs
µs
Item Symbol Pin Condition Min. Max. Unit
tIH
tIL
tRSL
Power supply rising
time
Power supply cut-off
time
tR
tOFF
VDD
Power on reset
Repetitive power on reset
0.05
1
50 ms
ms
Item Symbol Pin Condition Min. Max. Unit
Fig. 6. Interruption input timing
Fig. 7. RST input timing
0.2VDD
0.8VDD
tIH tIL
tRSL
0.2VDD
RST
INT0
INT1
INT2
NMI
(Falling edge)
Fig. 8. Power on reset
0.2V
0.2V
4.5V
V
DD
tR
tOFF
The power supply should rise smoothly.
∗
Specifies only when power on reset function is selected.
Page 21
– 21 –
CXP87532/87540
(6) Others (Ta = –20 to +75°C, VDD = 4.5 to 5.5V, VSS = 0V reference)
∗1
tMCK indicates three values according to the contents of the ATF control register (address : 01EEH) bits 5
and 4 (MCLK input control).
tMCK [ns] = tMCH or tMCL (bits 5 and 4 = “00”), 2tMCH or 2tMCL (bits 5 and 4 = “01”), 4tMCH or 4tMCL (bits 5 and
4 = “10”).
RFDT input high and
low level widths
MCLK input high and
low level widths
DREF input high and
low level widths
DPG input high and
low level widths
DFG input high and
low level widths
CFG input high and
low level widths
RFG input high and
low level widths
EXI input high and
low level widths
tRDH
tRDL
tMCH
tMCL
tDRH
tDRL
tDPH
tDPL
tDFH
tDFL
tCFH
tCFL
tRFH
tRFL
tEIH
tEIL
RFDT
MCLK
DREF
DPG
DFG
CFG
RFG0
RFG1
EXI0
EXI1
2.5tMCK
∗1
326/fc
tsys + 200
tsys + 200
tsys + 200
tsys + 200
tsys + 200
tsys + 200
ns
ns
ns
ns
ns
ns
ns
ns
Item Symbol Pin Condition Min. Max. Unit
tsys = 2000/fc
Page 22
– 22 –
CXP87532/87540
Fig. 9. Other timing
RFDT
tRDH tRDL
MCLK
tMCH tMCL
DREF
tDRH tDRL
DPG
tDPH tDPL
DFG
tDFH tDFL
CFG
tCFH tCFL
RFG0
RFG1
tRFH tRFL
EXI0
EXI1
tEIH tEIL
Page 23
– 23 –
CXP87532/87540
∗
1
When buffer amplifier input circuit format of RFDT pin is selected with option.
Note) VAPP waveform indicates the range like Fig. 11. When composed by circuits other than Fig. 10. (when
DC bias does not become VDD/2), it should not exceed VDD + 0.3 (V) and –0.3 (V) (VSS = 0V).
(7) Buffer amplifier function (Ta = –20 to +75°C, VDD = 4.5 to 5.5V, VSS = 0V reference)
Buffer amplifier input
voltage
∗
1
(Peak to peak value)
VAPP RFDT
When inputting 400kHz
sine wave on Fig. 10
circuit.
2.0 VDD + 0.3 V
Item Symbol Pin Condition Min. Max. Unit
Fig. 10.
C
V
APP (Refer to Fig. 11.)
C: 4700pF (±5%)
RFDT
V
DD
VSS
Fig. 11.
VAPP
VDD/2
Page 24
– 24 –
CXP87532/87540
Supplement
Mask option table
∗1
On PG0/EXI0 pin to PG7/RFG1 pin and PK1/MCLK pin, the input circuit format of CMOS schmitt or TTL
schmitt can be selected to every pin.
On PK0/RFDT pin, buffer amplifier or normal input circuit format can be selected.
A
EXTAL
XTAL
C1
C2
Fig. 12. SPC700 series recommended oscillation circuit
Model
Frequency
f (MHz)
C1, C2 (pF)
RIVER ELETEC
CORPORATION
HC-49/U-03
6.00
8.00
12.000
12
12
10
Manufacturer
Reset pin pull-up resistor
Power on reset circuit
Input circuit format
∗
1
Non-existent
Non-existent
CMOS Schmitt
Buffer amplifier
Item Contents
Existent
Existent
TTL Schmitt
Normal input
AAA
Page 25
– 25 –
CXP87532/87540
Package Outline Unit: mm
SONY CODE
EIAJ CODE
JEDEC CODE
PACKAGE MATERIAL
LEAD TREATMENT
LEAD MATERIAL
PACKAGE MASS
EPOXY RESIN
SOLDER PLATING
42/COPPER ALLOY
PACKAGE STRUCTURE
23.9 ± 0.4
QFP-100P-L01
100PIN QFP (PLASTIC)
20.0 – 0.1
+ 0.4
0.15 – 0.05
+ 0.1
15.8 ± 0.4
17.9 ± 0.4
14.0 – 0.1
+ 0.4
2.75 – 0.15
+ 0.35
A
0.65
M
0.13
QFP100-P-1420
1.7g
1
100
81
80 51
50
31
30
0.3 – 0.1
+ 0.15
DETAIL A
0° to 10°
0.8 ± 0.2
(16.3)
0.15
0.1 – 0.05
+ 0.2
SONY CODE
EIAJ CODE
JEDEC CODE
PACKAGE MATERIAL
LEAD TREATMENT
LEAD MATERIAL
PACKAGE MASS
EPOXY RESIN
SOLDER PLATING
42 ALLOY
PACKAGE STRUCTURE
DETAIL A
LQFP-100P-L01
LQFP100-P-1414
100PIN LQFP (PLASTIC)
16.0 ± 0.2
∗ 14.0 ± 0.1
75
51
50
26
25
1
76
0.5
0.18 – 0.03
+ 0.08
(0.22)
A
1.5 – 0.1
+ 0.2
0.127 – 0.02
+ 0.05
0.5 ± 0.2
(15.0)
0° to 10°
0.1 ± 0.1
0.5 ± 0.2
100
0.1
NOTE: Dimension “∗” does not include mold protrusion.
0.8g
0.13
M
Loading...
