CXP836P60
CXP836P61
CMOS 8-bit Single Chip Microcomputer
Description
The CXP836P60/836P61 is a CMOS 8-bit single
chip microcomputer integrating on a single chip an
A/D converter, serial interface, timer/counter, timebase timer, sub timer/counter, LCD controller/driver
and remote control reception circuit besides the basic
configurations of 8-bit CPU, PROM, RAM, and I/O
port.
The CXP836P60/836P61 also provides a sleep/stop
function that enables lower power consumption.
The CXP836P60 and CXP836P61 are the PROMincorporated version of the CXP83508/83512/83516/
83620/83624 and CXP83509/83513/83517/83621/83625
with built-in mask ROM, and they are able to write
directly into the program. Thus, it is most suitable for
evaluation use during system development and for
small-quantity production.
Features
• Wide-range instruction system (213 instructions) to
cover various types of data.
— 16-bit arithmetic/multiplication and division/boolean bit operation instructions
• Minimum instruction cycle 400ns at 10MHz operation (4.5 to 5.5V)
1µs at 4MHz operation (2.7 to 5.5V)
122µs at 32kHz operation (2.7 to 5.5V)
• Incorporated PROM capacity 60K bytes
• Incorporated RAM capacity 736 bytes (includes LCD display data area and serial interface RAM)
• Peripheral functions
— A/D converter 8-bit, 8-channel, successive approximation method
(Conversion time of 12.4µs/10MHz)
— Serial interface Incorporated buffer RAM
(Auto transfer for 1 to 32 bytes), 1 channel
8-bit clock synchronized type (MSB/LSB first selectable), 1 channel
— Timer 8-bit timer, 8-bit timer/counter, 19-bit time-base timer,
Sub timer/counter
— LCD controller/driver Maximum 128 segment display possible (during 1/4 duty)
4 common output, 32 segment output
Display method static, 1/2, 1/3, 1/4 duty
Bias method 1/2, 1/3 bias
— Remote control reception circuit 8-bit pulse measuring counter, 6-stage FIFO
• Interruption 14 factors, 14 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 80-pin plastic QFP/LQFP
Structure
Silicon gate CMOS IC
CXP836P60
80 pin QFP (Plastic) 80 pin LQFP (Plastic)
CXP836P61
80 pin QFP (Plastic)
Page 2
– 2 –
CXP836P60, CXP836P61
XTAL
A/D CONVERTER
REMOCON
SERIAL
INTERFACE
UNIT (CH0)
8-BIT TIMER/COUNTER 0
8-BIT TIMER 1
FIFO
BUFFER
RAM
INTERRUPT CONTROLLER
SPC700
CPU CORE
PROM
60K BYTES
PRESCALER/
TIME-BASE TIMER
SUB TIMER/
COUNTER
RAM
736 BYTES
8
AN0 to AN7
RMC
SI0
SO0
SI1
SO1
EC
CS0
SCK0
SCK1
INT0
INT1
INT2
INT3
TEX
TX
EXTAL
V
DD
Vss
PORT C
8
PC0 to PC7
PORT H
1
PH0
PORT B
8
PB0 to PB7
PORT E
5
2
PE0 to PE4
PE5 to PE6
2
LCD
CONTROLLER/DRIVER
32
SEG0 to SEG31
4
COM0 to COM3
VL
VLC1
VLC2
PORT A
8
PA0 to PA7
PORT D
8
PD0 to PD7
PORT F
8
PF0 to PF7
VLC3
ADJ
TO
CLOCK GENERATOR/
SYSTEM CONTROL
RST
3
INT4
PORT I
2
PI0 to PI1
SERIAL INTERFACE UNIT
(CH1)
Vpp
Block Diagram
Page 3
– 3 –
CXP836P60, CXP836P61
Pin Assignment (Top View) CXP836P60 (QFP package)
PE3/INT3
PE4/RMC
PE5/TO
PE6/ADJ
PB0
PB1/CS0
PB2/SCK0
PB3/SI0
PB4/SO0
PB5/SCK1
PB6/SI1
PB7/SO1
PC0
PC1
PC2
PC3
PC4
PC5
PC6
PC7
PH0/INT4
PA0/AN0
PA1/AN1
PA2/AN2
PD6/SEG22
PD5/SEG21
PD4/SEG20
PD3/SEG19
PD2/SEG18
PD1/SEG17
PD0/SEG16
SEG15
SEG14
SEG13
SEG12
SEG11
SEG10
SEG9
SEG8
SEG7
SEG6
SEG5
SEG4
SEG3
SEG2
SEG1
SEG0
COM3
PA3/AN3
PA4/AN4
PA5/AN5
PA6/AN6
PA7/AN7
RST
EXTAL
XTAL
V
SS
V
L
V
LC3
V
LC2
V
LC1
COM0
COM1
COM2
PE2/INT2
PE1/INT1
PE0/INT0/EC
PF7/SEG31
PF6/SEG30
Vpp
PI1/TEX
PI0/TX
V
DD
PF5/SEG29
PF4/SEG28
PF3/SEG27
PF2/SEG26
PF1/SEG25
PF0/SEG24
PD7/SEG23
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27 28
29
30
40
39
38
37
36
35
34
31
32
33
70
69
68
67
65
66
71
72
73
74
75
76
77
78
79
80
1
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
63
64
61
62
Note) Do not make any connections to Vpp (Pin 75).
Page 4
– 4 –
CXP836P60, CXP836P61
Pin Assignment (Top View) CXP836P60 (LQFP package)
PE5/TO
PE6/ADJ
PB0
PB1/CS0
PB2/SCK0
PB3/SI0
PB4/SO0
PB5/SCK1
PB6/SI1
PB7/SO1
PC0
PC1
PC2
PC3
PC4
PC5
PC6
PC7
PH0/INT4
PA0/AN0
PD4/SEG20
PD3/SEG19
PD2/SEG18
PD1/SEG17
PD0/SEG16
SEG15
SEG14
SEG13
SEG12
SEG11
SEG10
SEG9
SEG8
SEG7
SEG6
SEG5
SEG4
SEG3
SEG2
SEG1
PA1/AN1
PA2/AN2
PA3/AN3
PA4/AN4
PA5/AN5
PA6/AN6
PA7/AN7
RST
EXTAL
XTAL
V
SS
V
L
V
LC3
V
LC2
V
LC1
COM0
COM1
COM2
COM3
SEG0
PE4/RMC
PE3/INT3
PE2/INT2
PE1/INT1
PE0/INT0/EC
PF7/SEG31
PF6/SEG30
Vpp
PI1/TEX
PI0/TX
V
DD
PF5/SEG29
PF4/SEG28
PF3/SEG27
PF2/SEG26
PF1/SEG25
PF0/SEG24
PD7/SEG23
PD6/SEG22
PD5/SEG21
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
40
39
38
37
36
35
34
31
32
33
70
69
68
67
65
66
71
72
73
74
75
76
77
78
79
80
1
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
63
64
61
62
Note) Do not make any connections to Vpp (Pin 73).
Page 5
– 5 –
CXP836P60, CXP836P61
Pin Assignment (Top View) CXP836P61 (QFP package)
PE5/TO
PE6/ADJ
PB0
PB1/CS0
PB2/SCK0
PB3/SI0
PB4/SO0
PB5/SCK1
PB6/SI1
PB7/SO1
PC0
PC1
PC2
PC3
PC4
PC5
PC6
PC7
PH0/INT4
PA0/AN0
PD4/SEG20
PD3/SEG19
PD2/SEG18
PD1/SEG17
PD0/SEG16
SEG15
SEG14
SEG13
SEG12
SEG11
SEG10
SEG9
SEG8
SEG7
SEG6
SEG5
SEG4
SEG3
SEG2
SEG1
PA1/AN1
PA2/AN2
PA3/AN3
PA4/AN4
PA5/AN5
PA6/AN6
PA7/AN7
RST
EXTAL
XTAL
V
SS
V
L
V
LC3
V
LC2
V
LC1
COM0
COM1
COM2
COM3
SEG0
PE4/RMC
PE3/INT3
PE2/INT2
PE1/INT1
PE0/INT0/EC
PF7/SEG31
PF6/SEG30
Vpp
PI1/TEX
PI0/TX
V
DD
PF5/SEG29
PF4/SEG28
PF3/SEG27
PF2/SEG26
PF1/SEG25
PF0/SEG24
PD7/SEG23
PD6/SEG22
PD5/SEG21
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
40
39
38
37
36
35
34
31
32
33
70
69
68
67
65
66
71
72
73
74
75
76
77
78
79
80
1
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
63
64
61
62
Note) Do not make any connections to Vpp (Pin 73).
Page 6
– 6 –
CXP836P60, CXP836P61
Pin Description
Symbol I/O Functions
I/O/Analog input
PA0/AN0
to
PA7/AN7
(Port A)
8-bit I/O port. I/O can
be set in a bit unit.
Standby release input
can be set in a bit unit.
Incorporation of pull-up
resistor can be set
through the program in
a bit unit.
(8 pins)
Analog inputs to A/D converter.
(8 pins)
I/OPC0 to PC7
PE0/INT0/EC
PE1/INT1
PE2/INT2
PE3/INT3
PE4/RMC
PE5/TO
PE6/ADJ
PH0/INT4
PI0/TX
PI1/TEX
Input/Input/Input
Input/Input
Input/Input
Input/Input
Input/Input
Output/Output
Output/Output
I/O/Input
Input
Input/Input
(Port C)
8-bit I/O port. I/O can be set in a bit unit. Capable of driving 12mA sink
current. Incorporation of pull-up resistor can be set through the program
in a bit unit.
(8 pins)
(Port E)
7-bit port. Lower 5 bits
are for inputs; upper 2
bits are for outputs.
(7 pins)
(Port H)
1-bit I/O port.
Incorporation of pull-up
resistor can be set
through the program.
(1 pin)
(Port I)
2-bit input port.
(2 pins)
External interruption request input.
(1 pin)
Crystal connectors for sub timer/counter clock
oscillation. For usage as event counter, input to
TEX, and leave TX open.
External event inputs for 8-bit timer/counter.
External interruption request inputs.
(4 pins)
Remote control reception circuit input.
Output for 8-bit timer/counter rectangular wave.
Output for TEX oscillation frequency division.
I/O
I/O/Input
I/O/I/O
I/O/Input
I/O/Output
I/O/I/O
I/O/Input
I/O/Output
PB0
PB1/CS0
PB2/SCK0
PB3/SI0
PB4/SO0
PB5/SCK1
PB6/SI1
PB7/SO1
(Port B)
8-bit I/O port. I/O can
be set in a bit unit.
Incorporation of pull-up
resistor can be set
through the program in
a bit unit.
(8 pins)
Chip select input for serial interface (CH0).
Serial clock I/O (CH0).
Serial data input (CH0).
Serial data output (CH0).
Serial clock I/O (CH1).
Serial data input (CH1).
Serial data output (CH1).
Page 7
– 7 –
CXP836P60, CXP836P61
Symbol I/O Functions
Output/Output
PF0/SEG24
to
PF7/SEG31
(Port F)
8-bit output port.
(8 pins)
Output/Output
PD0/SEG16
to
PD7/SEG23
(Port D)
8-bit output port.
(8 pins)
Output
SEG0 to SEG15
LCD segment signal output. (16 pins)
Input
Crystal connectors for system clock oscillation. When the clock is supplied
externally, input to EXTAL; opposite phase clock should be input to XTAL.
EXTAL
Output
COM0 to COM3
LCD common signal output. (4 pins)
VLC1 to VLC3
LCD bias power supply. (3 pins)
Output
VL
Control pin to cut off the current flowing to external LCD bias resistor
during standby.
XTAL
Input
Low-level active system reset.
Positive power supply pin for writing of built-in PROM.
Do not make any connections under normal operation.
Positive power supply.
GND.
RST
Vpp
VDD
VSS
LCD segment signal outputs.
(16 pins)
Page 8
– 8 –
CXP836P60, CXP836P61
∗

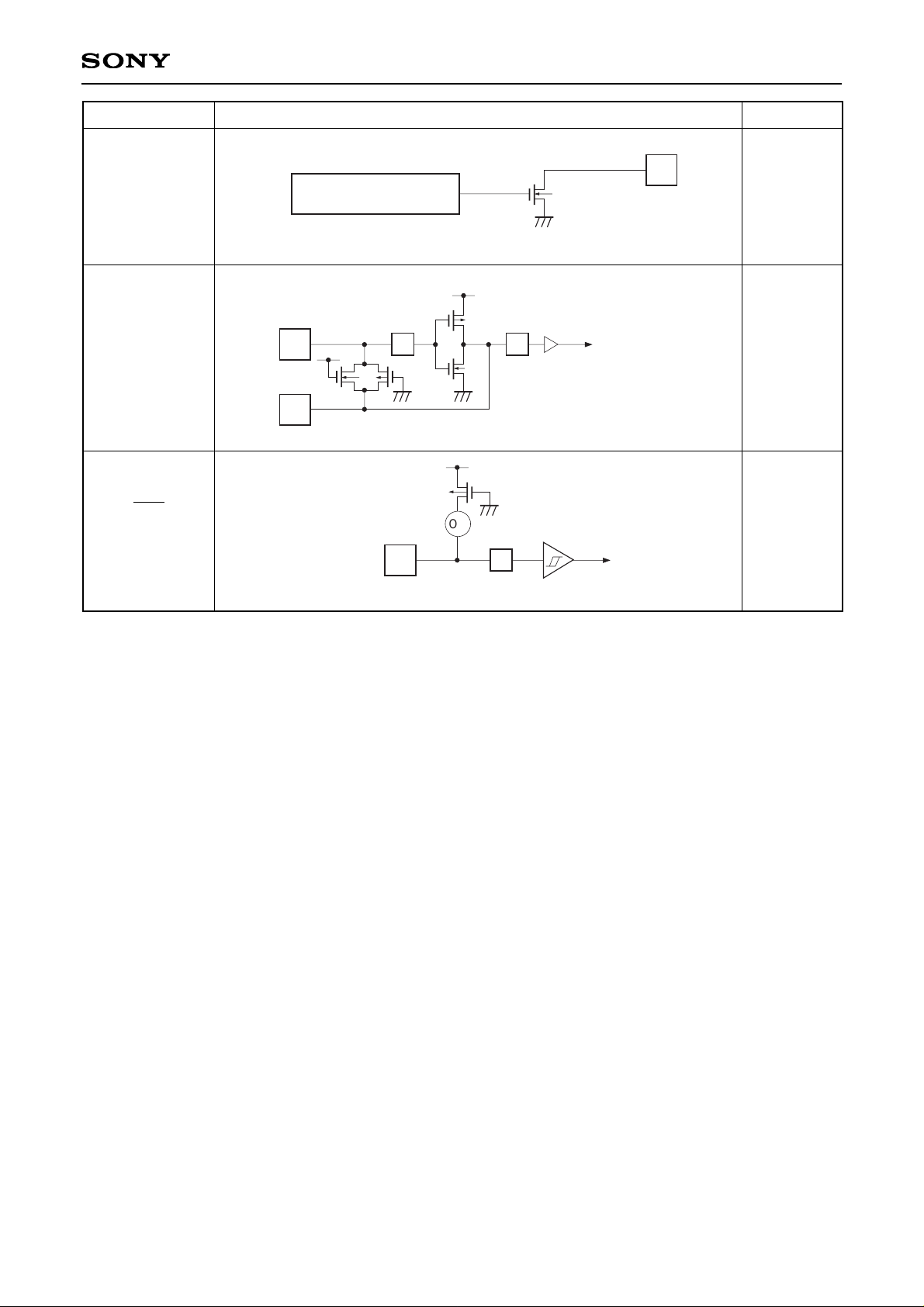

Pull-up transistor
approx. 100kΩ (VDD = 4.5 to 5.5V)
approx. 150kΩ (VDD = 2.7 to 3.3V)
IP
Pull-up resistor
Port B data
Port B direction
"0" after a reset
RD (Port B)
"0" after a reset
∗
Internal data bus
∗
Pull-up transistor
approx. 100kΩ (VDD = 4.5 to 5.5V)
approx. 150kΩ (VDD = 2.7 to 3.3V)
IP
Pull-up resistor
Port B data
Port B direction
"0" after a reset
RD (Port B)
"0" after a reset
∗
Internal data bus
CS0
SI0
SI1
Schmitt input
Port B
8 pins
Hi-Z
Hi-Z
After a reset
PA0/AN0
to
PA7/AN7
PB0
Port B
1 pin
3 pins
Hi-Z
PB1/CS0
PB3/SI0
PB6/SI1
∗
Pull-up transistor
approx. 100kΩ (VDD = 4.5 to 5.5V)
approx. 150kΩ (VDD = 2.7 to 3.3V)
IP
Pull-up resistor
Port A data
Port A direction
"0" after a reset
Port A function select
"0" after a reset
RD (Port A)
A/D converter
Input multiplexer
"0" after a reset
Input protection
circuit
∗
Edge detection
circuit
Internal data bus
Standby release
I/O Circuit Format for Pins
Port A
Pin
Circuit format
Page 9
– 9 –
CXP836P60, CXP836P61
Port B
Port C
2 pins
Hi-Z
Hi-Z
After a reset
PB2/SCK0
PB5/SCK1
PB4/SO0
PB7/SO1
2 pins
Hi-Z
PC0 to PC7
8 pins
Pull-up resistor
"0" after a reset
RD (Port B)
∗
"0" after a reset
Schmitt input
SCK in
Internal
data bus
Port B data
Port B direction
IP
Serial clock output ebable
Port B function select
"0" after a reset
SCK out
"0" after a reset
∗
Pull-up transistor
approx. 100kΩ (VDD = 4.5 to 5.5V)
approx. 150kΩ (VDD = 2.7 to 3.3V)
Output buffer capability
Port B
Pin
Circuit format
IP
Pull-up resistor
Port C data
Port C direction
"0" after a reset
RD (Port C)
"0" after a reset
∗
2
Internal data bus
∗
1
∗2
Pull-up transistor
approx. 100kΩ (VDD = 4.5 to 5.5V)
approx. 150kΩ (VDD = 2.7 to 3.3V)
∗
1
High current drive
12mA (VDD = 4.5 to 5.5V)
4.5mA (VDD = 2.7 to 3.3V)
Output buffer capability
Serial data output ebable
Port B function select
Internal
data bus
Pull-up resistor
"0" after a reset
"0" after a reset
"0" after a reset
Port B data
Port B direction
"0" after a reset
RD (Port B)
SO
∗
IP
∗
Pull-up transistor
approx. 100kΩ (VDD = 4.5 to 5.5V)
approx. 150kΩ (VDD = 2.7 to 3.3V)
Page 10
– 10 –
CXP836P60, CXP836P61
Port E
Port E
Port H
5 pins
Hi-Z
High level
After a reset
PE0/INT0/EC
PE1/INT1
PE2/INT2
PE3/INT3
PE4/RMC
PE5/TO
1 pin
PE6/ADJ
1 pin
Hi-Z
PH0/INT4
1 pin
IP
Schmitt input
INT0/EC
INT1
INT2
INT3
RMC
Internal data bus
RD (Port E)
Port E
Pin
Circuit format
Port E data
"1" after a reset
MPX
ADJ2K
ADJ16K
ADJ32K
Internal reset signal
∗
2
∗1
ADJ signals are frequency driver
outputs for TEX oscillation frequency
adjustment.
ADJ2K provides usage as buzzer output.
∗2
Pull-up transistor
approx. 150kΩ (VDD = 4.5 to 5.5V)
approx. 200kΩ (VDD = 2.7 to 3.3V)
∗
1
Port E function select (upper)
Port E function select (lower)
RD (Port E)
Internal data bus
00
"00" after a reset
01
10
11
∗
Pull-up transistor
approx. 100kΩ (VDD = 4.5 to 5.5V)
approx. 150kΩ (VDD = 2.7 to 3.3V)
IP
Pull-up resistor
Port H data
Port H direction
"0" after a reset
RD (Port H)
"0" after a reset
∗
Internal data bus
INT4
Schmitt input
High level
High level
at ON
resistance
of pull-up
transistor
during a
reset.
Port E function select
"0" after a reset
Port E data
"1" after a reset
Internal data bus
TO
RD (Port E)
Page 11
– 11 –
CXP836P60, CXP836P61
Port D
Port F
Segment
Common
2 pins
Oscillation
halted port
input
Segment
Output
(VDD level)
After a reset
PI0/TX
PI1/TEX
PD0/SEG16
to
PD7/SEG23
PF0/SEG24
to
PF7/SEG31
16 pins
VDD level
SEG0 to SEG15
16 pins
VDD level
COM0 to COM3
4 pins
"1" after a reset
RD (Port I)
Internal data bus
Schmitt input
IP IP
RD (Port I)
Internal data bus
Clock input
PI1/TEX
PI0/TX
TEX oscillation control circuit
Port I
Pin
Circuit format
VCH
VCL
VLC1
VLC2
VLC3
VDD
Port D, F data
Port/segment output select
"0" after a reset
Segment data
Segment
driver
Page 12
– 12 –
CXP836P60, CXP836P61
1 pin
Hi-Z
Oscillation
After a reset
VL
EXTAL
XTAL
2 pins
Low level
(during a reset)
RST
1 pin
LCD control
(DSP bit)
"0" after a reset
Pin
Circuit format
IP
Schmitt input
Mask option
Pull-up resistor
OP
EXTAL
XTAL
• Diagram shows circuit
composition during
IPIP
oscillation.
• Feedback resistor is
removed during stop.
XTAL becomes high
level.
Page 13
– 13 –
CXP836P60, CXP836P61
∗1
VIN and VOUT must not exceed VDD + 0.3V.
∗2
The high current drive transistor is the N-ch transistor of Port C (PC).
Note) Usage exceeding absolute maximum ratings may permanently impair the LSI. Normal operation should
be conducted under the recommended operating conditions. Exceeding these conditions may adversely
affect the reliability of the LSI.
Supply voltage
LCD bias voltage
Input voltage
Output voltage
High level output current
High level total output current
Low level output current
Low level total output current
Operating temperature
Storage temperature
Allowable power dissipation
VDD
Vpp
VLC1, VLC2,
VLC3
VIN
VOUT
IOH
ΣIOH
IOL
IOLC
ΣIOL
Topr
Tstg
PD
–0.3 to +7.0
–0.3 to +13.0
–0.3 to +7.0
∗1
–0.3 to +7.0
∗1
–0.3 to +7.0
∗1
–5
–50
15
20
100
–20 to +75
–55 to +150
600
380
380
V
V
V
V
V
mA
mA
mA
mA
mA
°C
°C
mW
mW
mW
PROM incorporated version fixed
Output per pin
Total for all output pins
Value per pin, excluding high current
output pins
Value per pin for high current output pins
∗2
Total for all output pins
QFP-80P-L01
LQFP-80P-L01
QFP-80P-L03
Item Symbol Rating Unit Remarks
Absolute Maximum Ratings (Vss = 0V)
Page 14
– 14 –
CXP836P60, CXP836P61
Recommended Operating Conditions (Vss = 0V)
LCD bias voltage
High level
input voltage
Low level
input voltage
Operating temperature
Supply voltage
5.5
5.5
5.5
VDD
VDD
VDD
VDD + 0.3
0.3VDD
0.2VDD
0.4
+75
V
V
V
V
V
V
V
°C
V
Item Symbol Min. Max. Unit Remarks
2.7
2.7
2.5
Vss
0.7VDD
0.8VDD
VDD – 0.4
0
0
–0.3
–20
VLC1
VLC2
VLC3
VIH
VIHS
VIHEX
VIL
VILS
VILEX
Topr
Guaranteed operation range during 1/16
frequency dividing mode or sleep mode
Guaranteed operation range with TEX clock
Guaranteed data hold range during stop
LCD power supply range
∗4
∗1
Hysteresis input
∗2
EXTAL∗3, TEX
∗5
∗1
Hysteresis input
∗2
EXTAL∗3, TEX
∗5
VDD
Guaranteed operation range
during 1/2 and 1/4 frequency
dividing mode
fc = 10MHz or less
fc = 4MHz or less
∗1
Value for each pin of normal input ports (PA, PB0, PB4, PB7, PC and PI).
∗2
Value of the following pins; RST, CS0, SI0, SI1, SCK0, SCK1, EC/INT0, INT1, INT2, INT3, INT4 and RMC.
∗3
Specifies only during external clock input.
∗4
Optimal values are determined by LCD used.
∗5
Specifies only during external event count input.
4.5
2.7
5.5
5.5
Page 15
– 15 –
CXP836P60, CXP836P61
VDD = 4.5V, IOH = –1.0mA
VDD = 4.5V, IOH = –2.4mA
VDD = 4.5V, IOH = –0.5mA
VDD = 4.5V, IOH = –1.2mA
VDD = 4.5V, IOL = 1.8mA
VDD = 4.5V, IOL = 3.6mA
VDD = 4.5V, IOL = 12.0mA
VDD = 5.5V, VIH = 5.5V
VDD = 5.5V, VIL = 0.4V
VDD = 5.5V, VIH = 5.5V
VDD = 5.5V
VIL = 0.4V
VDD = 4.5V, VIH = 4.0V
VDD = 5.5V
VI = 0, 5.5V
VDD = 5V
VLC1 = 3.75V
VLC2 = 2.5V
VLC3 = 1.25V
High level
output voltage
I/O leakage
current
Supply
current
∗5
4.0
3.5
4.0
3.5
0.5
–0.5
0.1
–0.1
–1.5
–2.78
V
V
V
V
V
V
V
V
µA
µA
µA
µA
µA
µA
µA
kΩ
kΩ
PC
PA, PB, PC,
PD∗2, PE5,
PE6,
PF∗2, PH0,
VL (VOL only)
SCK0∗1, SO0
∗1
SCK1∗1, SO1
∗1
EXTAL
TEX
RST
∗3
Item Symbol Pins Conditions Min.
PA to PC∗4,
PE0 to PE4,
PH∗4, PI,
RST
∗3
VDD
IIZ
Common
output
impedance
RCOM
Segment
output
impedance
RSEG
COM0 to
COM3
SEG0 to
SEG15,
SEG16 to
SEG31
∗2
IDD1
High-speed mode operation
(1/2 frequency dividing clock)
IDDS1
IDDS3
VOL
IIHE
IILE
IIHT
IILT
IILR
IIL
IIH
Low level
output voltage
Input current
3
5
Typ.
0.4
0.6
1.5
40
–40
10
–10
–400
–45
±10
5
15
Max. Unit
DC Characteristics (VDD = 4.5 to 5.5V)
Electrical Characteristics
(Ta = –20 to +75°C, Vss = 0V)
VDD = 5.5V, 10MHz crystal oscillation
(C1 = C2 = 15pF)
Sleep mode
Stop mode
VDD = 5.5V, 10MHz crystal oscillation
(C1 = C2 = 15pF)
14
45
mA
2.8 9 mA
VDD = 5.5V, 10MHz and termination
of TEX oscillation
10 µA
VOH
Page 16
– 16 –
CXP836P60, CXP836P61
Clock 1MHz
0V for all pins excluding
measured pins
Input capacity
10
20
pF
PA to PC,
PE0 to PE4, PH,
PI, EXTAL, RST
Item Symbol Pins Conditions Min.
CIN
Typ. Max. Unit
∗1
Specifies when Port B output buffer capability switching register (BUFB: 01F4h) selects the buffer capability
to high.
∗2
Common pins of PD0/SEG16 to PD7/SEG23, PF0/SEG24 to PF7/SEG31, PD and PF is the case when the
common pin is selected as port; SEG16 to SEG31 is when the common pin is selected as segment output.
∗3
RST specifies the input current when pull-up resistor has been selected; leakage current when no resistor
has been selected.
∗4
Pins PA to PC, and PH0 specifies the input current when pull-up resistor has been selected; leakage
current when no resistor has been selected.
∗5
When all output pins are left open.
Page 17
– 17 –
CXP836P60, CXP836P61
VDD = 2.7V, IOH = –0.12mA
VDD = 2.7V, IOH = –0.45mA
VDD = 2.7V, IOL = 1.0mA
VDD = 2.7V, IOL = 1.4mA
VDD = 2.7V, IOL = 4.5mA
VDD = 3.3V, VIH = 3.3V
VDD = 3.3V, VIL = 0.3V
VDD = 3.3V, VIH = 3.3V
VDD = 3.3V
VIL = 0.3V
VDD = 2.7V, VIH = 2.4V
VDD = 3.3V
VI = 0, 3.3V
VDD = 3V
VLC1 = 2.25V
VLC2 = 1.5V
VLC3 = 0.75V
High level
output voltage
I/O leakage
current
Supply
current
∗5
2.5
2.1
0.3
–0.3
0.1
–0.1
–0.9
0.9
V
V
V
V
V
V
µA
µA
µA
µA
µA
µA
µA
kΩ
kΩ
PC
PA, PB, PC,
PD∗2, PE5,
PE6,
PF∗2, PH0,
VL (VOL only)
EXTAL
TEX
RST
∗3
Item Symbol Pins Conditions Min.
PA to PC∗4,
PE0 to PE4,
PH∗4, PI,
RST
∗3
VDD
IIZ
Common
output
impedance
RCOM
Segment
output
impedance
RSEG
COM0 to
COM3
SEG0 to
SEG15,
SEG16 to
SEG31
∗2
IDD1
High-speed mode operation
(1/2 frequency dividing clock)
IDDS1
IDDS3
VOH
VOL
IIHE
IILE
IIHT
IILT
IILR
IIL
IIH
Low level
output voltage
Input current
4.5
10
Typ.
0.25
0.4
0.9
20
–20
10
–10
–200
–20
±10
7.5
30
Max. Unit
IDD2
DC Characteristics (VDD = 2.7 to 3.3V)
Electrical Characteristics
(Ta = –20 to +75°C, Vss = 0V)
VDD = 3.3V, 4MHz crystal oscillation
(C1 = C2 = 15pF)
VDD = 3.3V, TEX∗6crystal oscillation
(C1 = C2 = 47pF)
Sleep mode
Stop mode
VDD = 3.3V, 4MHz crystal oscillation
(C1 = C2 = 15pF)
3
9
mA
34
100
µA
0.65
2.5
mA
IDDS2
VDD = 3.3V, TEX∗6crystal oscillation
(C1 = C2 = 47pF)
VDD = 3.3V, 4MHz and termination of
TEX oscillation
16
30
µA
10
µA
SCK0∗1, SO0
∗1
SCK1∗1, SO1
∗1
VDD = 2.7V, IOH = –0.24mA
VDD = 2.7V, IOH = –0.9mA
2.5
V
2.1
V
Page 18
– 18 –
CXP836P60, CXP836P61
Clock 1MHz
0V for all pins excluding
measured pins
Input capacity
10 20
pF
PA to PC,
PE0 to PE4, PH,
PI, EXTAL, RST
Item Symbol Pins Conditions Min.
CIN
Typ. Max. Unit
∗1
Specifies when Port B output buffer capability switching register (BUFB: 01F4h) selects the buffer capability
to high.
∗2
Common pins of PD0/SEG16 to PD7/SEG23, PF0/SEG24 to PF7/SEG31, PD and PF is the case when the
common pin is selected as port; SEG16 to SEG31 is when the common pin is selected as segment output.
∗3
RST specifies the input current when pull-up resistor has been selected; leakage current when no resistor
has been selected.
∗4
Pins PA to PC, and PH0 specifies the input current when pull-up resistor has been selected; leakage
current when no resistor has been selected.
∗5
When all output pins are left open.
∗6
The value when 32.768kHz oscillator is connected to TEX.
Page 19
– 19 –
CXP836P60, CXP836P61
∗1
tsys indicates the three values below according to the upper two bits (CPU clock selection) of the clock
control register (CLC: 00FEh).
tsys [ns] = 2000/fc (upper two bits = “00”), 4000/fc (upper two bits = “01”), 16000/fc (upper two bits = “11”).
EXTAL
t
XH tXL
tCF
tCR
0.4V
V
DD – 0.4V
1/fc
Crystal oscillation
Ceramic oscillation
EXTAL
XTAL
External clock
EXTAL
XTAL
74HC04
C
1
C2
TEX clock applied condition
Crystal oscillation
TEX
TX
C
1 C2
TEX
EC
t
EH tELtEF tER
0.2VDD
0.8VDD
tTH tTLtTF tTR
AC Characteristics
(1) Clock timing
System clock frequency
System clock input pulse
width
System clock input rise and
fall time
Event count input clock pulse
width
Event count input clock rise
and fall time
System clock frequency
Event count input clock input
pulse width
Event count input clock rise
and fall time
fC
tXL,
tXH
tCR,
tCF
tEH,
tEL
tER,
tEF
fC
tTL,
tTH
tTR,
tTF
XTAL
EXTAL
EXTAL
EXTAL
EC
EC
TEX
TX
TEX
TEX
MHz
ns
ns
ns
ms
kHz
µs
ms
Item Symbol Pin Conditions Min. Unit
Fig. 1, Fig. 2
Fig. 1, Fig. 2
external clock drive
Fig. 1, Fig. 2
external clock drive
Fig. 3
Fig. 3
VDD = 2.7 to 5.5V
Fig. 2 (32kHz clock
applied condition)
Fig. 3
Fig. 3
1
1
37.5
77.5
tsys + 50
∗1
10
Typ.
32.768
Max.
10
5
200
20
20
(Ta = –20 to +75°C, VDD = 2.7 to 5.5V, Vss = 0V)
Fig. 2. Clock applied conditions
Fig. 1. Clock timing
Fig. 3. Event count clock timing
VDD = 4.5 to 5.5V
VDD = 4.5 to 5.5V
Page 20
– 20 –
CXP836P60, CXP836P61
(2) Serial transfer (CH0) (Ta = –20 to +75°C, VDD = 4.5 to 5.5V, Vss = 0V)
CS ↓ → SCK
delay time
CS ↑ → SCK
float delay time
CS ↓ → SO
delay time
CS ↓ → SO
float delay time
CS high level width
tsys + 200
2tsys + 200
16000/fc
tsys + 100
8000/fc – 100
–tsys + 100
200
2tsys + 100
100
tsys + 200
tsys + 200
tsys + 200
tsys + 200
2tsys + 200
100
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
Chip select transfer mode
(SCK = output mode)
Chip select transfer mode
(SCK = output mode)
Chip select transfer mode
Chip select transfer mode
Chip select transfer mode
Input mode
Output mode
Input mode
Output mode
SCK input mode
SCK output mode
SCK input mode
SCK output mode
SCK input mode
SCK output mode
SCK cycle time
SCK high and low
level widths
SI input setup time
(for SCK ↑)
SI input hold time
(for SCK ↑)
SCK ↓ → SO
delay time
tDCSK
tDCSKF
tDCSO
tDCSOF
tWHCS
tKCY
tKH
tKL
tSIK
tKSI
tKSO
SCK0
SCK0
SO0
SO0
CS0
SCK0
SCK0
SI0
SI0
SO0
Note 1) tsys indicates the three values below according to the upper two bits (CPU clock selection) of the
clock control register (CLC: 00FEh).
tsys [ns] = 2000/fc (upper two bits = “00”), 4000/fc (upper two bits = “01”), 16000/fc (upper two bits = “11”)
Note 2) CS, SCK, SI and SO indicates CS0, SCK0, SI0 and SO0, respectively.
Note 3) The load condition for the SCK output mode, SO output delay time is 50pF + 1TTL.
Note 4) The value when Port B output buffer capability switching register (BUFB: 01F4h) selects buffer
capability to normal.
Item Symbol Pin Min. Max. UnitConditions
Page 21
– 21 –
CXP836P60, CXP836P61
Serial transfer (CH0) (Ta = –20 to +75°C, VDD = 2.7 to 3.3V, Vss = 0V)
CS ↓ → SCK
delay time
CS ↑ → SCK
float delay time
CS ↓ → SO
delay time
CS ↓ → SO
float delay time
CS high level width
tsys + 200
2tsys + 200
16000/fc
tsys + 100
8000/fc – 150
–tsys + 100
200
2tsys + 100
100
tsys + 250
tsys + 200
tsys + 250
tsys + 200
2tsys + 250
125
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
Chip select transfer mode
(SCK = output mode)
Chip select transfer mode
(SCK = output mode)
Chip select transfer mode
Chip select transfer mode
Chip select transfer mode
Input mode
Output mode
Input mode
Output mode
SCK input mode
SCK output mode
SCK input mode
SCK output mode
SCK input mode
SCK output mode
SCK cycle time
SCK high and low
level widths
SI input setup time
(for SCK ↑)
SI input hold time
(for SCK ↑)
SCK ↓ → SO
delay time
tDCSK
tDCSKF
tDCSO
tDCSOF
tWHCS
tKCY
tKH
tKL
tSIK
tKSI
tKSO
SCK0
SCK0
SO0
SO0
CS0
SCK0
SCK0
SI0
SI0
SO0
Item Symbol Pin Min. Max. UnitConditions
Note 1) tsys indicates the three values below according to the upper two bits (CPU clock selection) of the
clock control register (CLC: 00FEh).
tsys [ns] = 2000/fc (upper two bits = “00”), 4000/fc (upper two bits = “01”), 16000/fc (upper two bits = “11”)
Note 2) CS, SCK, SI and SO indicates CS0, SCK0, SI0 and SO0, respectively.
Note 3) The load condition for the SCK output mode, SO output delay time is 50pF.
Note 4) The value when Port B output buffer capability switching register (BUFB: 01F4h) selects buffer
capability to high.
Page 22
– 22 –
CXP836P60, CXP836P61

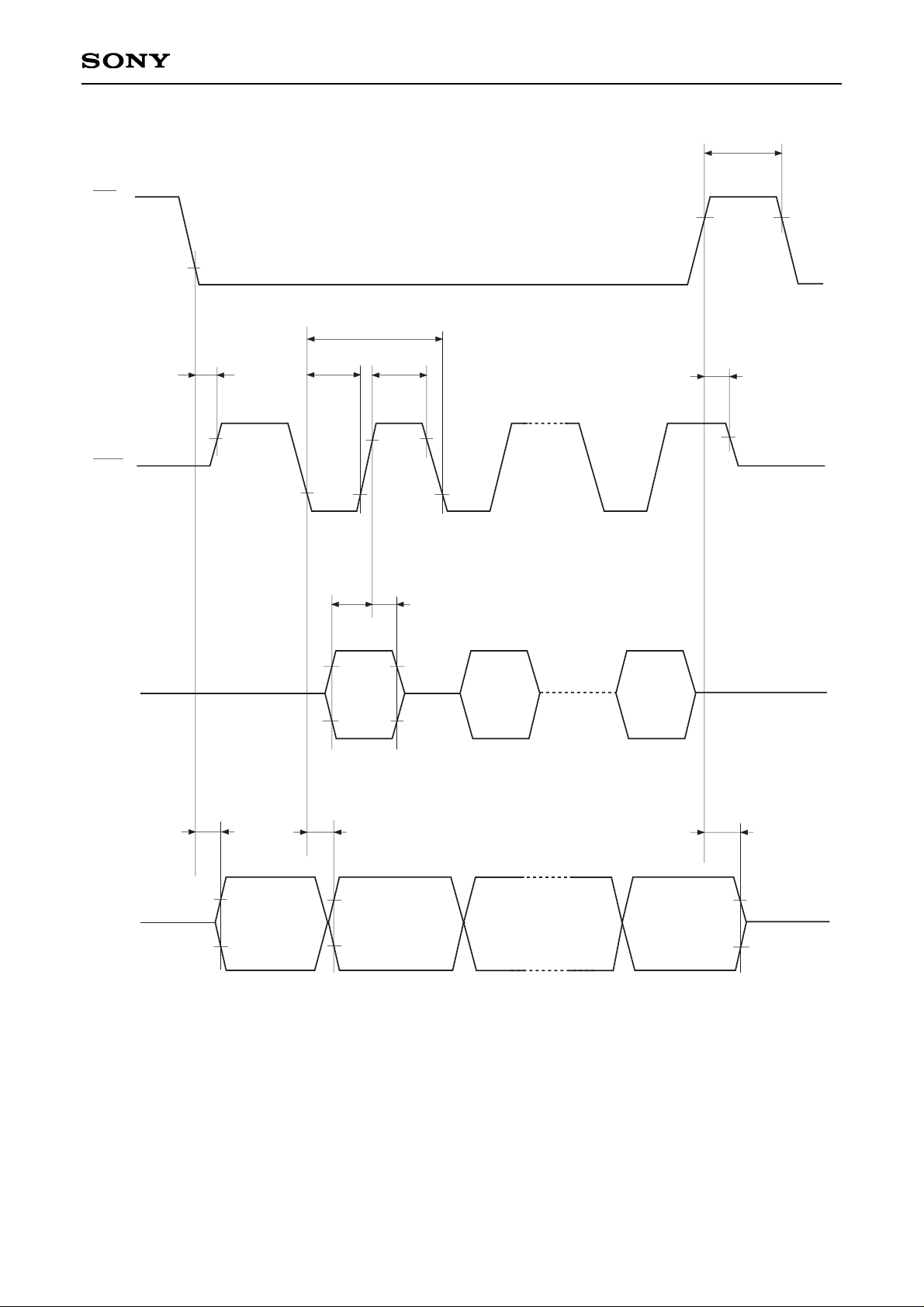

Fig. 4. Serial transfer CH0 timing
CS0
SCK0
0.2V
DD
0.8VDD
tWHCS
tDCSK tDCSKF
0.8VDD
0.2VDD
0.8VDD
tKCY
tKL tKH
0.8VDD
0.2VDD
SI0
t
SIK tKSI
Input data
t
DCSO tKSO tDCSOF
Output data
0.8V
DD
0.2VDD
SO0
Page 23
– 23 –
CXP836P60, CXP836P61
Serial Transfer (CH1) (Ta = –20 to +75°C, VDD = 4.5 to 5.5V, Vss = 0V)
1000
8000/fc
400
4000/fc – 50
100
200
200
100
200
100
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
tKCY
Input mode
Output mode
Input mode
Output mode
SCK input mode
SCK output mode
SCK input mode
SCK output mode
SCK input mode
SCK output mode
SCK1
tKH
tKL
SCK1
tSIK
SI1
tKSI
SI1
tKSO
SO1
1000
8000/fc
400
4000/fc – 100
100
200
200
100
250
125
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
tKCY
Input mode
Output mode
Input mode
Output mode
SCK input mode
SCK output mode
SCK input mode
SCK output mode
SCK input mode
SCK output mode
tKH
tKL
tSIK
tKSI
tKSO
SCK1
SCK1
SI1
SI1
SO1
Item
SCK cycle time
SCK high and low level
widths
SI input setup time
(for SCK ↑)
SI input hold time
(for SCK ↑)
SCK ↓ → SO delay time
Symbol Pin Conditions Min. Max. Unit
Note 1) tsys indicates the three values below according to the upper two bits (CPU clock selection) of the
clock control register (CLC: 00FEh).
tsys [ns] = 2000/fc (upper two bits = “00”), 4000/fc (upper two bits = “01”), 16000/fc (upper two bits = “11”)
Note 2) SCK, SI and SO indicates SCK1, SI1 and SO1, respectively.
Note 3) The load condition for the SCK1 output mode, SO1 output delay time is 50pF + 1TTL.
Note 4) The value when Port B output buffer capability switching register (BUFB: 01F4h) selects buffer
capability to normal.
Serial Transfer (CH1) (Ta = –20 to +75°C, VDD = 2.7 to 3.3V, Vss = 0V)
Item
SCK cycle time
SCK high and low level
widths
SI input setup time
(for SCK ↑)
SI input hold time
(for SCK ↑)
SCK ↓ → SO delay time
Symbol Pin Conditions Min. Max. Unit
Note 1) tsys indicates the three values below according to the upper two bits (CPU clock selection) of the
clock control register (CLC: 00FEh).
tsys [ns] = 2000/fc (upper two bits = “00”), 4000/fc (upper two bits = “01”), 16000/fc (upper two bits = “11”)
Note 2) SCK, SI and SO indicates SCK1, SI1 and SO1, respectively.
Note 3) The load condition for the SCK1 output mode, SO1 output delay time is 50pF.
Note 4) The value when Port B output buffer capability switching register (BUFB: 01F4h) selects buffer
capability to high.
Page 24
– 24 –
CXP836P60, CXP836P61
tKCY
tKL tKH
0.2VDD
0.8VDD
tSIK tKSI
tKSO
Input data
Output data
0.2V
DD
0.8VDD
0.2VDD
0.8VDD
SCK1
SI1
SO1
Fig. 5. Serial transfer CH1 timing
Page 25
– 25 –
CXP836P60, CXP836P61
Conversion time
Sampling time
Analog input voltage
tCONV
tSAMP
VIAN
VZT
∗1
VFT
∗2
AN0 to AN7
Ta = 25°C
VDD = 5.0V
VSS = 0V
Linearity error
Zero transition
voltage
Full-scale transition
voltage
Resolution
µs
µs
VVDD
31/fADC
∗3
10/fADC
∗3
0
Item Symbol Pin Conditions Min. Typ. Max. Unit
Bits
(3) A/D converter characteristics (Ta = –20 to +75°C, VDD = 4.5 to 5.5V, Vss = 0V)
8
±3 LSB
70 mV
5030
10
4970
–10
4910 mV
Conversion time
Sampling time
Analog input voltage
tCONV
tSAMP
VIAN
VZT
∗1
VFT
∗2
AN0 to AN7
Ta = 25°C
VDD = 2.7V
VSS = 0V
Linearity error
Zero transition
voltage
Full-scale transition
voltage
Resolution
µs
µs
VVDD
31/fADC
∗3
10/fADC
∗3
0
Item Symbol Pin Conditions Min. Typ. Max. Unit
Bits
(Ta = –20 to +75°C, VDD = 2.7 to 3.3V, Vss = 0V)
8
±3 LSB
40 mV
2716
11
2688
–10
2651 mV
Fig. 6. Definition of A/D converter terms
Analog input
Linearity error
V
FTVZT
00h
01h
FEh
FFh
Digital conversion value
∗
1
VZT: Value at which the digital conversion value changes
from 00h to 01h and vice versa.
∗
2
VFT: Value at which the digital conversion value changes
from FEh to FFh and vice versa.
∗
3
fADC = fc/4
Page 26
– 26 –
CXP836P60, CXP836P61
External interruption
high and low level widths
Reset input low level width
INT0
INT1
INT2
INT3
INT4
RST
1
32/fc
µs
µs
tIH
tIL
tRSL
(4) Interruption, reset input (Ta = –20 to +75°C, VDD = 2.7 to 5.5V, Vss = 0V)
0.2VDD
0.8VDD
tIH tIL
tIL tIH
INT0
INT1
INT2
INT3
INT4
Fig. 7. Interruption input timing
tRSL
0.2VDD
RST
Fig. 8. RST input timing
Item Symbol Pin Conditions Min. Max. Unit
Page 27
– 27 –
CXP836P60, CXP836P61
Appendix
C1
A
EXTAL
XTAL
C
2
Rd
A
EXTAL
XTAL
(i) Main clock
A
EXTAL
XTAL
C1 C2
Rd
XTAL
(ii) Main clock
A
EXTAL
XTAL
C
1 C2
Rd
A
TEX
TX
(iii) Sub clock
Fig. 9. SPC700 series recommended oscillation circuit
∗1
Those marked with an ∗1signify types with
built-in ground capacitance (C1, C2).
Manufacturer
MURATA MFG
CO., LTD.
RIVER
ELETEC
CO., LTD.
KINSEKI LTD.
Model
CSA4.19MG
CSA8.00MG
CST4.19MGW
∗1
CST8.00MTW
∗1
HC-49/U03
CX-5F
FCR4.19MC5
∗1
FCR8.0MC5
∗1
FCR10.0MC5
∗1
CCR4.19MC3
∗1
CCR8.0MC5
∗1
CCR10.0MC5
∗1
TDK
Corporation
Seiko
Instruments Inc.
VTC-200
SP-T
fc (MHz)
4.19
8.00
10.00
4.19
8.00
10.00
4.19
8.00
10.00
4.19
8.00
10.00
4.19
8.00
10.00
4.19
8.00
10.00
32.768
75.00
C1 (pF)
C2 (pF)
Rd (Ω)
100
30
30
100
30
30
22
15
10
33
18
15
30 ( ± 20%)
20 ( ± 20%)
20 ( ± 20%)
36 ( ± 20%)
20 ( ± 20%)
20 ( ± 20%)
18
4
100
30
30
100
30
30
22
15
10
33
18
15
30 ( ± 20%)
20 ( ± 20%)
20 ( ± 20%)
36 ( ± 20%)
20 ( ± 20%)
20 ( ± 20%)
18
4
0
0
0
0
0
0
1.0k
100
100
2.2k
0
0
0
330k
100k
Circuit
example
(i)
CSA10.0MT
(ii)
CST10.00MTW
∗1
(i)
(ii)
(iii)
Remarks
CL = 12.5pF
CL = 6.0pF
FCR
∗∗∗
: Lead-type ceramic oscillator
CCR
∗∗∗
: Surface mounted-type ceramic oscillator
CL : Load Capacitor
Product List
Item
Package
ROM
capacity
RST pin pull-up
resistor
Products
Mask PROM
CXP
83508
CXP
83512
CXP
83516
CXP
83620
CXP
83624
CXP
83509
CXP
83513
CXP
83517
CXP
83621
CXP
83625
CXP836P60Q
-1-
CXP836P60R
-1-
CXP836P61Q
-1-
80-pin plastic
QFP/LQFP
0.65mm pitch
80-pin plastic QFP
80-pin plastic
QFP
80-pin plastic
LQFP
80-pin plastic
QFP (0.65mm pitch)
PROM 60K bytes
Existent
8K
bytes
12K
bytes
16K
bytes
20K
bytes
24K
bytes
8K
bytes
12K
bytes
16K
bytes
20K
bytes
24K
bytes
Existent/Non-existent
CL = 12.0pF
CL = 12.0pF
CL = 12.0pF
AA
AA
AA
AA
AA
Page 28
– 28 –
CXP836P60, CXP836P61
10.0
1.0
0.1
(100µA)
0.01
(10µA)
1
2 3
4
5 6 7
IDD vs. VDD
(fc = 10MHz, Ta = 25°C, typical)
V
DD – Supply voltage [V]
I
DD
– Supply current [mA]
5.0
0.5
0.05
(50µA)
1/2 frequency dividing mode
32kHz mode
(instruction)
32kHz
Sleep mode
1/4 frequency dividing mode
Sleep mode
1/16 frequency dividing mode
0 5 10
0
5
10
15
1/2 frequency dividing mode
1/4 frequency dividing mode
1/16 frequency dividing mode
Sleep mode
IDD vs. fc
(VDD = 5V, Ta = 25°C, typical)
fc – System clock [MHz]
I
DD
– Supply current [mA]
Characteristics Curve
Page 29
– 29 –
CXP836P60, CXP836P61

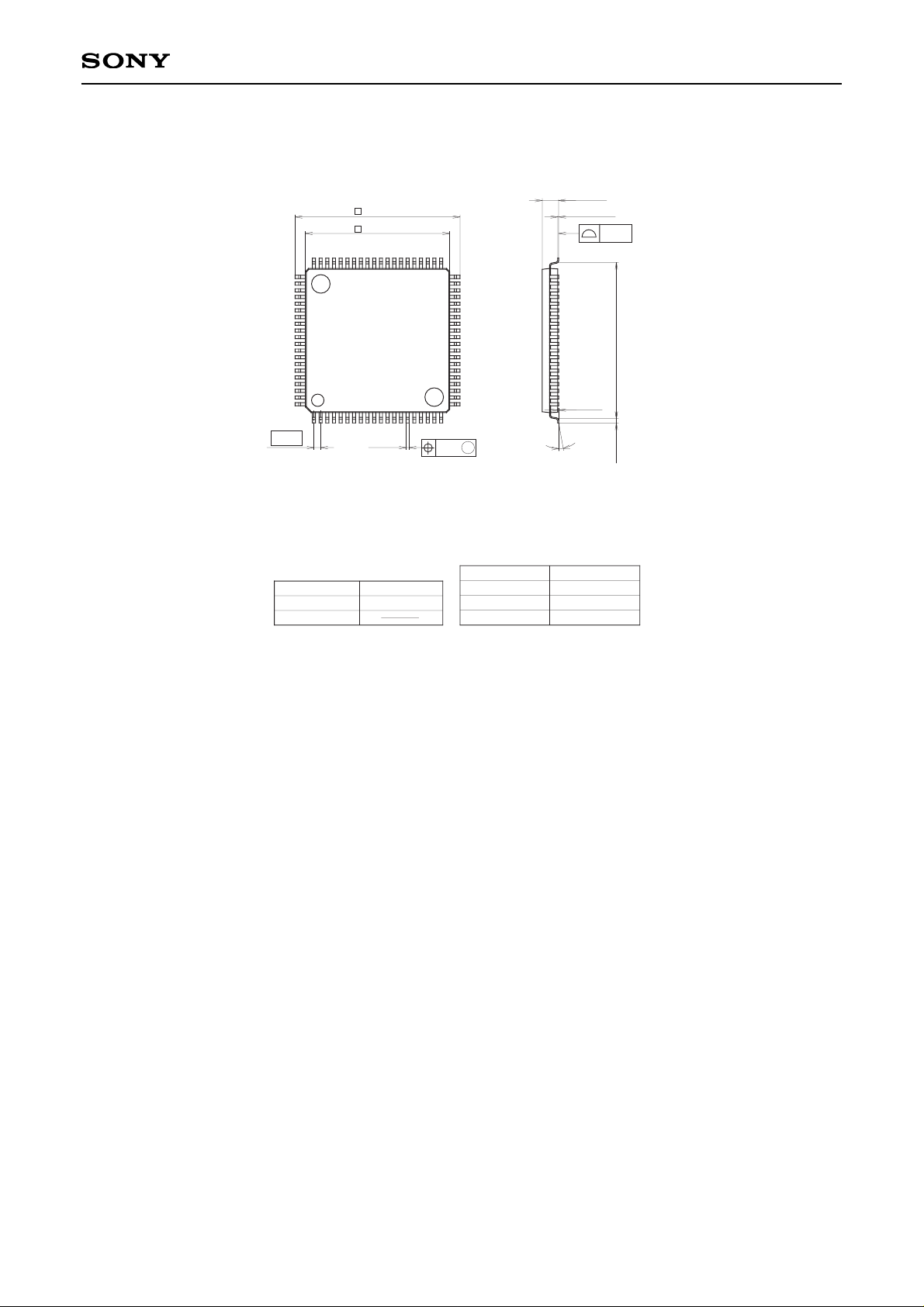

PACKAGE STRUCTURE
SONY CODE
EIAJ CODE
JEDEC CODE
QFP-80P-L01
QFP080-P-1420
PACKAGE MATERIAL
LEAD TREATMENT
LEAD MATERIAL
PACKAGE MASS
EPOXY RESIN
SOLDER PLATING
42/COPPER ALLOY
1.6g
23.9 ± 0.4
20.0 – 0.1
+ 0.4
1
80
65
64
41
40
25
24
0.8
0.35 – 0.1
+ 0.15
14.0 – 0.1
+ 0.4
17.9 ± 0.4
16.3
0.1 – 0.05
+ 0.2
2.75 – 0.15
+ 0.35
0.8 ± 0.2
0.15 – 0.05
+ 0.1
80PIN QFP (PLASTIC)
M
0.2
0.15
0° to 10°
DETAIL A
A
Package Outline Unit: mm
CXP836P60
SONY CODE
EIAJ CODE
JEDEC CODE
PACKAGE MATERIAL
LEAD TREATMENT
LEAD MATERIAL
PACKAGE MASS
EPOXY RESIN
SOLDER PLATING
42 ALLOY
PACKAGE STRUCTURE
14.0 ± 0.2
∗ 12.0 ± 0.1
(0.22)
60
41
40
21
20
80
61
1
0.18 – 0.03
+ 0.08
A
1.5 – 0.1
+ 0.2
0.127 – 0.02
+ 0.05
0.5 ± 0.2
(13.0)
0.1 ± 0.1
0.5 ± 0.2
0° to 10°
DETAIL A
80PIN LQFP (PLASTIC)
0.5g
LQFP-80P-L01
LQFP080-P-1212
0.1
NOTE: Dimension “∗” does not include mold protrusion.
0.13
M
0.5
CXP836P60
Page 30
– 30 –
CXP836P60, CXP836P61
CXP836P61
SONY CODE
EIAJ CODE
JEDEC CODE
PACKAGE STRUCTURE
PACKAGE MATERIAL
LEAD TREATMENT
LEAD MATERIAL
PACKAGE MASS
EPOXY RESIN
SOLDER PLATING
42/COPPER ALLOY
QFP-80P-L03
QFP080-P-1414
0.6g
80PIN QFP (PLASTIC)
16.0 ± 0.4
14.0 – 0.1
+ 0.4
0.3 – 0.1
+ 0.15
0° to 10°
0.5 ± 0.2
0.1 – 0.1
+ 0.15
(15.0)
0.127 – 0.05
+ 0.1
1.5 – 0.15
+ 0.35
40
21
20
1
41
60
61
80
M
0.24
0.1
0.65
Loading...
